Warming drawer
BIC510N.0B BID510N.0B
[en] User manual and installation instructions

en Safety
2
Table of contents
INFORMATION FOR USE
1 Safety ....................................................................2
2 Preventing material damage ...............................3
3 Environmental protection and saving en-
ergy .......................................................................3
4 Familiarising yourself with your appliance ........4
5 Before using for the first time .............................4
6 Tableware .............................................................4
7 Basic operation ....................................................5
8 Preheating tableware ...........................................5
9 Keeping food warm..............................................5
10 Cleaning and servicing........................................6
11 Troubleshooting...................................................6
12 How it works.........................................................7
13 Customer Service.................................................8

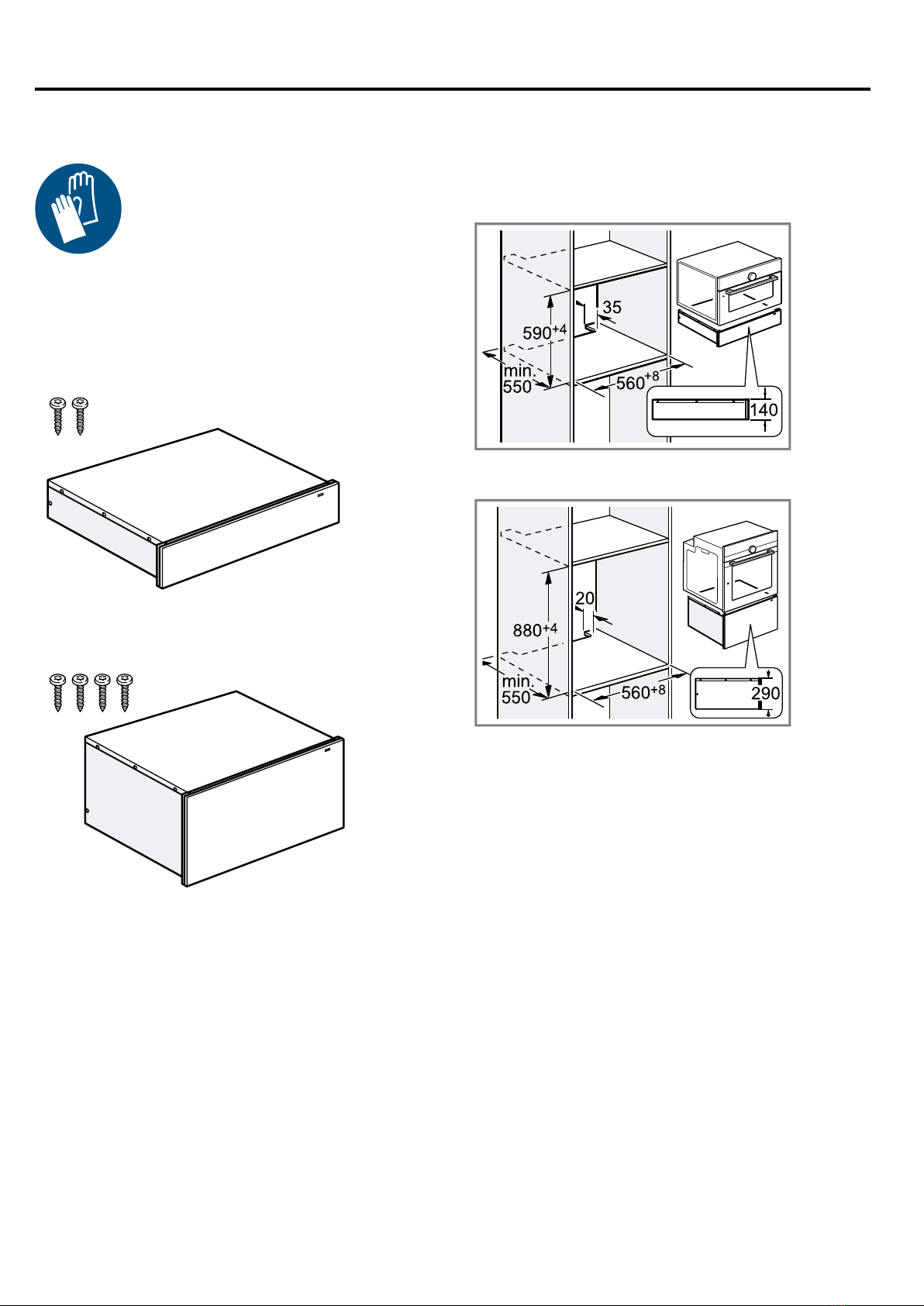

14 INSTALLATION INSTRUCTIONS .........................9
14.4 Safe installation .................................................10
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
Only a licensed professional may connect ap-
pliances without plugs. Damage caused by in-
correct connection is not covered under the
warranty.
Only use this appliance:
¡To keep food warm and to warm cookware.
¡In private households and in enclosed
spaces in a domestic environment.
¡Up to an altitude of max. 4000m above
sea level.
Do not use the appliance:
¡On boats or in vehicles.
¡with an external timer or a remote control.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
The inside of the appliance gets very hot and
may cause flammable materials to ignite.
▶Never place flammable objects or plastic
containers in the appliance.
WARNING‒Risk of burns!
The accessories and cookware become very
hot during operation.
▶Always use oven gloves when removing
hot accessories or cookware from the ap-
pliance.
The inside of the appliance becomes very hot
during operation.
▶Never touch the inside of the appliance
while it is hot.
▶Keep children away from the appliance.
The appliance becomes hot during operation.
▶Allow the appliance to cool down before
cleaning.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.

Preventing material damage en
3
If the insulation of the power cord is dam-
aged, this is dangerous.
▶Never let the power cord come into contact
with hot appliance parts or heat sources.
▶Never let the power cord come into contact
with sharp points or edges.
▶Never kink, crush or modify the power
cord.
An ingress of moisture can cause an electric
shock.
▶Do not use steam- or high-pressure clean-
ers to clean the appliance.
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page8
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.
2 Preventing material damage
ATTENTION!
Excessive weight may damage the appliance.
▶The appliance has a maximum load capacity of
15kg.
Moisture may damage the appliance.
▶Do not use the appliance to store food and drinks.
The humidity of the food may cause corrosion dam-
age.
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶Sort the individual components by type and dispose
of them separately.

en Familiarising yourself with your appliance
4
4 Familiarising yourself with your appliance
4.1 Appliance
You can find an overview of the parts of your appliance
here.
##
#
123
On certain models, specific details such as the colour
and shape may differ from those pictured.
1
Surface area with anti-slip mat
2
Fan and heating
3
Controls
4.2 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
12
3
12
3
1
Main switch
2
Operation indicator
3
Temperature selector
5 Before using for the first time
Configure the settings for initial start-up. Clean the ap-
pliance and accessories.
5.1 Cleaning and heating up the appliance
before using it for the first time
1. Clean the appliance.
2. Remove the accessories.
3. Heat up the appliance at 80°C for one hour.
aSmoke development and odour development are
normal.
6 Tableware
These instructions help you to avoid damaging your tableware.
6.1 Suitable tableware
The warming drawer has a maximum load capacity of 15kg. You can use it to preheat the place settings for 6 or
12people, for example.
Drawer – 14cm Drawer – 29cm
6 dinner plates 24cm diameter 12 dinner plates 24cm diameter
6 soup bowls 10cm diameter 12 soup bowls 10cm diameter
1bowl 19cm diameter 1bowl 22cm diameter
1bowl 17cm diameter 1bowl 19cm diameter
1meat platter 32cm 1bowl 17cm diameter
2 meat platters 32cm

Basic operation en
5
7 Basic operation
7.1 Opening the appliance
▶Press on the centre of the warming drawer.
aThe warming drawer pops open and can be pulled
out.
7.2 Closing the appliance
▶Press on the centre of the warming drawer and
push it back in.
7.3 Switching on the appliance
▶Press ⁠.
7.4 Switching off the appliance
▶Press ⁠.
7.5 Setting the temperature
▶Set the temperature to any value between ⁠,
⁠ and ⁠.
8 Preheating tableware
Food does not cool down as quickly on preheated
tableware. Drinks also remain warm for longer.
8.1 Starting the "Preheat tableware"
function
WARNING‒Risk of burns!
Drinking vessels become very hot at high temperat-
ures.
▶For drinking vessels, set the settings to
.
1. Place an anti-slip mat at the bottom of the drawer to
prevent the tableware scratching the interior surface
of the drawer.
2. Place the tableware in the warming drawer.
‒Distribute the tableware across the entire bottom
of the warming drawer to reduce the preheating
time.
Do not block the ventilation opening with tall items
of tableware or stacks of plates. Keeping the ventila-
tion opening clear ensures that hot air can circulate
efficiently.
3. Turn the temperature selector to set the required
temperature.
A setting of up to ⁠ is suitable for tableware. For
drinking vessels, the settings from ⁠ to ⁠ are
suitable.
4. Switch on the appliance.
aThe operation indicator lights up, the appliance
heats up and the fan runs.
5. Close the warming drawer.
Note:The preheating time depends on the material,
thickness, quantity and distribution of the tableware.
For place settings for 6people, the preheating time is
approx.15-25minutes.
8.2 Ending the "Preheat cookware" function
WARNING‒Risk of burns!
The accessories and/or cookware become very hot
during operation.
▶Always use oven gloves to remove accessories or
cookware from the cooking compartment.
1. Open the warming drawer.
2. Switch off the appliance.
3. Remove the cookware.
9 Keeping food warm
You can use the warming drawer to keep food warm
for a certain period of time.
We advise against keeping food warm for longer than
an hour. Suitable food includes meat, poultry, fish,
sauces, vegetables, side dishes and soups.
9.1 Starting the "Keep food warm" function
ATTENTION!
Hot cookware from the hob damages the anti-slip mat
in the warming drawer.
▶Never take hot pots and pans off the hob and place
them directly on the anti-slip mat.
1. Place an anti-slip mat at the bottom of the drawer to
prevent the tableware scratching the interior surface
of the drawer.
The anti-slip mat is food-safe. Dry food can be
heated directly on the anti-slip mat in the warming
drawer. The anti-slip mat must then be cleaned.
2. Place the tableware in the warming drawer.
3. Turn the temperature selector to set the required
temperature.
4. Switch on the appliance.
aThe operation indicator lights up, the appliance
heats up and the fan runs.
5. Preheat the tableware for approx. 10minutes.
6. Place food into the preheated tableware.
‒Do not completely fill the tableware with food to
prevent any content from spilling out when you
open and close the warming drawer.
‒Cover food which dries out easily with a heat-res-
istant lid or aluminium foil.
7. Close the warming drawer.

en Cleaning and servicing
6
9.2 Ending the "Keep food warm" function
WARNING‒Risk of burns!
The accessories and/or cookware become very hot
during operation.
▶Always use oven gloves to remove accessories or
cookware from the cooking compartment.
1. Open the warming drawer.
2. Switch off the appliance.
3. Remove the cookware.
10 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
10.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶Do not use harsh or abrasive detergents.
▶Do not use cleaning products with a high alcohol
content.
▶Do not use hard scouring pads or cleaning
sponges.
▶Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶Wash sponge cloths thoroughly before use.
10.2 Cleaning the appliance
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶Allow the appliance to cool down before cleaning.
Requirement:The appliance is switched off.
1. Clean the appliance with a damp cloth and a neutral
cleaning agent, such as washing-up liquid and wa-
ter.
2. Dry with a soft cloth.
10.3 Cleaning the stainless steel surfaces
1. Always remove limescale, grease, starch or albumin
stains immediately.
Corrosion may form under such stains.
2. Clean with water and some washing-up liquid.
3. Dry with a soft cloth.
10.4 Cleaning the glass front
▶Clean the glass front using a glass cleaning product
and a soft cloth.
‒Do not use any abrasive sponges that may
scratch or any glass scrapers.
10.5 Cleaning the anti-slip mat
1. Remove the anti-slip mat to clean it.
2. Clean the anti-slip mat with washing-up liquid.
11 Troubleshooting
You can rectify minor faults on your appliance yourself.
Read the troubleshooting information before contacting
after-sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶If the appliance is defective, call Customer Service.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶Only use genuine spare parts when repairing the
appliance.
▶If the power cord of this appliance is damaged, it
must be replaced by trained specialist staff.
11.1 Malfunctions
Fault Cause and troubleshooting
The cookware or
food is not heating
up.
There has been a power cut.
▶Check whether the lighting in your kitchen or other appliances are working.
The appliance is switched off.
▶Switch the appliance on.
The warming drawer is not completely closed.
▶Close the warming drawer.

How it works en
7
Fault Cause and troubleshooting
The appliance is not
working.
The circuit breaker is faulty.
▶Check the circuit breaker in the fuse box.
The cookware or
food does not get
warm enough.
The cookware or food has not been heated for long enough.
▶Heat the cookware or the food for a longer period of time.
The warming drawer is not completely closed.
▶Close the warming drawer.
The warming drawer was open for a long time.
▶Close the warming drawer.
The warming drawer was not adequately preheated.
▶Preheat the warming drawer sufficiently.
The ventilation opening has been blocked by tableware.
▶Remove tall tableware from the ventilation opening.
The operation indic-
ator light does not
light up.
The operation indicator light is defective.
▶Call the after-sales service.
→"Customer Service", Page8
The fuse in the fuse
box has blown.
The circuit breaker is faulty.
▶Pull out the mains plug.
▶Call the after-sales service.
→"Customer Service", Page8
12 How it works
Here, you can find the ideal settings for various dishes as well as the best accessories and cookware. We have
tailored these recommendations to your appliance.
12.1 Recommended settings
The following settings have been specially tested for your appliance.
Tableware and drinking vessels
Dish Preheating the
drawer
Preheating tableware Level Information
Plates, soup bowls,
bowls
No Not applicable ⁠
Espresso cups, cof-
fee cups
No Not applicable ⁠
Defrosting frozen foods
Dish Preheating the
drawer
Preheating tableware Level Information
Cream cakes, butter,
sausages, cheese
No No ⁠ On a plate or in a
glass tray
Cakes, bread No No ⁠ On a plate or in a
glass tray
Meat No No ⁠ On a plate or in a
glass tray

en Customer Service
8
Warming
Dish Preheating the
drawer
Preheating tableware Level Information
Flatbreads, e.g. pan-
cakes, wraps, tacos
5 – 10min. Not applicable ⁠
Dry cakes, e.g. cakes
with crumble topping,
muffins
5 – 10min. Not applicable ⁠
Keeping warm
Dish Preheating the
drawer
Preheating tableware Level Information
Drinks 5 – 10min. Yes ⁠
Most food, soups,
sauces, side dishes
5 – 10min. Yes ⁠ Decanted food, max-
imum 80°C
Sensitive food, e.g.
cooked meat
5 – 10min. Yes ⁠ Decanted food, max-
imum 80°C
Boiled eggs,
scrambled eggs
5 – 10min. Yes ⁠ Decanted food, max-
imum 80°C
Bread, e.g. toast, rolls 5 – 10min. Not applicable ⁠
Melting
Dish Preheating the
drawer
Preheating tableware Level Information
Dissolving gelatin No No ⁠ Uncovered tableware,
around 20minutes
Cooking chocolate or
couverture chocolate
No No ⁠
Crystallised honey No No ⁠
Proving dough
Dish Preheating the
drawer
Preheating tableware Level Information
Yeast dough 5 – 10min. No ⁠ Covered bowls,
dishes or baking
trays
13 Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.
13.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
You can see the rating plate with these numbers when
you open the drawer.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.

Installation instructions en
9
14 Installation instructions
Observe this information when installing the appliance.
14.1 Included with the appliance
After unpacking all parts, check for any transport dam-
age and for completeness of delivery.
14cm
29cm
14.2 Installation in the cabinet
You will find the dimensions of the appliance here
14cm
29cm
14.3 Instructions for the electrical
connection
In order to safely connect the appliance to the elec-
trical system, follow these instructions.
¡The appliance must only be connected to a protect-
ive contact socket that has been correctly installed.
Only a qualified electrician may install a socket or
replace the connecting cable, taking the appropriate
regulations into account.
¡The appliance must only be connected with the
power cable provided. Connect the power cable to
the back of the appliance.
¡Connecting cables with various plug types are avail-
able from after-sales service.
¡No multi-plugs, multiple connectors or extension
leads must be used. Overloading causes a risk of
fire.
¡If the plug can no longer be reached after the in-
stallation, a partition must be provided in the phases
in the permanent electrical installation in accord-
ance with the installation regulations.

en Installation instructions
10
14.4 Safe installation
Follow these safety instructions when in-
stalling the appliance.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
WARNING‒Risk of electric shock!
If the insulation of the power cord is dam-
aged, this is dangerous.
▶Never let the power cord come into contact
with hot appliance parts or heat sources.
▶Never let the power cord come into contact
with sharp points or edges.
▶Never kink, crush or modify the power
cord.
WARNING‒Risk of injury!
Sharp-edged parts may be accessible during
installation.
▶Wear protective gloves.
14.5 Installation
Fitted units
This is where you can find information about safe in-
stallation.
ATTENTION!
Covering the ventilation slots and air intake openings
causes the appliance to overheat.
▶Do not cover ventilation slots and air intake open-
ings.
If the appliance is installed behind a decorative panel,
this may cause it to overheat.
▶Do not install the appliance behind a decorative
panel.
The built-in unit must not have arear panel behind
theappliance.
The minimum distance between the wall and the cab-
inet base or back wall of the cabinet that is situated
above must be complied with.
Observe the installation instructions for the appliance
installed above.
If no intermediate floor is possible above the appliance
or above the oven, install tilt protection for the appli-
ance. Suitable tilt protection can be obtained from cus-
tomer service, on our website or in the online shop.
Installing the appliance
WARNING‒Risk of electric shock!
If the insulation of the power cord is damaged, this is
dangerous.
▶Never let the power cord come into contact with hot
appliance parts or heat sources.
▶Never let the power cord come into contact with
sharp points or edges.
▶Never kink, crush or modify the power cord.
WARNING‒Risk of injury!
After removing the transport lock, the drawer may open
suddenly during transport.
▶Transport the appliance in such a way that the
drawer does not accidentally open.
The high weight of the appliance may result in injury
when lifted.
▶Do not lift the appliance on your own.
1. Insert the power cord into a protective contact
socket.
The power cord must not touch the rear and base of
the appliance after installation.
2. Insert the appliance.
3. Centre the appliance.
4. Screw the appliance into place.
5. Remove and dispose of the protective padding.

Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
*9001791859*
9001791859 (021117)
en1
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
