BOSHART 7008 User manual

850-WSF Water Sensor
OPERATION, MAINTENANCE
AND INSTALLATION MANUAL
BOSHART.COM
Part Number 850-WSF (15’) (4.572 M) Model 7008
CAUTION:
Disconnect power before servicing Read instructions thoroughly.
Check local codes and install to meet requirements system) or SCADA system.

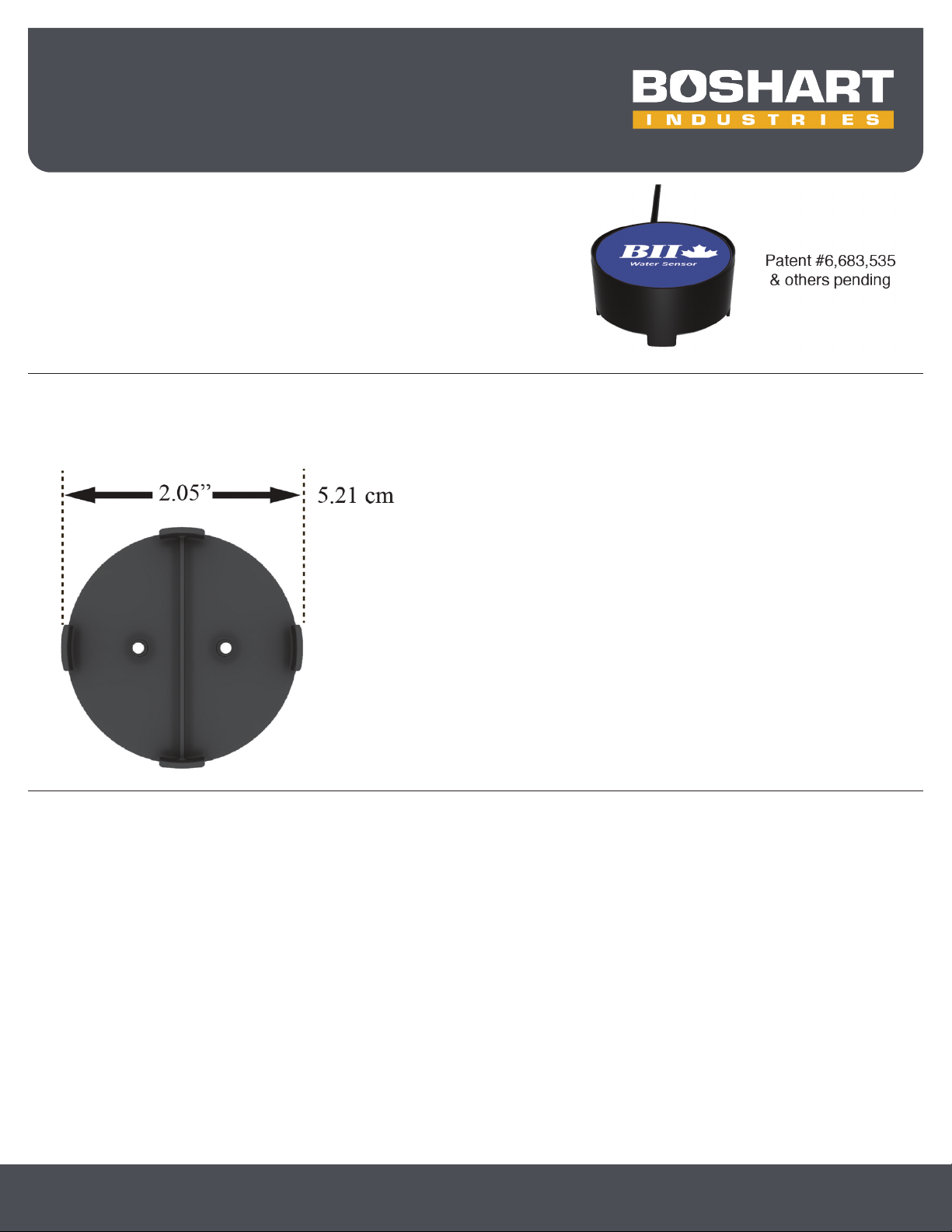

SPECIFICATIONS
DESCRIPTION OF OPERATION & MAINTENANCE
The Water Sensor is a reliable lead detection sensor that can be used in a wide variety of applications such as: computer rooms,
basements, sumps, air conditioner condensate run over, water heaters, utility rooms, and many more applications.
The solid state circuitry is encapsulated in epoxy making the unit waterproof and tamper proof. The probes are stainless steel and
will not rust. It also works with distilled and condensate water.
When connected to the ALARM PANEL, a thin lm of water will activate the ALARM PANEL activating the buzzer and ashing alarm
light. Auxiliary contacts can be utilized to annunciate the alarm or wired into a control circuit that will shut the machine o to
prevent further water leakage. Connect multiple Boshart sensors for zone area protection.
Voltage: 9-12VDC
Operating Current: 3 ma
Switching Current: 500 ma Maximum
Standard Part number 7008 (MODEL NUMBER 850-WSF) - comes
with 15’ (4.572 M) of cable. for extra cord length please contact
Boshart.
PART NUMBER 7008 (15’)
MECHANICAL ELECTRICAL
MODEL NUMBER NOMENCLATURE

850-WSF Water Sensor
OPERATION, MAINTENANCE
AND INSTALLATION MANUAL
BOSHART.COM
DESCRIPTION OF OPERATION & MAINTENANCE CONTINUED
1. Disconnect Power. Determine location for leak detection. See Figure 1
2. Install the Boshart ALARM PANEL per Installation Instruction for the ALARM PANEL.
3. Connect the Water Sensor to the ALARM PANEL. CAUTION!! – Red wire must be connected to the “C” terminal and black wired
must be connected to the “2” terminal. See Figure 2. Note: If a oat switch is added use “C” and “1”
4. Place the Water Sensor at the desired location.
5. In the event of water detection, completely wipe o probes before putting back into service.
6. Test product weekly. For the ALARM PANEL, make sure the green “Normal” light is “on”. Press the “Test” switch, the red alarm
light and buzzer should turn “on”. If the battery backup system is utilized, unplug the wall mount power supply (the green light
will be o). Now press the “test” switch, the red alarm light and buzzer will turn “on”. If the buzzer sounds less loud than when
tested with the normal power supply, then replace the battery. Refer to instructions on installing/replacing the battery on
page 2 of the ALARM PANEL installation Instruction. Reconnect power supply when nished to put the ALARM PANEL back into
service. Test the Water Sensor by immersing the probes in water or place a wet rag or sponge across the probes. The ALARM
PANEL should activate. Completely wipe and dry probes before putting unit back into service. See Figure 3.
