Boss Audio Systems BV9979B User manual

All manuals and user guides at all-guides.com
all-guides.com

To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.
All manuals and user guides at all-guides.com

-1-
Content
18
18
20
21
21
22
24
24
24
24
24
25
25
25
25
26
29
30
31
31
32
33
34
35
36

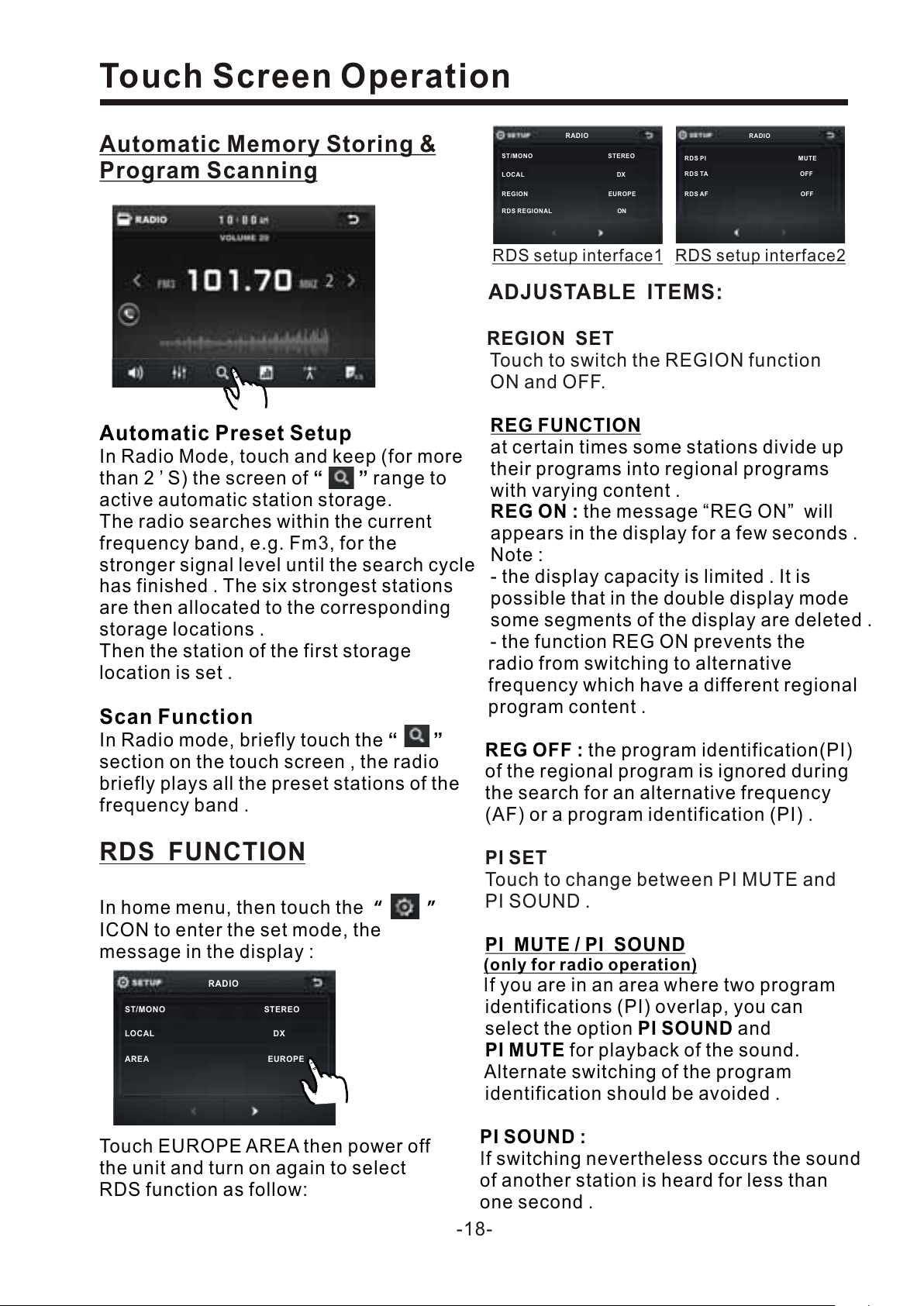

Automatic Memory Storing &
Program Scanning.......................
RDS function..................................
Media Operation.............................
Basic Operation ..............................
Selecting Play Mode ........................
On-Screen Display Function .............
Digital Video Special Function........
Multi-Subtitle Language function.......
Multi-audio language Function..........
Multi-angle Function........................
Title menu function ..........................
A-B Repeat function.........................
Program function.............................
Step function..................................
Slow speed function........................
Bluetooth Operation.....................
AUX Operation ...............................
AV Operation..................................
USB Operation ...............................
Card Operation ..............................
SWC Operation..............................
Parental Control............................
Region Code..................................
Specification .................................
Troubleshooting.............................
Precaution......................................
Safety Information.........................
Disc Note.......................................
Installation ....................................
Electric Connection ......................

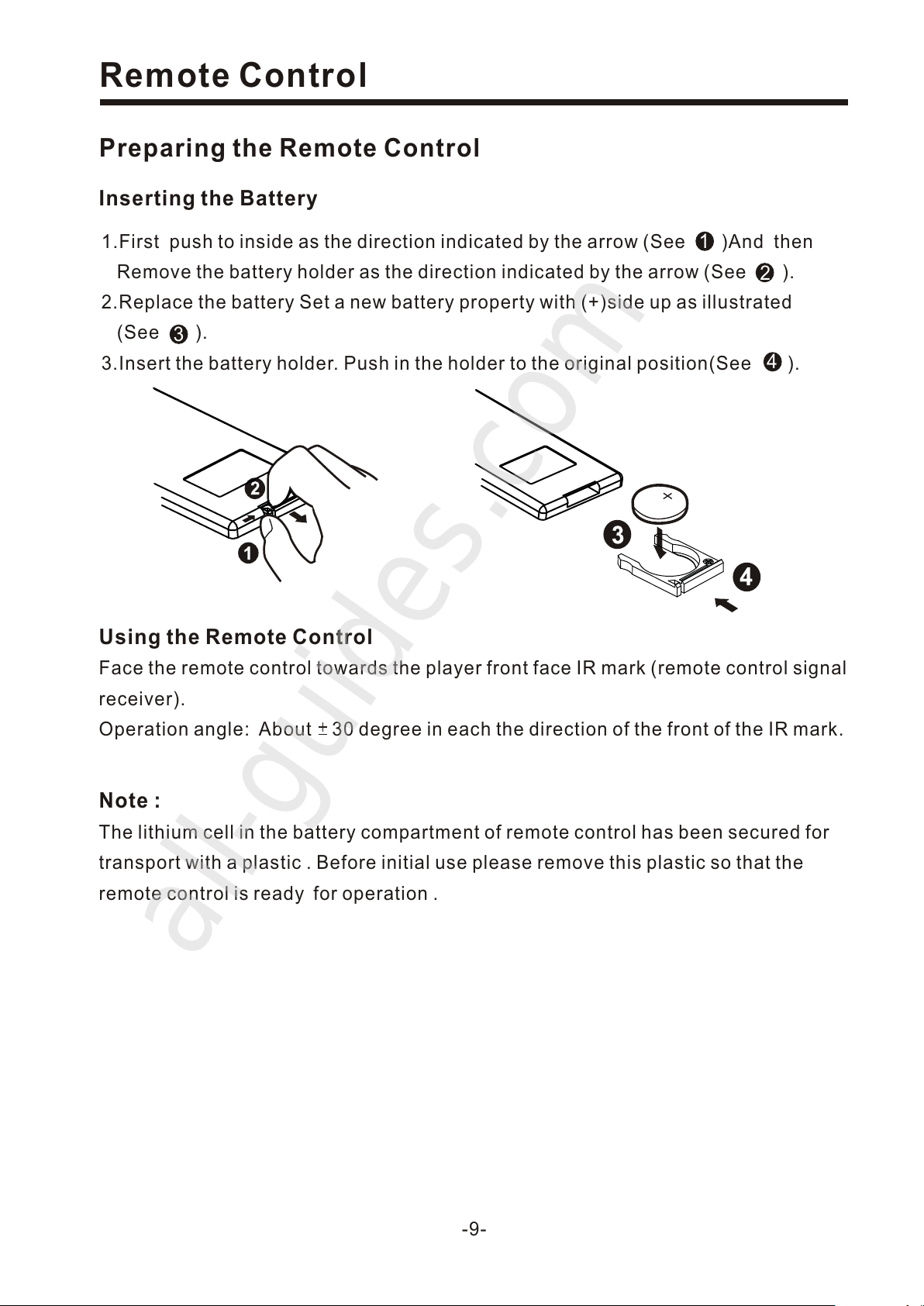

Remote Control ............................

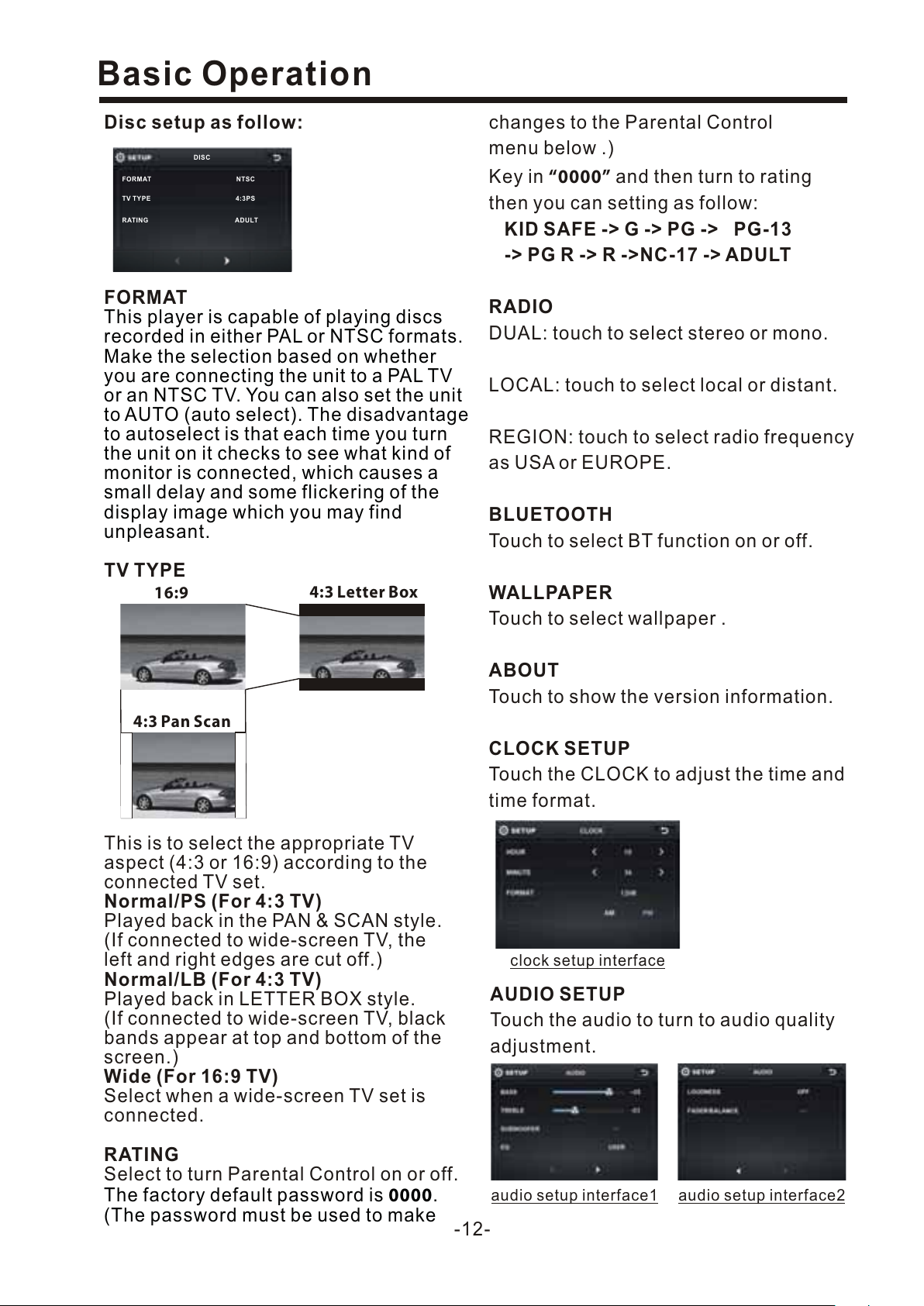

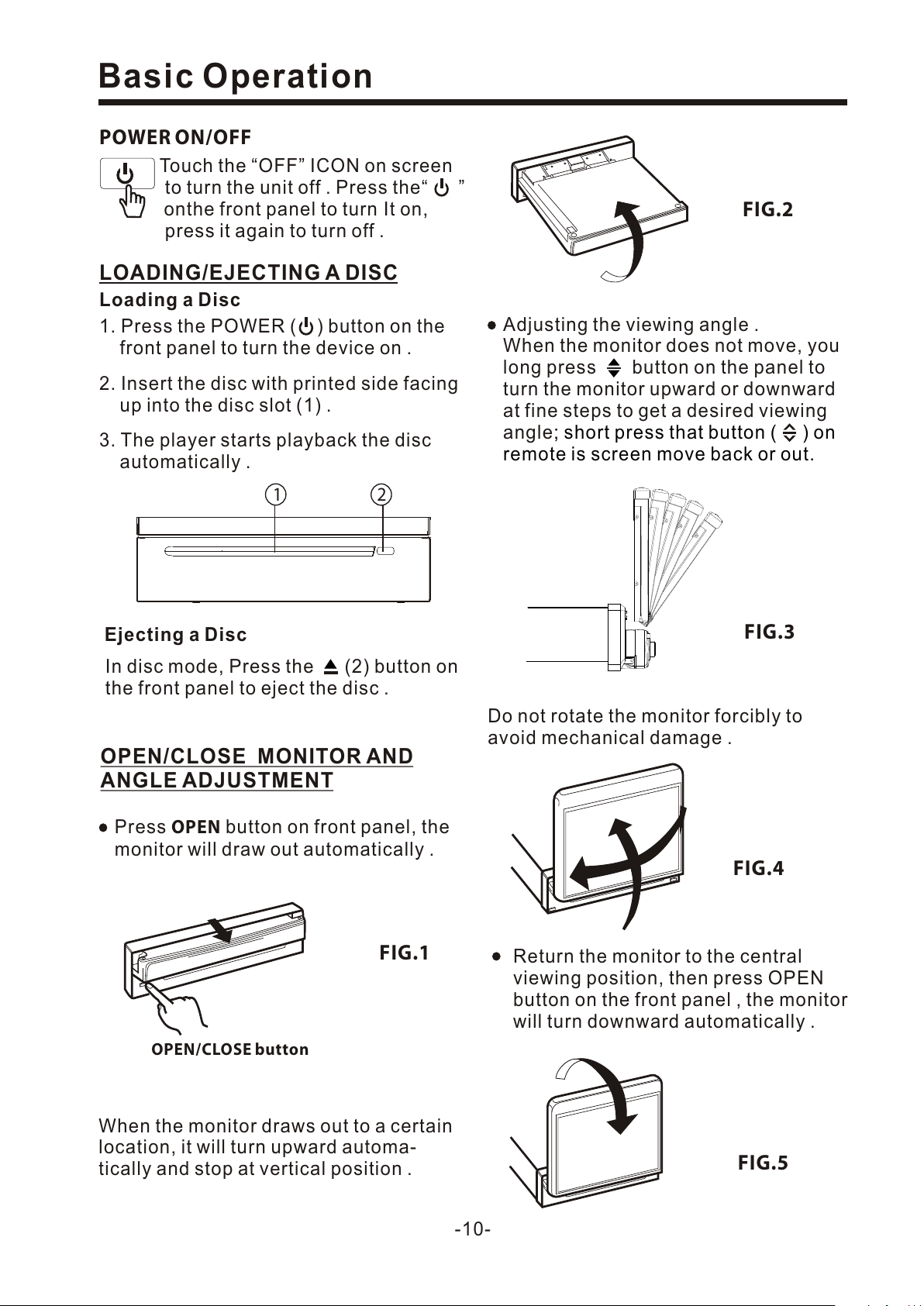

Basic Operation ............................
Loading/Ejecting a DISC .................
Open/Close Monitor and Angle
Adjustment......................... ........
Main Menu Operation......................
Setting animation...........................
Setting disc....................................
Setting radio...................................
Setting bluetooth............................
Setting wallpaper............ ................
Version about..................................
Setting time.......... .........................
Setting audio mode.........................
Setting video mode.........................
Setting OSD language....................
Setting illumination color.................
TFT display calibration. ..................
Rear View Camera ........................

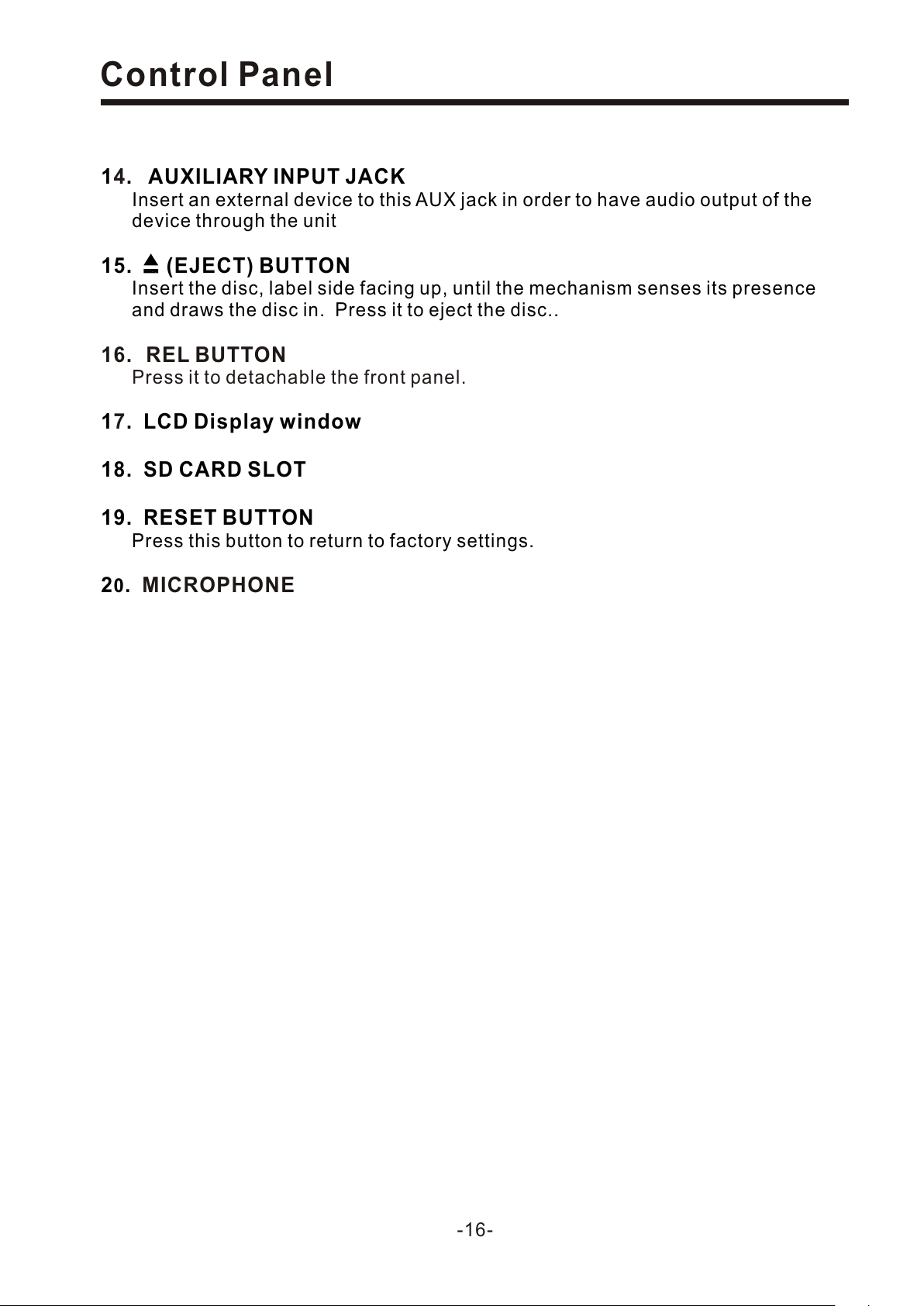

Control Panel ................................
Unit keys ........................................

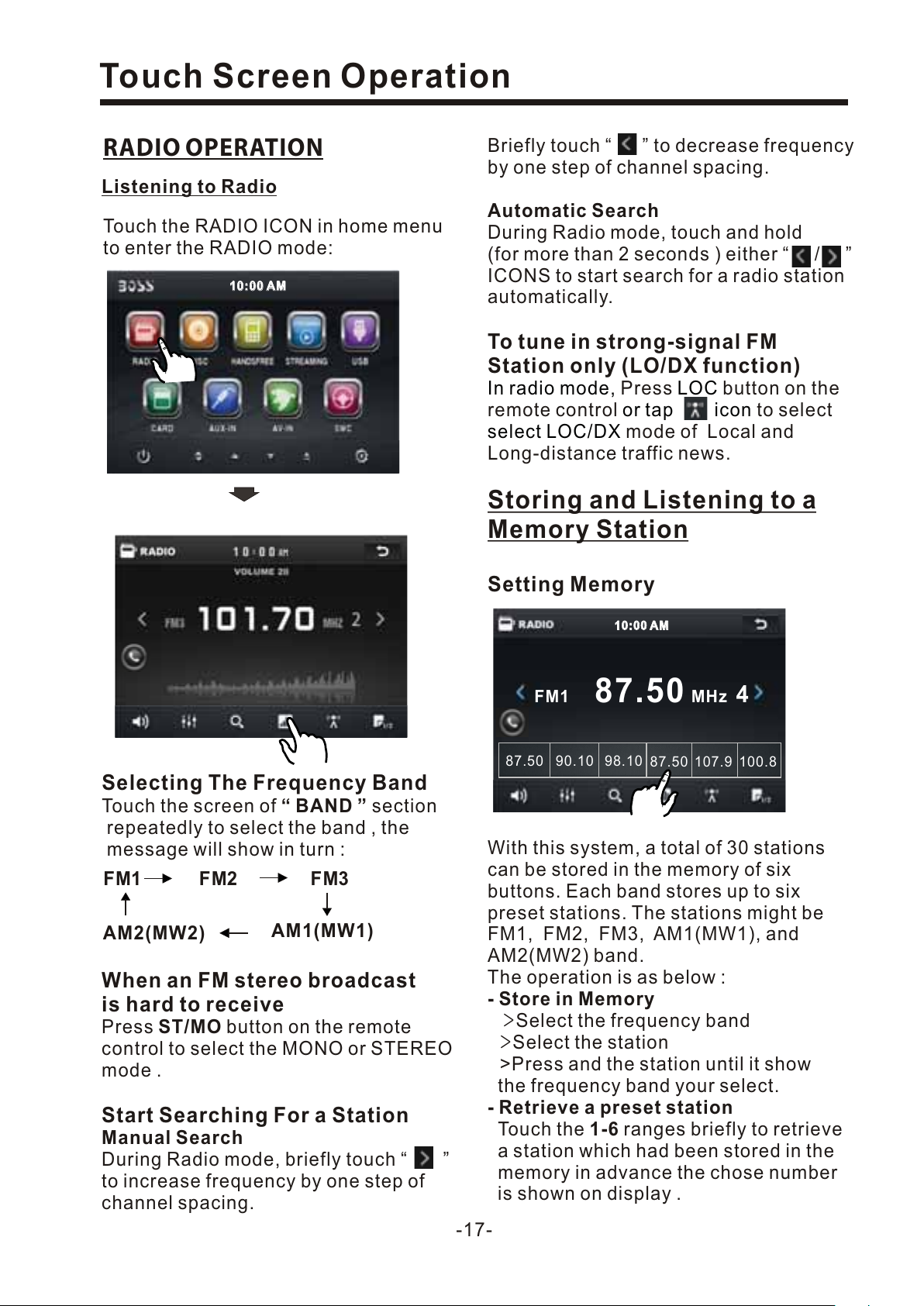

Radio Operation............................
Listening to the radio ......................
Storing and Listening to a memory
station ........................................
2
3
4
5
7
8
10
10
10
11
11
12
12
12
12
12
12
12
13
13
13
13
13
14
14
17
17
17
All manuals and user guides at all-guides.com

-2-
Precaution
THANK YOU FOR PURCHASING PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy
for future reference .
To avoid injury or accident , read the following precautions before
installing and operating the unit .
A BOSS AUDIO MULTIMEDIA
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press on the LCD panel on the unit as doing so can distort the
picture or cause a malfunction . The picture may become unclear , or the
LCD panel may be damaged .
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
-Do not use alcohol to clean the screen .
If your car was parked in a cold or hot place, the picture may not be clear .
The monitor is not damaged . The picture will become clear the temper-
ature in your car becomes normal .
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
ON INSTALLATION
All manuals and user guides at all-guides.com

-3-
Safety Information
CAUTION:
THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER
THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This Digital Video Player is designed and manufactured to respond to the Region
Management Information that is recorded on a Digital Video disc. If the Region
number described on the Digital Video disc does not correspond to the Region
number of this Digital Video Player, this Digital Video Player cannot play this disc.
All manuals and user guides at all-guides.com

-4-
Disc Note
Preparing New Discs with Rough
Spots
A new disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Label side
up
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Discs which cannot be played
with this player
Digital Video-RAM
CDV
CDG
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Disc formats supported by this
player
Digital
Video
VCD
CD
MP3
Audio and Video
Disc size 12 cm
Audio and Video
Disc size 12 cm
Audio
Disc size 12 cm
Audio
Disc size 12 cm
Digital
Video
VCD
CD
MP3
All manuals and user guides at all-guides.com
all-guides.com

NOTES:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
it is all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
of unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
other modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would be subject to high temperature, such
as from direct sunlight, or from hot air, from the heater, or where it would be
subject to dust, dirt or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN
Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded
screw holes at the sides of the unit chassis). For details, refer to the following
illustrated installation methods.
'
Installation
-5-
30
All manuals and user guides at all-guides.com

Installation
-6-
Installing the unit
If you want to take the CHASSIS out of the SLIDE BRACKET HOUSING, first
remove the PLASTIC COVER on both sides , then insert the two KEY PLATES
into the left and the right sides of the chassis as illustrated above.
KEY PLATE
PLASTIC TRIM OUT
KEY PLATE
DASH BOARD
METAL MOUNTING
STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
SCREWDRIVER
TABS
All manuals and user guides at all-guides.com

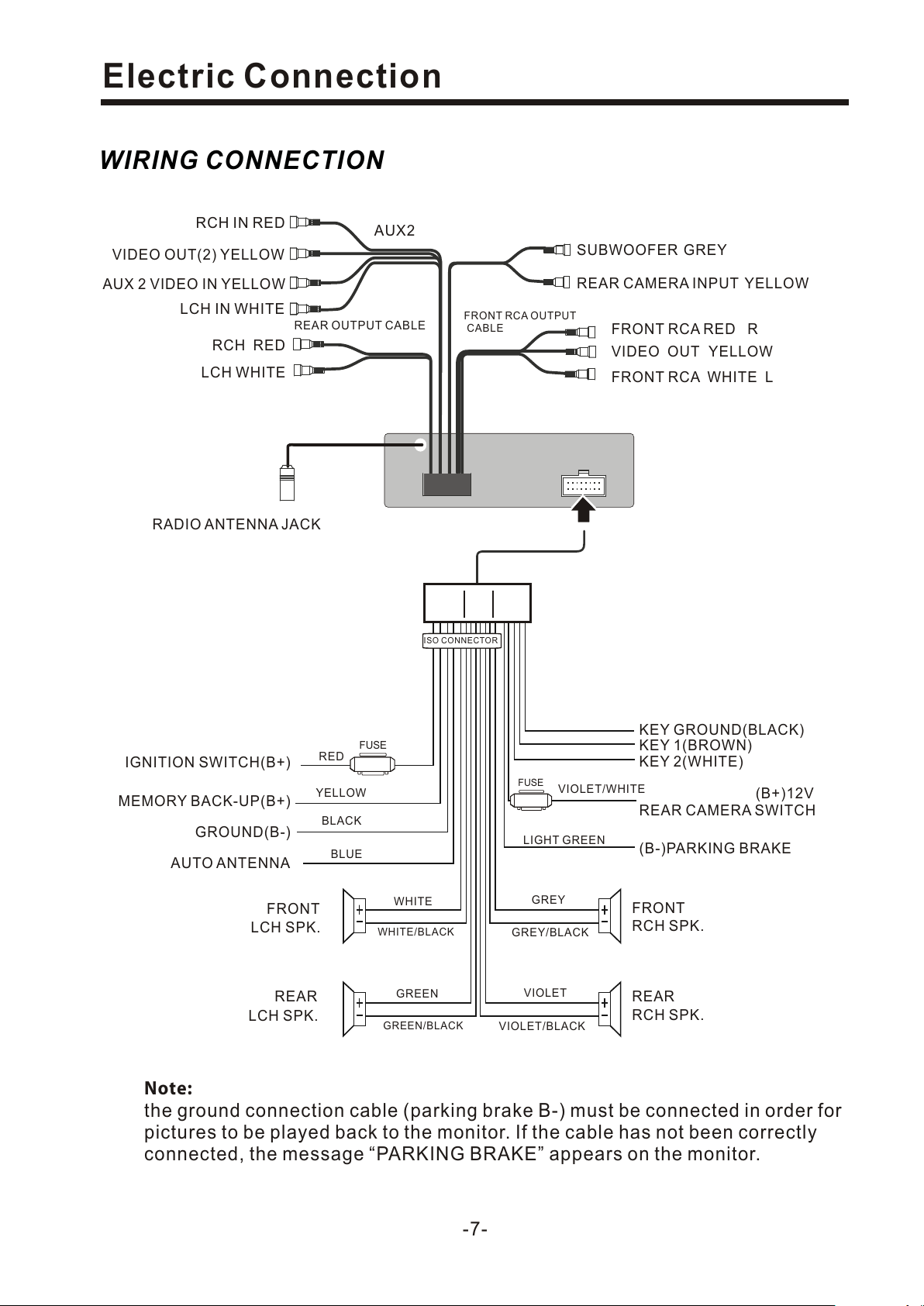

Electric Connection
-7-
WIRING CONNECTION
Note:
the ground connection cable (parking brake B-) must be connected in order for
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.
(B+)12V
REAR CAMERA SWITCH
(B-)PARKING BRAKE
GREY
GREY/BLACK
FRONT
RCH SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
LCH SPK.
AUTO ANTENNA BLUE
GROUND(B-)
MEMORY BACK-UP(B+)
IGNITION SWITCH(B+) RED
YELLOW
BLACK
REAR
RCH SPK.
FRONT
LCH SPK.
LIGHT GREEN
FUSE
FUSE
KEY GROUND(BLACK)
KEY 1(BROWN)
KEY 2(WHITE)
ISO CONNECTOR
VIOLET/WHITE
SUBWOOFER GREY
RCH RED
LCH WHITE
REAR OUTPUT CABLE
FRONT RCA WHITE L
FRONT RCA RED R
VIDEO OUT YELLOW
FRONT RCA OUTPUT
CABLE
REAR CAMERA INPUT YELLOW
RADIO ANTENNA JACK
RCH IN RED
LCH IN WHITE
VIDEO OUT(2) YELLOW
AUX 2 VIDEO IN YELLOW
AUX2
All manuals and user guides at all-guides.com

-8-
Remote Control
18. RPT BUTTON
19. ANG BUTTON
20. 10+ BUTTON
21. LANG/L/R/ST BUTTON
22. A-B/CLEAR BUTTON
23. >II BUTTON
24. >>I BUTTON
25. ZOOM BUTTON
26. EQ BUTTON
27. SUBT/REDIAL BUTTON
29. APS/ BUTTON
30. MENU BUTTON
31. SETUP BUTTON
32. / / / BUTTON
33. GOTO BUTTON
34. PBC/TITLE BUTTON
35. RDM BUTTON
36. AF BUTTON
37. TA BUTTON
28. POWER BUTTON
Hang Up
1. OSD BUTTON
2. PROG BUTTON
3. LOUD BUTTON
4. 9
5. LOCK BUTTON
6. ANGLE/MO/ST BUTTON
7. LOC/SLOW BUTTON
8. STOP BUTTON
9. I<< BUTTON
12. STEP/TEL BUTTON
13. SRC BUTTON
14. MUTE BUTTON
15. BAND BTTON
NUMBER(0~ )BUTTONS
C
10. SELECT BUTTON
11. VOLUME+/- BUTTONS
16. OK BUTTON
17. INT BUTTON
4
3
5
7
9
11
12
14
15
18
17
16
13
6
36
8
10
12
23
25
19
24
26
27
29
31
33
35
34
32
30
28
21
37
22
20
All manuals and user guides at all-guides.com

-9-
Remote Control
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Preparing the Remote Control
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See ).
3.Insert the battery holder. Push in the holder to the original position(See ).
1
2
3
4
Inserting the Battery
Note :
The lithium cell in the battery compartment of remote control has been secured for
transport with a plastic . Before initial use please remove this plastic so that the
remote control is ready for operation .
All manuals and user guides at all-guides.com
all-guides.com

Basic Operation
-10-
POWER ON/OFF
LOADING/EJECTING A DISC
Ejecting a Disc
In disc mode, Press the (2) button on
the front panel to eject the disc .
Loading a Disc
3. The player starts playback the disc
automatically .
2. Insert the disc with printed side facing
up into the disc slot (1) .
1 2
1. Press the POWER ( ) button on the
front panel to turn the device on .
Touch the “OFF” ICON on screen
to turn the unit off . Press the“ ”
onthe front panel to turn It on,
press it again to turn off .
OPEN/CLOSE MONITOR AND
ANGLE ADJUSTMENT
Press OPEN button on front panel, the
monitor will draw out automatically .
OPEN/CLOSE button
FIG.1
When the monitor draws out to a certain
location, it will turn upward automa-
tically and stop at vertical position .
FIG.2
FIG.3
Do not rotate the monitor forcibly to
avoid mechanical damage .
FIG.4
Return the monitor to the central
viewing position, then press OPEN
button on the front panel , the monitor
will turn downward automatically .
FIG.5
Adjusting the viewing angle .
When the monitor does not move, you
long press button on the panel to
turn the monitor upward or downward
at fine steps to get a desired viewing
angle ; short press that button ( ) on
remote is screen move back or out.
All manuals and user guides at all-guides.com

Basic Operation
-11-
When the monitor turns downward to
a certain angle, it will draw in .
FIG.6
Main Menu Operation
In many modes, touch the icon
or In DVD/VCD mode , touch the
range to enter the main menu,
the message like following as below.
1. POWER icon
In any modes, touch the POWER icon
to switch the unit off . The monitor will
draw in automatically .
2. UP icon
Touch this icon to adjust the angle of
the monitor upward until your desired
angle .
3. CLOSE icon
Touch this icon to Close the monitor .
4. DOWN icon
Touch this icon to adjust the angle of
monitor downward until your desired
angle .
5. EJECT icon
Touch to allow for inserting or ejecting
disc.
6. SETUP icon
Touch to enter the SETTING mode,
the message will display as follow :
General setup interface2
GENERAL
WALLPAPER ...
BLUETOOTH ON
ABOUT ...
ADJUSTABLE ITEMS:
ANIMATION
In RADIO mode, you can change the
playing time of animation among of
“OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M ”.
Note:
Please set the playing time of the
animation to “ 10S ” for the first, when
you turn the unit on .
KEY BEEP : ON or OFF.
Tou ch the “ ” section on the
setting menu, touch the “ / ” ranges
to select the adjustment item,
Tou ch the “ ” icon to return to the
previous playback .
Setup interface 1
GENERAL
ANIMATION 2 MINUTE
KEY BEEP ON
DISC ...DISC ...
RADIO ...
General setup interface1
(3)
(1) (5) (6)(2) (4)
10:00 AM
10:00 AM
Setup interface 2
ILLUMINATION COLOR
All manuals and user guides at all-guides.com

-12-
Basic Operation
Disc setup as follow:
FORMAT
TV TYPE
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in LETTER BOX style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.
RATING
Select to turn Parental Control on or off.
This player is capable of playing discs
recorded in either PAL or NTSC formats.
Make the selection based on whether
you are connecting the unit to a PAL TV
or an NTSC TV. You can also set the unit
to AUTO (auto select). The disadvantage
to autoselect is that each time you turn
the unit on it checks to see what kind of
monitor is connected, which causes a
small delay and some flickering of the
display image which you may find
unpleasant.
The factory default password is 0000.
(The password must be used to make
16:9 4:3 Letter Box
4:3 Pan Scan
DISC
FORMAT NTSC
TV TYPE 4:3PS
RATING ADULT
changes to the Parental Control
menu below .)
Key in “0000” and then turn to rating
then you can setting as follow:
KID SAFE -> G -> PG -> PG-13
-> PG R -> R ->NC-17 -> ADULT
RADIO
DUAL: touch to select stereo or mono.
LOCAL: touch to select local or distant.
REGION: touch to select radio frequency
as USA or EUROPE.
BLUETOOTH
Touch to select BT function on or off.
WALLPAPER
Touch to select wallpaper .
ABOUT
Tou ch to show the version information.
CLOCK SETUP
Tou ch the CLOCK to adjust the time and
time format.
clock setup interface
audio setup interface2audio setup interface1
AUDIO SETUP
Touch the audio to turn to audio quality
adjustment.
All manuals and user guides at all-guides.com

-13-
Basic Operation
The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when
all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
Rear View Camera
When connecting the rear view camera
the mirror image of the rear view is auto-
matically displayed on the monitor
when you change the gear to the back
position.
(Note: additional monitor can not display
the image.)
Reset Factory Settings
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
RESET
TREBLE: -7 to +7
Adjust treble level .
BASS: -7 to +7
Adjust bass level .
SUBWOOFER: touch to adjust subwoofer
volume and frequency.
EQ: touch to select audio mode as follow:
USER -> JAZZ -> CLASSIC -> POP -> ROCK
LOUDNESS: touch to select loudness
effect as :OFF -> LOW -> MID -> HIGH
FADER/BALANCE:
BALANCE: R 0-10 to L 0-10
Adjust sound balance between left
and right speakers .
FADE: F 0-10 to R 0-10
Adjust sound balance between front
and rear speakers .
VIDEO SETUP
COLOR: 0 to 32
Adjust the color for the picture-lighter
or darker.
BRIGHTNESS: 0 to 32
Adjust if the picture is too bright or
too dark.
CONTRAST: 0 to 32
Adjust the contrast of the bright and
dark portion.
TINT: 0 to 32
Adjust the tint if the human skin color
is unnatural.
-Adjustable when “NTSC “ is selected
for “NTSC/PAL “ .
LANGUAGE
Touch to select OSD language.
ILLUMINATION COLOR
Tou ch to select the backlight for all
buttons. Tap auto icon the backlight
change automatically.
CALIBRATION
Tou ch the arrow as show to calibration
the display.
Video setup interface
All manuals and user guides at all-guides.com

-14-
UNIT KEYS
Control Panel
1. OPEN/ BUTTON
SEL BUTTON
In normal mode, knob is used to increase or decrease the volume.
To slide the monitor out and stand it up or into the monitor slot, press this button;
To adjust the angle of the monitor, long press this button .
switch between BASS,TREBLE,
BALANCE, FADE,COLOR, BRIGHTNESS, CONTRAST, TINT ,BT, REG
(in radio mode), PI(in radio mode), TA(in radio mode), AF(in radio mode), LOUD,
SWF, EQ, TIME 12H/24H, CLOCK, BUZZ,EUR/USA FREQ.
After switching on the desired mode above, rotate VOL knob or press VOL+/
VOL- buttons to set it.
2. and VOL KNOB
the VOL
Press the SEL(except radio mode) to
5817 9 10 1211 134
3
20
6
7
16
15
14
1
2
19 18
All manuals and user guides at all-guides.com
all-guides.com

Control Panel
-15-
3. (POWER On/Off )/MODE
Press it to turn on the unit, to switch the device off.
In playback mode, Press it repeatedly to select RADIO, DISC, USB, CARD, AUX,
and AV mode.
4
long pressing |<< or >>| button can automatically search down
or up for an available station beginning from the current frequency; Briefly
pressing |<< or >>| button can manually search down or up for a your desired
station beginning from the current frequency.
In media mode, pressing |<< or >>| button can play the previous or next track;
continuously and long pressing |<< or >>| button can fast backwards or
forwards at the following multiple of normal speed: x2, x4, x8, x20.
6. MUTE BUTTON
Press it button to switch of the loudspeakers for a short period. The word MUTE
flashes in the display. Press it again to cancel the mute function. This function
can also be cancelled by rotating the VOL multifunction button.
-13. PRESET STATION MEMORY AND >II, INT, RPT, RDM BUTTON
A)In RADIO mode
Go to any preset station by pressing one of the 6preset station(1-6) ,if one of
these buttons is pressed for more than 2 seconds, the stations currently being
listened to will be memorized into the selected preset button.
B) In DISC/USB/SD mode
During playing, press 1/>II button to pause the current playback, press again to
to continue play;
During playing, press 2/RPT button to select repeat function;
During playing, press 3/RDM button to select random function;
During DVD/VCD/CD disc playing, press 4/STOP button to stop playing and turn
to home mode, during MP3/USB/SD mode, press this button to turn to previous
mode, press again to turn to home mode;
Press and hold for two seconds
/5. >>| and |<< BUTTONS
In radio mode,
7. USB PORT
For information about connecting a USB device, please see USB operation.
8
In BT mode, press the SEL to receive a call ,during talking,press the SEL to
transfer audio between the Car Audio System and phone; press and hold
the SEL to reject a call.
In radio mode, press the SEL to select MANUAL/AUTO mode, in radio manual
mode to scan the frequency by rotate the VOL knob, select radio auto mode to
cancel the scan function.
All manuals and user guides at all-guides.com

Control Panel
-16-
4
16. REL BUTTON
Press it to detachable the front panel.
7
MICROPHONE
1. AUXILIARY INPUT JACK
Insert an external device to this AUX jack in order to have audio output of the
device through the unit
15. (EJECT) BUTTON
Insert the disc, label side facing up, until the mechanism senses its presence
and draws the disc in. Press it to eject the disc..
1. LCD Display window
18. SD CARD SLOT
19. RESET BUTTON
Press this button to return to factory settings.
20.
All manuals and user guides at all-guides.com

Touch Screen Operation
-17-
Selecting The Frequency Band
Touch the screen of “ BAND ” section
repeatedly to select the band , the
message will show in turn :
When an FM stereo broadcast
is hard to receive
Press ST/MO button on the remote
control to select the MONO or STEREO
mode .
Start Searching For a Station
Manual Search
During Radio mode, briefly touch “ ”
to increase frequency by one step of
channel spacing.
FM1 FM2 FM3
AM2(MW2) AM1(MW1)
RADIO OPERATION
Touch the RADIO ICON in home menu
to enter the RADIO mode:
Briefly touch “ ” to decrease frequency
by one step of channel spacing.
Automatic Search
During Radio mode, touch and hold
(for more than 2 seconds ) either “ / ”
ICONS to start search for a radio station
automatically.
To tune in strong-signal FM
Station only (LO/DX function)
Press button on the
remote control to select
mode of Local and
Long-distance traffic news.
Storing and Listening to a
Memory Station
Setting Memory
With this system, a total of 30 stations
can be stored in the memory of six
buttons. Each band stores up to six
preset stations. The stations might be
FM1, FM2, FM3, AM1(MW1), and
AM2(MW2) band.
The operation is as below :
- Store in Memory
>Select the frequency band
>Select the station
>Press and the station until it show
the frequency band your select.
- Retrieve a preset station
Tou ch the 1-6 ranges briefly to retrieve
a station which had been stored in the
memory in advance the chose number
is shown on display .
In radio mode, LOC
or tap icon
select LOC/DX
Listening to Radio
10:00 AM
10:00 AM
10:00 AM
10:00 AM
FM1 87.50 MHz 4
87.50 90.10 98.10 107.9 100.8
10:00 AM
10:00 AM
87.50
All manuals and user guides at all-guides.com

10:00 AM
10:00 AM
-18-
Touch Screen Operation
Automatic Memory Storing &
Program Scanning
3
RDS FUNCTION
Automatic Preset Setup
In Radio Mode, touch and keep (for more
than 2 ’ S) the screen of “ ” range to
active automatic station storage.
The radio searches within the current
frequency band, e.g. Fm , for the
stronger signal level until the search cycle
has finished . The six strongest stations
are then allocated to the corresponding
storage locations .
Then the station of the first storage
location is set .
Scan Function
In Radio mode, briefly touch the “ ”
section on the touch screen , the radio
briefly plays all the preset stations of the
frequency band .
In home menu, then touch the “ ”
ICON to enter the set mode, the
message in the display :
Touch EUROPE AREA then power off
the unit and turn on again to select
RDS function as follow:
REG FUNCTION
at certain times some stations divide up
their programs into regional programs
with varying content .
REG ON : the message “REG ON” will
appears in the display for a few seconds .
Note :
- the display capacity is limited . It is
possible that in the double display mode
some segments of the display are deleted .
- the function REG ON prevents the
radio from switching to alternative
frequency which have a different regional
program content .
REG OFF : the program identification(PI)
of the regional program is ignored during
the search for an alternative frequency
(AF) or a program identification (PI) .
PI MUTE / PI SOUND
(only for radio operation)
f you are in an area where two program
identifications (PI) overlap, you can
select the option PI SOUND and
PI MUTE for playback of the sound.
Alternate switching of the program
identification should be avoided .
PI SOUND :
f switching nevertheless occurs the sound
of another station is heard for less than
one second .
ADJUSTABLE ITEMS:
REGION SET
Touch to switch the REGION function
ON and OFF.
PI SET
Tou ch to change between PI MUTE and
PI SOUND .
I
I
ST/MONO STEREO
LOCAL DX
AREA EUROPE
RADIO
ST/MONO STEREO
LOCAL DX
REGION EUROPE
RDS REGIONAL ON
RADIO
RDS setup interface1 RDS setup interface2
RADIO
RDS PI MUTE
RDS TA OFF
RDS AF OFF
All manuals and user guides at all-guides.com
