BOSSCO Celsius Platinum PL13HP Instruction Manual

Celsius Platinum Inverter Heat Pump
Installation & User Manual
1
Installation &
User Manual
PREMIUM FULL INVERTER HEAT PUMP

Celsius Platinum Inverter Heat Pump
Installation & User Manual
2
TABLE OF CONTENT
FOR USERS
1. General Information 3-6
1.1 Contents 3
1.2 Operating condition 3
1.3 Advantages of dierent modes 3
1.4 Kind Reminder 4-6
2. Operations 7-10
2.1 Notice before using 7
2.2 Operation Instructions 7-9
2.3 Maintenance and winterising 10
3. Technical Specification 11
FOR INSTALLERS AND PROFESSIONALS
4. Transportation 12
5. Installation and maintenance 13-20
5.1 Notice before installation 13
5.2 Installation Instructions 14-17
5.3 Trial after Installation 20
5.4 Maintenance and winterising 20
6. Trouble Shooting Guide 21
7. Error Codes 22
8. WiFi Setting 23-28

Celsius Platinum Inverter Heat Pump
Installation & User Manual
3
1. GENERAL INFORMATION
1.1 CONTENTS
1.2 OPERATING CONDITIONS AND RANGE
1.3 ADVANTAGES OF DIFFERENT MODES
After unpacking, please check that you have all the following components.
Items Range
Operating Range AirTemperature -7OC - 43OC
Temperature Setting
Heating 18OC - 40OC
Cooling 12OC - 35OC
The heat pump will have ideal performance in the operation range Air 15OC ~ 25OC
The heat pump has two modes: Smart and Silence.
They have dierent advantages under dierent conditions
Mode Recommendation Advantages
Smart Mode
As standard
• Heating capacity: 20% to 100% capacity
• Intelligent optimization
• Fast heating
Silence Mode
Use at Night
• Heating capacity: 20% to 80% capacity
• Sound level: 3dB (A) lower than Smart mode.

Celsius Platinum Inverter Heat Pump
Installation & User Manual
4
1.4 KIND REMINDER
!ATTENTION
This heat pump has power-o memory function. When the power is recovered, the heat
pump will restart automatically.
The heat pump can only be used with pool water. It can NEVER be used to heat or cool other
flammable or turbid liquid.

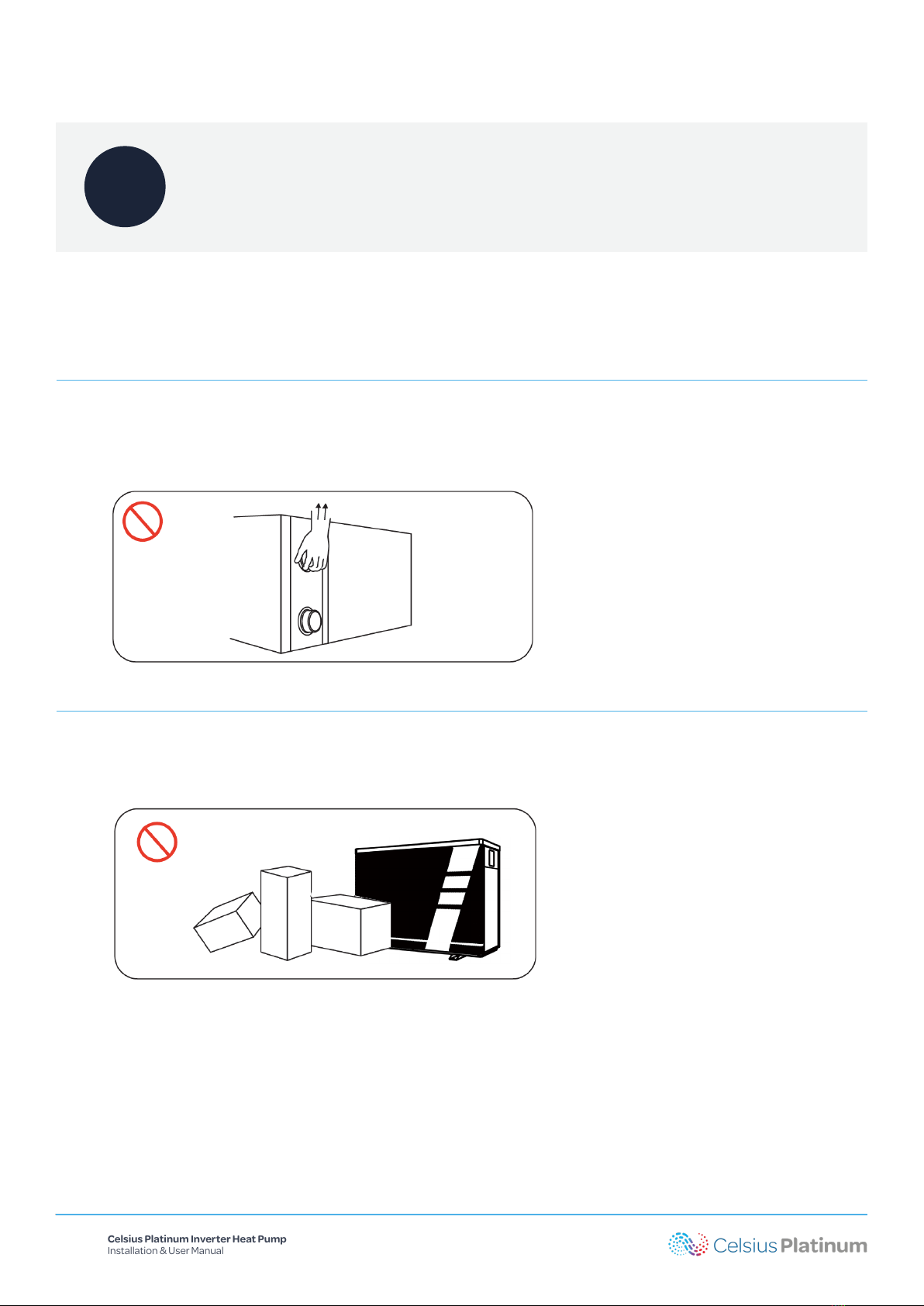

When moving the heat pump, do not lift the water union. This will damage the titanium heat
exchanger.
Do not obstruct the air inlet or outlet of the heat pump.
1.4.1
1.4.2
1.4.3

Celsius Platinum Inverter Heat Pump
Installation & User Manual
5
Do not obstruct or insert any objects into inlet or outlet ofthe heat pump. The eciency may
be reduced or even stopped.
To avoid fire hazards, do not store or use combustible gas or liquids such as thinners, paints
or fuels near the heat pump.
If you detect any abnormal noises, odours, smoke or leaks from the heat pump, immediately
switch o the power supply and contact your local dealer. Do not attempt to repair the heat
pump yourself.
1.4.4
1.4.5
1.4.6

Celsius Platinum Inverter Heat Pump
Installation & User Manual
6
The main power supply switch should be out of the reach of children.
1.4.7
Please disconnect the heat pump from the power supply during electrical storms.
1.4.8
Please note that following codes are not failures.
1.4.9
Codes
No water flow E3
Anti-freezing reminder Ed
Out of the operating range Eb
Insucient water flow or pump blocked E6
Power abnormal E5

Celsius Platinum Inverter Heat Pump
Installation & User Manual
7
2. OPERATIONS
2.1 NOTICE BEFORE USING
2.2 OPERATION INSTRUCTIONS
To optimise the life-cycle of the system,
the user is advised to start the water
pump before the heat pump, and turn o
the heat pump before the water pump.
Check for any water leakage in connecting
pipework, then turn on the power supply,
press the ON/OFF button of the heat
pump, and set desired temperature.
Symbol Designation Operation
Power ON/OFF Power On/O
Unlock / Mode
1. Press it for 3 seconds to unlock/lock screen
2. After screen is unlocked, press it to select mode
• Auto (12~40OC)
• Heating (18~40OC)
• Cooling (12~30OC)
Speed Select Turbo/Smart/Silence mode
Up / Down Adjust set temperature
1
2

Celsius Platinum Inverter Heat Pump
Installation & User Manual
8
NOTE
Screen lock
Screen unlock
a) If no operation in 30 seconds, screen will be locked.
b) When Heat Pump is o, screen will be dark and “0%” will be displayed.
b) All other buttons are only functional after the screen is unlocked.
a) Press for 3 seconds to unlock screen. The screen will illuminate

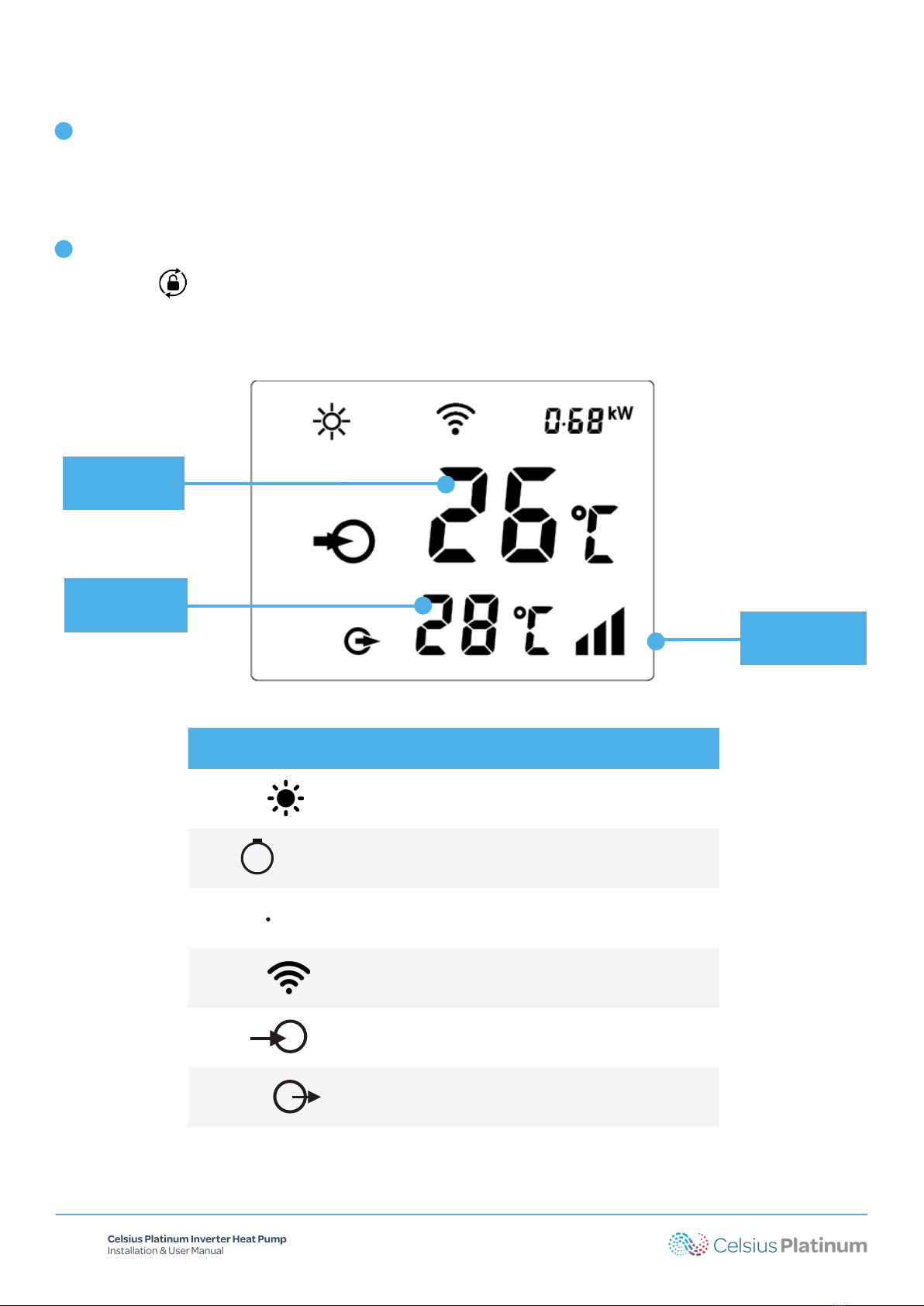

Symbol Operation
Heating
Heating capacity percentage
Real-time power consumption display
Wifi connection
Water inlet
Water outlet
M80%
KW
0 68
Water Inlet
Temperature
Turbo/Smart/
Silence Mode
Water Outlet
Temperature
1
2

Celsius Platinum Inverter Heat Pump
Installation & User Manual
9
1
2
3
4
Power On
Adjust Set Temperature
Mode Selection
Turbo/Smart/Silence mode selection:
Press for 3 seconds to unlock screen, then press to power on heat pump.
When screen is unlocked, press or to display or adjust the set temperature.
Press to select modes.
• Smart mode as default will be activated when heat pump is on, and screen shows
• Press to enterTurbo mode, and screen shows then press to enter Silence mode,
the screen shows . Press again, the screen shows and return to Smart mode.
5
6
Defrosting
Wifi Setting
• Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop flashing.
• Compulsory Defrosting: When heat pump is heating, press and together for 5 seconds to start
compulsory defrosting, and will be flashing. After defrosting, will stop flashing.
(Note: Compulsory defrosting intervals should be more than 30 minutes and the compressor should run for
more than 10 minutes.)
Please referto page 23
a) Auto: Adjustable temperature range 12~40OC
b) Heating: Adjustable temperature range 18~40OC
c) Cooling: Adjustable temperature range 12~30OC

Celsius Platinum Inverter Heat Pump
Installation & User Manual
10
2.3 MAINTENANCE AND WINTERISING
Maintenance
Winterising - Sub Zero Climates
2.3.1
2.3.2
!ATTENTION
Please don’t forget to cut o power supply to the heat pump
Regularly clean the evaporator with household detergents or clean water.
NEVER use gasoline, thinners or any similar fuel.
In climates where the winter season reaches sub-zero temperatures, please disconnect from power
supply and drain water out of the heat pump. When using the heat pump under 2°C, make sure
there is always water flow.
Check bolts, cables and connections regularly.
Every three months spray a surface insecticide on the surfaces around the unit to prevent and and insect
ingress.
1
2
3
!IMPORTANT

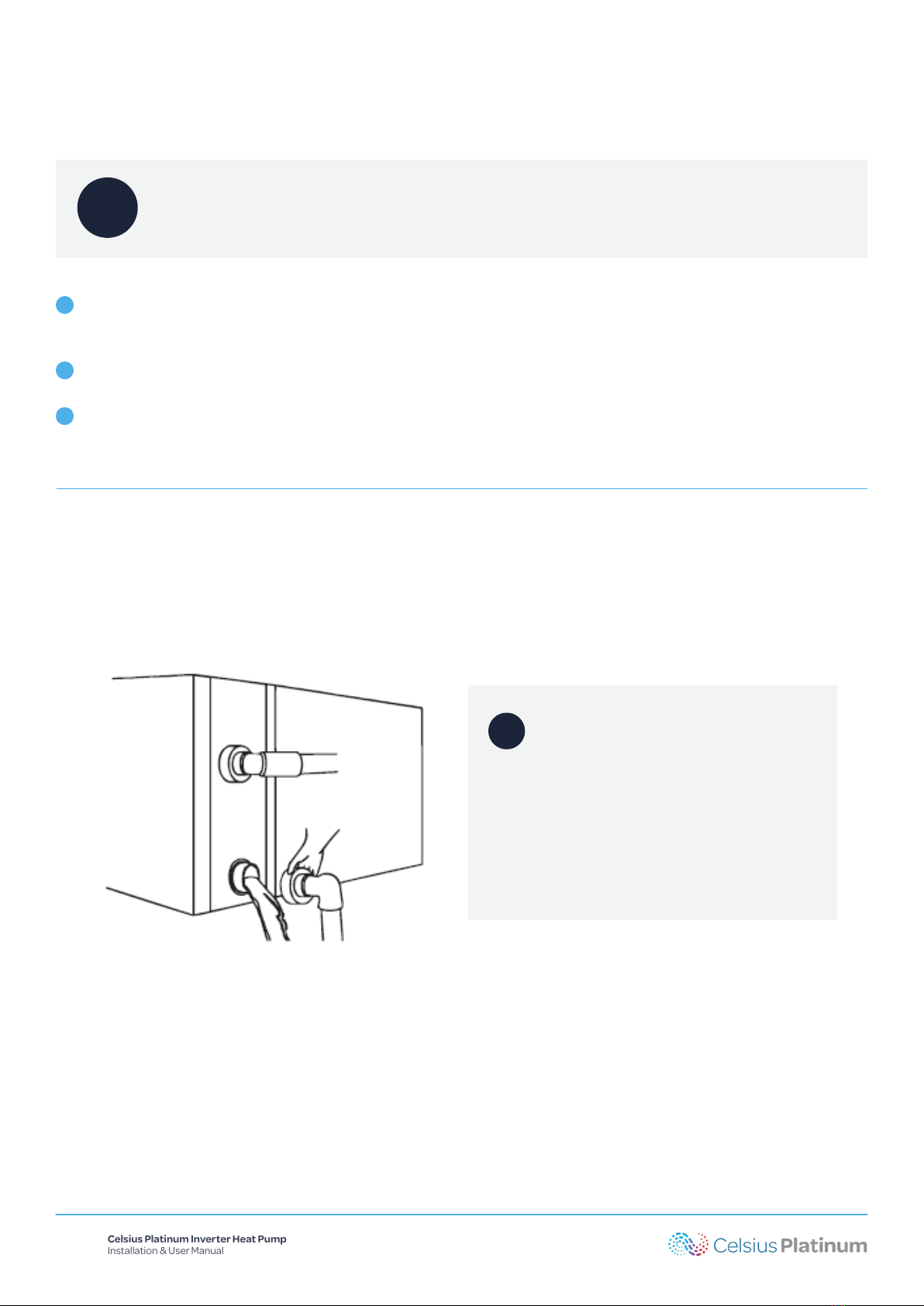

Unscrew the water union of inlet pipe to
let the water flow out.
When the water in machine freezes in winter
season, the titanium heat exchanger may
be damaged.

Celsius Platinum Inverter Heat Pump
Installation & User Manual
11
3. TECHNICAL DATA OVERVIEW
Description UoM PL13HP PL17HP PL21HP PL26HP PL32HP
Maximum Pool Volume (m³) - Cool Climate m330 40 50 70 80
Maximum Pool Volume (m³) - Warm Climate m340 50 60 80 95
Operating air temperature -15~43OC
Performance Condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity in Smart mode kW 11 13.8 17.5 21.5 27
Heating capacity in Turbo mode kW 13.2 16.8 21 25.5 31.5
COP in Smart mode 8.2 7.5 7.3 7.8 7.4
COP 7.3~15.0 6.4~15.5 6.3~15.0 6.8~16.0 6.3~15.8
COP at 50% capacity 11.6 11.2 11.2 11.3 11.2
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity in Smart mode kW 7.3 9.4 11.8 14.8 18
Heating capacity in Turbo mode kW 8.8 11.3 14.3 17.5 21.5
COP in Smart mode 5.3 5 5 5.4 5.3
COP 4.9~6.8 4.4~7.3 4.6~7.8 4.6~7.8 4.9~7.8
COP at 50% capacity 6.5 6.6 6.8 6.8 6.8
Sound pressure at 1m dBA 38.6~46.9 42.0~47.7 42.9~50.8 40.8~51.2 43.3~51.9
Sound pressure of 50% capacity at 1m dBA 41.3 43.7 44.5 44.4 46.4
Sound pressure at 10m dBA 18.6~26.9 22.0~27.7 22.90~30.8 20.8~31.2 25.3~31.9
Power supply 230V/1 Ph/50Hz
Advised water ux litre/min 50~66 66~100 108~141 133~166 166~200
Fittings (Australian) 50mm
Net Dimension LxWxH 893×432×650 939×432×650 995×432×750 1125×429×952 1074×539×947
Net weight kg 61 65 70 98 102
Compressor Type Twin Rotary Mitsubishi DC-inverter
Heat exchanger Spiral titanium tube in PVC
Casing Premium Aluminium Alloy Casing (Matte Black)
*The advised sizing is based on the pool being used for seasonal swimming with the use of a pool cover
The values indicated are valid under ideal conditions: Pool covered with an isothermal cover.
Related parameters are subject to adjustment periodically for technical improvement without
further notice. For details please refer to nameplate.
1
2

Celsius Platinum Inverter Heat Pump
Installation & User Manual
12
4. TRANSPORTATION
When storing or moving the heat pump, please ensure the unit remains in an upright position
at all times.
When moving the heat pump, do not lift the water union. This will damage the titanium heat
exchanger.
4.1
4.2

Celsius Platinum Inverter Heat Pump
Installation & User Manual
13
5. INSTALLATION AND MAINTENANCE
!ATTENTION
It is strongly advised that the heat pump is installed by a professional. Unqualified installations
may result in damage to the heat pump and/or safety risks to the user.
5.1 NOTICE BEFORE INSTALLATION
Plumbing connections must be made with solid PVC pipe. Usage of flexible PVC pipe is not recommended.
5.1.1

Celsius Platinum Inverter Heat Pump
Installation & User Manual
14
5.2 INSTALLATION INSTRUCTIONS
Location and size
5.2.1
!ATTENTION

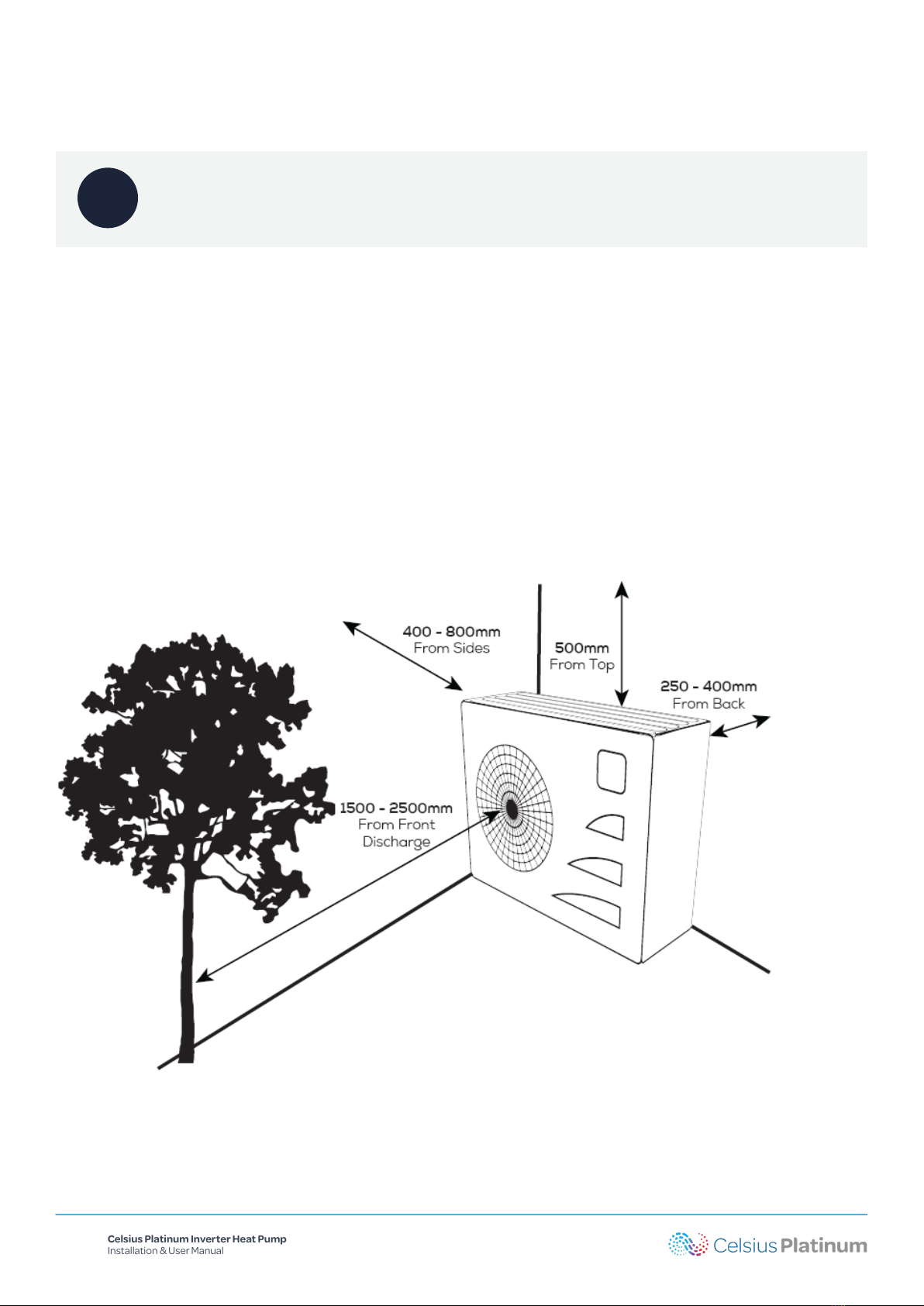

The heat pump should be installed in a place with good ventilation.
The heat pump is usually installed within a perimeter area extending 7.5m from the swimming pool. The greater
the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat
loss is low for distances up to 30m (15m from and to the heat pump; 30m in total) unless the ground is wet or
the groundwater level is high. A rough estimate of the heat loss per 30m is 0.6 kWh (2,000 BTU) for every 5°C
dierence between the water temperature in the pool and the temperature of the soil surrounding the pipe. This
increases the operating time by 3% to 5%.
Do not obstruct the air inlet or outlet of the heat pump. The eciency may be reduced or even stopped.
SIDE DISCHARGE

Celsius Platinum Inverter Heat Pump
Installation & User Manual
15

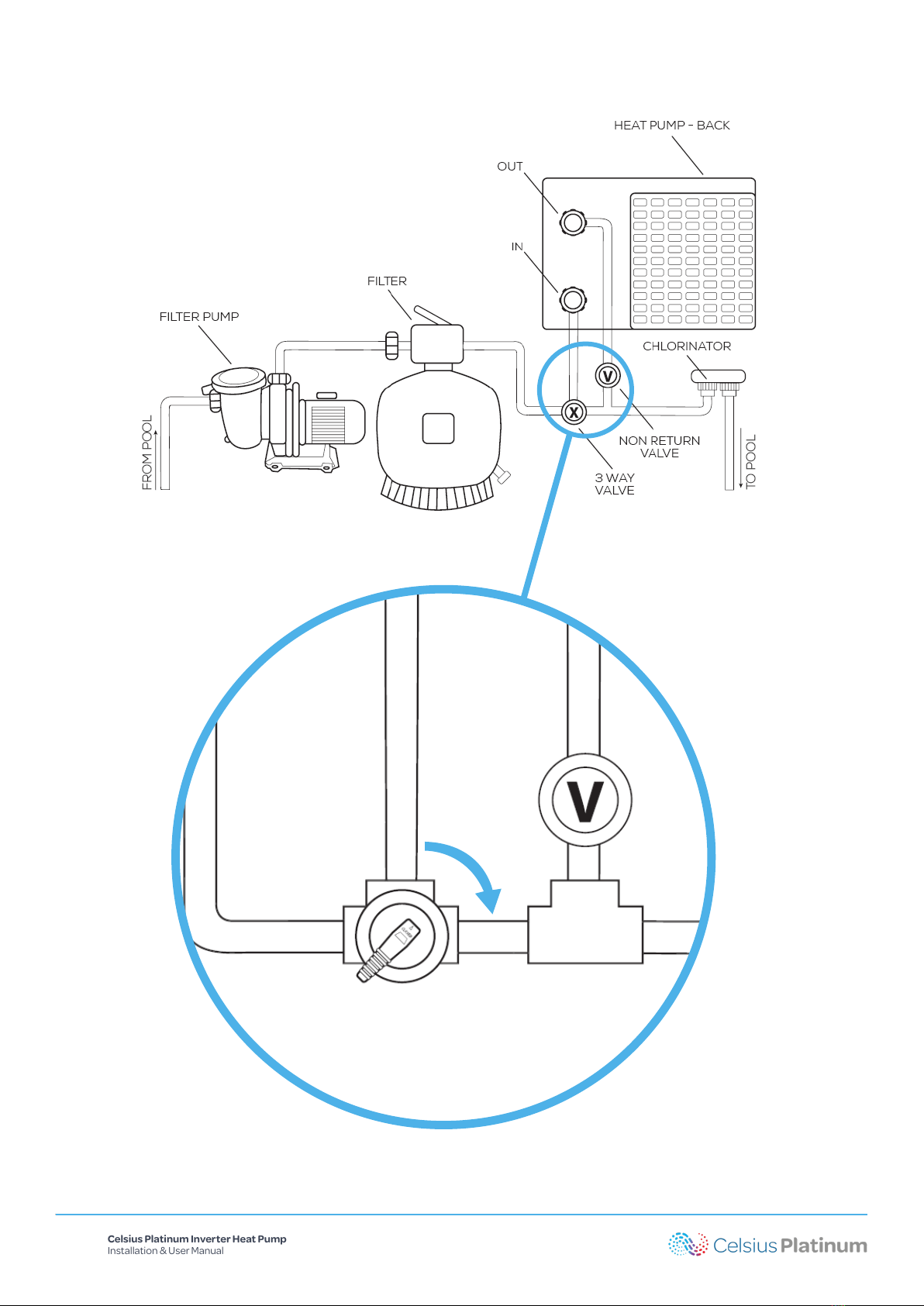

CHECK VALVE INSTALLATION
!
AUTOMATIC DOSING
Sanitation and automatic dosing systems must be plumbed after the heat pump. A check
valve must be installed between the sanitation/automatic dosing system and the heat
pump to prevent chemicals returning to the heat pump. Failure to observe this instruction
will void the warranty.
INDEPENDENT SYSTEM
IN-LINE SYSTEM

Celsius Platinum Inverter Heat Pump
Installation & User Manual
16
ADJUSTING THE BYPASS
A
B

Celsius Platinum Inverter Heat Pump
Installation & User Manual
17
Close the valve to Position A
Use the following procedure to adjust the bypass:
Turn on the circulation pump
Slowly open the valve towards Position B until the display error code of “E6” disappears.
Once the message clears, the default display is the current water temperature.
Starting sequence will now begin.
1
2
3
!
ATTENTION
Operation without a bypass or with improper bypass adjustment may result in suboptimal
heat pump operation and possible damage to the heat pump. Failure to observe this
instruction will void the warranty.
Bypass Installation

Celsius Platinum Inverter Heat Pump
Installation & User Manual
18
*Above data is subject to modification without notice.
DIMENSIONS
Unit = mm A B C D E F G H
PL13HP 407 528 390 432 893 280 74 650
PL17HP 407 574 390 432 939 350 74 650
PL21HP 407 630 390 432 995 460 74 750
PL26HP 407 760 384 429 1125 600 74 952
PL32HP 407 710 493 539 1074 640 74 947
Heat Pump Installation

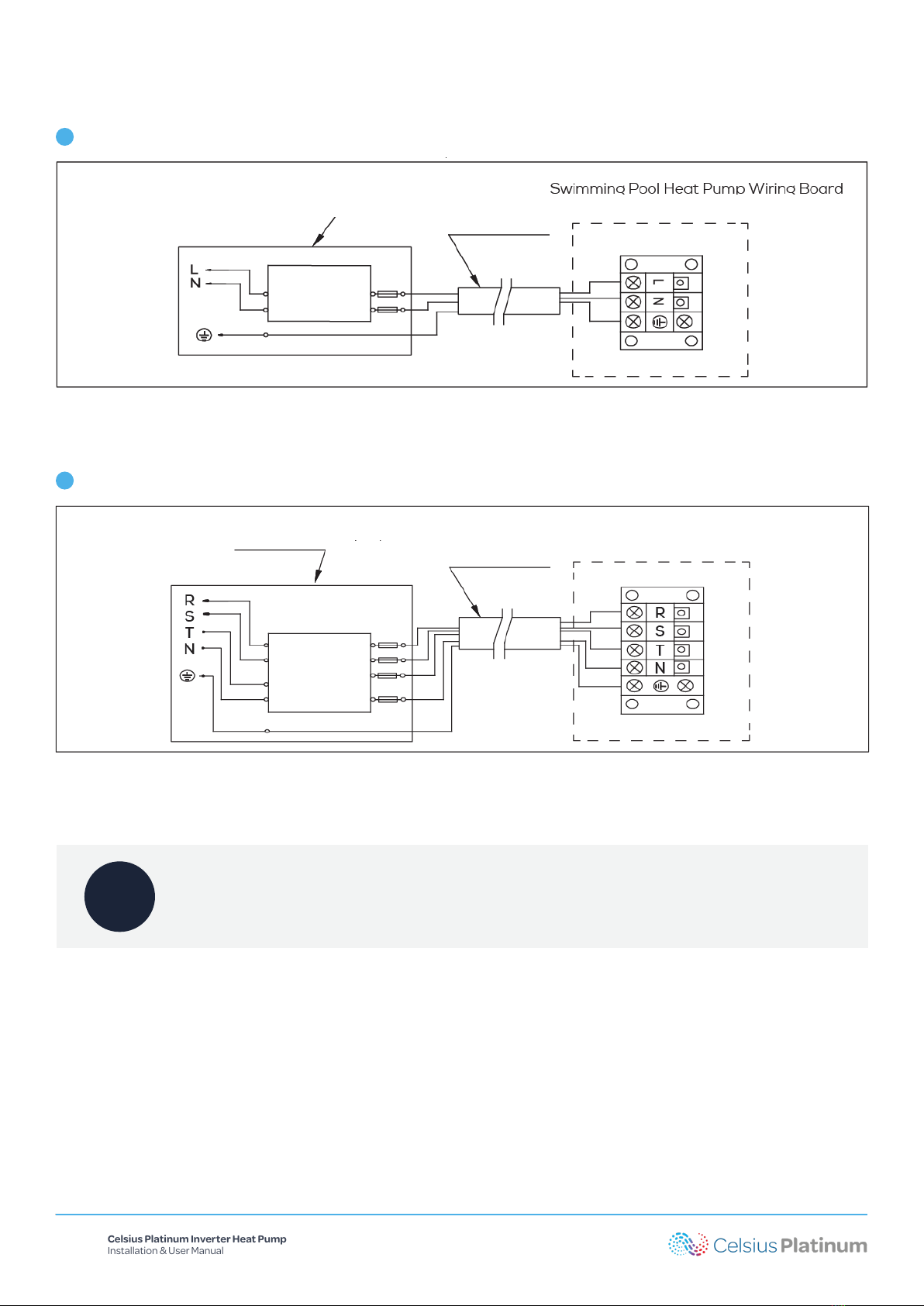

Wiring & protecting devices and cable specification
5.2.2
5.2.3
When the heat pump is running, condensation will occur and drain from the bottom of the
unit. This is completely normal. However, consideration should be made for how to drain the
condensation away. Drainage nozzle and pipe are supplied.
Connect to appropriate power supply. The voltage should comply with the rated voltage of the unit.
Earth the machine well.
Wiring must be handled by a professional technician according to the circuit diagram.
Set leakage protector according to the local code for wiring (leakage operating current ≤ 30mA).
The layout of power cable and signal cable should be orderly and not aect each other.
1
2
3
4
5
!ATTENTION
Switch on after finishing all wiring construction and re-checking.

Celsius Platinum Inverter Heat Pump
Installation & User Manual
19
WIRING DIAGRAM
For power supply: 240V 50Hz
For power supply: 380V 50Hz
1
2
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
240V 50Hz
Earthing
Breaker
Fuse
Distribution Box (Customer prepare)
Power Supply
380V 50Hz
Earthing Breaker
Fuse
Power Cord
Swimming Pool Heat Pump Wiring Board
!ATTENTION
For the detailed wiring diagram, please refer to Appendix 1.

Celsius Platinum Inverter Heat Pump
Installation & User Manual
20
Model PL13HP PL17HP PL21HP PL26HP PL32HP
Breaker
Rated Current A 15.0 19.0 22.5 24.5 28.5
Rated ResidualAction Current mA 30 30 30 30 30
Fuse A 15.0 19.0 22.5 24.5 28.5
Power Cord (mm2) 3x2.5 3x4 3x4 3x6 3x6
Signal Cable (mm2) 3x0.5 3x0.5 3x0.5 3x0.5 3x0.5
OPTION FOR PROTECTING DEVICES AND CABLE SPECIFICATION
NOTE: The above data is adapted to power cord ≤ 10m .If power cord is >10m, wire diameter must be increased.
The signal cable can be extended to 50m at most.
Inspection before use
Trial
5.3.1
5.3.2
5.3 TRIALAFTER INSTALLATION
Check installation of the whole heat pump and the pipe connections according to the pipe
connecting drawing
The user is advised to start the water pump before the heat pump, and turn o the heat pump before
the water pump for long life circle.
Check the electric wiring according to the electrical wiring diagram and earthing connection
The user should start the water pump, and check for any leakage of water; power on and press the
ON/OFF button of the heat pump, and set desired temperature in the thermostat.
Make sure that the main power is well connected
In order to protect the heat pump, the heat pump is equipped with start delay function. When starting
the heat pump, the fan will start to run in 3 minutes, in another 30 seconds, the compressor will start to
run.
Check if there is any obstacle in front of the air inlet and outlet of the heat pump.
After pool heat pump starts up, check for any abnormal noise from the heat pump.
Check the temperature setting.
1
1
2
2
3
3
4
4
5
!ATTENTION
Please check all the wirings carefully before turning on the heat pump.
