BOSSCO DD-3 Digital Delay User manual

OBoOss
Digital Delay
INSTRUCTIONS
ad
AC & BATTERY
POWERED
e
Please
read
these
instructions
carefully
for
proper
operating
procedures
for
the
BOSS
DD-3.

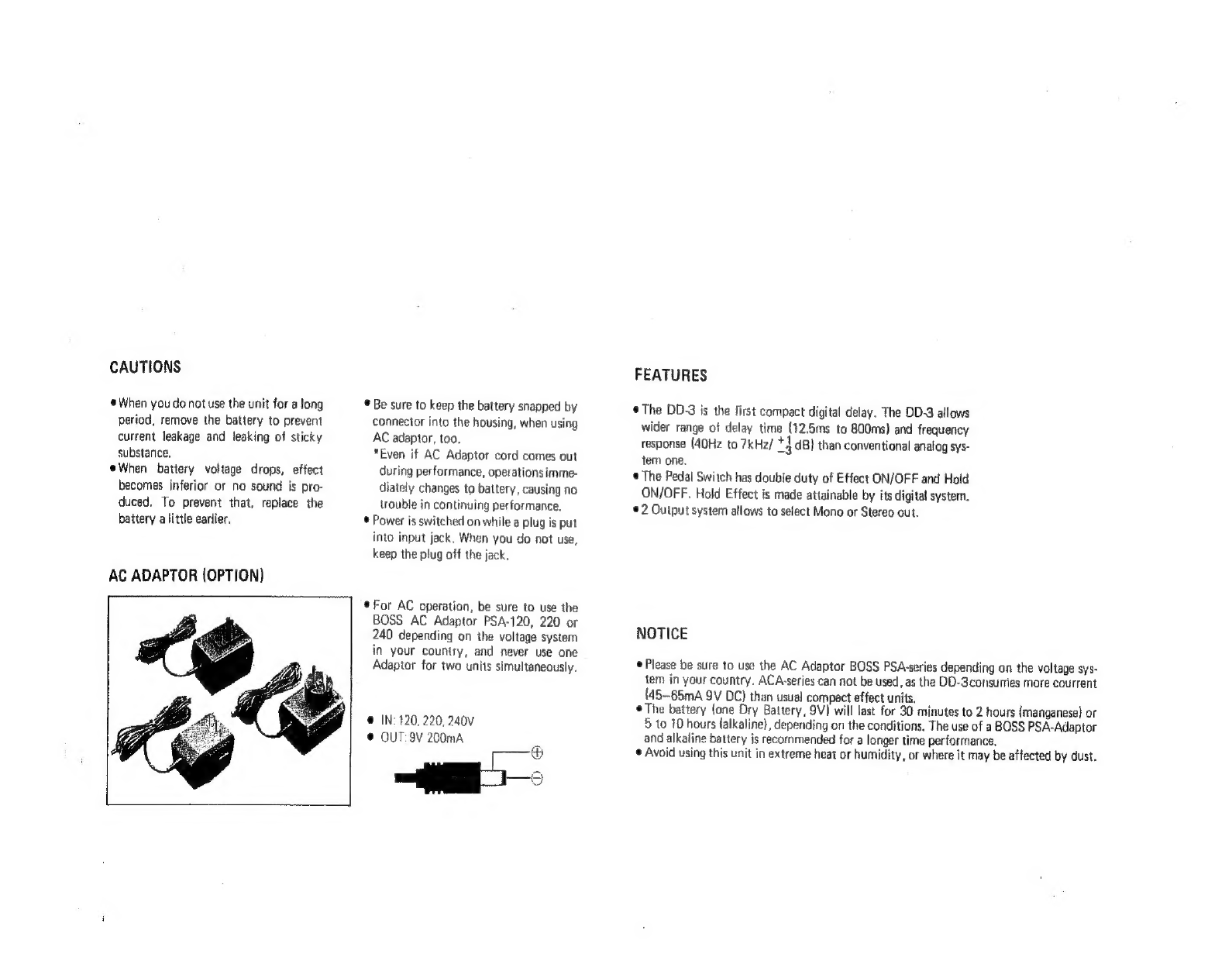

CAUTIONS
* When you do not use the unit for a long
period, remove the battery to prevent
current leakage and leaking of sticky
substance,
e When battery voltage drops, effect
becomes inferior or no sound is pro-
duced. To prevent that, replace the
battery alittle earlier,
AC ADAPTOR (OPTION)
* Be sure to keep the battery snapped by
connector into the housing, when using
AC adaptor, too.
*Even if AC Adaptor cord comes out
during performance, operations imme-
diately changes to battery, causing no
trouble in continuing performance.
* Power is switched on while a plug is put
into input jack. When you do not use,
keep the plug off the jack.
* For AC operation, be sure to use the
BOSS AC Adaptor PSA-120, 220 or
240 depending on the voltage system
in your country, and never use one
Adaptor for two units simultaneously.
e IN: 120. 220, 240V
e OUT: $V 200mA
1
&
FEATURES
e
The
DD3
is
the
first
compact
digital
delay.
The
DD-3
allows
wider
range
ot
delay
time
(12.5ms
to
800ms)
and
frequency
response
(40Hz
to
7kHz/
at
dB}
than
conventional
analog
sys-
tem
one.
*
The
Pedal
Switch
has
double
duty
of
Effect
ON/OFF
and
Hold
ON/OFF.
Hold
Effect
is
made
attainable
by
its
digital
system.
© 2 Output system allows to select Mono or Stereo out.
NOTICE
e
Please
be
sure
to
use
the
AC
Adaptor
BOSS
PSA-series
depending
on
the
voltage
sys-
tem
in
your
country.
ACA-series
can
not
be
used,
as
the
DD-3consumies
more
courrent
{45-65mA
9V
DC)
than
usual
compact
effect
units.
*
The
battery
(one
Dry
Battery,
9V)
will
last
for
30
minutes
to
2
hours
(manganese}
or
5
to
10
hours
lalkaline),
depending
on
the
conditions.
The
use
of
a
BOSS
PSA-Adaptor
and
alkaline
battery
is
recommended
for
a
longer
time
performance,
*
Avoid
using
this
unit
in
extreme
heat
or
humidity,
or
where
it
may
be
affected
by
dust.

CAUTIONS
FOR
REPLACING
AND
HANDLING
BATTERY
PEDAL(COVER)
THUMB SCREW
N { que
BATTERY
CA sarreny HOUSING
BATTERY
CONNECTOR STRAP
REPLACING BATTERY
USE ONE 9-VOLT BATTERY.
O Loosen the screw of pedal to open it
and take out battery from its housing.
@Replace the battery by a new one and
put it into position,
Set coil spring onto the SPRING BASE
on the back of the pedal and shut the
cover (pedal). Finatiy, insert the screw
into the pedal guide and tighten it.
At this time, be careful not to catch
the battery strap in the cover or coil
spring.
SPECIFICATIONS
POWER
CURRENT DRAW
CONTROLS
OTHERS
JACKS
SYSTEM
DELAY TIME
HOLD TIME
FREQUENCY RESPONSE
RESIDUAL NOISE
INPUT IMPEDANCE
OUTPUT LOAD IMPEDANCE
DIMENSIONS
WEIGHT
*The specifications are subject to change without notice,
9V DC Dry Battery, AC ADAPTOR (PSA-120, 220
or 240)
45mA to 65mA (9V DC]
EFFECT LEVEL, FEEDBACK, DELAY TIME,
MODE SELECTOR SWITCH
NORMAL/EFFECT CHANGEOVER
(HOLD ON/OFF) FOOT SWITCH
INPUT, DIRECT OUTPUT, MAIN OUTPUT
AC ADAPTOR (PSA-120, 220 or 240)
ANALOG LOGALITHMIC COMPRESSION AND *
12 BITS QUANTIZING SYSTEM
12.5msIMIN) to 800ms(MAX)
SISHORT) 50ms (12.5ms to 50ms)
MIMIDOLE) 200ms (50ms to 200ms)
L (LONG) 800ms (200ms to 800ms)
200ms(MIN) to 800ms(MAX! in Hold mode
DELAY SOUND:40Hz to 7kHz/ 4 dB
DIRECT SOUND: 10Hz to GükH2/ +} dB
— 95d8m(IHF-A)
1MN
10kQ or more
70(W)x55(H]x125(D)mm/
2-3/A(W]x2-3/16(H]x5(D] in.
4509/1 Ib.
2603068700 — '90-4-E3-13Y

CONNECTING
AC
ADAPTOR
TO
AC
Adaptor
Jack
BOSS
PSA-series
Power
is
switched
on
while
a
plug
is
put
into
Input
Jack.
«Connect
only
to
this
jack
to
obtain
monaural
sound,
*Mixed
sound
of
the
delay
and
direct
in
Normal
mode,
*
Only
the
delay
sound
in
Ste-
reo
mode.
L
c
AMPLIFIER
D0-3
In case requiring only the delay sound (for connecting
to
Echo
Send/Return
of
a
mixer),
use
only
the
Direct
Only
the
direct
sound
Output
Jack.
(Unptug
this
unit
when
it
is
not
to
be
used.
Be
sure
to
take
off
connecting
plug
from
Input
jack.)
AMPLIFIER
LEAD GUITAR
BASS GUITAR
KEYBOARD
Bescheinigung
des
Herstellers
/Importeurs
Hiermit
wird
bescheinigt,
daft
der/die/das
DELAY
DD3
(Gecát, Typ. Bezeichnung
in
Ubereinstimmung
mit
den
Bestimmungen
der
Amtsbl.
Vig
1046
/
1984
funk-entstórt ist.
Der
Deutschen
Bundespost
wurde
das
İnverkehrbringen
dieses
Gerâtes
angezeigt
und
die
Berechtigung
zur
Überprüfung
der
Serie
auf
Einhaltung
der
Bestimmungen
eingeräumt,
Roland
Corporation
Osaka
/
Japan
Neme des Hersteliess/Imposteurs
For Canada:
CASS
B
NOTICE
chasse
a
AVIS
Thin
us
oppsatur
does
not
erered
rhe
Cuts
B
—
Cet
appare?
cumbique
ne
ripas
pas
des
Verts
de
iesu
tor
rado
nose
emissions
set
out
in
the
fado
ig
eleman
B
eu
river
des
bisi
de
tls
radio.
inteserence
Regustons
of
the
Canadian
Depertmera
—
Gechiques
(nés
dang
lo
Règlement
des
signan
para-
of
Communications
‘lea
parla
miristin
canadien
des
Comentarios.
————————————————À

DESCRIPTION
CHECK
INDICATOR
The
Check
Indicator
enables
you
to
confirm
if
the
Effect
is
ON
or
OFF,
and
as
well
to
check
the
battery.
If
the
Check
Indicator
lights
up
by
pressing
the
Pedal
Switch
down,
Delay
Effect
is
on,
and
if
goes
out,
Delay
Effect
is
OFF
(Normal).
*Hold
Effect
works
as
long
as
the
pedal
is
held
down,
*The
battery
should
be
replaced,
when
the
indi-
cator
lights
but
only
dimly
or
does
nat
light
spat
ell
EFFECT
LEVEL
This
knob
controls
the
output
level
of
the
delay
sound.
Turing
this
knob
clockwise
increases
the
level
of
the
delay
sound.
With
this
knob
turned
fully
counterclockwise,
the
output
level
of
the
delay
sound
is
equivalent
to
that
of
the
direct
sound.
Also
when
this
knob
is
turned
fully
counterclockwise
in
Normal
mode,
oniy
the
direct
sound
is
obtained,
while
no
sound
is
heard
from
the
Main
Output
in
Stereo
mode.
MAIN
OUTPUT
JACK
Monaural
signal
(the
mixed
signal
of
the
direct
and
delay
sounds)
is
output
from
this
jack,
{If
the
plug
is
not
connected
to
the
Direct
Output
Jack.)
FEEDBACK
LEVEL
This
knob
decides
how
many
times
ihe
delay
sound
is
to
be
repeated.
Turning
this
knob
clockwise
increases
the
number
of
repetition
of
delay
sound,
and
turning
this
knob
fully
coun-
terclockwise
produces
single
delay
sound,
DELAY TIME
This
knob
allows
to
finely
adjust
the
delay
time
set
with
the
Mode
Selector
Switch
by
from
"X
0.25"
to.
"X1"
continueously,
Turning
this
knob
clockwise
increases
the
delay
time,
and
counterclockwise
decreases
it.
INPUT JACK
This
jack
should
be
connected
to
an
electric
guitar
or
other
musical
instrument,
*The
unit
is
powered
on
by
plugging
to
the
Input
Jack
and
is
powered
OFF
by
unplugging.
*By
muting
circuit
system
no
Effect
works
for
about
5
seconds
after
the
unit
is
powered
on,
DIRECT
OUTPUT
JACK
When
a
plug
is
connected
to
this
jack,
direct
sound
is
output
from
this
jack,
and
delay
sound
is
output
from
the
Main
Output
Jack.
* AC ADAPTOR JACK
The
AC-adaptor
(BOSS
PSA-120,
220
or
240)
should
be
connected
to
this
jack.
*BOSS
ACAseries
must
not
be
connected,
use
specifically PSA-series,
—e
MODE
SELECTOR
SWITCH
The
Mode
Selector
Switch
has
4
modes,
S,M,L,
and
Hold.
The
delay
time
changes
from
12,5ms
to
800ms
continueously
by
using
this
selector
and
the
Delay
Time
knob,
In
Hold
mode,
the
Delay
Time
knob
controls
the
repetition
time
of
the
hold
sound
from
200ms
to
800ms.
The
Pedal
Switch
works
as
long
as
the
pedal
is
held
down,
4
THUMB
SCREW
When
the
battery
needs
replacing,
loosen
this
Screw
to
open
the
pedal
and
replace
the
battery
with a new one.
*The
screw
should
not
be
pulled
out,
but
if
needs
removing
for
some
reason,
do
not
lose
it.
PEDAL SWITCH
The
Pedal
Switch
works
as
Delay
Effect
ON/OFF
or
Hold
ON/OFF
switch.
*Due
to
FET-switching
system,
audible
click
Noise
problem
is
solved,
thus
the
DD-3is
Most
suitable
for
studio
recording,

OPERATION
(1) DELAY(ECHO) EFFECT
Atter connecting all the
cords required, set all
the knobs on the panel
as illustrated.
When the Check Indicator lights up by
pressing
the
Pedal
Switch
down,
Delay
Effect is ON, and if goes out, Delay
Effect is OFF.
*By muting circuit system no effect
works for about 5 seconds after the
unit is powered on.
*This
indicator
serves
as
Battery
Check
Indicator
as
weli.
The
battery
should
be
replaced
with
a
new
one
when
the
indi-
cator
lights
only
dimly
or
fails
to
light
up.
Select
the
range
of
delay
time with
the
Mode
Selector
Switch,
and
then
adjust
the
Delay
Time
by
rotating
the
Delay
Time
knob.
|
*High-frequency
input
signal
can
cause
beat
notes,
making
Delay
sound
muddy.
Slight
counterclockwise
rotation
of
D.
TIME
will
decrease
beats.
Adjust the repetition time by setting
the Feedback knob to a proper posi-
tion.
*1f this knob is set too high, oscilla-
tion may occur.
Adjust the output level of delay sound.
*Turning the knob to MAX makes the
level of delay sound equivalent to
the direct sound.
*When this knob is set to MIN in
stereo rnode, the delay sound is not
output through the Main Output.
(2) HOLD EFFECT
After connecting all the
cords required, set the all
knobs on the panel as illus-
J| trated.
* Feedback Effoct does not
works with Hold effect
ON.
When the Check Indicator lights up by
pressing the Pedal Switch down, Hold is
ON. If it goes out by pressing the Pedal
Switch down, Hold is OFF (Normal).
*When you press the Pedal Switch down
after playing some phrases, the last
sound played will take on the Hold
effect.
*The Pedal Switch works as long as the
pedal is held down.
The delay time knob adjust the Hold
Time (200ms to 800ms). When you
rotate this knob while the hold sound is
heard, its pitch changes; rotating it
clockwise towers the pitch and counter-
clockwise raises it.
BI

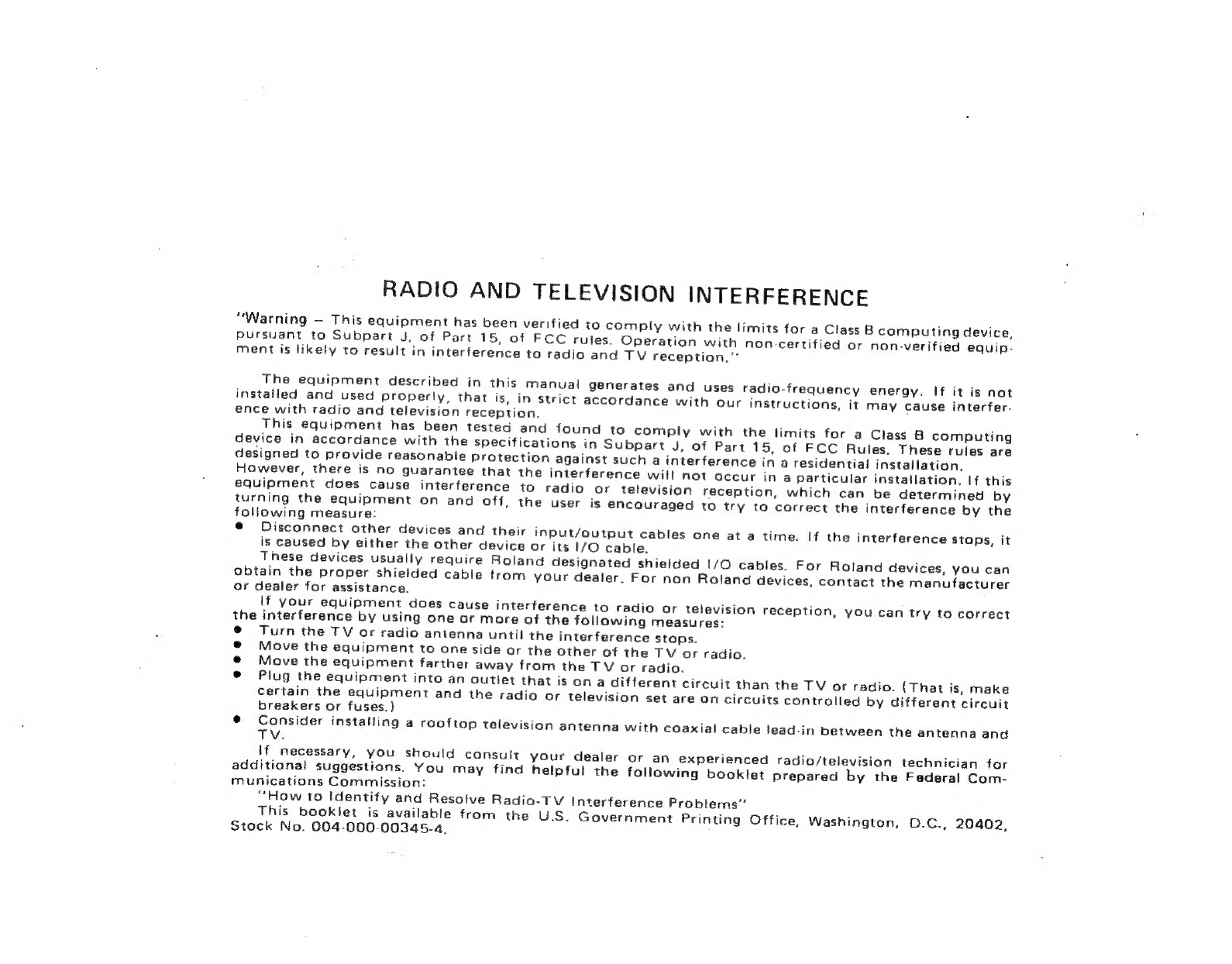

RADIO
AND
TELEVISION
INTERFERENCE
“Warning
—
This
equipment
has
been
verified
to
comply
with
the
limits
for
a
Class
B
computing
device,
Pursuant
to
Subpart
J,
of
Part
15,
of
FCC
rules.
Operation
with
non-certified
or
non-verified
equip-
ment
is
likely
to
result
in
interference
to
radio
and
TV
reception."
The
equipment
described
in
this
manual
generates
and
uses
radio-frequency
energy.
If
it
is
not
installed
and
used
properly,
that
is,
in
strict
accordance
with
our
instructions,
it
may
cause
interfer-
ence
with
radio
and
television
reception.
i
This
equipment
has
been
tested
and
found
to
comply
with
the
limits
for
a
Class
B
computing
device
in
accordance
with
the
specifications
in
Subpart
J,
of
Part
15,
of
FCC
Rules.
These
rules
are
designed
to
provide
reasonable
Protection
against
such
a
interference
in
a
residential
installation.
However,
there
is
no
guarantee
that
the
interference
will
not
occur
in
a
particular
installation,
If
this
equipment
does
cause
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
on
and
off,
the
user
is
encouraged
to
try
to
correct
the
interference
by
the
following
measure:
e
Disconnect
other
devices
and
their
input/output
cables
one
at
a
time.
If
the
interference
stops,
it
is
caused
by
either
the
other
device
or
its
I/O
cable.
These
devices
usually
require
Roland
designated
shielded
1/O
cables.
For
Roland
devices,
you
can
Obtain
the
proper
shielded
cable
trom
your
dealer.
For
non
Roland
devices,
contact
the
manufacturer
or
dealer
for
assistance.
If
your
equipment
does
cause
interference
to
radio
or
television
reception,
you
can
try
to
correct
the
interference
by
using
one
or
more
of
the
following
measures:
*
Turn
the
TV
or
radio
antenna
until
the
interference
stops.
Move
the
equipment
to
one
side
or
the
other
of
the
TV
or
radio.
Move
the
equipment
farther
away
from
the
TV
or
radio.
Plug
the
equipment
into
an
outlet
that
is
ona
different
circuit
than
the
TV
or
radio.
(That
is,
make
certain
the
equipment
and
the
radio
or
television
set
are
on
circuits
controlled
by
different
circuit
breakers
or
fuses.)
*
Consider
installing
a
rooftop
television
antenna
with
coaxial
cable
lead-in
between
the
antenna
and
TV.
If
necessary,
you
should
consult
your
dealer
or
an
experienced
radio/television
technician
for
additional
suggestions.
You
may
find
helpful
the
following
booklet
prepared
by
the
Federal
Com-
munications
Commission:
“How
to
Identify
and
Resolve
Radio-TV
Interference
Problems”
This
booklet
is
available
from
the
U.S.
Government
Printing
Office,
Washington,
D.C.,
20402,
Stock
No.
004-000-00345-4,

Roland’
2603768702
TN
