bossino Alliance Pro Assembly instructions

Installation Guide
and Users Manual
Wall Mount Range Hood
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Rev. 3065u.1b

Important Safety Notice
Read all Instructions before Installing and operating this appliance
The installation in this manual is intended for qualied installers, service technicians or persons with •
similar qualied background. Installation and electrical wiring must be done by qualied profession-
als and in accordance with all applicable codes and standards, including re-rated construction.
DO NOT• attempt to install this appliance yourself. Injury could result from installing the unit due to
lack of appropriate electrical and technical background.
Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any •
parts for installing, cleaning or servicing.
Activating any switch ON before completing installation may cause ignition or an explosion.•
Due to the size and weight of this range hood, two people installation is recommended.•
To reduce the risk of re, electric shock, or injury to persons:
For general ventilating use only. • DO NOT use to exhaust hazardous or explosive materials and va-
pors.
The combustion air ow needed for safe operation of fuel-burning equipment may be affected by this •
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society of
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to pre-•
vent power from being switched ON accidentally.
Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make •
sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics
or garages.
Ducted fans MUST always be vented to the outdoors.•
Use only metal ductwork and this unit MUST be grounded.•
Sufcient air is needed for proper combustion and exhausting of gases through the duct to prevent •
back drafting.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid-•
den utilities.
All electrical wiring must be properly installed, insulated and grounded.•
Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.•
Check all joints on duct work to insure proper connection and all joints should be properly taped.•
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the •
vendor.
To reduce the risk of a stove top grease re:
Keep all fan, bafe, spaces, lter, grease tunnel, oil container and grease-laden surfaces clean. Grease •
should not be allowed to accumulate on fan, bafe, spaces, lter, grease tunnel and oil container.
Always turn range hood ON when cooking at high heat or when cooking aming foods. •
Use high settings on cooking range only when necessary.•
Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers •
that may ignite. Heat oils slowly on low or medium settings. Page 1

Page 2
Important Safety Notice
Read all Instructions before Installing and operating this appliance
WARNING
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety mes-
sages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others.
All safety messages will follow the safety alert symbol and the word “WARNING”.
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to ob-
serve the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-
ligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to per-
sonal property or real estate or any bodily injuries whether caused directly or indirectly by the range
hood.
Clean ventilating fan frequently.•
Always use appropriate cookware and utensils size.•
Always use cookware appropriate for the size of the surface element.•
To reduce the risk of injury to persons in the event of a stove top grease re:
SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner. •
BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the ames DO
NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.•
Use an extinguisher ONLY if:•
You know you have a Class A, B, C extinguisher, and you already know how to operate it.•
The re is small and contained in the area where it is started.•
The re department is being called.•
You can ght the re with your back to an exit.•
To reduce the risk of injury to persons in the event of a gas leaks:
Extinguish any open ame.•
DO NOT turn on the range hood fan or any type of ventilator.•
DO NOT turn on the lights or any type of appliance.•
Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re •
department, or dial your local emergency service immediately.

Table of Contents
INSTALLATION
Tools needed....................................................3
Parts supplied...................................................4
Venting requirements.......................................5
Mount heights & clearance...........................5-6
Calculating vent system length.......................6
Venting methods..............................................7
Electrical requirements....................................8
Preparation......................................................9
Installation................................................10-11

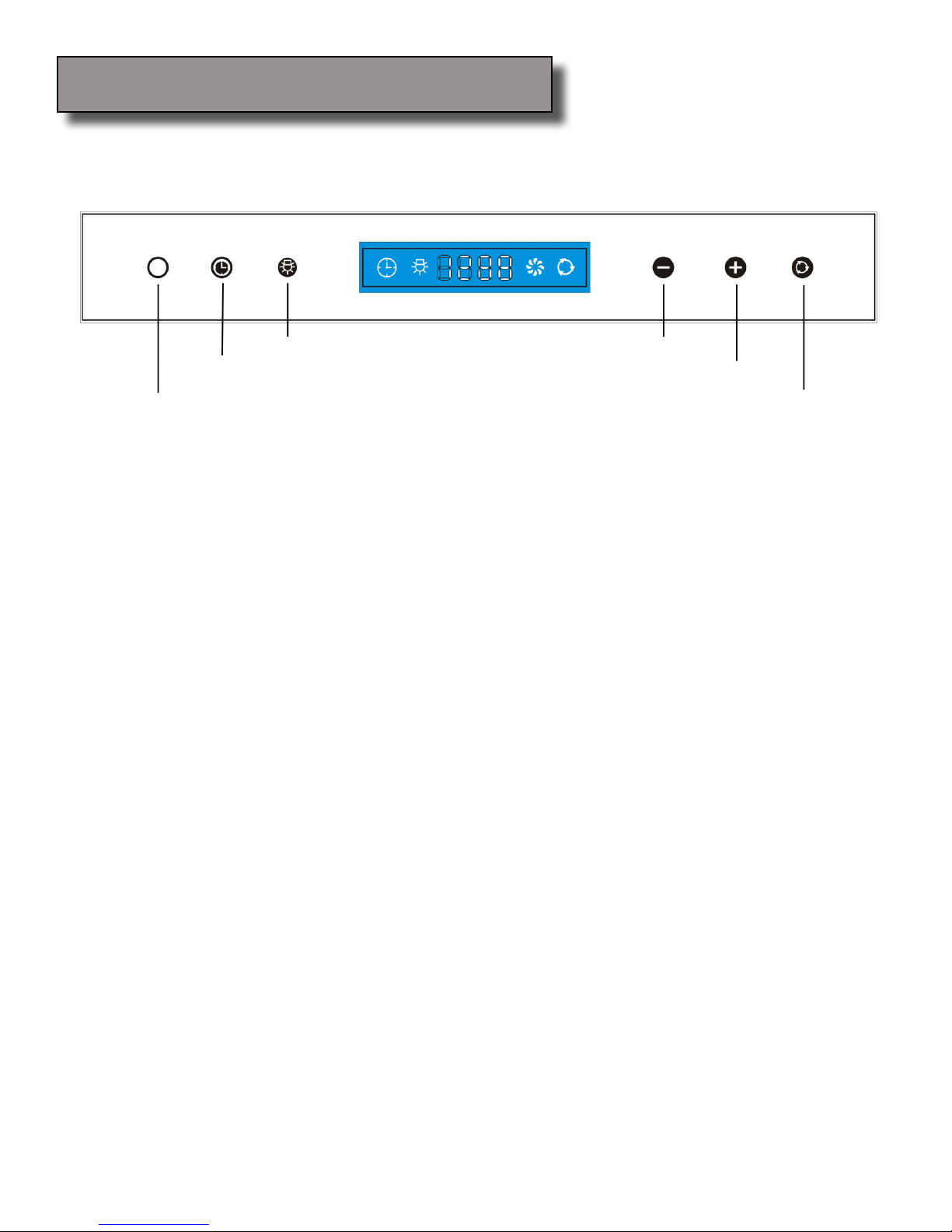

Range hood operations.............................12-13
USE AND CARE
Troubleshooting...........................................14
Use and care information...............................15
Specications..............................................15
Measurements & Diagrams......................16-21
MAINTENANCE
Cleaning.................................................22
Replacing the lter & light bulb.....................22
WARRANTY
Coverage & exceptions..................................23
Disclaimer & Contact Us...............................24
Tools needed:
Page 3
Level
Flat-blade
and Phillips
screwdrivers
Powered
screwdriver
or drill
Measuring
tape
Utility knife
Marker or
pencil

Page 4
Parts supplied:
Qty: 4 PCS
(For sheet rock only)
Qty: 2 PCS (30-in models)
Qty: 3 PCS (36-in models)
Chimney-mounting Bracket
Qty: 6 PCS
Qty: 4 PCS
Qty: 4 PCS
Lower Chimney
Qty: 2 PCS (30-in models)
Qty: 3 PCS (36-in models)
Qty: 4 PCS (30-in models)
Qty: 6 PCS (36-in models)
Upper Chimney
Range Hood
Bafe Filters

Venting Requirements
Page 5
Height & Clearance
Vent system must terminate to the outside •
(roof or side wall).
DO NOT terminate the vent system in an at-•
tic or other enclosed area.
DO NOT use 4” (10.2 cm) laundry-type wall •
caps.
Use metal/aluminum vent only. Rigid metal/•
aluminum vent is recommended.
DO NOT use plastic vent.•
Always keep the duct clean to ensure proper •
airow.
Calculate the following gures before instal-•
lation:
Distance from the oor to the ceiling.1.
Distance between the oor to the coun-2.
tertop/stove (recommend* 27” to 30”).
Distance between the countertop/stove3.
to the range hood.
Height of hood and duct cover.4.
For the most efcient & quiet operation:
A distance of 27” to 30” is recommended* •
between stove top and the bottom of range
hood.
It is recommended that the range hood be •
vented vertically through the roof through 6”
(15.3 cm) or bigger round metal/aluminum
vent work.
The size of the vent should be uniform.•
Use no more than three 90° elbows.•
Make sure there is a minimum of 24” (61 •
cm) of straight vent between the elbows if
more than one elbow is used.
DO NOT install two elbows together.•
The length of vent system and number of •
elbows should be kept to a minimum to pro-
vide efcient performance.
The vent system must have a damper. If •
roof or wall cap has a damper, DO NOT
use damper (if supplied) on top of the range
hood.
Use silver tape or duct tape to seal all joints •
in the vent system.
Use caulking to seal exterior wall or roof •
opening around the cap.
* Due to different ceiling height congurations, rec-
ommended height may not be applicable.
Max: 110”
Upper
Chimney
Range hood
Chimney-
mounting
Bracket
Lower
Chimney
36” base
Maximum ceiling clearance
110” at 30” hood mounting
height above countertop/
stove (may vary with differ-
ent model).
Min: 27”
Max: 30”
Countertop/Stove

Page 6
IMPORTANT:
A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate-•
ly) must be used to maintain maximum airow efciency.
Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to provided •
duct.
Please use • Duct Run Calculation below to compute total available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase •
duct size from 6” to 7” or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reduc-
ing duct size will restrict airow and decrease airow, thus reduce duct size as far away from opening as
possible.
If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.•
Minimum mount height between stove top to hood bottom should be no less than 27-inch*.•
Maximum mount height between stove top to hood bottom should be no higher than 30-inch*.•
It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat •
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and efciency.
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood •
mounting height above range.
* Due to different ceiling height congurations, recommended height may not be applicable.
Minimum Duct Size:
Round - 6” minimum•
Rectangular - 3-1/4 x 10” minimum (requires a 6” to 3-1/4x10” adaptor, not supplied)•
Duct Run Calculation:
Recommended maximum run
6” or 3-1/4 x 10” duct 50 ft
Vent piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each 6” to 3/14 x 10” transition used 7 ft
Side wall cap with damper 0 ft
Roof cap 0 ft
Duct Run Calcuation example:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for
straight duct run.
Calculating Vent System Length
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system
from the recommended maximum duct run.

Venting Methods
Page 7
This range hood is factory set for venting through the roof or wall.•
Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.•
IMPORTANT:
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or •
garages. All exhaust must be ducted to the outside.
Use metal/aluminum duct work only. •
Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.•
Use caulking to seal exterior wall or roof opening around the cap.•
Vertical roof venting
Roof cap
Option 2:
Side wall cap
Horizontal wall venting
Option 1:

IMPORTANT: Observe all governing codes and ordinances.
(Please consult with a qualied electrician for 220-Volt 50 Hz voltage)
It is the customer’s responsibility:
To contact a qualied electrical installer.•
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/•
NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No.
0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that
the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides
of the line.
DO NOT ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through exible
armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provided at each
end of the power supply cable.
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specied on
the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code
ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22.
2 No. 0-M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit con-
nector must be provided at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
Page 8
Electrical Requirements

Page 9
Preparation
Advanced Preparations:
Be familiar with the controls of the range hood by reading through • Range Hood Operations, Page 12.
Place the range hood on a at, stable surface. Connect the range hood to a designated standard outlet (please •
refer the product label for the suitable voltage of this unit) and turn on the range hood. Verify all operations
of the range hood by referring to Range Hood Operations, Page 12.
Place all supplied parts and required hardware on a at, stable surface and verify the existence of all supplied •
parts listed on Page 4.
Carefully remove the white plastic protective coat from the range hood.•
Preparations:
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
Determine and mark the center line on the ceiling where the range hood will be installed. Make sure there is •
proper clearance within the ceiling or wall for exhaust vent.
Due to the weight and size of this unit, please make sure that the support system or framework being used is •
stable and secure in the wall.
Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. Remove •
any hazardous objects around the area when installing.
Mark the locations of the support mounting bracket holes, vent cutout (if used) and power supply cable cutout •
on the ceiling. Use drill and saber saw or keyhole saw to cut openings for power supply cable and vent (see
Venting requirements and Electrical requirements, Pages 6-8).
If venting to the outside install vent system (see • Venting Requirements, Page 5). Use caulking to seal exterior
wall or roof openings.
Disconnect main electrical supply, prepare and run electrical wiring through ceiling or wall. Leave approxi-•
mately 12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed.
Disconnect power cord, remove the bafe lter by sliding the knob toward the metal lter handle.•
Set aside the bafe lters until the range hood is properly installed.•
CAUTION: If moving the cooking range is necessary to install the hood, turn OFF the power on an elec-
tric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.
WARNING
Severe Injury
Hood may have very shape edges. Please wear
protective gloves if it is necessary to remove
any parts for installing, cleaning or servicing.
WARNING
Excessive Weight
Require three or more person to move and
install this range hood. Spinal or other bodi-
ly injuries could occur if it is not followed.
WARNING
Severe Injury
Rotating fan can cause severe
injury. Stay clear of fan when
motor is running.

Installations (refer to Page 4 for parts):
Measure the distance between stove top and the bottom of
range hood. A distance of 27” to 30” is recommended*.
*Due to different ceiling height congurations, recom-
mended height may not be applicable.
Using references in1. Height & Clearance on Page 5 and
Measurements and Diagrams on Page 16, mark the leveling point of the hood. Position two mounting screws
on the wall, leaving 1/8” space away from the wall.
Position the chimney-mounting bracket 2. directly above the hood-mounting bracket, mark the leveling points
and secure it using two mounting screws.
NOTE: Use threaded drywall anchors only when mounting the hood on sheet rock. Mounting the hood on
wall studs or lumbars is highly recommended.
Attach the hood-mounting bracket to the back of the hood with six screws as shown in Figure 3.3.
Align hood-mounting bracket to the screws on the wall and hook hood into place as shown in Figure 4 and 4.
Figure 5. Tighten screws to secure hood to the wall.
CAUTION: Make certain the range hood is secure before releasing!
For safety purpose, pre-drilled mounting holes are provided through the back of the hood. For a more secure 5.
installation, use as many mounting holes as needed to secure from the inside of hood.
Use 6” round steel pipe (follow building codes in your area) to connect the exhaust on the hood to the duct-6.
work above. Use silver tape or duct tape to make all joints secure and air tight. Refer to Figure 7.
SAFETY WARNING: Risk of electrical shock. this range hood must be properly grounded. Make sure this
is done by qualied electrician in accordance with all applicable national and local electrical codes. Before
connecting wires, switch power off at service panel and lock service panel to prevent power from being
switched on accidentally.
Page 10
Installation
Figure 4
Figure 5
Figure 3
Figure 6
Figure 7

Figure 8
Page 11
Installation (Continued)
Connect the range hood to a designated standard outlet (please re-7.
fer the product label for the suitable voltage of this unit) or cut off
the plug and connect three wires (black, white and green) to house
wires and cap with wire connectors. Connect according to colors
(i.e. black to black, white to white, and green to green) as shown in
Figure 6.
Store excess wires in the wiring box.8.
Install both chimneys and tighten screws to secure the lower chim-9.
ney to the range hood as shown in Figure 8.
To avoid scratching the chimney, extend the upper chimney 10. slowly
and carefully to the chimney-mounting bracket and tigten screws
as shown in Figure 9.
To install bafe lters, refer to Figure 10 for the following three 11.
steps:
Angle bafe lter toward back of hood.
Slide the knob toward the metal lter handle and push up.
Release the knob until it ts into resting positions.
Repeat Step 12 to install all bafe lters.12.
Turn powe ON in control panel. Check all lights and fan operations.13.
Make sure to leave this Installation Guide for the homeowner.14.
Figure 9 Figure 10

Page 12
Range Hood Operations
Control Panel Layout and Buttons Congurations:
This range hood is equipped with remote control and heat sensor that will self-calibrate within 5 seconds when the
range hood is rst electrically activated. Self-calibration will be set when the range hood beeps. LCD panel will
turn off automatically after a period of inactivity.
Adjusting Heat Sensor Auto Function Temperature:
• Press Auto Function button to enter the heat sensor auto function temperature setting mode. User
dened temperature and “Auto Function” icon will appear and ash in LCD panel. Press Increase or Decrease
button to adjust to desired temperature from 34C to 48C. Press Auto Function button again to exit the heat sen-
sor auto function temperature setting mode.
• While the blower (motor) is running, the heat sensor evaluates surrounding temperature and increase
the blower to the top speed automatically when reached the user dened temperature. The blower speed de-
creases by 1 level in every 20 seconds when the surrounding temperature is below the user dened temperature
and back to the original speed level.
Activating Normal Blower Function:
• While the range hood is off, press Increase or Decrease button to start the blower. Press Increase button
to increase blower speed (F1 to F4) as indicated in LCD panel. The Increase button cycles blower settings from
off (00), quiet speed (F1), low speed (F2), medium speed (F3) to high speed (F4).
• While the range hood is on and the blower is running, press Decrease button to decrease blower speed
(F4 to F1) as indicated in LCD panel. The Decrease button cycle blower settings from high speed (F4), to medium
speed (F3), low speed (F2), quiet speed (F1) to off (00).
Remote Control
Sensor
Power-Off
Delay
Light LCD Panel Decrease
Increase
Auto Function

Page 13
Range Hood Operations (Continued)
Control Panel Layout and Buttons Congurations:
Activating Light Function:
• Press Light button once to turn on the lights, and once again to turn off the lights.
• While the lights are off, press and hold Light button for over 3 seconds to dim the lights from high to
low. Level of brightness will be stored in system’s memory.
CAUTION: DO NOT touch the lights until switched OFF and cooled.
Activating Power-Off Delay Function:
• While the range hood is on and the blower is running in normal mode, press Power-Off Delay button
to activate delay off timer. Adjust to desired period of delay off timer by pressing Increase or Decrease button
(minimum 1 minute to maximum 15 minutes). Timer beings to countdown immediately, when it reaches 0, the
blower will shut off.
Remote Control Sensor:
• Remote control sensor receives infrared (IR) signal from the remote control. The maximum distance
for IR data transmission is 3 meter and requires direct line of sight. The transmission distance may vary depend-
ing on temperature and remote control battery condition.
Remote Control
Sensor
Power-Off
Delay
Light LCD Panel Decrease
Increase
Auto Function
Note: Light settings are independent from other settings (including power-off delay) and lights have to be
manually turned on or off.
Note: The system saves user congurations, settings such as light, timer and blower (motor) speed will re-
main the same the next time it is turned on.

Troubleshooting
Page 14
If the range hood or halogen light does not operate 1.
after installation:
Check if the range hood has been plugged in, make •
sure that all power has been turned back ON, fused
not blown and all electrical wiring are properly con-
nected.
Swap out light assembly to working ones to deter-•
mine whether it is caused by defective bulbs. See
Replacing the light bulbs on Page 22.
The range hood vibrates when the blower is on:2. The range hood might not have been secured prop-•
erly on to the ceiling or wall.
The blower or fan seems weak:3. Check that the duct sized used is at least 6” or 3-1/4 •
x 10”. Range hood WILL NOT function efciently
with insufcient duct size. For example: 7” duct
over 6” hole and loosely secured.
Check if duct is clogged or if damper unit (half-cir-•
cular apper) is not installed correctly or opening
properly. A tight mesh on a side wall cap unit might
also cause restriction to the air ow.
The lights work but the blower is not spinning at all, 4.
is stuck or is rattling.
The blower might be jammed or scraping the bot-•
tom due to shipping damage. Please contact us im-
mediately.
The hood is not venting out properly:5. Make sure the distance between the stove top and •
the bottom of the hood is within* 27” and 30” in
distance. *Due to different ceiling height congura-
tions, recommended height may not be applicable.
Reduce the number of elbows and length of duct •
work. Check if all joints are properly connected,
sealed, and taped.
Make sure the power is on high speed for heavy •
cooking.
NOTE: For all other inquiries, please contact your local reseller.

Use and Care Information
Operations:
Read and understand all instructions and warnings in this manual before operating the appliance. Save these •
instructions for future reference.
Always leave safety grills and lters in place. Without these components, operating blowers could catch on to •
hair, ngers and loose clothing.
NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers.•
NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch re. The risk of •
self combustion is higher when the oil has been used several times.
NEVER cook on “open” ames under the range hood. Check deep-fryers during use: Superheated oil may be •
ammable.
Cleaning:
The saturation of greasy residue in the blower and lters may cause increased inammability. Keep unit clean •
and free of grease and residue build-up at all times to prevent possible res.
Filters must be cleaned periodically and free from accumulation of cooking residue (see • cleaning instructions
on Page 22). Old and worn lters must be replaced immediately.
DO NOT operate blowers when lters are removed. Never disassemble parts to clean without proper instruc-•
tions. Disassembly is recommended to be performed by qualied personnel only. Read and understand all
instructions and warnings in this manual before proceeding.
Page 15
Specications3:
Body Design Seamless Stainless Steel, Satin Finish / Glossy Piano Black Finish
Power Rating 220V/50Hz or 120V/60Hz (USA & Canada standard)
General Input Power 288 W (218W + 2x35W)
Motor Input Power 218 W
Ampere 2.5 A
Levels Of Speed Control 4 Levels
Airow1 (Q/L/M/H) 280CFM / 460CFM / 670CFM / 900CFM
Noise Level2 (Q/L/M/H) 1.2Sone(43dB) / 2.8Sone(55dB) / 5.0Sone(63dB) / 7.0Sone(68dB)
Number Of Motors Single Motor
Motor Type Single Chamber Ultra Quiet
Fan Type Centrifugal Squirrel Cage
Control Type Touch Sensitive Electronic Control Panel w/ Heat Sensor & Remote
Filtration Type Stainless Steel Bafe Filter
Illumination 35W Maximum, Dimmable
Venting Size Top, 6 inches Round
Interference Protection Radio Frequency Interference Protected
Specications
1. In House Test Static Pressure “0”.
2. One sone is roughly equivalent to the sound of a refrigerator (1kHz) at 40 decibels.
3. Subject to change without notice, please contact your local reseller for details.

Measurements and Diagrams
Installation Overview:
CD
Upper support frame
Range hood
Round duct (exhaust)
Chimney-
mounting
bracket
A
Air Movement Direction
Upper chimney
C
D
Hood-mounting
bracket
B
Qty: 4 PCS
(For sheet rock only)
Qty: 6 PCS
Qty: 4 PCS
Qty: 4 PCS
C
D
B
A
Back of the
range hood
A
Page 16

All measurements in parenthesis are in millimeter.•
All inch measurements are converted from millimeters, thus inch measurements are estimated.•
Overall:
Page 17

Page 18
Overall without Chiminey:
All measurements in parenthesis are in millimeter.•
All inch measurements are converted from millimeters, thus inch measurements are estimated.•

Page 19
Circuit Diagram:
Hood-mounting Bracket:
