BowFlex™IC Bike SE/SEi (Model Year 2023)
Exercise Bikes Service Manual
Table of Contents
8031278.101523.A
BowFlex Inc., www.bowflex.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America [phone], cs@bowflex.com
| outside U.S. global.bowflex.com | Printed in China | © 2023 BowFlex Inc. | BowFlex and the BowFlex logo are trademarks owned or licensed by BowFlex Inc.,
registered or otherwise protected by common law in the United States and other nations. The Bluetooth®word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc., and any use of such marks by BowFlex Inc. is under license. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Section Code Section Page Number
1 Important Safety Instructions 2
1 Safety Warning Labels and Serial Number 3
1 FCC Compliance 3
1 Specifications 4
1 Maintenance 5
1 Moving the Machine 7
1 Leveling the Machine 7

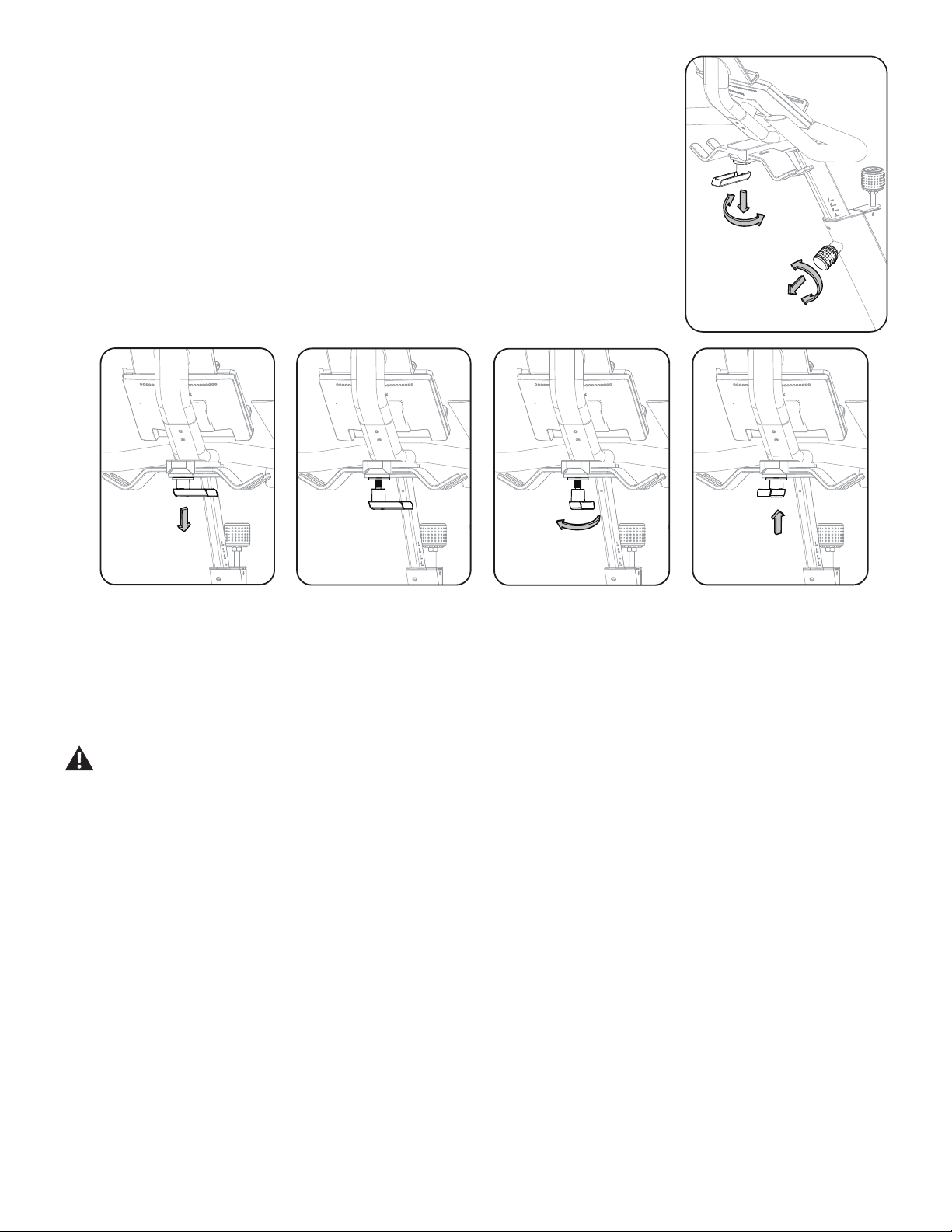

1 Adjustments 8
1 Locking the Flywheel for Storage 9
1 Demonstration Mode 10
1 Console Features 10
1 Connectivity 11
1 Changing Unit Measures 12
1 Console Setup Mode – System Menu 12
1 Troubleshooting 14
1 Maintenance Parts Exploded View 18
1 Replacement Procedure Skill Level 19
Mechanical Procedures 20
2 Adjust the Drive Belt Tension 20
3 Adjust the Resistance (Calibration) 23
Part Replacement 26
4 Base Hub PCBA 28
5 Cable Assembly (Power Inlet to
Base Hub) 37
6 Crank Arms 44
7 Engine 48
8 Flywheel Assembly 58
9 Handlebar Post 66
10 Pedals 73
11 Resistance PCB 76
12 Shrouds, Outside (Decorative) 95
13 Shrouds, Structural 87
14 Speed (RPM) Sensor 91
8031277.101523.A
Service Manual

2
Important Safety Instructions and
General Troubleshooting Information for the
BowFlex™IC Bike SE/SEi Exercise Bikes
8031279.101523.A
Service Procedures
NOTICE: This document provides important safety instructions, adjustments, and general troubleshooting information for
the maintenance of the BowFlex™IC Bike SE / SEi (Model Year 2023) Exercise Bikes.
If you need assistance, please call BowFlex Customer Service (if purchased in US/Canada) or your local distributor (if
purchased outside US/Canada). To find your local distributor, go to: global.bowflex.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury. Read and understand all Warnings on this machine.
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
This icon means a potentially hazardous situation which, if not avoided, could result in death or
serious injury. Read and understand all Warnings on this machine.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the
instructions could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
• Make sure that the repair is done in an appropriate work space away from foot traic and exposure to
bystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when
you do maintenance steps involving these components. Do not try to do heavy or awkward steps on your
own.
• If replacement parts are necessary, use only genuine replacement parts and hardware supplied by
BowFlex. Failure to use genuine replacement parts can cause a risk to users, keep the machine from
operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in
good condition when doing maintenance or replacing components. If at any time the Warning labels
become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely aect
user safety.
• Do not put the machine back in service until all shrouds, instructions, warning labels and correct
functionality have been verified and tested for correct performance.
•SAVE THESE INSTRUCTIONS.
BowFlex Inc., www.bowflex.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America [phone], cs@bowflex.com
| outside U.S. global.bowflex.com | Printed in China | © 2023 BowFlex Inc. | BowFlex and the BowFlex logo are trademarks owned or licensed by BowFlex Inc.,
registered or otherwise protected by common law in the United States and other nations. The Bluetooth®word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc., and any use of such marks by BowFlex Inc. is under license. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY

3
Safety Warning Labels and Serial Numbers
FCC Compliance
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This product complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to CFR47 Part 15 Subpart B of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. In the unlikely
event that this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This product complies with the European Radio Equipment Directive 2014/53/EU.
Product Specification Label
Serial Number Label
WARNING!
Read, understand and obey all warnings on this machine.
Keep children and pets away. Not intended for use
by anyone under 14 years of age. Refer to the Owner’s
Manual for additional warnings and safety information.
Injury or death is possible if caution is not used while
using this machine. The maximum user weight for this
machine is 330 lbs (150 kg.) The heart rate displayed is
an approximation and should be used for reference only.
For Consumer Use Only. Consult a physician prior to
using any exercise equipment. Set up and operate the
stationary exercise bicycle on a solid level surface.
(Label is only available in English and French Canadian.)

4
Specifications
Select the area where you are going to set up and
operate your machine. For safe operation, the
location must be on a hard, level surface. Keep
the workout area clear 0.6 m (24 in) along the side
used to access the machine and to the rear of the
machine. We recommend an assembly area of 1.8 m x
2.6 m ( 71 in x 102 in ). Estimated time to assemble the
machine is 45 - 50 minutes. Allow a workout area of
a minimum 1.2 m x 2 m (47 in x 79 in).
Maximum User Weight 150 kg (330 lb.)
Total Surface Area
(Footprint) of Equipment
7570cm2(1176in2)
Machine Weight 61.4 kg (135.4 lbs.)
Weight of Dumbbells 2.7 kg (6 lbs.)
Power Requirements
(AC Adapter)
Input Voltage: 90-240V AC, 50-60Hz,
1.5A
Output Voltage: 12V DC, 3A
DO NOT dispose of this product as refuse. This product
is to be recycled. For proper disposal of this product,
please follow the prescribed methods at an approved
waste center.
54.5 cm
(21.5 in)
138.9 cm
(54.7 in)
134.2 cm
(52.8 in)
2 m
(79 in)
1.2 m
(47 in)
0.6 m
24 in
0.6 m
24 in

5
Maintenance
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required
to do the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased
in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada,
contact your local distributor for them.
Disconnect all power to the machine before you service it.
Daily Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do
not use if found in this condition. Repair or replace all parts at the first sign of wear or damage.
Make sure adjustment knobs are tight. Tighten as necessary. After each workout, use a damp
cloth to wipe your machine and Console free of moisture.
Note: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not
clean with a petroleum based solvent, automotive cleaner, or any product that contains
ammonia. Do not clean the Console in direct sunlight or at high temperatures. Be sure to
keep the Console free of moisture.
Weekly Check pedals and tighten as necessary.
Clean the machine to remove any dust, dirt, or grime from the surfaces.
Check for smooth seat operation. If needed, sparingly apply a thin coating of silicone lube to
ease operation.
Silicone lubricant is not intended for human consumption. Keep out of reach of children.
Store in a safe place.
Note: Do not use petroleum based products.
Monthly
(Or after 20 hours)
Check crank arms and tighten as necessary. Make sure all bolts and screws are tight. Tighten as
necessary.
Check the drive belt tension and adjust if necessary.
Checking the Drive Belt Tension
To check the Drive Belt tension, the bike needs to be operated. Get the pedals rotating at about 20 RPM. Then
suddenly increase the RPM to your maximum ability. If the pedals move normally with no slipping, the tension is
correct. If the Pedals slip, the belt needs to be adjusted.
The “Adjust the Belt Tension” procedure can be found in this Service Manual.
