BOX DOCCIA NINA User manual

FIRST STAGE
SECOND STAGE
3.1
3.2
THIRD STAGE FOURTH STAGE
Assembly instructions
Slide the left folding door in both
upper and lower rail prole, as shown
in gure, making sure that all door
supports are inserted in the rail prole.
To make the operation easier cluster
the folding doors.
FIFTH STAGE SIXTH STAGE
2.1
2.2
Angle bracket“X” n. 2
Angle bracket“1”n. 2
n. 2
n. 2
Spare parts n. 3
n. 2
Anchors and screws n.10
n. 2
Level, pencil, awl, hammer, drill, drill bit 6 mm,
cross screwdriver, silicone caulking gun.
Assembly tools
Assembly instructions
Slide the right folding door in both
upper and lower rail prole, as shown
in gure, making sure that all door
supports are inserted in the rail prole.
To make the operation easier cluster
the folding doors.
Inner side shower compartment
Side to x
to wall
Outer side compartment
Assemby instructions
Take the right-side prole, which has two small holes (in the
middle) for xing the magnetic plate (Fig. 2.1) and place it, as
shown in the gure, with the widest part facing outward.
Place an angle bracket marked by the number "1" in the upper
part (Fig. 2.2) and an angle bracket marked by an "X" in the
lower part (Fig. 2.3).
IMPORTANT: The sides of the angle bracket marked by the "X"
and "1" should not be inserted within the prole, but must
remain outside, so that symbols remain visible.
Inner side shower compartment
Side to x
to wall
Outer side compartment
Assembly instructions
Take the left-side prole and place it, as shown in the gure,
with the widest part facing outward. Place an angle bracket
marked by the number "1" in the upper part (Fig. 3.1) and an
angle bracket marked by an "X" in the lower part (Fig. 3.2).
IMPORTANT: The sides of the angle bracket marked by the "X"
and "1" should not be inserted within the prole, but must
remain outside, so that symbols remain visible
Assembly instructions
Insert the upper and lower rail
prole in the angle brackets of the
previously assembled left side
prole.
NINA
CENTRAL OPENING
ASSEMBLY INSTRUCTIONS
Folding door
Attachment door prole
Rail prole Side prole
Side prole section
Side prole section

x2
x2
x2
SEVENTH STAGE
TENTH STAGE
ELEVENTH STAGE TWELFTH STAGE
THIRTEENTH STAGE FOURTEENTH STAGE
9.1
9.2
6mm
EIGHTH STAGE
NINGHT STAGE
x2
Assembly instructions
Take the assembled shower enclosure
and add it in the shower compartment.
Secure the enclosure to the walls with
screws, being careful not to use
excessive force.
8.2
x2
n.1
n.2
n.1
n.1
n.2
n.1
8.1
x2
n.1
n.2
n.1
n.1
n.2
n.1
n.1
n.2
n.1
n.1
n.2
n.1
Assembly instructions
Insert in the upper and lower rail
proles in the right side prole,
assembled previously.

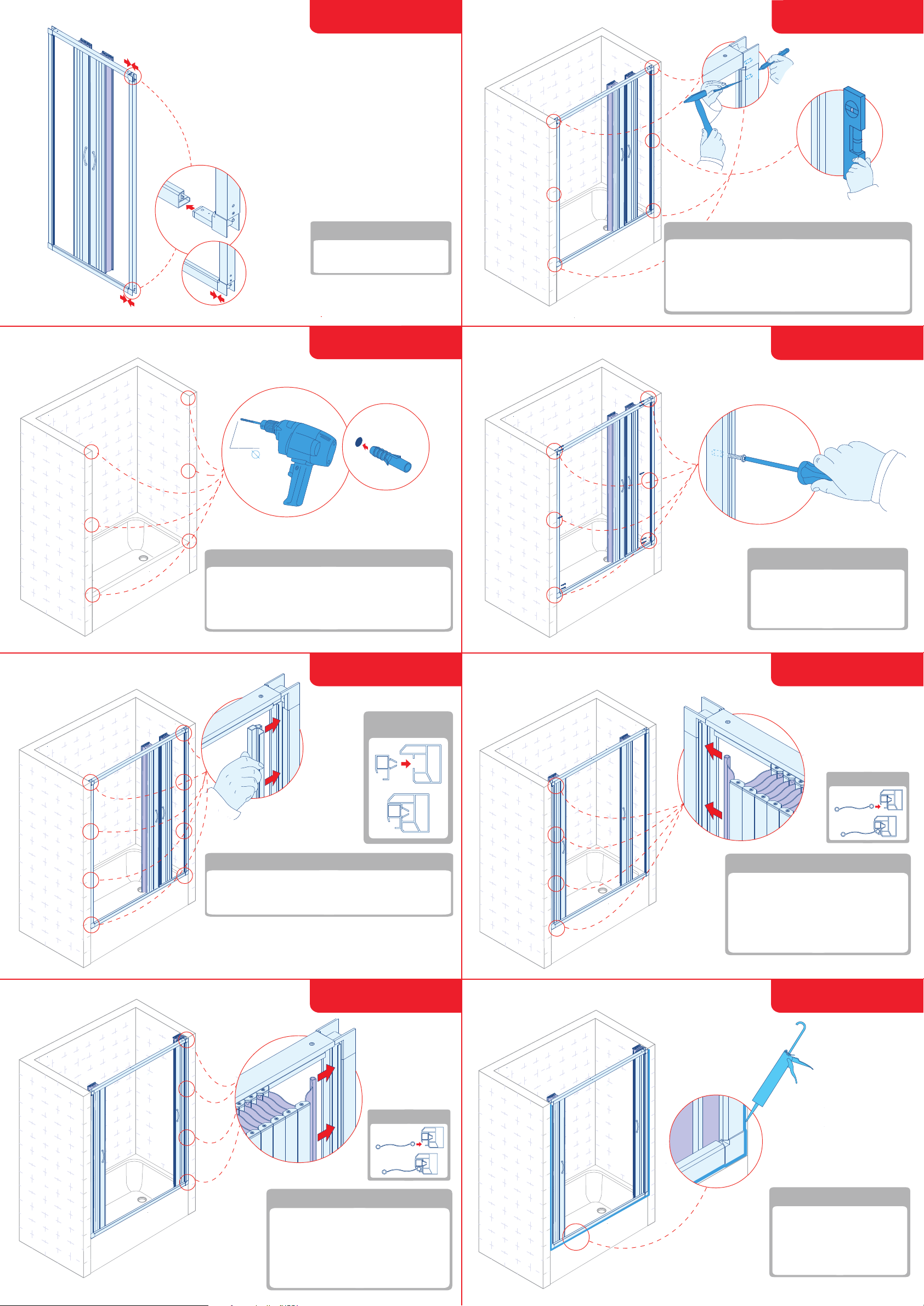

Assembly instructions
Take the assembled enclosure and put it into the enclosure
compartment. Mark on the walls, with an awl, the ten holes on
the proles (Fig. 8.1).
IMPORTANT: The prole must be perfectly plumb (Fig. 8.2).
NOTICE: Ensure that in the wall there are no power or telephone
lines, water pipes or gas.
Assembly instructions
Move the enclosure away from the wall and with a drill pierce
the ten holes where the marks were drawn up (Fig. 9.1).
Insert anchors into the holes (Fig. 9.2).
NOTICE: Ensure that in the wall there are no power or
telephone lines, water pipes or gas.
Assembly instructions
From inside the shower compartment, insert, interlocking,
the attachment door prole in the side proles. Exercise, top
to bottom, the pressure needed to hear the insert click.
Proceed, then, for the entire length of the side prole.
Dall'interno del vano doccia inserire, a
incastro, l’ultima doga semitrasparente
precedenza installato. Esercitare, dall’alto
verso il basso, la pressione necessaria a
sentire lo scatto d'inserimento. Procedere,
laterale.
Assembly instructions
From inside the shower compartment insert,
interlocking, the last semitransparent
component of the folding door in the left
attachment door prole, previously installed.
Exercise, top to bottom, the pressure needed
to hear the insert click. Proceed, then, for the
entire length of the side prole.
Proles Section
From inside the shower compartment insert,
interlocking, the last semitransparent
component of the folding door in the right
attachment door prole, previously installed.
Exercise, top to bottom, the pressure needed
to hear the insert click. Proceed, then, for the
entire length of the side prole.
Assembly instructions
Apply silicone on the outside of
the enclosure and let it dry for at
least 24 hours. To prevent fraying,
if necessary, secure the rail
proles with the screws,
as shown.
Proles Section
Proles Section
Assembly instructions
