Boxym oSport User manual

User Manual
Ver 1.0 revision date：06-2018
Product name：Fingertip Pulse Oximeter
Model: oSport
This Fingertip Pulse Oximeter is a kind of innovated medical device with non-invasive and
continuous features for arterial SpO2and PR detection. Being portable, it is able to measure
SpO2and PR values quickly and precisely.
General Description
Hemoglobin Saturation is the percentage between the capacity of Oxyhemoglobin (HbO2) that
combines with oxygen and that of all combinative hemoglobin (Hb) in blood. In other words, it
is the saturation of Oxyhemoglobin in blood. Hemoglobin Saturation is a very important
physiological parameter for Respiratory and Circulation Systems. Many respiratory diseases
could reduce hemoglobin saturation in human blood. Moreover, factors such as Automatic
Organic Regulation Malfunction caused by anesthesia, trauma from a major operation and
some medical examinations that can also cause problems in oxygen supply, which might
reduce human hemoglobin saturation. As a result, such symptoms as megrim, vomiting and
asthenia might appear to patients. Hence, it is very important to have a timely knowledge of the
hemoglobin saturation of patients in clinical medical aspects.
The Fingertip pulse oximeter features in a small volume, low power consumption, convenient
operation and portability. It is only necessary for a patient to put a finger into the fingertip
photoelectric sensor for diagnosis, and the display screen will directly show the measured
value of hemoglobin saturation. It has been proved in clinical experiments that the fingertip
pulse oximeter possesses a high precision and repeatability.
Measurement principle
The principle of the oximeter is as follows: An experience formula of data process is
established by exerting the Beer-Lambert Law according to Spectrum Absorption
Characteristics of Reductive hemoglobin(R Hb) and oxyhemoglobin (O2Hb) in glow and
near-infrared zones. The operation principle of the instrument is to combine Photoelectric
Oxyhemoglobin Inspection Technology with Capacity Pulse Scanning and Recording
Technology, so that two lights with different wavelengths (660nm glow and 940nm near
infrared light) can be focused onto human nail through a perspective clamp finger-type sensor.
The measured signal can be obtained by a photosensitive element and the information
acquired will be shown on two groups of LEDs through process in electronic circuits and
microprocessor.
Diagram of Operation Principle
1. Infrared-ray receiving tube
2. Infrared-ray transmitting tube
Precautions for use
1. Do not use the pulse oximeter together with MRI or CT equipment.
2. Explosion hazard: Do not use the pulse oximeter in an explosive atmosphere.
3. The pulse oximeter is intended only as an adjunct in patient assessment; Doctors should
make a diagnosis in conjunction with clinical manifestation and symptoms.
4. Check the pulse oximeter sensor application site frequently to make sure that the
circulation and skin integrality of patient are in good condition.
5. Do not stretch the adhesive tape while applying the pulse oximeter sensor. This may
cause inaccurate readings and skin blisters.
6. Please read the manual carefully before your operation.
7. The pulse oximeter has no SPO2prompt, it is not for continuous monitoring.
8. Prolonged use or the patient’s condition may require changing the sensor site periodically.
Change sensor site and check skin integrality, circulatory status, and correct alignment at
least every 2 hours.
9. Inaccurate measurements may be caused by autoclaving, ethylene oxide sterilizing, or
immersing the sensors in liquid.
10. Significant levels of dysfunctional hemoglobin (such as carboxyl- hemoglobin or
methemoglobin) may cause an inaccurate reading.
11. Intravascular dyes such as indocyanine green or methylene blue may cause an
inaccurate reading.
12. SpO2measurements may be adversely affected in the presence of high ambient light.
Please shield the sensor area (with a surgical towel or direct sunlight, for example) if it is
necessary.
13. Unexpected actions may cause inaccurate reading.
14. A medical signal with high frequency or interference caused by defibrillator may lead to
an inaccurate reading.
15. Venous pulsations may cause inaccurate readings.
16. There could be an inaccurate reading when the positions of sensor and blood pressure
cuff are on the same arterial catheter or intravascular line.
17. Hypotension, severe vasoconstriction, severe anemia, or hypothermia may cause
inaccurate readings.
18. An inaccurate reading may be caused by use of cardiotonic in a patient after his cardiac
arrest or when he is in a quiver.
19. Bright nail or painted nail may cause inaccurate SpO2reading.
Follow local ordinances and recycling instructions regarding the disposal or the recycling of the
device and device components.
Scope of application / intended use
The fingertip pulse oximeter can be used to detect blood oxygen saturation and pulse rate in
hospitals, families, schools and medical centers.
Contraindication：not found
note ：1.The image in the instruction may have slight differences with the actual
instruments。
2.Technical parameters and appearance change, without prior notice。
Features
OLED display
Product adopts double color OLED display and can show the six different
display modes.
Low-power consumption, continuously work for more than six hours with a
rechargeable lithium battery.
A battery life indicator
In the absence of signals, the product would power-off automatically after 8
seconds.
Small in volume, light in weight, and convenient to carry
Operation Instructions
1. Install a pair of AAA batteries into battery compartment.
2. Plug a finger into rubber hole of the Oximeter.
3. Press button on the front panel to start.
4. Do not shake your finger or move your body when the Oximeter is working.
5. Press the button if you want change display direction.
6. Read relevant value from display screen.
7. The device will automatically power off in 8 seconds if there is no finger signal.
8. Please charge the batteries when the batteries run out of power.
When plugging your finger into the Oximeter, your nail surface must be upward.
Declaration: Please use the medical alcohol to clean the rubber before each test and clean the
tested finger with alcohol before and after the test. (The rubber inside of the Oximeter is a
medical rubber, which has no toxin, causes no harm, and brings no side effect such as allergy
to the skin ).

Hang rope installation
1.Put the rope thin end through the hole.
2.Put the rope coarser end through its already wearing thin end part and tighten。

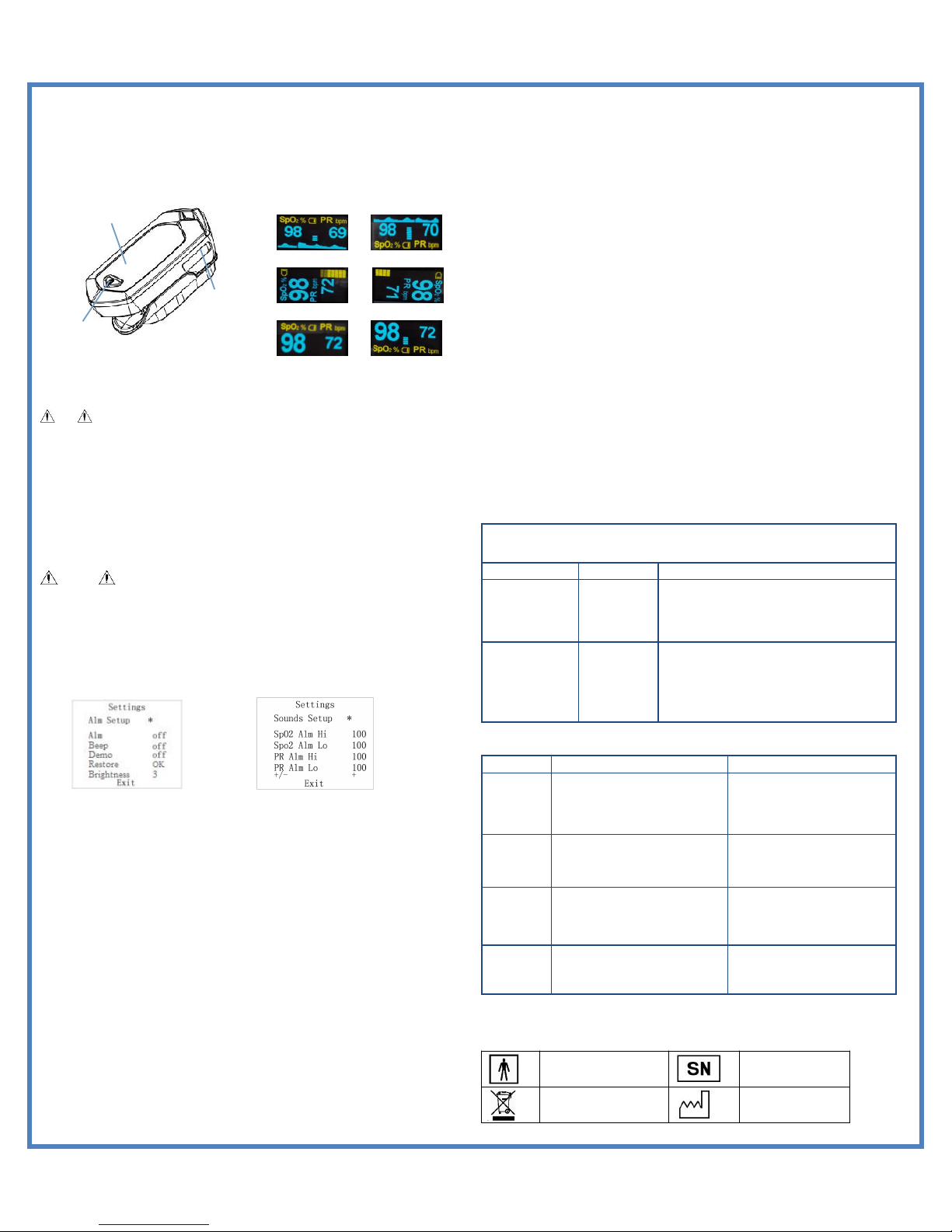

Brief Description of Front Panel
Keys function description: in standby mode, start the key instrument into the working state,
pressing this button under working state, can change the display mode.
note ：The machine profile picture is only for reference use, specificity in kind prevails.
Parameter setup：
Press start button (＞3s)，into parameter setup. As menu 1：
1. In menu 1，When the “*” signal is shown on the “Alm Setup”, press the button（＞3s）and
enter into the menu 2. Press the button（<1s）can select item，then press button（＞3s）to set
the on/off for alarm, beep, demo and screen brightness adjustment (optional "1", "2", "3" and
"4"). When the “*” signal is shown on the “Restore”, press the button （ ＞ 3s）and all the
settings are back to the factory settings.
Attention
Using devices outdoors or under strong light, please adjust the screen
brightness to a higher level for proper observation.
It’s better for users to choose a lower brightness to conserve battery power.
2. In menu 2，When the “*” signal is shown on the “Sounds Setup”, press the button（＞3s）
and enter into the menu 1, Press the button（<1s）to select an item, and then press the button
（＞3s）to setup data. Choose “+” or “-” to increase or decrease values.
Menu 1 Menu 2
Detailed descriptions of product functions:
1. Display Type：OLED display
2. SPO2：Measurement range：70%～99%
Accuracy：±2% on the stage of 80%～99%;
±3% on the stage of 70%～79%;
Below 70% no requirement
Resolution：±1%
3. PR：Measurement range：30BPM～240BPM
Accuracy：±1BPM or ±1%（the larger one）
4. Power：rechargeable lithium battery
5. Power consumption：below 30mA
6. Automatic power-off：The product power off by itself when no finger is in the product ≥8
seconds
7. Dimension：61.8mm×33.1mm×26.3mm
8. Operation Environment：Operation Temperature：5 ºC～40 ºC
Storage Temperature：-10 ºC～40 ºC
Ambient Humidity：15%～80% on operation
10%～80% in storage
Air Pressure：86kPa～106kPa
9. Declaration：The EMC of this product complies with the IEC60601-1-2 standard.
Classification
1. Management Class for Medical Devices: Class II equipment
2. Anti-electric Shock Type: Internally powered equipment
3. Anti-electric Shock Degree: Type BF equipment
Maintenance and Preservation
1. Charge batteries timely when the battery power is too low.
2. Clean the surface of fingertip oximeter before it is used to assess patients.
3. It is best to preserve the product at a temperature -10~40ºC (14-104 ºF) and humidity of
10%-80%.
4. It is recommended that the product should be kept dry all times. A wet ambience might
affect its lifetime and even damage the product.
Product Accessories
1. A hang lace
2. A user manual
3. A charging cable
4. A DC-5V One adapter(optional)
Guidance and manufacture’s declaration-electromagnetic radiation-for
other EQUIPMENTS and SYSTEMS
The Pulse Oximeter is designed to be used in specified electromagnetic environment .
Users of the Pulse Oximeter must be used in the following environments.
Radiation Test
Compliance
Electromagnetic environment-guidance
RF interference
CISPR 11
Group 1
RF signal of Pulse Oximeter is simply created by
its internal function. Therefore, its RF
interference is very low and is not likely to cause
any interference to nearby electronic equipment.
RF interference
CISPR 11
Class B
The Pulse Oximeter applies to all establishments,
including domestic establishments and those
directly connected to the public low-voltage power
supply network that supplies domestic buildings.
Possible Problems and Resolutions
Problem
Possible reason
Solution
SPO2or PR
cannot be
shown
normally.
1. Finger is not plugged correctly
2.Patient’s Oxyhemoglobin value
is too low to be measured
1. Retry by plugging the finger
2. Try more times. If you can
make sure there is no problem in
the product, please go to hospital
timely for exact diagnosis
SPO2or PR
is shown
unsteady.
1. The finger might not be plugged
deep enough
2. Finger is trembling or the
patient is moving
1. Retry by plugging the finger
2. Please remain at rest
The
Oximeter
cannot be
turned on
1. Inadequate power or power off
2.The Oximeter might be
damaged
1. Please charge the batteries
timely
2. Please contact with local
customer service centre
Indication
lamps are
suddenly
went off
1. The product automatically shuts
off when no signal is detected in 8
seconds
2. Inadequate power
1. Normal
2. Please charge the batteries
on time
Symbols and Definitions
BF type application part
Serial number
Separate collection
Date of manufacture
OLED display modes：
1. 2.
3. 4.
5. 6.
start/mode key
OLED display
Charging jack

See the Instruction
Manufacturer
Cautions
Warning of no SpO2
IP22
IP degree
Temperature range
Humidity range
Avoid sunlight
Keep dry
Up toward
Reserve the right to technical change appearance, our products are subject to change without
prior notice, please forgive us!
Statement:
1. Maintenance with data such as circuit diagram, components list, figure and detailed rules of
correction and injection are available only to the repair factory qualified personnel and units.
2. The company can communicate in the form of email or other electronic files to provide users
with random files.
2. The instrument is not to be used for evaluation of blood oxygen probe pulse and pulse
blood oxygen.
After-sales service
Users are to ensure that:
● They carefully read the user manual before using the instrument.
● According to the instruction manual for the operation and daily maintenance, they make sure
they meet the machine power supply and environmental requirements.
Maintenance time
Monday to Friday 9 to 17:30pm, except for the national legal holidays
Maintenance regulations
● Conformation to the regulations within the scope of the product, there will be warranty cards
for free maintenance. All that is beyond the scope of the product will attract paid services.
● With a warranty card and shopping invoice, the instrument and its accessories are under free
maintenance services from the date of purchase till one-year and three months for the
instrument and its accessories respectively.
● The following does not belong to the scope of free maintenance:
☞Damage caused by human factors.
☞Damage resulting from use that is inconsistent with the provisions of our company.
☞Damage to the product by unauthorized personnel in the process of disassembling or
repairing.
☞Products beyond the warranty period.
www.boxym.com
