Boyo AVS200 User manual

BEFORE OPERATION THE UNIT, PLEASE READ THIS MANUAL
THROUGHLY AND RETAIN IT FOR FUTURE REFERENCE
OWNER’S MANUAL
Mobile Audio System
AVS2 00

CONTENTS
SAFETY INFORMATION……………………………………………………..3
DISC NOTES………………………………..................……………………..5
INSTALLATION……………………………………………..............………..7
CONNECTIONS………...………………………………………….………....9
LOCATIONS AND FUNCTION OF THE PLAYER…………………........10
LOCATIONS AND FUNCTION OF THE REMOTE CONTROL…..…....11
OPERATION………………………………………………………….....…...14
BASIC OPERATION…………………………………………...…………………......14
DVD OPERATION……………………………………………………..…………....….14
AV OPERATION………………………………………………………….……….……..19
TROUBLE SHOOTING………………………………………...…....….…..20
SPECIFICATIONS……………………………………………………..…….21
2

SAFETY INFORMATION

Features
Compatible with PAL DVD (Video CD)
and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
A single LSI chip now integrates all
major DVD playback circuit
functions including MPEG2 decoder,
video D/A converter, and audio
decoders.
L/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
Supplied remote handles
multi-function software
(multi-language audio-track/subtitle,
multi-angle, etc.), plus all basic
functions.
 Use This Product Safely
This set has been designed and
manufactured to assure personal safety.
Improper use can result in electric
shock or fire hazard. The safeguards
incorporated in this unit protect you if
you observe the following procedures
for installation, use and servicing. This
unit doesn’t contain any parts that can
be repaired by the user.
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce
very high temperatures inside your
vehicle. Give the interior a chance to
cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system (the regular system in a North
American car).
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise
mechanism of this unit.
Use Authorized Service Centers
Do not attempt to disassemble or adjust
this precision product. Please refer to
the Service Center list included with this
product for service assistance.
For Installation
The unit should be installed in a
horizontal position with the front end up
at a convenient angle, but not more
than 30
0
.
3

SAFETY INFORMATION
CAUTION:
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN
OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
and is intended for home and other
limited viewing uses only unless otherwise
authorized by Macrovision Corporation.
Reverse engineering or disassembly is
prohibited.
Region Management Information
Region Management Information: This
Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation,
4

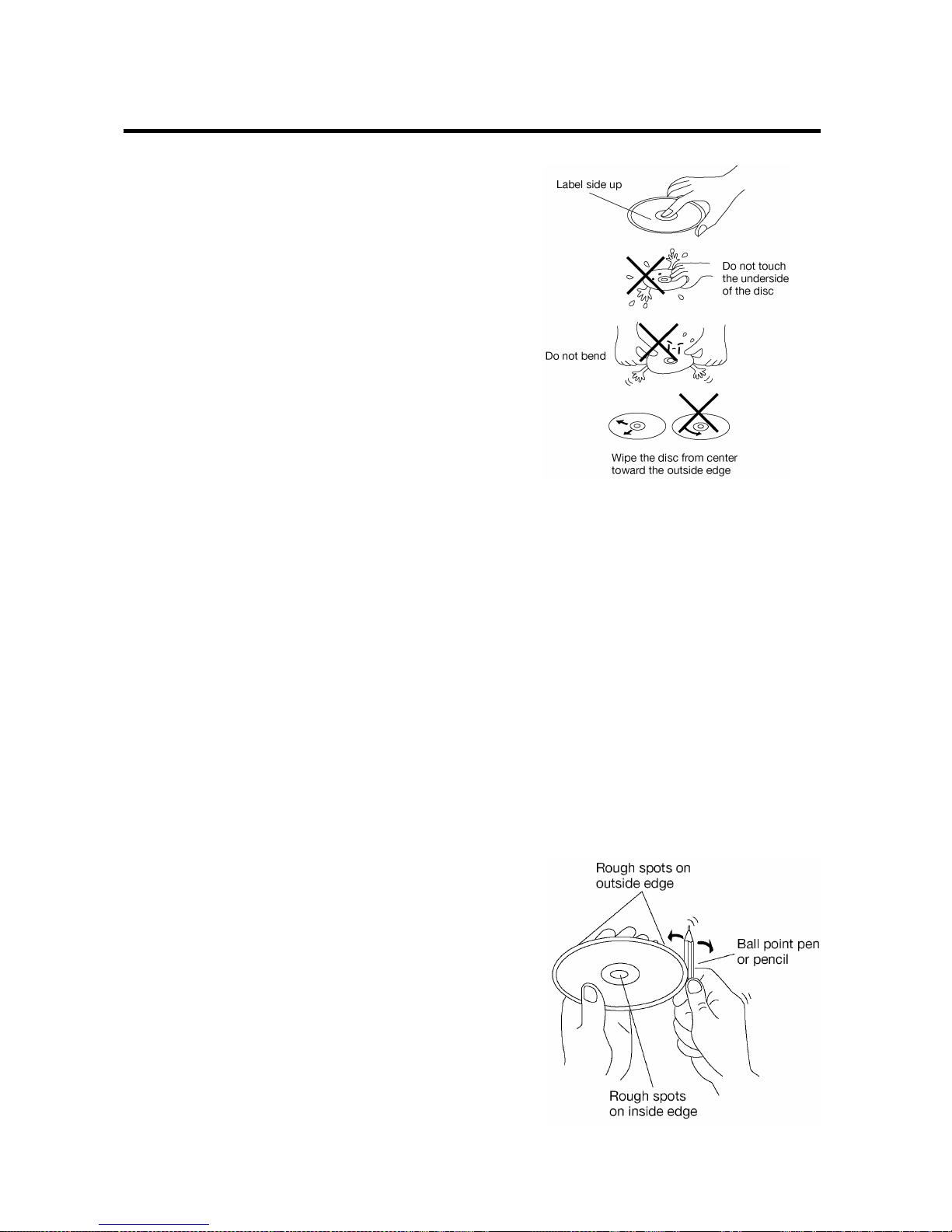

DISC NOTES
Handling and Cleaning
Dirt, dust, scratches and warping discs
will cause wrong operation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its case
when not in use to prevent from
damage.
Do not place discs in the following
places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. On the seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, using a soft cloth
slightly dip with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on the way it is
handled and conditions in the usage
environment. Note these scratches are
not an indication of any problem with the
player.
 Preparing New Discs with
Rough Spots
A new disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance by
using a ballpoint pen or pencil as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
5

6
INSTALLATION
Notes:
Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
Before finally installing the unit,
connect the wiring temporarily and
make sure it is all connected up
properly and the unit and the system
work properly.
Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop,
like an emergency stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.

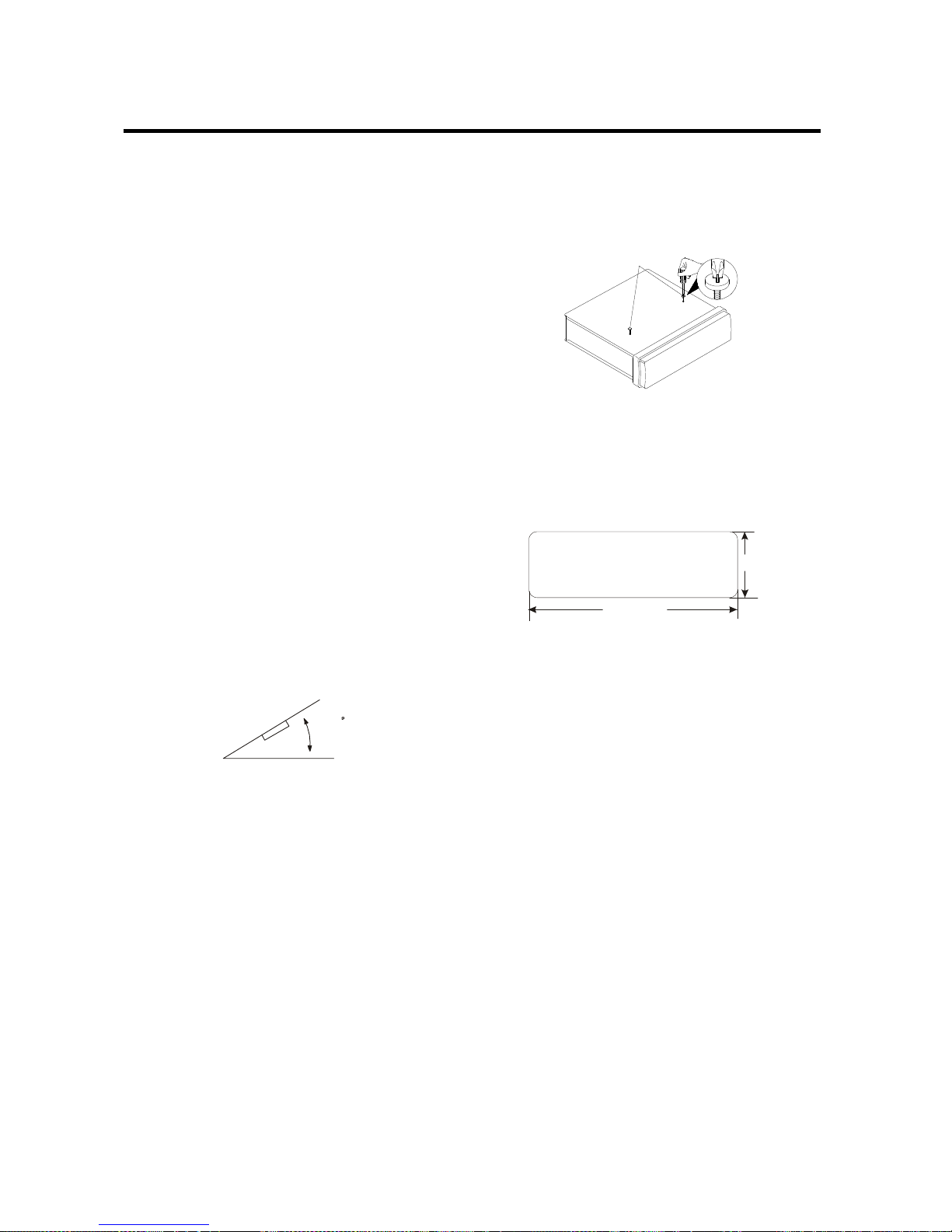

DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN
Front-mount) or “Rear” (DIN Rear-mount
installation, utilizing threaded screw holes
at the sides of the unit chassis). For details,
refer to the following illustrated installation
methods.
TAKE OUT SCREW BEFORE INSTALLATION
Before install the unit, please remove the
two screws.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire connections.
3. Lift the top of the outer trim ring then
30
53mm
182mm
Take out screw
before installation.
pull it out to remove it.
4. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as they
will go (with the notches facing up) into
the appropriate slots at the middle left
and right sides of the unit. Then slide
the sleeve off the back of the unit.
5. Mount the sleeve by inserting the
sleeve into the opening of the
dashboard and bend open the tabs
located around the sleeve with a

7
INSTALLATION
screwdriver. Not all tabs will be able to
make contact, so examine which ones
will be most effective. Bending open the
appropriate tabs behind the dashboard
to secure the sleeve in place.
Tabs
Screwdriver
Sleeve
Dashboard
6. Reconnect the wire connection.
7. Slide the unit into the sleeve until it
locks into place.
8. To further secure the unit, use the
supplied metal strap to secure the back
of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap
to the mounting bolt on the back of the
unit. If necessary, bend the metal strap
to fit your vehicle’s mounting area. Then
use the supplied hardware (Tapping
Screw (5x25mm) and Plain Washer) to
attach the other end of metal strap to a
solid metal part of the vehicle under the
dashboard. This strap also helps
ensure proper electrical grounding of
the unit.
Note to install the short threading
terminal of the mounting bolt to the
back of the unit and the other long
threading terminal to the dashboard.
Mounting Bolt
Spring Washer
Plain Washer
Tapping Screw
Hex Nut
Metal Strap
9. Reconnect the cable to the vehicle
battery’s negative (-) terminal. Then
replace the outer trim ring.
Removing the unit
1. Make sure the ignition is turned off, then
disconnect the cable from the vehicle
battery’s negative (-) terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
3. Lift the top of the outer trim ring then pull
it out to remove it.
4. Insert both of the supplied keys into the
slots at the middle left and right sides of
the outer trim ring of the unit, then pull
the unit out of the dashboard.

INSTALLATION

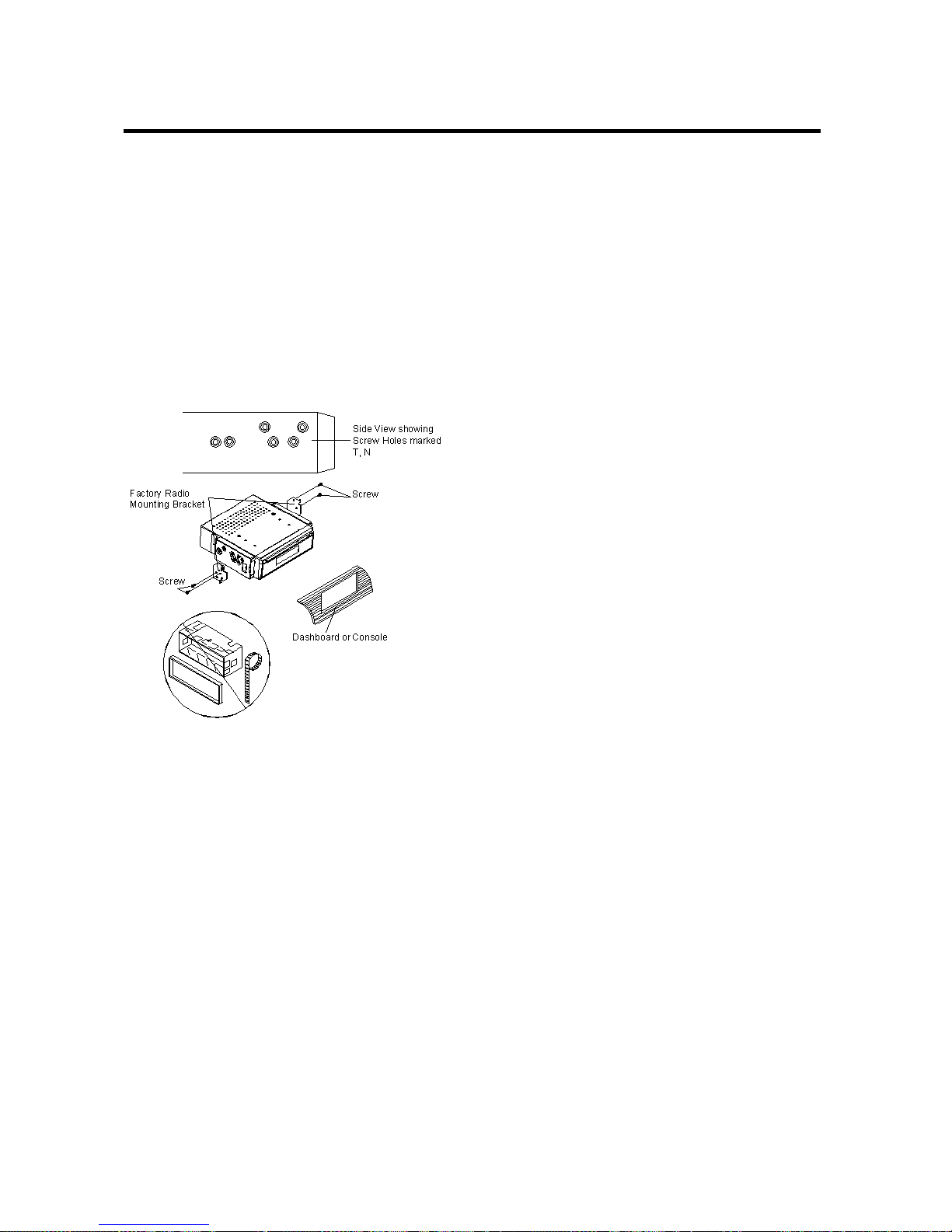

DIN REAR-MOUNT (Method B)
If your vehicle is a Nissan, Toyota, follow
these mounting instructions.
Use the screw holes marked T (Toyota), N
(Nissan) located on the brackets that have
installed to the both sides of the unit to
fasten the unit to the factory radio
mounting brackets supplied with your
vehicle.
To fasten the unit to the factory radio
mounting brackets.
Align the screw holes on the bracket with
the screw holes on the unit, and then
tighten the screws (5x5mm) on each side.
Note: the outer trim ring, sleeve and the
metal strap are not used for method B
installation.
8

CONNECTIONS

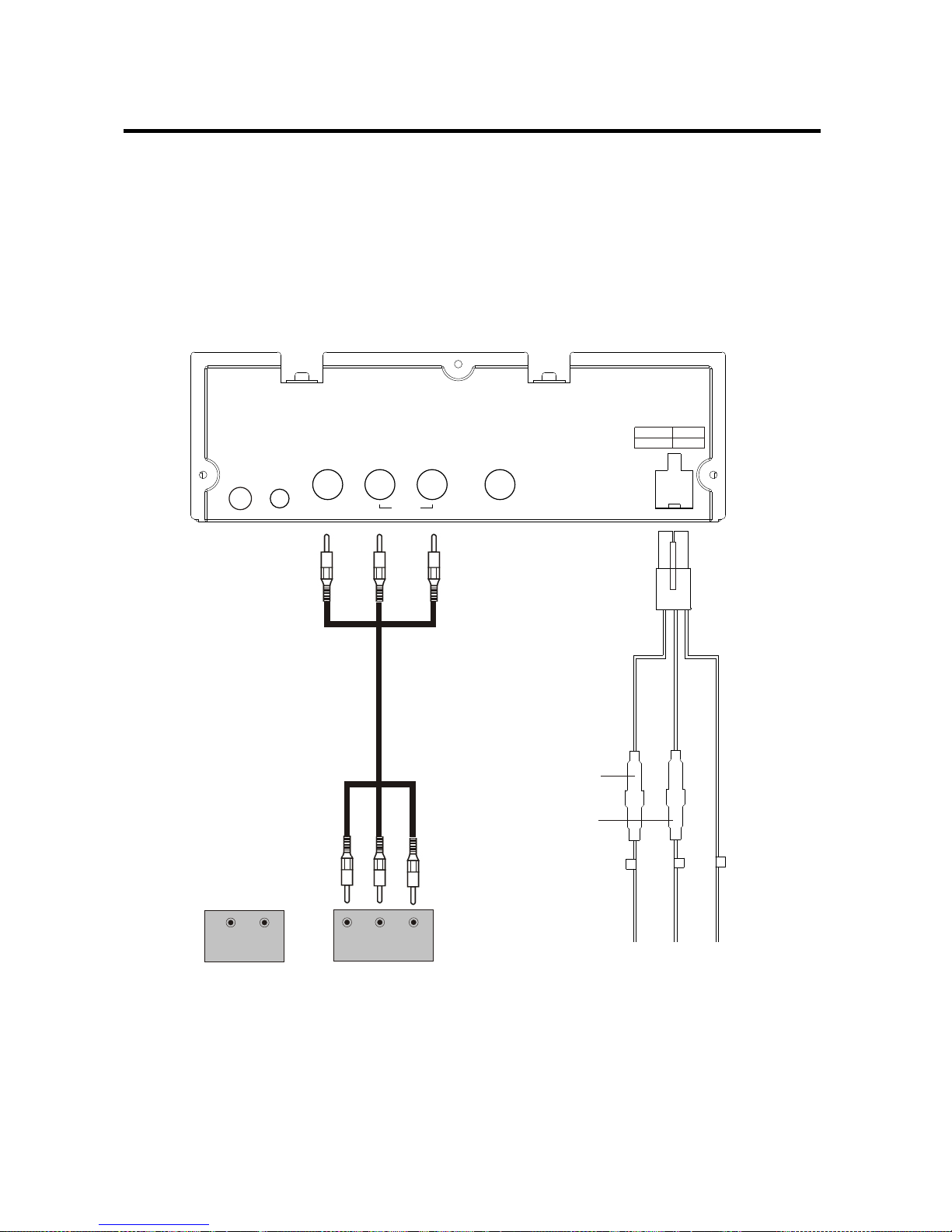

Video connections to your monitor can be done with RCA-type video connections. As a
precaution, be sure to turn off the power of the player and the monitor(s) before making
any connections.
Audio connections can use the RCA type connectors (analog audio).
9
1A
2A
ACC
B+
+
GND
VIDEO AUDI O L
AUDI O LAUDI O R
AUDI O R
TV
AMP
YELLOW
RED
WHITE
OR
ACC
DC
12V
IN
GND
COAXIAL
VIDEO
OUTPUT
AUDIO
OUTPUT
REMOTE
LR
EARPHONE

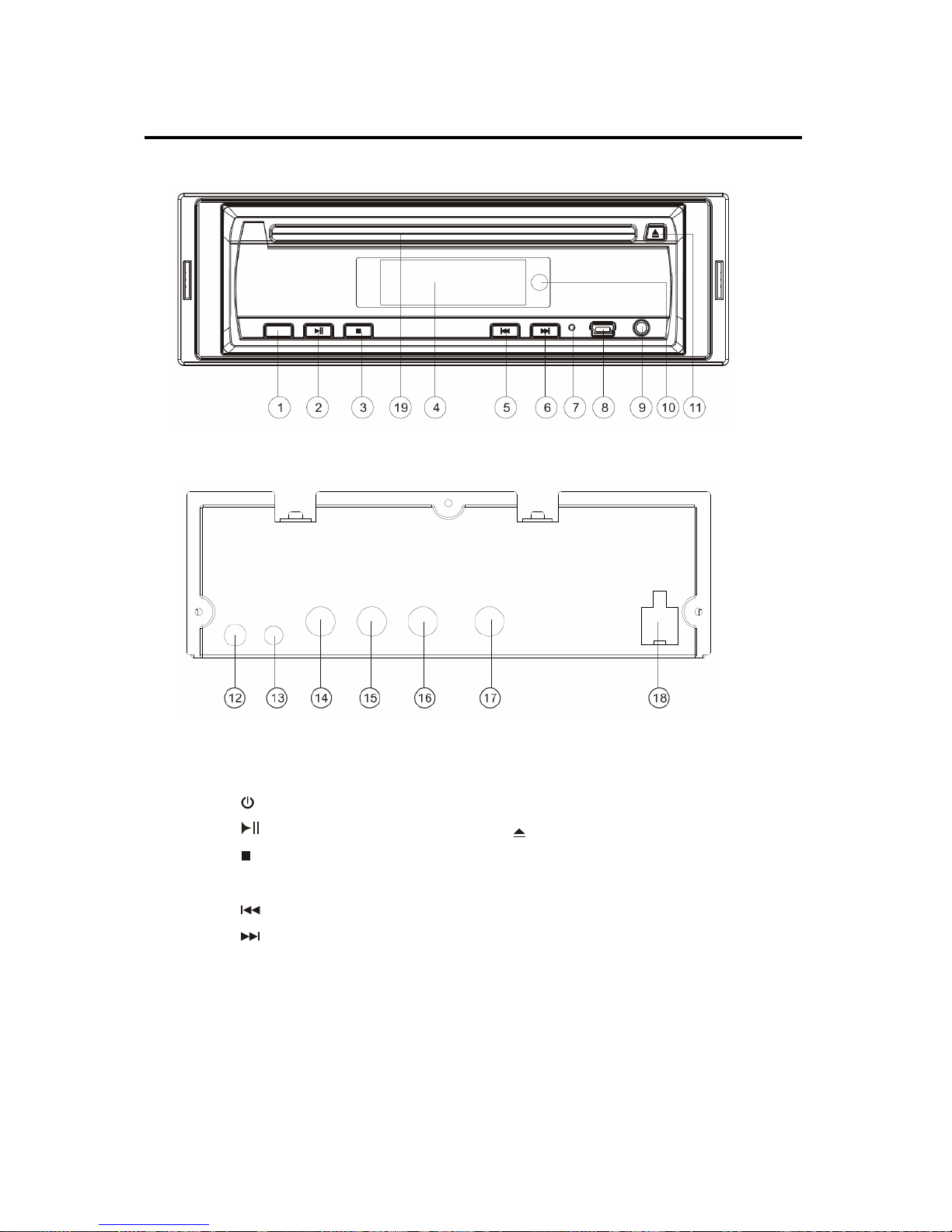

LOCATIONS AND FUNCTION OF THE PLAYER
Front panel:
Rear panel:
1. SRC
2. (play/pause)
3. (stop)
4. Liquid crystal display
5.
6.
7. Reset button
8. USB interface
9. AV IN jack
10. Remote Sensor
11. (eject)
12.REMOTE
13.EARPHONE
14.VIDEO OUTPUT
15.AUDIO OUTPUT L
16.AUDIO OUTPUT R
17.COAXIAL
18. DC 12V IN
19. Disc Slot
10

LOCATIONS AND FUNCTION OF THE REMOTE CONTROL
11

1. MUTE
Press to mute the sound, press it
again to resume the sound.
2. POWER
Press it to turn on the unit. When the
unit is on, press it to turn the unit off.
3. 0-9
Numeric buttons.
4. SUB-T
Press to display the subtitle
information of the DVD disc.
5. AUDIO
Press to display the audio information
of the disc.
6. SETUP
In media play mode, press to enter
into the DVD setup menu.
7. ENTER
Press to confirm your selection.
8.
/ , /
In case of menu mode, the buttons
served as cursor buttons to select
item left/right, up/down.
9. SLOW
For some discs, press to start slow
forward function.
10. ZOOM
Press to allow the picture to be
increased in size.
11. RANDOM
Press to play all tracks in random
order.
12. P/N
Press to change between PAL/NTSC.
13. PROG
In media play mode, press to enter
into program mode to play the track in
your desired sequence.
14. MODE
When the unit is on, press it to select
the different mode, such as DVD, AV
mode.
15. EJECT
Press to eject the disc on the disc slot.
16. A-B
A-B repeat allows a passage to be
repeated continuously.
17. REPEAT
In media play mode, press to switch
the repeat mode of programs.
18. TITLE
Press to display the title menu of the
DVD disc.
19. ANGLE
Press to change the view angle on
multi-angle DVD disc.
20. VOL+
Press to increase the volume level.
21. VOL-
Press to decrease the volume level.
22. MENU/PBC
Display the main menu on the DVD
disc.
It can be used to change between
PBC ON and PBC OFF on the VCD
disc.
23. STOP
Press it once to pre-stop the playback,
press it twice to stop the play and
return to DVD logo.
24. PLAY/PAUSE
Press to play/pause the playback.
25. NEXT
Press shortly to skip to the next track.
Press and hold it to activate fast
forward function.
LOCATIONS AND FUNCTION OF THE REMOTE CONTROL
12

26. PREV
Press shortly to skip to the previous
track.
Press and hold it to activate fast
reverse function.
27. DISPLAY
In media play mode, press to display
the on-screen display information.
28. GOTO
GOTO (Disc search button) used in
media play mode, cooperatively
used with numerical buttons.
Preparing the Remote Control
Inserting the Batteries
1. Open the battery compartment cover.
2. Insert the new batteries. Make sure
that the positive and negative
terminals of the batteries are oriented
as indicated.
3. Close the cover.
Battery: One button cell lithium
battery (CR2025).
Using the Remote Control
Point the remote control towards the
remote control signal receiver on the
player front face.
Operation angle: About ±30 degree in
each the direction of the front of the
remote sensor.
LOCATIONS AND FUNCTION OF THE REMOTE CONTROL
13

OPERATION
BASIC OPERATION
Turn the unit on/off
◆
◆
◆
◆
When all the connection is finished,
press SRC button on the front
panel or on the remote control will
turn the unit on. When the unit is on,
press on the remote control or
hold SRC button on the front panel
for several seconds to turn the unit off.
◆
◆
◆
◆Remote sensor
There is a remote sensor on the front
panel. You can point the remote
control to the remote sensor and
press functions keys on the remote
control to control the unit.
◆
◆
◆
◆Reset function
The reset button on the front panel
must be activated with either a
ballpoint pen or thin metal object. The
reset button is to be activated for the
following reasons:
1.Initial installation of the unit when all
wiring is completed.
2.All the function buttons do not work.
3. Error symbol on the display.
◆
◆
◆
◆Volume level adjustment
Pressing VOL+/- buttons on the
remote control to adjust the volume
level.
When you adjust the volume the
current value of the volume will be
displayed on the screen.
Pressing MUTE button on the remote
control will mute the sound. Press it
again will resume the sound.
◆
◆
◆
◆Mode selection
Press SRC button on the front
panel or MODE on the remote control
to select the desired mode to enjoy.
Such as DVD, AV.
DVD OPERATION
◆
◆
◆
◆Loading/ejecting a disc
When there is not any disc on the slot,
insert the disc with printed side facing
up into the disc slot. Then let the front
panel up to normal position. The
player will start playback
automatically.
Press button to eject the disc.
◆
◆
◆
◆Stopping playback
Press button on the front panel or
on the remote control for one time to
pre-stop the playback. When
button on the front panel or on the
remote control is pressed, normal
playback will continue.
Press button twice to stop the
playback and go back to the DVD
LOGO.
◆
◆
◆
◆Pausing play
Shortly press on the front panel or
on the remote control during
playback to stop playback temporarily.
Shortly press again will return to
the normal playback.
◆
◆
◆
◆Rapid forward / rapid reverse
Hold press / on the front panel
or / on the remote control
during playback.
Each time the button is hold pressed,
the speed of rapid forward /reverse
changes according to the disc as
follows.
DVD/VCD/CD/MP3:
Normal play X2 X4 X8 X20
◆ Slow motion playback (for DVD
only)
Press SLOW on the remote control
during play. Each time the button is
14

OPERATION
pressed, the speed of slow forward (SF)
changes according to the disc as
follows.
DVD:
Normal play1/21/31/41/5 1/6 1/7
In slow motion state, shortly press
on the remote control or on the
front panel to resume the normal
playback.
◆ Skipping track
Pressing
/ buttons on the remote
control or
/ on the front panel
during playback will skip to the
next/previous track.
When PBC (playback control) ON,
these buttons may be unavailable.
Note you can use the numeric buttons
(0-9) on the remote control to select the
track directly.
◆
◆
◆
◆DVD video menu play
1. For some DVD disc, pressing MENU
button on the remote control will stop
the playback and return to the menu
that is stored in DVD disc. The disc
will be played automatically and stop
at menu picture.
2. Press
/ , / cursor buttons on
the remote control to move between
the highlight bars in the menu.
3. Press ENTER button on the remote
control to confirm the selected item.
Zoom function
◆
◆
◆
◆
Allows the picture to be increased in
size. Press ZOOM button on the
remote control to toggle scale among
1, 2, 3, 4, 1/2 , 1/3, and 1/4. When the
scale is 1/4, press ZOOM again will
exit zoom operation.
During zoom mode, press
/ , /
buttons to move the picture left/right,
up/down.
◆ Multi-subtitle language function
(For DVD)
Press SUB-T button on the remote
control during playback. The
corresponding information will be
shown on the screen.
Each time the button is pressed, the
subtitle language changes in the
sequential order.
Notes:
The language is different according to
the disc. Some discs only contain one
subtitle language.
◆ Multi-angle function (For DVD)
Press ANGLE button on the remote
control during playback. The
corresponding information will be
shown on the screen.
Each time the button is pressed, the
angle changes in sequential order.
Notes:
a) The angle number is different
according to the disc.
b) The function only works for discs
having scenes recorded at different
angles.
◆ Multi-audio Language function
Press AUDIO during playback. The
corresponding information will be
shown on the screen.
Each time the button is pressed, the
audio soundtrack language changes
on sequential order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one
soundtrack language.
15

OPERATION
◆ Repeat play/ P aragraph repeat play
1. When you want to repeat playing
the whole disc or track or a chapter in
the disc.
Press REPEAT button on the remote
control repeatedly to select different
repeat mode. For different kinds of
discs, pressing REPEAT button has
different effects. For example:
DVD:
REP:[OFF]REP:[CHAPTER]REP:[TITLE]
MP3:
REP:[OFF] REP:[REP 1] REP:[REP DIR]
REP:[REP ALL]
Note: REPEAT feature does not
support VCD2.0 (with PBC ON).
2. When you want to play a paragraph
repeatedly, A-B repeat allows a
passage to be repeated continuously.
1) Press A-B button first at the start of
the required passage: REPEAT A-
2) Press A-B button secondly at the
end of the passage: REPEAT A-B
Then the unit will repeat playing the
passage you just set from A to B.
3) Pressing A-B button again will exit
repeating mode, and “ A-B
CANCEL” will be displayed on the
screen.
◆ Play the tracks in random order
For some discs, when playing, press
RANDOM button on the front panel or
on the remote control will play the
tracks on the disc in shuffle order. In
shuffle on mode, press RANDOM
button again will exit shuffle playing.
◆ Program play
In program play mode, you can play
the track in your desired sequence.
To program play a disc, please follow
the next instructions.
For VCD (when PBC OFF)
/CD/MP3/WMA disc:
a) Press PROG button on the
remote control to enter the
program edit interface.
b) Press
/ , / cursor buttons
on the remote control to select
the items you want to program.
The items you selected will
become highlight.
c) Input the number you want to
program by numeric buttons (0-9)
on the remote control.
Use cursor buttons to select
PLAY on the bottom of the
screen, or press ENTER button
on remote control to confirm. And
the unit will play the tracks you
programmed.
e) If you want to clear the program,
select CLEAR on the screen and
press ENTER on the remote
control to confirm, and
the unit will cancel the
programmed play.
For DVD disc:
The operation is the same as
VCD/CD operation. Press PROG
button on the remote control the
following media play window will be
shown on the screen:
PROG
1 ---- 5 ---- 9 ---- 13 ----
2 ---- 6 ---- 10 ---- 14 ----
3 ---- 7 ---- 11 ---- 15 ----
4 ---- 8 ---- 12 ---- 16 ----
PLAY CLEAR
16

OPERATION
Note:
When playing tracks you
programmed, press PROG button
to enter the program interface,
pressing PROG for the second time
will exit the menu and the unit will
resume normal play. When you
want to return to program play,
press PROG to enter program
interface and select PLAY then
press ENTER button on the remote
control to confirm, it will begin
program play.
◆ Goto Function
FOR DVD:
Press GOTO button on the remote
control, the screen will display the
following message:
Use the numeric buttons to input the
desired Title, Chapter or Time, then
press ENTER button to confirm.
FOR VCD (WITH PBC OFF)/CD/MP3:
You can input the Track and Time then
press ENTER to confirm.
◆ PBC Menu Playback of VCD/SVCD
For some VCD or SVCD discs, there is
a menu in order to select the desired
contents. This menu is called PBC
(Playback Control) menu.
Press PBC button on the remote
control to change between PBC ON
and PBC OFF on the disc.
In PBC ON mode, REPEAT, RANDOM,
A-B, PROGRAM and GOTO functions
are unavailable.
◆ DVD Setup
In DVD mode, when the disc is playing
or in stop mode, press SETUP button
on the remote control to enter setup
menu.
a) When the cursor is on the topside,
use / buttons to move between
the different pages, such as
SYSTEM SETUP, LANGUAGE
SETUP, AUDIO SETUP, VIDEO
SETUP, SPEAKER SETUP and
DIGITAL SETUP.
b) Press button to move the cursor
to the setup page below and then
you can use / buttons to move
between the different setup options.
c) Press button to display the
choice list for each setup option and
then use
/ buttons and ENTER
button to change your selection.
1) SYSTEM SETUP
When you open the setup menu, you
will see the system setup page at
first, see below:
* TV SYSTEM: Change the TV
SYSTEM among NTSC, PAL and
AUTO.
* AUTO PLAY: Change between ON
and OFF. When AUTO PLAY ON, the
unit will skip over the DVD menu to
play automatically.
SYSTEM SETUP
TV SYSTEM
AUTO PLAY
VIDEO
TV TYPE
PASSWORD
RATING
DEFAULT
17

OPERATION
* VIDEO: Change among S-VIDEO
INTERLACE-YUV, TV-RGB, P-SCAN
YPBPR and PC-VGA.
* TV TYPE: Change the TV TYPE
among 4:3 PS, 4:3 LB and 16:9.
* PASSWORD: Change the
PASSWORD lock or unlock, the
default PASSWORD is “0000”.
* RATING: Change the parental
RATING among 1KID SAFE, 2G, 3PG,
4PG13, 5PG-R, 6R, 7NC-17,
8ADULT.
* DEFAULT: Restore the system setup
to the default setup.
2) LANGUAGE SETUP
When you open the language setup
menu, you will see the language
setup page:
* You can change the OSD
LANGUAGE among: English, German,
Spanish, French and Portuguese.
* You can change the AUDIO
LANGUAGE among: Chinese, English,
Japan, French, Spanish, Portuguese,
Latin and German.
* You can change the SUBTITLE
LANGUAGE among: Chinese, English,
Japan, French, Spanish, Portuguese,
German and OFF.
* You can change the MENU
LANGUAGE among: Chinese, English,
Japan, French, Spanish, Portuguese,
German and Latin.
3) AUDIO SETUP
When you open the AUDIO menu,
you will see the following picture:
* AUDIO OUT: Change among
SPDIF/OFF, SPDIF/RAW and
SPDIF/PCM.
* KEY: Change the tone within a certain
range.
4) VIDEO SETUP
When you open the VIDEO menu,
you will see the following picture:
You can adjust the value of the
brightness, contrast, hue, saturation
and sharpness.
5) SPEAKER SETUP
When you open the SPEAKER
menu, you will see the following
picture:
* DOWNMIX: to set the DOWNMIX
modes of LT/RT, STEREO and
VSS.
* FRONT: to select between LARGE
and SMALL.
5) DIGITAL SETUP
When you open the DIGITAL menu,
you will see the following picture:
LANGUAGE SETUP
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
MENU LANG
AUDIO SETUP
AUDIO OUT
KEY
VIDEO SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
SPEAKER SETUP
DOWNMIX
FRONT
18

OPERATION
* OP MODE: to set the operating
modes for Dolby Digital decoder,
there are LINE OUT and RF
REMOD to be selected.
* DYNAMIC RANGE: you can
adjust the dynamic range between
1/8, 2/8. 3/8, 1/2, 5/8, 3/4, full.
* DUAL MONO: there are STEREO,
MONO L, MONO R and MIX
MONO to be selected.
◆ On-screen Display Function
Press the DISPLAY button on the front
panel or on the remote control during
playback to display the console
information of the current disc on the
screen.
For an example (when playing a DVD
disc):
Once you press DISPLAY button you
will see the information as the following
order.
1) Item: TT
Function: Display the current title
number and total title
number.
2) Item: CH
Function: Display the current chapter
number and total chapter number.
3) Item: (This icon only displayed
for several seconds, after several
seconds it will disappeared.)
Function: Display the played time of
the current chapter.
4) C-: Display the remaining time of the
current chapter.
5) T: Display the played time of the
current title.
6) T-: Display the remaining time of the
current title.
7) C: Display the played time of the
current chapter.
8)
Display the current disc’s LANGUAGE,
AUDIO TYPE, SUBTITLE
LANGUAGE and PLAY ANGLE.
Note: The displayed information is
different according to different type of
discs.
◆ Last Play Memory
1) During disc playback, if you turn off
the unit and then turn on the unit
again, the DVD unit will resume
playing from the point that just
interrupted.
2) During disc playback, if you press
MODE button on the remote control or
SRC button on the front panel to
switch to other mode, then return to
DVD mode again, the unit will resume
playing from the point that just
interrupted.
AV OPERATION
On the front panel of the unit, there is a
AV IN jack. When you connected AV
input device from the jack, press MODE
button on the remote control or SRC
on the front panel to select AV mode.
DIGITAL SETUP
OP MODE
DYNAMIC RANGE
DUAL MONO
19

TROUBLE SHOOTING
If it appears that your DVD unit is faulty,
first consult this checklist. It may be that
something simple has been overlooked.
Under no circumstances should you
try to repair the player yourself, as
this will invalidate the warranty. Only
qualified service personnel can
remove the cover or service this
player.
The power does not turn on.
The lead wires are not connected
properly to the connectors.
Make sure the connection is
correct.
The fuse has blown.
After checking for short circuits
in the wires, replace the fuse
with one having the same rating.
The internal processor is not
working due to noise or other
factors.
Press the reset button to reset
the unit to factory defaults.
The remote control does not work.
The unit does not operate even when
the correct buttons on the remote
control are pressed.
Battery capacity is low.
Install new batteries.
Some operations are disabled in
specific states.
Enter the correct mode.
The disc can not play.
Disc is of poor quality or damaged
or not clean.
Clean or replace the disc with
one of higher quality.
The disc installed is not supported
by the unit.
Examine the disc type.
The disc installed is not compatible
with the video system.
Replace the disc with one
compatible with your video
system.
The desired source is not selected
although you press the MODE button.
An optional unit required to listen to
each source is not connected yet.
Connect the optional unit
correctly.
The reset button is not pressed yet
although the optional unit has been
connected to the unit.
Press the reset button.
Nothing happens when the button are
pressed.
The computer chip in the unit is not
functioning normally.
Press the reset button on the
unit.
The sound/picture skips on a
DVD/VCD/CD/MP3.
The disc is scratched or dirty.
Clean the disc.
A track will not play.
Random play has been selected.
Turn off random play.
A VCD cannot be played using
menus.
The VCD disc being played is not
compatible with PBC.
Menu playback is available only
with VCD discs recorded with
PBC.
The viewing angle cannot be
changed.
The DVD disc being played does not
contain the recording of more than
one angle.
The viewing angle cannot be
changed when the DVD disc
being played does not contain
the recording of more than one
angle.
You are attempting to switch the
angle in a DVD section where more
than one angle is not recorded.
More than one viewing angle
may be recorded only in limited
sections in a disc.
20
