boytone BT-101B User manual

Suitcase Turntable with Rechargeable Battery
USB/SD and FM Radio & Bluetooth
Model Numbers:
BT-101B
INSTRUCTION MANUAL
READ INSTRUCTIONS CAREFULLY BEFORE USE AND STORE
IN A SAFE PLACE FOR FUTURE REFERENCE

Features:
1. Function 33.3,45,45rpm Turntable LP player
2. Built-in Speaker (2x1W RMS)
3. Line Out ( RCA Jack )
4. USB/SD playing and recording
5. FM radio
6. Aux in and Headphone
7. RCA out
8. Can built-in rechargeable lithium battery
(Can be run continuously 3~4 hours)
9. The external power supply (USB Jack 5V 500ma )
DESCRIPTION

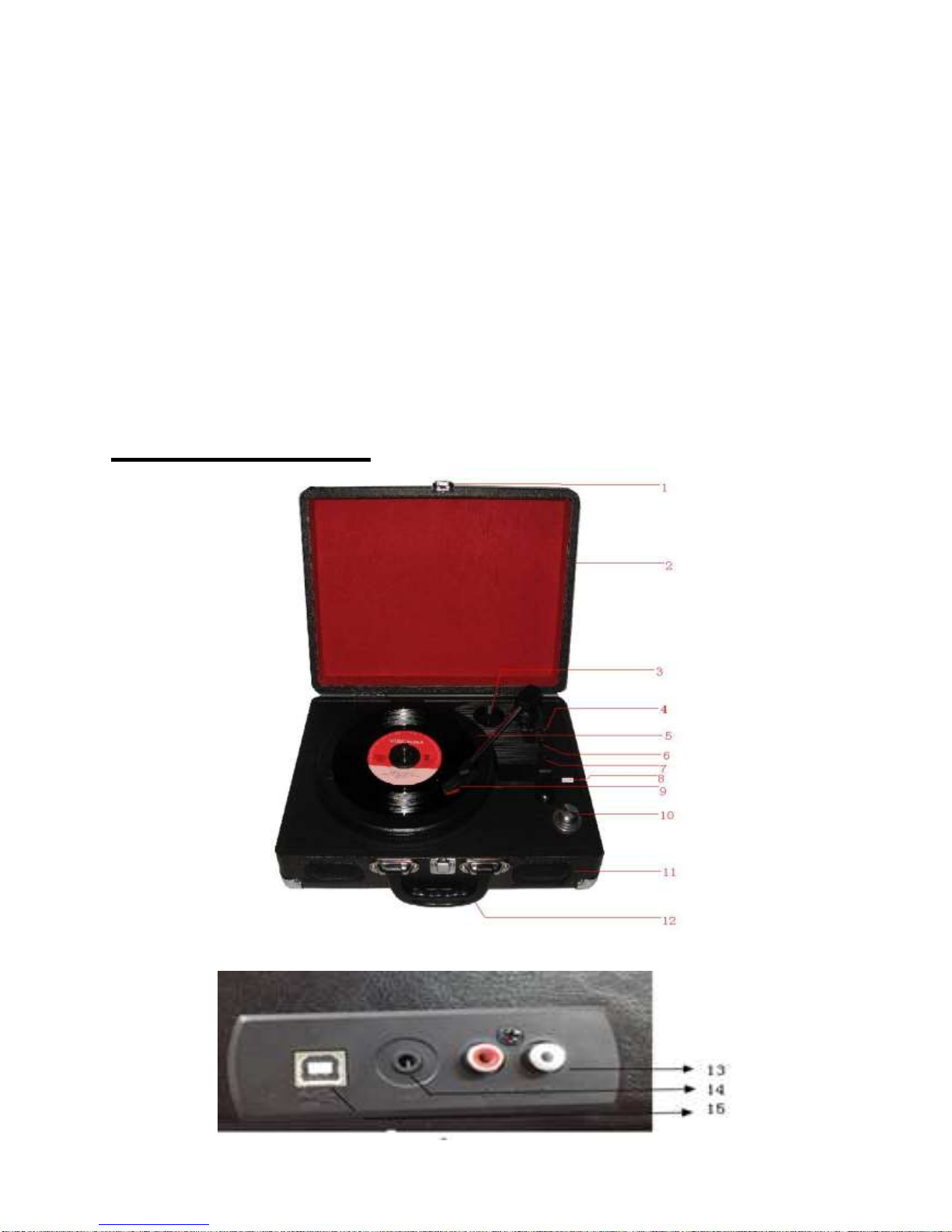

1. Lock catch
2. Plastic dust cover
3. Adapter - Use this when playing 45rpm records with cut out centres.
4. Tone arm lift lever
5. Turntable
6. Auto stop control
7. Speed selection - Three speed for choice: 33.3, 45, 78 rpm.
8. Llock ON and OFF
9. Needle
10. Power switch
11. Built-in stereo speaker
12. Handle
13. RCA output
14. USB 5V DC power in socket
15. Socket for headphone to play iPhone/iPod

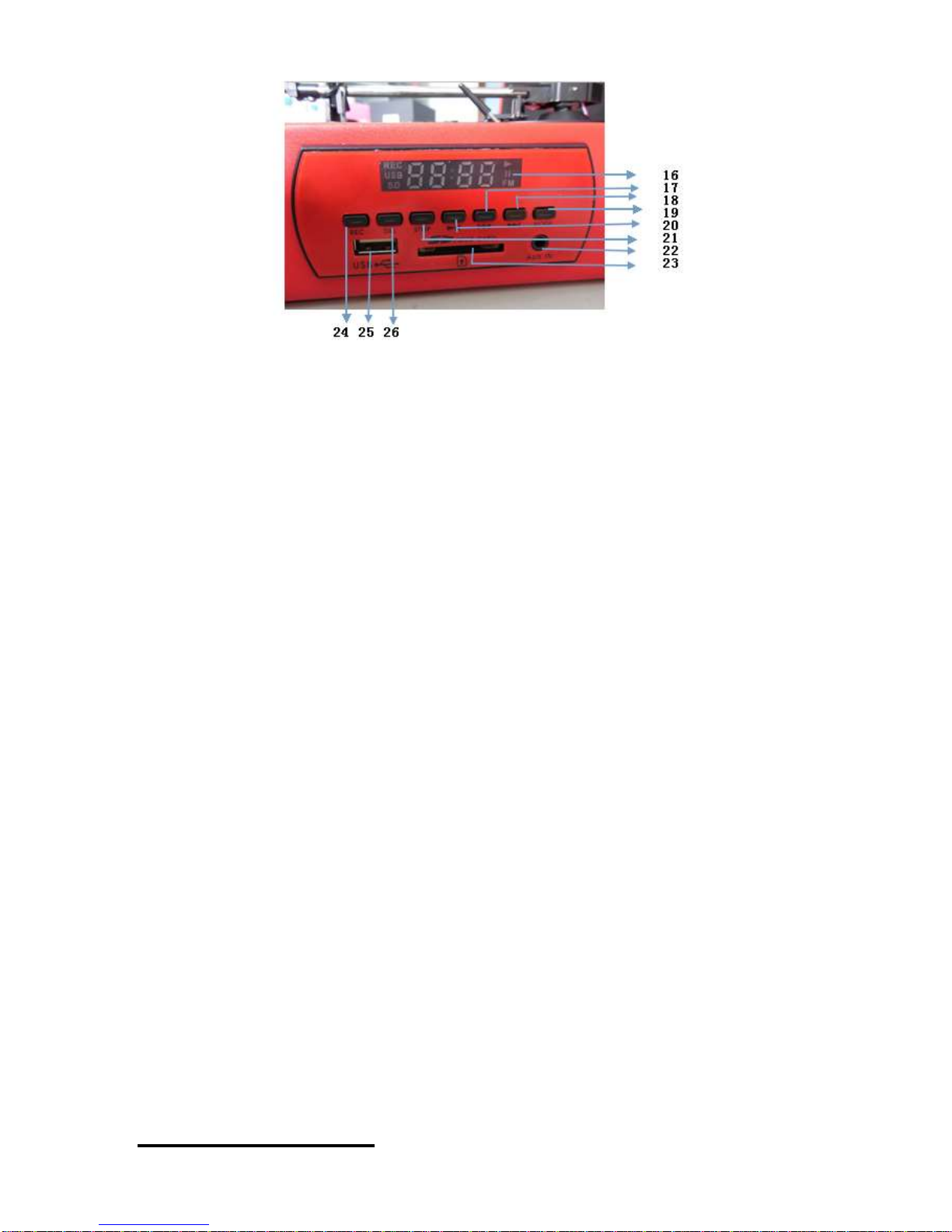

16. LCD blue display
17. SKIP UP button
18. SKIP DOWN button
19. Mode: to select FM radio/USB/SD/Bluetooth(Bluetooth Must be paired) or LP
songs
20. PLAY OR PAUSE
21. Stop/Play button
22. Aux in
23. SD card slot: playing SD card songs or recording
24. REC: function to record
25. USB slot: playing USB songs or recording
26. Delete button
INITIAL SET-UP

MAIN CONNECTION
Ensure that the mains voltage of your home corresponds to the operating
voltage of the unit. Your unit is ready to be connected to a mains voltage of
100-240V/50／60Hz.
Bluetooth Connection
Put on Bluetooth mode (#19) then paired with your device
AMPLIFIER CONNECTION (if required)
Whilst you can listen to your new turntable using the built in speakers you may
wish to connect it to your existing Hi Fi system. Connect the audio plugs to the
AUX input on your mixer or amplifier using an RCA cable (not supplied)
Red plug into R/H channel input.
White plug into L/H channel input.
BOYTONE 101B
*The first time this Record Player is used, plug it in to charge battery for at least 30
minutes. -
Playing a Record
1. Remove Protective Stylus Cap.
2. Choose desired playing speed using Speed Selection Switch.
3. Put Auto-Stop Switch in the ON position if you want Turntable to stop when Tone
arm gets to the end.
4. Place record on Turntable.
5. Turn on Rotary Power Switch. This is also Volume Control.
6. Release Tone arm Lock.
7. Use your right hand to use Tone arm Lift Lever to raise Tone arm.
8. While holding up Tone arm Lift Lever with your right hand, use your left hand to
move Tone arm into place over record. Record should begin to spin.(If Record
Player makes a popping sound, it needs to charge longer.)
*Clean records sound better and are easier on Stylus (needle). Use a proper record
cleaner.

Phono encoding
1. Set the function button to PHONO mode and then insert a memory device
(USB drive, SD or MMC card).
2. Put your record onto the turntable and get it ready for playback.
3. Press the record REC button. It will take about 3 - 4 seconds to read the
memory device, then the USB or SD icon will be flashing on the LC display.
4. Press the skip up or skip down button to select the desired mode (USB or SD)
for encoding, then press the record REC button again to confirm.(You can skip
this step if only a USB drive or an SD/MMC card is inserted.)
5. The system will start the encoding mode after a few seconds.
6. Lower the tone arm to start playback of the record. During encoding, the USB
or SD icon will be flashing on the display.
7. To finish encoding, press the stop button. The display will show “END” and
return to PHONO mode.
NOTE:
• The recording speed is 1:1. Recording will take as long as playing the record.
• The recording format is pre-set at MP3 bit rate 128 kbps.
AUX IN encoding
1. Insert AUX in and then insert a memory device (USB drive, SD or MMC card).
2. Press the record REC button, it will take 3 - 4 seconds to read the memory
device, then the USB or SD icon will be flashing on the LC display.
3. Press the skip up or skip down button to select the desired mode (USB or SD)
for encoding, then press the record REC button again to confirm.(You can skip

this step if only a USB drive or an SD/MMC card is inserted.)
4. The system will start the encoding mode after a few seconds. During encoding,
the USB or SD icon will be flashing on the display.
5. To finish encoding, press the stop button. The display will show “END” and
return to TAPE/AUX mode.
NOTE:
• The recording speed is 1:1. Recording will take as long as playing the CD (or
other auxiliary input).
• The recording format is pre-set at MP3 bit rate 128 kbps.
The USB Port and SD Card Slot
Playback of music in MP3/WMA format via USB device or memory card
The system is able to decode and playback all MP3/WMA files stored in the
memory media connected to the USB port or SD/MMC card slot.
1. Turn the volume knob clockwise to turn the equipment on.
2. Following the illustration below, insert a USB device face up into the USB port,
making sure it is fully inserted. Alternatively, insert a memory card in the direction
of the arrow (as shown on the label next to the memory card slot), making sure to
insert it straight without bending. IMPORTANT: Connecting the USB device
upside down or backwards could damage the audio system or storage media
(USB drive, SD or MMC card). Check to ensure the direction is correct before
connection.
3. Set the function selector to USB/SD mode. (If you have both a USB device and
a memory card inserted, press the MODE button to toggle between USB and

SD mode.) The system will start reading the storage medium automatically
after mode selection and will display the total number of folders and MP3/WMA
files.
4. The system will then start audio playback from the media storage device (USB
or SD card) automatically.
Playback controls
PLAY/PAUSE Press this button once to stop playing, press it again to continue.
STOP Press this button to stop audio playback, the display will then show the
total number of MP3/WMA files.
SKIP UP Press this button once to play the next file, press and hold this button to
fast forward through the files/tracks.
SKIP DOWN Press this button once to play the previous file, press and hold this
button to fast reverse through the files/tracks.
TUNING KNOB Turn this knob to the right/left to search a folder backward or
forward.
MODE Press this button to toggle between USB and SD Card mode.
Important notes
• The system can detect and read files in MP3 / WMA format only via the USB
port or SD card slot.
• You can connect an MP3 player to the system via the USB socket, however,
some MP3 players may not be able to play via the USB socket. This is due to
variances in the MP3 encoding format, it is not a malfunction of the system.
• There are numerous USB and SD device producers and their products vary in

solution and format. We therefore cannot guarantee that this unit will support all
USB and SD devices from every brand.
• This system supports SD cards up to 8GB.
• MP3 / WMA track format requirements: MP3 bit rate: 32 kbps~256 kbps; WMA
bit rate: 32 kbps ~ 320 kbps.
Copying of MP3 / WMA files
The system allows you to copy files from USB to SD/MMC or vice versa. You can
copy a single file/track, a folder of files/tracks, or all files/tracks on the storage
medium.
Copying a single file/track
1. Insert a USB storage device and SD/MMC card, then select USB/SD mode (as
described previously).
2. Press the record REC button during playback of the track you want to copy:
“ONE” will be flashing on the display. Press the record REC button again to
confirm.
3. The USB or SD icon will be flashing on the display while the system is copying
the file.
4. Once the file has been copied, the unit will stop playback automatically. “END”
will be shown on the display and the system will revert to USB or SD mode.
Copying a folder
1. Insert a USB storage device and SD card, then select USB/SD mode (as
described previously). When the system has recognised the device, press the
stop button.

2. Turn the tuning knob to select the desired folder for copying.
3. Press the record REC button: “ONE” will be flashing on the display. Press the
SKIP UP or SKIP DOWN button to select “FOL” (folder) on the display. Press
the record REC button again to confirm.
4. The USB or SD icon will be flashing on the display while the system is copying
the folder.
5. When the folder has been copied, the USB or SD icon will stop flashing on the
display.
Copying all files/tracks
1. Insert a USB storage device and SD card, then select USB/SD mode (as
described previously). When the system has recognised the device, press the
stop button.
2. Press the record REC button: “ONE” will be flashing on the display. Press the
SKIP UP or SKIP DOWN button to select “ALL” on the display. Press the record
REC button again to confirm.
3. The USB or SD icon will be flashing on the display while the system is copying
the files/tracks.
4. When all files/tracks have been copied, the USB or SD icon will stop flashing
on the display.
NOTE: If you press the record REC button during playback in USB or SD mode,
the file will copy from USB to SD or vice versa.
Deleting files from the USB device / SD card

The system is able to erase files stored on the USB drive or SD card. You can
delete a single file/track, a folder of files/tracks, or all files/tracks on the storage
medium.
Deleting a single file/track
1. Insert the USB storage device or SD card, then select USB/SD mode (as
described previously).
2. Press the delete DEL button during the playback of the track you want to
delete: “ONE” will be flashing on the display. Press the delete DEL button again
to confirm.
3. “DEL” will show on the display while the file/track is being deleted until the
deletion is complete.
Deleting a folder
1. Insert a USB storage device and SD card, then select USB/SD mode (as
described previously). When the system has recognised the device, press the
stop button.
2. Turn the tuning knob to select the desired folder for deleting.
3. Press the delete DEL button: “ONE” will be flashing on the display. Press the
SKIP UP or SKIP DOWN button to select “DIR” (directory) on the display. Press
the delete DEL button again to confirm.
4. “DEL” will show on the display while the folder is being deleted until the
deletion is complete.
Deleting all files/tracks
1. Insert a USB storage device and SD card, then select USB/SD mode (as

described previously). When the system has recognised the device, press the
stop button.
2. Press the delete DEL button: “ONE” will be flashing on the display. Press the
SKIP UP or SKIP DOWN button to select “ALL” on the display. Press the delete
DEL button again to confirm.
3. While the system is deleting the files/tracks, the USB or SD icon will be
flashing on the display until the deletion is complete.
NOTE: Pressing the delete DEL button will completely delete all files/tracks on
the USB device or SD card.
Removing the USB device / SD card
• First move the function selector to another mode (tuner, phono, tape), then turn
the volume knob counter clockwise to turn off the power.
• To remove a USB device, pull it out of the USB port.
• To remove a memory card, press the memory card inwards and then release it.
The card will be released (partially ejected) and you can remove it by hand.
MAINTENANCE
REPLACING THE STYLUS

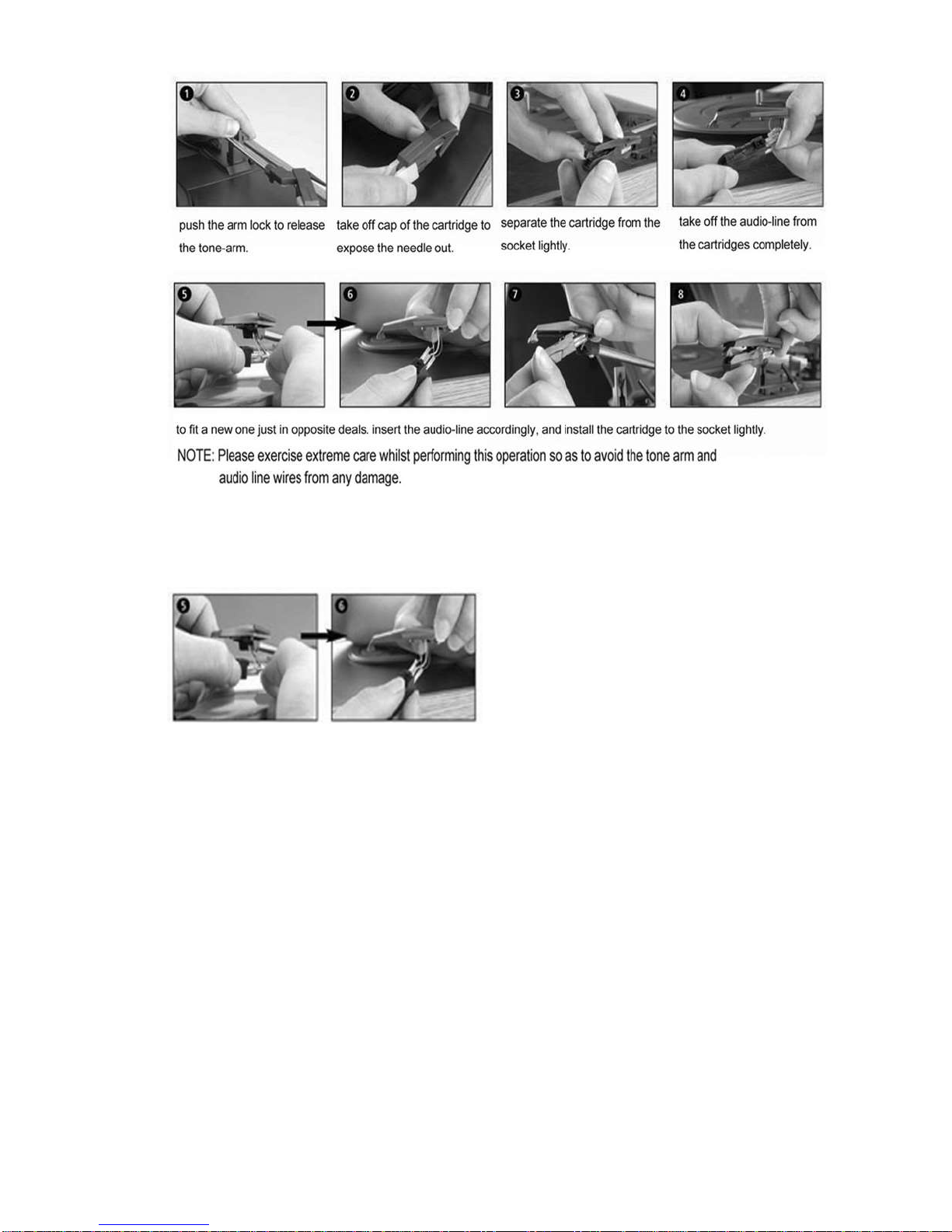

-Refer to the figures 1-8

INSTALLING A NEW STYLUS CARTRIDGE
-Refer to the figures 5 & 6
NOTES
We advise you to clean your records with an anti-static cloth to gain maximum
enjoyment from them and to make them last.
We would also point out that for the same reason your stylus should be
Replaced periodically (approximately every 250 hours)
Dust the stylus from time to time using a very soft brush dipped in alcohol
(brushing from back to front of the cartridge)
WHEN TRANSPORTING YOUR RECORD PLAYER DO NOT FORGET TO:

Replace the protective cap on the stylus.
Put the rest clip into the pick-up arm.
