Braaap ST-160 User manual

St-160/St-250 Owner Manual

Please carefully read the manual and strictly observe all instructions. Special attention should be paid to any
information prefaced by the words “WARNING”, “CAUTION” and “NOTE”.
Information under the heading “WARNING” is concerned with personal safety. Ignoring instructions under this
heading may result in an accident.
Information under the heading “CAUTION” refers to the methods that must be followed, or the measures that
should be taken, in order to prevent damage.
Information under the heading “NOTE” includes additional details and descriptions in order to clarify and
elaborate on maintenance requirements and other operational information.
The first 3000 km is a very important period in the service life of a motorcycle. The correct running in of a
motorcycle can guarantee both the longest service life and the best performance of the motorcycle. Running in
can polish machined surfaces and form smooth engagement.
Careful and patient running in can make the motorcycle stable when driving and maximize its performance.
During this period is important not to undertake any operation that may cause the engine components to
overheat.
For the specific running-in method, please refer to the chapter in this manual entitled “Running in of a new
vehicle”.
This manual should always be kept with the motorcycle. In the event that the vehicle is transferred to a new
owner, the manual should also be passed to the new owner.
2braaap Motorcycles / ST-160 / ST-250 Owner Manual
IMPORTANT INFORMATION

3
braaap Motorcycles / ST-160 / ST-250 Owner Manual
IMPORTANT INFORMATION

1. User Instructions
2. Position of Key Parts
3. Operator Functions
4. Fuel and Engine Oil
5. Running in a New Motorcycle
6. Pre-driving Inspections
7. Driving Essentials
8. Maintenance
9. Measures to Reduce Pollution
10. Troubleshooting
11. Storage
12. Lifetime warranty Logbook servicing
6
9
12
28
31
33
34
39
65
66
70
72
4braaap Motorcycles / ST-160 / ST-250 Owner Manual
CONTENTS

Thank you for choosing one of our motorcycles. Through the design, development and manufacture of this
vehicle, our company applies the latest advanced technology and equipment to provide you with a motorcycle
that is reliable in performance, novel in design and elegant in appearance.
Motorcycle driving is one of the most exciting sports. The motorcycle is an ideal means of transport and can
give you infinite riding pleasure. Before riding your motorcycle, please become familiar with all instructions and
requirements mentioned in this manual.
The owner manual provides information on the correct use and maintenance of the motorcycle. Observing the
instructions contained herein will ensure the long life and safe use of your motorcycle.
5
braaap Motorcycles / ST-160 / ST-250 Owner Manual
Forward

DRIVING A MOTORCYCLE SAFELY
When driving your motorcycle you must pay attention to safety at all times by observing road rules and following
the six points.
1. Wear a safety helmet
This is a critical requirement for motorcycle driving. A high-quality safety helmet is essential for personal
protection as a traffic accident could cause a head injury. Therefore, be sure to wear a safety helmet and a pair
of protective glasses when driving your motorcycle.
2. Use safe driving techniques
Driving techniques and mechanical knowledge are the basis of safe driving. Familiarize yourself with your
motorcycle and practice your riding skills in a safe, controlled environment away from other vehicles. The
more you practice, the more skillful you will become.
3. Understand the various factors that determine safe driving speed
You must always ride your motorcycle within the speed limit. A safe driving speed also depends on the
road surface, the driver’s skills, and weather conditions. Adjusting your speed accordingly could prevent an
accident.
4. Wear well-fitting clothes
Loose-fitting clothing may be both uncomfortable and unsafe when driving. Wear high-quality, close-fitting,
protective clothing including a safety helmet, gloves and boots in order to protect your safety.
6braaap Motorcycles / ST-160 / ST-250 Owner Manual
1. USER INSTRUCTIONS

5. Exercise caution in wet weather conditions
The braking distance in wet weather conditions is twice the normal stopping distance in dry weather. Wet
roads can be slippery and dangerous. In order to prevent slipping, avoid driving over manhole covers, paint
marks or oil stained surfaces. Avoid abrupt steering movements during acceleration. Exercise caution when
driving over railways and bridges and maintain a safe distance between vehicles.
6. Inspect your Motorcycle before driving it
Please carefully read all instructions in the “Inspection before Driving” chapter of this manual to ensure the
safety of you and your passenger.
7
braaap Motorcycles / ST-160 / ST-250 Owner Manual
1. USER INSTRUCTIONS

Position of Serial Numbers
The chassis number (or VIN code) and engine number
are necessary for the registration of your motorcycle.
These numbers are also needed to order parts and
to allow the distributor to provide you with a better
service.
Chassis number
(or Vin Code)
The chassis number (or
VIN code) is located on
riser pipe of the chassis.
Engine number
The engine number is on
the left side of crankcase.
Metal Nameplate
The Metal nameplate
located on the riser pipe
of the chassis, shows
the main technical
parameters, the name of
the manufacturer and the
date of production of the motorcycle.
Write the numbers in the spaces below, for future
reference.
Chassis no.
Engine no.
8braaap Motorcycles / ST-160 / ST-250 Owner Manual
1. USER INSTRUCTIONS

1- Clutch grip
(ST250 Model only)
2- Rear-view mirrors
3- Left handlebar
4- Speedometer
5- Ignition switch
6- Right handlebar
7- Front brake lever
8- Accelerator

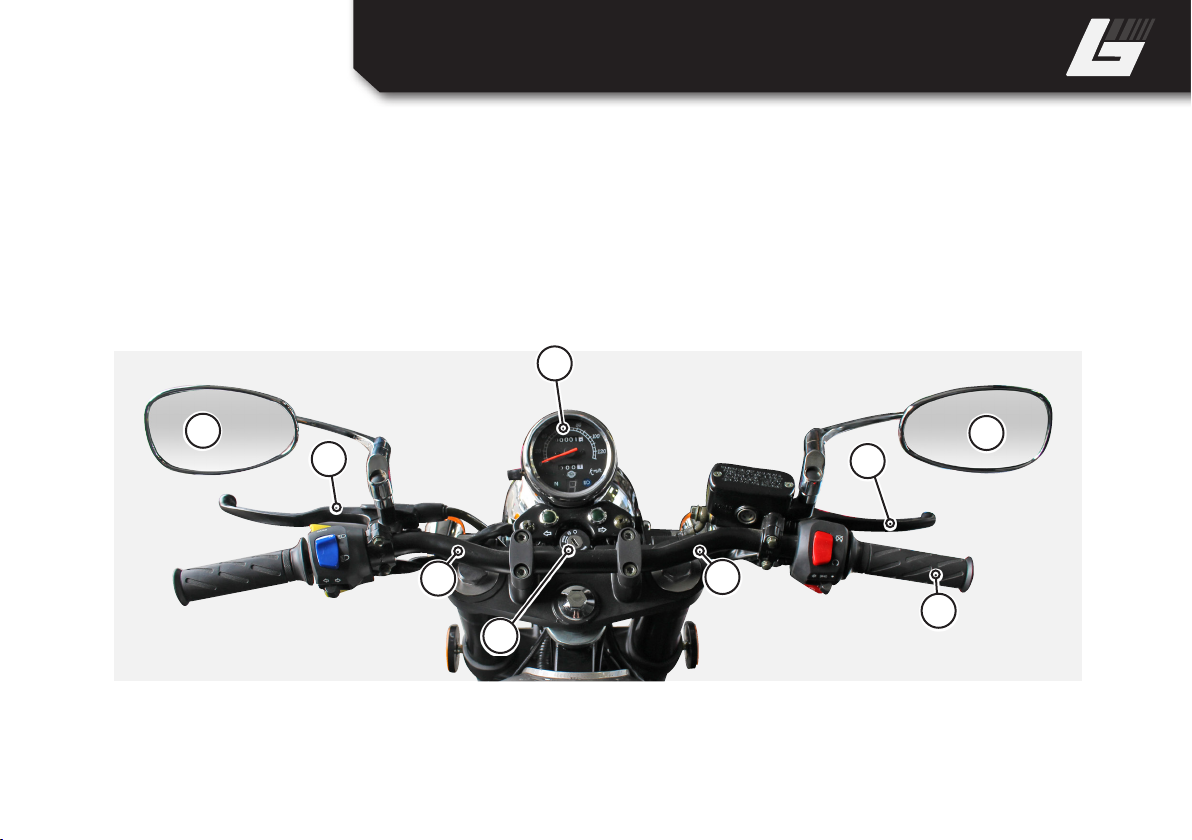

Handle Bar Instruments
2
1
36
7
2
8
4
5
9
braaap Motorcycles / ST-160 / ST-250 Owner Manual
2. INSTALLATION POSITION OF KEY PARTS

Left Side View
1- Fuel tank switch
2- Carburettor
3- Air Filter
4- Front Wheel
5- Gear lever
6- Side Stand
7- Rear Wheel
10 braaap Motorcycles / ST-160 / ST-250 Owner Manual
2. INSTALLATION POSITION OF KEY PARTS

13
67
2
4
5
11
braaap Motorcycles / ST-250 Owner Manual

Right Side View
1- Spark Plug
2- Back foot shelf
3- Front foot Shelf
4- Rear Brake Pedal
5- Discharge oil Bolt
6- Kick start Lever
7- Battery and Fuse
12 braaap Motorcycles / ST-160 / ST-250 Owner Manual
2. INSTALLATION POSITION OF KEY PARTS

1
36
7
2
4
5
13
braaap Motorcycles / ST-250 Owner Manual

Key
Two keys are provided. Please use
one key and put the other in a safe
place for future use

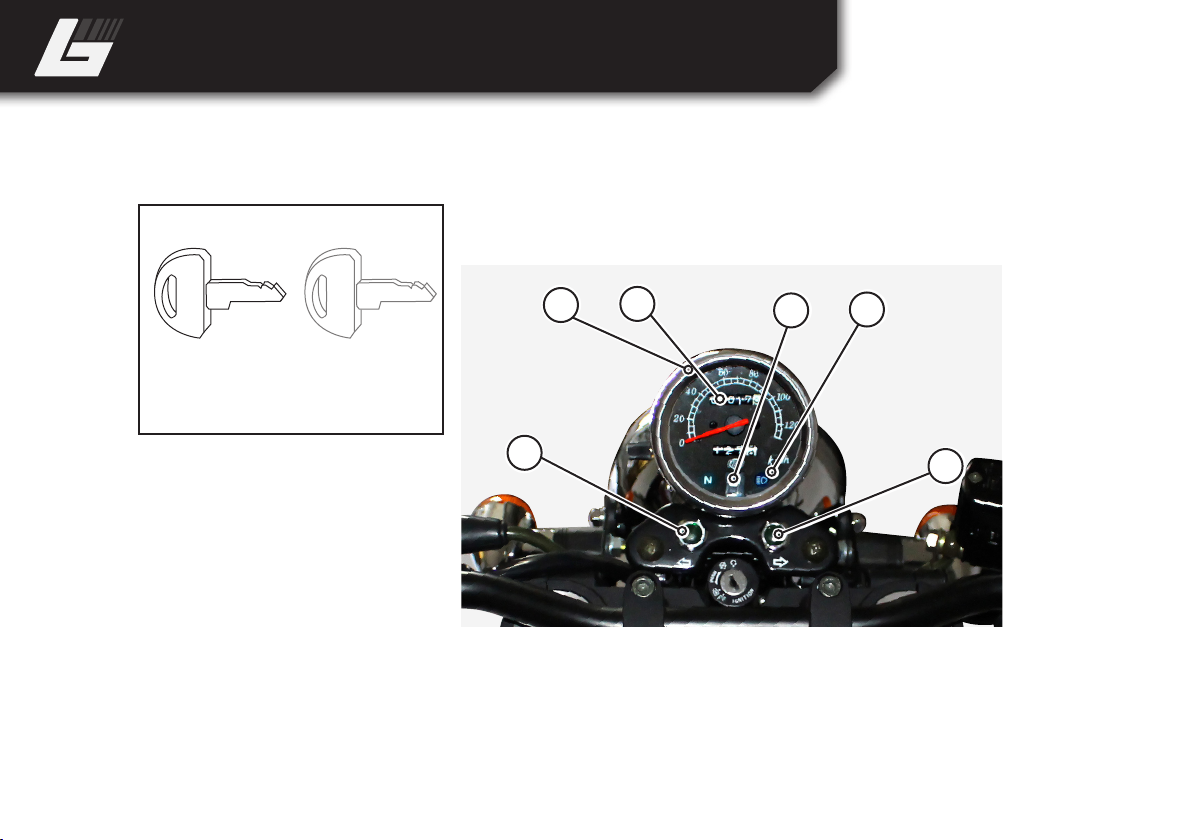

Instrument Panel
1
33
245
14 braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

1- Speedometer:
This shows the driving speed in kilometers per hour
2- Odometer:
This records the total distance that the motorcycle
has traveled since it was first used.
3- Turning Signal Light:
When the left turning signal light is ON, the left
turning signal indicator on the panel shows and
turning signal light will flash. When the right turning
signal lamp is ON, the right turning signal indicator
on the panel shows and turning signal lamp will
flash.
4- Gearshift indicator:
This indicator will show which of the five gears that
the motorcycle is in at a given time, and will change
when gears are changed. When the vehicle is neutral
indicator (N) is lit.
5- High beam indicator light
When the high beam headlight is used the high beam
indicator light is lit.
Caution
If one of the front or rear turning lights is damaged,
the indicators on the instrument panel and the
turning lights may be lit consistently, or may
flash fast or slow. If this occurs, please carry out
troubleshooting to identify the cause.
15
braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

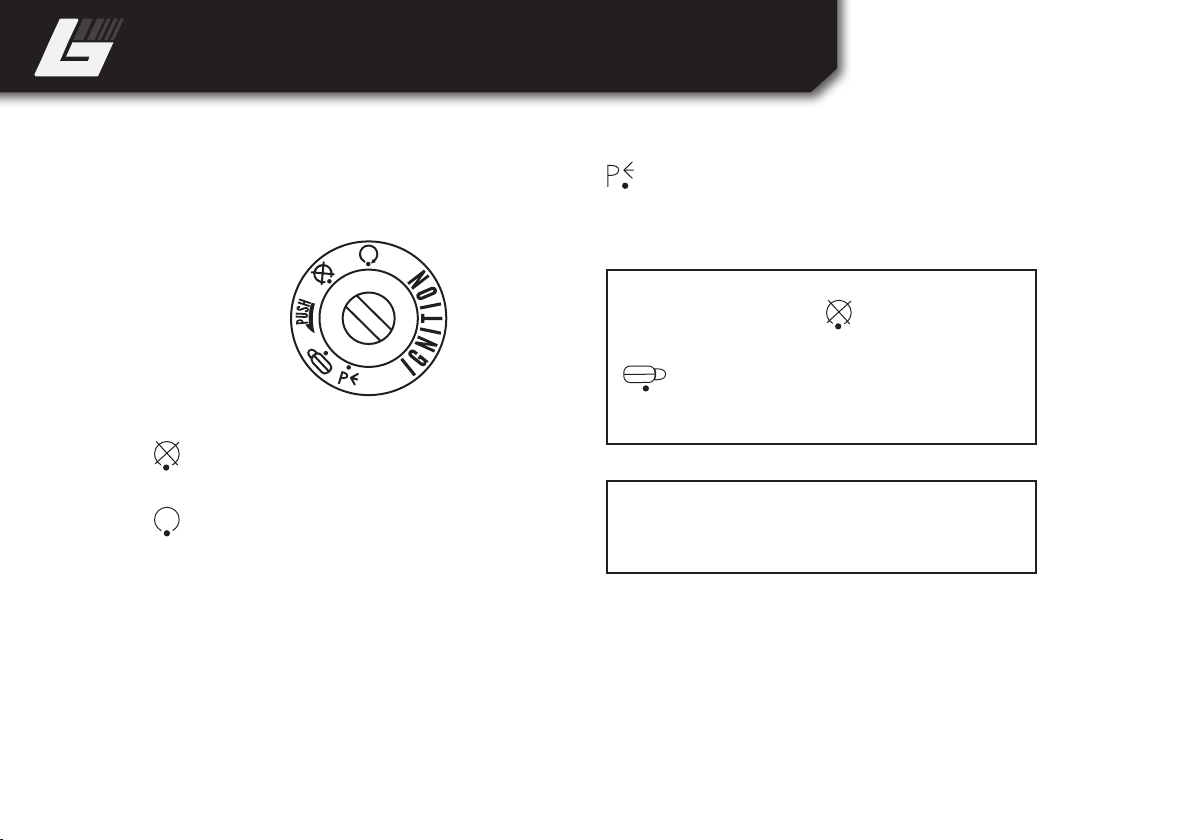

Ignition switch
Your motorcycle will have an ignition switch with three
positions shown in the following diagram;
Figure 1
(OFF) position: All circuits are disconnected and
the key can be removed.
(ON) position: The ignition is ON and the engine
can be started. The key cannot be removed in this
position.
(Parking) position: To park the motorcycle, turn
the key to this position. In this Position, the key can be
removed and the tail light sand front parking lights can
be kept ON for safe parking on a roadside at night.
Warning
Before turning the key to , use the stand to
support the vehicle.
(Lock position): In order to lock the
handlebar, turn the bar to the left, then insert the
key and rotate it clockwise.
Warning
Do not attempt to ride or push the motorcycle if
the handlebar is locked.
16 braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

Left Handed control System
1 - Clutch Lever (ST-250 model only): To start the
engine or shift gears, press the clutch grip to release
the drive system and deactivate the clutch.
2 - Dimmer Switch: When the switch is turned to
(high beam position), the high beam indicator light on
the instrument panel is lit. Similarly when the dimmer
switch is turned to (low beam position), the low
beam indicator light on the instrument panel is lit.
3 - Turn Signal Operation: When the switch is turned
to (left position), the left turn signal is lit and the
indicator light on the instrument panel flashes. When
the switch is turned to the (right position), the
right turn signal is lit and the indicator light on the
instrument panel flashes.
Warning
When turning or changing lanes, always switch on
the turn signal with enough time to indicate your
intentions to the other drivers on the road . After
changing lanes or completing a turn, switch the
turn signal light OFF.
4 - Horn Button: Press the horn button and the
horn will sound.
Note
The ST-160 has automatic
transmission. No clutch
action is required for start
up or operation.
1
3
2
4
17
braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

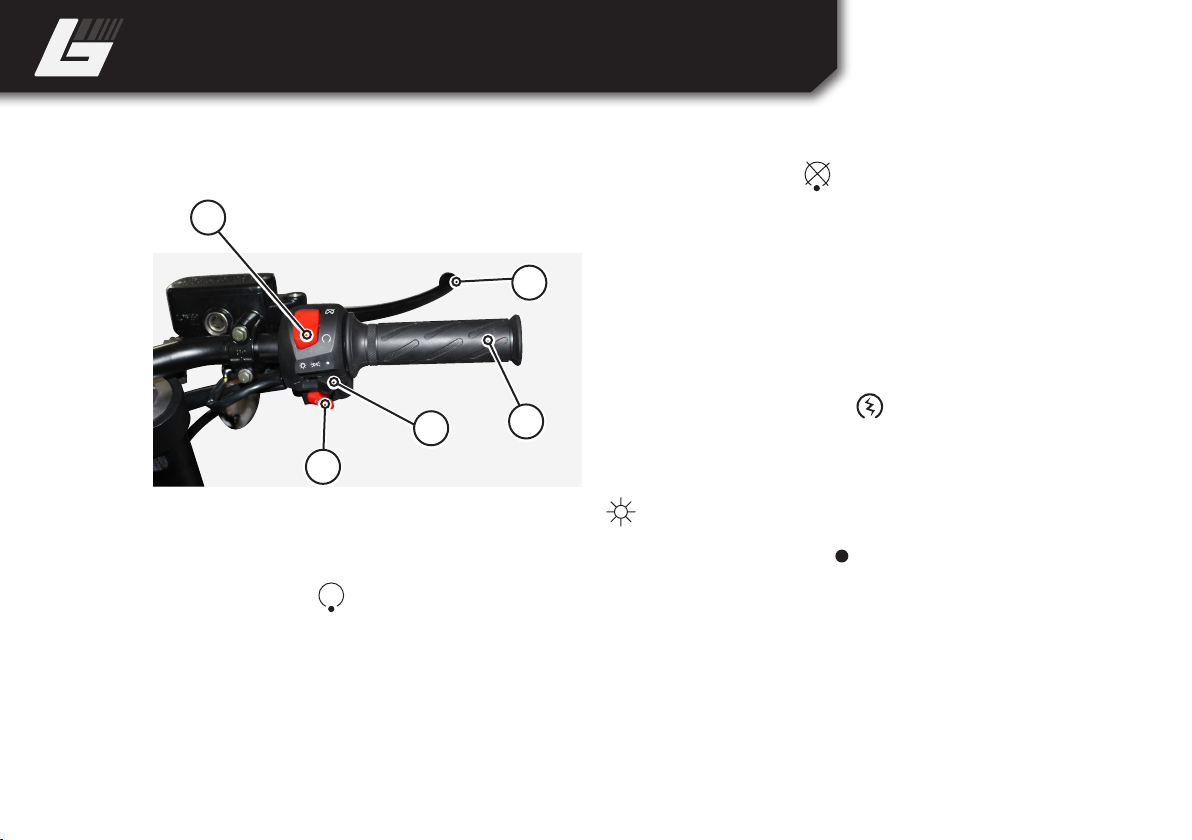

Right Handed control System
1 - Engine Shutdown Switch: This switch is a rocker
switch, located on the tip of the right handlebar control
panel, with the rock-shaft at the center if the rocker.
When it is pressed in (START position) the engine
can be started. It is an emergency switch.
If the switch is pressed in (OFF position) the
starting circuit is completely cut off and the starter
motor cannot be started. Do not put the switch in this
position during driving.
2 - Front Brake Lever: To apply the front wheel brake,
slowly press the brake grip on the right handlebar. As
the motorcycle has hydraulic brakes, do not pull the
brake grip abruptly or forcefully. When the brake grip
is pressed, the brake light will be lit automatically.
3 - Electric Start Button: Press button to on the
starter motor circuit. When starting, put the gears in
the neutral position to cut off the transmission.
4 - Headlight switch: When the switch is turned to
(ON position), the headlight front position light,
instrument panel light and rear tail light will be lit.
When the switch is turned to OFF position, the
headlight, front position light, instrument panel light
and rear tail light will be turned off.
1
3
2
45
18 braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

5 - Accelerator Grip: This is used to control the engine
speed. To accelerate, turn the grip towards you. To
decelerate, turn the grip away from you.
Warning
The starter motor should not be operated for
longer than 5 seconds otherwise it may overheat. If
starting fails after several attempts, stop to check
the fuel supply system and the starter circuit (refer
to Chapter 10 “Troubleshooting”)

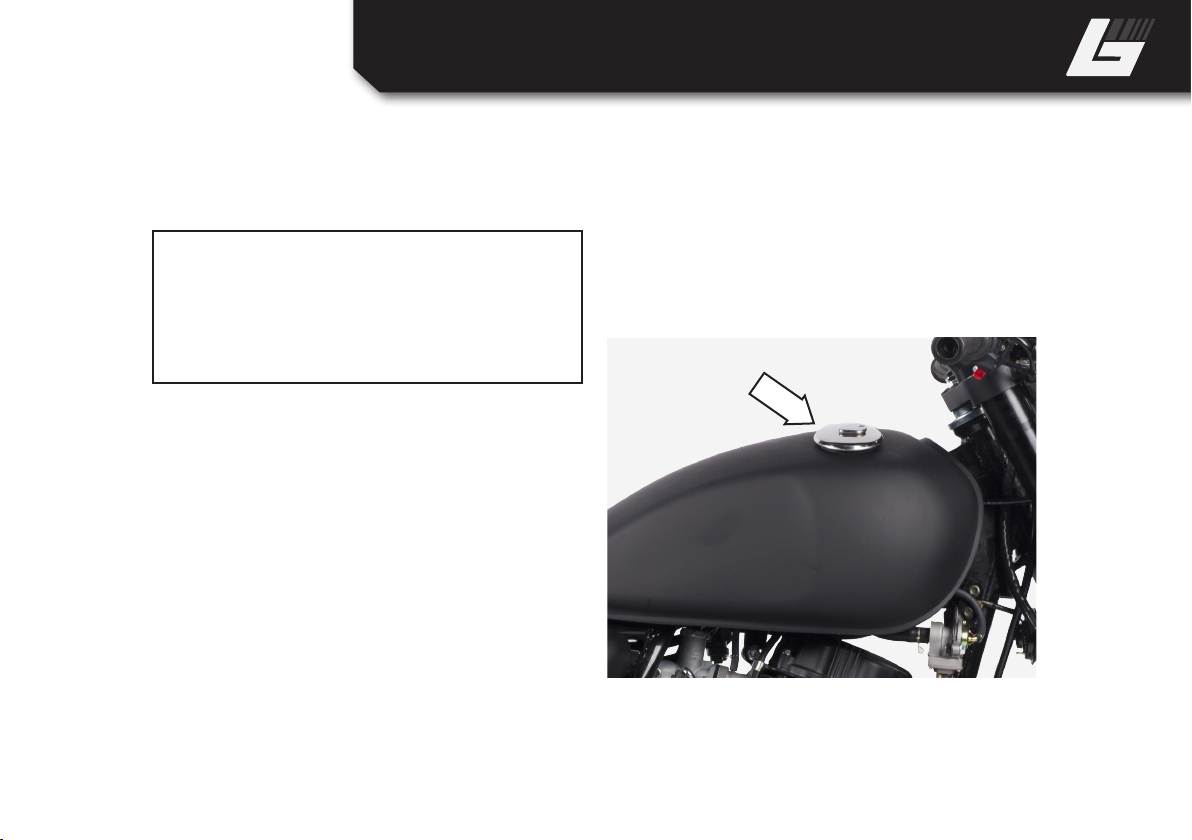

Fuel Tank Cap
To open the fuel tank cap, insert key and turn it
clockwise. The fuel tank cap can then be removed
together with the key. To replace the cap, align the
arrow on the cap and press the cap, together with the
key, into the fuel tank cap hole until a click is heard.
Then, remove the key.
19
braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions

Warning

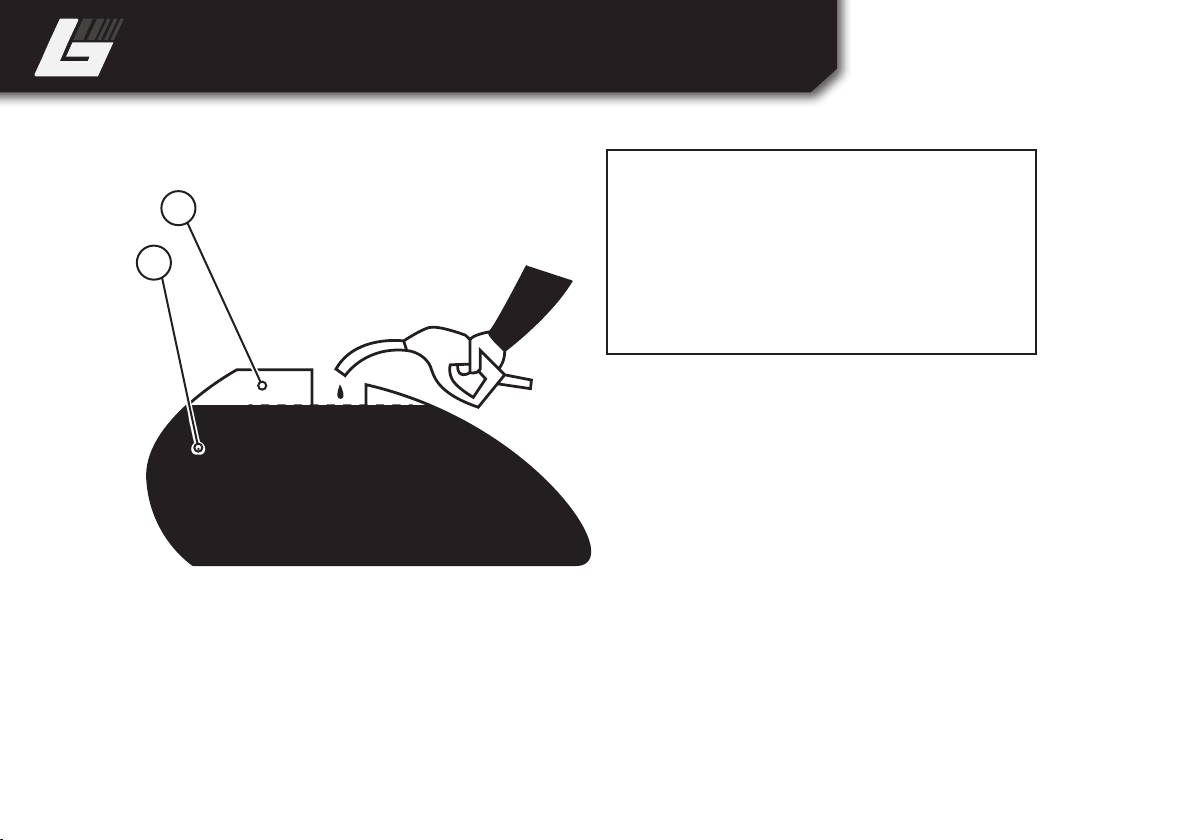

Do not overfill the tank. Never splash fuel on a hot
engine. Do not leave any fuel on the upper part
of the filler (2), as the fuel may overflow when
the fuel temperature rises and expands, creating a
hazard. While refueling shut down the engine and
turn the key to OFF position. Smoking or lighting
fires is strictly forbidden during refueling.
1
2
20 braaap Motorcycles / ST-160 / ST-250 Owner Manual
3. Operator Functions
