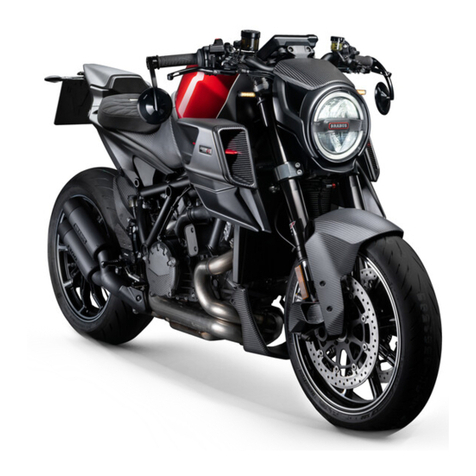

BRABUS 1300R 2022 User manual

OWNER´S MANUAL 2022
Art. no. 3214548en

DEAR CUSTOMER,
*3214548en*
3214548en
12/2021
DEAR CUSTOMER,
Congratulations on your decision to purchase this motorcycle. You are now the owner of a state-of-the-art sports
motorcycle that will give you enormous pleasure if you service and maintain it properly.
We hope you enjoy riding this vehicle!
Enter the serial numbers of your vehicle below.
Vehicle identification number ( p. 14) Dealer's stamp
Engine number ( p. 14)
Key number ( p. 14)
The Owner's Manual contained the latest information for this model series at the time of publication. However,
minor differences due to further developments in design cannot be ruled out completely.
All specifications contained herein are non-binding. KTM Sportmotorcycle GmbH specifically reserves the right
to modify or delete technical specifications, prices, colors, forms, materials, services, designs, equipment, etc.,
without prior notice and without specifying reasons, to adapt these to local conditions, as well as to stop produc-
tion of a particular model without prior notice. KTM accepts no liability for delivery options, deviations from fig-
ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that
does not belong to the regular scope of supply.
© 2021 KTM Sportmotorcycle GmbH, Mattighofen Austria
All rights reserved
Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission
of the copyright owner.
ISO 9001(12 100 6061)
KTM applies quality assurance processes that lead to the highest possible product quality as
defined in the ISO 9001 international quality management standard.
Issued by: TÜV Management Service
KTM Sportmotorcycle GmbH
Stallhofnerstraße 3
5230 Mattighofen, Austria
This document is valid for the following models:
BRABUS 1300 R (F9999V4, F9999V5)

TABLE OF CONTENTS
2
TABLE OF CONTENTS
1 MEANS OF REPRESENTATION ...................... 6
1.1 Symbols used .................................... 6
1.2 Formats used..................................... 6
2 SAFETY ADVICE............................................ 7
2.1 Use definition –intended use.............. 7
2.2 Misuse.............................................. 7
2.3 Safety advice..................................... 7
2.4 Degrees of risk and symbols ................ 7
2.5 Tampering warning............................. 8
2.6 Safe operation ................................... 8
2.7 Protective clothing ............................. 9
2.8 Work rules......................................... 9
2.9 Environment...................................... 9
2.10 Owner's Manual ................................. 9
3 IMPORTANT NOTES.................................... 11
3.1 Manufacturer warranty, implied
warranty.......................................... 11
3.2 Fuel, auxiliary substances ................. 11
3.3 Spare parts, technical accessories ..... 11
3.4 Service ........................................... 11
3.5 Figures ........................................... 11
3.6 Customer service.............................. 11
4 VIEW OF VEHICLE ...................................... 12
4.1 View of vehicle, front left (example) ... 12
4.2 View of vehicle, rear right
(example)........................................ 13
5 SERIAL NUMBERS ..................................... 14
5.1 Vehicle identification number............ 14
5.2 Type label ....................................... 14
5.3 Key number..................................... 14
5.4 Engine number ................................ 14
5.5 Fork part number ............................. 15
5.6 Shock absorber article number .......... 15
5.7 Steering damper article number ........ 15
6 CONTROLS................................................. 16
6.1 Clutch lever..................................... 16
6.2 Hand brake lever.............................. 16
6.3 Throttle grip .................................... 16
6.4 Combination switch, left side ............ 16
6.5 Light switch .................................... 17
6.6 Menu buttons .................................. 17
6.7 Turn signal switch............................ 17
6.8 Horn button..................................... 18
6.9 Cruise control buttons ...................... 18
6.10 +RES/-SET button............................ 19
6.11 Combination switch, right ................. 20
6.12 Hazard warning flasher switch........... 20
6.13 Start button/emergency OFF switch ... 20
6.14 RACE-ON button.............................. 21
6.15 C1 and C2 switch ............................ 21
6.16 Steering lock (antenna)..................... 21
6.17 Immobilizer..................................... 22
6.18 RACE-ON key .................................. 22
6.19 USB socket ..................................... 22
6.20 Opening fuel tank filler cap............... 23
6.21 Closing the fuel tank filler cap........... 24
6.22 Shift lever ....................................... 24
6.23 Foot brake lever ............................... 24
6.24 Side stand....................................... 25
7 COMBINATION INSTRUMENT ..................... 26
7.1 Combination instrument ................... 26
7.2 Activation and test ........................... 26
7.3 Day-night mode ............................... 27
7.4 Warnings......................................... 28
7.5 Ice warning ..................................... 28
7.6 Indicator lamps................................ 29
7.7 Display ........................................... 30
7.8 TRACK display................................. 31
7.9 Performance layout .......................... 32
7.10 Small widget ................................... 33
7.11 Large widget.................................... 33
7.12 Odometer ........................................ 34
7.13 Engine speed................................... 34
7.14 Shift warning light ........................... 34
7.15 Cruise control indicator..................... 35
7.16 Speed............................................. 35
7.17 ABS Mode display............................ 35
7.18 Ride display .................................... 35
7.19 Damp display .................................. 36
7.20 Load display.................................... 36
7.21 Anti Dive display.............................. 36
7.22 Fork display..................................... 36
7.23 Shock display .................................. 37
7.24 Gear display .................................... 37
7.25 Heated grip ..................................... 37
7.26 Seat heating.................................... 37
7.27 Coolant temperature indicator ........... 38
7.28 Fuel level display ............................. 38
7.29 Ambient air temperature indicator ..... 38
7.30 Time............................................... 39
7.31 Favorites display .............................. 39
7.32 Navigation display............................ 39
7.33 Menu.............................................. 39
7.33.1 KTM MY RIDE............................. 40
7.33.2 Audio ......................................... 40
7.33.3 Navigation................................... 41
7.33.4 Navigation information ................. 41
7.33.5 Volume ....................................... 42
7.33.6 Pairing........................................ 43
7.33.7 Telephony ................................... 44
7.33.8 Trip 1 ......................................... 45
7.33.9 Trip 2 ......................................... 45

TABLE OF CONTENTS
3
7.33.10 General Info ............................... 46
7.33.11 TPMS ......................................... 46
7.33.12 Warnings..................................... 47
7.33.13 Service ....................................... 47
7.33.14 Extra Functions ........................... 47
7.33.15 Ride Mode .................................. 47
7.33.16 Track.......................................... 48
7.33.17 Throttle Response........................ 48
7.33.18 Anti Wheelie Mode....................... 49
7.33.19 Launch Control............................ 49
7.33.20 Slip Adjuster ............................... 50
7.33.21 Motorcycle .................................. 50
7.33.22 Heated Grips ............................... 51
7.33.23 Heated Seat ................................ 51
7.33.24 MTC+MSR .................................. 51
7.33.25 ABS............................................ 52
7.33.26 Quickshifter + ............................. 52
7.33.27 Suspension ................................. 52
7.33.28 Damping ..................................... 53
7.33.29 Preload Adjuster .......................... 53
7.33.30 Anti Dive..................................... 54
7.33.31 Fork............................................ 54
7.33.32 Shock ......................................... 54
7.33.33 Settings ...................................... 55
7.33.34 C1 and C2 buttons....................... 55
7.33.35 Bluetooth.................................... 55
7.33.36 Headset Type .............................. 56
7.33.37 Display Theme............................. 56
7.33.38 Button Illumination...................... 57
7.33.39 Shift Light .................................. 57
7.33.40 Setting the time and date ............. 57
7.34 Units .............................................. 58
7.35 Distance ......................................... 59
7.36 Temperature.................................... 59
7.37 Pressure.......................................... 59
7.38 Consumption ................................... 60
7.39 Language ........................................ 60
7.40 Heated Grips ................................... 60
7.41 Heated Seat .................................... 61
7.42 Small widget ................................... 61
7.43 Large widget.................................... 61
7.44 KTM MY RIDE widget....................... 62
7.45 NAVIGATION widget......................... 62
7.46 FAVORITES widget........................... 63
7.47 Widget INFO.................................... 63
7.48 HEATING widget.............................. 64
7.49 MUSIC widget ................................. 64
8 ERGONOMICS ............................................ 65
8.1 Handlebar position........................... 65
8.2 Adjusting the handlebar position .... 65
8.3 Adjusting the basic position of the
clutch lever ..................................... 66
8.4 Adjusting the basic position of the
hand brake lever .............................. 66
8.5 Setting the step plate of the foot
brake lever ...................................... 66
8.6 Checking the basic position of the
shift lever........................................ 67
8.7 Adjusting the basic position of the
shift lever .................................... 67
8.8 Setting the shift lever stub................ 68
8.9 Adjusting the footrest support ........ 68
8.10 Adjusting the footrests .................. 70
8.11 Adjusting the tilt of the combination
instrument ...................................... 71
9 PREPARING FOR USE................................. 73
9.1 Advice on preparing for first use ........ 73
9.2 Running in the engine ...................... 74
9.3 Loading the vehicle.......................... 74
10 RIDING INSTRUCTIONS.............................. 75
10.1 Checks and maintenance measures
when preparing for use ..................... 75
10.2 Starting the vehicle .......................... 75
10.3 Starting power of lithium-ion
batteries at low temperatures ............ 77
10.4 Launch control ................................ 77
10.5 Starting off...................................... 77
10.6 Starting off with launch control ......... 77
10.7 Quickshifter +.................................. 78
10.8 Shifting, riding ................................ 78
10.9 MSR............................................... 81
10.10 Applying the brakes.......................... 81
10.11 Stopping, parking............................. 83
10.12 Transporting .................................... 84
10.13 Towing in the event of a breakdown ... 84
10.14 Refueling ........................................ 85
11 SERVICE SCHEDULE .................................. 86
11.1 Additional information...................... 86
11.2 Required work ................................. 86
11.3 Recommended work ......................... 87
12 SUSPENSION SETTING............................... 88
12.1 Fork/shock absorber ......................... 88
12.2 Preload adjuster............................... 88
12.3 Suspension Mode............................. 89
12.4 Adjusting the steering damper........... 89
13 SERVICE WORK ON THE CHASSIS............... 91
13.1 Lifting the motorcycle with the rear
lifting gear ...................................... 91
13.2 Removing the rear of motorcycle
from the lifting gear ......................... 91
13.3 Lifting the motorcycle with the front
lifting gear ...................................... 91

TABLE OF CONTENTS
4
13.4 Taking the motorcycle off the front
lifting gear ...................................... 92
13.5 Cleaning the dust boots of the fork
legs ............................................. 92
13.6 Removing the front rider's seat.......... 93
13.7 Mounting the front rider's seat........... 93
13.8 Removing left fuel tank spoiler.......... 94
13.9 Installing the left fuel tank spoiler ..... 94
13.10 Removing the main silencer .......... 95
13.11 Installing the main silencer ........... 96
13.12 Checking the chain for dirt................ 97
13.13 Cleaning the chain ........................... 97
13.14 Checking the chain tension............... 98
13.15 Adjusting the chain tension............... 99
13.16 Checking the chain, rear sprocket,
engine sprocket, and chain guide .... 100
13.17 Checking/correcting the fluid level
of hydraulic clutch ......................... 101
14 BRAKE SYSTEM ....................................... 103
14.1 Anti-lock braking system (ABS) ....... 103
14.2 Checking the brake discs ................ 104
14.3 Checking the front brake fluid
level ............................................. 105
14.4 Adding front brake fluid .............. 105
14.5 Checking the front brake linings ...... 106
14.6 Checking the rear brake fluid
level ............................................. 107
14.7 Adding rear brake fluid ............... 107
14.8 Checking the brake linings of the
rear brake...................................... 109
15 WHEELS, TIRES ....................................... 110
15.1 Removing the front wheel ............ 110
15.2 Installing the front wheel ............ 110
15.3 Removing the rear wheel ............. 112
15.4 Installing the rear wheel .............. 112
15.5 Checking the tire condition ............. 113
15.6 Checking tire pressure.................... 114
15.7 Using tire repair spray .................... 115
16 ELECTRICAL SYSTEM ............................... 116
16.1 Low beam ..................................... 116
16.2 High beam .................................... 116
16.3 Removing the 12-V battery .......... 116
16.4 Installing the 12-V battery ........... 117
16.5 Charging the 12-V battery ........... 118
16.6 Changing the RACE-ON key
battery .......................................... 120
16.7 Changing the main fuse.................. 121
16.8 Changing the fuses in the fuse
box............................................... 121
16.9 Checking the headlight setting ........ 123
16.10 Adjusting the headlight range.......... 123
16.11 Connecting the USB cable .............. 124
16.12 Disconnecting the USB cable.......... 124
16.13 Diagnostics connector .................... 124
16.14 Front ACC1 and ACC2 .................... 125
16.15 ACC1 and ACC2 rear ...................... 125
17 COOLING SYSTEM .................................... 126
17.1 Checking the coolant level in the
compensating tank......................... 126
17.2 Correcting the coolant level in the
compensating tank......................... 126
18 ENGINE TUNING ...................................... 128
18.1 Ride Mode .................................... 128
18.2 Motorcycle traction control (MTC) .... 128
18.3 Anti-wheelie mode ......................... 129
18.4 Slip adjustment ............................. 129
18.5 Throttle Response .......................... 129
19 SERVICE WORK ON THE ENGINE .............. 130
19.1 Checking the engine oil level........... 130
19.2 Changing the engine oil and oil
filter, cleaning the oil screens ...... 130
19.3 Adding engine oil........................... 133
20 CLEANING, CARE ..................................... 135
20.1 Cleaning the motorcycle ................. 135
20.2 Checks and maintenance steps for
winter operation............................. 136
21 STORAGE................................................. 137
21.1 Storage ......................................... 137
21.2 Preparing for use after storage......... 138
22 TROUBLESHOOTING ................................ 139
23 TECHNICAL DATA..................................... 141
23.1 Engine .......................................... 141
23.2 Engine tightening torques ............... 142
23.3 Capacities ..................................... 144
23.3.1 Engine oil ................................. 144
23.3.2 Coolant ..................................... 144
23.3.3 Fuel ......................................... 145
23.4 Chassis ......................................... 145
23.5 Electrical system............................ 146
23.6 Tires............................................. 146
23.7 Fork.............................................. 146
23.8 Shock absorber.............................. 147
23.9 Chassis tightening torques .............. 147
24 DECLARATIONS OF CONFORMITY ............. 152
24.1 Declarations of conformity .............. 152
24.2 Country-specific declarations of
conformity (KTM RACE ON) ............ 152
24.3 Country-specific declarations of
conformity (CCU‑2) ........................ 153

TABLE OF CONTENTS
5
25 SUBSTANCES .......................................... 154
26 AUXILIARY SUBSTANCES ......................... 156
27 STANDARDS ............................................ 157
28 INDEX OF SPECIAL TERMS ....................... 158
29 LIST OF ABBREVIATIONS.......................... 159
30 LIST OF SYMBOLS.................................... 160
30.1 Red symbols.................................. 160
30.2 Yellow and orange symbols.............. 160
30.3 Green and blue symbols.................. 160
INDEX ............................................................. 161

1 MEANS OF REPRESENTATION
6
1.1 Symbols used
The meaning of specific symbols is described below.
Indicates an expected reaction (e.g. of a work step or a function).
Indicates an unexpected reaction (e.g. of a work step or a function).
Indicates work that requires expert knowledge and technical understanding. In the interest of
your own safety, have these jobs performed by an authorized KTM workshop! Your motorcycle
will be cared for there to the highest degree by specially trained experts using the special tools
required.
Indicates a page reference (more information is provided on the specified page).
Indicates information with more details or tips.
Indicates the result of a testing step.
Indicates a voltage measurement.
Indicates a current measurement.
Indicates the end of an activity, including potential rework.
1.2 Formats used
The typographical formats used in this document are explained below.
Proprietary name Indicates a proprietary name.
Name®Indicates a protected name.
Brand™ Indicates a brand available on the open market.
Underlined terms Refer to technical details of the vehicle or indicate technical terms, which
are explained in the glossary.

SAFETY ADVICE 2
7
2.1 Use definition –intended use
The vehicle is designed and constructed to withstand the usual demands of regular traffic and use on race
courses. This vehicle is not suitable for offroad use.
Info
This vehicle is only authorized for operation on public roads in its homologated version.
2.2 Misuse
The vehicle must only be used as intended.
Dangers can arise for people, property and the environment through use not as intended.
Any use of the vehicle beyond the intended and defined use constitutes misuse.
Misuse also includes the use of operating and auxiliary fluids which do not meet the required specification for the
respective use.
2.3 Safety advice
A number of safety instructions need to be followed to operate the product described safely. Therefore read this
instruction and all further instructions included carefully. The safety instructions are highlighted in the text and
are referred to at the relevant passages.
Info
Various information and warning labels are attached in prominent locations on the product described. Do
not remove any information or warning labels. If they are missing, you or others may not recognize dangers
and may therefore be injured.
2.4 Degrees of risk and symbols
Danger
Identifies a danger that will immediately and invariably lead to fatal or serious permanent injury if the
appropriate measures are not taken.
Warning
Identifies a danger that is likely to lead to fatal or serious injury if the appropriate measures are not
taken.
Caution
Identifies a danger that may lead to minor injuries if the appropriate measures are not taken.
Note
Identifies a danger that will lead to considerable machine and material damage if the appropriate measures are
not taken.
Note
Indicates a danger that will lead to environmental damage if the appropriate measures are not taken.

2 SAFETY ADVICE
8
2.5 Tampering warning
Tampering with the noise control system is prohibited. Federal law prohibits the following acts or the causing
thereof:
1 The removal or rendering inoperative by any person other than for purposes of servicing, repair, or replace-
ment, of any device or element of design incorporated into any new vehicle for the purpose of noise control
prior to its sale or delivery to the ultimate purchaser or while it is in use, or
2 the use of the vehicle after such device or element of design has been removed or rendered inoperative by any
person.
Among those acts presumed to constitute tampering are the acts listed below:
1 Removal or puncturing of the main silencers, baffles, header pipes or any other components which conduct
exhaust gases.
2 Removal or puncturing of parts of the intake system.
3 Lack of proper maintenance.
4 Replacing moving parts of the vehicle, or parts of the exhaust system or intake system, with parts other than
those specified by the manufacturer.
2.6 Safe operation
Danger
Danger of accidents A rider who is not fit to ride poses a danger to him or herself and others.
–Do not operate the vehicle if you are not fit to ride due to alcohol, drugs or medication.
–Do not operate the vehicle if you are physically or mentally impaired.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and death.
–Always make sure there is sufficient ventilation when running the engine.
–Use effective exhaust extraction when starting or running the engine in an enclosed space.
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
–Do not touch any parts such as the exhaust system, radiator, engine, shock absorber, or brake system
before the vehicle parts have cooled down.
–Let the vehicle parts cool down before you perform any work on the vehicle.
Only operate the vehicle when it is in perfect technical condition, in accordance with its intended use, and in a
safe and environmentally compatible manner.
The vehicle should only be used by trained persons. An appropriate driver's license is needed to ride the vehicle
on public roads.
Have malfunctions that impair safety promptly eliminated by an authorized KTM workshop.
Adhere to the information and warning labels on the vehicle.

SAFETY ADVICE 2
9
2.7 Protective clothing
Warning
Risk of injury Missing or poor protective clothing presents an increased safety risk.
–Wear appropriate protective clothing such as helmet, boots, gloves as well as trousers and a jacket
with protectors on all rides.
–Always wear protective clothing that is in good condition and meets the legal regulations.
In the interest of your own safety, KTM recommends that you only operate the vehicle while wearing protective
clothing.
2.8 Work rules
Unless specified otherwise, the ignition must be turned off during all work (models with ignition lock, models
with remote key) or the engine must be at a standstill (models without ignition lock or remote key).
Special tools are necessary for certain tasks. The tools are not a component of the vehicle, but can be ordered
using the number in parentheses. Example: bearing puller (15112017000)
Unless otherwise noted, normal conditions apply to all tasks and descriptions.
Ambient temperature 20 °C (68 °F)
Ambient air pressure 1,013 mbar (14.69 psi)
Relative air humidity 60 ± 5 %
During assembly, use new parts to replace parts which cannot be reused (e.g. self-locking screws and nuts,
expansion screws, seals, sealing rings, O-rings, pins, and lock washers).
In the case of certain screws, a screw adhesive (e.g. Loctite®) is required. Observe the manufacturer's instruc-
tions.
If thread locker (e.g., Precote®) has already been applied to a new part, do not apply any additional thread locker.
After disassembly, clean the parts that are to be reused and check them for damage and wear. Change damaged
or worn parts.
After completing a repair or service work, check the operating safety of the vehicle.
2.9 Environment
If you use your motorcycle responsibly, you can ensure that problems and conflicts do not occur. To protect the
future of the motorcycle sport, make sure that you use your motorcycle legally, display environmental conscious-
ness, and respect the rights of others.
When disposing of used oil, other operating and auxiliary fluids, and used components, comply with the laws and
regulations of the respective country.
Because motorcycles are not subject to the EU regulations governing the disposal of used vehicles, there are no
legal regulations that pertain to the disposal of an end-of-life motorcycle. Your authorized KTM dealer will be glad
to advise you.
2.10 Owner's Manual
Read this owner's manual carefully and completely before making your first trip. The Owner's Manual contains
useful information and many tips on how to operate, handle, and service your motorcycle. This is the only way to
find out how best to customize the vehicle for your own use and how you can protect yourself from injury.
Tip
Store the Owner's Manual on your terminal device, for example, so that you can read it whenever you need
to.
If you would like to know more about the vehicle or have questions on the material you read, please contact an
authorized KTM dealer.

2 SAFETY ADVICE
10
The Owner's Manual is an important component of the vehicle. If the vehicle is sold, the Owner's Manual must be
downloaded again by the new owner.
The Owner's Manual can be downloaded several times using the QR code or the link on the delivery certificate.
The Owner's Manual is also available for download from your authorized KTM dealer and on the KTM website. A
printed copy can also be ordered from your authorized KTM dealer.
International KTM Website: KTM.COM

IMPORTANT NOTES 3
11
3.1 Manufacturer warranty, implied warranty
The work prescribed in the service schedule must only be carried out in an authorized KTM workshop and con-
firmed in the KTM Dealer.net, as otherwise all warranty claims will be void. Damage or secondary damage caused
by tampering with and/or conversions on the vehicle are not covered by the manufacturer warranty.
3.2 Fuel, auxiliary substances
Note
Environmental hazard Improper handling of fuel is a danger to the environment.
–Do not allow fuel to enter the groundwater, the soil, or the sewage system.
Use fuels and auxiliary substances in accordance with the Owner's Manual and specification.
3.3 Spare parts, technical accessories
For your own safety, only use spare parts and accessory products that are approved and/or recommended by KTM
and have them installed by an authorized KTM workshop. KTM accepts no liability for other products and any
resulting damage or loss.
Certain spare parts and accessory products are specified in parentheses in the descriptions. Your authorized KTM
dealer will be glad to advise you.
The latest news KTM PowerParts on your vehicle can be found on the KTM website.
International KTM Website: KTM.COM
3.4 Service
A prerequisite for perfect operation and prevention of premature wear is that the service, care, and tuning work
on the engine and chassis is properly carried out as described in the Owner's Manual. An incorrect suspension
setting can lead to damage and breakage of chassis components.
Use of the vehicle under difficult conditions, such as dusty environments, heavy rain, high heat or with a heavy
load, can lead to considerably more rapid wear of components such as the air filter, drive train, brake system, or
suspension components. For this reason, it may be necessary to inspect or replace parts before the next sched-
uled service.
It is imperative that you adhere to the stipulated run-in times and service intervals. If you observe these exactly,
you will ensure a much longer service life for your motorcycle.
The relevant mileage or time interval is whichever occurs first.
3.5 Figures
The figures contained in the manual may depict special equipment.
In the interest of clarity, some components may be shown disassembled or may not be shown at all. It is not
always necessary to disassemble the component to perform the activity in question. Please follow the instructions
in the text.
3.6 Customer service
Your authorized KTM dealer will be happy to answer any questions you may have on your vehicle and KTM.
A list of authorized KTM dealers can be found on the KTM website.
International KTM Website: KTM.COM

4 VIEW OF VEHICLE
12
4.1 View of vehicle, front left (example)
S05153-10
1Clutch lever ( p. 16)
2Rider footrests
3Shift lever ( p. 24)
4Side stand ( p. 25)
5Engine oil level viewer

VIEW OF VEHICLE 4
13
4.2 View of vehicle, rear right (example)
S05154-10
1Fuel tank filler cap
2Combination switch, left side ( p. 16)
3Start button/emergency OFF switch ( p. 20)
3RACE-ON button ( p. 21)
3Hazard warning flasher switch ( p. 20)
3C1 and C2 switch ( p. 21)
4Throttle grip ( p. 16)
5Hand brake lever ( p. 16)
6Cooling system compensating tank
7Foot brake lever ( p. 24)

5 SERIAL NUMBERS
14
5.1 Vehicle identification number
402324-10
The vehicle identification number 1is stamped on the right side
of the steering head.
The vehicle identification number is also shown on the type label.
5.2 Type label
402174-10
Type label 1is applied to the right frame tube.
5.3 Key number
S05185-10
The key number Code number 1can be found on
the KEYCODECARD.
Info
You need the key number to order a spare key. Keep
the KEYCODECARD in a safe place.
5.4 Engine number
402296-10
The engine number 1is stamped on the right side of the engine.

SERIAL NUMBERS 5
15
5.5 Fork part number
402295-10
The fork part number 1is stamped on the inside of the axle
clamp.
5.6 Shock absorber article number
402798-10
The shock absorber article number 1is stamped on the top of
the shock absorber above the adjusting ring towards the engine
side.
5.7 Steering damper article number
H01060-10
Steering damper item number 1is embossed on the underside
of the steering damper.

6 CONTROLS
16
6.1 Clutch lever
S05155-10
Clutch lever 1is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automati-
cally.
6.2 Hand brake lever
S05156-10
The hand brake lever 1is fitted on the right side of the handle-
bar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
S05156-11
The throttle grip 1is fitted on the right side of the handlebar.
6.4 Combination switch, left side
The left combination switch is fitted on the left side of the handle-
bar.
S05157-10
Overview of the left combination switch
1Light switch ( p. 17)
2Cruise control buttons ( p. 18)
3Menu buttons ( p. 17)
4Turn signal switch ( p. 17)
5Horn button ( p. 18)
6+RES/-SET button ( p. 19)

CONTROLS 6
17
6.5 Light switch
S05158-10
The light switch 1is fitted on the combination switch on the
left.
Possible states
Low beam on –Light switch in position A. In this
position, the low beam and the tail light are switched
on.
High beam on –Light switch in position B. In this
position, the high beam and the tail light are switched
on.
Headlight flasher –Light switch in position C. The
headlight flasher is operated in this position. The light
switch returns automatically to the position Aafter
use.
6.6 Menu buttons
S05157-11
The menu buttons are fitted in the middle of the left combination
switch.
The menu buttons are used to control the display on the combina-
tion instrument.
Button 1is the UP button.
Button 2is the RIGHT button.
Button 3is the DOWN button.
Button 4is the LEFT button.
Button 5is the SET button.
Button 6is the BACK button.
6.7 Turn signal switch
S05157-12
Turn signal switch 1is fitted on the combination switch on the
left.
Possible states
Turn signal off –Turn signal switch pushed toward the
switch housing.
Left turn signal, on –Turn signal switch pressed to
the left. The turn signal switch returns automatically
to the central position after use.
Right turn signal, on –Turn signal switch pressed to
the right. The turn signal switch returns automatically
to the central position after use.

6 CONTROLS
18
Info
An automatic turn signal switch-off function (ATIR) is avail-
able as a software feature.
The ATIR function uses a time and distance counter.
If the turn signal has been on for at least 10 seconds and
150 meters of riding distance, the turn signal is switched
off.
If the vehicle is stationary, both counters are stopped.
If the turn signal switch is reactivated, both counters are
reset.
6.8 Horn button
S05157-13
Horn button 1is fitted on the left side of the handlebar.
Possible states
• The horn button is in the basic position
• The horn button is pressed –The horn is operated in this
position.
6.9 Cruise control buttons
S05159-10
The cruise control buttons 1,2and 3of the are located on
the left side of the combination switch.
Possible states
• Cruise control system button in the basic position.
• The +RES button is pressed briefly. –The last saved speed
is reapplied. Every subsequent brief pressing increases the
target speed by 1 km/h or 1 mph.
• Button +RES is pressed and held. –The target speed
increases in increments of 5 km/h or 5 mph.
• Button ‑SET is pressed. –The cruise control function is acti-
vated and the current speed is maintained. Every subsequent
brief press reduces the target speed by 1 km/h or 1 mph.
• Button ‑SET is pressed and held. –The target speed
decreases in increments of 5 km/h or 5 mph.
Info
After activating the cruise control function, the throttle
grip can be turned back to the basic position. The selected
speed will be maintained.
If no target speed has yet been saved, this can be saved
once using the +RES button.
If the cruise speed is exceeded for less than 30 seconds
by turning the throttle grip, the cruise control remains acti-
vated.
To switch off the cruise control system function press the cruise
control system button again.
In addition, the cruise control system function is deactivated when
one of the following events occurs:
