Bradco SG26 Product manual

9761 7-29-14-7
800-456-7100 I www.paladinattachments.com 503 Gay Street, Delhi, IA 52223, United States of America Copyright ©
OPERATOR’S AND PARTS MANUAL
SG26 & SG30 STUMP GRINDER
SERIAL NUMBER: ___________________ Manual Number: OM678
Part Number: 75578
MODEL NUMBER: ___________________ Rev. 5

9783 7-29-14-3
TABLE OF CONTENTS
PREFACE .......................................................................................................................................................... 3
SAFETY PRECAUTIONS
SAFETY STATEMENTS ........................................................................................................................... 5
GENERAL SAFETY PRECAUTIONS .................................................................................................... 5-7
EQUIPMENT SAFETY PRECAUTIONS................................................................................................ 8-9

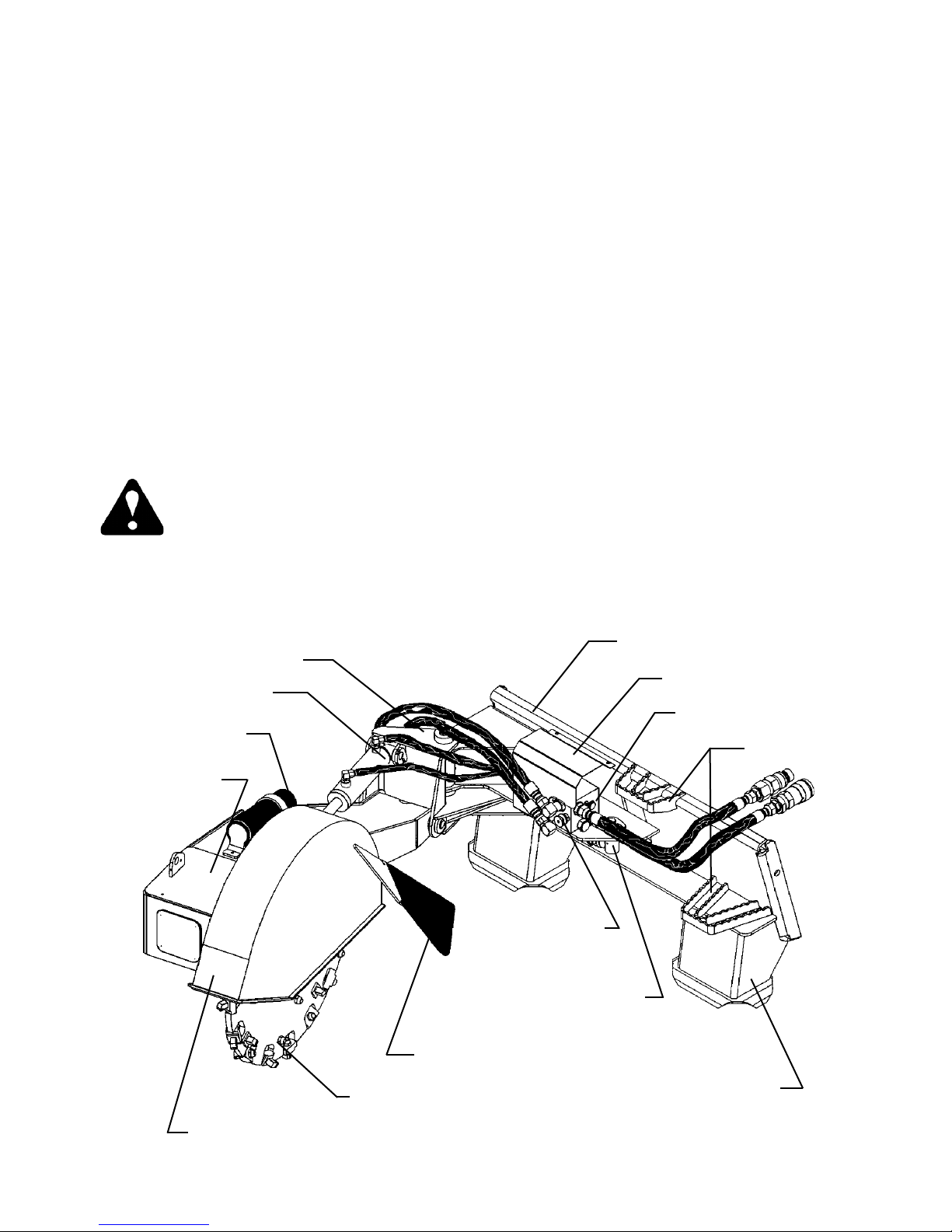

PREOPERATION / NOMENCLAURE..................................................................................................... 10
DECALS
DECAL PLACEMENT ..............................................................................................................................11
DECALS............................................................................................................................................. 12-13
INSTALLATION......................................................................................................................................... 14-15
OPERATION
CONTROLS............................................................................................................................................ 16
INTENDED USE ..................................................................................................................................... 17
OPERATING INSTRUCTIONS .......................................................................................................... 17-18
STORAGE & TRANSPORTING.............................................................................................................. 19
LIFT POINTS & TIE DOWN POINTS ..................................................................................................... 20
LUBRICATION ............................................................................................................................................... 21
MAINTENANCE AND SERVICE
GENERAL INFORMATION ..................................................................................................................... 22
ROUTINE PREVENTATIVE MAINTENANCE SCHEDULE .................................................................... 22
REPLACING TEETH .............................................................................................................................. 23
REPLACING HYDRAULIC MOTOR.................................................................................................. 23-24
REPLACING GEARBOX/MOTOR COUPLER................................................................................... 24-25
REPLACING GEARBOX ........................................................................................................................ 25
CYLINDER SEAL REPLACEMENT - THREADED TYPE GLAND .................................................... 26-27
TROUBLESHOOTING............................................................................................................................ 28-29
SPECIFICATIONS
STUMP GRINDER SPECIFICATIONS ................................................................................................... 30
BOLT TORQUE SPECIFICATIONS........................................................................................................ 31
LIMITED WARRANTY ................................................................................................................................. 33
PARTS
Stump Grinder Assembly....................................................................................................................................................34-35
Rear Guard Assembly ........................................................................................................................................................36-37
Square Tooth Wheel Assembly...........................................................................................................................................38-39
Bolt-On Tooth Wheel Assembly ..........................................................................................................................................40-41
Hydraulic Valve Assembly ..................................................................................................................................................42-43
Control Valve - Replacement Parts ....................................................................................................................................44-45
Standard Flow Drive Assembly...........................................................................................................................................46-47
High Flow Drive Assembly..................................................................................................................................................48-49
Standard Flow Hose Set.....................................................................................................................................................50-51
High Flow Hose Set............................................................................................................................................................52-53
Cylinder Assembly #100324 ...............................................................................................................................................54-55
Cylinder Assembly #101245 ...............................................................................................................................................56-57
Electrical Harness #104367 (Direct Connect to Control Valve) ............................................................................................... 58
Control Box Assembly #104368 (Use with Wiring Harness #101096)..................................................................................... 59
Electrical Harness #101096..................................................................................................................................................... 60
Electrical Schematics - Control Handles (#104367 - Direct, & #104368 - use with #101096) ............................................... 61
Electrical Schematics - Wiring Harness's (#101096 - 14 Pin, #108035 - 8 Pin, & #108036 - 14 Pin JD)................................ 62
75578
1

THIS PAGE
IS INTENTIONALLY
BLANK
2
75578

PREFACE
10344 7-31-13-4
GENERAL COMMENTS
Congratulations on the purchase of your new BRADCO product! This product was carefully
designed and manufactured to give you many years of dependable service. Only minor mainte-
nance (such as cleaning and lubricating) is required to keep it in top working condition. Be sure
to observe all maintenance procedures and safety precautions in this manual and on any safety
decals located on the product and on any equipment on which the attachment is mounted.
This manual has been designed to help you do a better, safer job. Read this manual care-
fully and become familiar with its contents.
WARNING! Never let anyone operate this unit without reading the "Safety Precautions"
and "Operating Instructions" sections of this manual.
Always choose hard, level ground to park the vehicle on and set the brake
so the unit cannot roll.
Unless noted otherwise, right and left sides are determined from the operator’s control posi-
tion when facing the attachment.
NOTE: The illustrations and data used in this manual were current (according to the infor-
mation available to us) at the time of printing, however, we reserve the right to redesign and
change the attachment as may be necessary without notication.
BEFORE OPERATION
The primary responsibility for safety with this equipment falls to the operator. Make sure the
equipment is operated only by trained individuals that have read and understand this manual. If
there is any portion of this manual or function you do not understand, contact your local authorized
dealer or the manufacturer to obtain further assistance. Keep this manual available for reference.
Provide the manual to any new owners and/or operators.
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol” used by this industry. This symbol is used to warn
of possible injury. Be sure to read all warnings carefully. They are included for your
safety and for the safety of others working with you.
SERVICE
Use only manufacturer replacement parts. Substitute parts may not meet the required stan-
dards.
Record the model and serial number of your unit on the cover of this manual. The parts
department needs this information to insure that you receive the correct parts.
SOUND AND VIBRATION
Sound pressure levels and vibration data for this attachment are inuenced by many different param-
eters: some items are listed below (not inclusive):
• prime mover type, age, condition, with or without cab enclosure and conguration
• operator training, behavior, stress level
• job site organization, working material condition, environment
Based on the uncertainty of the prime mover, operator, and job site, it is not possible to get precise ma-
chine and operator sound pressure levels or vibration levels for this attachment.
NOTE:Alist of all Paladin Patents can be found at http://www.paladinattachments.com/patents.asp.
75578
3

THIS PAGE
IS INTENTIONALLY
BLANK
4
75578

10338 8-16-05
SAFETY STATEMENTS
DANGER
GENERAL SAFETY PRECAUTIONS
WARNING! READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result in
serious injury or death. Operators and maintenance personnel should read this man-
ual, as well as all manuals related to this equipment and the prime mover thoroughly
before beginning installation, operation, or maintenance. FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND THE PRIME MOVER’S MANUAL(S).
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals prior to operating or
working on this equipment. Know and obey all OSHA regulations, local laws, and
other professional guidelines for your operation. Know and follow good work
practices when assembling, maintaining, repairing, mounting, removing, or operating
this equipment.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before operating.
Visually inspect your equipment before you start, and never operate equipment that
is not in proper working order with all safety devices intact. Check all hardware to
ensure it is tight. Make certain that all locking pins, latches, and connection devices
are properly installed and secured. Remove and replace any damaged, fatigued, or
excessively worn parts. Make certain all safety decals are in place and are legible.
Keep decals clean, and replace them if they become worn or hard to read.
WARNING
CAUTION
THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH
WILL RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH
COULD RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
THIS SIGNAL WORD IS USED WHERE MINOR INJURY COULD RESULT IF
THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
NOTICE INDICATES A PROPERTY DAMAGE MESSAGE.
NOTICE
THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS MAN-
UAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR
PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE
INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
75578
5

GENERAL SAFETY PRECAUTIONS
WARNING! PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles, or a face shield when driving pins in or
out, or when any operation causes dust, ying debris, or any other hazardous mate-
rial.
WARNING! LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised booms without supporting them. Do not use support mate-
rial made of concrete blocks, logs, buckets, barrels, or any other material that could
suddenly collapse or shift positions. Make sure support material is solid, not de-
cayed, warped, twisted, or tapered. Lower booms to ground level or on blocks. Lower
booms and attachments to the ground before leaving the cab or operator’s station.
WARNING! USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic uid under pressure can penetrate the skin and cause serious injury or
death. Hydraulic leaks under pressure may not be visible. Before connecting or dis-
connecting hydraulic hoses, read your prime mover’s operator’s manual for detailed
instructions on connecting and disconnecting hydraulic hoses or ttings.
•Keep unprotected body parts, such as face, eyes, and arms as far away as
possible from a suspected leak. Flesh injected with hydraulic uid may develop
gangrene or other permanent disabilities.
• If injured by injected uid, see a doctor at once. If your doctor is not familiar with
this type of injury, ask him to research it immediately to determine proper treat-
ment.
• Wear safety glasses, protective clothing, and use a piece of cardboard or wood
when searching for hydraulic leaks. DO NOT USE YOUR HANDS!
SEE ILLUSTRATION.
CARDBOARD
HYDRAULIC HOSE
OR FITTING
MAGNIFYING GLASS
10339 8-16-05
6
75578

GENERAL SAFETY PRECAUTIONS
10340 8-16-05
WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS
Modications may weaken the integrity of the attachment and may impair the func-
tion, safety, life, and performance of the attachment. When making repairs, use only
the manufacturer’s genuine parts, following authorized instructions. Other parts may
be substandard in t and quality. Never modify any ROPS (Roll Over Protection
Structure) or FOPS (Falling Object Protective Structure) equipment or device. Any
modications must be authorized in writing by the manufacturer.
WARNING! SAFELY MAINTAIN AND REPAIR EQUIPMENT
•Do not wear loose clothing or any accessories that can catch in moving parts. If
you have long hair, cover or secure it so that it does not become entangled in the
equipment.
• Work on a level surface in a well-lit area.
• Use properly grounded electrical outlets and tools.
• Use the correct tools for the job at hand. Make sure they are in good condition for
the task required.
• Wear the protective equipment specied by the tool manufacturer.
SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualied operator
in how to use the controls, know its capabilities, dimensions, and all safety require-
ments. See your machine’s manual for these instructions.
•Keep all step plates, grab bars, pedals, and controls free of dirt, grease, debris,
and oil.
• Never allow anyone to be around the equipment when it is operating.
• Do not allow riders on the attachment or the prime mover.
• Do not operate the equipment from anywhere other than the correct operator’s
position.
• Never leave equipment unattended with the engine running, or with this attach-
ment in a raised position.
• Do not alter or remove any safety feature from the prime mover or this attach-
ment.
• Know your work site safety rules as well as trafc rules and ow. When in doubt
on any safety issue, contact your supervisor or safety coordinator for an explana-
tion.
75578
7

EQUIPMENT SAFETY PRECAUTIONS
WARNING! KNOW WHERE UTILITIES ARE
Observe overhead electrical and other utility lines. Be sure equipment will clear
them. When digging, call your local utilities for location of buried utility lines, gas,
water, and sewer, as well as any other hazard you may encounter.
WARNING! EXPOSURE TO RESPIRABLE CRYSTALLINE SILICA DUST
ALONG WITH OTHER HAZARDOUS DUSTS MAY CAUSE SE-
RIOUS OR FATAL RESPIRATORY DISEASE.
It is recommended to use dust suppression, dust collection and if necessary person-
al protective equipment during the operation of any attachment that may cause high
levels of dust.
WARNING! REMOVE PAINT BEFORE WELDING OR HEATING
Hazardous fumes/dust can be generated when paint is heated by welding, soldering
or using a torch. Do all work outside or in a well ventilated area and dispose of paint
and solvent properly. Remove paint before welding or heating.
When sanding or grinding paint, avoid breathing the dust. Wear an approved respira-
tor. If you use solvent or paint stripper, remove stripper with soap and water before
welding. Remove solvent or paint stripper containers and other ammable material
from area. Allow fumes to disperse at least 15 minutes before welding or heating.
WARNING! END OF LIFE DISPOSAL
At the completion of the useful life of the unit, drain all uids and dismantle by sepa-
rating the different materials (rubber, steel, plastic, etc.). Follow all federal, state and
local regulations for recycling and disposal of the iud and components.
OPERATING THE STUMP GRINDER
• Do not operate a standard ow stump grinder on high ow hydraulic systems.
Severe injury could occur due to increased RPM.
• Do not exceed the lifting capacity of your prime mover.
• Operate only from the operator’s station.
• Never operate near bystanders, trafc, pets, livestock or buildings. Be sure oth-
ers know when and where you will be working. Never direct discharge towards
people, animals or property. Never allow anyone to approach this attachment
when in operation.
• Do not raise the attachment when the grinding wheel is rotating.
• Keep hands, feet, hair and clothing away from equipment with engine running.
Stay clear of all moving parts.
• Do not operate without covers or rubber guards installed.
• Always carry attachment as close to the ground as possible.
• Make sure grinding wheel is completely stopped and engine shut off before mak-
ing any adjustments on the attachment.
• Before exiting the prime mover, lower the attachment to the ground, turn off the
prime mover’s engine, remove the key and apply the brakes.
9714 7-29-14-2
8
75578

EQUIPMENT SAFETY PRECAUTIONS
OPERATING THE STUMP GRINDER (continued)
• When operating on slopes, drive up and down, not across. Avoid steep hillside
operation, which could cause the prime mover to overturn.
• Reduce speed when driving over rough terrain, on a slope, or turning, to avoid
overturning the vehicle.
• An operator must not use drugs or alcohol, which can change his or her alert-
ness or coordination. An operator taking prescription or over-the-counter drugs
should seek medical advice on whether or not he or she can safely operate
equipment.
TRANSPORTING THE STUMP GRINDER
• Travel only with the attachment in a safe transport position to prevent uncon-
trolled movement. Drive slowly over rough ground and on slopes.
• When driving on public roads use safety lights, reectors, Slow Moving Vehicle
signs etc., to prevent accidents. Check local government regulations that may
affect you.
• Do not drive close to ditches, excavations, etc., cave in could result.
• Do not smoke when refueling the prime mover. Allow room in the fuel tank for
expansion. Wipe up any spilled fuel. Secure cap tightly when done.
• Use extra care when loading or unloading the machine onto a truck or trailer.
Disconnect hydraulic couplers during transportation.
MAINTAINING THE STUMP GRINDER
• Before performing maintenance, lower the attachment to the ground, turn off the
engine, remove the key and apply the brakes.
• Never perform any work on the attachment unless you are authorized and quali-
ed to do so. Always read the operator service manuals before any repair is
made. After completing maintenance or repair, check for correct functioning of
the attachment. If not functioning properly, always tag “DO NOT OPERATE” until
all problems are corrected.
• Worn, damaged, or illegible safety decals must be replaced. New safety decals
can be ordered from your nearest dealer.
• Never make hydraulic repairs while the system is under pressure. Serious per-
sonal injury or death could result.
• Never work under a raised attachment.
9715 7-29-14-2
75578
9

PREOPERATION
STUMP GRINDER
9762 7-29-14-2
GENERAL INFORMATION
The BRADCO Stump Grinders were designed to be easy to use and maintain. They are
operated by the skid steer auxiliary hydraulics and mount to the quick attach mechanism for
easy operator hook-up.
Your skid-steer must be equipped with auxiliary hydraulic and an electric control kit (or
the optional electric control handle must be ordered from your BRADCO dealer).
 TherearetwomodelsofBRADCOstumpgrindersavailable,standardowandhigh
ow.Besurethestumpgrinderyouhavepurchasedmatchesthehydraulicowofyourskid
steer.
 Thestandardowunitrequires15-22GPMandthehighowrequires25-42GPM.
Operatingthehighowstumpgrinderonastandardowskidsteerwillresultinpoorperfor-
mance.
WARNING! OPERATING THE STANDARD FLOW STUMP GRINDER ON A HIGH FLOW
HYDRAULIC SYSTEM MAY CAUSE SEVERE INJURY OR DEATH TO THE
OPERATOR OR BYSTANDERS DUE TO THE INCREASED RPM.
NOMENCLATURE
The purpose of this diagram is to acquaint you with the various names of the stump
grinder components. This knowledge will be helpful when reading through this manual or when
ordering service parts.
MANUAL TUBE
RUBBER REAR
GUARD
LIFT CYLINDER
MOUNTING BRACKET
YOKE
VALVE COVER
WHEEL
SWING CYLINDER
CONTROL VALVE
STEP
GROUSER PAD
CYLINDER SPEED
CONTROL KNOB
STUMP GRINDER
FRAME
WHEEL GUARD COVER
10
75578

DECALS
DECAL PLACEMENT
9780 7-29-14-3
GENERAL INFORMATION
The diagram on this page shows the location of the decals used on your attachment.
The decals are identied by their part numbers, with reductions of the actual decals located on
the following pages. Use this information to order replacements for lost or damaged decals. Be
sure to read all decals before operating the stump grinder. They contain information you need
to know for both safety and attachment longevity.
IMPORTANT: Keep all safety decals clean and legible. Replace all missing, illegible or damaged safety decals.
When replacing parts with safety decals attached, the safety decals must also be replaced.
REPLACING SAFETY DECALS: Clean the area of application with a nonammable solvent, then wash the same
area with soap and water. Allow the surface to dry. Remove the backing from the safety decal, exposing the adhe-
sive surface. Apply the safety decal to the position shown in the diagram above and smooth out any bubbles.
#40782
#40678
#40151
#40149
#4495
#4338
#40590
(STANDARD FLOW
UNITS ONLY)
SERIAL TAG
LOCATION
#40150
LOGO
#40782
#40719
MODEL NUMBER
75578
11

DECALS
9781 7-29-14-3
DANGER! ROTATING BLADE
PART #40782
DANGER! PINCH POINT
PART #40149
WARNING! HIGH PRESSURE FLUID
PART #40151
WARNING! READ OPERATOR'S MANUAL
PART #40150
DANGER! FLYING DEBRIS
PART #40719
12
75578

DECALS
9782 7-29-14-2
MADE IN U.S.A.
PART #4338
CAUTION! DO NOT OPERATE
PART #40590
(USED ON STANDARD FLOW UNITS ONLY!)
WARNING! GUARD REMOVED
PART #4495
WARNING! BEFORE LEAVING OPERATOR'S SEAT
PART #40678
NOTE: CONTACT YOUR LOCAL DEALER FOR MODEL
NUMBER AND LOGO DECALS.
NOTE: ATTACHMENT CONTROL DECALS ARE PURCHASED
ACCORDING TO THE MULTI-FUNCTION ELECTRIC
CONTROL HANDLE YOUR UNIT IS EQUIPPED WITH.
NONE REQUIRED WITH THE BRADCO CONTROL BOX.
75578
13

INSTALLATION
9772 7-29-14-2
GENERAL INFORMATION
The following instructions will help you mount your stump grinder onto your skid steer
loader. The stump grinder uses the quick-attach system for ease of installation.
Remember to read all safety warning, decals and operation instructions before operat-
ing the attachment. If there is any portion of this manual that you do not understand, contact
your dealer.
WARNING! OPERATING THE STANDARD FLOW STUMP GRINDER ON A HIGH FLOW
HYDRAULIC SYSTEM MAY CAUSE SEVERE INJURY OR DEATH TO THE
OPERATOR OR BYSTANDERS DUE TO THE INCREASED RPM.
INSTALLATION INSTRUCTIONS
1. Remove shipping banding.
2. Remove any existing attachment from the loader.
3. Following all standard safety practices and the instructions for installing an attachment
in your skid steer operator's manual, install the stump grinder onto your skid steer.
NOTE: IT IS IMPORTANT TO MAKE SURE THE LOCKING MECHANISM ON YOUR QUICK
ATTACH IS ENGAGED, THEREFORE LOCKING THE ATTACHMENT ONTO THE SKID
STEER
4. Lower the unit to the ground and remove the key.
5. If the guard assembly was not installed at the factory, install it now using the hardware
provided. (See Parts Section for hardware locations.)
6. Ifinstallingthehighowstumpgrinder,connectthecasedraincouplertothecasedrain
on your skid steer loader.
7. Relieve pressure from the auxiliary hydraulic system. Connect couplers to the auxil-
iary hydraulic system of your skid steer loader. Route the hoses in such a fashion as to
avoidpinchingorchang.
CAUTION! BE SURE CASE DRAIN COUPLER IS COMPLETELY ENGAGED. IMMEDIATE
HYDRAULIC MOTOR SEAL FAILURE WILL OCCUR IF CASE DRAIN IS NOT
SUCCESSFULLY CONNECTED.
14
75578

INSTALLATION
9720 7-29-14-2
8. Route the electrical control handle to the operator's station. Take care to avoid pinching
of the electrical wire harness.
NOTICE: Keep all electrical cables away from prime mover exhaust system.
NOTE: If your skid steer is equipped with a multi-function control handle, connect the
electrical wire harness from the stump grinder to the auxiliary electrical connector on
the front of the skid steer.
9. Following all standard safety practices, start the skid steer and run all cylinders through
their full cycle to purge any air from the system. Check that all controls function accord-
ing to the operating control decal.
Your stump grinder is now installed and ready for operation.
DISCONNECT INSTRUCTIONS
1. With the stump grinder extended halfway out, lower the unit onto the grouser pads on
the mounting bracket and the brace stand. NOTE: Extending the unit will help prevent it
from tipping forward when disconnected.
2. Following Safety Shut Down Procedures; stop the engine and set the parking brake,
relieve any pressure in the hydraulic lines.
3. Disconnect the power and return hoses from the auxiliary hydraulics. (Disconnect case
drain coupler from the case drain if using the high ow stump grinder.)
4. Disconnect the electrical wire harness from the auxiliary electrical connector (if so
equipped).
5. Following all standard safety practices and the instructions for disconnecting an attach-
ment in your skid steer operator's manual, disconnect the stump grinder from your skid
steer.
6. Connect the hydraulic couplers on the attachment together to prevent contaminants
from entering the hydraulic system and secure all hoses and electrical cables off the
ground to help prevent damage.
75578
15

OPERATION
12865 7-29-14
CONTROLS
GENERAL INFORMATION
Your Stump Grinder is controlled by a joystick and an electrical valve assembly. Al-
though BRADCO does offer various options for connecting to existing electrical joystick con-
trols, we will be covering the Paladin operating controls in these instructions.
uP
RIGhT
dOwN
LEFT
sTuMP GRINdER cONTROLs
Pushing the top arrow switch will raise the stump grinder frame. Use for
positioning the grinding wheel while maintaining ground contact with the
grouser pads.
Pushing the bottom arrow switch will lower the stump grinder frame. Use
for positioning the grinding wheel while maintaining ground contact with
the grouser pads.
Pushing the left arrow switch will swing the stump grinder frame in to the
left. Use during grinding operation.
Pushing the right arrow switch will swing the stump grinder frame out to the
right. Use during grinding operation.
Aswing speed control knob is located on the front side of the hydraulic valve.
Turning the knob to the right will decrease the swing speed and turning the
knob to the left will increase the swing speed.
16
75578

OPERATION
STUMP GRINDER
9773 7-29-14-2
INTENDED USE: This unit is designed for grinding stumps up to 12" (30.5 cm) high. Use in
any other way is considered contrary to the intended use.
GENERAL INFORMATION
The BRADCO stump grinder is perfect for landscaping and maintaining parks and mu-
nicipalities. The easy maneuverability of the skid steer allows access to areas often inacces-
sible and it is easily moved from site to site. The offset design offers excellent visibility and can
be used in tight spaces around buildings and homes.
The quick attach mounting plate allows for easy hook-up and disconnect. Therefore the
time required to remove the stump grinder from the skid steer and attach a bucket for clean up
is greatly reduced from conventional stump grinders. Due to this arrangement, thorough knowl-
edge of the skid steer controls is necessary for machine operation. Read your skid steer opera-
tor's manual for information regarding skid steer operation before attempting to use the stump
grinder.
Follow all installation instructions for the proper installation of the unit onto your skid
steer before operating.
STUMP GRINDING OPERATION
WARNING! CHECK THE WORK AREA AND KNOW WHERE ALL UTILITY LINES ARE BE-
FORE OPERATING THE STUMP GRINDER.
OPERATE THE STUMP GRINDER FROM INSIDE THE OPERATOR'S STATION
OF YOUR SKID STEER LOADER ONLY.
1. Swing the stump grinder all the way to the right, align the grinder with the stump in such
a fashion that the skid steer is as level as possible from left to right.
2. Position the cutting wheel to the right of the stump. Lower the frame so the grouser pads
are resting on the ground. This will assist in stabilizing the unit for even cutting and re-
duce the inadvertent movement of the skid steer.
NOTE: It is recommended that the pivot pin, attaching the mounting bracket to the yoke,
be perpendicular to the ground or as close to perpendicular as possible for the best per-
formance of the unit.
NOTE: Be sure the cutting wheel is not contacting the ground.
3. Activate the auxiliary hydraulics to the stump grinder and increase the engine to full
RPM.
4. Adjust the cutting wheel to cut approximately 1 to 1-1/2" of stump.
75578
17

9774 7-29-14-2
NOTE: The cutting depth of each pass will be determined by the type of tree. Certain
varieties of trees will allow for a deeper cut than trees containing a lot of sap.
5. Swing the cutting wheel to the left across the top of the stump on the edge closest to
the skid steer. Lower the grinder another 1 to 1-1/2" and swing the cutting wheel back
across the stump to the right.
6. Continue cutting in this manner. If the wheel stalls, reduce the depth of the cut. Move
the skid steer as required to allow cutting a new area.
NOTE: Do not move into the stump while making a cross sweep. Machine and/or tooth
damage could result from motor overload.
NOTE: Make shallow cuts when cutting surface roots. Large chips can be broken off
and thrown if the cut is too deep.

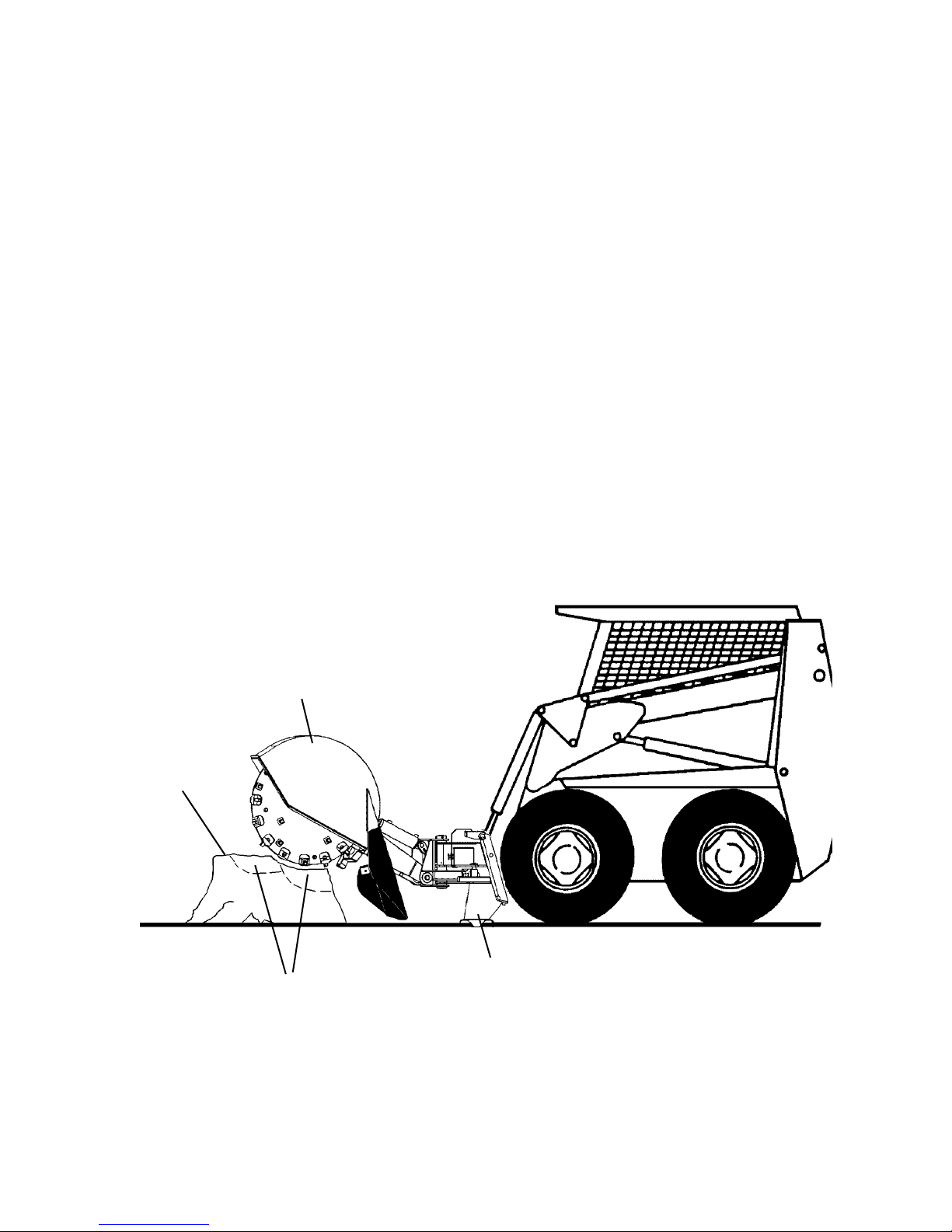

GROUSER PAD
STUMP
STUMP GRINDER
START NEW CUT AS
DESIRED
OPERATION
STUMP GRINDER
18
