Features
This product works in Windows CE up to
115,200 baud (full duplex mode only)
PCMCIA 1 Port RS422/485
Options
Description
ORDER
Description Code
PCMCIA 1 Port RS422/485 PM-120
Ruggedised PCMCIA 1 Port RS422/487 PM-154
PM-120 / PM-154
Software
PC Card providing one RS422/485 serial port. Up to 921,600 data
transfer rates and the 128 byte deep transmit and 128 byte receive FIFOS,
coupled with 1Mbit/s line drivers deliver uncompromising performance
on your laptop/PC.
Being mobile no longer limits your options. Standard and ruggedised
card options to suit your needs.
With Brainboxes industry renowned Lifetime Warranty and Lifetime Support!
1 Port RS422/485•
PCMCIA Card socket size•
128 Byte Tx and 128 Byte Rx FIFOs•
Up to 921,600 Baud•
DB9 connector (9 Pin Male)•
Drivers for all popular operating systems•
Sample Programs, Test & Terminal software•
Lifetime Support•
Lifetime Warranty (registration required)•
NEW
PM-120:
PCMCIA 1 Port
RS422/485
PM-154
Ruggedised PCMCIA 1
Port RS422/487
“SERIAL CARDS ENGINEERED TO EXCEED EXPECTATIONS”
Microsoft signed drivers (easy installation & robust operation) for:
Windows Vista 32 bit & 64 bit Editions•
Windows XP 32 bit & 64 bit Editions•
Windows Server 2000•
As well as: full product documentation, a thorough troubleshooting
guide and terminal software. Detailed sample source code for many
popular programming languages. Further OS support on next page.
www.brainboxes.com
brainboxes
PCMCIA 1 Port RS422/485

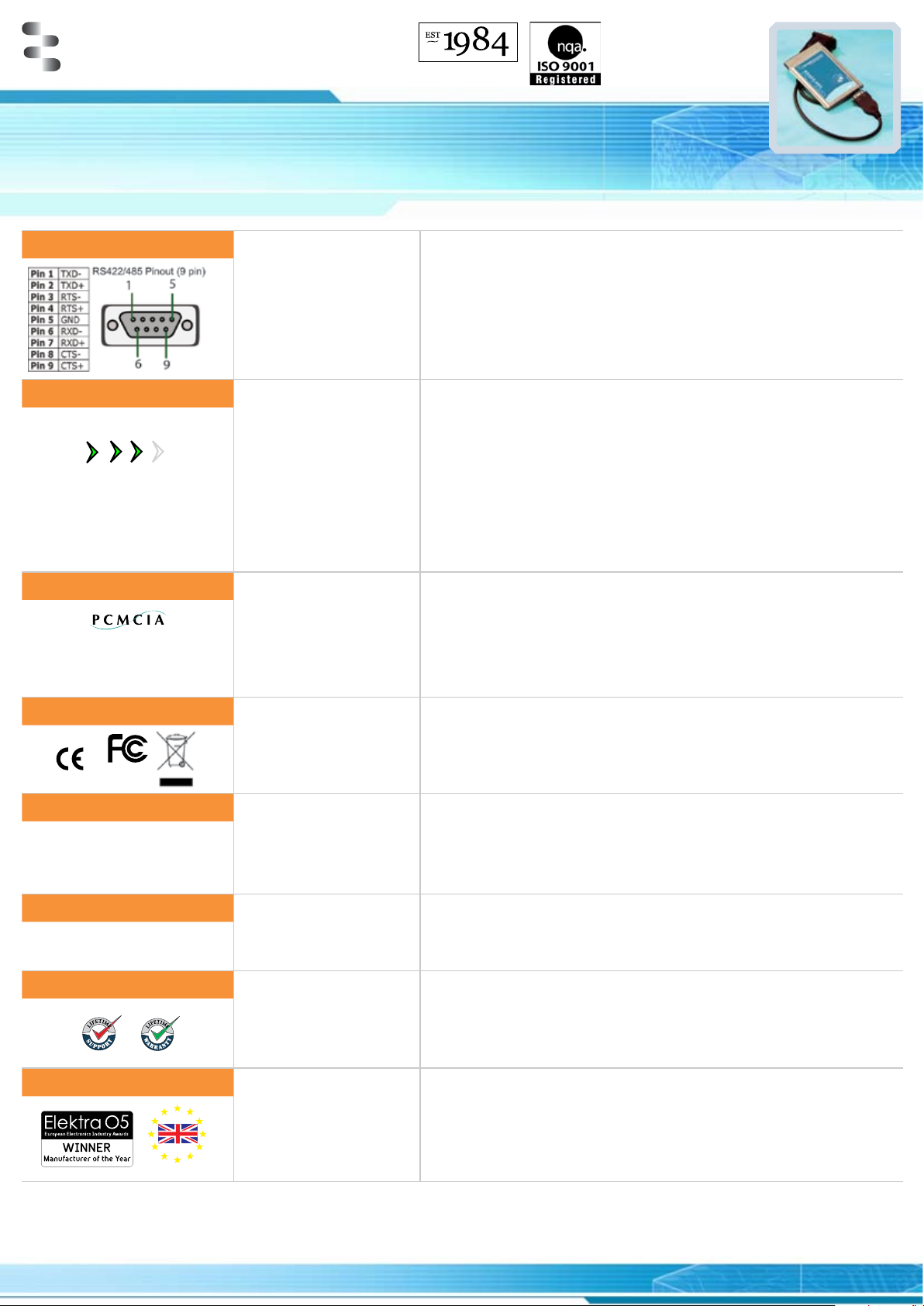

PM-120 / PM-154: Full Specification
Port Ports 1 Port RS422/485
Connector DB9 connector (9 Pin Male)
FIFO size 128 Tx, 128 Rx
Operating Distance RS422/485 Standard (4000 ft : 1200 metres)
Cable Fully wired moulded cable
Port Settings Baud Rate Up to 921,600
921,600
baud
Data Bits 5,6,7 or 8
Parity Odd, Even, None, Mark or Space
Stop Bits 1,1.5 or 2
Flow Control RTS/CTS , DTR/DSR
Tx/Rx Modes Full Duplex, Half Duplex Autogating
Hardware Autogating, TxD always / RTS true enabled, RxD always
enabled, RxD RTS true disabled, CTS forced true
Interface OS Compatibility Windows Vista 32 bit and 64 bit Editions
Windows XP 32 bit and 64 bit Editions
Windows 2000
Windows 95/98/Me
Windows CE
BUS PCMCIA
Approvals Other Approvals EMC: CE FCC compliant WEEE RoHS
Microsoft Approvals Microsoft Certified Gold Partner
Windows Vista 32 bit and 64 bit Windows XP 32 bit & 64 bit
Windows 2000
General PCB Layers 4
Power Consumption 100mA @ 5V
Weight 0.067 Kg (PM-120) , 0.049 Kg (PM-154)
Size PCMCIA Type II: 85.6 x 54 x 5.0 mm
Box Content Packaging Installation CD including manual, Microsoft signed drivers & utilities
Card PCMCIA 1 Port RS422/485
Fully wired moulded cable
Product Support Warranty Lifetime (online registration required)
Support Lifetime Web, Email and Phone Support from fully qualified, friendly
staff who work in and alongside the Product Development Team
Additional OEM option Available for bulk buy OEM
Made in the UK
Made In Manufactured in the UK by Brainboxes Winner 2005 European
Electronics Industry Awards “Manufacturer of the Year”
Customisable Brainboxes operate a “Perfect Fit Custom Design” policy for volume
This product works in Windows CE up to 115,200 baud (full duplex mode only)
PM-120
PM-154
