Brama EM044K6BB User manual
WWW.VINOTEMP.COM
A PROUD HERITAGE OF EXPERIENCE & QUALITY
OWNER’S MANUAL
30” OVER THE RANGE
MICROWAVE OVEN
EM044K6BB ( BR-MW OH16- S )
2
WWW.VINOTEMP.COM
!
!
GENERAL OPERATING INSTRUCTIONS
Remove all external and internal packaging from your appliance. Be sure that all parts
have been included before discarding any packaging materials. You may want to keep
the box and packing materials for use at a later date.
Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged.
Let the unit rest UNPLUGGED for 24 hours once you have it placed in your home.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
-Save these instructions-
To register your product, visit: http://www.vinotemp.com
Register your warranty within 10 days of receiving the unit.
Please be sure to retain your proof of purchase.
Protect Your Investment with an Extended Warranty!
Add a New Leaf extended warranty to your order, and have the security of knowing that if there should be a problem, even
years in the future, New Leaf will be there to assist! Usable for any Wine Cellar or other electronic device manufactured by
Vinotemp. Add this warranty to purchases made from vinotemp.com or other qualified venders. Warranty must be
registered within the first 10 days from original purchase.
Visit www.vinotemp.com to purchase.
3
732 South Racetrack Road, Henderson, Nevada 89015
Table of Contents
Important Safety Instructions ------------------------------------------------- 4-5
Grounding Instructions ----------------------------------------------------------- 6
About Your Microwave Oven --------------------------------------------------- 7
Cookware and Cooking Materials --------------------------------------------- 8
Materials You Can Use and To Be Avoided -------------------------------- 9
Features and Specifications --------------------------------------------------- 10
Control Panel ---------------------------------------------------------------------- 11
Setting Up Your Oven ----------------------------------------------------------- 12
Installing the turntable ------------------------------------------------------- 12
Using your microwave ------------------------------------------------------- 12
Cooking in your microwave ------------------------------------------------- 13
Cooking with multiple cooking stages -------------------------------- 14
Defrosting in your microwave ------------------------------------- 14-15
Cooking with the sensor ------------------------------------------------- 15
Categories of Food -------------------------------------------------- 16-17
Various Function of Your Microwave ------------------------------------ 17
Cleaning and Maintaining Your Microwave -------------------------------- 18
Cleaning and replacing the filters ------------------------------------ 18-19
Replacing the exhaust filters -------------------------------------- 18-19
Replacing the charcoal filter --------------------------------------- 19-20
Replacing the lights ----------------------------------------------------- 20-21
Maintenance and Troubleshooting ------------------------------------------- 22
Terms & Conditions --------------------------------------------------------- 23-28
Warranty ---------------------------------------------------------------------------- 30
4
WWW.VINOTEMP.COM
!
!
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
1) Do not attempt to operate this oven with the door open since open door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
2) Do not place any object between the microwave front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
3) Do not operate the microwave if it is damaged. It is particularly important that the
microwave door close properly and that there is no damage to the:
a) DOOR (bent)
b) HINGES AND LATCHES (broken or loosened)
c) DOOR SEALS AND SEALING SURFACES
4) The microwave should not be adjusted or repaired by anyone except properly qualified
service personnel.
If there is any damage to the Microwave Oven, please contact to your Dealer. Please do
not to attempt to repair or replace any part by yourself.
Read these instructions carefully before using your microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
IMPORTANT SAFETY INSTRUCTIONS
For your safety, please follow the information in this manual to reduce the risk of
fire, burns, explosion, electric shock, exposure to excessive microwave energy,
and to help prevent property damage or personal injury.
1. Read all instructions before using the appliance.
2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY" (see above).
3. This appliance must be grounded. Connect only to a properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on page 6.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass jars -
are able to explode and should not be heated in this microwave oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of microwave oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly,
or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest
authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water, near a kitchen
sink, in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surface.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 18.
5
732 South Racetrack Road, Henderson, Nevada 89015
17. To reduce the risk of fire in the microwave oven cavity:
a. Do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the microwave oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing the bag in the
microwave oven.
c. If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
18. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is removed
from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided contained with narrow necks.
4) After heating, please allow the container to stand in the microwave oven for a short time
before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.
SAVE THESE INSTRUCTIONS
UNPACKING AND EXAMINING YOUR MICROWAVE
Open the bottom of the carton, bend the carton flaps back, and tilt the microwave oven over to
rest on the plastic foam pad. Lift the carton off the microwave oven and remove all packing
materials, including the Owner’s Manual, Installation Manual, top cabinet and rear wall
templates, charcoal filter, and turntable (with ring). SAVE THE CARTON AS IT MAY MAKE
INSTALLATION EASIER.
1) Remove the feature sticker from the outside of the door, if there is one.
2) DO NOT REMOVE THE WAVEGUIDE COVER.
3) Read and SAVE the Owner’s Manual and Installation Manual.
Check the microwave oven for any damage, such as misaligned or bent door, damaged door
seals and sealing surfaces, broken or loose door hinges and latches, and dents inside the
cavity or on the door. If there is any damage, do not operate the microwave oven and contact
your dealer or repair center. See Installation Instructions for more details.
6
WWW.VINOTEMP.COM
!
!
GROUNDING INSTRUCTIONS
This appliance must be grounded. This microwave oven is equipped with a cord having a
grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly
installed and grounded in accordance with the National Electrical Code and local codes and
ordinances. In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
DANGER – Electrical Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING – Electrical Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is
properly installed and grounded.
Electrical Requirements
Check the Installation Instructions for proper location for the power supply.
The electrical requirements are a 120 Volt AC, 60 Hz, 15 amp. or more protected electrical
supply. It is recommended that a separate circuit serving only the microwave oven be provided.

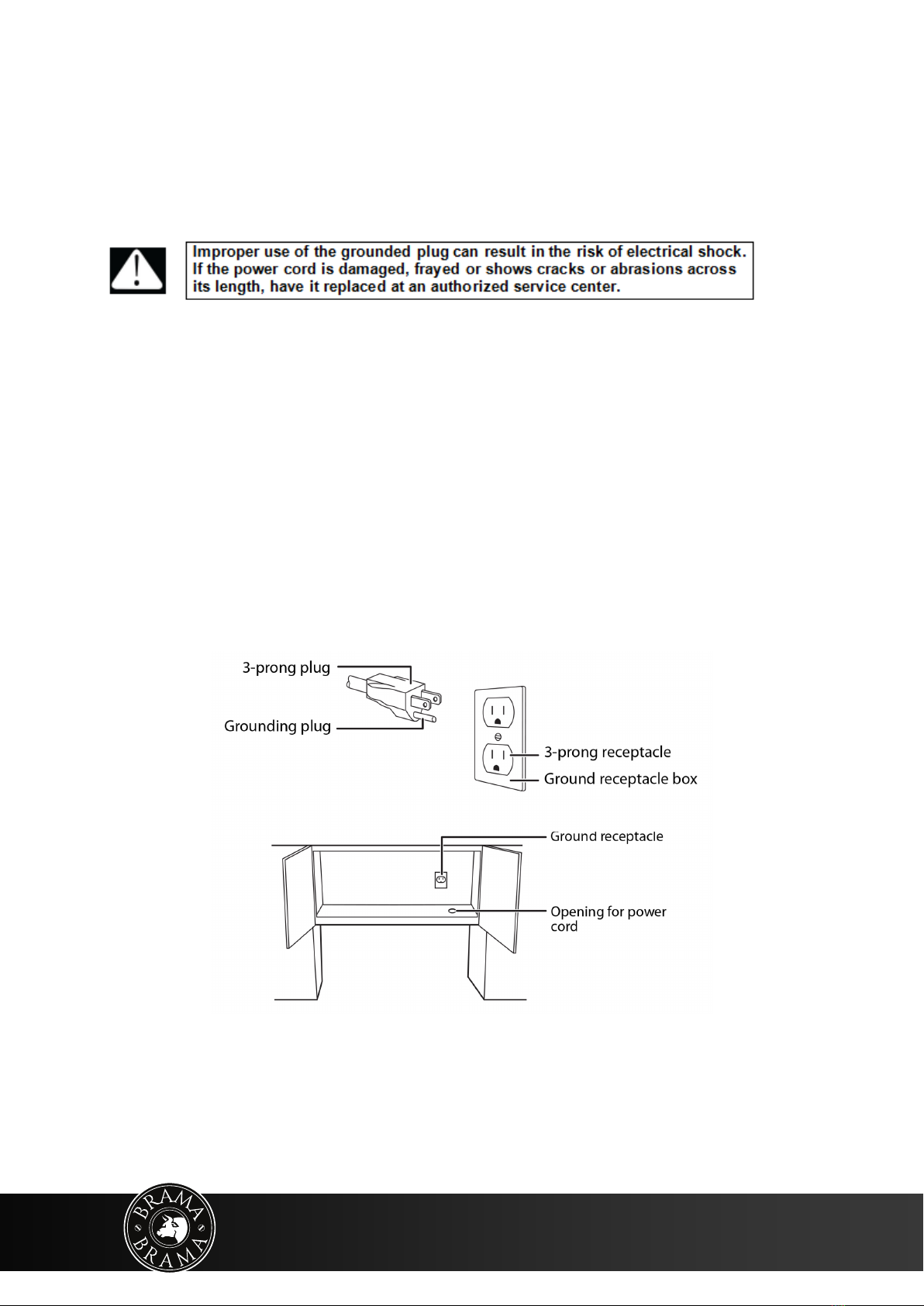

For your protection, the microwave oven is equipped with a 3-prong grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded. DO NOT
UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE
PLUG. DO NOT USE AN EXTENSION CORD.
The power supply cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15 Amp,
or more branch circuit, single grounded receptacle. The receptacle should be located inside the
cabinet directly above the microwave oven mounting location as shown above.
NOTE: (1) If the power supply cord is too short, have a qualified electrician or serviceman install an outlet
near the appliance. (2) If you have any questions about the grounding or electrical instructions, consult a
qualified electrician or service person. (3) Does not accept any liability for damage to the microwave oven
or personal injury resulting from failure to observe the correct electrical connection procedures.
7
732 South Racetrack Road, Henderson, Nevada 89015
ABOUT YOUR MICROWAVE OVEN
• Read this Owner’s Manual and always save it for reference.
• A good microwave cookbook is a valuable asset. Check it for microwave cooking
principles, techniques, hints, and recipes.
• NEVER use the microwave oven without the turntable and support nor turn the turntable
over so that a large dish could be placed in the microwave oven. The turntable will turn
both clockwise and counterclockwise.
• ALWAYS have food in the microwave oven when it is on to absorb the microwave
energy.
• When using the microwave oven at power levels below 100%, you may hear the
magnetron cycling on and off.
• It is normal for the exterior of the microwave oven to be warm to the touch when cooking
or reheating.
• Condensation is a normal part of microwave cooking. Room humidity and the moisture
in food will influence the amount of moisture that condenses in the microwave oven.
Generally, covered foods will not cause as much condensation as uncovered ones.
Ventilation openings must not be blocked.
• The microwave oven is for food preparation only. It should not be used to dry clothes or
newspapers.
• Your microwave oven is rated at 1000 watts by using the IEC Test Procedure. In using
recipes or package directions, check food a minute or two before the minimum time and
add time accordingly.
ABOUT MICROWAVE COOKING
• Arrange food carefully. Place thickest areas towards outside of the dish.
• Watch the cooking time. Cook for the shortest amount of time indicated and add more
as needed. Food severely overcooked can smoke or ignite.
• Cover foods while cooking. Check the recipe or cookbook for suggestions, such as
paper towels, wax paper, microwave plastic wrap, or a lid. Covers prevent spattering
and help foods to cook evenly.
• Shield with small flat pieces of aluminum foil any thin areas of meat or poultry to prevent
overcooking before dense, thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice during cooking, if possible.
• Turn foods over once during microwaving to speed cooking of such foods as chicken
and hamburgers. Large items like roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking both from top to bottom
and from the center of the dish to the outside.
• Add standing time. Remove the food from the microwave oven and stir, if possible.
Cover for the standing time which allows the food to finish cooking without overcooking.
• Check for doneness. Look for signs indicating that cooking temperatures have been
reached. Doneness signs include:
• Food steams throughout, not just at edge.
• Center bottom of dish is very hot to the touch.
• Poultry thigh joints move easily.
• Meat and poultry show no pinkness.
• Fish is opaque and flakes easily with a fork.
8
WWW.VINOTEMP.COM
!
!
RADIO INTERFERENCE
1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following
measures:
1) Clean door and sealing surface of the oven.
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave over and receiver are
on different branch circuits.
COOKWARE AND COOKING MATERIALS
CAUTION – Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches
should be pierced before cooking.
Cookware and other materials must fit on the turntable. Always use oven mitts or pot holders
because cookware may become hot.
See the instructions on "Materials you can use in microwave oven” and “Materials to be
avoided in microwave oven” on page 7.
Cookware and Materials Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the cookware or
materials in question. Stir the liquid both before and halfway through heating it.
2. Cook on maximum power for 1 minute. Do not exceed 1-minute cooking time.
3. Carefully feel the cookware or material. If the empty utensil is warm, do not use it for
microwave cooking.
9
732 South Racetrack Road, Henderson, Nevada 89015
Materials you can use in microwave oven
Utensils
Remarks
Browning dish
Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer’s instructions. Do
not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates and
cups
Use for short-term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic containers
soften as the food inside gets hot. "Boiling bags" and tightly
closed plastic bags should be slit, pierced or vented as directed
by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Utensils
Remarks
Aluminum tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foams
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may
split or crack.
10
WWW.VINOTEMP.COM
!
!
PARTS AND SPECIFICATIONS
FEATURES OF MICROWAVE OVEN
• Sensor cooking
• 10 variable power levels
• Add 30 seconds and express cooking
• 1000W of power
• Exhaust fan with two speeds
• Task lighting
• Child lock
• Turntable
• Hidden vent
Model
EM044K6BB (BR-MW OH16-S)
Rated Voltage/Frequency
120V / 60Hz
Rated Input Power (Microwave):
1550W
Rated Output Power (Microwave):
1000W
Microwave Oven Capacity
1.6 cu. ft.
Turntable Diameter:
13.5 in (34.5 cm)
External Dimensions (W x D x H)
31.3 x 16.4 x 15.0 in
Internal Dimensions (W x D x H)
20.24 x 14.41 x 9.25 in
Certifications
UL approved
Power Cord length
3.3 ft. (1 m)
Net Weight
56 lbs. (25.4 kg)
Package Contents
• 1.6 cu. ft. over-the range
microwave oven
• Turntable (with ring)
• Installation hardware packet
• Grease filters (2)
• Installation Manual
• Owner’s Manual
11
732 South Racetrack Road, Henderson, Nevada 89015
CONTROL PANEL
#
ITEM
DESCRIPTION
1
Light
Press to turn on/off the light underneath your microwave. See “Using the
light” on page 17.
2
SENSOR COOKING
Detects the humidity released by your cooking food and adjusts the
cooking time based on the type and amount of food cooking.
3
Popcorn
Press to cook popcorn. See “Popcorn” on page 16.
4
Defrost
Press to defrost frozen food. See “Defrosting in your microwave” on
pages 14-15.
5
Vegetable
Press to cook vegetables. See “Vegetable” on page 16.
6
Display
In standby mode, displays the time. In cooking mode, displays cooking
time, weight, and other information.
7
Number pad
Press to enter cook time, defrost time, clock time, and other information.
8
Timer
Press this button, then enter the time you want to count down. See
“Using the kitchen timer” on page 14.
9
Clock
Press to set or check the clock. See “Setting the clock” on page 14.
10
START
In standby mode, press this button to begin cooking.
11
Vent Fan
Press to turn on/off your vent fan and remove odors from cooking. See
“Using the vent fan” on page 17.
12
Beverage
Press to heat a beverage. See “Beverage” on page 17.
13
Turntable on/off
Press to turn your turntable on or off. See “Using the turntable” on page
17.
14
Power Level
Press to change your microwave’s power level (1-10). See “Cooking in
your microwave” on page 13.
15
Time Cook
Press to enter a cooking time.
16
Add 30 sec.
While cooking, press this button to add 30 seconds to your cooking time.
17
STOP/CLEAR
Press to stop the cooking process. Press again to cancel the cooking
operation.
12
WWW.VINOTEMP.COM
!
!
SETTING UP YOUR OVEN
You can see the Installation Manual (included in your box) to install and set up your microwave.
INSTALLING THE TURNTABLE
1. Place the turntable ring in the round depression in the bottom of the microwave oven so that
it turns freely.
2. Place the glass turntable (flat side up) on the turntable ring so that the hub engages the
turntable shaft in the bottom of the oven. The glass turntable should not turn freely when it
is correctly installed.
USING YOUR MICROWAVE
(Tips for the best results)
Storage Temperature
Foods taken from the freezer or refrigerator take longer to cook than the same foods would at room
temperature.
Size
Small pieces of food cook faster than large ones. Pieces similar in size and shape will cook more evenly
when cooked together. For more even results, reduce the power levels when cooking large pieces of
food.
Natural moisture
Very moist foods cook more evenly because microwave energy heats water molecules very efficiently.
Stirring
Stir foods such as casseroles and vegetables from the outside to the center to distribute the heat more
evenly. This will allow the food to cook faster. Constant stirring is not necessary.
Turn over items
Turn over foods such as pork chops, roasts, or whole cauliflower halfway through the cook time. This will
help to expose all sides equally to microwave energy.
Food placement
Place delicate areas of food items, such as asparagus tips, toward the center of the turntable tray.
Food arrangement
Arrange unevenly shaped foods, such as chicken pieces or salmon, with the thicker or meatier parts
toward the outside of the turntable tray.
Let the food stand
After removing the food from the microwave, cover the food with foil or a casserole lid and let it stand to
finish cooking. This will help the food finish in the center and avoids overcooking the out edges. The
length of stand time depends on the density and surface area of the food items.
Wrapping in paper towels or waxed paper
• Never place the glass tray upside down. The glass
tray should never be restricted.
• Both glass tray and turntable ring assembly must
always be used during cooking.
• All food and containers of food are always placed
on the glass tray for cooking.
• If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
13
732 South Racetrack Road, Henderson, Nevada 89015
Sandwiches and many other food types containing pre baked bread should be wrapped prior to
placing in the microwave to help prevent the food items from drying out while heating.
COOKING IN YOUR MICROWAVE
1. Press Time Cook, then use the number pad to enter the cooking time that you want.
Example: To enter 3 minutes and 15 seconds, press 3, 1, and then 5.
2. (Optional) Press Power Level, then enter the power level that you want (1-10).
• By default, your microwave cooks at 100% power.
• Press Power Level while cooking to check the power level.
3. Press Start to begin heating.
14
WWW.VINOTEMP.COM
!
!
Cooking with multiple cooking stages
For best results, some microwave recipes call for different power levels or different lengths of
time for cooking. Your microwave may be set to change from one stage to another
automatically (two stages maximum).
1. Press Time Cook once, then use the number pad to enter the cooking time that you
want for the first stage.
Example: To enter 3 minutes and 15 seconds, press 3, 1, and then 5.
2. Press Power Level, then enter the power level that you want (1-10) for the first stage.
The power level (PL) is shown on the display.
3. Press Time Cook, then use the number pad to enter the cooking time for the second
stage.
4. Press Power Level, then enter the power level that you want (1-10) for the second
stage. The power level (PL) is shown on the display.
5. Press Start to begin heating. When the microwave is done, it beeps and shows “END”
on the display.
Setting the Clock
1. Press “Clock”.
2. Use the number pad to enter the current time (1:00–12:59), then press Start to confirm
the setting.
NOTE: Press Clock to check the time while cooking.
Using the Timer
1. In standby mode, press Timer.
2. Use the number pad to enter the time, then press Start. When the time reaches 0, your
microwave beeps.
NOTE: You can use the timer while the microwave is cooking.
Cooking quickly
• Press a number on the number pad to instantly start cooking. For example, to cook for
two minutes, press 2.
• From standby, press Add 30 sec. to instantly cook for 30 seconds.
• To increase the time in 30 second increments (except auto cook and defrost), press
Add 30 sec. repeatedly.
NOTE: You cannot quick start when using the defrost feature.
Defrosting in your microwave
1. Press Defrost repeatedly to select “MEAT,” “POULTRY,” or “FISH.”
2. Press START.
3. Use the number pad to enter the weight of the item to be defrosted (in pounds). For
example, 10 = 1.0 lbs.
Note: You may enter any weight from 0.1 to 6.0 lbs.
4. Press START to start defrosting. The remaining cooking time is displayed. Your
microwave may beep periodically to remind you to turn the food. Press START to
continue.
15
732 South Racetrack Road, Henderson, Nevada 89015
Tips for best results:
• Use defrost only for raw food items.
• Defrosting gives best results when your food is taken directly from the freezer. If the
food has been stored in a refrigerator-freezer that does not maintain a temperature of
5°F (-15°C) or below, always program a lower food weight or lower cook time to prevent
cooking the food.
• Enter a reduced weight if the frozen food has been outside the freezer for more than 20
minutes.
• The shape of the food package alters the defrosting time. For example, a shallow,
rectangular food package will defrost more quickly than a deep block of food.
• Separate pieces as they begin to defrost.
Tips for defrosting meat
For the best results, use these suggestions when defrosting meat:
Cooking with the sensor
Sensor cooking detects the humidity released by your cooking food and adjusts the cooking
time based on the type and amount of food cooking.
• Press Reheat, then press START. Your microwave automatically sets the cook time.
When using sensor cooking:
• Casseroles: Add 2-3 tablespoons of liquid, cover with a lid or vented plastic wrap. Stir
when instructed from the display.
• Canned foods: Place the contents into a microwave-safe dish and cover with a loose-
fitting lid or vented plastic wrap. Let it stand a few minutes before serving.
• Plates of food: Arrange food on the plate. Cover with a loose-fitting lid or vented plastic
wrap. Let it stand a few minutes before serving.
16
WWW.VINOTEMP.COM
!
!
PIZZA
The pizza setting cooks from one to two slices (6-8 oz.) of pizza automatically.
• Press Pizza, then press START.
NOTE: If additional time is needed, continue to cook manually.
POTATO
The potato setting cooks from two to four potatoes automatically.
1. Poke holes in your potatoes skin 5-6 times with a fork. Do not cover your potatoes.
2. Press Potato, then press START.
3. Let the potatoes stand for about five minutes after the microwave has finished to
complete cooking.
FROZEN DINNER
The frozen dinner setting is designed for one frozen entree or frozen convenience foods
(such as frozen dinners) from 10-20 oz.
• Press Frozen Dinner, then press START.
When cooking frozen dinners:
• Read the instructions on your frozen food for best results, if available.
• Make sure that moisture can escape from the packaging. All frozen dinner instructions
should specify that you poke holes in the plastic covering before cooking.
• Be careful when removing the plastic covering. Remove the side facing away from you
to avoid steam burns.
DINNER PLATE
The dinner plate setting is designed for one to two plates.
• Press Dinner Plate, then press START.
RICE
The rice setting cooks one to two cups of rice automatically (starting from room
temperature).
• Press Rice, then press START.
VEGETABLE
The vegetable sensor feature cooks from one to four cups of fresh vegetables (when
starting at room temperature).
1. Press Vegetable repeatedly to select the number of cups:
SERVING
PRESS VEGETABLE BUTTON…
1 cup
Once
2 cups
2 times
3 cups
3 times
4 cups
4 times
2. Press START.
POPCORN
1. Press Popcorn repeatedly to select your popcorn bag’s weight:
WEIGHT
PRESS POPCORN BUTTON…
3.3 oz.
Once
3.0 oz.
2 times
1.75 oz.
3 times
17
732 South Racetrack Road, Henderson, Nevada 89015
2. Press START.
CAUTION: DO NOT leave the microwave unattended while popping popcorn.
BEVERAGE
The beverage setting heats one two three cups of a beverage. Use the table below to
determine the setting to use.
1. Press Beverage repeatedly to select the number of servings:
SERVING
PRESS VEGETABLE BUTTON…
1 cup
Once
2 cups
2 times
3 cups
3 times
2. Press START.
VARIOUS FUNCTIONS OF YOUR MICROWAVE
Using the stop/clear button
Press STOP/CLEAR to:
• Erase information that you entered incorrectly
• Cancel the timer
• Pause the microwave during cooking (press START to resume)
• Display the clock after cooking is completed
• Cancel a programing during cooking (press twice)
Using the light
• To use the light underneath your microwave, press Light repeatedly to cycle between
high brightness, low brightness, or off.
NOTE: To change a light bulb, see “Replacing the lights” on pages 20-21.
Using the vent fan
Your microwave’s vent fan works as a range hood to filter out smoke and other odors from
cooking.
• Press Vent Fan repeatedly to cycle between high speed, low speed, or off.
NOTE: You can use the vent fan while cooking in the microwave.
• The fan automatically starts when heat rises from range surface units or burners and
stays on until the temperature decreases. It cannot be turned off manually during this time.
This protects the microwave from excessive temperatures.
Using the turntable
For the best results, leave the turntable on. However, you can turn it off for large dishes.
• Press Turntable on/off to turn your turntable on or off.
Using the child lock
• To lock the microwave, press and hold STOP/CLEAR for three seconds. The
microwave beeps, and a lock indicator appears on the display.
• To unlock the microwave, press and hold STOP/CLEAR until the lock indicator
disappears (about three seconds).
18
WWW.VINOTEMP.COM
!
!
Cleaning and Maintaining Your Microwave
Cleaning the outside of your microwave
Exterior
The outside surface is pre-coated steel and plastic. Clean the outside with mild soap and water,
then rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.
Door
Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts
will be easier to maintain if wiped frequently with a damp cloth. Avoid the use of spray and other
harsh cleaners as they may stain, streak, or dull the door surface.
Control Panel
If the control panel is dirty, open the microwave door before cleaning. Wipe the panel with a
cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of
chemical cleaners. Close the door and press STOP/CLEAR to clear any buttons you may have
pressed.
Cleaning the inside of your microwave
Interior
Wipe with a soft cloth and warm water. Do not use abrasive or harsh cleaners or scouring pads.
For baked-on food, use baking soda or a mild soap, then rinse thoroughly with hot water.
To help loosen baked-on food particles or liquids, heat two cups of water (add lemon juice if
you want to keep your microwave fresh smelling) in a four-cup measuring cup at high power for
five minutes or until boiling. Let it cool in the microwave, then wipe the interior with a soft cloth.
Waveguide cover
The waveguide cover is located on the right wall inside your microwave. Keep the waveguide
cover clean to assure good microwave performance. Carefully wipe with a damp cloth any food
spatters from the surface of the cover immediately after they occur. Built-up splashes may
overheat and cause smoke or possibly catch fire. DO NOT REMOVE THE WAVEGUIDE
COVER.
Removing odors
Occasionally, a cooking odor may remain in the microwave. To remove, combine one cup
water, lemon juice, and several whole cloves in a two-cup glass measuring cup. Boil for several
minutes at high power, then let it cool in the microwave. Wipe the interior with a soft cloth.
Turntable and turntable support
Remove the turntable and turntable support and wash them in mild, sudsy water. For stubborn
stains, use a mild cleanser and non-abrasive scouring sponge. You can also wash them in the
top rack of a dishwasher.
The turntable motor shaft is not sealed, so excess water or spills should be wiped up
immediately.
Cleaning and replacing the filters
Cleaning the exhaust filters
The exhaust filters should be removed and cleaned about once a month.
CAUTION: Do not operate the oven hood without the filters properly in place.
19
732 South Racetrack Road, Henderson, Nevada 89015
1. To remove the exhaust filters, slide the filter toward the back of the microwave and then pull
it downward while sliding it out of the side slot. Repeat the step for the second filter.
2. Soak the ventilation filters in hot water using a mild detergent or wash in a dishwasher. Rinse
well and shake to dry.
CAUTION: Do not use ammonia. The aluminum on the filter will corrode and darken.
3. To reinstall the exhaust filter, slide it into the side slot and then push up and toward the front
of the microwave to secure it. Repeat for the second filter.
Replacing the charcoal filter
The charcoal filter is used in non-vented, recirculated installations. The filter should be
changed every 6 to 12 months depending on use.
1. Unplug the microwave oven or turn off power at the main circuit breaker.
2. Remove the vent grill screws.
3. Pull the vent grill away from the unit.
20
WWW.VINOTEMP.COM
!
!
4. Remove the charcoal filter by pushing it inwards, then lift up and pull it out of the
microwave.
5. Insert the new charcoal filter, close the vent grill, and secure with the vent grill screws.
6. Plug the microwave back in or turn the power back on at the main circuit breaker.
Replacing the lights
Surface light (external)
1. Unplug the microwave oven or turn off power at the main circuit breaker.
2. Remove the light cover screws under the microwave.
3. Remove the old light bulbs and replace with new 1.2W LED lights.
4. Reinstall the light cover screws to secure the covers.
5. Plug the microwave back in or turn the power back on at the main circuit breaker.
Microwave light (internal)
1. Unplug the microwave oven or turn off power at the main circuit breaker.
2. Remove the vent grill screws.
3. Pull the vent grill away from the unit.
This manual suits for next models
1
Table of contents
Other Brama Microwave Oven manuals
