Braun Flex integral 6550 ultra speed Operator's manual

Service Documentation Market Release 11/97
Braun flex integral 6550 ultra speed 5704
5704

5704 - 2
BINC Rev: 11/97 Service Documentation

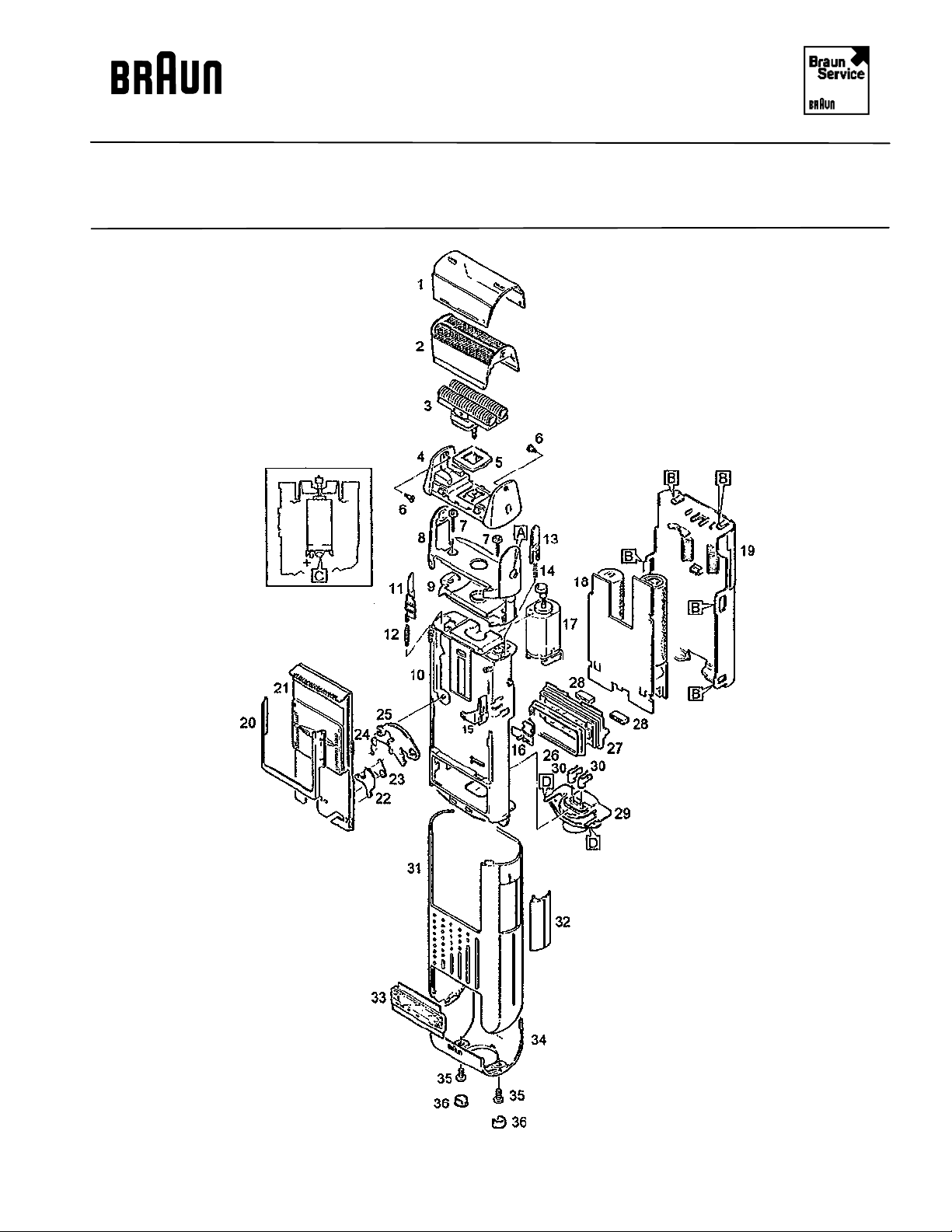

Exploded Drawing
BAG Rev: 8/97 5704

5704 - 3
BINC Rev: 11/97 Service Documentation
Spare Parts List
BAG Rev: 8/97 5704
Pos. No. Part Description Part Number
1Protective cap 5503074
2Shaving foil frame 5505765
3Cutter block 5504766
4Swivel frame 5504630
5Sealing plate 5503014
6Bearing screw 5504046
7Screw 5504099
8Head carrier 5504631
9Lower frame 5505032
10 Chassis; with no. 11 to 16 5504639
11 Locking pin 5504087
12 Spring 5504200
13 Lever 5504089
14 Spring 5504090
15 Latch 5504926
17 Motor 5704627
18 PCB 5704625
19 Cover 5504638
20 Hood 5504112
21 Sliding plate 5705636
22 Lever 5504093
23 Leg spring 5504095
24 Leg spring 5504092
25 Transmission lever 5504091
26 Seal 5504059
27 Display 5704634
28 Contact strip 5504057
29 Cord socket, cpl. 5505638
30 Contact spring 5504067
31 Housing case 5704628
32 Locking button 5704036
33 Display window 5704635
34 End cap 5704642
35 Screw 5586038
36 Plug pin 5705055
Coiled cord 5002704
Cleaning brush 5503120
Case 5478830

5704 - 4
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
Description of shaver
Principle Battery power supply with eco-friendly nickel-hydride batteries.
Oscillating head with triple shaving system.
Long hair trimmer can be additionally switched on.
Charging and battery display.
Housing Plastic material, chromium-plated.
Shaving head frame: Plastic material with integrated shaving foil and medium trim-
mer, can be snapped off by means of a push-button switch.
Hollow cutter block: Plastic material blades 2 x 27, diameter 6 mm.
Long hair trimmer: Can be activated by means of a central sliding plate.
Drive: 2.4 V d.c. motor.
Power transmission: Via eccenter and oscillating frame onto the shaving system.
Power supply: By 2 built-in, rechargeable batteries resp.
automatically by a built-in battery charger and independently
from the mains voltage or frequency.

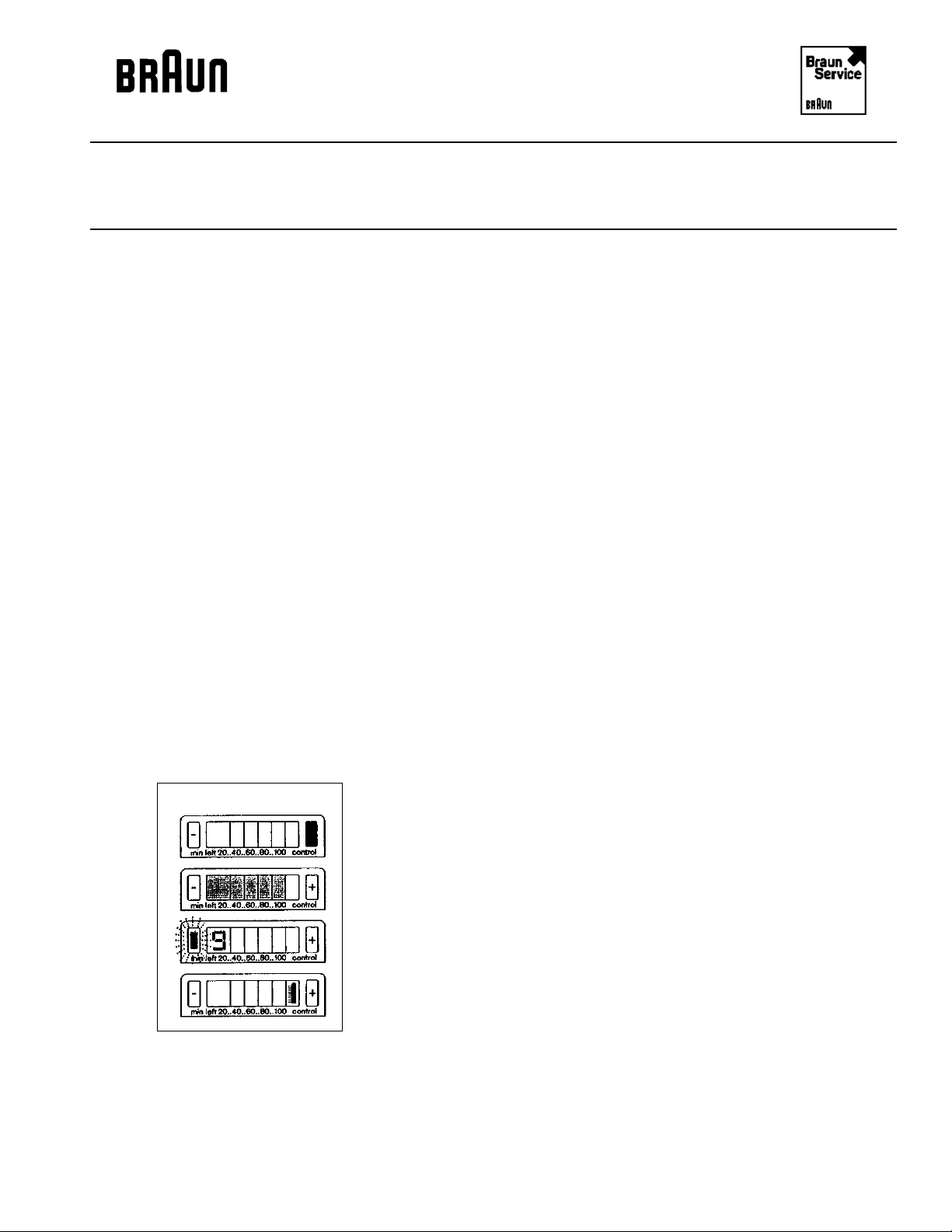

Display Multifunctional display:
1. Batteries are empty. The device is in the process of being
charged (green LED) is illuminated.
2. After approx. 60 minutes of charging, the batteries are
recharged. Green LED turns off.
3. Figure < 9 > indicates that 9 minutes remain for shaving.
The red LED is blinking when the shaver is switched on.
4. Cleaning symbol (see use instructions).

5704 - 5
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
Maintenance of the The device is provided with automatic battery maintenance,
battery i.e. it discharges automatically once a year in order to
regain the full battery capacity. This process takes approx.
7 hours.
Disposal of the battery Opening the shaver, described hereafter, destroys the device
and has only to be done at the end of the device's lifetime.
The cord socket (29) is provided with a screw mechanism
to ensure easy recycling. Open the housing by piercing and
turning the mechanism (e.g. with a coin). Now, the batteries
can be removed and orderly disposed.
Technical details
Voltage range 12 - 240 V
Charging time from 100 V upwards: approx. 1 hour,
at 12 V: approx. 20 hours;
when completely discharged: at least 4 hours.
Power consumption approx. 5 Watts.
Cutter block amplitude 2.8 mm.
Number of revolutions with after a minimum of 3 minutes charging time.
operating battery
only cutter block min. 6900 rev./min.
max. 8500 rev./min.
with long hair trimmer min. 6600 rev./min.
Operating capacity after full approx. 60 shaving minutes.
recharge
Note: Before dismantling the unit, carry out the "electronics-reset and test" analysis which is
described on pages 9-10.

5704 - 6
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
Dismantling
The dismantling procedure is described in a logical order. For individual repairs, the order of the
description can be altered.
•Shaving foil frame (2) - to be unlocked by pushing button "A";
- to be removed.
•Cutter block (3) - to be removed.
•Swivel frame (4) - Unscrew bearing screws (6).
- Remove swivel frame (4).
•Plug pins (35) - to be taken off the sides with a needle.
•End cap (33) - unscrew screws (34).
- remove end cap (33).
•Display window (32) - to be pulled downwards out of the housing case (30).
•Housing case (30) - unlock locking button (31).
- take off housing case (30).
•Head carrier (8) - unscrew screws (7).
- remove head carrier (8).
•Lower frame (9) - to be removed by prying open with a knife between head
carrier (8) and lower frame (9).
•Cover (19) - to be taken off by unhinging the 4 notches "B" on the
sides.
•PCB (18) - to be held underneath the batteries.
- to be taken out off the chassis (10).
•Motor (17) - Motor lower side to be unhinged out of plastic holder "C".
- Motor axis to be pushed out of oscillating bridge.
•Cord socket (29) - to be removed by snapping out notch "D" in the
chassis (10).
•Display (27) - to be pushed out of the chassis (10); to be removed.
•Hood (20) - to be taken off the leading pins on the left and right sides
of the sliding plate (21).
•Sliding plate (21) - to be pulled upwards out of the chassis (10), when switch
is in position "2". (Care has to be taken that the leg spring
(24) and transmission lever (25) do not slip away.)

5704 - 7
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
Reassembly
The reassembly has to be performed in reversed order. However, attention has to be paid to the
following points:
Sliding plate (21) - Before inserting the sliding plate (21) please ensure that
the transmission lever (25) and leg spring (24) are
assembled correctly. (If necessary, attach transmission
lever (25) with leg spring (24) to pin "E" of the sliding
plate, while positioning cam "F" of the lever (22) in the
switching coulisse, as shown in diagram).
Transmission lever on pin “E”Position of coulisse “F” in transmission
in the sliding plate. lever “E” in the sliding plate.

5704 - 8
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
- With your thumb, position switch "G" of the sliding plate (21) as shown in dia. (extension
"H"). At the same time, with your middle finger, secure the transmission lever (25) on the
backside of the sliding plate to prevent unhinging or slipping away (see dia. "sliding
plate").
- In this position, the sliding plate (21) is, now, to be pushed through the leads "K" into the
chassis.
- Switch "G" must remain in the position described above.
- Shortly before the lower edge of the sliding plate (21) reaches lead "L", the cradle "J"
channels in the chassis pin "I".
- Release switch "G". By pressing on the long hair trimmer, the sliding plate must be
pushed downwards through the leads "L". Hereby, the single-throw switch channels in
automatically (See diagram).
Sliding plate Transmission lever function under
sliding plate

5704 - 9
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
•Attention! Do not check the function of the long hair trimmer after inser-
ting the sliding plate otherwise the transmission lever will
unhinge and the sliding plate will have to be attached again!
•Display (27) - to be inserted in the chassis with the contact strips (28)
pointing towards the lower end. Ensure that the contact
strips are free of grease and dirt.

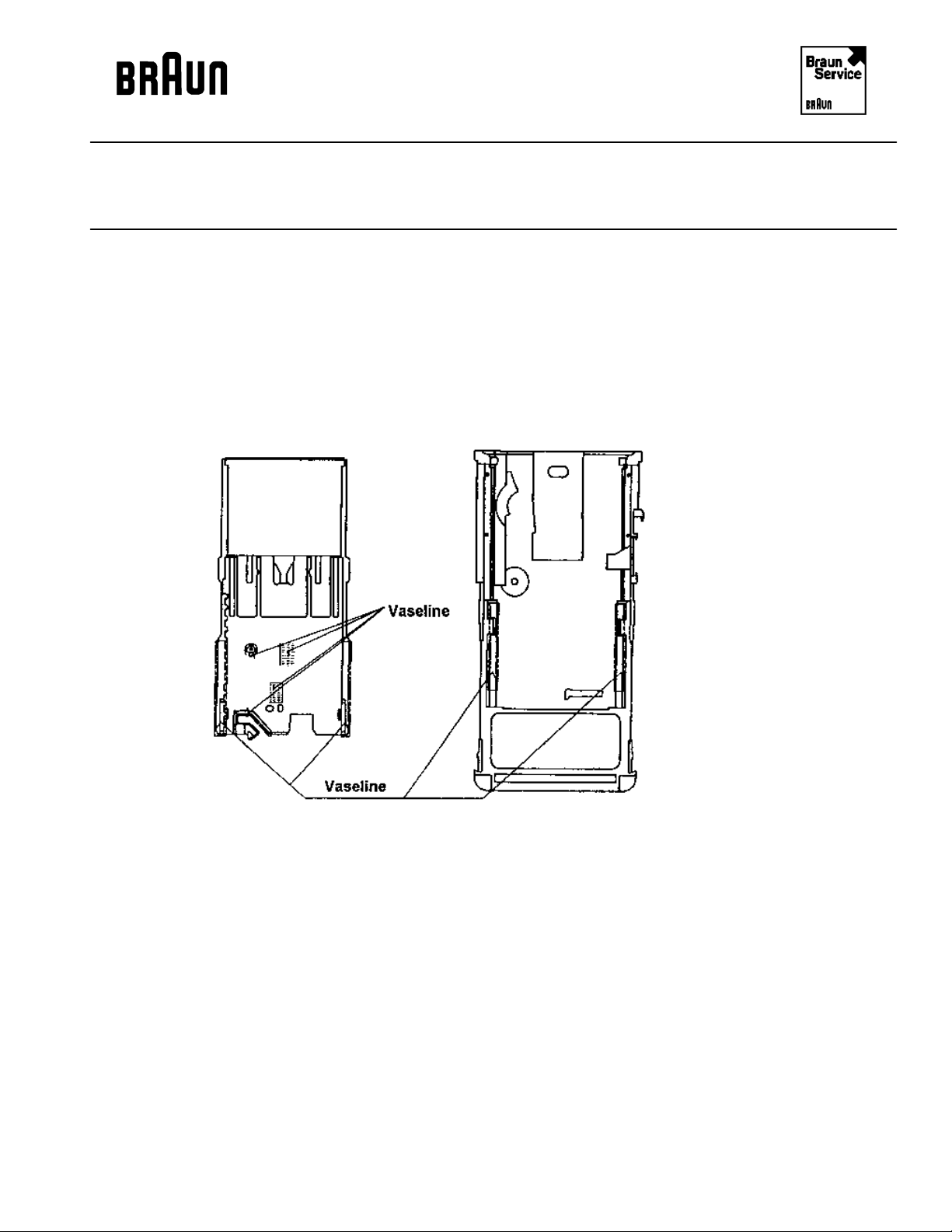

•Motor (17) - Apply a small amount or Vaseline to the motor axis and
eccenter pin.
- Snap into holder with the spring's wide side pointing
downwards.
•Cover (19) - to be hanged into the chassis (10) exactly with the notches “B”.
•Housing case (30) - The latch (15) in the chassis and the locking button (31)
have to be in position "unlock".
•Swivel frame (4) - to be inserted in head carrier (8) with the unlocking pin
towards button "A".
- Motor eccenter to be inserted in oscillating bridge lead.
Bearing screws (6) to be tightened carefully.
•All functions to be tested.
Electronics-Reset and Test (Don't open appliance).
The electronics test can only be started out of the Reset mode.
Procedure:
•Device to be discharged out of standard operation, until "0" is displayed.
•Connect to mains power for approx. 20 sec., but less than 2 min. Display is empty, only
green LED is illuminated.
•Device to be totally discharged (approx. 10 min.; Display "0"). Keep the unit switched on
for further 15 min., then switch off.
•Connect to mains power.

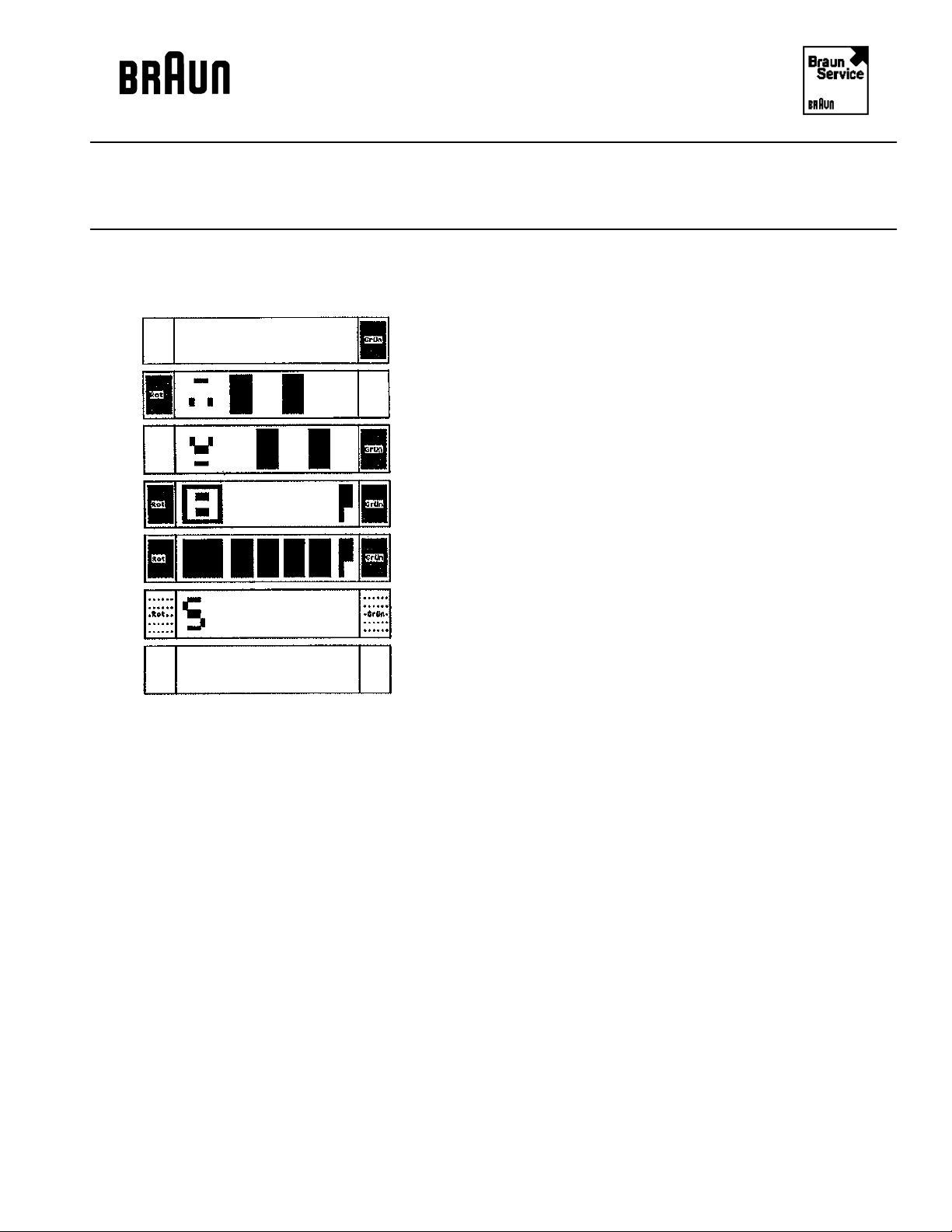

•Switch on device. Reset-and control functions are displayed (see dia.). Now, the device has
to be switched off.

5704 - 10
BINC Rev: 11/97 Service Documentation
Service Information
BAG Rev: 8/97 5704
Before starting selftest:
after approx. 0.25 sec
after approx. 0.5 sec
after approx. 0.5 sec
after approx. 0.5 sec
red and green LED illuminated
This is a 5 as version control
The red LED illuminates only, when pad 9
No display, provided that the mains power and motor are still
switched on.
Power supply and battery test
After accomplishing the aforementioned electric test (i.e. in a discharged mode) recharge the
appliance for a period of 15 minutes, then remove it from the power supply.
•Important! Oil the cutter system.
•Let the appliance run into a discharged state. After the motor has come to a full stop, the
display must indicate "0".
•Switch off the appliance.
•Recharge the appliance control the energy or power consumption respectively by means of
an ammeter (measuring range 0 to 200 mA max.) or a watt meter (measuring range 0 to
200 watts max.). After 90 minutes max. the recharging process is accomplished, and the
appliance switches to the recharged state (ammeter and watt meter needle respectively fall
into the range of "0").
If these values are maintained within this range, the P.C.B. is functional.
Attention: If the appliance is removed from the power supply for more than 10 minutes after
total recharge is accomplished, a boost charge of approx. 5 minutes will take place
before the appliance switches over to the recharged state.
