Braun 5544 User manual

www.braun.com
Type 5544
5544
91929825/I-19
91929825_MGK_7021-7020-7920-5080_CN.indd 191929825_MGK_7021-7020-7920-5080_CN.indd 1 07.01.19 08:1407.01.19 08:14
Stapled booklet, 105 x 148 mm, 20 pages (incl. 4 pages cover), 1/1 = black
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 1 of 20

5
English 14
China/UK
61476
145
Braun GmbH
Frankfurter Straße 145
61476 Kronberg/Germany
www.braun.com
www.service.braun.com
91929825_MGK_7021-7020-7920-5080_CN.indd 291929825_MGK_7021-7020-7920-5080_CN.indd 2 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 2 of 20

3
1
1d
1e
2a
3
5
1a 1b
2b* 2c*
4
1c
1
2
2d* 2e*
7*
7*
6
2
91929825_MGK_7021-7020-7920-5080_CN.indd 391929825_MGK_7021-7020-7920-5080_CN.indd 3 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 3 of 20

4
91929825_MGK_7021-7020-7920-5080_CN.indd 491929825_MGK_7021-7020-7920-5080_CN.indd 4 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 4 of 20

5
491 492
491-XXXX 492-XXXX
8
91929825_MGK_7021-7020-7920-5080_CN.indd 591929825_MGK_7021-7020-7920-5080_CN.indd 5 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 5 of 20

6
1a 3-11 2
1b 13-21 2
1c
1d 1 1
1e 2 2
2a
2b *
2c *
2d *
2e *
3 /
4
5
6
7 *
*
8
91929825_MGK_7021-7020-7920-5080_CN.indd 691929825_MGK_7021-7020-7920-5080_CN.indd 6 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 6 of 20

7
4
5°C 35°C
15°C 35°C
50 °C
3
3 3
3
6
1
100
91929825_MGK_7021-7020-7920-5080_CN.indd 791929825_MGK_7021-7020-7920-5080_CN.indd 7 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 7 of 20

8
1a 1b
2a 1c
1d 1e
2a
2a
2c 2e
2b
5 1/4
91929825_MGK_7021-7020-7920-5080_CN.indd 891929825_MGK_7021-7020-7920-5080_CN.indd 8 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 8 of 20

9
2d
63dB A
91929825_MGK_7021-7020-7920-5080_CN.indd 991929825_MGK_7021-7020-7920-5080_CN.indd 9 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 9 of 20

10

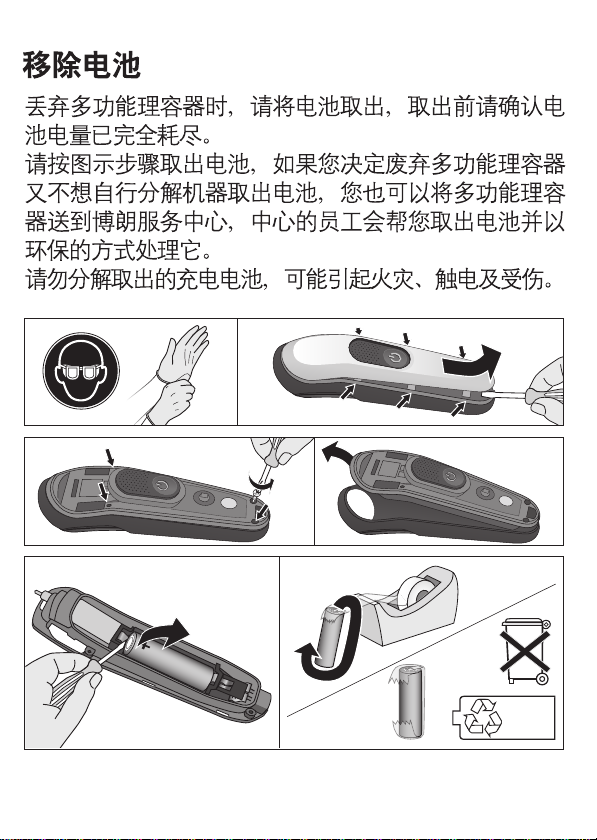

Li- Ion
91929825_MGK_7021-7020-7920-5080_CN.indd 1091929825_MGK_7021-7020-7920-5080_CN.indd 10 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 10 of 20

11
91929825_MGK_7021-7020-7920-5080_CN.indd 1191929825_MGK_7021-7020-7920-5080_CN.indd 11 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 11 of 20

12
5544
www.braun.com
475-495
200245
510730
Braun Braun GmbH
GB 4706.1/GB 4706.9
4008333010 / pgcrcare
91929825_MGK_7021-7020-7920-5080_CN.indd 1291929825_MGK_7021-7020-7920-5080_CN.indd 12 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 12 of 20

13
91929825_MGK_7021-7020-7920-5080_CN.indd 1391929825_MGK_7021-7020-7920-5080_CN.indd 13 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 13 of 20

14
English
Read these instructions completely, they contain
safety information.
Keep them for future reference.
Warnings
This appliance is suitable for use in a bathtub
or shower. For safety reasons this
appliance can only be operated cordless.
The appliance is provided with a special cord set with
integrated Safety Extra Low Voltage power supply.
Do not exchange or manipulate any part of it.
Otherwise there is a risk of electric shock.
Only use the special cord set provided with your appliance.
If the appliance is marked 491 or 492,
you can use it with any Braun power supply coded
491-XXXX or 492-XXXX.
Never use the appliance with any damaged accessory
like trimmers, combs or special cord set.
Do not open the appliance!
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the safe use of the appliance
and understand the hazards involved.
91929825_MGK_7021-7020-7920-5080_CN.indd 1491929825_MGK_7021-7020-7920-5080_CN.indd 14 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 14 of 20

15
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made
by children unless they are older than 8 years and
supervised.
Description
1a Sliding beard comb (3–11 mm in 2 mm steps)
1b Sliding hair comb (13–21 mm in 2 mm steps)
1c Release button sliding combs
1d Fix comb 1 (1 mm)
1e Fix comb 2 (2 mm)
2a Trimmer head
2b Ear & nose trimmer head*
2c Detailed trimmer head*
2d Body groomer head*
2e Mini foil shaver head*
3 On/off button
4 Charging indicator
5 Power socket
6 Special cord set (design can differ)
7 Charging stand*
* not with all models
For electric specifications, see printing on the special
cord set.
91929825_MGK_7021-7020-7920-5080_CN.indd 1591929825_MGK_7021-7020-7920-5080_CN.indd 15 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 15 of 20

16
Charging
Recommended ambient temperature for charging is
5 °C to 35 °C. The battery may not charge properly or
at all under extreme low or high temperatures.
Recommended ambient temperature for trimming is
15 °C to 35 °C. Do not expose the appliance to tempe-
ratures higher than 50 °C for extended periods of time.
•Connect the appliance (switched off) via the special
cord set (6) to an electrical outlet.
•A full charge takes approx. 1 hour and provides up
to 100 minutes of cordless operation time.
•Once the appliance is completely charged,
discharge it through normal use. Then recharge
again to full capacity.
Charging indicator (4)
•The charging indicator blinks green when
the appliance is being charged.
•It lights up permanently green for a few seconds
when the battery is fully charged.
During usage it shines permanently green.
•The charging indicator shines permanently red
when the battery is running low. Once it flashes red,
connect the appliance to the mains.
91929825_MGK_7021-7020-7920-5080_CN.indd 1691929825_MGK_7021-7020-7920-5080_CN.indd 16 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 16 of 20

17

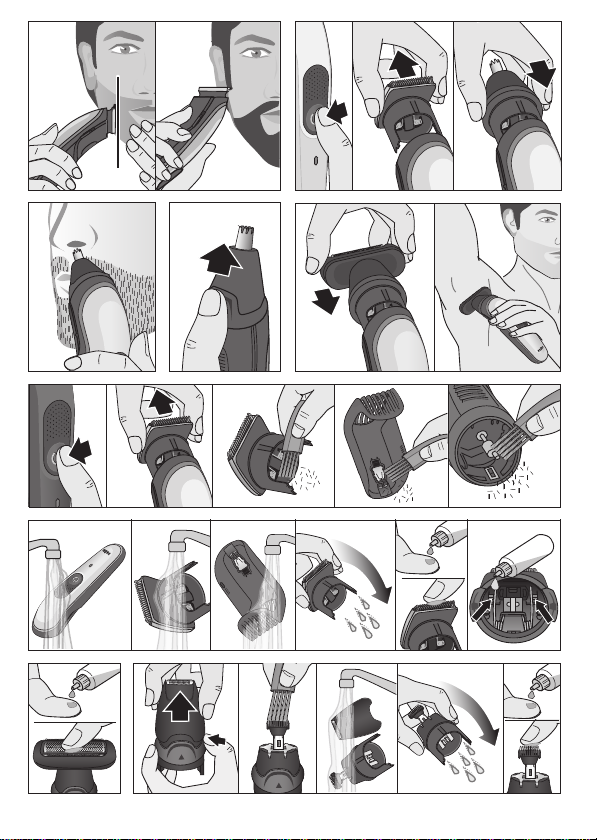

Usage
Exchange the attachments only when the appliance is
switched off. To turn the appliance on, push the on/off
button (3).
Travel lock
Press the on/off button (3) for 3 seconds to lock the
appliance. A beep confirms that the travel lock is acti-
vated. To unlock, press the on/off button 3 seconds. 3
beeps will sound when your unlock attempt failed. Try
again or simply connect the appliance to the mains.
Beard Trimming / Hair Clipping
Sliding combs (1a, 1b): Place one of the combs over
the trimmer head (2a). Press the release button (1c)
and slide the comb to your desired length.
Fixed combs (1d, 1e): Click one of the combs onto the
trimmer head (2a).
•Trim against hair growth by guiding the flat comb
part over the skin.
•Do not force the appliance through the hair faster
than it can be cut.
•Avoid clogging the comb with hair. Remove and
clean it from time to time.
Precision and Contour Trimming
Use the trimmer head (2a) without comb attachment,
the detailed trimmer head (2c) or the mini foil shaver
91929825_MGK_7021-7020-7920-5080_CN.indd 1791929825_MGK_7021-7020-7920-5080_CN.indd 17 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 17 of 20

18
(2e) for shaping sideburns, moustaches and partial
short beards.
Ear/Nose Trimming
•Remove any head and click the ear & nose trimmer
head (2b) onto the handle of the appliance.
•Carefully guide the appliance to the hair to be
trimmed so that they reach into the cutting cage.
Avoid introducing the trimmer more than 5 mm (1/4˝)
into nose or ear.
Body grooming
Remove any head and click the body groomer head
(2d) onto the handle.
It is designed for shaving and trimming of hair on legs,
chest and underarms. Use it on dry skin only.
Cleaning and maintenance
•Switch off the appliance.
•Take off any head and comb.
•Use the brush to clean the heads, combs and the
appliance. Do not clean the foil of the body groomer
head and mini foil shaver head with the brush as this
may damage it.
•The mini foil shaver head can be disassembled for
proper cleaning. In case the foil frame is pulled out, it
can just be clicked into the housing again.
91929825_MGK_7021-7020-7920-5080_CN.indd 1891929825_MGK_7021-7020-7920-5080_CN.indd 18 07.01.19 08:1407.01.19 08:14
Business Use - P&G AUTHORIZED POA-00097555 Rev 001 Effective Date 2019-01-10 Printed 2022-03-31 Page 18 of 20

19
•The handle, the heads and combs can be cleaned
under running water. Rinse until all residues have
been removed. Let all parts dry completely before
reassembling them.
•To keep the attachments working properly, oil the
trimmer and the foils with a drop of light machine oil
(not included) regularly.
Environmental notice
Product contains batteries and/or recyclable
electric waste. For environment protection
do not dispose of in household waste, but for
recycling take to electric waste collection
points provided in your country.
Subject to change without notice.
