Bredabeds Horizontal murphy bed with top hutch User manual

Assembly Instructions /Parts List / Troubleshooting / FAQ /Tips /Warranty

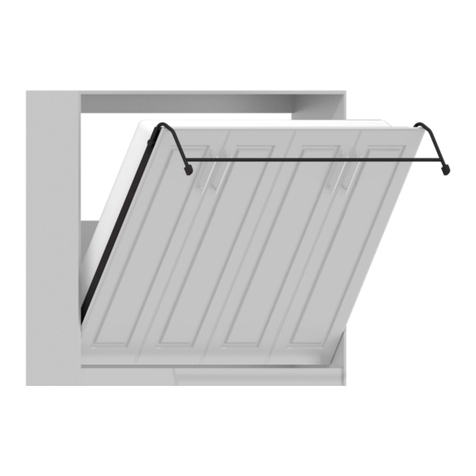

HORIZONTAL

MURPHY BED

WITH TOP HUTCH

INCLUDING URBAN AND METROPOLITAN COLLECTION MURPHY BEDS

Web: https://bredabeds.com

Email: [email protected]

Telephone: 1-855-466-4781

REVISION: E|4.0

HZ-MBT

DECEMBER 2022

3318 West Nelis Drive

Meridian, ID 83646

2Thank you for purchasing a BredaBed!

THANK YOU!

OUR MISSION

BREDA, INC is a family owned and operated business. We sell space saving Murphy

Beds that we design and manufacture here at our production facility in southwest

Idaho. BREDA, INC advertises and sells these beds, primarily, to customers all over

the United States.

QUESTIONS?

If, at any point during assembly you have questions, feel free to contact us. Our

team is eager to help, so we encourage you to reach out!

Call us toll free at: 1-855-466-4781

Email us at: [email protected]

Or, use the live chat feature at https://bredabeds.com when available.

If it’s after hours, it’s best to email us. When contacting us, have your order

number ready. If contacting us via email, attach any relevant pictures.

https://www.facebook.com/BredaBeds

https://twitter.com/BredaBeds

https://www.youtube.com/BredaBeds

https://www.pinterest.com/BredaBeds

Thank you for your Murphy Bed purchase by BredaBeds! When you’re ready to begin

assembly, follow these instructions carefully and be sure not to skip any steps. If you

have any trouble during the assembly process, feel free to contact us and one of our

specialists will be happy to help guide you through the process. Once completed, we

hope that your BredaBed will bring many years of enjoyment.

Table of Contents

BredaBed Assembly Instructions Table Of Contents

Warranty and Return Policies 3

IMPORTANT SAFETY INFORMATION - READ THIS FIRST 4

Assembly Tips 5

Unpacking Your BredaBed & Frequently Asked Questions 6

Troubleshooting 7

Parts List: Panels, Hardware Packages & Before You Begin 8-10

Chapter 1: Hardware insertion. 11-12

Chapter 2: Bed Cabinet assembly. 13-16

Chapter 3: Attaching the Bed Cabinet to the wall. 17-20

Chapter 4: Assembling the Bed Face Panel unit. 21-25

Chapter 5: Attaching the Bed Face Panel to the Bed Cabinet. 26-29

Chapter 6: Final adjustment for the Bed Cabinet and springs. 30-31

Chapter 7: Optional top hutch doors. 32

Chapter 8: How to disassemble the bed for moving. 33

TABLE OF CONTENTS

WARRANTY POLICY

BredaBeds warranties all mechanical hardware for a period of ten (10) years, all wood parts on our products for a period of one

(1) year to be free of material or workmanship defects and electronics (such as lights) for a period of ninety (90) days. Warranty

periods begin from date of purchase. We will repair or replace at our discretion any defective parts within this period. This

warranty is made assuming proper installation using the provided instructions. This warranty does not cover damage due to

improper use, abuse, neglect, misunderstanding of operation or improper assembly. This warranty does not cover issues with

springs or pistons. This warranty applies to the original purchaser and is non-transferable. In the unlikely event you have a

warranty issue, please contact us by phone, email or using the live chat feature when available.

WE DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE

LAW. WE SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. BUYER’S SOLE REMEDY SHALL BE LIMITED

TO REPLACEMENT OF DAMAGED OR DEFECTIVE PARTS. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY

HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

RETURN POLICY

We will accept returns on any item we sell within a 30 day period from time of receipt, less a 20% restocking fee. Return shipping

and shipping charges are the responsibility of the customer as well as repackaging the product in a safe and acceptable manner.

Once the returned product is received by us and inspected for damage, a credit will be issued for the amount of purchase less

20% and less the cost of any damage, if any. Credit will be applied back to the customer in the same form of payment made

during the purchase of the product (for example, a credit refund or check) within 3 business days of receipt. Prior to returning

any product, please contact us for a return authorization.

For more information on our policies, visit https://bredabeds.com/policies or click on

“Warranty, Shipping & Returns” at the bottom of any page on our website.

THANK YOU!

OUR MISSION

BREDA, INC is a family owned and operated business. We sell space saving Murphy

Beds that we design and manufacture here at our production facility in southwest

Idaho. BREDA, INC advertises and sells these beds, primarily, to customers all over

the United States.

QUESTIONS?

If, at any point during assembly you have questions, feel free to contact us. Our

team is eager to help, so we encourage you to reach out!

Call us toll free at: 1-855-466-4781

Email us at: [email protected]

Or, use the live chat feature at https://bredabeds.com when available.

If it’s after hours, it’s best to email us. When contacting us, have your order

number ready. If contacting us via email, attach any relevant pictures.

https://www.facebook.com/BredaBeds

https://twitter.com/BredaBeds

https://www.youtube.com/BredaBeds

https://www.pinterest.com/BredaBeds

Thank you for your Murphy Bed purchase by BredaBeds! When you’re ready to begin

assembly, follow these instructions carefully and be sure not to skip any steps. If you

have any trouble during the assembly process, feel free to contact us and one of our

specialists will be happy to help guide you through the process. Once completed, we

hope that your BredaBed will bring many years of enjoyment.

4Important Safety Information - Read This First

SAFETY WARNING

READ THIS FIRST

Murphy Beds utilize a mechanism to counterbalance

weight. The extreme tension of the spring mechanism

can be hazardous when safety precautions within

these instructions are not followed.

Once proper assembly is completed, your BredaBed

will provide many years of safe enjoyment.

Additionally - Keep children and pets away from

work area during assembly for their safety.

Pay special attention when you see any of these boxes:

***SAFETY***

***ALERT*** STEP #

Critical Step

If you have any questions, contact us (phone: 1-855-466-4781, email:

[email protected] or live chat: https://bredabeds.com) before proceeding.

*** STOP - SAFETY CHECKLIST ***

Never bypass safety checklists shown in this format without

verifying each item in the checklist.

Do not skip “STOP” checklists!

STOP

Assembly Tips

ASSEMBLY TIPS

We recommend that

two people assemble

our products.

Throughout these

instructions you’ll be

tasked with moving

parts, which can

sometimes be heavy.

Always take proper

precautions when

lifting heavy objects

and use at least

two people when

necessary. Steps where

two people are most

recommended will be

marked with the icon

above.

When you’re ready

to begin assembly,

always give yourself

su cient time so that

you won’t be distracted

during assembly.

Assembly time can

vary greatly from

person-to-person as

everyone has di erent

skill levels using hand-

tools. The normal time

for assembling this

product is between

4-7 hours. Your time

may vary from this

depending on how

your bed is con gured

and external factors

such as how level your

 oor is.

TWO PEOPLE

RECOMMENDED

ALLOW YOURSELF

SUFFICIENT TIME

VIDEO

INSTRUCTIONS

Scan the QR Code

above to view our

Murphy Bed assembly

video or visit:

https://breda.us/video

The video instructions

are meant to

supplement these

instructions, NOT as

a replacement. This

booklet is more speci c

to your bed model

than what’s shown in

the video. Steps WILL

VARY between the

video and booklet, so

always follow the paper

instructions and use

the video as a guide

only. Additionally,

there are videos

linked throughout

this booklet that are

shorter and will guide

you through speci c

steps and chapters.

6Unpacking Your BredaBed & Frequently Asked Questions

I’m missing parts or hardware for my bed.

If you suspect anything is missing, take inventory of the parts you do have using

the part/hardware lists and note any other parts/hardware you may be missing.

Often times, parts or hardware can get misplaced and will turn up later, so double

check your work area and any other places it may be. If you still cannot  nd it,

your order number ready and a list of all missing parts/hardware.

FREQUENTLY ASKED QUESTIONS

I have damaged parts on my bed, what do I do?

Do not begin assembly! As soon as you  nd damage, send us an email at

[email protected] with pictures of the damaged areas, part name(s)

(found on the part label), provide your order number and any other additional

information. We prioritize remake parts to be sent within a few business days; be

sure to notify us immediately. We provide a Fil-Stick in Hardware Package #10 that

matches the color of your bed to  x minor chips on the edges of the panels.

I’m finished with assembly, but I have extra parts leftover.

This is normal, we provide extra hardware with each bed model as a convenience.

Once assembled, you can discard this additional hardware.

Why don’t the illustrations match my parts?

The illustrations in the booklet match a Full size. If your bed is a di erent size, the

illustrations may be slightly di erent, however installation is identical. In addition

to this, sometimes elements in the illustrations are not shown for clarity.

UNPACKING YOUR BREDABED

When you  rst receive your BredaBed, it will be loaded on a pallet with banding. This

banding can be cut carefully with a utility knife and the individual pieces can be carried to

where the bed will be assembled. When handling panels, take special precaution to avoid

scratching and chipping on the corners and side edges. If the bed won’t be assembled for

an extended period of time, store the panels  at on the ground on top of a soft surface,

such as a rug or carpet. Usually, when parts or hardware are reported as missing, they

are often just misplaced and turn up later, so be sure to keep all hardware and boxes

together. Inspect the panels for damage and take inventory using the “Parts List” on the

following pages to verify you have everything. When you’re ready to begin assembly,

have all parts, hardware and tools in your work area. Do not unpack hardware until

instructed to do so. Additionally, keep children and pets away from work area

during assembly for their safety.

What type of mattress can I use?

Our beds will work with any mattress up to 13” thick and under 110 lbs, however we

recommend keeping the thickness under 11” so the headboard can sit at a slight angle.

Verify sizes and weights when purchasing a mattress. Inner-spring and memory foam

mattresses are compatible, but latex mattresses are not recommended. Your bed comes

with an optional strap to help keep the mattress in place for thicker or  oppy mattresses.

Troubleshooting

TROUBLESHOOTING

The bed doors hit the Toe Kick when opened.

• The steel frame must be 1/2” back from the Mechanism End. See Chapter 4, Step 3.

• Verify the Toe Kick is not upside down. See Chapter 2, Step 2.

• If the Bed Cabinet is sitting on carpet, the bed must be shimmed higher.

• Frame must be 1/2” back from the Mechanism End. See Chapter 4, Step 3.

• Verify the bolts in Hole #2 (10 1/2” from frame end) and Hole #3 (19 1/4” from

frame end) are inserted and securely tightened. See Chapter 5, Step 4.

The bed doors do not hit the top shelf and fall inside of the Bed Cabinet.

The way the legs are shaped prevent the legs from slipping out from under the

bed without rst raising up on the Bed Face Panel. If your legs are slipping out, it’s

usually one of the following issues:

• When opening the bed, be sure both legs are extended all the way down.

• Check that the leg stop cylinder is in the bottom hole (see Chapter 4, Step 2) and

that the leg connector rod has been installed (see Chapter 4, Step 8).

• If the legs hit against the bed doors instead of the cylinder, verify the frame is

1/2” back from the Mechanism End (see Chapter 4, Step 3).

The legs slip out from under the bed or have pulled out from the round leg disks.

The mattress and bedding should be in place to determine the proper spring

tension. See Chapter 6, Step 4 for spring adjustment. If the bed won’t close all the

way, verify the headboard is adjusted for your mattress thickness (during Chapter

1) and pillows are not near the headboard or have been completely removed.

The bed doesn’t stay closed/open.

The Bed Cabinet bottom needs to be moved left or right. See Chapter 6, Step 1.

The Bed Face Panel is not even side-to-side or the legs hit left/right side.

The instructions in this booklet are for attaching a bed to wood wall studs. If your

wall backing varies from this visit: https://breda.us/walls for guidance.

I don’t have wood studs in my wall to attach the Bed Cabinet to.

If the notch wasn’t customized during ordering, you can notch the wood panels

with a saw. Alternatively, you can remove or notch the baseboard.

The Bed Cabinet hits my baseboard.

a photo of your Bed Cabinet with tape marking where your studs are located.

I have 3 or less stud locations to attach the Bed Cabinet to.

Screws on each hinge plate control adjustment (see: https://breda.us/hinges):

• The front screw controls the side-to-side adjustment.

• The back screw controls the depth.

• The top and bottom screws are used to adjust the door higher or lower.

Hinges on hutch doors need to be adjusted.

8Parts List: Panels

PARTS LIST: PANELS

Bed Cabinet Panel List

Bed Cabinet Left Side Bed Cabinet Mid Shelf

Bed Cabinet Right Side Headboard

Top Nailer Cover Bed Cabinet Toe Kick

Bed Cabinet Top Nailer *Door(s) - See note below

Bed Cabinet Top Top Hutch Adj. Shelf

Mid Nailer Cover **Top Hutch Doors (Qty 4) - See note below

Bed Cabinet Mid Nailer Vertical Divider

*Twin/Twin-XL size beds have 1 door. Full & Queen size beds have 2 doors.

Bed

Left Side

Bed

Right Side

Mid Nailer Cover

Bed Cabinet Mid Nailer

Bed Cabinet Mid Shelf

Bed Cabinet Top

Bed Cabinet Toe Kick

Headboard

Top Nailer Cover

Bed Cabinet Top Nailer

*Door(s)

Top Hutch

Adj. Shelf

(Qty 2)

Vertical

Divider

**Top Hutch

Doors

(Qty 4)

**Depending on hutch conguration. Not all beds have Top Hutch Doors.

Hardware Packages

HARDWARE PACKAGES

To see a larger view of the images, visit the link in the third line.

For example: https://breda.us/E/pkg1 will show Hardware Package #1.

• The images above are not shown to scale.

• Quantities are not listed as they vary by model, bed size and congured options.

• The hardware shown above is for package numbers only, you will have

additional hardware, for example: frame rails, mechanisms, spring covers, etc.

You will have 3 boxes of hardware, the following images are color-coded for each box:

• Orange outline: Hardware can be found inside the small white or brown box.

• Grey outline: Hardware can be found inside the long box “Steel Bed Frame”.

• Blue outline: Hardware can be found inside the box “Spring Closure Assembly”.

In addition to this page, each chapter introduction will give a required hardware list

that is color-coded to the above colors.

Package #1

Cam Screws

breda.us/E/pkg1

Card #2

Mechanism Hardware

breda.us/E/pkg2

Card #3

Frame Hardware

breda.us/E/pkg3

Package #6

Cam Fittings

breda.us/E/pkg6

(color varies)

Spline Screws

FULL / QUEEN ONLY

breda.us/E/hw-spline

For Full & Queen

sizes only

Springs

2 bags with 9 springs each

breda.us/E/hw-springs

Package #15

Inset-No Overlay Hinges

breda.us/E/pkg15

For top hutch

outside doors only

Package #9

Pulls & 1” Screws

breda.us/E/pkg9

(color varies)

Package #10

Miscellaneous

breda.us/E/pkg10

(color varies)

Package #14

Half-Overlay Hinges

breda.us/E/pkg14

For top hutch

middle doors only

Package #11

Shelf Pins

breda.us/E/pkg11

10 Before You Begin

Installation tools that are required

Cordless Drill or Impact Driver #1 & #2 Phillips Screwdriver #2 and #3 Phillips bit

Stud Finder Drill Bit Set Socket Set

Level 1/2” Wrench or Adjustable Wrench Tape Measure

Ladder or Step Stool Rubber Mallet Gloves (Optional)

PREPARING THE WORK AREA

Use the dimensions below to clear a wall area where the bed will be attached. The

middle of the room should also be clear and you should have all parts, hardware

and tools in your work area.

UNDERSTANDING CAM FITTINGS

The unit is assembled using what’s known

as cam ttings. This system allows for

easy and exact alignment of parts and

are what secures the bed pieces together.

There are two parts to this system: the

cam ttings (Fig. A) found in hardware

package #6 and cam screws (Fig. B) found

in hardware package #1. When inserting

cam ttings, it’s important to properly align the at part of the tting with

the edge of the board (Fig. C). Cam ttings are tightened by inserting a #1

Phillips screwdriver at a slight angle through the top hole and twisting until

snug (Fig. D). Once tightened, cam ttings have an equal holding strength

as screws. Never use an electric drill to

tighten cam ttings, always hand-tighten.

FIG. A FIG. B

FIG. C FIG. D

Turn cam ttings clockwise until snug,

being careful not to over-tighten

which can cause breakage.

Need to calculate the clearance for ceiling fans, lights, etc? Visit: https://breda.us/arc

Chapter 1: Hardware insertion.

No cam screws will be inserted on the middle 2 holes on the “Mid Shelf” in this step.

The quantity of holes along the side of “Bed Cabinet Top” and “Bed Cabinet Mid Shelf” will vary

depending on bed size. Insert cam screws in each hole on the side of this panel.

Chapter 1: Hardware insertion.

REQUIRED TOOLS

• Rubber Mallet

• Cordless Drill with #2 Phillips

• Allen Wrenches (Hardware Card #2)

• 1/2” Wrench

REQUIRED HARDWARE

• Hardware Package #1 (white box)

• Hardware Card #2 (mech. box)

• Hardware Package #6 (white box)

Bed Cabinet Mid Shelf

Bed Cabinet Top

FIG. 1B

Bed

Left Side

Bed

Right Side

AB B A

Baseboard Notch

Front

Bottom Bottom

FIG. 1A

STEP 1

Referring to Fig. 1A and Fig.

1B , lay panels on oor and

insert cam screws from

Hardware Package #1 in

holes marked with a red

circle using a cordless drill.

BredaBeds Murphy Beds are designed for a

mattress thickness of 11” or under, however

Headboard area AB/BAis adjustable for mattress

thicknesses greater than 11” if needed. In this

area, use only 1 cam screw per side:

• Holes ‘A’ (closest to panel midpoint) are for

mattresses up to 11” thick.

• Holes ‘B’ (hole closest to panel edge) are for

11” to 13” thick mattresses.

Even though we provide this adjustment, we

highly recommend using a mattress that is 11” or

under so that the headboard will sit at an angle

to minimize the gap between the wall and the

mattress. Thus we recommend using holes ‘A’.

12 Chapter 1: Hardware insertion.

When inserting cam ttings, place the panel on a at, solid surface so that the force of the mallet

is distributed evenly to the underlying surface.

Bed Cabinet Mid Nailer

Bed Cabinet Mid Shelf

Bed Cabinet Top

Bed Cabinet Toe Kick

Headboard

Bed Cabinet Top Nailer

Vertical

Divider

FIG. 1C

Referring to Fig. 1C, lay parts on oor

and insert cam ttings from Hardware

Package #6 in holes marked with a

green circle using a rubber mallet (see

note at the bottom of this page). Cam

ttings should be inserted with the at

part of the cam tting ush with the

side of the panel.

STEP 2 Vertical

Divider

The quantity of holes along the “Top

Nailer” and “Mid Nailer” will vary

depending on bed size. Insert cam screws/

ttings in each hole along these panels.

Chapter 2: Bed Cabinet assembly.

Position the “Bed

Cabinet Right Side”

on its edge with notch

for the baseboard

facing up and position

the Mid Shelf, Top

Shelf (assemblies from

previous step) with “Bed Cabinet Toe

Kick” closest to the wall where bed will be

attached. Slide in direction of arrows and

tighten all cam ttings. The Toe Kick cams

face up and tighten from the top side.

The unnished side of the Toe Kick will

be exactly ush with the unnished edge

of the cabinet side. If there is a 1/4” dierence, turn the Toe Kick around 180 degrees

(use the other two cams on the opposite side).

STEP 2

FIG. 2B

Chapter 2: Bed Cabinet assembly.

REQUIRED TOOLS: #1 Phillips Screwdriver

CAM FITTINGS/SCREWS ARE OFFSET TO PREVENT THE TOP NAILER FROM BEING

INSTALLED BACKWARD. FROM THE VIEW ABOVE THE CAMS ARE FACING THE

CAMERA. ONCE ASSEMBLED, THESE WILL FACE THE WALL THE BED WILL ATTACH

TO AND NOT BE VISIBLE. DO NOT RE-DRILL HOLES IF THE CAMS DO NOT ALIGN.

FIG. 2A

Lower “Bed Cabinet Top Nailer” onto “Bed Cabinet Top” as

shown in Fig. 2A and tighten cam tting using a #1 Phillips

screwdriver. Note: Make sure cam ttings are facing toward and

aligned to this back edge of the “Bed Cabinet Top” as illustrated

below. Reverse the top nailer (rotate end-to-end) if the edges

don’t align (the cams are intentionally oset to one side). Repeat

this process with the “Bed Cabinet Mid Nailer” onto “Bed Cabinet Mid Shelf”.

STEP 1

Cam ttings should be turned approx. 1/4 turn until snug.

Over-tightening can cause them to break.

OVERVIEW: You’ll now assemble the Bed Cabinet on the oor directly in front of the wall where the

bed will attach, then tilt the unit up. To do this, you’ll need at least 3 extra inches of height clearance.

If the height of your room is shorter than this, you’ll have to assemble the Bed Cabinet vertically.

14 Chapter 2: Bed Cabinet assembly.

From the perspective shown, cam ttings on the Toe Kick and Headboard

should be facing up, and tighten from the top side. If assembling vertically,

these cam ttings should face the wall the Bed Cabinet will attach to. Once

assembled, cam ttings on these parts should not be visible.

FIG. 2C FIG. 2D

Slide “Bed Cabinet Left Side” into place as shown in Fig. 2C in

direction of arrow and tighten all cam ttings.

Attach “Headboard” as shown in Fig. 2D and tighten cam

ttings. The Headboard will normally sit at a slight angle.

STEP 3

Stand the Bed Cabinet upright

and against the wall at the

desired location. The Bed

Cabinet should be at against

the wall. Keep at least a 1/2”

clearance on the sides to allow

for later adjustment.

If your baseboard is larger

than the base notch

provided, please see the

Troubleshooting section on

Page 7.

FIG. 2E

STEP 4

2 PERSON

STEP

During & after tipping up, do not apply upward pressure to any horizontal panels.

Chapter 2: Bed Cabinet assembly.

With the bed at against the wall, install the two mechanisms

from the large square box labeled “Spring Closure Assembly”.

Attach each mechanism to the face of the side panels as

shown in the illustrations below using qty 6 30mm bolts and

qty 6 nylock nuts found in Hardware Card #2. The bolts will go

in from the opposite side of the panel shown. The panels have

a recessed area that the bolts will t into.

STEP 6

Baseboard Notch

Front

Bottom Bottom

FIG. 2H - LEFT SIDE SHOWNFIG. 2G

Bed

Left Side Bed

Right Side

Clean any excess grease from the pivot points using a paper towel.

Referring to the illustrations

on this page, attach each

mechanism foot from

Hardware Card #2, to the

mechanisms. They will attach

toward the bottom at the

piece of steel bent at 90°.

At this time, keep each foot loose and make

sure the bottom of the feet do not stick past the

bottom of the panel. The feet will be used in the

next Chapter to adjust the bed for uneven oors.

FIG. 2F

STEP 5

Once attached, cover the 12 bolt heads with stickers from Hardware Package

#10 on the opposite side than what’s shown in the illustration above.

16 Chapter 2: Bed Cabinet assembly.

Our mechanism

utilizes steel

L-Brackets to hold

the bottom of the

bed & mechanism

to the wall &

baseboard.

Fully tighten and attach the

Baseboard Brackets to each of the

mechanisms. The left is marked “LH”

and the right is marked “RH”. Make

sure the bottom of the bed and

brackets are both pushed at against

the wall and baseboard. The slots on

the back of the bracket are for 16” deep Murphy Beds and the slots of the front are

for 21” (wardrobe) deep Murphy Beds. Attach with (qty 2) 20mm Hex head bolts

and (qty 2) Lock Washers found in Hardware Card #2 using the bottom threaded

hole and one of the top holes along the slot.

At this time, the brackets will only attach to the sides/mechanism, NOT the wall.

They will attach to the wall later in the instructions after adjustment (Chapter 6).

STEP 7

FIG. 2I - LEFT SIDE

For your bed, you will use the 16” slots.

Using a #1 Phillips screwdriver, verify all cams are locked to the

connecting cam screw.

Are all cam fittings locked?

• Cam ttings on the Bed Cabinet Nailers, Toe Kick and Headboard

should face the wall and NOT be visible from the front.

• Cam ttings on the Bed Cabinet Top and Mid Shelf should face down

and WILL be visible from below.

If any of these parts are backwards, they must be ipped around.

Are cams facing down or the wall?

STOP

*** STOP - SAFETY CHECKLIST ***

The items listed on this page are some of the most common errors during assembly

and can lead to structural failure of the Murphy Bed if not done properly.

DO NOT PROCEED PAST THIS POINT WITHOUT FIRST VERIFYING THE FOLLOWING:

If you have any questions, contact us (phone: 1-855-466-4781, email:

[email protected] or live chat: https://bredabeds.com) before proceeding.

Chapter 3: Attaching the Bed

Cabinet to the wall.

REQUIRED TOOLS REQUIRED HARDWARE

• Hardware Card #2 (mech. box)

• Hardware Package #10 (white box)

• Cordless Drill and/or Impact Driver

• #2 & #3 Phillips Bit

• 3/16” Drill Bit

• Countersink (or 3/8” Drill Bit)

• Stud Finder

• Level

Begin by leveling the Bed Cabinet. Place a level on the top of the

Bed Cabinet in the center. If the horizontal bubble on the level

is touching the left mark, adjust the mechanism foot or place

a shim under the right side of the Bed Cabinet. If the bubble is

touching the right mark, adjust the mechanism foot or place a

shim under the left side of the Bed Cabinet. The shim is tapered,

so the further in you slide the shim, the more it will raise that side of the bed. It may

be necessary to stack the shims for more height if the  oor varies greatly. Once the

bubble is exactly centered between the marks, the bed is level.

STEP 1

OVERVIEW: Now that the Bed Cabinet is assembled, we’ll be attaching it to the wall. This is

a crucial chapter that must be followed carefully. If the Bed Cabinet is improperly attached

to the wall, the bed could collapse at a later time and could result in serious injury.

IMPORTANT: If your bed is sitting on carpet, insert shims under each side panel to

raise the whole bed above the padding. Later during adjustment, the bottom of the

bed may need to be shifted which won’t be possible unless the whole unit is raised up

at this point. We recommend inserting the shims about half way, although thick carpet

should be shimmed a bit higher and thin carpet should be shimmed a bit lower.

For video instructions of this step, visit: https://breda.us/level

The instructions in this booklet are for attaching a bed

to wood wall studs. If your wall backing varies from

this, visit: https://breda.us/walls for guidance.

This is especially important for steel studssteel studs, concreteconcrete and brickbrick walls!

At this time, don’t worry about shims sticking out on the sides of the Bed Cabinet.

Once assembly has been completed, the excess wood on the shims can be

carefully cuto with a utility knife.

Chapter 3: Attaching the Bed Cabinet to the wall.
