the Infuser™


Contents
2 Breville Recommends
Safety First
6 Features
7 Components
9 Functions
19 Care & Cleaning
23 Troubleshooting
29 Coees to try
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL
INSTRUCTIONS BEFORE
USE AND SAVE FOR
FUTURE REFERENCE
•Carefully read all
instructions before
operating and save for
future reference.
•Remove and safely discard
any packaging material
and promotional labels or
stickers before using the
Breville Infuser™ for the
first time.
•To eliminate a choking
hazard for young children,
remove and safely discard
the protective cover fitted
to the power plug of this
appliance.
•Do not place the Breville
Infuser™ near the edge
ofa bench or table during
operation. Ensure the surface
is level, clean and free of
water and other substances.
•Do not use the Breville
Infuser™ on metal surfaces,
for example, a sink drain
board.
•Do not place the Breville
Infuser™ on or near a hot
gas or electric burner,
orwhere it could touch
aheated oven.
•Always ensure the Breville
Infuser™ is properly
assembled before


connecting to power outlet
and operating. Follow
theinstructions provided
inthis book.
•The appliance is not
intended to be operated by
means of an external timer
or separate remote control
system.
•Do not use accessory
attachments other than
those provided with the
Breville Infuser™. The use
of accessory attachments
not recommended by
Breville may result in fire,
electric shock or injury
topersons.
•Do not attempt to operate
the Breville Infuser™ by any
method other than those
described in this book.
•Use only cold, tap water
inthe water tank. Do no
use any other liquid.
•Never use the Breville
Infuser™ without water
inthe water tank.
•Ensure the portafilter is
firmly inserted and secured
into the group head before
using the machine.
•Never remove the
portafilter during the
brewing operation as the
machine is under pressure.
•Do not move the Breville
Infuser™ whilst in operation.
•Do not leave the Breville
Infuser™ unattended when
in use.
•Do not touch hot surfaces.
Allow the Breville Infuser™
to cool down before moving
or cleaning any parts.
•Do not place anything,
other than cups for
warming, on top of the
Breville Infuser™
•Always switch o the
Breville Infuser™ by
pressing the POWER
button to ‘O’, switch o
at the power outlet and
unplug if appliance is to
be left unattended, if not in
use, before cleaning, before
attempting to move the
appliance, disassembling,
assembling and when
storing the appliance.
•Keep the appliance and
accessories clean. Follow
the cleaning instructions
provided in this book.


WARNING
To avoid the risk of injury,
do not open the brew
chamber during the
brewprocess.
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
•Fully unwind power cord
before use.
•Do not let the power cord
hang over the edge of
a bench or table, touch
hot surfaces, or become
knotted.
•To protect against electric
shock do not immerse
power cord, power plug or
appliance in water or any
other substance.
•Do not leave the appliance
unattended when in use.
•This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
or knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
•Children should be
supervised to ensure
they do not play with the
appliance.
•It is recommended to
regularly inspect the
appliance. Do not use the
appliance if power cord,
power plug or appliance
becomes damaged in
anyway. Return the entire
appliance to the nearest
authorized Breville Service
Centre for examination
and/or repair.
•For any maintenance other
than cleaning, call Breville
Consumer Support.
•This appliance is
recommended for
household use only.
Donot use this appliance
for anything other than
its intended use. Do not
use in moving vehicles or
boats. Do not use outdoors.
Misuse may cause injury.


•This appliance is
equipped with a power
cord having a grounding
wire with a grounding
plug. Theappliance must
be grounded using a
3-hole properly grounded
outlet. In the event of
anelectrical short circuit,
grounding reduces the
risk of electrical shock.
•If the appliance is of
the grounded type, the
extension cord should be
a grounding 3-wire cord.
•If the power outlet is
a standard 2-prong
wall outlet, it is your
personal responsibility
and obligation to have it
replaced with a properly
grounded 3-prong outlet.
•Do not, under any
circumstances, cut or
remove the third (ground)
prong from the power
cord or use an adapter.
•Consult a qualified
electrician if the
grounding instructions
are not completely
understood, or if doubt
exists as to whether the
appliance is properly
grounded.
WARNING
Fully unwind the cord
before use.
SHORT CORD
INSTRUCTIONS
Your Breville appliance is fitted with
a short power cord to reduce personal
injury or property damage resulting
from pulling, tripping or becoming
entangled with a longer cord. Longer
detachable power cords or extension
cords are available and may be used
if care is exercised. Ifan extension
cord is used, (1) the marked electrical
rating of the cord set or extension
cord should be at least as great as
the electrical rating of the appliance,
(2) the cord should be arranged
so that it will not drape over the
counter-top or table where it can be
pulled on by children or tripped over
unintentionally and (3) the extension
cord must include a3-prong
grounding plug.
BREVILLE ASSIST™ PLUG
Your Breville appliance comes with
a unique Assist™ Plug, conveniently
designed with a finger hole to ease
removal from the power outlet.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS


PID TEMPERATURE CONTROL
Electronic PID temperature control for
increased temperature stability.
THERMOCOIL HEATING SYSTEM
Integrated stainless steel water coil accurately
controls water temperature.
COMMERCIAL STYLE STEAM WAND
Stainless steel 360° swivel-action steam wand
for eortless milk texturing.
INSTANT HOT WATER
Dedicated hot water outlet for making
Americanos or pre-heating cups.
LOW PRESSURE PREINFUSION
Applies low water pressure at the start
oftheextraction to gently expand grinds
foraneven extraction.
ESPRESSO PRESSURE GAUGE
Monitors espresso extraction pressure.
VOLUMETRIC CONTROL
Preset 1 & 2 cup volumes, manual over-ride
orreprogrammable shot volumes.
DRY PUCK FEATURE
Removes excess water from the ground coee
in the filter basket after extraction foreasy
disposal of the coee puck.
THE RAZOR™ DOSE TRIMMING TOOL
Patented twist blade trims down the puck
to the right level for precision dosing
andaconsistent extraction.
ADJUSTABLE TEMPERATURE
CONTROL
For optimum coee flavor.
Features


Components
H
J
I
K
A
B
C
D
E
F
G
L
N
MOPQ
A. POWER button light flashes while
machine is heating.
B. Integrated & removable mm tamper
C. Group head for easy positioning of the
portafilter.
D. mm stainless steel portafilter with
commercial style spouts.
E. Extra-tall cup clearance for tall mugs.
F. Removable drip tray with drip tray full
indicator.
G. Storage tray (located behind drip tray)
Houses accessories when not in use.
H. ˚ swivel action steam wand adjusts
to the perfect position for texturing.
I. Dedicated hot water outlet delivers
instant hot water for Americanos
& pre-heating cups.
J. Steam/Hot Water dial
K.  CUP and  CUP buttons with preset,
manual over-ride or reprogrammable
shot volumes.
L. Steam/Hot Water light Illuminates
to indicate that the steam/hot water
function is selected.
M. DESCALE/CLEAN light Illuminates
when a cleaning cycle is required.
N. Espresso pressure gauge monitors
espresso extraction pressure.
O. Program button reprograms the preset
1CUP and 2CUP shot volumes.
P. Cup warming tray
Q.  fl.oz (.L) removable water tank
with replaceable water filter.


1
3
2
5
4
6
8
9
10
7

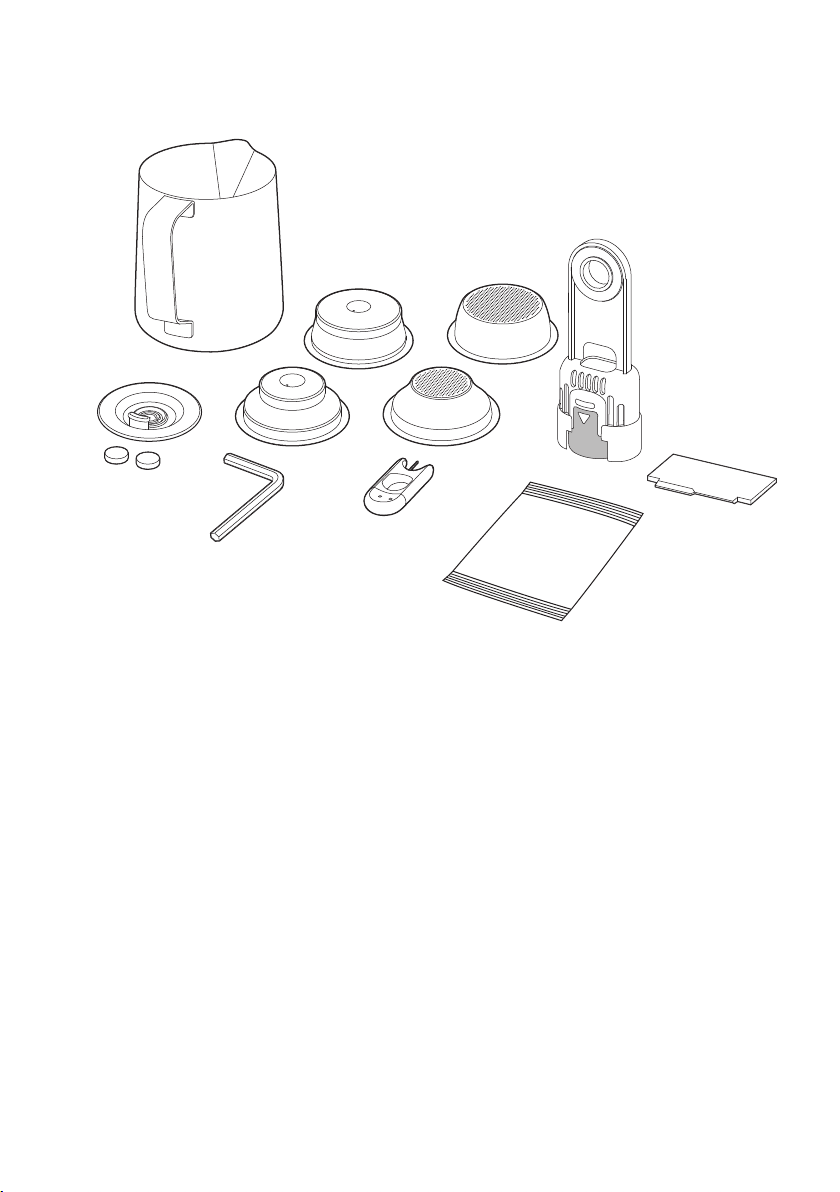

ACCESSORIES
1. Stainless steel milk jug
2. Cleaning disc
3. Cleaning tablets
4. Dual Wall filter baskets
(1 cup & 2 cup) Use with pre-ground
coee.
5. Single Wall filter baskets
(1 cup & 2 cup) Use when grinding
fresh whole coee beans.
6. Allen key
7. Cleaning tool
8. Water filter holder and filter
9. The Razor™ precision dose
trimming tool
10. Descaling powder
All parts that come into contact with coee and water are BPA Free.


Functions
BEFORE FIRST USE
Machine Preparation
Remove and discard all labeling and
packaging materials attached to your
espresso machine. Ensure you have removed
all parts and accessories before discarding
the packaging.
Remove the water tank located at the back
of the machine by lifting the water tank
handle. Remove the plastic bag containing
the water filter and water filter holder. Clean
parts and accessories (water tank, portafilter,
filter baskets, milk jug) using warm water
and a gentle dish washing liquid, then rinse
and dry thoroughly. Wipe the outer housing
and drip tray with a soft damp cloth and
dry thoroughly. Do not immerse the outer
housing, power cord or power plug in water
or any other liquid.
NOTE
Do not use abrasive cleansers, pads or cloths
which can scratch the surface. Do not clean any
of the parts or accessories in the dishwasher.
CONDITIONING THE WATER FILTER
• Remove the water filter and water filter
holder from the plastic bag.
• Soak the water filter in a cup of water for
5 minutes, then rinse under cold running
water.
• Insert the filter into the filter holder.
• Set Date Dial 2 months ahead.
• To install the assembled water filter holder
into the water tank, align the base of the water
filter holder with the adapter inside the water
tank. Push down to lock into place.
• Slide the water tank back into position
atthe back of the machine, ensuring to
push down completely to lock into place.
NOTE
To purchase water filters, contact Breville
Consumer Support.
Rinse water lterSoak water lter
for 5 mins
1 2
Place lter into
lter holder
3
Insert & lock
water tank
Install lter in
water tank
5
Set date 2 months
ahead
4 6
REPLACEMENT DUE


FIRST USE
Initial Start Up
• Ensure the water filter is securely fitted
inside the water tank.
• Fill the water tank with cold, preferably
filtered water up to the MAX mark. When
replacing the water tank, ensure to push
down completely to lock into place.
NOTE
Always check the water level before use and
replace water daily. Use cold, preferably filtered
water. Do not use demineralized or distilled
water or any other liquid.
• Plug the power cord into a 110/120V
power outlet.
• Press the POWER button to switch the
machine On. The POWER button light
willflash while the machine is heating.
• A pumping sound will be heard.
Thisisnormal.
• When the machine has reached the correct
operating temperature, the POWER button
light will stop flashing and all button lights
on the control panel will illuminate. The
machine is now in STANDBY mode, ready
for the next step ‘Flushing The Machine’.
Flushing the Machine
It is recommended to complete a water
flushing operation, without ground coee,
toensure the machine has been conditioned.
When the machine has reached STANDBY
mode, run the following 2 steps:
1. Press 1 CUP button to run hot water
through the group head.
2. Rotate the STEAM/HOT WATER dial
tothe HOT WATER position and run
for10 seconds.
Repeat this cycle until the water tank
isempty.
STEAM STANDBY HOT WATER
GENERAL OPERATION
Preset Shot Volume –  CUP button
Press the 1 CUP button once to extract
asingle shot of espresso at the preset
volume (approx. 1oz / 30ml). The extraction
will start using the low pressure
pre-infusion. The machine will stop after the
preset volume has been extracted.
NOTE
The amount of espresso extracted in the cup
will vary depending on your grind size and
dose amount.


Preset Shot Volume –  CUP button
Press the 2 CUP button once to extract
adouble shot of espresso at the preset
volume (approx. 2oz / 60ml). The extraction
will start using the low pressure
pre-infusion. The machine will stop after the
preset volume has been extracted.
NOTE
Pressing the 1 CUP or 2 CUP button during
apreset shot volume will immediately stop
theextraction.
Reprogramming Shot Volume –
 CUP Button
1. To begin programming, press the
PROGRAM button once. The machine
will beep once and the PROGRAM
button will begin to flash. This indicates
the machine is in programming mode.
2. Press 1 CUP button to start espresso
extraction. Press 1 CUP button again
once desired volume of espresso has
been extracted. The machine will beep
twice to indicate the new 1 CUP volume
has been set.
Reprogramming
Shot Volume –  CUP Button
1. To begin programming, press the
PROGRAM button once. The machine
will beep once and the PROGRAM
button will begin to flash. This indicates
the machine is in programming mode.
2. Press 2 CUP button to start espresso
extraction. Press 2 CUP button again
once desired volume of espresso has
been extracted. The machine will beep
twice to indicate the new 2 CUP volume
has been set.
RESETTING DEFAULT VOLUMES
To reset the machine to the default 1 CUP
and 2 CUP shot volumes, press and hold the
PROGRAM button until the machine beeps
three times. Release the PROGRAM button.
The machine will return to its original
default settings.
NOTE
Default settings: 1 CUP shot volume
isapprox. 1oz / 30ml. 2 CUP shot volume
isapprox. 2oz / 60ml.


Manual Shot Volume
Manually control low pressure pre-infusion
time and shot volume without reprogramming
the preset shot volume.
Press and hold the 1 CUP or 2 CUP button.
Theextraction will enter low pressure
pre-infusion until the button is released.
When the 1 CUP or 2 CUP button is released,
extraction will continue at full pressure. Press
the 1 CUP or 2 CUP button again once the
desired volume of espresso has been extracted.
OR
NOTE
For optimal flavor when using a 1 cup filter
basket, you should extract approx. 1oz / 30ml.
When using a 2 cup filter basket, you should
extract approx. 2oz / 60ml.
WARNING
The metal parts of the portafilter will be
veryhot.
ESPRESSO PRESSURE GAUGE
Low Pressure Pre-Infusion
The gauge needle will be positioned in
the pre-infusion zone at the start of the
extraction indicating the machine is in low
pressure pre-infusionmode.
The low pressure pre-infusion gradually
increases water pressure to gently expand
grinds for an even extraction before
increasing to full pressure.
Ideal Espresso Zone
The gauge needle, when positioned
anywhere within the solid grey zone during
extraction, indicates the espresso has been
extracted at the ideal pressure.


Under Extracted Zone
The gauge needle, when positioned in the
lower zone during extraction, indicates the
espresso has been extracted with insucient
pressure.
This occurs when the water flow through
theground coee is too fast and results in
an under extracted espresso that is watery
and lacks crema and flavor.
Causes for under extraction include the
grind being too coarse and/or insucient
coee in the filter basket and/or under
tamping.
Over Extracted Zone
The gauge needle, when positioned in the
upper zone during extraction, indicates the
espresso has been extracted with too much
pressure.
This occurs when the water flow through the
ground coee is too slow and results in an
over extracted espresso that is very dark and
bitter with a mottled and uneven crema.
Causes for over extraction include the grind
being too fine and/or too much ground
coee in filter basket and/or over tamping.
HOT WATER
• Turn the STEAM/HOT WATER dial
tothe hot water position.
• Hot water will pour from the hot water
outlet and can be used for making
Americanos and pre-heating cups.
• To stop the hot water, return the
STEAM/HOT WATER dial to the
STANDBY position.
STEAM STANDBY HOT WATER
AUTO PURGE
Immediately after the espresso, hot water
and steam functions, the machine will purge
water into the drip tray. This ensures the
thermocoil is at the optimal temperature.
TIP
Ensure the drip tray is firmly pushed in place
and emptied whenever the drip indicator is
displayed.


SLEEP & AUTO OFF MODE
The machine automatically switches to
SLEEP MODE after 1 hour. During this time,
the POWER button light will flash slowly.
After 3 hours, the machine will switch to
AUTO OFF MODE.
To re-activate the machine, press any button
except for the POWER button. The POWER
button light will flash while the machine
re-heats. A pumping sound will be heard.
This is normal. When the machine has
reached the correct operating temperature,
the POWER button light will stop flashing
and all button lights on the control panel
will illuminate.
ADVANCED TEMPERATURE MODE
Dierent beans require a dierent water
temperature to extract their optimum flavor.
The Infuser™ allows you to adjust water
temperature ±4°F in 2°F increments from
thedefault temperature.
To enter Advanced Temperature Mode:
1. Press the POWER button to switch the
machine o.
2. Press & hold the 1 CUP button, then also
press the POWER button. The machine
will beep once. The illuminated button will
indicate the current temperature selected.
To adjust the water temperature, press
the 2 CUP button to cycle through the
temperature settings.
Default Temperature setting:
Press the 2 CUP button until the POWER
button illuminates.
Decrease Water Temperature -˚F:
Press the 2 CUP button until the PROGRAM
button illuminates.
Decrease Water Temperature -˚F:
Press the 2 CUP button until the
DESCALE/CLEAN light illuminates.
Increase Water Temperature ˚F:
Press the 2 CUP button until the HOT
WATER/STEAM light illuminates.
Increase Water Temperature ˚F:
Press the 2 CUP button until the 1 CUP
button illuminates.
The machine will beep twice to confirm the
change. If no buttons are pressed within 10
seconds after entering Advanced Temperature
Mode, no change will be made & the
machine will return to STANDBY mode.


PREHEATING
Heating your cup or glass
A warm cup will help maintain the coee’s
optimal temperature. Pre-heat your cup by
rinsing with hot water from the hot water
outlet and place on the cup warming tray.
Heating the portafilter and filter basket
A cold portafilter and filter basket can
reduce the extraction temperature enough
to significantly aect the quality of your
espresso. Always ensure the portafilter and
filter basket are pre-heated with hot water
from the hot water outlet before initial use.
NOTE
Always wipe the portafilter and filter basket dry
before dosing with ground coee as moisture
can encourage ‘channeling’ where water by-
passes the ground coee during extraction.
SELECTING A FILTER BASKET
Single Wall Filter Baskets
Use Single Wall filter baskets if grinding
fresh whole coee beans.
Single Wall filter baskets allow you
toexperiment with grind, dose and tamp
tocreate a more balanced espresso.
1 CUP 2 CUP
Dual Wall Filter Baskets
Use Dual Wall filter baskets if using
pre-ground coee.
Dual Wall filter baskets regulate the
pressure and help to optimize the extraction
regardless of the grind, dose, tamp pressure
or freshness.
1 CUP 2 CUP
NOTE
Regardless of whether you use Single Wall or
Dual Wall filter baskets, use the 1 cup basket
when brewing a single cup and the 2 cup
basket when brewing two cups or a stronger
single cup or mug.
THE GRIND
If grinding coee beans, the grind size
should be fine but not too fine. The grind
size will aect the rate at which the water
flows through the ground coee in the filter
basket and the taste of the espresso.
If the grind is too fine (looks like powder
and feels like flour when rubbed between
fingers), the water will not flow through
the coee even when under pressure.
The resulting espresso will be OVER
EXTRACTED, dark in color and bitter
inflavor.
If the grind is too coarse the water will flow
through the ground coee in the filter basket
too quickly. The resulting espresso will be
UNDER EXTRACTED and lacking incolor
and flavor.


COFFEE DOSE AND TAMPING
• Wipe filter basket with a dry cloth.
• Fill the filter basket with freshly ground
coee. The provided filter baskets are
designed for:
a) 1 CUP basket = approx. 8-11g.
This is approx. 2 level scoops of the
provided coee scoop.
b) 2 CUP basket = approx. 16-19g.
If using pre-ground coee, this is approx.
3 level scoops of the provided coee
scoop.
If using freshly ground coee, this is
approx. 4 level scoops of the provided
coee scoop.
The reason for this dierence is that
pre-ground coee is often coarser and
hence occupies more volume than coee
that is more finely ground.
NOTE
You may need to experiment with how much
coee is inserted into the filter basket or
how long the grinder needs to run to achieve
the correct dose. For example, when using
a finer espresso grind with the Single Wall
filter baskets, you may need to increase the
grind amount to ensure the filter basket is
correctlydosed.
• Tap the portafilter several times
todistribute the coee evenly in the
filterbasket.
• Tamp down firmly (using approx.
22-33lbs or 10-15kg of pressure). The
amount of pressure is not as important
as consistent pressure every time.
As a guide to dose, the top edge of the metal
cap on the tamper should be level with the
top of the filter basket AFTER the coee
has been tamped with 22-33lbs (10-15kg)
ofpressure.
TRIMMING THE DOSE
The Razor™ precision dose trimming tool
allows you to trim the puck to the right level
for a consistent extraction.
the Razor™
Precision dose trimming tool
• Insert the Razor™ dose trimming tool
into the filter basket until the shoulders
of the tool rest on the rim of the basket.
The blade of the dose trimming tool
should penetrate the surface of the
tamped coee.
• Rotate the Razor™ dose trimming
tool back and forth while holding the
portafilter on an angle over a knock
box to trim o excess coee grinds.
Your filter basket is now dosed with the
correct amount of coee.
• Wipe excess coee from the rim of the
filter basket to ensure a proper seal
isachieved in the group head.


PURGING THE GROUP HEAD
Before placing the portafilter into the group
head, run a short flow of water through the
group head by pressing the 1 CUP button.
This will purge any ground coee residue
from the group head and stabilize the
temperature prior to extraction.
INSERTING THE PORTAFILTER
Place the portafilter underneath the group
head so that the handle is aligned with
the INSERT position. Insert the portafilter
into the group head and rotate the handle
towards the center until resistance is felt.
EXTRACTING ESPRESSO
• Place pre-warmed cup(s) beneath the
portafilter and press the 1 CUP or 2 CUP
button for the desired volume. A great
espresso is about achieving the perfect
balance between sweetness, acidity
andbitterness.
• Due to pre-infusion time, the espresso
will not start to flow immediately.
• As a guide, if the espresso starts to flow
before approximately 7 seconds, you
have either under dosed the filter basket
and/or the grind is too coarse. This is
anUNDER EXTRACTED shot.
• If the espresso starts to drip but doesn’t
flow after approximately 12 seconds,
then you have either over dosed the filter
basket and/or the grind is too fine. This
is an OVER EXTRACTED shot.
The flavor of your coee will depend on
many factors, such as the type of coee
beans, degree of roast, freshness, coarseness
or fineness of the grind, dose of ground
coee, and tamping pressure.
Experiment by adjusting these factors just
one at a time to achieve the taste of your
preference.
TEXTURING MILK
• There are two phases to texturing milk.
The first is stretching the milk to aerate
it and the second is swirling the milk
to make it silky smooth. These two
operations should blend into one.
• Always start with fresh cold milk.
• Fill the jug just below the “V” at the
bottom of the spout.
• Position the steam wand tip over the
drip tray and turn the STEAM/HOT
WATER dial to the steam position.
The STEAM/HOT WATER light will
flash to indicate the machine is heating
to create steam. During this time,
condensed water may purge from the
steam wand. This is normal. When
the STEAM/HOT WATER light stops
flashing the steam wand is ready for use.
NOTE
When the machine creates steam, a pumping
noise can be heard. This is the normal
operation of the 15 bar pump.
• Before inserting the steam wand into
the milk, pause the steam by returning
the STEAM/HOT WATER dial back to
the STANDBY position. Quickly insert
the steam wand tip ¼-¾” (1-2cm) below
the surface of the milk, close to the right
hand side of the jug at the 3 o’clock
position. Then quickly turn the STEAM/
HOT WATER dial back to the steam
position. Pausing the steam avoids the
milk splashing out of the jug (this pause
function lasts for 6 seconds only).


• Keep the tip just under the surface of the
milk until the milk is spinning clockwise,
producing a vortex (whirlpool eect).
• With the milk spinning, slowly lower the
jug. This will bring the steam tip to the
surface of the milk & start to introduce
air into the milk. You may have to gently
break the surface of the milk with the tip
to get the milk spinning fast enough.
• Keep the tip at or slightly below the
surface, continuing to maintain the
vortex. Texture the milk until sucient
volume is obtained.
• Lift the jug to lower the tip beneath
the surface, but keep the vortex of milk
spinning. The milk is at the correct
temperature (140-150°F or 60-65°C)
when the jug is hot to touch.
• Turn o steam BEFORE taking the tip
out of the milk.
• Set the jug to one side. Wipe the wand &
tip with a damp cloth. Position the steam
tip above the drip tray and turn steam
onto purge out any residual milk from
the steam wand.
• Tap the jug on the bench to collapse
anybubbles.
• Swirl the jug to “polish” and re-integrate
the texture.
• Pour milk directly into the espresso.
• The key is to work quickly, before the
milk begins to separate.
NOTE
After 5 minutes of continuous steaming, the
machine will automatically disable the steam
function. The STEAM/HOT WATER light will
flash. When this occurs return the STEAM/
HOT WATER dial to the STANDBY position.
HINTS & TIPS
• Fresh, quality coee beans will give you
the best possible extraction.
• We recommend quality 100% Arabica
beans with a ‘Roasted On’ date stamped
on the bag, not a ‘Best Before’ or ‘Use By’
date.
• Coee beans are best consumed
between 5–20 days after the ‘Roasted
On’ date. Ideally only grind directly
before the extraction to maximize flavor.
• Buy coee beans in small batches
toreduce the storage time.
• Store coee beans in a cool, dark and dry
container. Vacuum seal if possible.
OPTIMUM 8-11g (1 CUP)
16-19g (2 CUP) 25-30 SECBALANCED
GRIND TAMPGRIND DOSE SHOT TIME
TOO FINE TOO MUCH
USE RAZOR TO TRIM
TOO LITTLE
INCREASE DOSE &
USE RAZOR TO TRIM
OVER 35 SEC
OVER EXTRACTED
BITTER •ASTRINGENT
TOO COARSE UNDER 20 SEC
UNDERDEVELOPED •SOUR
UNDER EXTRACTED
22-33lbs
(10-15kg)
TOO HEAVY
TOO LIGHT


Care & Cleaning
REPLACING THE WATER FILTER
Rinse water lterSoak water lter
for 5 mins
1 2
Place lter into
lter holder
3
Insert & lock
water tank
Install lter in
water tank
5
Set date 2 months
ahead
4 6
REPLACEMENT DUE
The provided water filter helps prevent
scale build-up in and on many of the inner
functioning components. Replacing the
water filter every two months will reduce the
need to decalcify the machine.
If you live in a hard water area, we recommend
you change the water filter more frequently.
• Remove the new water filter from the
plastic bag.
• Soak the new water filter in a cup of
water for 5 minutes, then rinse under
cold running water.
• Insert the filter into the filter holder.
• Set Date Dial 2 months ahead.
• To install the assembled water filter
holder into the water tank, align the base
of the water filter holder with the adapter
inside the water tank. Push down to lock
into place.
• Slide the water tank back into position
at the back of the machine, ensuring to
push down completely to lock into place.
The water filter should be removed if using
filtered or bottled water.
NOTE
To purchase water filters, contact Breville
Consumer Support.
CLEANING CYCLE
The DESCALE/CLEAN light will illuminate
(flashing) when a cleaning cycle is required.
This is a back-flushing cycle and is separate
from descaling.
1. Insert the 1 CUP filter basket into the
portafilter, followed by the supplied
cleaning disc, followed by 1 cleaning tablet.
2. Lock the portafilter into the group head.
3. Place a large container beneath the group
head.
4. Ensure the water tank is filled with cold
water and the drip tray is empty.
5. Press the POWER button to turn the
machine O.
6. While pressing the 1 CUP and 2CUP
buttons, simultaneously press the POWER
button. Hold all 3 buttons together for
10seconds.
7. The cleaning cycle will commence and last
for approximately 5 minutes. During this
time, water will intermittently pour from
thegroup head. Once complete, 3 beeps
willsound.
8. Remove the portafilter and ensure the
tablet has completely dissolved. If the tablet
hasnot dissolved, repeat until the tablet
hasdissolved.


DESCALING
NOTE
Ensure that the water filter is removed from
the water tank before adding the descaling
powder when descaling the machine.
After regular use, hard water can cause
mineral build up in and on many of the
inner functioning components, reducing the
brewing flow, brewing temperature, power of
the machine, and taste of the espresso.
We advise you to undertake the descaling
processes outlined below when the
‘DESCALE/CLEAN’ indicator is illuminated
(solid on).
Refer to CLEANING CYCLE when the
‘DESCALE/CLEAN’ indicator isflashing.
Check if descaling is required
1. Check if the ‘DESCALE/CLEAN’ light
is illuminated (solid on), descaling
isrequired.
WARNING
Do not immerse power cord, power plug
or appliance in water or any other liquid.
The water tank should never be removed or
completely emptied during descaling.
Priming machine for descaling function
2. Dissolve one Breville Descaling powder
sachet into one liter of water then fill the
water tank.
3. Press and hold the 2-CUP button
and then press and hold the POWER
button simultaneously to enter the
Descale mode. The unit will heat up
as part of commencing the descaling
action, during the heating processes
the POWER button should flash
continuously.
The machine will indicate it is ready
for descaling when the POWER button,
1 CUP button, DESCALE/CLEAN
indicator and HOT WATER/STEAM
indicator are all illuminated (solid on).
Descaling the coee component
4. Press the 1-CUP button to start the
descaling for the coee component
of the machine. Descaling coee
component takes approximately 25
seconds. The 1 CUP button should flash
continuously and remain constant once
the descaling process has finished.
To terminate the descaling within 25
seconds, press the 1 CUP button again.
Descale the Steam and hot water
components
Descaling steam and hot water take
approximately 13 seconds and 8 seconds
respectively. Descaling can be terminated
prematurely by turning the steam dial to
STANDBY.
5. Descale Steam component by turning the
steam dial RIGHT towards the icon.
6. Descale Hot water component by
turning the steam dial to the LEFT
towards the icon.
Repeat processes to complete descaling
After the above processes about half (0.5
liter) of the descale solution should be left
inthe water tank.
7. Repeat steps 4-6 above to complete the
descaling process to empty the solution
in the tank.
Descaling Solution Rinse
8. After descaling, remove the water
tank and rinse thoroughly then refill
with fresh cold water to the maximum
capacity (2 liters) and repeat steps
4-6 to further cleanse the machine
ofany residue of the cleaning solution
thoroughly.
9. Press ‘POWER’ to quit the descaling
process. This will be indicated by the
LED lights switching o.
