Brilliant Fires Limited NEWDAWN ELECTRIC 2 SERIES Operating instructions

USER AND INSTALLATION INSTRUCTIONS
Please read these instructions before installation and use.
Keep this booklet handy for future reference.
This appliance should only be installed by
an appropriately qualified person NE
NENE
NE
NEWDAWN ELECTRIC
SERIES 2

2
[Blank]

3
CONTENTS
3
4
5
7
8
SER G IDE
WARNINGS AND SAFETY INFORMATION
CONTROLS
G ARANTEE
SERVICING INSTR CTIONS
USER GUIDE
Please read these instructions before installation and use.
Keep this booklet handy for future reference.
This appliance should only be
installed by an appropriately
qualified person
WARNING

4
Brilliant Electric fires meet the requirements of
the EC Directives 2004/108/EC and 2006/95/EC.
These directives have been met by compliance
with the following standards:
BS EN 60335-1:2002
BS EN 60335-2-30:2003
BS EN 6100-6-3:2001
Please read these instructions before installation
or use and keep this booklet handy for future
reference.
SAFETY
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety. Children should be supervised to ensure
they do not play with the appliance.
GENERAL WARNINGS
Never leave children unsupervised with an
unguarded heater.
Never obstruct or cover the heater outlet.
Never install or use the heater where it may come
in contact with water.
Never use aerosols or steam cleaners near the
heater.
Never route the electric cable near the heater
outlet.
Never route the electric cable under carpet
Never install the heater close to curtains or
combustible materials.
Never use the heater to dry clothes or other
objects.
Never
NeverNever
Never remove any cover of this appliance unless
the electricity supply has been disconnected.
IMPORTANT ELECTRICAL SAFETY
This appliance must never be installed above or in
front of a fixed electric socket. The electric socket
must be easily accessible to isolate the supply
during maintenance and cleaning.
This appliance is supplied with a two metre power
lead which has a moulded three pin socket to
connect to the appliance power inlet plug.
Depending on the model, the power lead may have
a moulded three pin 13 amp-fused plug to connect
to your electric wall socket. This appliance must
always be earthed. If in any doubt consult a
suitably competent person.
The electric supply must be safely routed from the
appliance to an electric wall socket. If the electric
cable is damaged it must be replaced by a genuine
Brilliant part. All external wiring to the heater
must comply with IEE regulations.
WHERE FITTED, THE PLUG ON THE SUPPLY
CORD IS NOT WATERPROOF - KEEP DRY
The supply cord to this appliance may be fitted
with a moulded plug incorporating a 13A fuse.
Should the fuse need to be replaced an ASTA
approved BS1362 fuse must be used of the same
rating, marked thus . If the fuse cover is
detachable, never use the plug with the cover
omitted. Replacement supply cords are available
from Brilliant at the address on the rear cover of
this instruction booklet.
If the plug supplied is not suitable for your socket
outlet or fused spur, it should be cut off and
destroyed.
The end of the flexible cord should be suitably
prepared and either connected to a fused spur or
the correct plug fitted (See below).
Important: The wires in the supply cord for this
appliance are coloured in accordance with the
following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
WARNING: A plug with bared flexible
cords is hazardous if engaged in a live
socket outlet.
WARNING

5
As these colours may not correspond with the
coloured markings identifying the terminals in
your plug or fused spur, proceed as follows:
The wire which is coloured Green & Yellow must
be connected to the terminal which is marked with
the letter E or the by the earth symbol or
coloured Green or Green & Yellow.
The wire which is coloured Blue must be
connected to the terminal which is marked with
the letter N or coloured Blue or Black.
The wire which is coloured Brown must be
connected to the terminal which is marked with
the letter L or coloured Brown or Red.
CONTROLS
REMOTE CONTROL VERSION
The operation of the heater can be done either
with the remote handset or the manual control
button on the heater unit itself.
HANDSET OPERATION
The handset uses touch sensitive buttons and
utilises radio (RF) to communicate with the fire.
Each handset is paired with it’s fire at the factory
and will only control that fire. For more details see
the REMOTE HANDSET PAIRING section.
The sensitive areas on the handset are shown in
Figure 1.
The current temperature position (Figure 2) will be
displayed with each press of any button. This
shows that the handset is transmitting a signal to
the fire. However, Button B will only operate the
heater after first turning on the Flame effect.
Button A
Button AButton A
Button A, when touched, will turn the Flame Effect
ON. Pressing it again will turn the Flame Effect
OFF. When the heater is ON, pressing Button A
will turn OFF the Flame Effect and the heater
simultaneously. NOTE: The fan will continue to run
for 2 minutes.
Button B
Button BButton B
Button B, when touched, will turn ON the heater.
However this will only happen after turning on the
Fuel Effect lights. Pressing it again will turn off
the heater. When the heater is ON the Operation
Light (Figure 3) will be illuminated. The heater will
cycle ON and OFF as required by the room
temperature set by the user. The Operation Light
will remain on when the room is up to the required
temperature. NOTE: The fan will run on for 2
minutes when the heater switches off.
Button +
Button +Button +
Button +, when touched, will increase the setting
of the thermostat. The indicator on the handset
will light to show the set point on the temperature
range. Touching the button again will increase the
temperature setting, in steps for each press, until
the maximum setting is reached.
Button
Button Button
Button –
––
–, when touched, will decrease the setting
of the thermostat. The indicator on the handset
will light to show the set point on the temperature
range. Touching the button again will decrease the
temperature setting, in steps for each press, until
the minimum setting is reached
1
A
AA
A
B
BB
B
–
––
– +
++
+
DECREASE ROOM
TEMPERAT RE
HEATER ON / OFF
INCREASE ROOM
TEMPERAT RE
FLAME EFFECT
ON / OFF
TEMPERAT RE DISPLAY
2
TEMPERAT RE POSITION
DO NOT DROP
The remote handset can be easily
broken if dropped from a height.
CAUTION

6
HEATER OVERRUN MODE
The heater on this appliance is equipped with a
system that cools the heater down before
switching off the fan. This Overrun lasts for 2
minutes with the fan running only. This will
happen when the Heater is switched off by the
user and also when the thermostat switches the
heater off. If the heater is switched off by the user
the Operation Light will go off immediately and the
2 minute overrun will start. If the Thermostat
switches off the heater then the Operation light
will remain on.
MANUAL OPERATION OF REMOTE CONTROL
The fuel effect and heater can also be operated
manually by using the push button on the
underside of the heater (Figure 3).
Pressing the button cycles through the operating
sequence as follows:
1. Fuel Effect lights on
2. Heater On (Operation light illuminates)
3. Fuel Effect lights off / Heater shut down cycle.
Temperature adjustment can only be done via the
remote handset. However, manually operating the
fire will set the temperature set point to its
maximum position.
THERMAL CUT-OUT
In case of overheating the heater and fan will
automatically turn off. To reset the thermal cut-
out, the appliance must be turned off at the fused
spur or wall socket and allowed to cool for 10
minutes. Ensure that the grill on the underside of
the canopy is not obstructed before turning the
appliance back on. Seek expert advice if the
problem persists.
REMOTE HANDSET PAIRING
The handset uses a touch sensitive buttons and
utilises radio (RF) to communicate with the fire.
Each handset is paired with it’s fire at the factory
and will only control that fire.
If a replacement handset is being used or handset
pairing has failed then follow the following
procedure. This can also be used to pair two or
more appliances to one handset:
1. On the heater unit of the appliance press and
hold the push button on the underside of the
heater unit until a rapid beeping is heard and
the operation light flashes (Figure 3).
2. Within 10 seconds, press Button A on the
handset. The rapid beeping will stop and a
long single beep will sound. This indicates that
pairing has been successful and the handset
should now operate the fire. If no button is
pressed within the 10 seconds, the heater will
return to normal operation mode.
In order to avoid overheating, do not
cover the heater.
WARNING
In order to avoid a hazard due to
inadvertent resetting of the thermal
cut-out, this appliance must not be
supplied through an external switching
device, such as a timer, or connected to
a circuit that is regularly switched on
and off by the utility.
WARNING
3
OPERATION
LIGHT
MAN AL OPERATION
B TTON

7

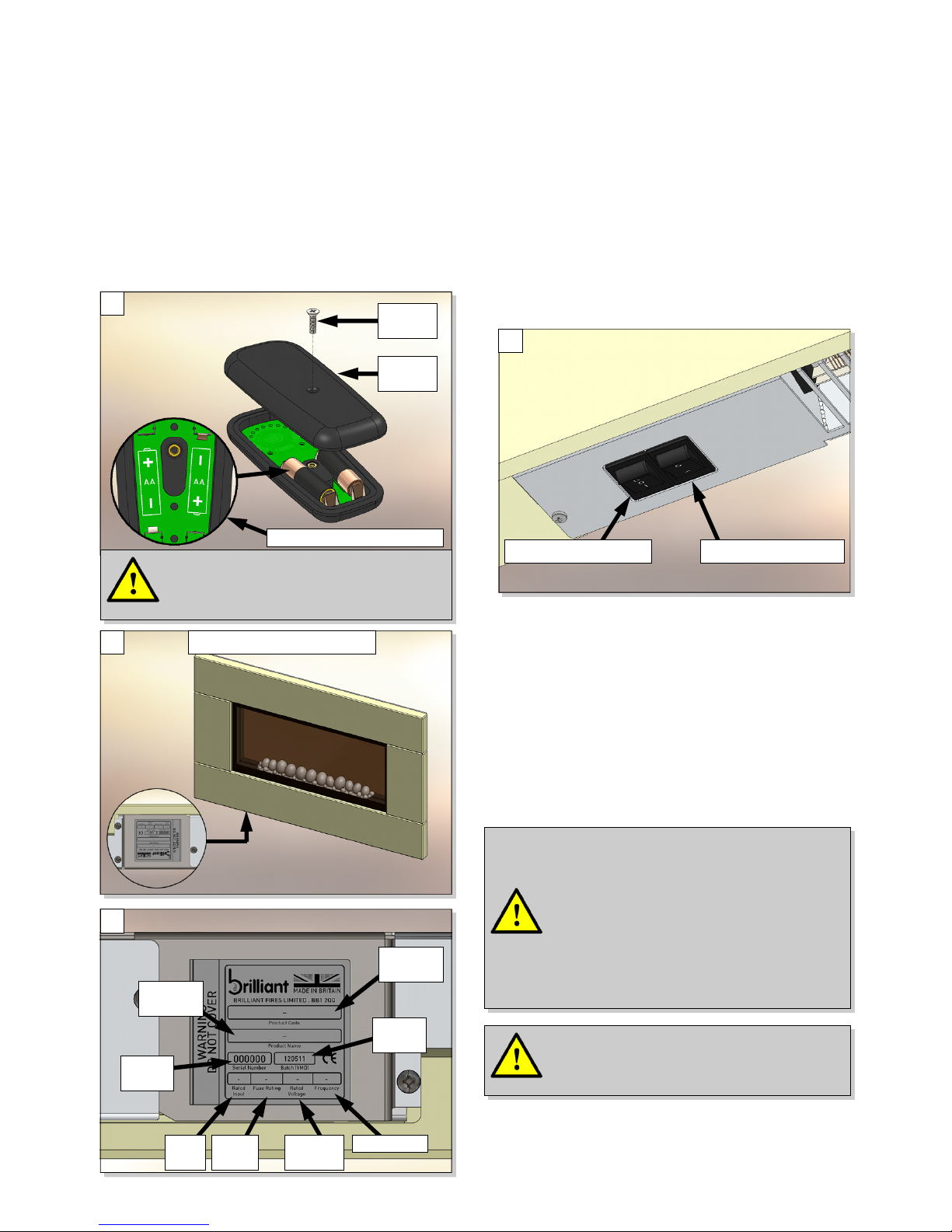

HANDSET BATTERY REPLACEMENT
To replace the batteries in the remote handset
first remove the screw from the rear of the
handset. The rear cover should now lift off giving
you access to the batteries. Remove the old
batteries and replace with a new set. Ensure that
when fitting the new batteries, the correct
orientation is observed as shown in Figure 4.
se Alkaline AA (LR6) batteries only.
MANUAL CONTROL VERSION
The controls are located on the right edge of the
appliance. The right control is the on/off switch;
switching it to I
II
I turns the flame effect on and can
be used independently of the fan heater. The left
control is the heater switch; it is off in the mid O
OO
O
position. Switch to I
II
I for 1kW mode and II
IIII
II for 2kW
mode. The fan runs continuously in both positions.
There is no thermostat control on the Manual
Control Version.
THERMAL CUT-OUT
In case of overheating the heater will
automatically turn off. To reset the thermal cut-
out, the appliance must be turned off at the on/off
switch and allowed to cool for 10 minutes. Ensure
that the grill on the underside of the appliance is
not obstructed before turning the appliance back
on. Seek expert advice if the problem persists.
4
REMOVE
SCREW
REMOVE
COVER
ENS RE CORRECT POLARITY
USE ALKALINE BATTERIES ONLY
2 × AA (LR6)
CAUTION
7
1kW / 2kW SWITCH ON / OFF SWITCH
In order to avoid overheating, do not
cover the heater.
WARNING
In order to avoid a hazard due to
inadvertent resetting of the thermal
cut-out, this appliance must not be
supplied through an external switching
device, such as a timer, or connected to
a circuit that is regularly switched on
and off by the utility.
WARNING
DATA BADGE LOCATION 5
PROD CT
NAME
PROD CT
CODE
SERIAL
N MBER
BATCH
N MBER
FREQ ENCY
6
RATED
INP T
F SE
RATING
RATED
VOLTAGE

8
G ARANTEE
Brilliant appliances are manufactured in England.
The appliance is guaranteed for 12 months from
the date of purchase against faulty materials or
workmanship. Please report any fault to your
dealer.
If your appliance is found to be defective within the
guarantee period we will repair or replace the
faulty component. Should a component or the
appliance need to be returned to our works it must
be sent carriage paid. Labour charges are not
included.
The guarantee is subject to the provisions that the
appliance has been correctly installed and used in
accordance with the manufacturers instructions
and has not been misused, modified or inexpertly
repaired.
This guarantee does not cover reimbursement of
any third party repair or replacement costs that
we haven’t agreed to in writing, nor does it cover
compensation or consequential losses, stress and
inconvenience arising from delays caused by
factors outside our reasonable control. Your
statutory rights are not affected.

9
CONTENTS
8
9
10
13
14
INSTALLATION AND SERVICING INSTR CTIONS
WARNINGS AND SAFETY INFORMATION
SITING THE APPLIANCE AND INSTALLATION
SERVICING
WIRING DIAGRAM
INSTALLATION AND
SERVICING INSTRUCTIONS
Please read these instructions before installation.
Give this booklet to the user for future reference.
This appliance should only be
installed by an appropriately
qualified person
WARNING

10
Brilliant Electric fires meet the requirements of
the EC Directives 2004/108/EC and 2006/95/EC.
These directives have been met by compliance
with the following standards:
BS EN 60335-1:2002
BS EN 60335-2-30:2003
BS EN 6100-6-3:2001
Please read these instructions before installation
or use and keep this booklet handy for future
reference.
SAFETY
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety.
Children should be supervised to ensure they do
not play with the appliance.
GENERAL WARNINGS
Never leave children unsupervised with an
unguarded heater.
Never obstruct or cover the heater outlet.
Never install or use the heater where it may come
in contact with water.
Never use aerosols or steam cleaners near the
heater.
Never route the electric cable near the heater
outlet.
Never route the electric cable under carpet
Never install the heater close to curtains or
combustible materials.
Never use the heater to dry clothes or other
objects.
Never remove the controls cover without isolating
the electric supply.
IMPORTANT ELECTRICAL SAFETY
This appliance must never be installed above or in
front of a fixed electric socket. The electric socket
must be easily accessible to isolate the supply
during maintenance and cleaning.
This appliance is supplied with a two metre power
lead. Depending on the model, the power lead may
have a moulded three pin 13 amp-fused plug to
connect to your electric wall socket. This
appliance must always be earthed. If in any doubt
consult a suitably competent person.
The electric supply must be safely routed from the
appliance to an electric wall socket. If the electric
cable is damaged it must be replaced by a genuine
Brilliant part. All external wiring to the heater
must comply with IEE regulations.
In order to avoid a hazard due to
inadvertent resetting of the thermal
cut-out, this appliance must not be
supplied through an external switching
device, such as a timer, or connected to
a circuit that is regularly switched on
and off by the utility.
WARNING
PROD CT
NAME
PROD CT
CODE
SERIAL
N MBER
BATCH
N MBER
FREQ ENCY
2
RATED
INP T
F SE
RATING
RATED
VOLTAGE

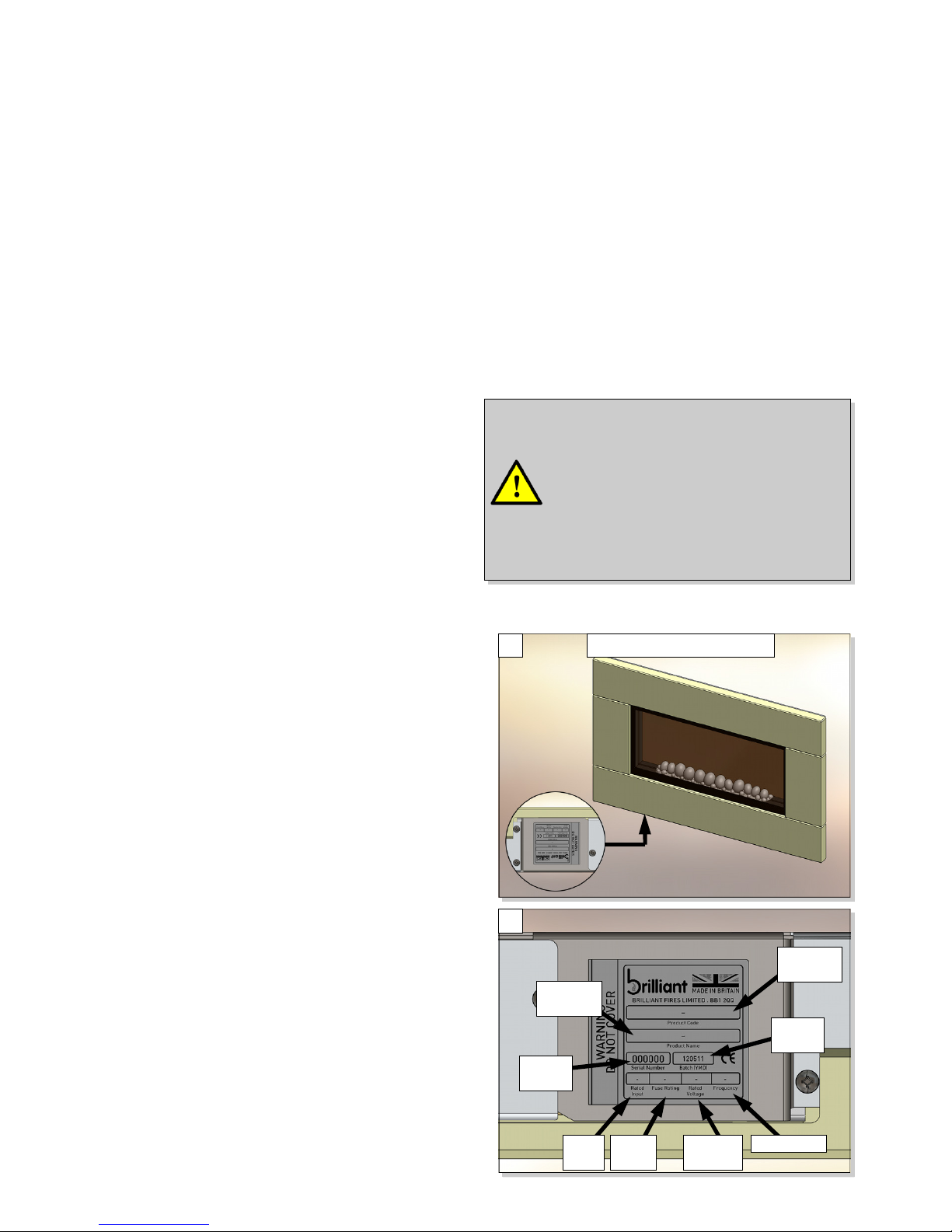

DATA BADGE LOCATION 1

11
SITING THE APPLIANCE
This appliance may be fixed to any suitable flat
vertical non-conductive surface and does not
require a cut out in the wall. The appliance must
be positioned at least 100mm above any skirting
board and 300mm above any surface beneath the
fire. There must be at least 25mm clearance
between the top of the surround and any object
such as a shelf or wall mounted TV. This is to
allow easy removal of the fireplace surround
during maintenance. The electric supply may be
concealed or surface mounted.
INSTALLATION
Newdawn Electric is supplied fully assembled.
DO NOT REMOVE THE GLASS PANEL.
Remove the two screws from the bottom of the
fire surround. Remove the fire surround by pulling
out at the bottom and lifting upwards.
The fixing kit and the power supply lead are tied in
place at the bottom right of the wall plate. Remove
these before commencing fitting.
When drilling holes for the wall plugs use a 7mm
drill for hollow substrates and use a 8mm drill for
solid or combination substrates.
sing the diagram above mark the positions of the
top keyhole fixings on the wall, drill two holes,
insert wall plugs (supplied) and fix two screws
(supplied). Tighten the screws to within 3mm from
the wall surface. Carefully hang the appliance on
the two screws.
The electrical supply is a concealed entry, mark
the cable entry point on the wall, remove the
appliance and carry out the necessary work to
create the concealed electrical supply. Carefully
re-hang the appliance on the two screws.
750
51
155
CABLE
ENTRY

12
sing a spirit level, check the appliance is level.
Fine adjustments can be made to correct the level
before tightening the two screws. Drill two holes
for wall plugs through the left and right fixing
holes at the bottom of the appliance. Insert and
tap into position the two remaining wall plugs and
fix with the two remaining screws.
Hang the fireplace surround at the top of the
appliance wall plate and fix with two screws
through the holes at the bottom left and right on
the underside edge of the fireplace surround.
Connect the power socket into the power inlet
plug at the bottom left of the appliance. You can
now connect the power cable to the electricity
supply.
FIRE S RRO ND
HANG S RRO ND ON HERE
4
! RISK OF ELECTRIC SHOCK !
! RISK OF ELECTRIC SHOCK !! RISK OF ELECTRIC SHOCK !
! RISK OF ELECTRIC SHOCK !
DO NOT connect the electricity
supply until the fireplace surround
has been fixed in place.
WARNING
In order to avoid a hazard due to
inadvertent resetting of the thermal
cut-out, this appliance must not be
supplied through an external switching
device, such as a timer, or connected to
a circuit that is regularly switched on
and off by the utility.
WARNING

13

14

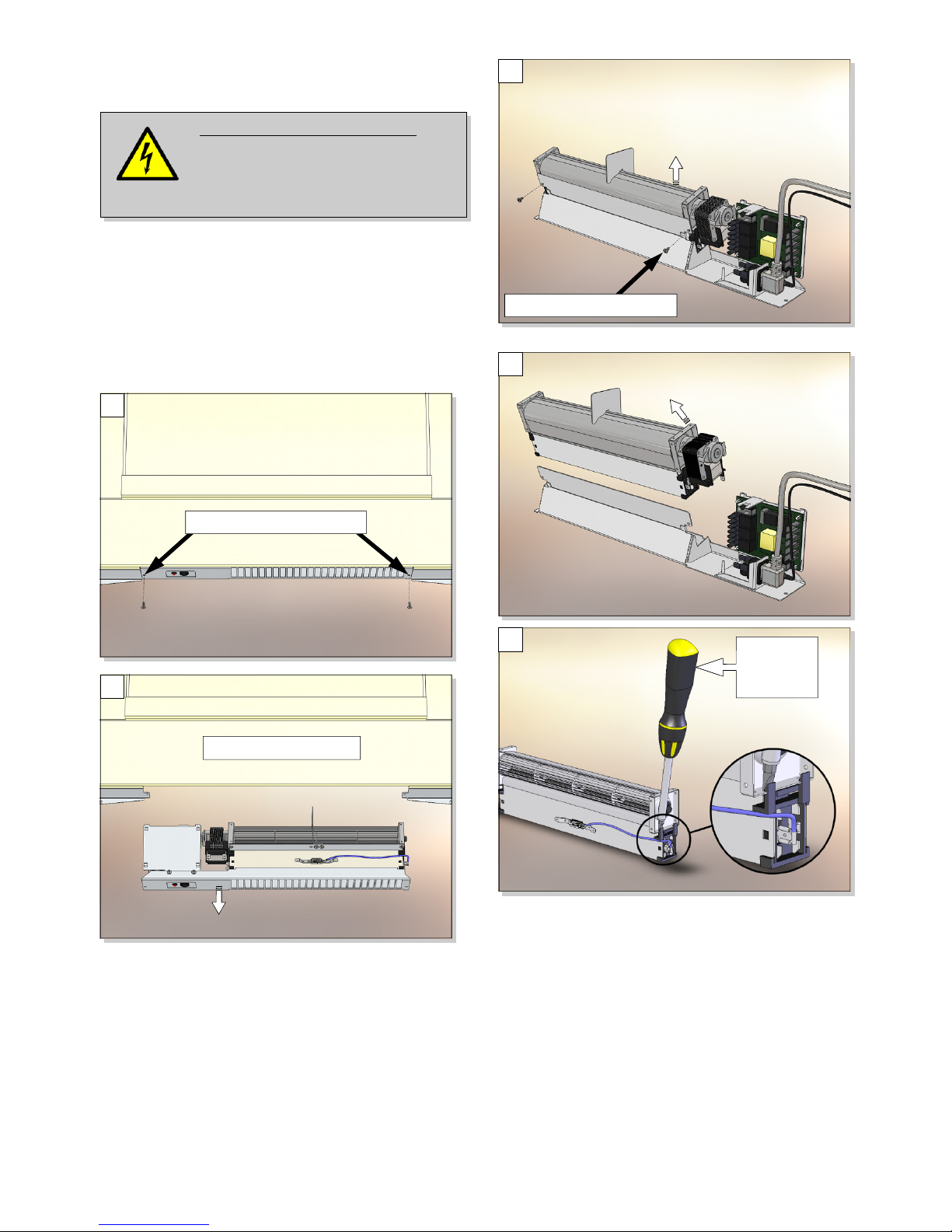

SERVICING
TO REPLACE THE HEATER ELEMENT OR FAN
Remove the Heater nit by removing the 2 screws
on each side of the heater unit as shown in Figure
5. Remove the heater unit by pulling it
downwards. Disconnect the power leads from the
sockets on the heater unit.
Place the fan unit face down on a flat hard surface
as shown in the diagram. This is to prevent the fan
impellor from being damaged. Remove the 2
screws that fix the fan to the bracket. The fan /
heater unit can now be removed from the fixing
bracket. Make a note of where the wires are
connected on the fan and heater terminals prior to
disconnecting them.
sing a screwdriver, prise the 4 plastic clips away
from the fan as shown in the diagram. It is best to
release both clips from one end first before
starting on the other end. Once all the clips are
released the heater unit can be removed from the
fan.
Replace the faulty component with a new one. Re-
fit the heater unit aligning it as shown in the
diagram. Ensure the clips are fully engaged on the
fan body. Re-assembly is the reverse of removal.
Push gently
to prise off
all 4 clips
9
! RISK OF ELECTRIC SHOCK !
! RISK OF ELECTRIC SHOCK !! RISK OF ELECTRIC SHOCK !
! RISK OF ELECTRIC SHOCK !
DO NOT
DO NOTDO NOT
DO NOT remove any cover of this
appliance unless the electricity
supply has been disconnected.
WARNING
5
REMOVE FIXING SCREWS
6
REMOVE HEATER NIT
7
REMOVE THE 2 SCREWS
8

15

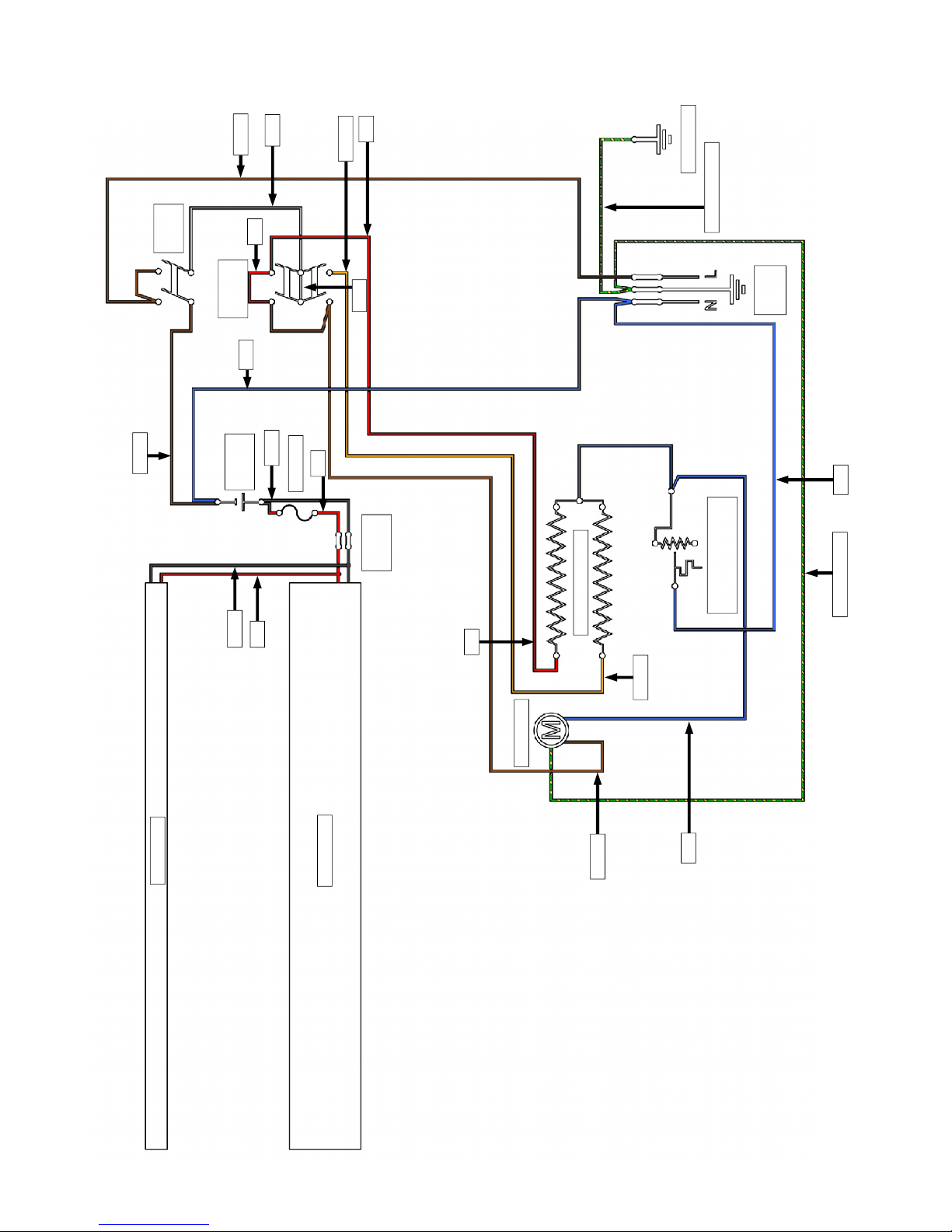

A TO REMOTE WIRING DIAGRAM
PPER PCB
LOWER PCB
TERMINAL
BLOCK
CONTROL
PCB
EARTH POST
POWER
INLET IEC PL G C13
MAINS S PPLY
NON-SELF-RESETTING
THERMAL C T-O T
HEATER ELEMENTS
FAN MOTOR
RED
BLACK
TEMPERAT RE
SENSOR
RED
GREEN / YELLOW
BROWN
BL E
BL E
GREEN / YELLOW
L
GREEN / YELLOW
ORANGE
N
H1
H2
EARTH
SUPPLY
T2A F SE
BLACK
BLACK
BLACK
RED
BLACK
BLACK
RED
ORANGE
BROWN
BROWN
N
L
FAN
BL E
BLACK
RED

16
MAN AL CONTROL WIRING DIAGRAM
PPER PCB
LOWER PCB
5V POWER
S PPLY
TERMINAL
BLOCK
1/2 KW
SWITCH
ON/OFF
SWITCH
EARTH POST
MAINS
S PPLY
NON-SELF-RESETTING
THERMAL C T-O T
HEATER ELEMENTS
FAN MOTOR
T2A F SE
RED
BLACK
BROWN
BLACK
BL E BROWN
GREEN / YELLOW
BROWN
BL E
ORANGE
RED
GREEN / YELLOW
RED
1A
2A
3A
4B 5B 6B
5B 4B
2A 1A
GREY
GREY
ORANGE
RED
RED
BL E

17
[Blank]

18
[Blank]

19
[Blank]

20
08 01 2014
Brilliant Fires Limited
Thwaites Close
Blackburn BB1 2QQ
England
tel [phone]
fax [phone]
www.brilliantfires.co.uk
[email protected].uk
