LAWN ROLLER
ROLLER MODEL:
PRC-241 BH
PRT-361 BH
PRT-361S BH
PRT-481S BH
OWNER'S MANUAL
• Safety
• Assembly
• Operation
• Repair Parts
• Maintenance
For use with Riders, Lawn
or Garden Tractors and ATV’s
*PRC-241 BH Push version not shown.
English, Spanish &
French Manual

2L-1681BH-J
INTRODUCTION AND SAFETY
================================================================================================
SAFETY
=============================================
RULES FOR SAFE OPERATION
• Know controls and how to stop safely, READ THE OWNER’S
MANUAL before operating.
• Do not allow children to operate the vehicle, do not allow
adults to operate without proper instruction or without
having read the owner’s manual.
• Do not carry passengers. Keep children and pets a safe
distance away.
• Always wear substantial footwear. Do not wear loose tting
clothing. Do not wear loose tting clothing that can get
caught in moving parts.
• Keep your eyes and mind on your tractor / attachment and
area being covered. Do not let other interests distract you.
• Stay alert for holes in the terrain and other hidden hazards.
• Do not drive close to creeks, ditches and public highways.
• Watch out for trafc when crossing or near roadways.
• When using any attachment, don’t allow anyone near the
vehicle while in operation.
• Keep the vehicle and attachment in good operating condition
and keep safety devices in place.
• Keep all nuts, bolts and screws tight to be sure the equipment
is in safe working condition.
• The vehicle and attachment should be stopped and
inspected for damage after striking a foreign object. The
damage should be repaired before restarting and operating
the equipment.
• See tractor equipment owner’s manual for safe operation of
the equipment.
CUSTOMER RESPONSIBILITIES
- Please read & retain this manual. The instructions will enable to assemble and maintain your product properly.
- Please carefully read and observe the SAFETY SECTION of this manual.
- Follow a regular schedule in maintaining and caring for your Brinly-Hardy product.
CONGRATULATIONS on your new Brinly-Hardy Lawn Roller! This accessory has been designed, engineered and manufactured
to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer
service department toll-free at 1-877-728-8224. We have competent, well trained technicians to help you with the assembly
and use of your Roller.
English Manual
This symbol will help to point out important safety
precautions throughout this manual. It means -
ATTENTION! BECOME ALERT! Your safety is
involved.
Tools Required
for Assembly:
• (x2) 1/2” Wrench
• (x2) 3/4” Wrench (PRC-241 BH Only)
• Slip Joint Pliers
TABLE OF CONTENTS
SAFETY ........................... 2
PART LIST AND
HARDWARE IDENTIFIER ........... 3 - 4
ASSEMBLY....................... 5 - 8
OPERATION ....................... 9
MAINTENANCE ..................... 9
LIMITED WARRANTY................ 10

3L-1681BH-J

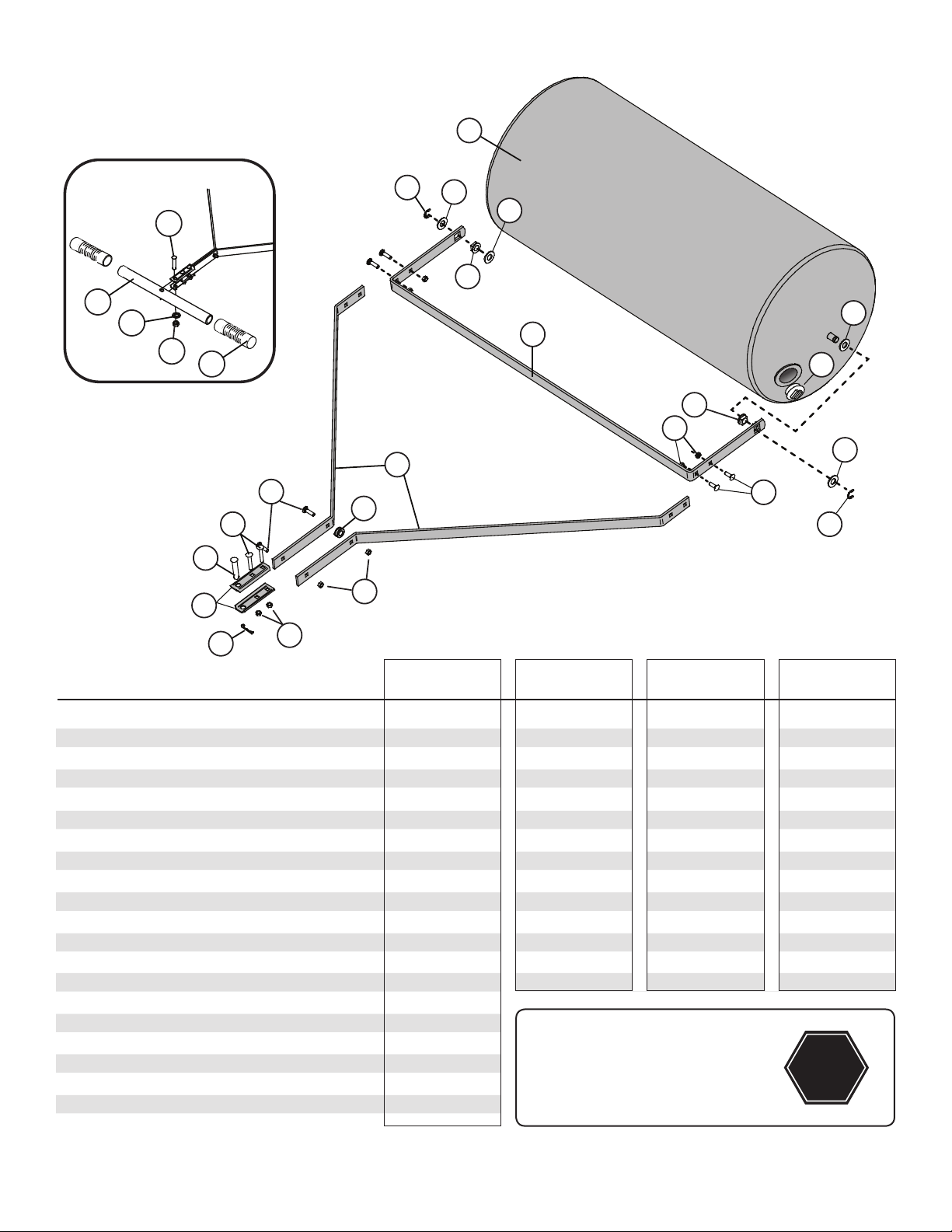

PARTS
================================================================================================
English Manual
5
21
31
20
14
9
3
2
1
4
6
11
01
8
7
7
8
8
7
7
11
01
16
15
19
18
17
Handle for PRC-241 BH only
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Frame Extension Bar 2
Roller Drum Assembly 1
Scraper Bar 1
5/16” x 1”, Carriage Bolt 4
5/16” x 1-1/2”, Carriage Bolt 2
5/16” x 2-1/4”, Carriage Bolt 2
5/8” Flat Washer 4
5/16” Nylon Lock Nut 8
Plug 1
Square Bearing 2
5/8” E-Ring 2
Frame Spacer 1
Hitch Pin 1
Hitch Pin Cotter 1
Handle 1
Hex Bolt 1/2” x 2-1/4 1
Hex Nut 1/2” 1
Lock Washer 1/2” 1
Grip 2
Clevis 2
Description Qty.Ref. #
B-5357-10
B-5353-B
B-6292-10
11M1016P
11M1024P
11M1036P
45M2121P
B-4786
1019261
B-6270
F-577
R-1141
B-3861
D-146P
PRT-361S BH
B-6290-10
B-5789-B
B-6294-10
11M1016P
11M1024P
11M1036P
45M2121P
B-4786
1019261
B-6270
F-577
R-1141
B-3861
D-146P
PRT-481S BH
B-6289-10
B-6271
B-6272-10
11M1016P
11M1024P
11M1036P
45M2121P
B-4786
1019261
B-6270
F-577
R-1141
B-3861
D-146P
PRT-361 BH
B-3554-10
B-5121
B-6291-10
11M1016P
11M1024P
11M1036P
45M2121P
B-4786
1019261
B-6270
F-577
R-1141
B-3861
D-146P
B-3556-10
1M1636P
30M1600P
40M1600P
B-2579
R-892-10
PRC-241 BH
STOP
Installation Questions?
Missing Parts? Replacement Parts?
DON’T GO BACK TO THE STORE!
Please call our Customer Service
Department, Toll Free: 877-728-8224
or [e-mail]

4L-1681BH-J
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDWARE IDENTIFIER
================================================================================================
Carriage Bolt
5/16 x 1”
(x4) . . . . . . . . . . . . . . . . . . . . . .
11M1016P
4
Carriage Bolt
5/16 x 1 1/2”
(x2) . . . . . . . . . . . . . . . .
11M1024P
5
Carriage Bolt
5/16 x 2 1/4”
(x2) . . . . . . .
11M1036P
6
Washer: Flat
5/8” (x4) . . . . . . .
45M2121P
7
Hitch Pin Cotter
(x1) . . . . . . . . . . . . . . . . .
14
D-146P
Hitch
Pin (x1)
. . . . . . . .
13
B-3861
Nut: Nylon Lock
5/16” (x8) . . . . . . . . . . .
8
B-4786
E-Ring, 5/8”
(x2) . . . . . . . . . . . . . .
11
F-577
PARTS IN ADDITIONAL HARDWARE BAG
(Only for PRC-241 BH)
Bolt: Hex Head
1/2 x 2-1/4”
(x1) . . . .
16
1M1636P
Nut: Hex
1/2” (x1) . . . . . . . . . .
17
30M1600P
Lock Washer 1/2”
(x1) . . . . . . . . . . . . . .
18
40M1600P
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
English Manual

5L-1681BH-J
3
1
8
4
10
7
7
11
3
2
ASSEMBLY
================================================================================================
Assembly Step 1
Attaching the Scraper Bar
Add a 5/8” at washer (7) to the
Roller Drum (2) as illustrated.
Slide a square bearing (10) into
the large square hole at the end of
the Scraper Bar (3) and add to the
Roller Drum.
Add another 5/8” at washer (7).
Secure everything in place by
sliding a 5/8” E-ring (11) into the
slot at the end of the roller drum (2).
Hardware Panel A
Repeat this step on the
other end of the drum.
Assembly Step 2
Repeat this step on the
other end of the drum.
Align the Frame Extension Bar (1)
as illustrated.
From the outside, run two
5/16 x 1” Carriage Bolts (4) through
the Extension Bar (1) and Scraper
Bar (3) as illustrated.
Secure everything in place with two
5/16” Nylon Lock Nuts (8).
Hardware Panel B
English Manual

6L-1681BH-J
1
1
5
5
12
8
8
NOTE: Do not tighten the lock nuts added on this step completely (until Assembly Step 4-A is complete).
ASSEMBLY
================================================================================================

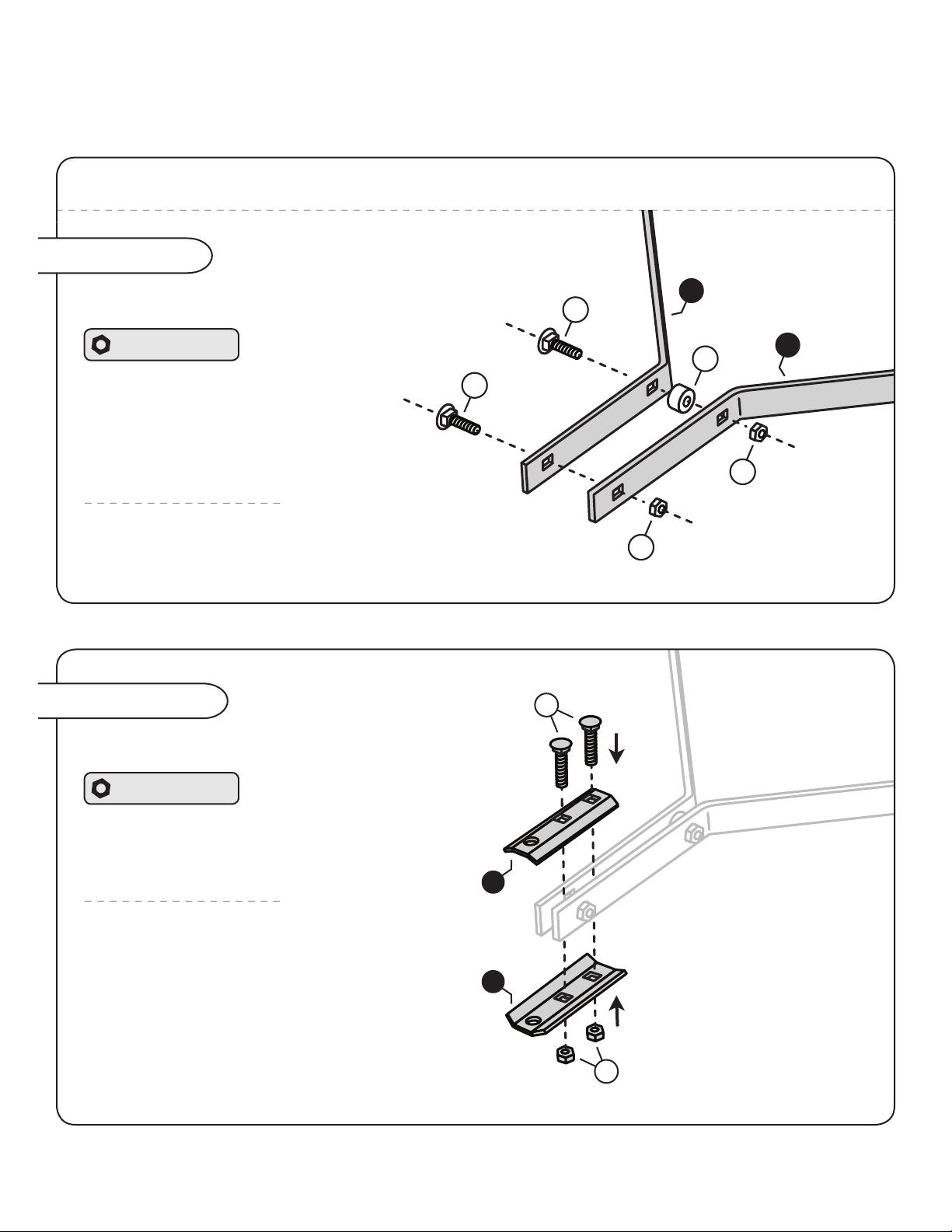

Assembly Step 3
Connecting the Frame Extension Bars
Center the Spacer (12) between the second
hole of the Extension Bars (1) and run a
5/16” Carriage Bolt (5) through.
Loosely add a 5/16” Lock Nut (8).
Hardware Panel C
Add the second 5/16” Carriage bolt to
the Extension Bars (1) and secure with
the additional 5/16” Lock Nut (8).
Assembly Step 4
Align the Clevis plates (20)
as illustrated.
NOTE: The two bolts that will be added on
this step need to straddle the Carriage Bolt
at the very end of the extension bars.
Run two 5/16 x 2-1/4” Carriage
Bolts (6) through the Clevis Plates (20).
Secure in place with two 5/16” Nylon
Lock Nuts (8).
Hardware Panel D
Attaching the Clevis
20
20
6
8
English Manual

7L-1681BH-J
15
16
18
17
13
14
ASSEMBLY
================================================================================================
If you are
assembling
PRC-241 BH:
Skip Step 5
and continue
to Assembly
Step 6
Assembly Step 5
Add the hitch pin (13) through remaining
openings of the Clevis (20) and secure
with a Hitch Pin Cotter (14).
Skip Step 6 and continue to Assembly Step 7.
Hardware Panel D
English Manual
Slide the Handle (15) between the Clevis
plates as illustrated. NOTE: Be sure to align
the openings of the clevis and handle.
Hardware Bag
Run a 1/2 x 2-1/4” Hex Bolt (16) through the Clevis
plates and handle. Secure with a 1/2” lock washer (18)
and a 1/2” lock nut (17).
Slide the grips (19)
over the ends of the
handle (15).
Assembly Step 6
PRT-361 BH, PRT-361S BH & PRT-481S BH: Attaching the Clevis
PRC-241 BH: Attaching the Handle
15
19
19

8L-1681BH-J
ASSEMBLY
================================================================================================
Additional info and
videos are available on our
website OR scan one of the
following QR codes:
ONLINE: www.brinly.com
PRC-24BH PRT-36BHPRT-48SBHPRT-36SBH
English Manual

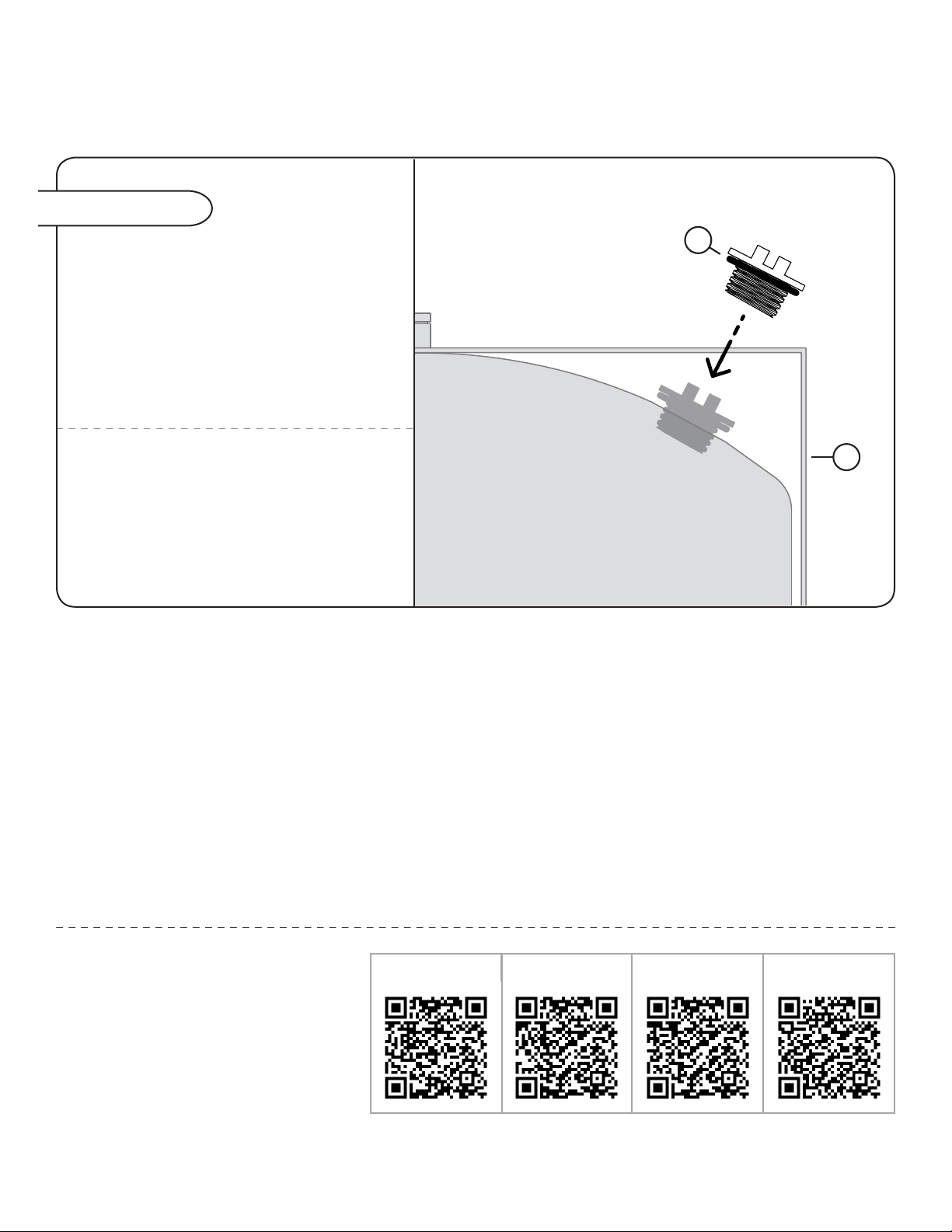

Assembly Step 7
Adding the Roller Plug
When installing the plug (9) please note the
plug has an o-ring, ensure o-ring properly
seats against the roller. A portion of the plug
will extend from the roller, however, it will not
interfere with the scraper bar (3).
Hand tighten as far as possible,
if the plug is leaking, ensure o-ring
is not bulging outside of the plug.
NOTE: A wrench around the prongs
(or a screw driver between prongs) can
be used to further tighten if necessary.
3
9

9L-1681BH-J
OPERATION AND MAINTENANCE
================================================================================================
• The key to years of trouble-free
service is to keep your Lawn Roller
clean and dry.
• Occasionally check all moving parts for free movement and,
if necessary, lubricate with oil.
• Should rust develop, sand lightly and then paint area with
enamel.
• Periodically check all fasteners for tightness.
MAINTENANCEOPERATION
CAUTION! Do not overload your Tractor / Rider.
Roller fully loaded with water weighs:
PRC-241 BH = 270 lbs
PRT-361 BH = 690 lbs
PRT-361S BH = 390 lbs
PRT-481S BH = 485 lbs
TRACTOR / RIDING MOWER SPEED
Rollers yield the best results when ground
conditions are correct, and equipment is
operating at less than 3 mph.
CALIBRATING YOUR TRACTOR TO 3 MPH:
Measure a distance of 20 feet on a flat, level
surface. Adjust tractor throttle and select a gear
to cover this distance in 4.5 seconds.
QUALITY CONTINUES
WITH QUALITY SERVICE
If you have installation questions, are missing parts or need
replacement parts, don’t go back to the store!
Please find your product serial number and model number,
then contact our Customer Service department:
In North America and Canada call
Toll-Free: 877-728-8224
Chat online: www.brinly.com
Email: [e-mail]
SERVICE
English Manual
• Refer to tractor manual to determine proper towing capacity
of your Tractor / Rider.
• Fill the roller with amount
of water recommended
for your tractor / rider.
Screw in the plug and
tighten securely.
• The plug has an
o-ring to create a seal
and prevents the drum
contents from leaking
out.
• For longest life, drain the roller, leave the plug out, and
if possible, hang the roller when not in use to prevent
possibility of developing a at spot.
• If a at spot develops on the roller during storage, ensure
roller is empty then leave out in the sun to warm and roll
around to reduce at area.
• Please note that sand may be used in place of water with
no risk of freezing.
• Ground condition is vital to good leveling. Soil should be
moist, but not muddy.
• Refer to your Tractor or Riding Mower Owner’s manual for
proper towing capacity and safe operation of your towing
equipment. Towing / Stopping distances will be greatly
affected by added weight of roller.

10 L-1681BH-J
The limited warranty set forth below is given by Brinly-Hardy
Company with respect to new merchandise purchased and
used in the United States, its possessions and territories.
Brinly-Hardy Company warrants the products listed below
against defects in material and workmanship, and will at its
option, repair or replace, free of charge, any part found to be
defective in materials or workmanship. This limited warranty shall
only apply if this product has been assembled, operated, and
maintained in accordance with the Operator’s manual furnished
with the product, and has not been subject to misuse, abuse,
commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of
other peril or natural disaster.
Normal Wear Parts or components thereof are subject to
separate terms as follows: All normal wear parts or component
failures will be covered on the product for a period of 90 days.
Parts found to be defective within the warranty period will be
replaced at our expense. Our obligation under this warranty is
expressly limited to the replacement or repair, at our option, of
parts found to be defective in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty parts replacements
are available, ONLY WITH PROOF OF PURCHASE, through
our Customer Service Department. Call 877-728-8224.
This limited warranty does not provide coverage in the following
cases:
a) Routine maintenance items such as lubricants and
filters.
b) Normal deterioration of the exterior finish due to
use or exposure.
c) Transportation and/or labor charges.
d) The warranty does not include commercial and/or
rental use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other express
warranty whether written or oral, except as mentioned
above, given by any person or entity, including a dealer
or retailer, with respect to any product, shall bind Brinly-
Hardy Co. During the period of the warranty, the exclusive
remedy is repair or replacement of the product as set forth
above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. Brinly-Hardy
Co. shall not be liable for incidental or consequential loss
or damage including, without limitation, expenses incurred
for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not
apply to you.
During the warranty period, the exclusive remedy is replacement
of the part. In no event shall recovery of any kind be greater that
the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty. You
assume the risk and liability for loss, damage, or injury to you
and your property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased
as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY:
This limited warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
IMPORTANT:
The Warranty period stated below begins with the PROOF
OF PURCHASE. Without the proof of purchase, the Warranty
period begins from the date of manufacture determined by the
serial number manufacturing date.
WARRANTY PERIOD:
The warranty period is as follows: 2 Years
MANUFACTURER’S LIMITED WARRANTY FOR
BRINLY PULL-BEHIND ACCESSORIES
Brinly-Hardy Company • 3230 Industrial Parkway • Jeffersonville, IN 47130 • [phone] • brinly.com
English Manual
