Brinly ST-152BH User manual

11018959-B
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
Visit us on the web!
www.brinly.com
OWNER'S MANUAL
• Assembly
• Installation
• Operation
• Repair Parts
15 GALLON TOW-BEHIND SPRAYER
MODEL:
ST-152BH
This sprayer is
designed for use with
lawn tractors and lawn
and garden tractors.
English Manual

21018959-B
==================================================================================================
INTRODUCTION AND SAFETY
SAFETY
==========================================
RULES FOR SAFE OPERATION
• Know controls and how to stop safely, READ THE OWNER’S
MANUAL before operating.
• Do not allow children to operate the vehicle, do not allow
adults to operate without proper instruction or without
having read the owner’s manual.
• Do not carry passengers. Keep children and pets a safe
distance away.
CUSTOMER RESPONSIBILITIES
- Please read & retain this manual. The instructions will enable to assemble and maintain your product properly.
- Please carefully read and observe the SAFETY SECTION of this manual.
- Follow a regular schedule in maintaining and caring for your Brinly-Hardy product.
CONGRATULATIONS on your new Brinly-Hardy Lawn Sprayer! This accessory has been designed, engineered and
manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer
service department toll-free at 1-877-728-8224. We have competent, well trained technicians to help you with the assembly
and use of your sprayer.
English Manual
TABLE OF CONTENTS
SAFETY ......................... 2 - 3
PARTS .......................... 4 - 6
ASSEMBLY ..................... 7 - 25
OPERATION ................... 26 - 29
MAINTENANCE .....................30
SERVICE / SPECIFICATIONS ..... 30 - 31
WARRANTY .......................32
RECORD PURCHASE INFORMATION
==========================================
Record your purchase information in
the spaces provided below:
Date of Purchase _________________________________
Company Name _________________________________
Company Phone _________________________________
Serial Number _________________________________
Tools Required
for Assembly:
• 1/2” Wrench and Socket
• 7/16” Wrench and Socket
• Slip Joint Pliers
• Phillips Screwdriver
• Gloves
• Eye Protection
This symbol will help to point out the important
safety precautions throughout this manual.
It means - ATTENTION! BECOME ALERT!
Your safety is involved.

31018959-B
==================================================================================================
GENERAL NOTES (OPERATION)
Caution should be taken when towing and/or using any at-
tachment. This attachment combined with the weight distribu-
tion, turning radius, and speed of towing vehicle can result in
severe injury or death to operator, damage to towing vehicle,
and/or attachment if not used properly. Follow all towing safe-
ty precautions noted in the towing vehicle owner’s manual,
including the following precautions:
• Ensure the combined weight of the towing vehicle (tow vehicle
weight + operator weight) is greater than the maximum towed
weight of attachment (empty attachment weight + weight of
load).
• Do not exceed maximum towing capacity of towing vehicle.
• Do not exceed the maximum drawbar pull rating of the towing
vehicle. Drawbar pull is the horizontal force required to pull the
attachment (including weight of load).
• Only tow this product in the vehicle’s tow mode / speed setting
or less than 5 mph. Do not exceed 5 mph.
• Towing speed should always be slow enough to maintain
control. Travel slowly and use caution when traveling over
rough terrain. Avoid holes, rocks and roots.
• Slow down before you turn and do not turn sharply.
• Use wide turning angles to ensure the attachment follows the
path of the towing vehicle.
• Do not use attachment on steep slopes. A heavy load could
cause loss of control or overturn attachment and towing vehicle.
Additional weights may need to be added to your vehicle;
check with towing vehicle manufacturer for recommendations.
• Reduce towed weight when operating on slopes.
• Keep all movement on slopes slow and gradual. Do not make
sudden changes in speed, directions, or turning.
• If you start and stop suddenly on hills, you may lose steering
control or the towing vehicle may tip. Do not start or stop
suddenly when going uphill or downhill. Avoid uphill starts.
• Slow down and use extra care on hillsides. Turf conditions can
affect vehicle stability. Use extreme caution while operating
near drop-offs.
• Do not drive close to creeks, ditches and public highways.
• Watch out for trafc when crossing near roadways.
• Use care when loading or unloading the vehicle into a trailer
or truck.
• The attachment can obstruct the view to the rear. Use extra
care when operating in reverse.
• When reversing, carefully back-up straight to avoid jackkning.
Do not allow towing vehicle wheels to contact attachment draw
bar. Damage could result.
• Stop on level ground, disengage drives, set the parking brake,
and shut off engine before leaving the operator’s position for
any reason including emptying the attachment.
• Use this attachment for intended purpose only.
• This attachment is intended for use in lawn care and home
applications. Do not tow behind a vehicle on a highway or in
any high speed applications. Do not tow at speeds higher than
the maximum recommend towing speed.
• Do not tow this product behind a motor vehicle such as a car
or truck.
• Always wear substantial footwear. Do not wear loose tting
clothing that can get caught in moving parts.
• Keep your eyes and mind on your towing vehicle, attachment
and area being covered. Do not let other interests distract you.
• Stay alert for holes and other hidden hazards in the terrain.
• Keep the towing vehicle and attachment in good operating
condition and keep safety devices in place.
• The towing vehicle and attachment should be stopped and
inspected for damage after striking a foreign object. Any
damage should be repaired before restarting and operating
the equipment.
• Keep all parts in good condition and properly installed. Fix
damaged parts immediately. Replace worn or broken parts.
Replace all worn or damaged safety and instruction decals.
Keep all nuts, bolts and screws tight.
• Do not modify the attachment or safety devices. Unauthorized
modications to the towing vehicle or attachment may impair
its function, safety and void the warranty.
TOWING VEHICLE AND TOWING SAFELY
• Know your towing vehicle controls and how to stop safely.
READ YOUR TOWING VEHICLE OWNER’S MANUAL before
operating.
• Check the towing vehicle brake action before you operate.
Adjust or service brakes as necessary.
• Stopping distance increases with speed and weight of towed
load. Travel slowly and allow extra time and distance to stop.
• Use only approved hitches. Tow this attachment only with a
towing vehicle that has a hitch designed for towing. Do not
connect this attachment except at the approved hitch point.
• Follow the tow vehicle manufacture’s recommendations for
weight limits for towed equipment and towing on slopes. Use
counterweights or wheel weights as described in the towing
vehicle operator’s manual.
• Do not shift to neutral and coast downhill.
• Do not allow children to operate the towing vehicle.
• Do not allow adults to operate the towing vehicle without
proper instruction or without having read the owner’s manual.
PROTECT THOSE AROUND YOU
• Before you operate any feature of this attachment or towing
vehicle, observe your surroundings and look for bystanders.
• Keep children, bystanders and pets at a safe distance away
while operating this or any attachment.
• Use care when reversing. Before you back up, look carefully
behind for bystanders.
KEEP RIDERS OFF ATTACHMENT & TOWING VEHICLE
• Do not carry passengers.
• Do not let anyone, especially children, ride in / on this
attachment, the towing vehicle or hitch bracket. Riders are
subject to injury such as being struck by foreign object and
/or being thrown off during sudden starts, stops and turns.
Riders may also obstruct the operator’s view resulting in this
attachment being operated in an unsafe manner.
SPRAYER SPECIFIC SAFETY INFORMATION
• Caution should always be exercised when working on or near
batteries.
• Heavy gloves and eye protection should be worn when making
connections to the battery.
SAFETY
English Manual

41018959-B
==================================================================================================
PARTS
English Manual
2
4
24 31
32 33
34
35
56
26
29
30
26
36
25
26
13
55
12
11 43
46
50 49
10
48
8
7
28
9
5
16
3
22
39
38
16
14
15
21
23
20
19
18
17
27
37
41
40
42
47
44
45
54
53
+
52

51018959-B
==================================================================================================
PARTS
English Manual
STOP
Installation Questions? Missing Parts?
Replacement Parts? DON’T GO BACK
TO THE STORE!
Please call our Customer Service
Department, Toll Free: 877-728-8224 or email:
[e-mail]
Ref
#Part # Description Qty
11018925LH-10 Bracket Frame LH Painted 1
21018925RH-10 Bracket Frame RH Painted 1
31018963 Sprayer Tank, 15 Gal. w/ labels 1
41018924-10 Plate Axle Support Painted 2
51018930-01 Axle Plated 1
6B-5691 Spacer, Axle 2
745M2121P Washer, Flat 5/8 4
81009097 Wheel, 10 x 3 2
9F-577 E Ring, 5/8" 2
10 1018926-10 Towbar Painted 2
11 R-892-10 Clevis, Painted 2
12 1018929LH-10 Boom Support LH Painted 1
13 1018929RH-10 Boom Support RH Painted 1
14 1018928-10 Brace Cross Painted 1
15 1018927LH-10 Boom LH Painted 1
16 1018927RH-10 Boom RH Painted 1
17 1016887 Pump, 1 gpm 40 psi 1
* 18 B-6511 Clip, Wand Holder 1
* 19 B-6043 Nozzle Body, 90 Degree 2
* 20 B-6041 Nut, Jam, Plastic 2
* 21 B-6040 Strainer, Nozzle 2
* 22 B-6042 Nut, Tip Fitting 2
* 23 1016989 Spray Tips BF 2.0 2
24 1016888 Hose, 3/8" x 8" 1
25 B-6087 Hose, 3/8" x 17" 1
26 B-6035 Hose, 3/8" x 22" 3
27 B-6033 Hose, 3/8” x 12' 1
* 28 B-6047 Clamp, Hose 12
* 29 B-6598 Adaptor, 1/8 MPT x 3/8" H.B. 1
* 30 B-6597 Strainer, 1/4" NPT 1
* 31 1016549 Male Fitting 1
* 32 B-6512 Tee, Dual Valve 1
* 33 B-6055 Hose Barb 2
* 34 B-6056 Nut, Hose Swivel 2
* 35 B-6054 Washer, Vinyl, 3/4" 2
* 36 B-6045 Hose Barb, Tee, 3/8x3/8 1
37 B-6400 Hand Wand 1
38 1018962 Wire Harness Batt Conn 1
ST-152BH
** = Items in the Spray
Fitting Bag ( 1018945 )
Ref
#Part # Description Qty
39 1018961 Wiring Harness w switch 1
40 B-6028 Cap, Tank (Large Cap) 1
41 B-6578-ASM Cap Assembly (Small Cap) 1
Hardware Bag ( 1018943 )
42 10M1032P Bolt, Carriage 5/16 x 2 2
43 11M0824P Bolt, Carriage 1/4 x 1-1/2 1
44 2M1012P Bolt, Hex Hd 5/16 x 3/4 12
45 B-3861 Pin, Hitch 1/2" x 2-1/2" 1
46 B-4785 Nut, Nylon Lock 1/4-20 1
47 B-4786 Nut, Nylon Lock 5/16-18 14
48 B-5695 Bolt, Hex Fl. Head, 5/16 4
49 D-146P Cotter, Hairpin 1/8", #211 1
50 R-618 Washer, Special 4
+ part #6, Spacer Axle ( 2 )
+ part #7, Flat Washer, 5/8” ( 4 )
+ part #9, E-Ring, 5/8” ( 2 )
Inner Hardware Bag ( 1018944 )
52 1007005 Lock Washer, #10 SS 4
53 1016890 Screw, Round Head, #10 4
54 22M0606P Screw, Round Head, #10 1
55 2M1036P-FT Bolt, Hex Head, 5/16 x 2-1/4 2
56 B-4355 Nut, Whiz Lock, 5/16"-18 6

61018959-B
==================================================================================================
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]

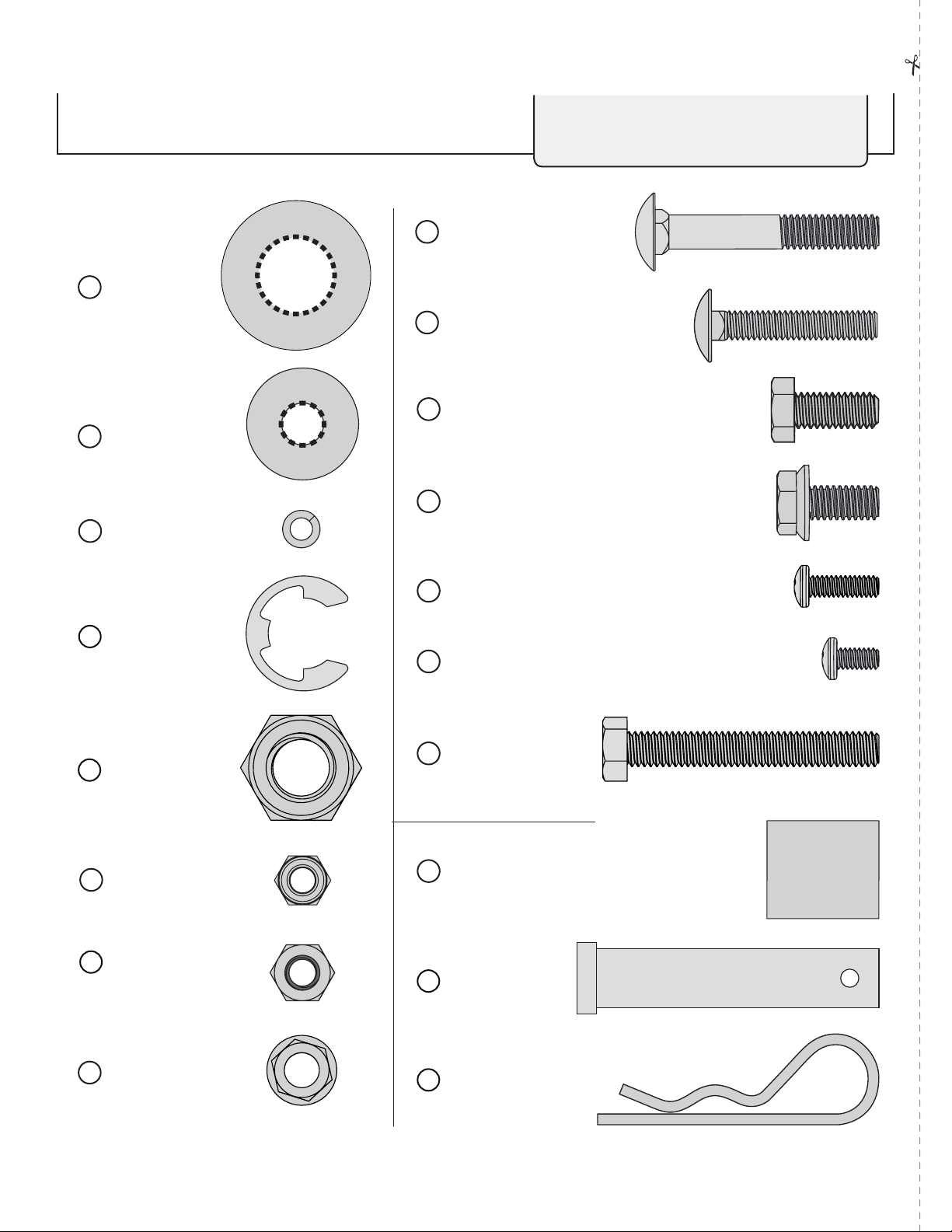

HARDWARE IDENTIFIER
Illustrations on this page are to scale for faster
identication of hardware during assembly.
English Manual
Washer:
Flat 5/8”
(x4) . . . . . .
45M2121P
7
Hitch Pin
(x1) . . . . . . . .
45
B-3861
Hitch Pin
Cotter (x1) . . . . . . .
49
D-146P
E-Ring
5/8” (x2) . . . . . . .
9
F-577
Washer:
Special (x4) . . . . .
R-618
50
Spacer: Axle (x2) . . . . . . . . . . . . . . . . .
B-5691
6
Nut: Nylon Lock
5/16” (x14). . . . . . .
47
B-4786
46
Nut: Lock
1/4” (x1) . . . . . . . .
B-4785
Nut: Jam
Plastic
(x2) . . . . . . . . .
20
B-6041
Washer: Lock
SS #10 (x4) . . . . . . .
1007005
52
Bolt: Carriage
5/16 x 2” (x2) . . . . . .
10M1032P
42
Bolt: Hex Head
5/16 x 3/4” (x12) . . . . . . . . . . . . . . . . . .
2M1012P
44
Bolt: Hex Fl. Head,
5/16 x 5/8” (x4) . . . . . . . . . . . . . . . . . . . .
B-5695
48
Screw: Round Head #10 (x1) . . . . . . . . . . . . .
22M0606P
54
Screw: Round Head #10 (x4) . . . . . . . . . . . .
1016890
53
Bolt: Hex Head
5/16” x 2-1/4”
(x2) . . . . . . . . . .
2M1036P-FT
55
Nut: Whiz Lock
5/16”-18 (x6) . . . . .
B-4355
56
Bolt: Carriage, SS
1/4 x 1-1/2” (x1) . . . . . . . . . . . .
11M0824P
43

71018959-B
==================================================================================================
ASSEMBLY
English Manual
Assembly Tips
- Illustrations on page 6 are to-scale.
For faster identification of hardware during assembly, lay the
hardware on top of the illustrations on page 6.
Additional
info & videos
are available
on our website:
brinly.com
This QR code
links directly to the
15-Gallon Sprayer
product page:
x4
50
48
A. Add a 5/16” at washer (50)
to a 5/16” ange bolt (48).
Run bolt through the circular
opening at the base of the
Left-Hand Bracket (1).
B. Add a 5/16” at washer (50)
to a 5/16” ange bolt (48).
Run bolt through the OVAL
OPENING of the Bracket (1).
A
B
Assembly Step 1
Attaching the Frame Brackets
NOTE: One edge of each of the
Frame Brackets (1 & 2 ) will have two holes,
one of which is an OVAL OPENING.
(This edge lays at against the sprayer tank).
Align the Left-Hand Frame Bracket (1) with
the Sprayer tank (3) as illustrated.
48
1
A
50
1
48
B
50
3
3
Repeat this step on the other side of the tank (3)
with the Right-Hand Frame Bracket (2).
SECURE ALL BOLTS FULLY.
Oval Opening >
Round
Opening >
61018959-B
==================================================================================================
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 [phone]
HARDWARE IDENTIFIER
Illustrations on this page are to scale for faster
identication of hardware during assembly.
English Manual
Washer:
Flat 5/8”
(x4) . . . . . .
45M2121P
7
Hitch Pin
(x1) . . . . . . . .
45
B-3861
Hitch Pin
Cotter (x1) . . . . . . .
49
D-14 6P
E-Ring
5/8” (x2) . . . . . . .
9
F-577
Washer:
Special (x4) . . . . .
R-618
50
Spacer: Axle (x2) . . . . . . . . . . . . . . . . .
B-5691
6
Nut: Nylon Lock
5/16 ” (x14). . . . . . .
47
B-478 6
46
Nut: Lock
1/4” (x1) . . . . . . . .
B-478 5
Nut: Jam
Plastic
(x2) . . . . . . . . .
20
B-6 041
Washer: Lock
SS #10 (x4) . . . . . . .
1007005
52
Bolt: Carriage
5/16 x 2” (x2) . . . . . .
10M1032P
42
Bolt: HexHead
5/16 x 3/4” (x12) . . . . . . . . . . . . . . . . . .
2M1012P
44
Bolt: Hex Fl. Head,
5/16 x 5/8” (x4) . . . . . . . . . . . . . . . . . . . .
B-5695
48
Screw: Round Head #10 (x1) . . . . . . . . . . . . .
22M0606P
54
Screw: Round Head #10 (x4) . . . . . . . . . . . .
1016890
53
Bolt: HexHead
5/16” x 2-1/4”
(x2) . . . . . . . . . .
2M1036P -FT
55
Nut: Whiz Lock
5/16”-18 (x6) . . . . .
B-4355
56
Bolt: Carriage, SS
1/4 x 1-1/2” (x1) . . . . . . . . . . . .
11M0 824 P
43
- Use the Sprayer box.
The sprayer tank is upside-down
and can easily shift for Steps 1-5.
During assembly you can work
with the sprayer tank resting on
top of the box, letting the tank cap
nestle down inside the box.

81018959-B
==================================================================================================
ASSEMBLY
English Manual
x4
From the outside edge,
run two 5/16” x 3/4” hex head
bolts (44) through the triangular
Axle Bracket (4) and Frame
Bracket (1).
Assembly Step 2
Attaching the Axle Brackets
Align the triangular Axle Bracket (4) with the
Frame Bracket (1) as illustrated.
1
Secure on the inside lip
of the frame bracket with
two 5/16” hex nuts (47).
47
44
Repeat this step on the other side of the
tank with the Right-Hand Frame Bracket (2).
SECURE ALL BOLTS FULLY.

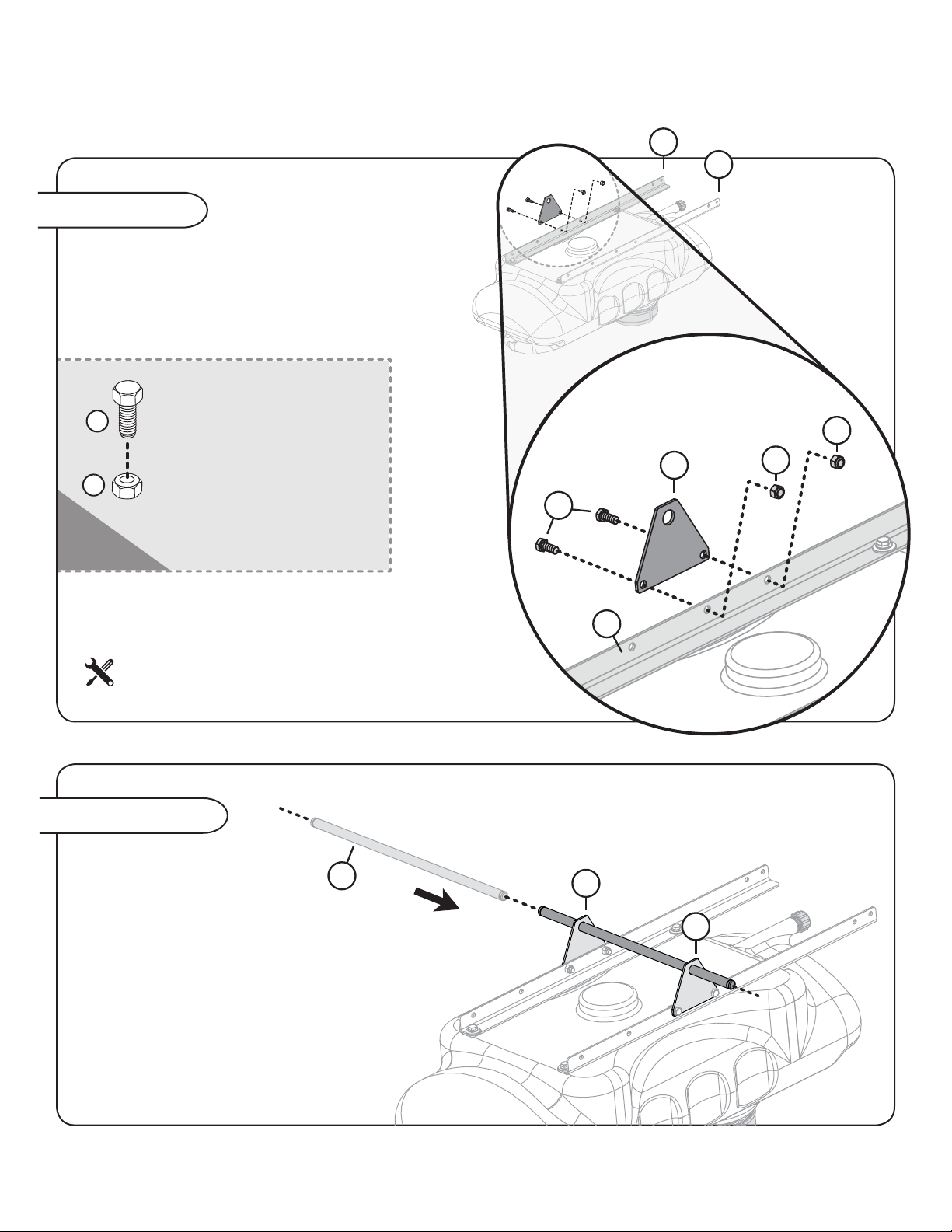

Assembly Step 3-A
As illustrated, run the
Axle (5) through the
triangular Axle Brackets
(4) that were added on
Step 2.
Adding the Axle 54
4
1
2
44
47
47
4

91018959-B
==================================================================================================
x4 44 47
Assembly Step 4
ASSEMBLY
English Manual
Assembly Step 3-B
In this order, add the following items
to the Axle (5) as illustrated:
- Spacer (6)
- Axle Washer (7)
- Wheel (8)
- Axle Washer (7)
Secure in place by sliding an
E-Ring (9) through the slot at the end
of the Axle (5). NOTE: You may need to
tap or push the retaining ring into place
by applying pressure with a tool.
Repeat this step on the other
end of the Axle (5).
Adding the Wheels
7
7
8
6
5
9
Align one of the Tow Bars (10)
against the Left Frame Bracket (1)
as illustrated.
From the outside edge, run two
5/16 x 3/4” hex head bolts (44)
through the Frame Bracket (1)
and Tow Bar (10).
Secure on the inside
edge of the tow bar with
two 5/16” hex nuts (47).
Repeat this step
against the other frame
bracket, attaching the
second Tow Bar (10).
Attaching the Tow Bars
10
1
44
47

10 1018959-B
==================================================================================================
43
46
10
Assembly Step 5
A. Run the 1/4” x 1-1/2 Bolt (43)
through the other end of the two tow
bars (10) that were added on Step 4.
Secure with a 1/4” lock nut (46).
B. Sandwich the two Clevis
Brackets (11) around the
end of the tow bars as
illustrated.
From below, run
two 5/16 x 2” Bolts (42).
through the square Clevis
Bracket (11) openings.
Secure each bolt fully with
a 1/4” lock nut (47).
C. From below, run the Clevis Pin (45)
through the large, circular opening of
the Clevis Brackets (11).
Secure the Clevis Pin (45)
with a Cotter Pin (49).
NOTE: You may need to tap or push the
cotter pin into place by applying pressure
with a tool.
Adding the Clevis
ASSEMBLY
11
11
47
45
11
11
42
49
45
English Manual
NOTE: Please DO NOT tighten until the tow bars are touching. Allow a gap for the bolts on Step 5-B.

11 1018959-B
==================================================================================================
x2 x2
Assembly Step 6
The left and right boom
supports (12 and 13) have a
lip at the top that will project
away from the spreader tank
as illustrated.
From the
OUTSIDE edges, add the
5/16 x 3/4” Bolts (44) through
the boom supports (12 and 13)
and frame brackets (1 and 2).
Secure with a 3/4” lock nut (47).
Adding the
Boom Supports
ASSEMBLY
Flip Sprayer Over
12
13
44
47 47 44
1
2
44 47
LEFT
BOOM
SUPPORT
12
FRAME
BRACKET
1
+
44
47
RIGHT
BOOM
SUPPORT
13
FRAME
BRACKET
2
+
English Manual

12 1018959-B
==================================================================================================
Assembly Step 7
A. Align the Cross Brace (14) across the two Boom
Supports (12 and 13) added on Step 6.
B. From below the lip of the boom supports (12 and 13),
run the 5/16 x 2-1/4” Bolt (55) up, as illustrated here.
Secure the Bolt (55) in place with a
Whizz Nut (56).
C. Add a Whizz Nut (56) to the Bolt (55).
Rotate the nut down, leaving about half the
length of the bolt exposed.
D. Add the Boom Arms (15 and 16) to the Bolts (55) with
the slightly angled tabs at the end pointed down, as
illustrated here.
Secure each Boom Arm with another Whizz Nut (56).
Adding the Cross Brace
Adding
the Boom Arms
ASSEMBLY
56
14
55
55
56
56
15
16
56
56
55
55
56
NOTE: The lip of the Whizz
Nut (56) needs to face down,
against the cross Brace (14).
56
NOTE: The lip of the last Whizz Nut (56) needs
to face down, against the boom arms.
56
56
NOTE: The lip of the Whizz
Nut (56) needs to be facing
up, toward the boom arms to
be added on this step.
12 13
English Manual

13 1018959-B
==================================================================================================
ASSEMBLY
x4
Assembly Step 8
Find the at panel beside the lid of the
Tank (3). Align the Pump (17) with the
four small openings on that at panel.
Add a #10 Lock Washer (52)
to four of the #10 x 5/8” Round
Head Screws (53).
Use these
four screws to
secure the Pump (17)
to the Tank (3).
Attaching the Pump
53
52
Assembly Step 9
Find the remaining small opening
beside the lid of the Tank (3).
Align the Wand Bracket (18) as
illustrated here.
Secure this bracket with a
small #10 x 3/8” Round Head
Screw (54).
Adding the Wand Bracket 54
18
NOTE: Alignment on this step is crucial for the sprayer to
function properly. The Pump has a very small arrow indicating
the Barb ow. This arrow needs to point to the tank lid.
53
3
17
52
English Manual

14 1018959-B
==================================================================================================
ASSEMBLY
English Manual
19
21
19
20
19
20
15

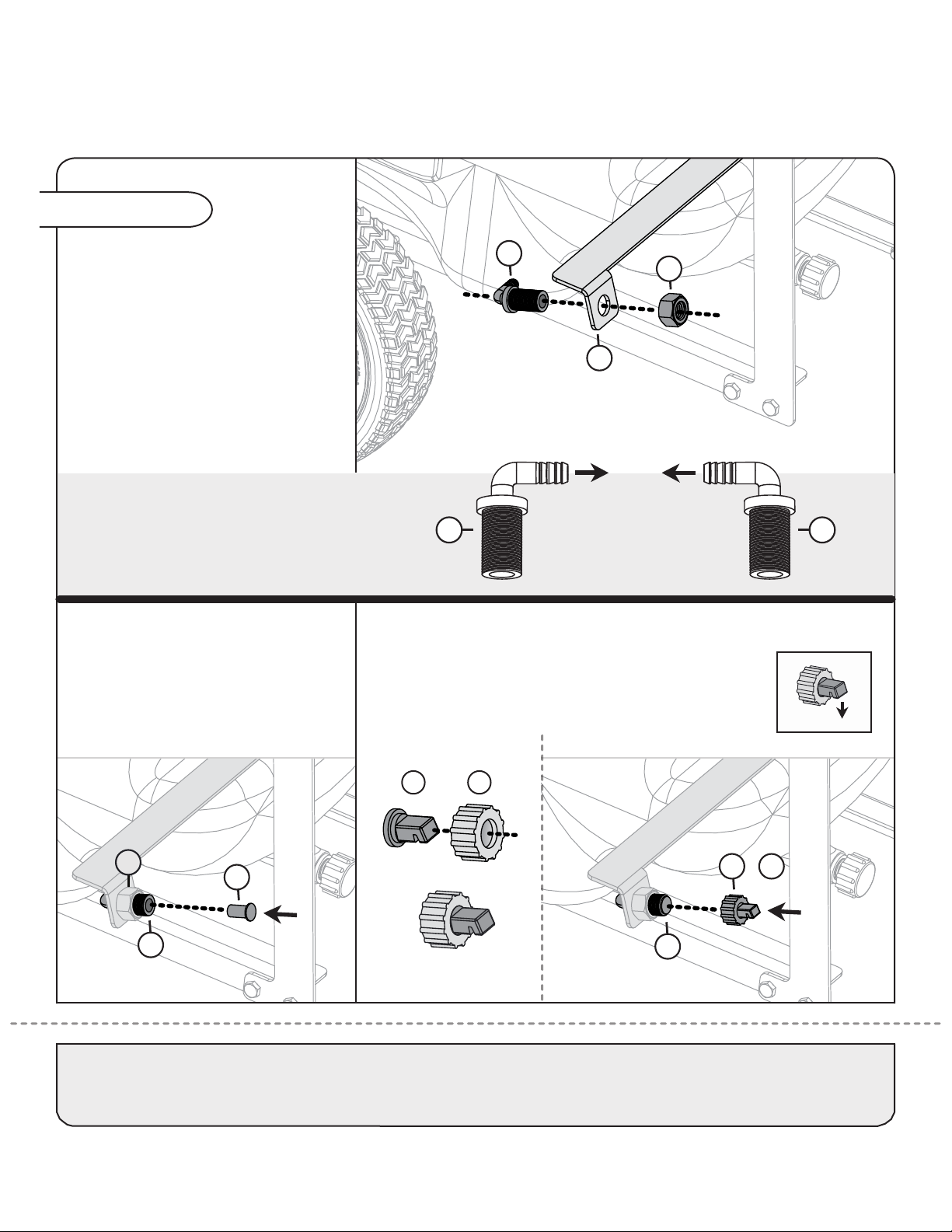

Assembly Step 10
A. Left Boom Arm
From below the Left Boom
Arm (15), slide the thick end
of a 90º Nozzle Body (19) as
illustrated here.
Secure in place with
a Jam Nut (20).
B. Add the Filter (21) by guiding
it down into the opening of the
90º Nozzle Body (19) as
illustrated.
D. While holding the tip of the
Red Nozzle (23) pointing
down toward the ground,
add this to the 90º Nozzle
Body (19).
E. Right Boom Arm
Repeat 10-A through 10-D to attach the second Boom Nozzle (19) to the Right Boom Arm (16).
Adding the Boom Nozzles
19 19
NOTE: The 90º Nozzle Bodies (19) added on this
step need to point toward each other before being
secured fully.
C. Slide the
Red Nozzle (23)
through the
Fitting Nut (22).
+
23 22
=
+2322

15 1018959-B
==================================================================================================
ASSEMBLY
THERE ARE
SIX DIFFERENT
HOSES FOR THIS
PRODUCT
17”
22”
8”
12’ (144”)

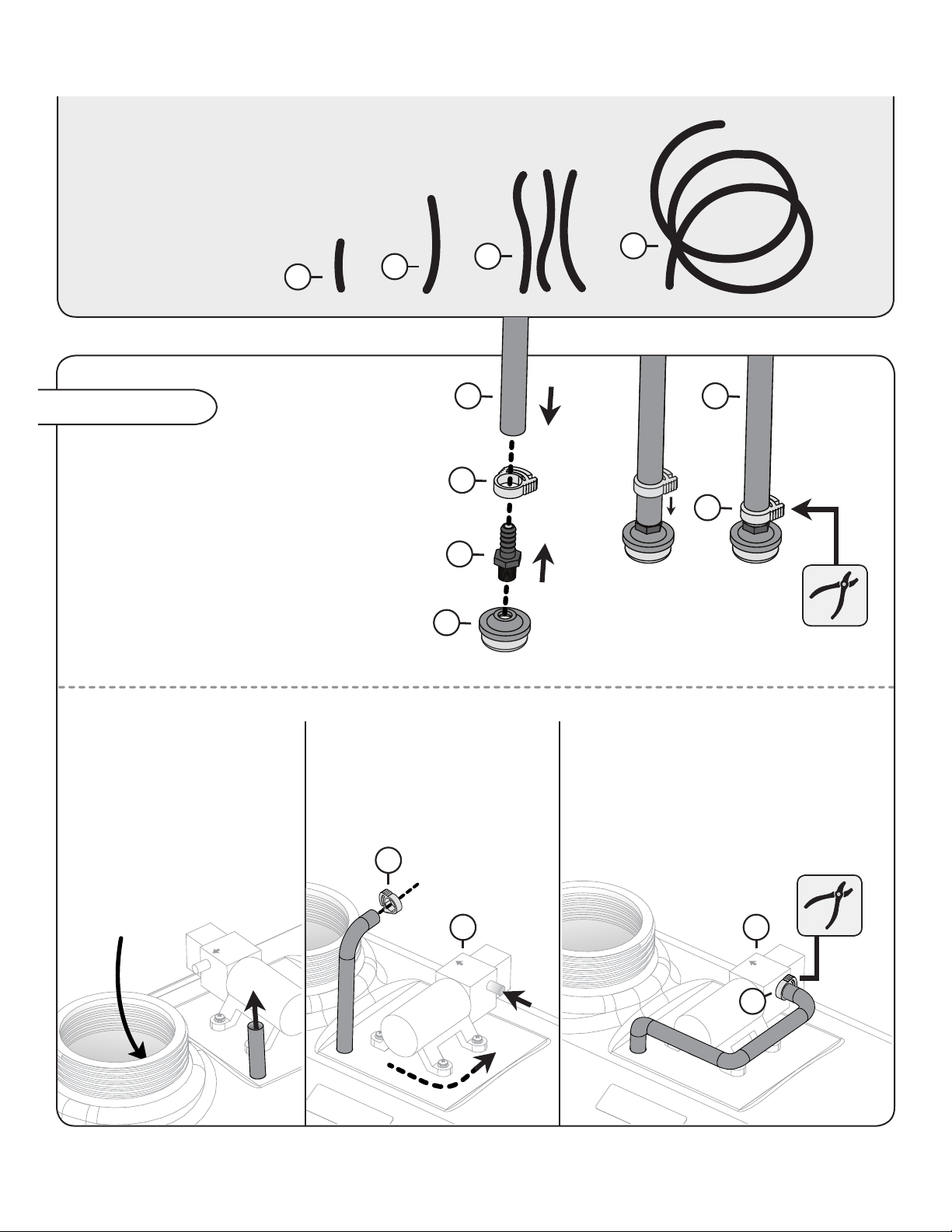

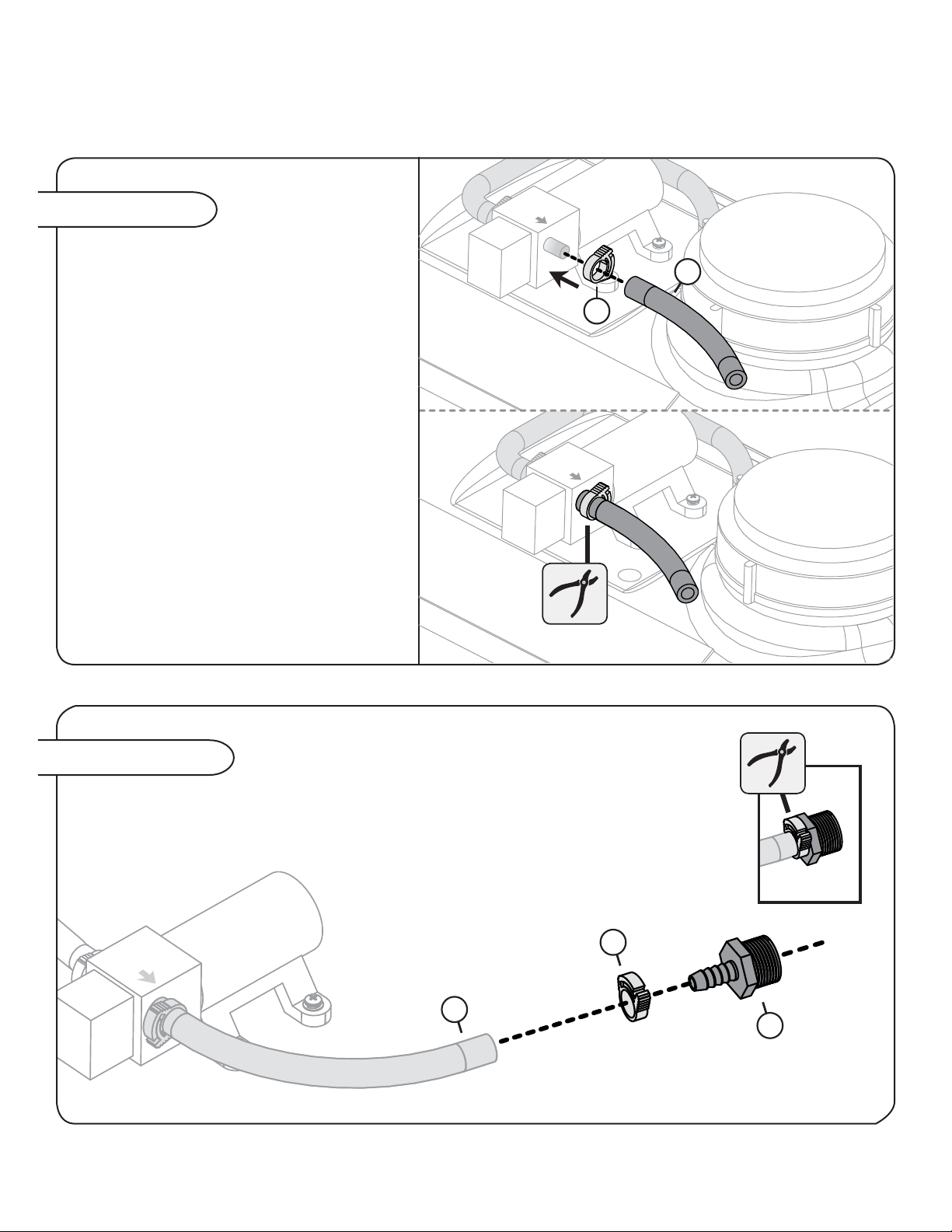

Assembly Step 11
Slide a Clamp (28) on one end of a
22” Hose (26).
Insert the ridged end of an Adaptor (29) into
the hose, then attach the 1/4” Strainer (30)
to the other end of the adaptor.
Slide the clamp toward the adaptor (29) /
near the end of the Hose (26) and clamp
fully with pliers.
Remove the tank cap and
drop the hose down inside
the tank.
Reach inside the tank and
feed the raw end of the hose
up and out, through the
opening just beside
the pump.
Slide a Clamp (28) to the raw
end of the hose, then connect
the hose on the barb of the pump
(17) facing away from the lid of
the tank.
Conrm again that the pump was installed the
correct direction. There is a small arrow beside
one of the barbs. This hose connects to the
barb WITHOUT an arrow indicator.
Slide the clamp (28) toward the pump (17)
and secure it fully with pliers.
Replace the tank cap.
Adding the First 22” Hose
30
29
28
26 26
28
26
25
24
27
English Manual
28
17 17
28

16 1018959-B
==================================================================================================
ASSEMBLY
Assembly Step 12
Add a Clamp (28) on the end
of the 8” Hose (24).
Switching to the other side of the
pump (17), slide the hose onto the
remaining barb extending toward
the lid of the tank.
Note: Beside this barb, there
is a very small arrow noting
the direction of ow.
Move the clamp (28) close to the
pump (17) and squeeze it, securing
in place with pliers.
Adding the 8” Hose 24
28
English Manual
Assembly Step 13-A
31
28
24
Add a Clamp (28) over the other end of the 8” Hose (24) that was installed on step 12.
At the end of the hose, insert the barbed end of Fitting (31), then slide the clamp toward
the tting and secure in place with pliers.

17 1018959-B
==================================================================================================
32
31
x2
Insert a Hose Barb (33) through a
Hose Swivel Nut (34).
Attach the two hose assemblies
to the Dual T-Valve (32) as illustrated.
NOTE: Hand tighten only.
NOTE: If you are using a tool to
insert the washer (35), be careful to
not damage the threading inside
the swivel nut (34).
35
33 34
35
33
34
34
33
Follow with a 3/4” Vinyl
Washer (35).
35
32
ASSEMBLY

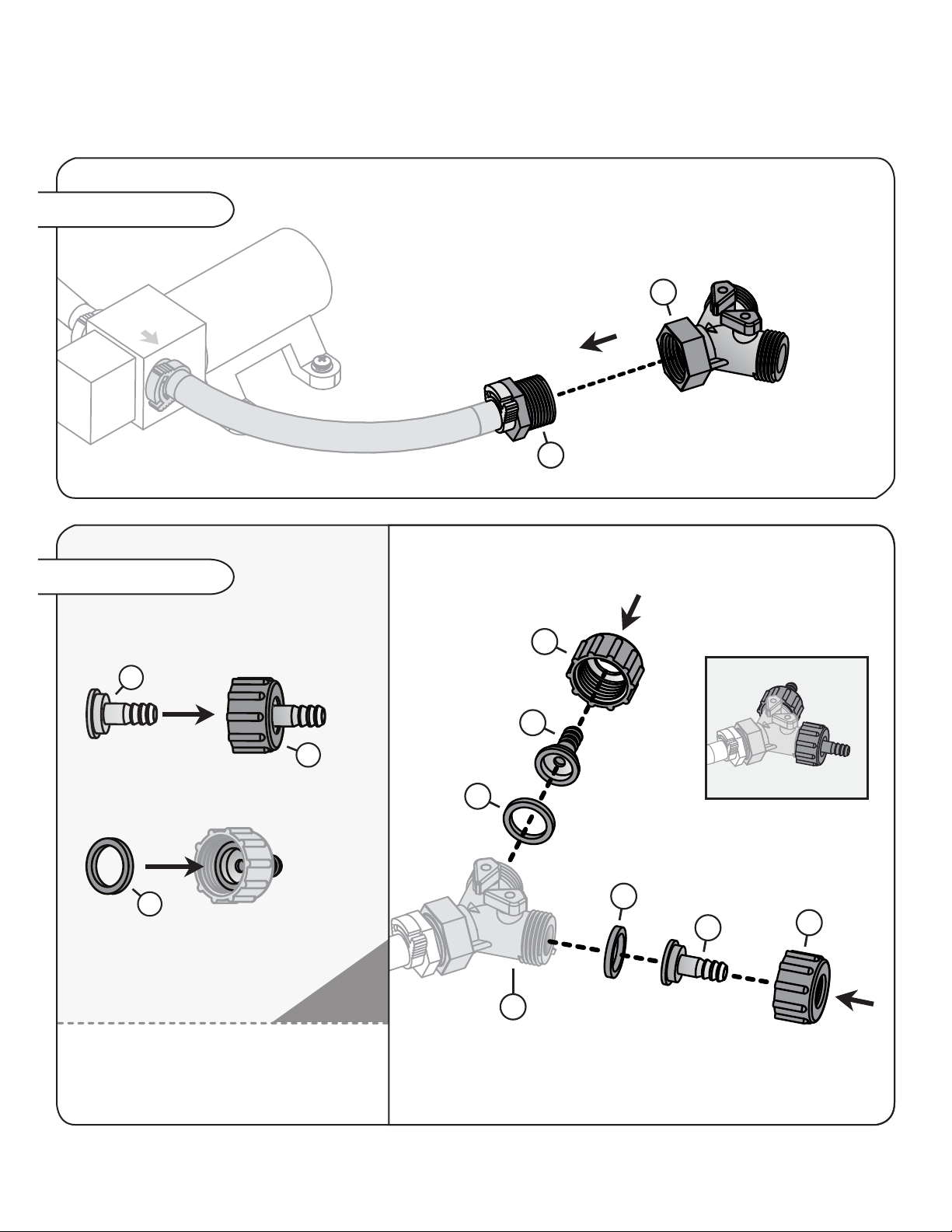

Assembly Step 13-B
Assembly Step 13-C
English Manual
Add the Dual T-Valve (32) to the Fitting (31) that was
installed on step 13-A. NOTE: Hand tighten only.

18 1018959-B
==================================================================================================
ASSEMBLY

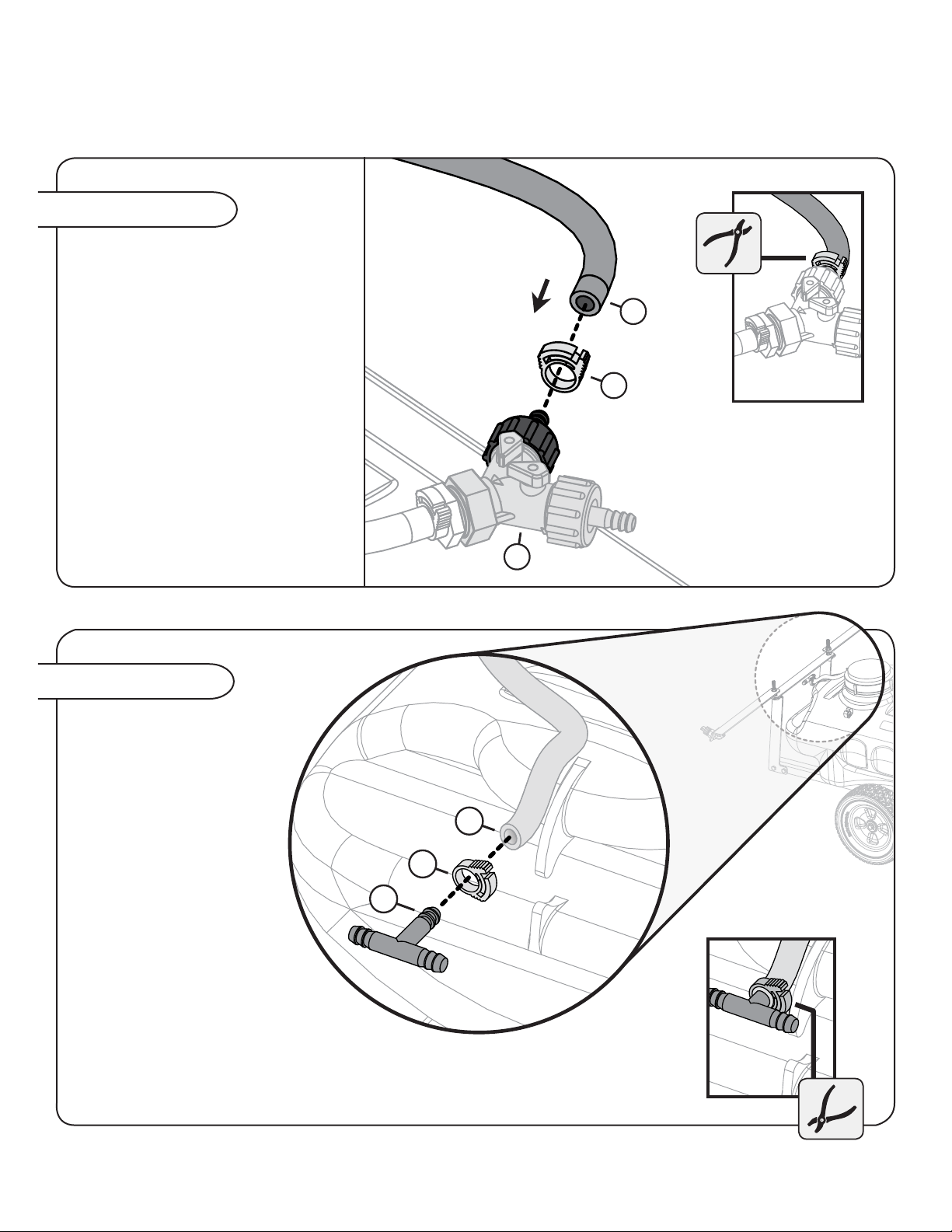

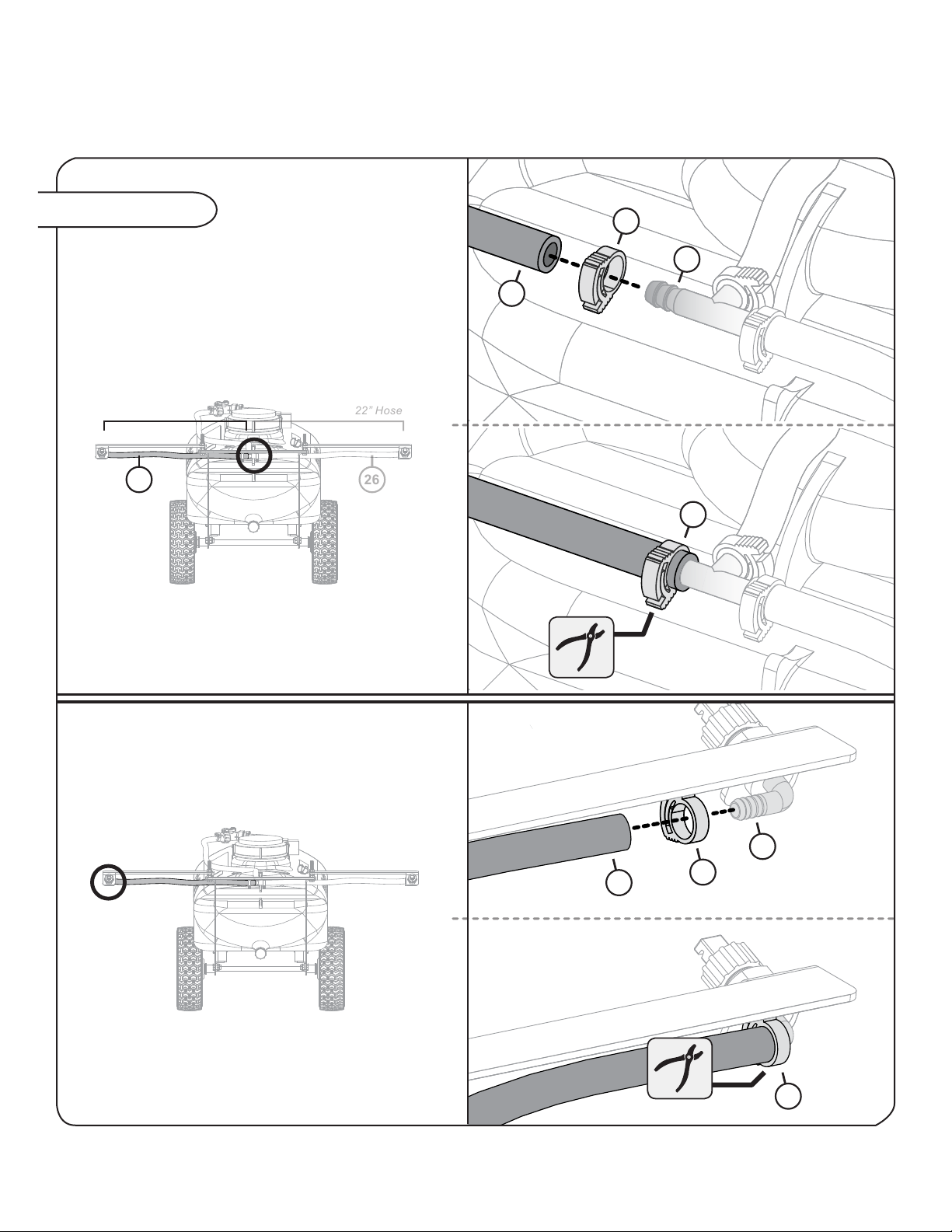

Assembly Step 14-A
Assembly Step 14-B
Add a Clamp (28) on
the end of a 22” Hose (26).
Connect hose to the LEFT side
barb of the Dual T-Valve (32).
Move the clamp (28) close
to the Valve (32) and squeeze it,
securing in place with pliers.
Move the other
end of the 22” Hose (26)
to the back of the
sprayer tank.
Add a Clamp (28) to
the end of the hose.
Insert the bottom
of the T-shaped Hose
Barb (36) into the hose.
Adding the Second 22” Hose
Adding the
Second 22” Hose
Move the clamp (28) close to the T-shaped Hose Barb (36) and secure in place with pliers.
28
32
26
28
26
36
English Manual

19 1018959-B
==================================================================================================
19 28
26
28
19
28
26
36
28
26
ASSEMBLY

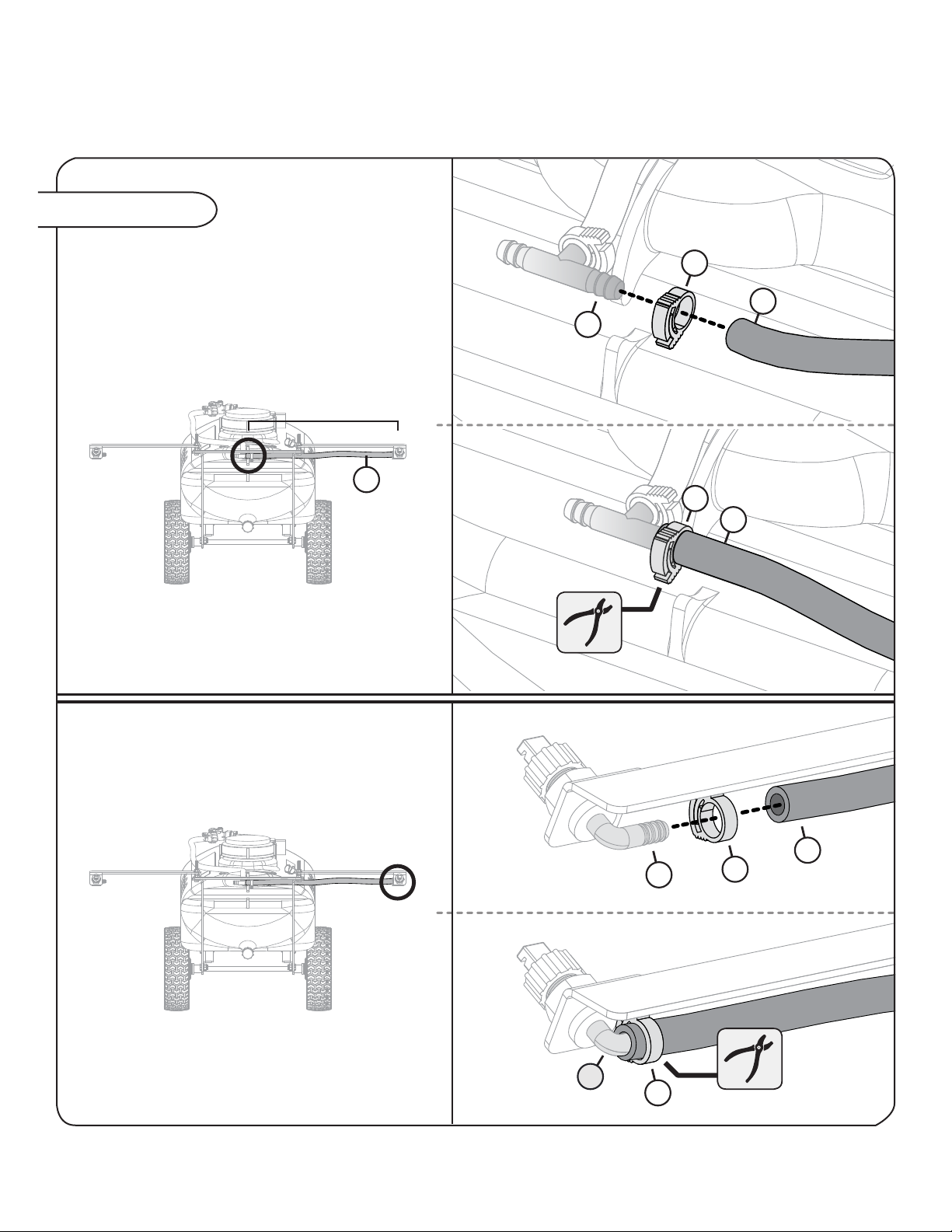

Assembly Step 15
Adding the Third 22” Hose
Add a clamp (28) on one end of the last 22”
Hose (26), then slide the hose over the RIGHT
side barb of the T-shaped extension (36) added
on Step 14-B.
Move the clamp (28) close to the T-Shaped
extension (36) and squeeze it, securing in place
with pliers.
Add a clamp (28) on the other end of the hose (26),
then slide the hose over the 90º Nozzle Body (19)
attached to the boom arm as illustrated.
Move the clamp (28) close to the 90º Nozzle
Body (19)and squeeze it, securing in place
with pliers.
English Manual
22” Hose
26

20 1018959-B
==================================================================================================
25
28
36
ASSEMBLY
Assembly Step 16
Adding the 17” Hose
Add a clamp (28) on one end of the last 17” Hose
(25), then slide the hose over the LEFT side barb
of the T-shaped extension (36) added on Step
14-B.
Move the clamp (28) close to the T-Shaped
extension (36) and squeeze it, securing in place
with pliers.
Add a clamp (28) on the other end of the hose (25),
then slide the hose over the 90º Nozzle Body (19)
attached to the boom arm as illustrated.
Move the clamp (28) close to the
90º Nozzle Body (19)and squeeze it, securing
in place with pliers.
19
25 28
28
28
English Manual
22” Hose
26
25
17” Hose
