Briot emotion User manual

Operation manual

Dear Customer,
You have purchased an emotion edger and all the team at Briot International would like to thank you for this
mark of your confidence.
The emotion edger is a laboratory machine designed for opticians and is used for carrying out operations
such as creating and selecting jobs, centering and blocking spectacle lenses, edging and drilling lenses, drilling
frames.
We advise you to read this manual carefully and keep it near the machine in order to be able to refer to it
easily.
The information contained in this manual is not contractual and can be modified without prior notice. This
document has been prepared with great care, but some unintentional errors or omissions may occur,
although every effort has been made to avoid them. Briot International cannot, in any circumstances, be
held responsible for any possible operating faults that might result from such errors or omissions.
BRIOT INTERNATIONAL DOES NOT GUARANTEE THE PERFORMANCE OF THE emotion IF THE
INSTRUCTIONS CONTAINED IN THIS MANUAL ARE NOT OBSERVED.
2, rue Roger Bonnet
27 340 PONT DE L'ARCHE
FRANCE
Tel. +(33) 02 32 98 91 32
Fax: +(33) 02 35 02 02 94
www.briot.com
DEPENDING ON THE MACHINE VERSION AND OPTIONS AND ON
THE DATE AND COUNTRY OF SALE, SOME EQUIPMENT
ITEM(S)/FUNCTION(S) DESCRIBED IN THIS MANUAL MAY NOT
BE INCLUDED IN YOUR MACHINE.

ΘGRAPHIC CODES
Different graphic codes have been used in this manual to allow the user to distinguish between different types of
information and easily spot the items which demand special attention (e.g. safety-related items).
The table below lists all the codes and describes them:
TABLE 1: DESCRIPTION OF THE PICTOGRAMS
Graphic
Code Description
Vital warning: Risk of human injury or material damage and machine malfunction.
Follow the instructions carefully.
Vital recommendation: Risk of machine damage or malfunction.
Follow the instructions carefully.
Vital preliminary action
Before undertaking any action, check that the machine is disconnected.
Electrical hazard.
Heavy component.
In particular, a second person is necessary to carry and move the machine.
Rotating component.
In particular, do not put your hands near to the wheel unit.
Attaching component.
In particular, beware of the clamping shafts closing.
Protective gloves must be worn.
Especially for cleaning and changing the tanks.
Protective goggles must be worn.
Especially for cleaning and changing the tanks.

Treatment of Waste Electrical and Electronic Equipment
(applicable in the European Union and in European countries
using a selective collection system)
This symbol affixed to the product or to its packaging indicates that the product will not be
treated like household waste. Instead, it must delivered to the designated collection point where
electric and electronic equipment may be recycled. By ensuring that this product is correctly
disposed of, you will help prevent potentially harmful environmental and human consequences
due to improper handling when improperly disposed of. The use of recovered materials
preserves natural resources.
For more information about where you can drop off this product for recycling, please contact
your local waste disposal service or the shop where you purchased this product.
Overalls must be worn.
Especially for cleaning and changing the tanks.
TABLE 1: DESCRIPTION OF THE PICTOGRAMS
Graphic
Code Description

\\Table of contents
INSTALLATION
Unpacking the machine 1.13
Warning
Procedure
Removing the shipping rails 1.15
Conditions
Procedure
Preparing the bench 1.17
Machine dimensions
Floor space and drilling required
Water connections 1.19
Specifications
General
Filtration tank with pump
Pump
Pipe connections
Find the openings on the chassis
Procedure
Electrical connections 1.23
Specifications
Edger wiring
Procedure
Starting the edger 1.25
Procedure
Switching the machine ON/OFF
SAFETY PRECAUTIONS
Safety 2.29
Operator
Machine
Recommendations 2.31
USING YOUR EDGER
Presentation 3.35
Presentation of the machine
Description of the stations
Touch screen
Centering/blocking system
Scanform / Drilling
Edger
Presentation of the application screen
Work interface
Zone identification
Reading sequence
Visual references
General principles of use 3.41
Usual procedure : Job creation/selection
Calling/Creating a job/pattern
Entering the frame data or a pattern
Usual procedure : Digiform/Drilling
Modifying the shape of a pattern
Positioning the drilling holes
Usual procedure: Blocking/centering system
Usual procedure: Edging
Flow chart
Inserting / Removing the lens
Starting / interrupting an edging cycle
Normal edging cycle sequence
Important notes
Application screen icons 3.51
Job
Job screen
Drilling / Digiform
Modifying the pattern
Drilling screen
Centering/blocking system
General
Edger
General
Lens materials
Types of lenses
Finishing
Sub-finishing and associated parameters
Safety-bevels
Polishing
Usual procedure 3.59
Job Creation/Selection
Calling up a job saved in the memory
Saving a shape in the shape base
Deleting a shape/a job saved in the memory
Drilling
Procedure
Facts worth knowing
Hints
Limits
Blocking/centering
Edging
Producing a job with rimless finishing
Producing a job with groove finishing
Producing a job with bevel finishing
Special cases 3.73
Modifying a shape - Digiform function
Introduction
Procedure
Applying an oversize
Why?
How?
Hints
Important notes
Limits
Edging the left lens with different parameters from
those of the right lens
Principle
Procedure
Edging several lenses identically
Principle
Procedure
Checking a finishing before the lens is edged
Principle
Presentation
Visualise a finishing
Placing a finishing manually
Produce a manual bevel
Produce a manual groove
Feel the lens again
Operating ranges: 3.87
Points to remember
Illustration of finishing limits
Rimless Finishing
Bevel Finishing
Inclined Groove Finishing
Drilling
Conditions
Limits of hole positioning
Limits related to the thickness of the lens
Limitation of the lens characteristics (blocker/pattern)
Lens characteristics
CONFIGURATION
Presentation of configuration menus 4.95
Presentation of the configuration menus access screen
Screen description
Access / Exit
Presentation of the personalisation menus access

\\Table of contents
screen
Screen description
Access / Exit
Configuration of finishing parameters
default values 4.97
Presentation
Principle
Screen description
Access / Exit
General procedure
Saving the new configuration
Limits
Bevel
Groove
Safety-bevel
Adjustment of the setting values 4.103
Preliminary remarks
Procedure
Correction of frame and lens values 4.105
Preliminary remarks
Procedure
Configuration of general operating
parameters 4.107
Presentation
Principle
Screen description
Access / Exit
Configuration of the functions
Selecting the dialog language
Activating size compensation according to temperature
Enabling size compensation according to wheel condition
Enabling size compensation according to the bowing/
flattening of the frame
Saving the new configuration
Configuration of Communication
parameters 4.109
Presentation
Principle
Screen description
Access / Exit
Enabling / Disabling communication functions
MAINTENANCE
Presentation of maintenance menus 5.113
Presentation of the maintenance menus access screen
Screen description
Access / Exit
Presentation of the maintenance screen
Screen description
Access / Exit
Visualising the components 5.115
Task list 5.117
Maintenance of the touch screen unit
5.119
Cleaning the touch screen
Maintenance of the Scanform unit 5.121
Cleaning the Scanform
Replacing a stylus tip
Replacing the frame clip tubes
Replacing the centering plate
Maintenance of the centering/blocking
system zone 5.125
Cleaning the ground glass screen
Cleaning the lower lens of the collimator
Replacing the main fuse
Regular maintenance of the edger 5.127
Replacing the flexible lens clamp adaptor pad
Preliminary remarks
Procedure
Replacing the mill bit
Preliminary remarks
Procedure
Hints
Replacing the lens feeler tips
Preliminary remarks
Procedure
Hints
Dressing a wheel
Preliminary remarks
Procedure
Hints
Cleaning / replacing the removable visor
Preliminary remarks
Replacing the visor
Hints
Cleaning the filters and water tank
Preliminary remarks
Procedures
Hints
Emptying the water tank
Preliminary remarks
Procedure
Hints
Handling the covers 5.147
Removing the covers
When?
How?
Replacing the covers
Preventive maintenance 5.149
Hints
Replacement table for standard parts
Adjustments 5.151
Presentation of the settings menus access screen
Screen description
Access / Exit
Adjusting the Scanform
Adjusting the feeling
When?
Procedure
Hints
Adjusting the sizes
When?
Procedure
Adjusting the flush of the mill bit
When?
Procedure
Hints
Adjusting the touch screen
When?
Procedure
Hints
Consulting the setting values
Presentation
Access/Exit/Navigation
Presentation of the setting value screens
Consulting the statistics 5.169
Presentation of the statistics menu
Screen description
Access/Exit
Consultation principles
Incident log
General operation of the machine

\\Table of contents
Messages 5.185
Types of messages
List of messages.
TESTS
Presentation of test menus 6.197
Presentation of the test menus access screen
Screen description
Access / Exit
Typical test screen
Operating principle 6.199
Operating principle of a typical screen
Tests involved
Procedure
Test sequence
Operation of the other screens
Screen with switch
Screen with micro-switches and photocells
TECHNICAL SPECIFICATIONS
Characteristics 7.213
Technical specifications 7.214
Characteristics
EC Standards:

\\Table of contents

REVISION FOLLOW-UP
Revision 01
Page New/Modified Item
New document

...
3-10

1 INSTALLATION

1-12
UNPACKING THE MACHINE
#1&2 #3&4
#5
#8&9
Keep the case, the
small carton and the
hose near the
machine.
#6&7

1-13
=> Installation
1.1 UNPACKING THE MACHINE
1.1.1 WARNING
> Ensure that the machine is placed in accordance with the TOP and BOTTOM signs on the box.
> Place the machine on a flat and stable surface.
1.1.2 PROCEDURE
Follow the steps below to unpack the machine:
Flow chart 1-1: Unpacking the edger
#1 Place the machine on the floor in its packing with the help of another person.
#2 Cut the two straps on the main packaging carton.
#3 Cut the adhesive tapes on the main packaging carton.
#4 Check that the accessories (small box, case and tube) have been supplied
and keep them close to the machine.
#5 Pull the main packaging carton upwards and remove it.
#6 Cut the two straps on the second packaging carton.
#7 Cut the adhesive tape on the second carton.
#8 Pull the second packaging carton upwards and remove it.
#9 Remove the plastic protection from the machine.
#10 With the help of a second person, lift the machine by the rails and place it
on the work bench.
#11 Keep the packaging cartons. We advise you to stock them flat.

Installation...Unpacking the machine
1-14

1-15
=> Installation

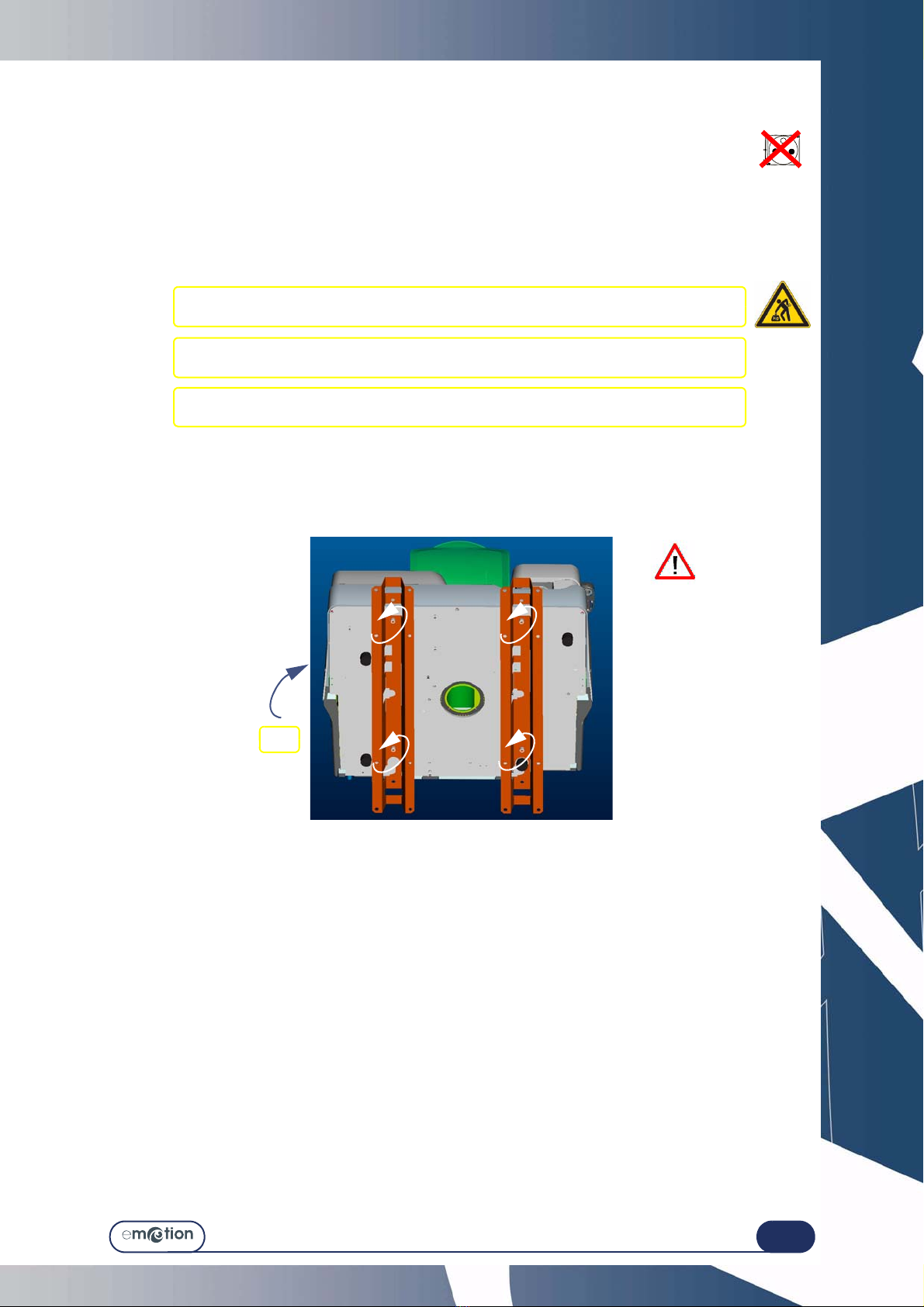

1.2 REMOVING THE SHIPPING RAILS
1.2.1 CONDITIONS
> The machine is placed on the work bench.
> There is enough space around the machine.
1.2.1.1 PROCEDURE
To remove the shipping rails, follow the procedure below:
Flow chart 1-2: Removing the shipping rails
→ As shown...
Illustration 1-1: Removing the fixing screws from the shipping rails
#1 With the help of a second person, tip the machine gently to the rear so as to
have access to the 4 rail fixing screws.
#2 With a 13 mm Allen key, take out the 4 fixing screws and remove the rails.
#3 Keep the shipping rails with the rest of the packaging cartons.
#1

Installation...Removing the shipping rails
1-16

1-17
=> Installation
1.3 PREPARING THE BENCH
1.3.1 MACHINE DIMENSIONS
The following illustrations show the machine dimensions.

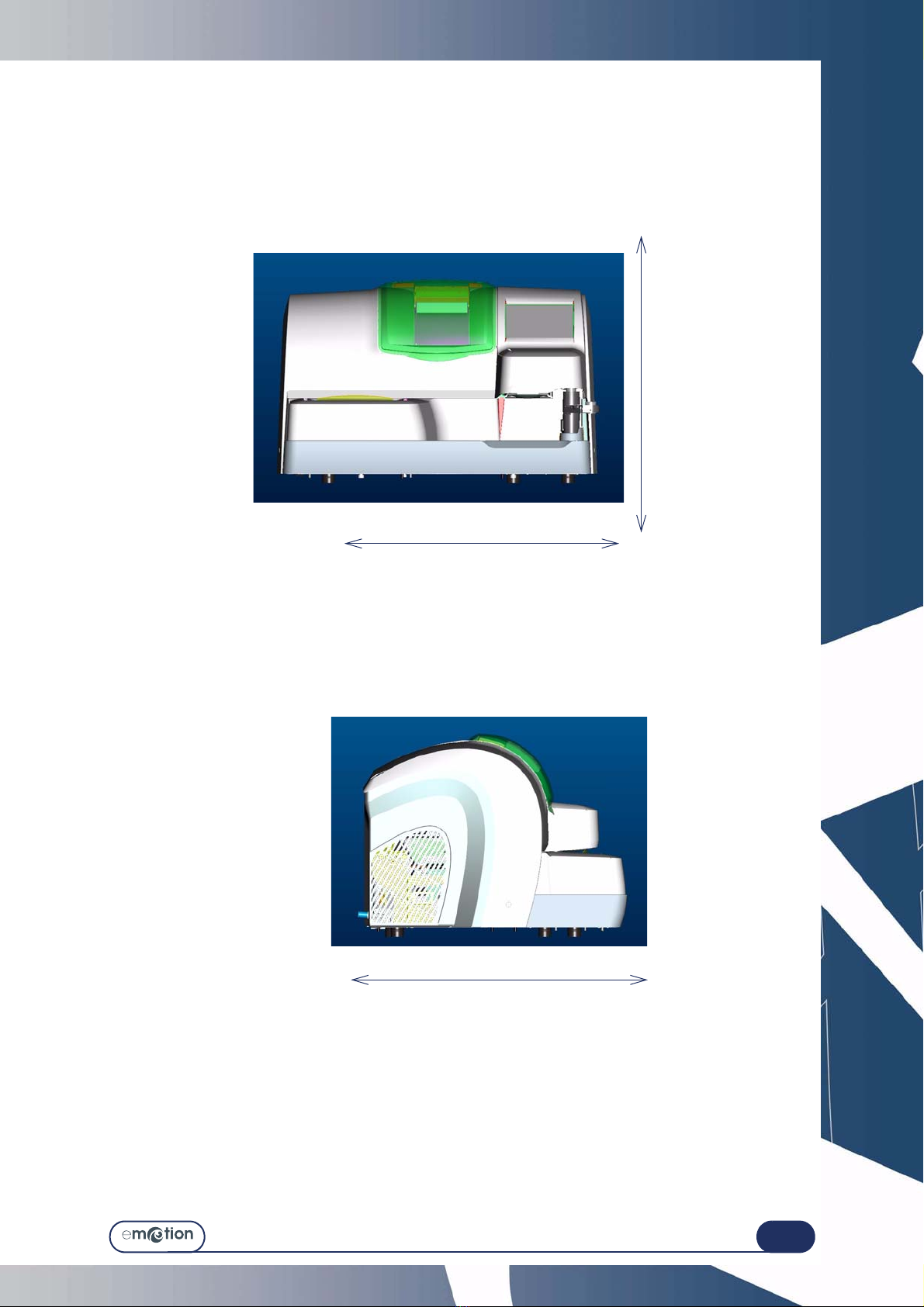

Flow chart 1-3: Edger dimensions
→ Height = 442 mm
→ Width = 728 mm
→ Depth = 600 mm
→ Weight = 75 kg
H = 442 mm
W = 728 mm
D = 600 mm

Installation...Preparing the bench
1-18
1.3.2 FLOOR SPACE AND DRILLING REQUIRED
ΘILLUSTRATION
The following sketch shows the positioning of the machine on the bench and the openings which must be
provided.
Position your machine correctly before drilling the bench!
Illustration 1-2: Positioning the machine on the bench and drilling to be made
ΘRECOMMENDATIONS
Follow the dimensions given.
Leave enough space around the edger.
Ensure that the bench is stable and level.
Install the edger away from any source of heat.
Discharge

1-19
=> Installation
1.4 WATER CONNECTIONS
1.4.1 SPECIFICATIONS
1.4.1.1 GENERAL
> Water intake with a stop-valve fitted with a 20 x 27 mm female connector and a filter seal.
This stop-valve must be reserved for the machine and placed at a maximum of 80 cm from the place
provided for the machine.
The stop-valve must be easy to reach and closed when not in use.
> Water pressure = 4 - 7 bars
> Water discharge through a 100 mm diameter pipe.
The slope must be at least 5% to ensure proper evacuation of the refuse.
1.4.1.2 FILTRATION TANK WITH PUMP
> W 600 x H 400 x D 315 mm
> 60-liter capacity
> Three levels of filtration
1.4.1.3 PUMP
> W 400 x H 230 x D 300 mm
> Power = 450 W max.
> Q = 20/220 l/min
> V = 220 - 240 V
> H = 8 - 1 m
> F = 50 Hz
> IP = 68
1.4.2 PIPE CONNECTIONS
1.4.2.1 FIND THE OPENINGS ON THE CHASSIS

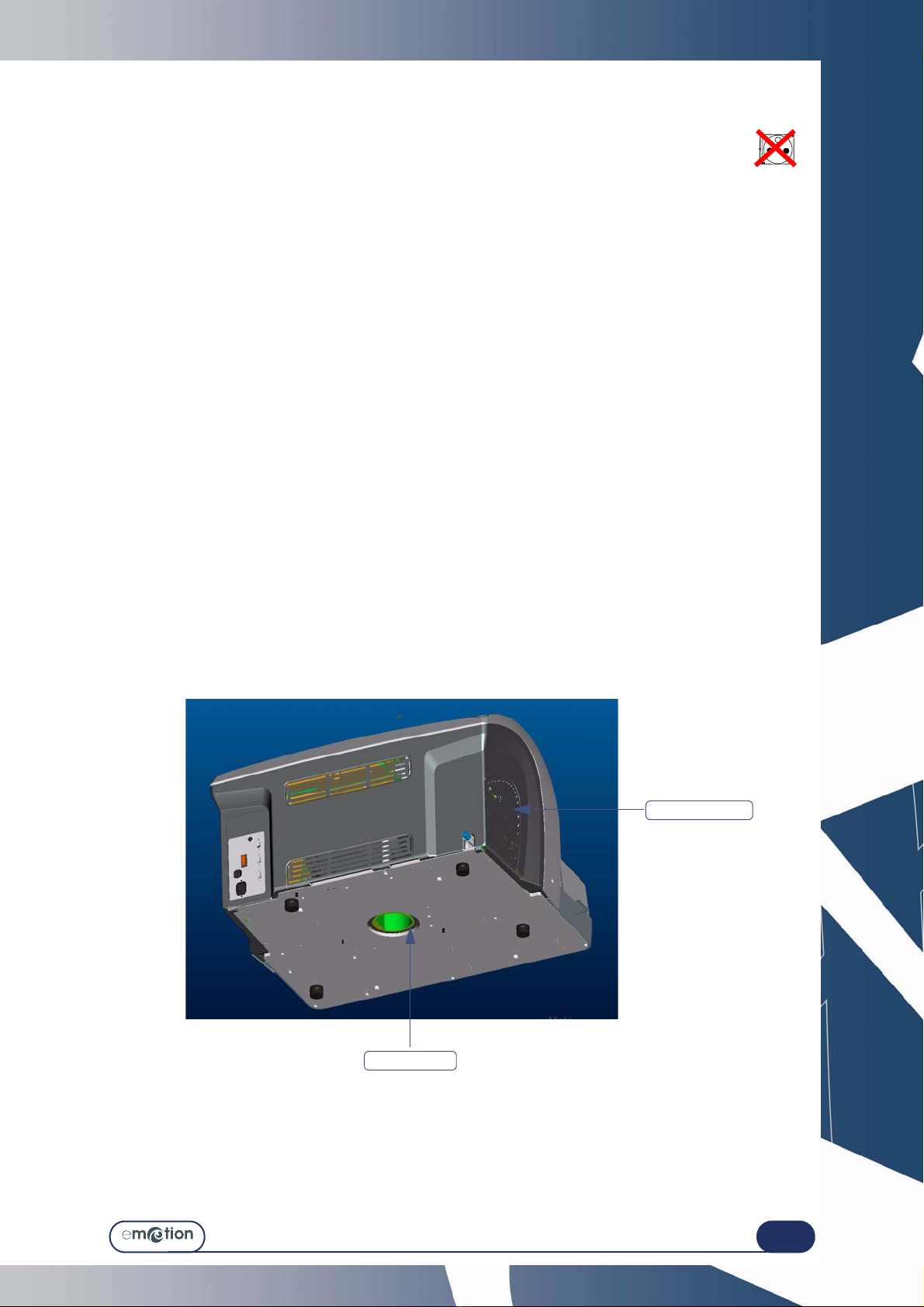

Illustration 1-3: Chassis openings
Discharge
Water supply
