Briot Silver User manual

Dear Valued Customer,
You have acquired a Silver edger. We would like to thank you for the
confidence you have shown in our brand.
This edger has been manufactured with the greatest care. Before
using it in the best possible conditions, we advise you to read this
manual carefully and to keep it near your workstation, where you will
be able to refer to it easily.
The information contained in this manual does not form a contract
and can be modified without notice. Such a document may contain
errors or omissions although everything has been done to avoid
them. Briot cannot, in any circumstances, be held responsible for
any possible defects that might result from the errors or omissions.
2, rue Roger Bonnet
27340 PONT DE L'ARCHE
FRANCE
Tél. : [phone] - Fax : [phone]

Table of contents
Silver FC 00 511 i
TABLE OF CONTENTS
ON-SITE REPAIR
Technician visits ______________________________________________________3
INSTALLATION / STARTING
General view _________________________________________________________7
Unpacking Machine ____________________________________________________8
Safety Precautions____________________________________________________11
Recommendations ________________________________________________________ 11
Installing the Machine ______________________________________________________ 11
USE
Introduction to the machine _____________________________________________17
Keypad/screen interface ____________________________________________________ 17
Scanform™ unit___________________________________________________________ 19
Basic Concepts ___________________________________________________________ 20
Precautions for use ___________________________________________________23
Standard use ________________________________________________________24
Creating a job ____________________________________________________________ 24
Tracing Mode ___________________________________________________________________ 24
Tracing a frame shape ____________________________________________________________ 25
Tracing a pattern or a demonstration lens shape ________________________________________ 26
Laying out and blocking a lens _______________________________________________ 28
Lay-out/Blocking Mode ____________________________________________________________ 28
Laying out and blocking the lens ____________________________________________________ 29
Edging a lens_____________________________________________________________ 32
Edging Mode____________________________________________________________________ 32
Edging a Lens ___________________________________________________________________ 33
Re-feeling a lens _________________________________________________________________ 35
Beveling a lens __________________________________________________________________ 36
Retouching a Lens _______________________________________________________________ 38
Operational limits _____________________________________________________39
Scanform™ unit___________________________________________________________ 39
Frame tracing limits ______________________________________________________________ 39
Pattern tracing limits ______________________________________________________________ 39
Lay-out /blocking unit_______________________________________________________39
Edging Station ____________________________________________________________ 39
Memory _________________________________________________________________ 39
MAINTENANCE
User maintenance ____________________________________________________43
List of accessories and consumables _____________________________________44
Accessories ______________________________________________________________ 44
Consumables ____________________________________________________________ 46
Settings and adjustments ______________________________________________47
Adjusting the screen contrast ________________________________________________ 47
Selecting a language_______________________________________________________ 48
Checking if the temperature compensation is activated/deactivated___________________ 48
Adjusting the size corrections ________________________________________________ 49

Table of contents
ii Silver FC 00 511
Emptying the internal memory________________________________________________ 50
Dressing the wheels _______________________________________________________ 51
Adjusting the lens sizes (reset sizes) __________________________________________53
Changing the lens feeler tip__________________________________________________ 57
Adjusting the Scanform™ ___________________________________________________ 58
Adjusting the lens feeling____________________________________________________64
Consulting the statistics_____________________________________________________ 65
Lens counters ___________________________________________________________________ 65
Wheel dressing __________________________________________________________________ 68
Lens feeler, lens size and Scanform™ adjustments _____________________________________ 69
Type of tracing __________________________________________________________________ 70
Messages __________________________________________________________71
Message types ___________________________________________________________ 71
List_____________________________________________________________________ 72
Origin: Scanform™ _______________________________________________________________ 72
Origin: Lay-out __________________________________________________________________ 72
Origin: Tracing __________________________________________________________________ 72
Origin: Edging ___________________________________________________________________ 73
Origin: Extension card ____________________________________________________________ 73
ANNEXES
Annex A Operation in recirculating mode
Installing the recirculating system ____________________________________________ A-3
Warning_______________________________________________________________________ A-3
Procedure _____________________________________________________________________ A-3
Illustration _____________________________________________________________________ A-3
Cleaning the Pump _______________________________________________________ A-4
Procedure _____________________________________________________________________ A-4
Emptying Main Tank ______________________________________________________ A-5
Annex B Use of the internal memory
Introduction _____________________________________________________________ B-3
Icons _________________________________________________________________________ B-3
Memory capacity________________________________________________________________ B-3
Using the internal memory__________________________________________________ B-4
Configuration___________________________________________________________________ B-4
Creating and Saving a Job ________________________________________________________ B-4
Advice ________________________________________________________________________ B-5
Call up a job saved in memory _____________________________________________________ B-5
Annex C Connection to the OMA network
Introduction _____________________________________________________________ C-3
Warning_______________________________________________________________________ C-3
Icons _________________________________________________________________________ C-3
Connection to the OMA network _____________________________________________ C-4
Configuration___________________________________________________________________ C-4
Creating and saving a job _________________________________________________________ C-4
Advice ________________________________________________________________________ C-5
Call up a job saved on the server ___________________________________________________ C-5
Job uploading function disabled ______________________________________________________ 6
Annex D Use of the barcode reader
Connection to the edger ___________________________________________________ D-3
Use ___________________________________________________________________ D-4
Annex E Technical Specifications
Technical characteristics ___________________________________________________ E-3

On-site Repair

On-site Repair
Silver FC 00 511 3
Technician visits
At each client visit, the Briot technician is asked to write in the following table.
Date of visit Name of the
technician
N° of the repair order

Installation / Starting

Installation / Starting
Installation / Starting 7
General view
ILLUSTRATION
The following picture gives you a general view of your edger.
Edging unit
Scanform™ Lay-out/blocking unit

Installation / Starting
8 Installation / Starting
Unpacking Machine
WARNING
If you proceed to install your edger yourself, please do not discard boxes or any of its
packing contents.
PROCEDURE
Follow the steps below to unpack your edger unit.
Step Action Illustration
1 Remove the edger cover guard, by using the ¼-turn key
contained in accessory box.
2 Carefully remove the big white wedge from the
Scanform™.
Caution!
The small blue wedge supports the stylus and is
removed when you remove the white wedge. If not, do
not forget to do it.
3 Unscrew and remove the CHC fixing screw of the red
metallic flange.
4 Remove the red metallic flange.
5 Loosen and remove the Allen screw of the carriage
shipping flange.
6 Remove the carriage flange.
7 Remove the wedge located between the chassis
and the carriage.

Installation / Starting
Installation / Starting 9
8 Remove the wedge from the top of the lifting jack.
9 Loosen and remove the nut and the two washers of the
threaded rod coming from the left of lifting jack.
10 Remove the lifting jack wedge and its rod inserted in
the translation tube.
11 Remove the wedge located between the safety-bevel
motor and the edging chamber.
12 Remove the cap located at the rear of the machine in
order to get access to the screw concerned.
13 Bring the carriage on the extreme left side (Operator
located behind the machine).
14 Check the set screw of the gear Ais lined up with the
hole. If not, turn the gear in order to get to this situation.
Important:before tightening the screw,
the 3&4 marks on the large gear must be lined up
(make several turns if needed).
15 Put a 2-mm Allen wrench into the screw. -
16 Tighten the screw well. -
17 Put back the edger cover guard, by using the key
contained in accessory box.

Installation / Starting
Silver FC 00 511 11
Safety Precautions
RECOMMENDATIONS
• Do not place the edger near or on top of a source of energy (radiator or heater).
• Make sure your voltage source corresponds to the voltage specified on the identification
plate, located at the rear of the machine.
• If the machine is not going to be used for a long period of time you should unplug the power
cords from the wall outlet.
Briot does not assume any responsibilities or liabilities for damages caused by
negligence or ignoring the safety precautions enlisted in this manual.
INSTALLING THE MACHINE
Installation Conditions
Before installing the machine, make sure the bench is made up of the following components:
• The bench
The bench receiving the machine must be steady and level and have a free space
of about 800 x 700 mm.
• The electricity
1 socket: 2P+T - 16 A - 220 V or 110 V protected with a differential circuit breaker
of 30 mA. It is important that the socket be well EARTHED.
• The water
¾A water intake with a stop valve equipped with a 20x27 mm male connector.
This valve must be kept for the machine and drilled at 80 cm maximum from
the place provided for the machine. It must be easily accessible and be closed
when the machine is not in use.
For a well functioning of the machine, the maximum water supply pressure must be
between 4 and 7 bar.
¾A water outlet of 80 mm diameter or greater. The drainage slope must be at least 5%
to ensure proper evacuation of the refuse.
¾For machine type Polycarbonate, provide a place under the machine with a minimum
of 600w x 510h x 460d mm to place the water container.
• The pump
Briot supplies pump systems especially made for the required water supply to Accura
and for filtering of the edging waste, with the following dimensions.
9 Width: 600 mm (24”)
9 Depth: 400 mm (16”)
9 Height: 800 mm (32”).

Installation / Starting
12 Silver FC 00 511

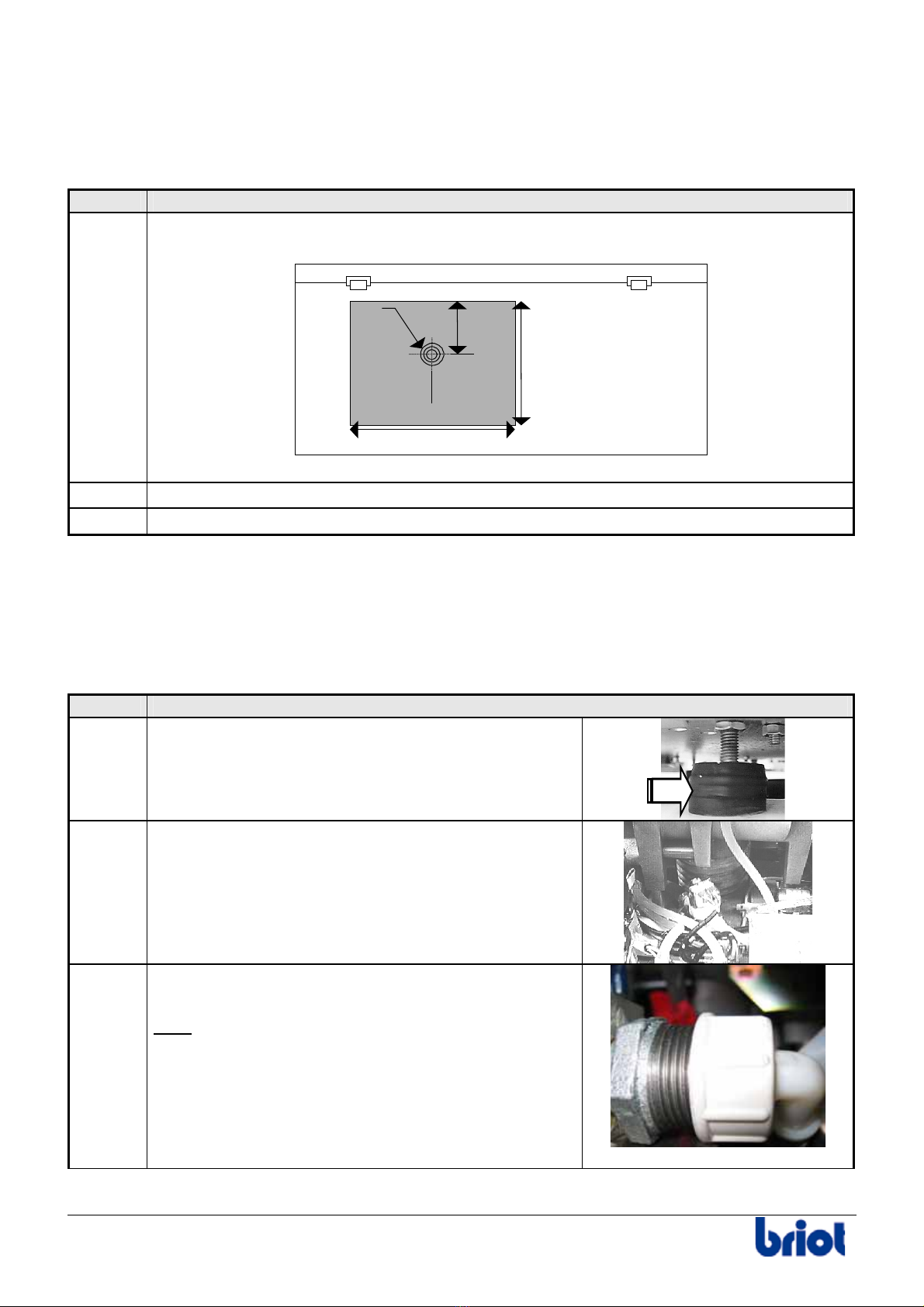

Work bench preparation
Follow the steps below to prepare the bench.
Step Action
1 Drill the bench as shown in the following diagram:
305 mm
270 mm
∅120 mm
660 mm
Bench
Edger
598 mm
2 Drill the drain water hole(s).
3 Place the edger on the bench by positioning it in relation to the drilled holes.
Installation
Follow the steps below to install the machine.
Step Action
1 Level the machine by screwing or unscrewing
the four feet.
2 Plug the drain pipe to the chassis of the machine.
3 Connect the water intake hose(s) to the machine
and to the faucet or the pump.
Note: In case of installation on direct water only,
add a filter joint contained in the accessory box.

Installation / Starting
Silver FC 00 511 13
Step Action
4 Check that the main switch of the machine is on
OFF position.
5 Connect the machine to the power outlet.
6 For machines configured in OMA, connect the edger
to the OMA network and connect the barcode
reader.
7 Mount the chucks and the centering nose piece
contained in the accessory box.
-
8 Remove the cover. -
9 Adjust the water flow by starting a cycle without lens. -
10 Adjust each watering using the supply adjustment
wheels cf. paragraph Adjustments below.
11 Close the cover and make one or two jobs to check
the well functioning of the machine.
-
Barcode
reader
connector
OMA cable
connector
12

Installation / Starting
14 Silver FC 00 511
Adjustments
Use the water supply adjustment wheels and observe the following instructions:
Types Description
Main watering and visor
(1)
The water supply must be:
• sufficient to lubricate the edging point properly.
• sufficient to irrigate the visor evenly.
Watering at the back of
the edging unit (2)
The water supply must be sufficient to evacuate the polycarbonate
shaving that hit the base of the edging unit.
It must not be too plentiful to avoid the formation of a mist that could
moisten the TP rough edging wheel and create an undesirable
“ribbon” edging of the polycarbonate.
Installation on Workbench
Accura

Use
