Bristol Clifton 4 User manual

THE CLIFTON COLLECTION!
Clifton 4 , 5 & 8!
Multifuel Stoves!
USER GUIDE
!
!
!
PLEASE RETAIN FOR FUTURE REFERENCE
Version 1 : Jan 2023

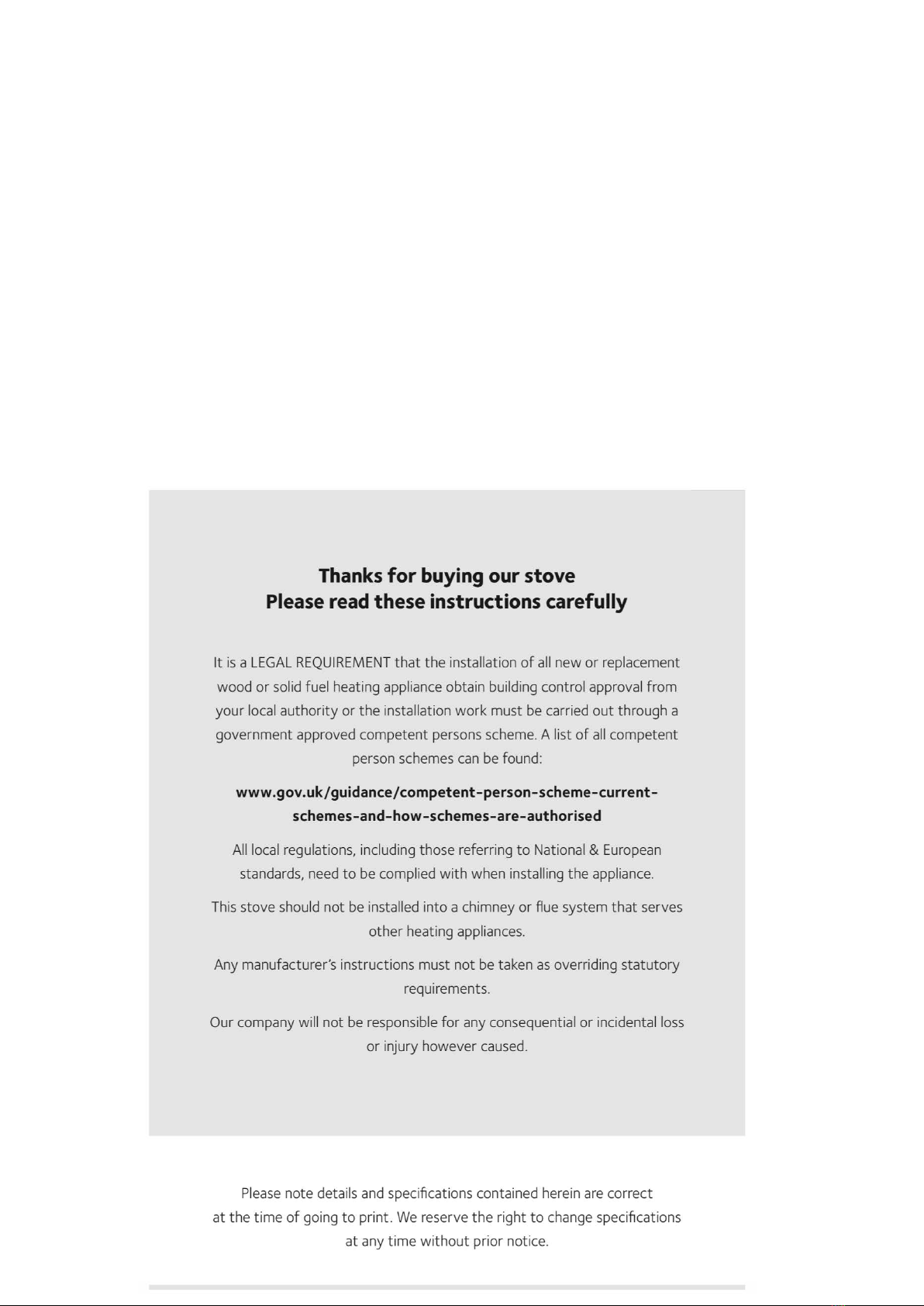

Contents :
1: The Clean Air Act 1993 & smoke control areas!
2: Unpacking & Assembly of your stove!
3: Installation Instructions!
4: Operating Instructions!
5: Safety Notices!
6: Maintenance!
7: Trouble Shooting!
8: Commissioning & Handover!
9: Technical Drawings & Performance Data!

1 : The Clean air act 1993 and smoke control areas
Under the Clean Air Act local authorities may declare the whole or part of the district of the
authority to be a smoke control area. It is an offence to emit smoke from a chimney!
of a building, from a furnace or from any fixed boiler if located in a designated smoke control area.
It is also an offence to acquire an “unauthorised fuel” for use within a smoke control area unless it
is used in an “exempt” appliance (“exempted” from the controls which generally apply in the
smoke control area).!
In England appliances are exempted by publication on a list by the Secretary of State!
in accordance with changes made to sections 20 and 21 of the Clean Air Act 1993 by section 15
of the Deregulation Act 2015. Similarly, in Scotland appliances are exempted by publication on a
list by Scottish Ministers under section 50 of the Regulatory Reform (Scotland) Act 2014.!
In Wales and Northern Ireland these are authorised by regulations made by Welsh Ministers and
by the Department of the Environment respectively.!
Further information on the requirements of the Clean Air Act can be found here at:!
www.gov.uk/smoke-control-area-rules!
Your local authority is responsible for implementing the Clean Air Act 1993 including designation
and supervision of smoke control areas and you can contact them for details of Clean Air Act
requirements.!
As the customary practice in the UK requires that an exempt appliance has to be constructed or
adapted in such manner that it is impractical to operate it in a way whereby significant smoke will
be emitted,!
The Clifton 4 has been recommended for burning wood logs in a smoke control area. The Clifton
4 must be fitted with a permanent stop preventing closure of the secondary air control/air wash
control (slide plate located under the stove) beyond 6mm and open.!
The Clifton 5 has been recommended for burning wood logs in a smoke control area. The Clifton
5 must be fitted with a permanent stop preventing closure of the secondary air control/air wash
control (slide plate located under the stove) beyond 6mm and open!
The Clifton 8 has been recommended for burning wood logs in a smoke control area. The Clifton
5 must be fitted with a permanent stop preventing closure of the secondary air control/air wash
control (slide plate located under the stove) beyond 10mm and open!
Appliance Specification
The stove is a freestanding appliance made of steel and equipped with a cast iron door.!
The combustion chamber is lined with vermiculite bricks. Furthermore, the stove is equipped with
a vermiculite and steel baffle. Air supply is regulated by two controllers positioned below the
loading door; one for primary air and one for secondary air (air wash). A grate and ash pan are
present. The flue outlet is as standard selected for top exit but can be changed to the rear if
required.!

UNPACKING & ASSEMBLY OF YOUR STOVE.
WARNING: DUE TO THE WEIGHT OF THE STOVE IT IS RECOMMENDED THAT TWO
PEOPLE ARE REQUIRED TO MOVE & PERFORM THE UNPACKING AND ASSEMBLY
!
2.1 Remove the outer packaging !
Carefully remove the packing straps and lift offthe upper crate. Remove the plastic bag & take
down to the base of the stove. Ensure the plastic bag is disposed of correctly and kept away from
children.!
!
2.2 UNPACKING.
Before assembling, place check contents against the following list and advise your dealer
immediately if any parts are missing!
1 x Stove body!
1 x Flue Spigot with Fireproof Gasket !
1 x Firebox Primary Baffle plate A!
1 x Firebox Secondary Baffle plate B!
1 x Flue Blanking Plate!
1 x Ash pan & Handle!
1 x Grate!
1 x Vermiculite brick set!
1 x Heat resistant glove !
1 x Fixing Kit!
2.3 ASSEMBLY.
!
Open the door and remove ash-pan, flue spigot and fixing kit from inside the
stove.!
1. Sit the stove upright and attach the flue spigot for top exit (as pictured),
using the screws supplied. Ensure the fireproof gasket is correctly seated
in the base of the flue adaptor.!
2. Install the blanking plate to the alternative flue exit opening. If rear exit !
flue configuration is to be used, the blanking plate will be fitted to the top !
exit on the stove and the spigot to the rear.!
3. Set the ash-pan in position as shown in the picture. An ash-pan !
handle is supplied for when the stove is in use.!

3: IMPORTANT INFORMATION ABOUT INSTALLATION AND USING THE STOVE
Before installation and/or use of this appliance please read these instructions carefully to ensure that all requirements
are fully understood.!
This appliance must be installed by a registered engineer, or approved by building control, failure to do so may
endanger life and property. All local regulations including those referring to national & European standards need to be
complied to when installing the appliance. The appliance is not suitable for installation in a shared flue system.!
All the below instructions should work in conjunction with building regulations document J, if there is a variation the
most stringent requirement should be adhered to.!
Chimney/flue
The chimney height and the position of the chimney terminal should conform to Building Regulations. Minimum
chimney height is 4.5m and the recommended minimum diameter is 150mm wherever possible for safety margin and
performance. Check that the chimney is in good condition, dry and free from cracks and obstructions. The diameter of
the flue should not be less than 125mm (spigot diameter) at any point and not greater than 200mm. If any of these
requirements are not met, the chimney should be lined by a suitable method. The chimney must be swept before
connection to the stove. When using a liner, a 5” (125mm) flexible flue liner is permitted to be used on these appliances
providing that the users only burns smokeless fuel, seasoned or kiln dried wood logs with the air limiter fitted in in full
accordance with the wood burning instructions. A 6” 150mm liner is always better where it is possible to use one. !
Where the chimney is believed to have previously served an open fire installation, it is possible that the higher flue gas
temperature from the stove may loosen deposits that were previously firmly adhered, with the consequent risk of flue
blockage. It is therefore recommended that the chimney be swept a second time within a month of regular use after
installation.!
If you have any doubts about the suitability of your chimney, consult your local dealer or chimney specialist. If there is
no existing chimney then either a solid fuel compatible prefabricated block chimney or a twin-walled insulated stainless
steel flue to BS 4543 can be used. These chimneys must be fitted in accordance with the manufacturer’s instructions
and Building Regulations.!
Flue Draught : (Working range 12-25 Pascals)
The flue draught should be checked under fire at high output and, if it exceeds the recommended maximum, a draught
stabiliser must be fitted so that the rate of burning can be controlled to prevent over-firing.!
Hearths:
These stoves require a 125mm thick non-combustible constructional hearth beneath them to protect the building; this
can include any solid non-combustible floor. A non-combustible superimposed hearth forming an apron of at least
300mm at the front of the stove and 150mm on either side must also be provided. The superimposed hearth must not
be less than 12mm thick and must have a clearly defined edge (change of level) to discourage placing of any
combustible materials on or partially over it. Ensure the hearth is flat & level and the back panel and surround are at
right angles to the hearth.!
The appliance shall be installed on a floor with adequate load-bearing capacity. If the existing construction does not
meet this requirement, suitable measures (e.g. load distributing plate) should be provided to achieve it.!
(Please see Building regs. Document J for further information)!
Ventilation :
Adequate ventilation is ESSENTIAL for the safe and efficient operation of any solid fuel or wood burning appliance.
Ventilation MUST be provided where required by the stove output or flue under-performance. Keep all ventilation clear
and free of blockage, including any direct outside air connection where used. !
Document J of the Building Regulations states that (except in recently built properties) purpose provided ventilation is
not required in England and Wales unless the appliance nominal rated output is greater than 5kW. Over 5kW 5.5 cm2 of
ventilation (550mm2) is required for every kW output above 5. For example 6.5 kW requires 8.25 cm2 and 8 kW needs
16.5cm2. In any case, if difficulty in starting the fire or any excessive fuming is experienced, ventilation must be put in
place as required to eliminate these flue problems. If a flue draught stabiliser is fitted then extra ventilation is required.
See Document J of the Building Regulations for detailed guidance especially in new build properties where purpose
provided ventilation may be required.!
Extractor Fan Warning
There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into
the room. If unavoidable the appliance must be checked with Approved Document A.D. 1.21 and necessary action
taken. HETAS can provide guidance of a pressure test procedure to check safe operation of the stove and flue.!

Clearances :
Materials above the stove are far more likely to overheat than materials alongside or below. A guideline limiting
temperature for solid timber (not surface finishes) is approximately 80-85 degrees C with a normal ambient room
temperature. Temperatures of combustible materials can be substantially lowered with a simple heat shield constructed
of a non-combustible material (e.g. metal or fireproof board etc.) and a small air gap (25mm ) between the shield and
combustible material. See Hetas technical notes TN_0023!
The stove can be recessed in a suitable sized non-combustible fireplace or stood close to non combustible materials,
but a permanent free air gap of 150mm is recommended to be left around the sides and 300mm above & at least 50mm
at the back of the stove to obtain optimum heat output and for access to the stove for removal and maintenance. !
These sizes may be reduced to 50mm but may affect heat output to the room.!
For corner installations the same guidelines apply but consideration should be taken to allow for the door to be fully
opened.!
Curtains and soft furnishings should be a minimum of 1m away from the appliance.!
In accordance with Building regulations all non-combustible walls closer than 400mm to the stove should be at least
75mm thick. For practical reasons the back wall of the fireplace recess and the hearth should be made of non-
combustible material.!
CO Alarm:
Building Regulations require that whenever a new or replacement fixed solid fuel or wood/biomass appliance is installed
in a dwelling a carbon monoxide alarm must be fitted in the same room as the appliance. Further guidance is available
in BS EN50292:2002 and from the alarm manufacturer’s instructions. Provision of an alarm must not be considered a
substitute for either installing the appliance correctly or ensuring regular servicing and maintenance of the appliance
and chimney system.!
4. Operating Instructions
Door Handle
The door handle is located to the right hand side of the door. Turn the handle to open.
Air Controls
Keep all air controls inlets & outlets clean and free from debris or ash at all times . Do not leave air controls fully open
unless monitoring the fire. Do not use with the door open. Over firing will cause damage and as a result will not be
covered by any warranty
Primary Air
Primary air is controlled through the lever at the bottom of the door this is the left hand lever. Push in to restrict air & pull
out to increase air supply. This provides a primary air draught which passes under the grate through the fuel bed. The
primary air intakes can be adjusted to control the fire in combustion chamber for smokeless fuels. It is not necessary to
use primary air for burning wood, unless boosting a low fire bed or your flue draught is very low. Operation of the air
controls fully open can cause excess smoke and must not be used fully open for long periods of time.!
Secondary Air
Secondary air is controlled through the lever at the bottom of the door this is the right hand lever. Push in to restrict air
& pull out to increase air supply. The appliance is fitted with an “air wash system” which assists in keeping the fire as
visible as possible this does not eliminate periodic cleaning of the ceramic glass. Operation of the air controls fully open
can cause excess smoke and must not be used fully open for long periods of time.!
The Clean Air act restrictor will deliberately prevent full closure of this lever.
Distances to Combustibles
Model
Sides
Rear
Front
Clifton 4
500mm
600mm
1000mm
Clifton 5
500mm
600mm
1000mm
Clifton 8
500mm
750mm
1200mm

Tertiary Air
This stove appliance comes fitted with a draught controlled tertiary air system that burns otherwise non-combusted
gasses thus increasing heat output, decreasing unwanted emissions and improving efficiency. The Tertiary air supply to
the stove is controlled automatically by the draught in the flue and firebox. At certain stages of burning you will notice
“Whisps” of flame emerging near the air holes to the rear of the stove. This is not always visible depending upon the
fuels used and burn cycle stage so there is nothing untoward if it cannot be seen.!
Grate
This stove is fitted with a riddling multifuel grate. The lever to the right hand side of the stove at low level
controls the movement of the grate, simply pull back and forth to allow the ash to fall into the ash-pan.!
A build up of wood ash when burning wood will not harm the grate and wood is said to burn well on a bed
of ash but excessive wood ash build up is not recommended. !
Smokeless fuel ash must be regularly emptied and NOT allowed to build up under the grate.regularly. In
case the ash builds up the underside of the grate, burnout or distortion of the grate may be caused!
Ash pan
It is essential that you clean our the ash pan regularly especially when burning smokeless type fuels. Use
the supplied tool to lift the ash pan out of the stove. Do not allow smokeless coal ash to build up
underneath the fuel bed as this will cause damage to the grate. Only empty or remove ashes when they are
cold.!
Fuels
This stove is fitted with a multifuel grate and is suitable for use for burning dry, seasoned logs (<20%
moisture) wood, smokeless fuel and other solid fuels. Note that the inset stove has been recommended for
use in Smoke Control Area when burning wood logs. These inset stoves can be used in Smoke Control
Areas when burning authorised solid fuels. A list of authorised fuels is available online: !
http://smokecontrol.defra.gov.uk/fuels.php!
Should difficulties arising over fuel quality or suitability please contact your local approved fuel merchant. !
Burning Mineral Smokeless (Solid Fuel)
DO NOT have more than a 30-degree incline of the fuel bed from front to back, when you put solid mineral
fuels on the fuel bed. The height of loading fuels must not exceed the rear cast iron lining.!
The refuelling intervals at nominal heat output will be approximately every 4 hours.!
We suggest you refuel in time to get the best possible results. When using solid mineral fuels, we suggest
you keep the secondary air control in the closed position, so it can burn at maximum efficiency. At this time
the primary air controls can adjust the burn rate of the appliance.!
In order to prevent the ash from being stacked to the underside of the bottom grate, please always de-ash
before refuelling. Once the ash builds up, it is possible that it will restrict the airflow and cause the fire to
die. We do not recommend slumber or all night burning on this appliance. !
Important! It is very important to empty the ash-pan regularly. In case the ash builds up the underside of the
grate, burnout or distortion of the grate may be caused.
Burning Wood
Move the secondary air slider (right hand lever) fully in out (Open) for maximum air to start or revive a wood
fire. Returning the lever in will reduce the air supply progressively to reduce the burn rate.!
The maximum position will supply a boost of air to get new fuel burning rapidly in order to minimise smoke.
Do not leave on maximum setting as this will lead to over firing damage. !
The refuelling intervals at nominal heat output will be approximately 45mins to 1.5 hours but this will depend
on fuel quality & draught from the chimney which will differ in each installation. You may load wood higher in
the stove than solid mineral fuel, but wood or logs are not permitted above the tertiary air holes , do not
touch the baffle or Ceramic glass.!
Wood burns most efficiently with the primary air controls closed and the secondary!
control partially open. Moving the secondary control will control the burn rate of the stove.!
Wood burns best with a layer of ash on the fuel bed, and care should be taken to only remove surplus
residue from the stove timely.!
We recommend you only use dry, seasoned wood as fuels; the wood should have been cut, split and
stacked for at least one year in a circulating air surround to dry out. Otherwise, wet or unseasoned wood
will cause tar deposits in the stove and unsatisfactory heat output will occur.!

We recommend the use of wood logs with a moisture content of less than 20% for stoves.!
Burning wet or unseasoned wood will create excess smoke emissions, tar deposits in the stove and
chimney and will not produce a satisfactory heat output. Wood fuel purchased from an approved source
may still require some drying out to remove surface water before use. !
The main causes of burning problems with wood stoves is due to excessively damp wood. Wood can
appear perfectly dry on the outside or ends but still contain 40-50% water on the inside. A moisture meter
can be purchased from your retailer or fuel suppliers if you wish to check your wood source is correct. Split
a log and check the inside as well as the outside or ends.!
Using your appliance for the first time
The stove needs to bed in and to allow the rope glue & paint to cure correctly. We suggest three small
kindling only fires to start each time allowing the appliance to return back to room temperature. !
During these first small fires you may experience an unpleasant smell, fumes / haze as the paint cures, the
is non toxic but for your comfort open some windows to ventilate the room. This will dissipate with use. Do
not touch the paint during this time. Use small fires first slowly increasing the size and temperatures to
enable the various parts to expand normally.!
Lighting the stove
First open the secondary air supply (“Airwash”) slider fully. Lay some fully dry small or split logs on the grate
in a crossed pattern. !
Then add plenty of kindling sticks fin a lattice pattern finishing with a firefighter on top of the 4 logs. !
Light the firefighter(s) leaving the air controls fully open, if you find it necessary to leave the door ajar.!
slightly for 3-5 minutes to enhance initial starting and reduce smoke emission – DO NOT leave the stove
unattended.!
The kindling will burn and set light to the logs by radiation and breaking down to embers gradually and with
fewer emissions than the traditional logs on top methods.!
Allow the fuel to reach a steady burn and usually the initial fuel can be left to burn down to embers without
much further attention. Next build the fire up carefully by adding a couple of small split logs or a relatively
small amount of smokeless briquettes at a time. !
Do not overload the fire bed with more than two or three small logs at a time.!
Once you have a good fire bed established across the grate, further fuel can be added step by step as
required. !
Don’t be tempted to overload the fire bed with fuel all at once or close down the!
air controls too much until the fire is really well established for some time. Once the ignition period is well
under way, gradually reduce the air controls to establish the burning intensity you require.!
If using smokeless fuel omit the logs & place a layer of smokeless on the base, but use plenty of kindling
with briquettes around so that the embers from the kindling ignites the smokeless. Once established reduce
the secondary air supply to a minimal setting and open the primary to establish the burning intensity you
require.!
A good indication of a well established smokeless fuel fire is the widespread coverage of grey ash on the
black fuel pieces the fire will begin to die down with a significant amount of white ash showing amongst the
fuel. Gently riddle to grate by pushing and pulling the lever to remove most of the ash into the ash-pan.
Empty the ash-pan if it is nearly full and then re-fuel with a good load of briquettes. The fuel load should
initially be level with the top of the fuel retainer and not above the rear firebox cast liner. !
Refuelling on to a low fire bed
If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission
can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and ash that the new
fuel charge will ignite in a reasonable period. If there are too few embers in the fire bed, add suitable
kindling to prevent excessive smoking.!

Fuel overloading
The maximum amount of fuel specified in this user guide should not be exceeded, overloading can cause
excess smoke. We suggest that you refuel every 45 minutes to 1.5 hours, dependent on fuel. Never load
fuel above the tertiary air holes or allow it to touch the glass or baffle.!
The recommended maximum dimensions of wood logs are as specified below:!
The operation of the stove with the door open or left ajar for long periods of time can cause excessive
smoke and spillage into the room. This will also lead to excessive air to the fire and cause over firing.!
Shutting Down
The stove will normally shut down by itself as the fuel is consumed so there is no need to close the air
control towards the end of the burn. !
However to shut down the stove for other reasons, close the primary air controls (if open), then close the
secondary air control. If the controls are left in this position, the fire will eventually go out due to lack of air,
but it will also cause the glass to blacken/grey out as the fire dies down. If you want to revive the fire it is
recommended that the secondary air controls are opened fully first followed by the primary air control until
revived.!
Warning! !
The stove will remain very hot for a considerable time after the fire has died down or been extinguished.!
Shut down for prolonged periods
If the appliance is to be left unused for a prolonged period of time then it should be given a thorough clean
to remove ash and unburned fuel residues. Allow a decent flow of air through the stove to reduce
condensation and possible corrosion damage, leave all the air controls fully open. It is important that the
flue connection, baffles and the chimney are cleaned prior to lighting up after a prolonged shutdown period.!
!
5. Safety Notes for your Guidance
This appliance is NOT suitable for use in a shared flue.!
This appliance should NEVER be operated with the doors open.!
NEVER clean the glass when the stove is hot. ALWAYS use stove glass cleaner, which is available from DIY
and stove retailers, only when the stove is cool.!
DO NOT use an aerosol spray on or near the stove when it is alight.!
DO NOT use liquid fuels in this appliance.!
NEVER leave the stove unattended for long periods without first adjusting the controls to a safe setting –
careful air supply control should be exercised at all times.!
DO NOT modify the appliance as it could result in damage to the appliance or injury to users.!
DO NOT fit an extractor fan in the same room as this appliance. !
FIRES CAN BE DANGEROUS – Always use a fireguard standard BS 8423:2002 in the!
presence of children, the elderly or the infirm.!
It is essential that the fire has adequate air supply for combustion and ventilation. Apertures provided for
this purpose shall not be restricted.!
DO NOT OVER-FIRE – it is possible to fire the stove beyond its design capacity, this could damage the
stove, so watch for signs of over-firing – if any part of the stove starts to glow red, the fire is in an over-fire
situation and the controls should be adjusted to immediately prevent the over-firing.!
Warning – Fume Emission Properly installed and operated, this appliance will not emit fumes. Occasional
fumes from de-ashing and refuelling may occur. Persistent fume emission must be stopped.!
If fume emission does persist, then the following immediate action should be taken.!
Model
Max fuel
load
Max log
length
Max log
Dia
Clifton 4
0.92kg
250 mm
100 mm
Clifton 5
1.02kg
250 mm
100mm
Clifton 8
1.8kg
350mm
150 mm

•Open doors and windows to ventilate room!
•Put the fire out, or safely dispose of the fuel from the appliance.!
•Check for flue chimney blockage and clean it if required.!
•Do not attempt to re-light the fire until the cause has been identified and corrected. !
•If necessary, seek professional assistance.!
CO ALARM
To comply with regulations your installer will have fitted a CO Alarm in the same room as the stove. If the
CO alarm sounds unexpectedly , follow the instructions above. !
IN THE EVENT OF A CHIMNEY FIRE
•Raise the alarm to let others in the house know. !
•Call the Fire Brigade!
•Close all air controls.!
•Move furniture and rugs away from the fireplace and remove any nearby ornaments.!
•Place a fireguard or spark guard in front of the stove. !
•Feel the chimney breast for sign of excessive heat. !
•If an internal breast and the opposite side is hot move furniture away.!
•If chimney breast is shared with neighbouring property inform residents.!
•Ensure access for the Fire brigade to your roof, roof space to check area for signs of spread.!
DO NOT endanger yourself or any other person, so if necessary, leave the house immediately after calling
the Fire Brigade.!
Stove Body
Use a soft brush to clean the body of the stove; Cleaning must ALWAYS be done after it has cooled down.
Do nor use a wet or damp cloth. The paint is not waterproof. The finish can be renewed with proprietary
stove paint.!
Fireproof Ceramic Glass
Use a proprietary glass cleaner or ceramic hob cleaner to clean the glass when cool. Any grit or sharp
material may scratch & damage the glass should not be used to clean the panel. Wet logs on heated glass,
a badly aimed poker or heavy slamming of the doors could crack the glass panels and care should be
taken. The ceramic glass will require replacement from time to time and are a wearing consumable item.!
Inside the firebox !
Use a soft brush to clean the firebox. Lift the centre grate and clean any debris underneath and trapped in
the slots. Check the integrity of the firebricks. The firebricks may crack over time , they are able to continue
to be used with cracks as long as the steel underneath is not exposed to the fire. The firebricks, grate parts
and other associated firebox parts are not covered by warranty as they are a wearing consumable parts!
Baffle Plates
Remove and clean the baffle plates once a month to avoid build up of soot or fly ash to ensure flue-way is
completely clear. .Baffle plates will require replacement from time to time and are a wearing consumable
parts.!
Ceramic Rope
Ceramic or fibre glass rope is used on the stoves. Inspect the rope around the door and glass. If rope is
becoming detached, use a proprietary rope glue to reattach it. Ensure you replace the rope in the case of it
being in poor condition. Worn or missing rope will affect the appliance operation, performance, control and
emissions output and can lead to overheating damage.!
BvFlue and Chimney!
Keep the chimney, flue way and any connection flue pipe swept regularly.!
For users of smokeless fuels, sweep at least once a year; for wood and other fuels, at least twice a year. If
the stove is fitted in place of an open fire, then the chimney should be swept one month after installation to
clear any soot falls which may have occurred due to the difference in combustion between the stove and an
open fire.!

7. TROUBLESHOOTING
Operation - Difficulty starting and maintaining a fire
•Ensure the wood used is less than 20% moisture.!
•Warm the flue through the stove using a blowtorch or some newspaper.!
•Ensure all air controls are being operated correctly.!
•Make sure no extractor fan is working in the same room as the stove.!
•Open a nearby window to test the airflow in the room.!
•Make sure the airways and flue are swept and in good condition. Any full or partial blockage will effect the
performance of the appliance.!
•Re-read the lighting instructions and ensure the correct procedure is followed including fuel amounts.!
Glass Blackening
When burning wood and solid fuel there will always be some discolouration of the glass. !
However excessive build can be caused by:!
•Wood with a moisture content of greater than 20% will have poor combustion and smoke, giving offtar
and creosote.!
•Low combustion temperature. This will not create sufficient flue draft leading to poor combustion and a
fire that produces more smoke.!
•Incorrect fuelling/refuelling leading to a poor fire or one that touches the glass.!
Fire blazing out of control - Please check:
•Suitable fuel is being used. Petroleum based fuels not recommended !
•The doors are tightly closed.!
•The air controls are not in fully open position.!
•The glass retaining clips are not loose.!
•The door rope seals are in good condition.!
Excessive smell of Smoke
•Weather conditions can result in wind blowing down the chimney when coming from certain directions.!
•Door opened when lots of flames remained in the firebox.!
8 Commissioning and Handover
Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire
may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted
safely tup and out the flue.!
Advise the end user not to run the stove at full output for at 3 – 4 days. Small fires first. See section “Using your
appliance for the first time”.!
Explain that stoves can provide much more or less output than their rated ‘nominal’ heat outputs depending upon fuels,
fuel loads used and how they are operated.!
Warn the customer that using excessive air (having the air controls open too wide for too long with a full fuel load) can
over-fire and irreparably damage the stove. Damage caused by over firing is NOT covered by any warranty.!
On completion of the installation and commissioning, check all parts of the appliance are correctly fitted and ensure
that the operating instructions and operating tools (including glove) for the stove are left with the customer. !
You must be sure to advise the customer on the correct use of the appliance with the fuels likely to be used on the
stove and warn them to use only the recommended fuels for the stove.!
Advise the user on what to do should smoke or fumes be emitted into the room from the stove – see Safety Notes
section. The user should be warned that they MUST use a suitable fireguard in the presence of children, aged and/or
infirm persons.!

9 : TECHNICAL DRAWINGS & PERFORMANCE DATA
Declaration of Performance
PRODUCT SPECIFICATION
Details and specifications displayed are correct at the time of going to print. !
We reserve the right to change specification at any time without prior notice.
CLIFTON 4
CLIFTON 5
CLIFTON 8
Fuel Type
Wood
Smokeless
(Anthracite)
Wood
Smokeless
(Anthracite)
Wood
Smokeless
(Anthracite)
Output KW
(Nominal)
4.1
4.5
5.0
4.9
8.4
8.0
Efficiency (%)
75.4
79.2
75.6
86.5
79.0
79.6
CO Emissions @
13% O2 (Vol %)
0.10
0.09
0.12
0.10
0.10
0.08
NOx Emissions @
13% O2 (mg/m03)
91
140
102
111
80
124
CXhY (OGC)
Emissions @ 13%
(mg/m03)
93
45
118
45
104
30
Dust (PM)
Emissions @ 13%
O2 (mg/m03)
23
24
28
16
29
18
Flue gas temp
(Celsius)
246
263
383
210
312
310
CLIFTON 4
Weight
60 Kg
Dimensions (HxWxD)
487mm x 380mm x 230 (307mm Inc handle)
Flue Size
125mm
Max Log Length (mm)
250mm x 100mm
CLIFTON 5
Weight
64 Kg
Dimensions (HxWxD)
487mm x 350mm x 280mm (358mm Inc handle)
Flue Size
125mm
Max Log Length (mm)
250mm x 100mm
CLIFTON 8
Weight
90.5 Kgs
Dimensions (HxWxD)
530mm x 490mm x 300mm (378mm Inc handle )
Flue Size
125mm
Max Log Length (mm)
350mm x 150mm

Clifton 4
Clifton 5

Clifton 8
PRODUCT END OF LIFE / RECYCLING
To dispose of the stove after the product life has expired, please observe the following information.!
First, dispose of the items correctly i.e. separate the parts to be disposed of in material groups.!
Second, always dispose of items in a way that is as sustainable as possible and that is in line with the
current environmental protection, reprocessing/recycling and disposal technology.
