Broadband Products 802.11g 54M WLAN User manual

802.11g 54M WLAN
Internet Broadband Router
User Manual
#4829610ASGZ1

Content
1.Introduction................................................................................................................................................ 3
1.1Features ...........................................................................................................3
1.2 Specification ....................................................................................................4
1.3 Package Contents...........................................................................................5
2. Hardware Installation............................................................................................................................. 5
2.1 Product Description.........................................................................................5
2.1.1 Front Panel and LEDs....................................................................6
2.1.2 Rear Panel.....................................................................................6
2.2 Getting Started.................................................................................................7
2.2.1 System Requirement......................................................................7
2.2.2 Before Installation...........................................................................7
2.2.3 Setting Hardware Connection ........................................................8
2.2.4 Configure your computer................................................................9
3. Using Configuration Menu.................................................................................................................. 16
3.1 Setup Method................................................................................................17
3.2 Basic Setup ...................................................................................................20

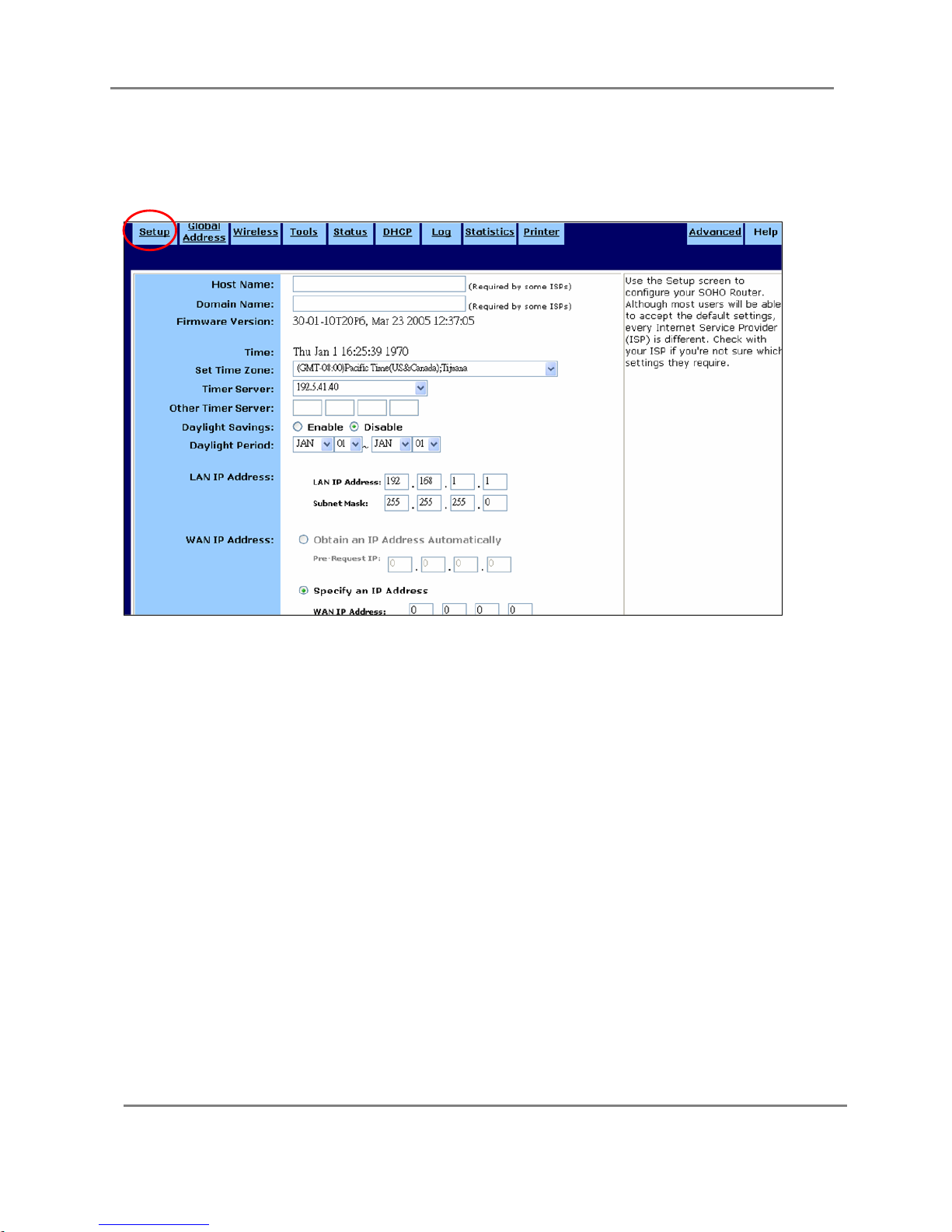

3.2.1 Setup Router................................................................................20
3.2.2 Global Address.............................................................................22
3.2.3 Wireless .......................................................................................23
3.2.4 Tools:............................................................................................27
3.2.5 Status:..........................................................................................28
3.2.6 DHCP:..........................................................................................29
3.2.7 Log...............................................................................................30
3.2.8 Statistics:......................................................................................31
3.2.9 Printer:..........................................................................................32
3.3 Advanced Setup ............................................................................................56
3.3.1 Virtual Servers..............................................................................56
3.3.2 Filters ...........................................................................................57
3.3.3 IP/URL Block................................................................................58
3.3.4 Special Apps(Special Applications)...............................................59
3.3.5 DMZ Host.....................................................................................60
3.3.6 MAC Clone...................................................................................61
3.3.7 Dynamic DNS...............................................................................61
3.3.8 Proxy DNS ...................................................................................62
3.3.9 Routing.........................................................................................63
3.3.10 SNMP.........................................................................................64
4. Glossary................................................................................................................................................... 65
5. TCP/IP Port List for Internet Service............................................................................................... 70

802.11g 4-Port Wireless LAN Broadband Router
3
1. Introduction
This 802.11g 54M Wireless LAN Broadband Router is an ideal solution for wireless/wired
Internet surfing and office resources sharing. It provides the fast, robust and flexible
features with high transmission rate up to 54Mbps bandwidth in the 2.4GHz frequency.
Not only connect with 802.11g devices, it is backward compatible with 802.11b products
and can be worked under .11b and .11g mixed environments. It employs WEP encryption to
ensure a more secure wireless connection. With web-based configure interface,
users can easily build up wire or wireless connection within minutes.
Besides, with firewall function, the Wireless LAN Broadband Router can always protect
your LAN from outsider's break-ins and yet expose your local servers such as Web Server,
E-mail Server, FTP server, for remote access by Virtual Server or DMZ setting.
1.1 Features
Wireless – Built in with IEEE 802.11g 54Mbps Access Point
． Complies with 2.4GHz 802.11g Standard
． Backward compatible with 802.11b products
． Up to 54Mbps data rate, auto fallback under noisy environment
． Support 802.1x Authentication feature and 64/128-bits WEP Encryption
Router – Built in with 4 Port 10/100M Internet Broadband Router
． 1 port 10/100M WAN and 4 ports 10/100M switch LAN (RJ-45) interface
． Quick Setup Wizard enable user to setup internet connection within 3 steps
． Advanced Access control based on URL, IP, Service Port and MAC address
． ALG function for on-line gaming, MSN, conference and P2P software
． Configurable through User-friendly web base management interface
． (Optional) With reverse SMAAntenna connector increase flexibility
． Intruder event log by packet inspection features
． DMZ and Virtual Server Mapping support
． UPnP function Supported

802.11g 4-Port Wireless LAN Broadband Router
4
1.2 Specification
Model: 802.11g 4-Port Wireless LAN Broadband Router
Radio: Complies with IEEE 802.11b/g
Frequency Band: 2.412-2.462GHz (U.S.)
2.412-2.484GHz (Japan)
2.412-2.472GHz (ETSI)
Modulation TYPE: BPSK, QPSK, CCK, 16-QAM, 64-QAM
Operating Channels: 11 channels (US) 13 channels (ETSI) 14 channels (Japan)
Data Rate: 1 / 2 / 5.5 / 6/9/11/12/24/36/48/54Mbps
Output Power: 18dBm@11Mbps; 14dBm@54Mbps
Receive sensitivity: Min.80dBm for 11Mbps (@BER 8%)
Min. -70dBm for 54 Mbps (@BER 10%)
Current Consumption: 3.3V, TX mode 400 mA (Max.)
RX mode 250 mA (Max.)
Media 100BASE-TX: UTP/STP Cat. 5
No. Of Port WAN: 1x 10/100M RJ-45 port, LAN: 4 x 10/100M RJ-45 ports
Reset: 1 x Reset Button , USB :1xPrinter Server
Auto MDI/MDIX Yes
PPPoE/PPTP Client Yes
Static /Fixed IP Yes
DHCP Server/Client Yes
UPnP Yes
DMZ Host Multi-DMZ Host
Routing Static, RIP I/II, Transparent mode support
Event Log System / Security Log, Remote Security Log
Firewall DoS, URL Blocking, Mac Blocking, Service Port Blocking,
IP Address Blocking, Deny/Allow Ping,
Service Time allocation
VPN PPTP, IP Sec pass through
Management Local Web-based configuration, Telnet
LED Indicator Power, Diag, WLAN, Link/Act.

802.11g 4-Port Wireless LAN Broadband Router
5
Environmental Temperature Storage -20°C to 60°C
Operating 0°C to 45°C
Humidity 10%~90%, non condensing
Power Consumption Input : 100V, 50/60Hz / 120V, 60Hz / 230V, 50Hz / 240V,
50Hz
Output : DC7.5V / 1000mA
Conformance FCC class B, CE mark class B
1.3 Package Contents
1. One WLAN Broadband Router
2. One CD-ROM (User Manual on CD)
3. One Quick Installation Guide
4. One Power Adapter
5. (Optional)One Reverse SMAAntenna
2. Hardware Installation
2.1 Product Description

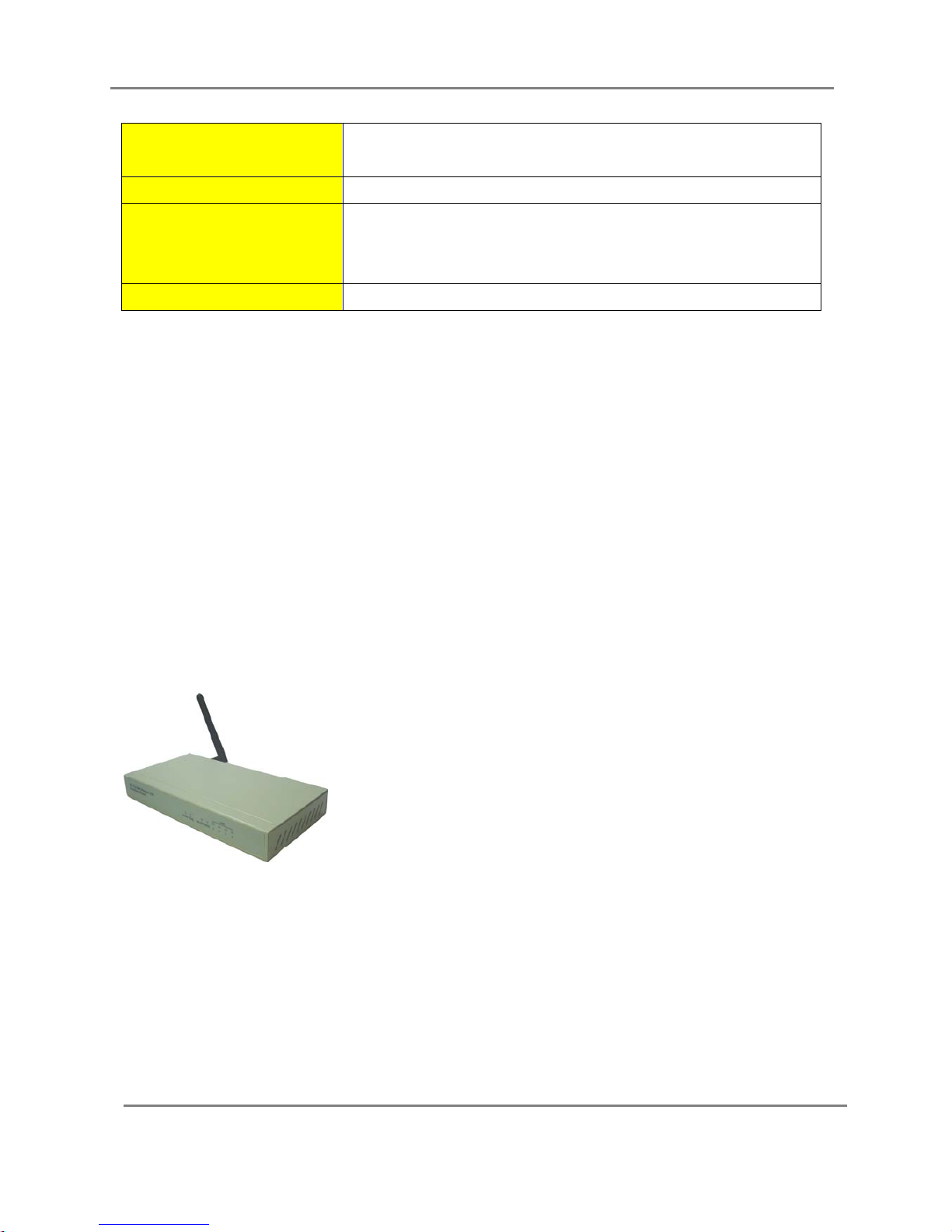

You can place this Wireless LAN Broadband Router horizontally or hang it on the wall.

802.11g 4-Port Wireless LAN Broadband Router
6
2.1.1 Front Panel and LEDs
Front Panel :
With its Diagnostic LEDs, you could easily get status information find out where the problem
is.
The LEDs are explained in the following tables.
2.1.2 Rear Panel
The following graphic shows the rear panel of Wireless Router.
‧ DC In: To connect the adapter to receive power.
‧ LAN 1~4: To connect networked PC or uplink to Switch or Hub.
‧ WAN: To connect the Cabel/DSL modem via Cat.5 RJ-45 cable.
‧ USB: To connect the USB Printer
‧ Reset: Pressing the Reset button for more than 5 seconds, the router will restore to
factory default setting.
‧ Antenna Connector: (Optional, only exists in the model with reverse SMA connector)
This is standard reverse SMAconnector where any antenna with reverse SMA
connector can connect to this Wireless LAN Broadband Router.
Label Color Status Meaning Number of LEDs
On Link On
Blinking Activity
Off Link Off
On Power ON
Off Power OFF
On Work mode fail
Off Normal work mode
On Link On
Off Link Off
Yellow 1
1Power Green
WLAN
(Link)
Diag Green 1
Link/Act. Green 4 x LAN,1 x WAN

802.11g 4-Port Wireless LAN Broadband Router
7
2.2 Getting Started
Please refer to the following sections of this manual for additional information about setting
up a network.
2.2.1 System Requirement
Before you getting started, make sure that you meet the following requirements.
1. An Internet connection through a cable or DSL modem
2. A computer with an Ethernet network card
3. Your Windows CD, if your computer is running Windows 95, 98, or ME
4. UTP network cable with RJ-45 connector
5. Either Microsoft Internet Explorer 4.0 (or above version) or Netscape Navigator 4.0 (or
above version)
6. For Wireless Connection, you need Wireless LAN Card / USB Adapter.
2.2.2 Before Installation
Before you start to connect your router to any network device, make sure you get the
following values from your ISP. You will need those values to setup the Router and
configure you networked PCs to accept the IP address the Router chooses to assign them.
‧ PPPoE User Name and Password or Fixed Internet IP Address assigned by your local
ISP
‧ Your Subnet Mask
‧ Your Default Gateway
‧ Your Primary DNS IP address
You are supposed to have all those information mentioned above from your ISP. If not,
contact your ISP and they will be able to supply all the information you need.

802.11g 4-Port Wireless LAN Broadband Router
8
2.2.3 Setting Hardware Connection
Follow the steps listed below to install your Router when you have all the information
mentioned above.
Step 1. Power all devices down.
This should include your PCs, Cable or DSL modem and the Router.
Step 2. Connecting a Cable Modem or DSL Modem.
Connect your Cable or DSL modem to the WAN port on the rear panel.
Step 3. Connect the Wireless Router to your PCs.
Connect computers directly to the Router on ports 1~4 on the rear panel. If you
have more than 4 computers need to be connected, connect a hub or a switch
(using its uplink port) and connect additional computers to that device.
Step 4. Power on.
Plug the power cord into the power jack. And power on computers.

802.11g 4-Port Wireless LAN Broadband Router
9
2.2.4 Configure your computer
． Windows 95/98/ME
Step 1. TCP/IP Configuration
After you have completed the hardware setup by connecting your devices, you need to
configure your computer to connect to your Router.
1. From the Windows desktop, click the “Start” button and choose “Settings”,
then click “Control Panel”.

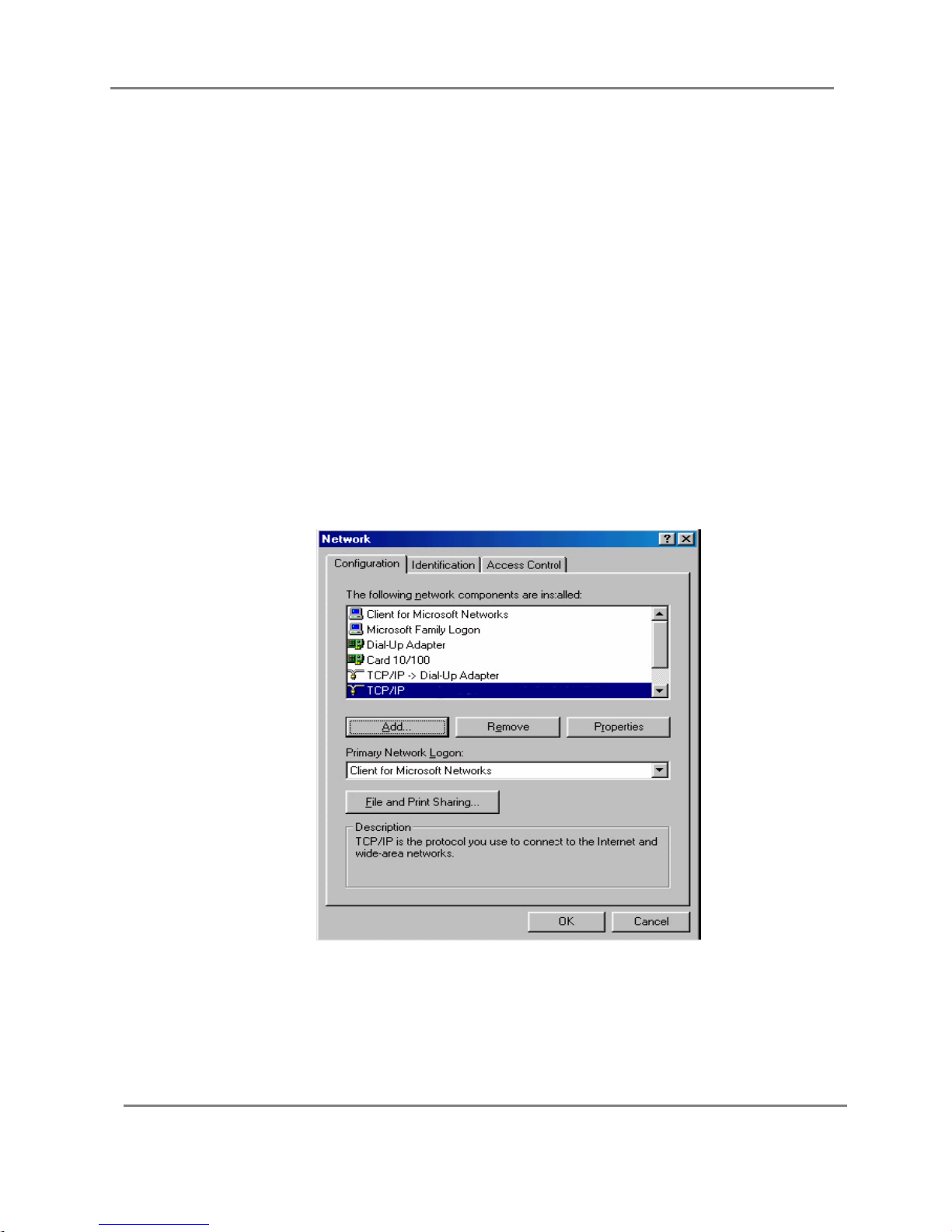

2. From “Control Panel”, double-click the “Network” icon.
3. In the “Network” window, under the “Configuration” tab, double-click the “TCP/IP” entry
that is listed with your network card.
4. On the “Internet Protocol (TCP/IP) Properties” dialog box, make sure “Obtain an IP
address automatically” and “Obtain DNS server address automatically” are selected. If
not, select them and click “OK” and lose window.

802.11g 4-Port Wireless LAN Broadband Router
10
5. Locate your IP address and Subnet Mask. Type them in the spaces provided below.
6. Click the “Gateway” tab and record the numbers listed under “Installed gateways.”
7. Click the “DNS Configuration” tab. Locate the DNS servers listed under “DNS Server
Search Order”. And Click “OK”.
8. System may need your Windows 95/98/ME CD to copy some files. After it finishes
copying, please restart your system.

802.11g 4-Port Wireless LAN Broadband Router
11
Step. 2 Disable HTTP Proxy
‧ Internet Explorer
1. Open Internet Explorer and click the stop button. Click “Tools” then “Internet Options”.

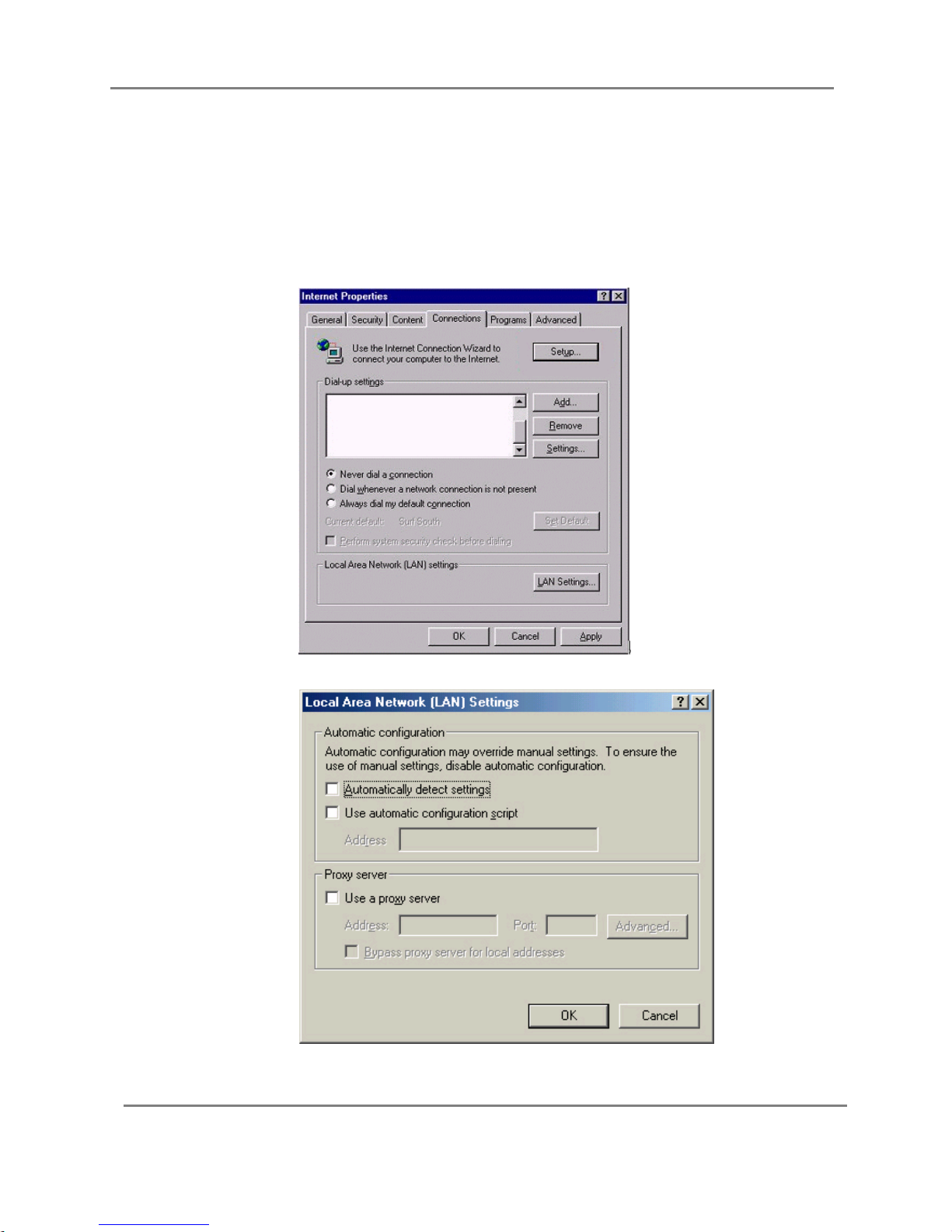

2. In the “Internet Options” window click the “Connections” tab. Then click the “LAN
Settings” button.
3. Clear all the checkboxes.

802.11g 4-Port Wireless LAN Broadband Router
12
4. Click “OK”, and then click “OK” again to close the “Internet Options” window.
‧ Netscape

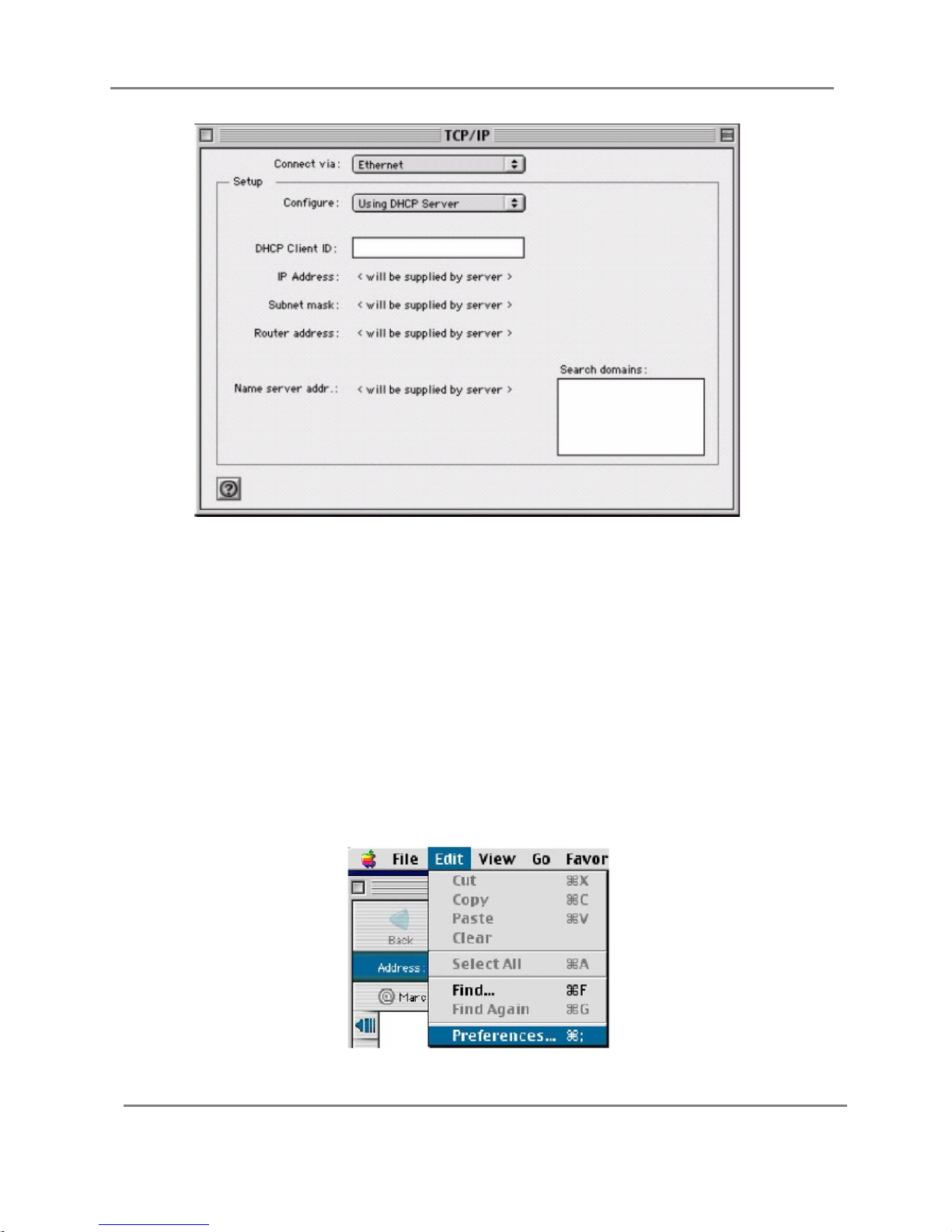

1. Open Netscape and click the stop button. Click “Edit”, then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced”, then click
“Proxies”. Select “Direct connection to the Internet.” Click “OK”.
Step. 3 Obtain IP Settings from Your Router
1. Click “Start”, then “Run…”. Type “winipcfg” to open the IP Configuration utility.
2. Click the “Release All” button.
3. Click the “Renew All” button
4. Verify that your IP address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0
and your Default Gateway is 192.168. 1.1. Click “OK” to close the “IP Configuration”
window.
．Windows NT/2000/XP
Step 1. TCP/IP Configuration
After you have completed the hardware setup by connecting your devices, you need to
configure your computer to connect to your Router.
1. From the Windows desktop, click the “Start” button. Choose “Settings”, then click
“Control Panel”.
2. From “Control Panel”, double-click the “Network & Dial-Up Connections” icon.
3. Double-click the icon that corresponds to the connection to your router.
4. Click “Properties” and double-click “Internet Protocol (TCP/IP)”.
5. On the “Internet Protocol (TCP/IP) Properties” dialog box, make sure “Obtain an IP
address automatically” and “Obtain DNS server address automatically” are selected. If
not, select them and click “OK” and close window.
Step. 2 Disable HTTP Proxy
‧ Internet Explorer

802.11g 4-Port Wireless LAN Broadband Router
13
1. Open Internet Explorer and click the stop button. Click “Tools” then “Internet Options”.
2. In the “Internet Options” window click the “Connections” tab. Then click the “LAN
Settings” button.
3. Clear all the checkboxes.
4. Click “OK”, and then click “OK” again to close the “Internet Options” window.
‧ Netscape
1. Open Netscape and click the stop button. Click “Edit,” then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced”, then click
“Proxies”. Select “Direct connection to the Internet”. Click “OK”.
Step. 3 Obtain IP Settings from Your Router
1. From the Windows desktop, click the “Start” button, then “Programs“, then “Accessories”
and then click“Command Prompt”.
2. Type “IPCONFIG /RELEASE” and press “Enter”.
3. Type “IPCONFIG /RENEW” and press “Enter”.
4. Verify that your IP address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0
and your Default Gateway is 192.168.1.1. Click “OK” to close the “IP Configuration”
window.
5. Type “Exit” and close window.
．MAC OS 7.X or above
Step 1. TCP/IP Configuration
1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP.
2. In the TCP/IP dialog box, make sure that “Ethernet” is selected in the “Connect Via.”field.
Make sure “Using DHCP Server” is already selected in the “Configure” field and close
window.

802.11g 4-Port Wireless LAN Broadband Router
14
2. Another box will appear asking whether you want to save your TCP/IP settings. Click
Save.
Step. 2 Disable HTTP Proxy
‧ Internet Explorer
1. Open Internet Explorer and click the stop button. Click “Edit” then “Preferences”

802.11g 4-Port Wireless LAN Broadband Router
15

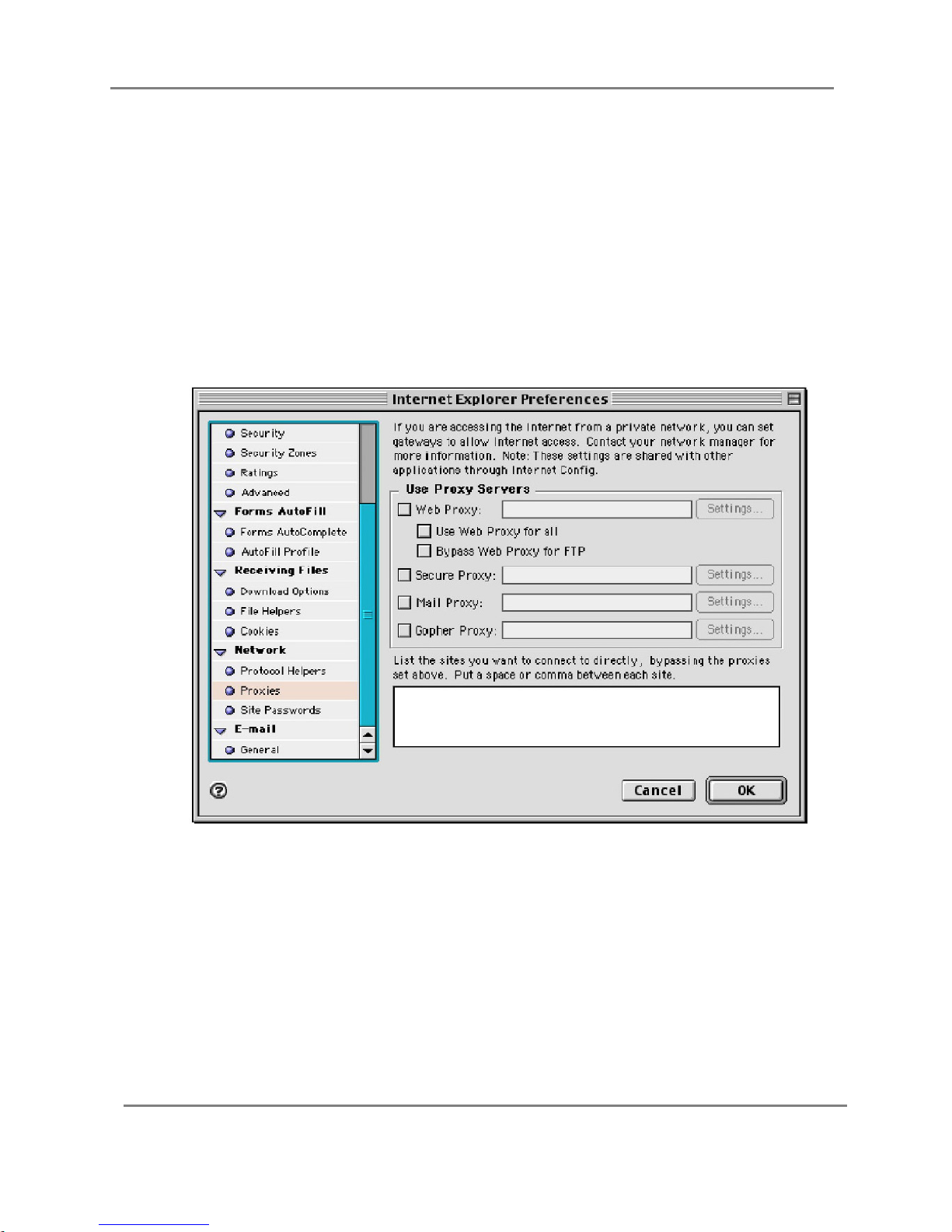

2. Select “Proxies” and uncheck all checkboxes and click “OK”.
‧ Netscape
1. Open Netscape and click the stop button. Click “Edit”, then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced”, then click
“Proxies”. Select “Direct connection to the Internet”. Click “OK”.
Step. 3 Obtain IP Settings from Your Router
1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP.
2. In the TCP/IP window, your new settings will be shown. Verify that your IP address is
192.168.1.xxx, Subnet Mask is 255.255.255.0 and Default Gateway is 192.168.1.1.
Close Window.

802.11g 4-Port Wireless LAN Broadband Router
16
3. Using Configuration Menu

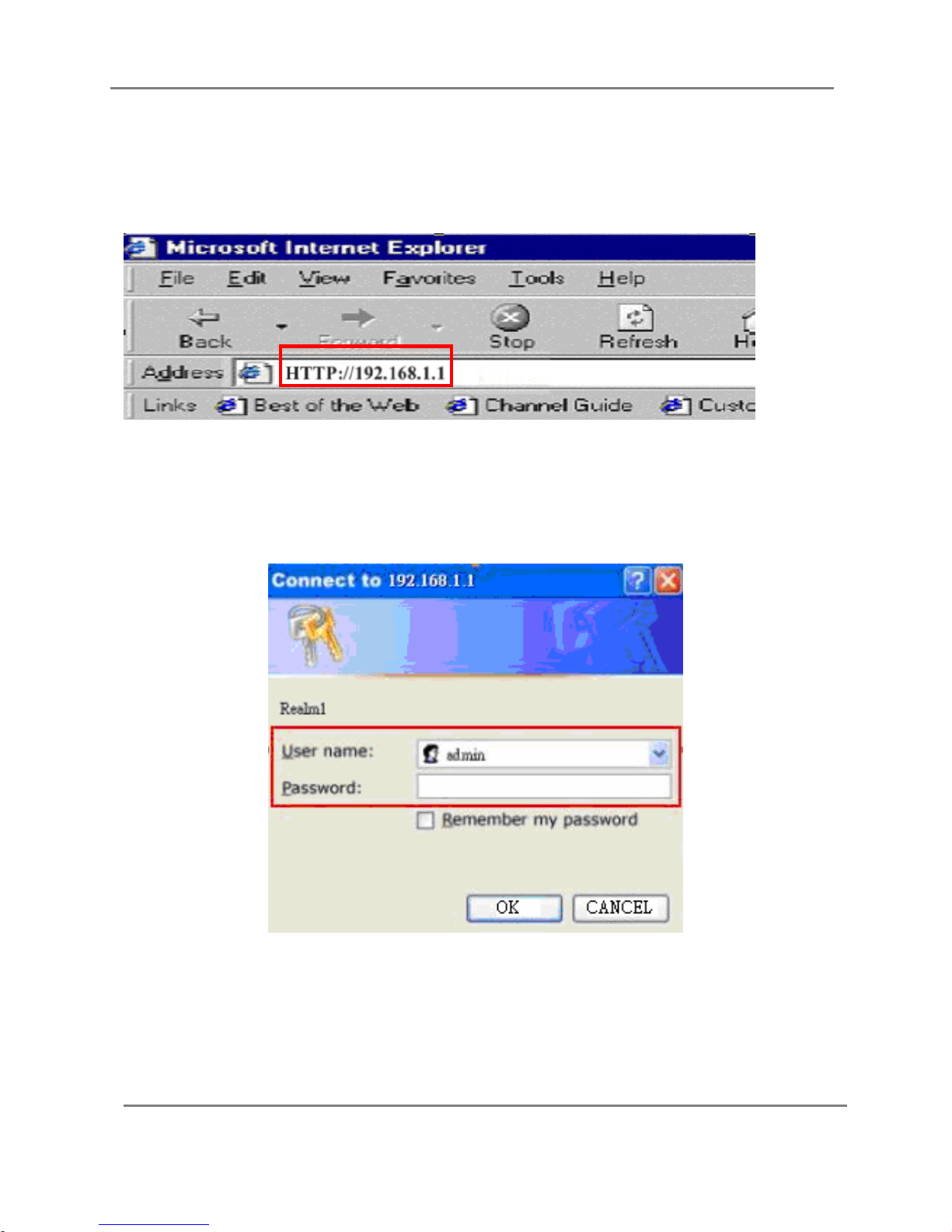

After configuration of your network, you can access the Router via Web browser and type
the IPAddress of Router. The default IP address of this Router is http://192.168.1.1.
Please note that if you have changed the default IPAddress assigned to the Router, make
sure to enter the correct IPAddress. The default “User Name” and “Password” are both
“admin”. Please refer to “Administrator Settings” page to check how to change your
password.

802.11g 4-Port Wireless LAN Broadband Router
17

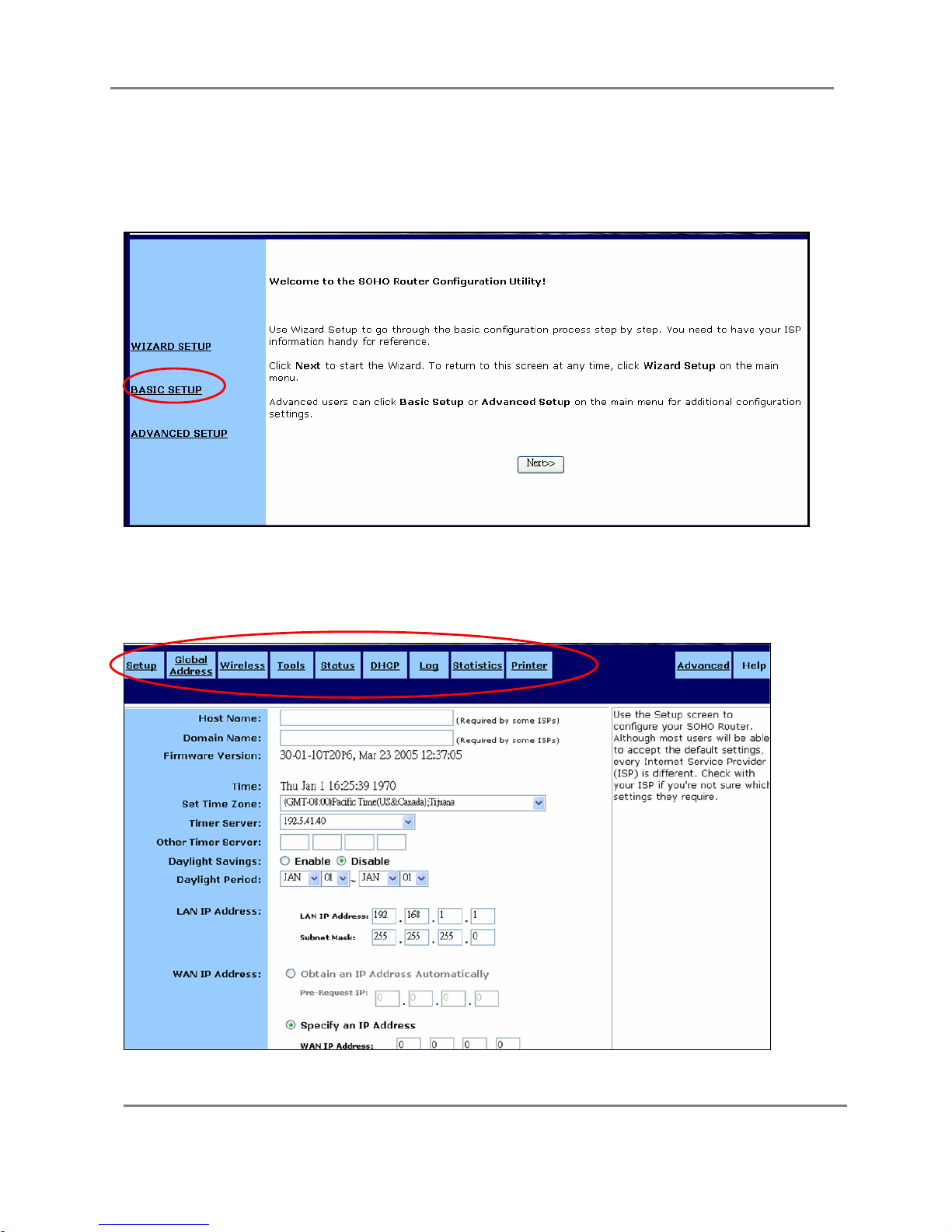

3.1 Setup Method
You can choose WIZARD SETUP for step-by-step Installation or choose BASIC SETUP for
basic configuration or choose ADVANCE SETUP for advanced configuration.
1. Setup Wizard
If you choose WIZARD SETUP , please refer to Quick Installation Guide for step by step
instruction.

802.11g 4-Port Wireless LAN Broadband Router
18
2. Basic Setup
If you choose BASIC SETUP , you will see setup screen as below. Click the upper frame to
change settings.

802.11g 4-Port Wireless LAN Broadband Router
19
3.Advanced Setup
If you choose ADVANCE SETUP , you will see setup screen as below. Click the upper
frame to change settings.

802.11g 4-Port Wireless LAN Broadband Router
20
3.2 Basic Setup
3.2.1 Setup Router
In this page, you can configure your WLAN Router.
Host Name:
Provide a host name (also called system name or account name) if your ISP requires
this information.
Domain Name:
Provide the ISP domain name (e.g. xyz.isp.com) if your ISP requires this information.
Firmware version:
The current firmware version is shown for your convenience.
Time:
Select your Time Zone and Enable or Disable the application of Daylight Savings
Time.
