BroaMan MUX22 User manual

BroaMan MUX22
Operating Manual
Rev. 2.1
Operating Manual for
MUX22

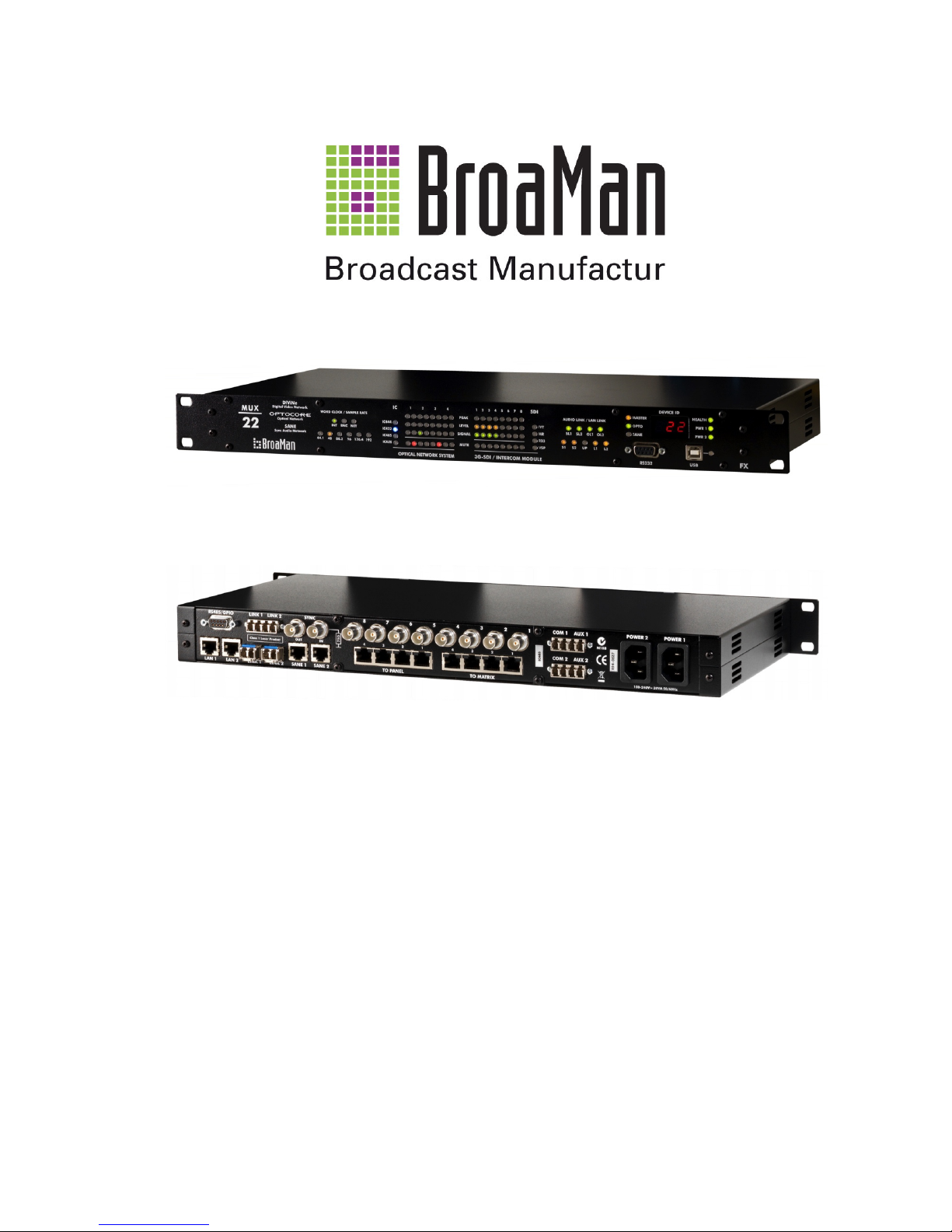

BroaMan device with Optocore® and SANE® integration
© Copyright 2017 All rights reserved
BROAMAN GmbH
Lohenstr. 8
82166 Munich-Gräfelfing
Germany

Page intentionally left blank.

BroaMan MUX22
Operating Manual
Rev. 2.1
3
Important Safety Instructions
•Please read this operating manual carefully.
•Please keep this operating manual in a safe place.
•Heed all warnings.
•Follow all instructions.
•This device may only be used in accordance to the information provided in this operating
manual. Ensure that all recommendations, especially the safety recommendations as detailed
in this operating manual, are followed before and during the usage of the device.
•Do not use this device near water, for example, in humid or damp rooms.
•Clean only with a dry cloth.
•Do not block or cover any ventilation slits. Install the device in accordance with the operating
manual.
•Do not install or place the device near a source of heat such as: radiators, power-amplifiers, or
any other heat-producing equipment.
•Protect the power cord from being stepped on, crushed, pinched or damaged in any other
way. Pay special attention to plugs and sockets of the device.
•Do not place this device on an unstable table, tripod, cart, etc. The device may fall, causing
serious damage to the device.
•The device can be disconnected from the power supply by pulling the plug. These must be
freely accessible at all times. The device should be disconnected during lightning storms or
when unused for long periods of time.
•The device must be grounded; any disconnection of the grounding is not permitted.
•The internal components of the switched-mode power supplies operate at very high voltages.
Coming into contact with them can lead to considerable electric shock, which may result in
death.
•Only use attachments specified by the manufacturer.
•This device contains no user serviceable parts: only refer to authorised, qualified service
personnel for any servicing.
•Your warranty will be voided if you tamper with the internal components.

BroaMan MUX22
Operating Manual
Rev. 2.1
4
Owner Information
•Operating Manual
Please read this manual. If you call for technical support, we will assume that you have already done
so. Study the operating manual carefully in order to familiarise yourself with the device and its
operation. The operating manual contains important information on proper use of the device.
It cannot be guaranteed that this operating manual will not contain typographical mistakes or
misprints. The operating manual is regularly revised and updated.
Modifications, which serve the purpose of technical improvement of the device, may be carried out
without prior notification.
•Transport and Shipping
Always ensure careful handling of the device. The device should be transported and shipped in
shock-absorbing transport cases. If these are not available, we recommend well-padded packaging
such as the coated carton in which the device was delivered.
We strongly advise against the use of light weight flight-cases without shock-absorbing rack-in-rack
mounting.
•Operational Environment
This device can be used in E1, E2, E3, E4, or E5 environments (as listed below) according to the
harmonized European standards EN55103-1 and EN55103-2 “Electromagnetic compatibility –
Product family standard for audio, video and audio-visual and entertainment lighting control apparatus
for professional use”
E1-Residental
E2-Commercial and light industrial
E3-Urban outdoors
E4-Controlled EMC environment e.g. broadcast and TV-studio
E5-Heavy industry
The product is intended for the use in moderate climate.
•Ventilation
Do not block or cover any ventilation openings. Install the device in accordance to the operating
manual. Allow for sufficient space around the units (at least 200 mm ≡7,87" free space behind the
rear-panel of the device) and make sure to allow for air circulation near the ventilation openings on
both sides of the device. Keep the rear of the rack open during operation. Do not operate the device
close to heat emitting equipment, such as power-amplifiers. Leave sufficient space (minimum ½RU)
between the device and any heat emitting devices housed in the same rack.
A BroaMan MUX22 may be placed on top or beneath other BroaMan products, without a space
between the devices for up to 4 adjacent rack spaces.
Please note:
Do not populate more than 4 adjacent rack spaces with BroaMan devices.
Maintain 1RU of empty space between each 4 RU of BroaMan devices.
Keep the equipment rack open during operation.
Ensure air circulation around the devices.
Maintain at least 200mm (~8”) clearance behind the rear panel of the devices.

BroaMan MUX22
Operating Manual
Rev. 2.1
5
•Water and Moisture etc.
To prevent fire or shock hazard do not expose the device to direct sunlight, dust, water or rain during
operation or storage.
•Cleaning
Only use a dry linen cloth to clean the device. If the unit is very dirty, moisten a cloth using a little
water and a small amount of household detergent. Never use cleansing agents containing solvents to
clean the device.
•Operating and Storage Temperature
Operating temperature: -20°C …50°C ≡-4°F …122°F; ensure proper ventilation
Storage temperature: -20°C …60°C ≡-4°F …140°F
•Power Supply
The device can be disconnected from the power supply by unplugging the power cord. The power
cords must be freely accessible at all times. The device should be disconnected during lightning
storms or when the device is unused for a long period of time.
Never disconnect the main plug by pulling the cable. Always unplug the device.
Power-supply cords should be routed in such a way that they are not likely to be walked on, crushed,
pinched, or damaged in any other way. Pay special attention to the plugs and the sockets of the
device.
•Fuse
There is no fuse in the device. The power supplies contain circuitry that protects the device from
overload.
•Lightning
For additional protection of this device during lightning storms, or when it is left unattended and
unused for a long period of time, disconnect the power cord. This will prevent damage to the device
due to lightning and power line surges. Disconnection from the mains power supply is only possible
by disconnecting the power plug from the mains socket.
•Eye Safety
This product is a Laser Class 1 product. It complies with IEC 60825-1, FDA 21 CFR 1040.10, and
1040.11.
Important:
The switched-mode power supplies operate at very high voltages.
Coming into contact with the power supplies can lead to considerable electric
shock, which may result in death.
Important:
A damaged power cable must be replaced immediately.
The device must be grounded. Disconnecting the ground is strictly prohibited.
Ensure that the device is always grounded using the power connector.
Do not cover the ground connection of the power connector with any kind of
insulation material!

BroaMan MUX22
Operating Manual
Rev. 2.1
6
•External objects and/or liquids with the device
Never push objects of any kind into the device through openings in the casing. They may come into
contact with dangerous voltage points or short out parts that could result in fire or electric shock.
Never spill liquid of any kind on the device.
•Cables and Accessories
Only use attachments that are specified by the manufacturer of the device.
Use high quality, properly terminated, cables to connect the device. The device should only be used
with optical fibre cables that are specified for use with the devices’ optical transceivers and within the
specified power budget of the optical transceivers. When not in use, ensure that the optical
connectors on the device and the optical fibre cables are covered with the provided caps.
Do not place this device on an unstable table, tripod, cart, etc. The device may fall, which can cause
injury and serious damage to the device. Any mounting of the device should follow the
manufacturer’s instructions, and should use mounting accessories recommended by the
manufacturer of the device.
•Servicing
Do not attempt to service the device by yourself.
The device contains no user serviceable parts, components or controls. The operation of an opened
device is not permitted. Such operation can lead to damage of the device’s components due to lack
of air-flow through the device.
The device may not be serviced, altered or modified without authorization from Broaman or an
Broaman authorized distributor / dealer. Only qualified service personnel may carry out repair and
maintenance work on the device. The warranty of the device will be voided if any unauthorized
maintenance or repair work has been carried out.

BroaMan MUX22
Operating Manual
Rev. 2.1
7
CE/FCC Conformity
This document confirms that the product MUX22 bearing the CE (Communauté Européenne)label meets all
requirements in the EMC directive 2004/108/EG laid down by the Member States Council for adjustment of legal
requirements. Furthermore the product complies with the rules and regulations of the low-voltage directive
2006/95/EG and the Restriction of Hazardous Substances Recast Directive 2011/65/EU (RoHS 2). This product
bearing the CE label complies with the following standards, ratified by CENELEC (Comité Européen de
Normalisation Electrotechnique):
Electromagnetic compatibility – Product family standard for audio, video, audio-visual and
entertainment lighting control apparatus for professional use
EN 55103-1, Emission
EN 55103-2, Immunity
EN 60065, Safety requirements
FCC notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case you will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by Broadcast Manufactur GmbH and Clear-Com, LLC, an HME
company could void the user’s authority to operate this equipment.
Industry Canada Compliance Statement
This Class[A] digital device complies with Canadian ICES-003.
Avis de conformité à la réglementation d'Industrie Canada
Cet appareil numérique de la class[A] est conforme à la norme NMB-003 du Canada.
The authorised declaration and compatibility certification lies with the manufacturer and can be viewed on
request. Responsible as manufacturer is:
Broadcast Manufactur GmbH, Lohenstr. 8, 82166 Munich-Gräfelfing, Germany
Represented by Marc Brunke, Technical Director
N.B. The awarding of the CE label confirms the compliance with legal directives issued for the manufacture and
marketing of electronic and electrical devices. As such the CE label is not a "seal of quality" but rather proof that
the device bearing the CE label is conform with the electromagnetic compatibility standards laid down in the
above named testing regulations.
Munich, 05.06.2014
Marc Brunke

Page intentionally left blank.

BroaMan MUX22
Operating Manual
Rev. 2.1
9
BroaMan MUX22
Table of Contents
Important Safety Instructions.....................................................................................................................................3!
Owner Information.....................................................................................................................................................4!
CE/FCC Conformity...................................................................................................................................................7!
Device Description ..................................................................................................................................................11!
Front Panel.............................................................................................................................................................. 12!
MUX22 IVT/IC444; IVT/IC422; IVT/IC485; IVT/ICAES ................................................................................12!
MUX22 IVT/MADI-OPT; IVT/MADI-BNC .....................................................................................................14!
MUX22 IVT ..................................................................................................................................................16!
MUX22 IVT/IVT............................................................................................................................................18!
Rear Panel ..............................................................................................................................................................20!
MUX22 IVT/IC422; IVT/IC485; IVT/ICAES ..................................................................................................20!
MUX22 IVT/IC444........................................................................................................................................ 21!
MUX22 IVT/MADI-OPT................................................................................................................................22!
MUX22 IVT/MADI-BNC................................................................................................................................22!
MUX22 IVT ..................................................................................................................................................24!
MUX22 IVT/IVT............................................................................................................................................24!
MUX22 with RS422 special serial data interface.........................................................................................25!
Device Details .........................................................................................................................................................26!
BNC-SDI Ports.............................................................................................................................................26!
IVT (Intelligent Video Tunnel) Input Module................................................................................................. 26!
IVT (Intelligent Video Tunnel) Output Module..............................................................................................26!
Fiber Ports ...................................................................................................................................................26!
Multiplexers..................................................................................................................................................26!
IC422 and IC485 - Intercom Ports ...............................................................................................................26!
ICAES - AES3 Duplex Ports ........................................................................................................................26!
IC444 - Line Level I/O and GPIO .................................................................................................................27!
FO – four douplex optical MADI ports..........................................................................................................27!
BNC – four douplex optical MADI ports .......................................................................................................27!
Optocore Fiber Optic Connection ................................................................................................................27!
SANE Ports..................................................................................................................................................27!
RS485, GPIO or RS422 Auxiliary Ports.......................................................................................................27!
Sync .............................................................................................................................................................28!
Optocore Transmission Delay......................................................................................................................28!
Power Supply...............................................................................................................................................28!
Control.....................................................................................................................................................................28!
Connectors and Cables........................................................................................................................................... 29!
SD/HD/3G-SDI Ports ...................................................................................................................................29!
Optical Connections.....................................................................................................................................29!
SANE Ports..................................................................................................................................................29!

BroaMan MUX22
Operating Manual
Rev. 2.1
10
Auxiliary Ports – RS485/GPIO/RS422 .........................................................................................................29!
RS232 Connection .......................................................................................................................................29!
Connector Hood Quality...............................................................................................................................29!
USB Connection...........................................................................................................................................30!
LAN Connection ...........................................................................................................................................30!
Word Clock/Sync Connection ......................................................................................................................30!
Power Connection........................................................................................................................................30!
Ordering Options .....................................................................................................................................................30!
MUX22 IVT/IC422 ........................................................................................................................................30!
MUX22 IVT/IC485 ........................................................................................................................................31!
MUX22 IVT/IC444 ........................................................................................................................................31!
MUX22 IVT/ICAES.......................................................................................................................................32!
MUX22 IVT/MADI-OPT ................................................................................................................................32!
MUX22 IVT/MADI-BNC................................................................................................................................33!
Connector Pin Out ...................................................................................................................................................34!
Connection Examples GPI/GPO IC444 Module...........................................................................................38!
Dimensions and Weight...........................................................................................................................................40!
Dimensions...................................................................................................................................................40!
Weight ..........................................................................................................................................................40!
Warranty and Liability ..............................................................................................................................................41!
Summary of Warranty ..................................................................................................................................41!
How to Obtain Warranty Service..................................................................................................................41!
Declaration of Liability ..................................................................................................................................41!
Package Contents ...................................................................................................................................................42!
Company Information ..............................................................................................................................................43!

BroaMan MUX22
Operating Manual
Rev. 2.1
11
Device Description
Congratulations on your purchase of a MUX22 - 3G/HD/SD-SDI electrical-optical converter with integrated
Wavelength Division Multiplexer (CWDM/DWDM) and interface to Optocore® and SANE® for joint transport of
video, audio and data over a duplex fiber connection. This manual will quickly demonstrate the advantages of the
device and help ease your day-to-day workload in the professional audio-visual environment.
BroaMan provides scalable and protocol independent routing, repeating, transport and distribution of multiple
professional video, audio and data signals via optical fiber.
BroaMan systems are built from a collection of modules that includes: coaxial and optical I/O, routers, repeaters,
and optical multiplexers. Using BroaMan modular building blocks, any system configuration can be realised.
BroaMan systems are specified and built to provide an engineered system solution, tailored to the requirements of
the customer. The modular nature of BroaMan paves the way for construction of fully cost optimised systems.
MUX22 is an application engineered electrical-optical/optical-electrical converter and Wavelength Division
Multiplexer (WDM) for 3G/HD/SD-SDI signals seamlessly integrating in Optocore® and SANE® digital audio
networks. SDI signals are transported asynchronously to provide low latency, whilst audio and data as well as
sync signals are transmitted via the synchronous Optocore Network.
MUX22 can be populated with up to four (in a special version without audio/intercom functionality up to 8) dual
channel 3G/HD/SD-SDI modules that can convert electrical to optical or optical to electrical signals.
For (optionally redundant) SDI point to point connections, IVT with two 3G/HD/SD-SDI BNC inputs or outputs,
which will be converted to/from fiber and can be configured redundantly
MUX22 can be ordered with different types of audio/intercom connections.
For ClearCom intercom systems:
IC422 with 4Clear-Com compatible four-wire intercom ports with serial control.
For RTS intercom systems:
IC485 with 4RTS compatible four-wire intercom ports with serial control.
For systems requiring line level I/O and GPIO:
IC444 with 4Line Level inputs and outputs, 4GPI in and 4GPI out and auxiliary power output.
For AES connectivity (for e.g. AES/EBU based intercoms)
ICAES with 4 AES3 inputs and outputs.
For MADI connectivity:
FO with 4 Duplex SC MADI Ports
BNC with 4 Bi-directional BNC MADI Ports
IC422 and IC485 modules provide 4-wire intercom ports with line level audio inputs and outputs along with serial
data links on RJ45 connectors for communication between intercom matrices and auxiliary devices. Serial control
is routed with the audio, requiring audio to be routed to and from each port in order to establish bi-directional
audio and serial communication between matrices, user key-panels and/or interfaces.
Each IC422 and IC485 four-wire intercom port can be used as an independently routed line level input and output
using an adaptor from RJ45 to a connector such as XLR.
The ICAES module provides a fully 32-bit transparent AES3 input and output on each RJ45 connector for
communication of AES3-based intercom systems or can be used as AES3 input/output with a proper cable
adapter.
IC422, IC485 and ICAES RJ45 intercom ports are duplicated with reversed wiring so that either matrices (TO
MATRIX) or intercom key-panels (TO PANELS) can be connected to the unit using standard CAT cables, making
cabling simple and cost-efficient.
The IC444 module provides line level audio inputs and outputs, GPIO (General Purpose Inputs and Outputs) and
auxiliary +5V DC and +12V DC power outputs, to power external circuits, on 37 pin D-Sub connectors. GPIOs are
routed with the corresponding audio inputs and outputs, requiring audio to be routed to and from each port in
order to establish bi-directional audio and GPIO links.
The FO/BNC MADI I/O module is equipped with four MADI input ports and four MADI output ports, each
transmitting or receiving up to 64 audio channels. This amounts to a total number of up to 256 input channels and
256 output channels per device. The interfaces are SC multi/singlemode or dual BNC.
MUX22 is equipped with a built-in redundant power supply with an automatic switchover.

BroaMan MUX22
Operating Manual
Rev. 2.1
12

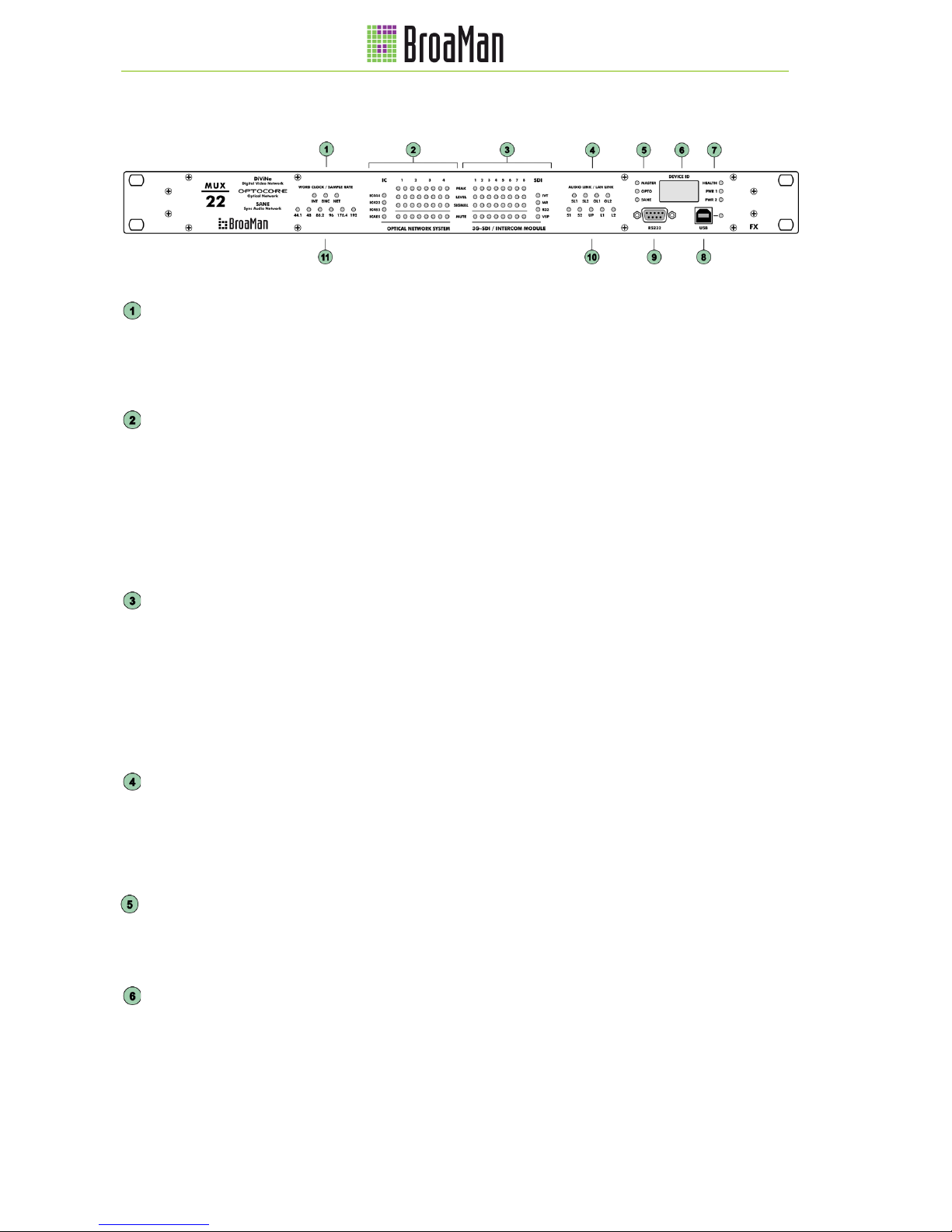

Front Panel
MUX22 IVT/IC444; IVT/IC422; IVT/IC485; IVT/ICAES
Word Clock LED: Indicates the selected Sync/Word Clock source:
INT: Internal Sync/Word Clock of the device
BNC: External via the BNC SYNC input
NET: Sync/Word Clock received from the Optocore network
Signal Monitor LED for 4 Duplex Audio Channels:
IC422: Four-wire intercom ports with bi-directional RS422 (for Clear-Com)
IC485: Four-wire intercom ports with bi-directional RS485 (for RTS)
IC444: Line Level I/O with GPIO
ICAES: Bi-directional AES3 ports
PEAK: Red: Clipping. Input level exceeds the maximum input level of 0dBFS
LEVEL: Yellow: Warning level. Input level exceeds -10dBFS
SIGNAL: Green: Signal present ≥-60dBFS. Brightness controlled
MUTE: Red: Input: no function; Output: no signal routed to this output
Signal Monitor LED for 8 3G/HD/SDI Channels:
IVT: Intelligent Video Tunnel
MR: currently not used
R33: currently not used
VSP: currently not used
PEAK: Red: Optical power exceeds the maximum input level of the receiver
LEVEL: Yellow: Optical power is in proper range and good condition
SIGNAL: Green: Indicates SDI input/output signal presence
MUTE: Red: Optical power is too low, signal is muted
AUDIO LINK LED:
SL1: Communication is established via SANE 1 (rear panel)
SL2: Communication is established via SANE 2 (rear panel)
OL1: Communication is established via Optocore LINK 1 (rear panel)
OL2: Communication is established via Optocore LINK 2 (rear panel)
Master LED: Indicates the master device in the system
OPTO LED: Optocore communication is established
SANE LED: SANE communication is established
Device ID Display: The identification number (ID) of the device

BroaMan MUX22
Operating Manual
Rev. 2.1
13
HEALTH LED: Green: Power supply to the device is working; temperature is within limits
PWR 1 LED: Green: Power supply 1 is receiving power and working
PWR 2 LED: Green: Power supply 2 is receiving power and working
USB connector: USB connection for remote control via PC
USB LED: Green: Indicates data activity
RS232 connector: RS232 (D-Sub-9) connection for remote control and firmware updates via PC
LAN LINK LED:
S1: Ethernet communication is established via SANE 1 (rear panel)
S2: Ethernet communication is established via SANE 2 (rear panel)
UP: There is another device with an enabled Ethernet port on the network
L1: Ethernet communication is established via LAN 1 (rear panel)
L2: Ethernet communication is established via LAN 2 (rear panel)
Sample rate LED: Yellow: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

BroaMan MUX22
Operating Manual
Rev. 2.1
14
MUX22 IVT/MADI-OPT; IVT/MADI-BNC
Word Clock LED: Indicates the selected Sync/Word Clock source:
INT: Internal Sync/Word Clock of the device
BNC: External via the BNC SYNC input
NET: Sync/Word Clock received from the Optocore network
Signal Monitor LED for 4 Duplex MADI:
BNC:Four Dual Coaxial MADI
FO:Four Bi-Directional Optical SC MADI
CAT:Future option
POE:Future option
ERROR:Red: Error with incoming MADI signal
LAN:Yellow: Ethernet communication present
MADI:Green: MADI Signal present
POWER:Red: Future Option
Signal Monitor LED for 8 3G/HD/SDI Channels:
IVT: Intelligent Video Tunnel
MR: currently not used
R33: currently not used
VSP: currently not used
PEAK: Red: Optical power exceeds the maximum input level of the receiver
LEVEL: Yellow: Optical power is in proper range and good condition
SIGNAL: Indicates SDI input/output signal presence
MUTE: Red: Optical power is too low, signal is muted
LINK LED:
SL1: Communication is established via SANE 1 (rear panel)
SL2: Communication is established via SANE 2 (rear panel)
OL1: Communication is established via Optocore LINK 1 (rear panel)
OL2: Communication is established via Optocore LINK 2 (rear panel)
Master LED: Indicates the master device in the system
OPTO LED: Optocore communication is established
SANE LED: SANE communication is established
Device ID Display: The identification number (ID) of the device
HEALTH LED: Green: Power supply to the device is working; temperature is within limits
PWR 1 LED: Green: Power supply 1 is receiving power and working
PWR 2 LED: Green: Power supply 2 is receiving power and working

BroaMan MUX22
Operating Manual
Rev. 2.1
15
USB connector: USB connection for remote control via PC
USB LED: Green: Indicates data activity
RS232 connector: RS232 (D-Sub-9) connection for remote control and firmware updates via PC
LAN LINK LED:
S1: Ethernet communication is established via SANE 1 (rear panel)
S2: Ethernet communication is established via SANE 2 (rear panel)
UP: There is another device with an enabled Ethernet port on the network
L1: Ethernet communication is established via LAN 1 (rear panel)
L2: Ethernet communication is established via LAN 2 (rear panel)
Sample rate LED: Yellow: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

BroaMan MUX22
Operating Manual
Rev. 2.1
16
MUX22 IVT
Word Clock LED: Indicates the selected Sync/Word Clock source:
INT: Internal Sync/Word Clock of the device
BNC: External via the BNC SYNC input
NET: Sync/Word Clock received from the Optocore network
Signal Monitor LED for 8 3G/HD/SDI Channels:
IVT: Intelligent Video Tunnel
MR: currently not used
R33: currently not used
VSP: currently not used
PEAK: Red: Optical power exceeds the maximum input level of the receiver
LEVEL: Yellow: Optical power is in proper range and good condition
SIGNAL: Indicates optical input/output power by brightness
MUTE: Red: Optical power is too low, signal is muted
LINK LED:
SL1: Communication is established via SANE 1 (rear panel)
SL2: Communication is established via SANE 2 (rear panel)
OL1: Communication is established via Optocore LINK 1 (rear panel)
OL2: Communication is established via Optocore LINK 2 (rear panel)
Master LED: Indicates the master device in the system
OPTO LED: Optocore communication is established
SANE LED: SANE communication is established
Device ID Display: The identification number (ID) of the device
HEALTH LED: Green: Power supply to the device is working; temperature is within limits
PWR 1 LED: Green: Power supply 1 is receiving power and working
PWR 2 LED: Green: Power supply 2 is receiving power and working
USB connector: USB connection for remote control via PC
USB LED: Green: Indicates data activity
RS232 connector: RS232 (D-Sub-9) connection for remote control and firmware updates via PC

BroaMan MUX22
Operating Manual
Rev. 2.1
17
LAN LINK LED:
S1: Ethernet communication is established via SANE 1 (rear panel)
S2: Ethernet communication is established via SANE 2 (rear panel)
UP: There is another device with an enabled Ethernet port on the network
L1: Ethernet communication is established via LAN 1 (rear panel)
L2: Ethernet communication is established via LAN 2 (rear panel)
Sample rate LED: Yellow: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

BroaMan MUX22
Operating Manual
Rev. 2.1
18
MUX22 IVT/IVT
Word Clock LED: Indicates the selected Sync/Word Clock source:
INT: Internal Sync/Word Clock of the device
BNC: External via the BNC SYNC input
NET: Sync/Word Clock received from the Optocore network
Signal Monitor LED for 16 3G/HD/SDI Channels:
IVT: Intelligent Video Tunnel
MR: currently not used
R33: currently not used
VSP: currently not used
PEAK: Red: Optical power exceeds the maximum input level of the receiver
LEVEL: Yellow: Optical power is in proper range and good condition
SIGNAL: Green: Indicates optical input/output power by brightness
MUTE: Red: Optical power is too low, signal is muted
LINK LED:
SL1: Communication is established via SANE 1 (rear panel)
SL2: Communication is established via SANE 2 (rear panel)
OL1: Communication is established via Optocore LINK 1 (rear panel)
OL2: Communication is established via Optocore LINK 2 (rear panel)
Master LED: Indicates the master device in the system
OPTO LED: Optocore communication is established
SANE LED: SANE communication is established
Device ID Display: The identification number (ID) of the device
HEALTH LED: Green: Power supply to the device is working; temperature is within limits
PWR 1 LED: Green: Power supply 1 is receiving power and working
PWR 2 LED: Green: Power supply 2 is receiving power and working
USB connector: USB connection for remote control via PC
USB LED: Green: Indicates data activity
RS232 connector: RS232 (D-Sub-9) connection for remote control and firmware updates via PC
LAN LINK LED:
S1: Ethernet communication is established via SANE 1 (rear panel)

BroaMan MUX22
Operating Manual
Rev. 2.1
19
S2: Ethernet communication is established via SANE 2 (rear panel)
UP: There is another device with an enabled Ethernet port on the network
L1: Ethernet communication is established via LAN 1 (rear panel)
L2: Ethernet communication is established via LAN 2 (rear panel)
Sample rate LED: Yellow: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

BroaMan MUX22
Operating Manual
Rev. 2.1
20
Rear Panel
MUX22 IVT/IC422; IVT/IC485; IVT/ICAES
RS485/GPIO: 4 x RS485 (D-Sub-9) or GPIO (D-Sub-15) auxiliary port for data transmission
WDM ports LINK1/2: CWDM or DWDM multiplexer Input/Output for Optocore duplex fiber
connection (LINK1 and LINK2). Can be used for external fiber devices such
as Ethernet switches (see AUX1/2).
SYNC In: Tri-/Bi-Level Sync or Word Clock (software selectable) input allowing
synchronisation of Optocore devices/network and sync signal distribution via
the Optocore network from an external Sync/Word Clock source
SYNC Out Tri-/Bi-Level Sync or Word Clock output for synchronization of external
devices
Coaxial ports 1-8: Can be equipped with:
•3G/HD/SD-SDI (reclocked) inputs in pairs of two
•3G/HD/SD-SDI (reclocked) outputs in pairs of two
The coaxial ports are connected internally to SFP fiber transceivers that feed
the specified CWDM or DWDM multiplexers.
WDM port COM1: Combined duplex fiber port of internal WDM, CWDM or DWDM No.1
WDM port COM2: Combined duplex fiber port of internal WDM, CWDM or DWDM No.2
WDM port AUX1: Auxiliary duplex fiber port of internal WDM, CWDM or DWDM module No.1,
provides connectivity for external fiber devices such as Gigabit Ethernet
switches or any other third party optical connection.
WDM port AUX2: Auxiliary duplex fiber port of internal WDM, CWDM or DWDM module No.2,
provides connectivity for external fiber devices such as Gigabit Ethernet
switches or any other third party optical connection.
POWER 1 and 2: AC input for power supplies 1 and 2 (100 …240 V).
Optionally: DC input for power supply 1 and 2 with 4 pin XLR Male (8 …18V)
Device Label: Audio/intercom card type and serial number of the device
TO PANEL: RJ45 4-wire/AES intercom ports wired for connection to key-panels or
interfaces
TO MATRIX: RJ45 4-wire/AES intercom ports wired for connection to matrices
SANE 1: SANE RJ-45 interface for audio transmission and 100 Mbit Ethernet
SANE 2: SANE RJ-45 interface for audio transmission and 100 Mbit Ethernet
LINK 1: Full-duplex, full bandwidth LC-type optical interface for Optocore transmission
(SFP transceiver – type depending on a specyfication)
LINK 2: Full-duplex, full bandwidth LC-type optical interface for Optocore transmission
(SFP transceiver – type depending on a specyfication)
LAN 1: 100 Mbit RJ-45 Ethernet interface
LAN 2: 100 Mbit RJ-45 Ethernet interface
