Broan Evolution 4 QP430SS User manual

BR N Moo ,sQp 0ss.QP SS.
EVOLUTION TM 4 P ge,
P4 Series Range oods
FOR DOMESTIC
wA..i.G &
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
iNJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
Ifyou have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. This product may have sharp edges. Be careful to avoid cuts
and abrasions during installation and cleaning.
6. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Use only metal ductwork.
9. Do not use this fan with any solid-state speed control device.
10.As an alternative, this product may be installed with the
UL-approved cord kit designated for the product, following
instructions packed with the cord kit.
11.This unit must be grounded.
TO REDUCE THE RISK OFA RANGETOP GREASE FIRE:
1. Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
flamb6ing food (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flamb_).
3. Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCE THE RISK OF iNJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALLTHE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN --You may be burned or
spread the fire.
3. DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher, and you
already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on "Kitchen Firesafety Tips" published by NFPA.
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impeller, keep drywall spray, construction dust, etc., off power
unit.
4. Do not use over cooking equipment greater than 70,000
BTU/hr. as the blower motor will shut down intermittantly.
5. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated. The
motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
6. The top of the hood MUST NOT BE LESS than 30" and at a
maximum of 36" above cooktop for best capture of cooking
impurities.
7. This hood is not intended to be used as a shelf.
8. Please read specification label on product for further
information and requirements.
- Register your product online at: www.broan.corn -
Installer: Leavethis manual
with thehomeowner.
Homeowner:Cleaning, Maintenance and
Operating instructionson page2.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS
Page 2
CONTENTS OPERATION
INCLUDED WITH THE HOOD:
(1) 31A,,X 14,,
DAMPER /DUCT
CONNECTOR
FILTERS
(2- FOR 30"& 36" HOODS)
(3- FOR 42" HOODS)
(4) I_
HALOGEN
BULBS
(1) 7" ROUND__
_A(I 1 DUCT
CONNECTOR
) VERTICAL
R DIVERTER
(1) PARTS BAG CONTAINING:
WIRE (9) BULB
SUCTION
NUTS #8 X 1/4"
DUCT <J CUP TOOL
CONNECTOR
SCREWS _ (5)
#10 X 5/8"
RD. HD.
MOUNTING
SCREWS
Always turn the hood ON before cooking in order to establish an
air flow in the kitchen. After turning off the range, let the hood run
for a few minutes to clear the air.
Operate the hood as follows:
ooooooo o o
NOTE
The e_and e+e° buttons are used to adjust and toggle the menu
and timer settings.
'_ LIGHT (3-Pushbutton Switches 4=light Settings)
Turns the light on the low setting and activates a green indicator
above the button. Pressing the 2 button a second time activates the
night time setting and illuminates the C indicator.
• • Turns the light on the medium setting and activates a green
indicator above the button.
e
• • Turns the light on the high setting and activates a green
indicator above the button.
Pressing and holding the same light button again will turn the lights
off.
When the night time setting is active, pressing and holding the low
light setting button o_will turn the night time setting off.
CLEANING & MAINTENANCE
For performance, appearance, and health reasons, clean filter,
fan and grease-laden surfaces. Use only a clean cloth and mild
detergent solution on stainless and painted surfaces.
Clean all-metal filters in the dishwasher using a non-phosphate
detergent. Discoloration ofthe filter may occur if using phosphate
detergents, or as a result of local water conditions - but this will
not affect filter performance. This discoloration is not covered by
the warranty.
The motor is permanently lubricated and never needs oiling. If
the motor bearings make excessive or unusual noise, replace
the motor with the exact service motor. The impeller should also
be replaced.
Use 120V,50W, shielded halogen bulbs - MR16 with GU10 base.
_::_1 FAN (3-Pushbutton Switches 4-fan speeds)
•Turns the fan on the low speed and activates a green indicator
above the button.
•eTurns the fan on the medium speed and activates a green
indicator above the button.
ee+®Turnsthe fan on the high speed and activates a green indicator
above the button. Pressing the e+eo button a second time activates
the boost fan speed and illuminates the @,) indicator.
Pressing and holding the same fan button again will turn the fan off.
When the boost speed is active, pressing and holding the high
speed button will turn the boost speed off.
NOTE
This hood utilizes an offset blower design to achieve greater
performance and lower sound levels. As a result, you may notice
that cooking impurities are more attracted to one side or appear
to be pulled-in faster than they appear on the opposite side. This
is completely normal. The hood has been designed and tested
to provide good capture of cooking impurities and odors under
all normal cooking conditions regardless of the cooking location
on the cooktop. Please note that cooking on the rear burners will
always result inthe best capture of cooking impurities, regardless
of the hood design.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS

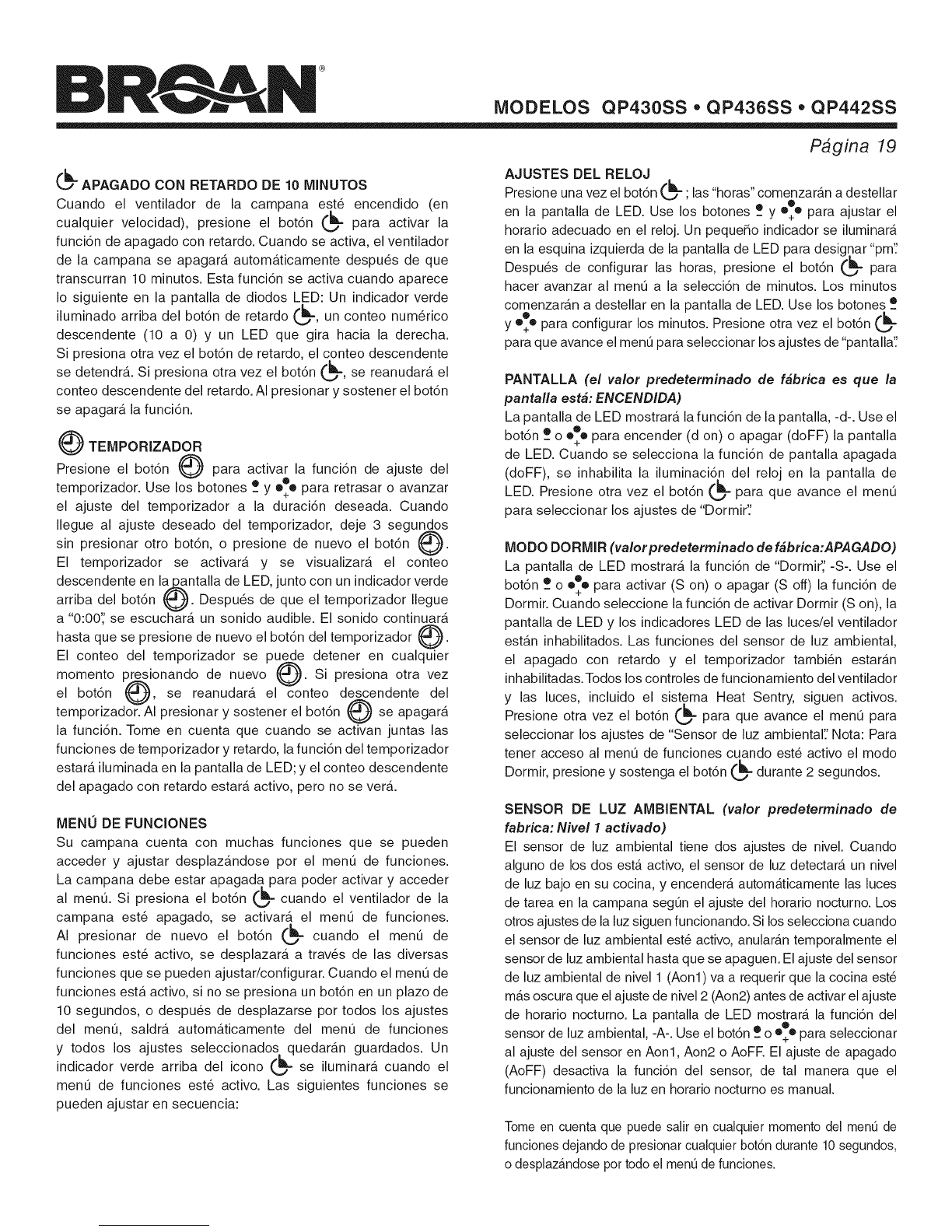

(J_ 10=MINUTE DELAY OFF
When your hood fan is on (any speed) press the (,_ button to
N
activate the delay off feature. When activated, the hood fan will
automatically turn off after 10-minutes has elapsed. The delay
feature is active when the following appear on the LED screen: A
green indicator illuminated above the delay (._ button, a numeric
countdown "10-0" and a clockwise rotating LED. The delay
button can be pressed once again, to stop the delay countdown.
Pressing the (._ button again will resume the delay countdown.
Pressing and holding the button will turn off the feature.
(_ TIMER
Press the Q button to activate the timer setting feature. Use
the o_and oe+ebuttons to reduce or advance the timer setting to
the desired duration. When the desired timer setting is reached,
allow 3 seconds without pressing any additional button or press
the _ button once again. The timer will then activate, and
the countdown will be displayed on the LED screen along with
an green indicator above the Q button. After the timer has
reached "0:00'; an audible beep will be heard. The beep will
continue until the timer button (_}) is pressed once again. The
timer countdown can be stopped at any time by pressing the
_) once again. Pressing the _._ button again will resume
the timer countdown. Pressing and holding the _}) button will
turn off the feature. Note that when both the timer and delay off
features are active together, the timer function will be illuminated
on the LED display, and the delay off countdown will be active,
but not displayed.
Page 3
CLOCK SETTING
Press the (,_ button once, the "hours" will begin blinking in the
LED screen. Use the 2 and ore buttons to set the appropriate
hours for the clock. A small indicator will illuminate in the left
corner of the LED screen to designate "pm'_After the hours are
set, press the (,_ button to advance the menu to the minute
selection.The minutes will begin blinking in the LED screen. Use
the _oand o+e buttons to set the minutes. Press the (_ button
again to advance the menu to select "display" settings.
DISPLAY (default from factory -display ON)
The LED screen will display the display feature -d-. Use the 2 or
e_ebutton to toggle the LED screen on (d on) or off (doFF). When
the display off (doFF) feature is selected, the LED display clock
illumination is disabled. Press the _ button again to advance
the menu to select the "Sleep" setting.
SLEEP MODE (default from factory -OFF)
The LED screen will display the "Sleep" feature -S-. Use the _o
or e+e button to toggle the Sleep feature on (S on) or off (S off).
When the Sleep on (S on) feature is selected, the LED screen
and fan/light LED indicators are disabled. The ambient light
sensor, delay-off and timer features will also be disabled. All
controls for the fan and light operation, including Heat Sentry,
are still active. Press the _ button again to advance the feature
menu to select the 'Ambient Light Sensor" setting. Note: To
access the feature menu when the Sleep Mode is active, press
and hold the (,_ button for 2 seconds.
FEATURE MENU
Your hood offers many settings that can be accessed and
adjusted by scrolling through the feature menu. Your hood fan
must be off to be able to activate and access the feature menu.
Pressing the _ button when the hood fan is off will activate the
feature menu. Pressing the _ button again when the feature
menu is active will scroll through the various features that can
be adjusted/set. When the feature menu is active, if a button is
not pressed within 10 seconds or after scrolling through all menu
settings, the feature menu will automatically be exited, and all
selected settings will be saved. A green indicator above the
icon will illuminate when the feature menu is active.The following
features can be adjusted sequentially:
AMBIENT LIGHT SENSOR (default from factory- Level 1 ON)
There are two level settings for the ambient light sensor. When
either of the two settings is active, the light sensor will detect a low
level of light in your kitchen, and will automatically turn the task
lights on the hood to the night time setting. The other light settings
are still functional. If selected when the ambient light sensor is
active, they will temporarily overide the ambient light sensor until
they are turned off. The level 1(Aonl) ambient light sensor setting
will require your kitchen to be more dark than the level 2 (Aon2)
setting before activating the night time setting. The LED screen
will display the ambient light sensor function -A-. Use the _oor e+ee
button to select the light sensor setting Aonl, Aon2, or AoFE The
Off (AoFF) setting deactivates the automatic ambient light sensor
feature so the night time light operation is manual.
Note that the feature menu can be exited any time by not
pressing any button(s) for 10 seconds or by scrolling through the
entire feature menu.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS
HEAT SENTRY SYSTEM
This range hood is equipped with an advanced Heat Sentry
system that monitors excessive temperature and automatically
adjusts the fan to the appropriate setting.
1) If the fan is on the Heat Sentry system will increase the
fan setting when the temperature is elevated. If the temperature
continues to rise, the Heat Sentry system will continue to increase
the fan setting until the temperature is stabilized or reduced.The
flashing light above the fan button shows the Heat Sentry system
fan setting. Once the temperature has reduced, the Heat Sentry
system will change the fan to the original setting.
2) If the fan is off the Heat Sentry system will automatically turn
the fan on to its highest speed when the temperature is above
normal. When the Heat Sentry system is on, the light above the
high speed fan button will flash on and off. After the temperature
has lowered to normal, the fan speed will be reduced until the
temperature has stabilized, then the fan will turn off.
-Note: Canadian version does not have this function. -
FUSES
RANGE HOOD CONTROL BOARD
MAIN LIGHT
FUSE FUSE
Page 4
MAKE-UP AIR DAMPER
The hood is compatible with Broan Make-Up Air Damper Model
MD6T or Model MD8T (optional). Purchase separately.
Make the connection to the Make-Up Air Damper with low voltage
wiring, as shown. See Make-Up Air Damper instructions for
additional information.
l® o
/BACK OF HOOD
/
I
LOW-VOLTAGE CONNECTOR
FOR MAKE-UP AIR DAMPER
RANGE
HOOD
LOW-VOLTAGE
WIRES
¢----
120
VAC__
MAKE-UP AIR
DAMPER
DAMPER
MOTOR
REMOTE CONTROL
The hood is compatible with Broan RF Remote Control Model
BCR1 (optional). Purchase separately.
The Range Hood Control Board contains a Main Fuse and a
Fuse to protect the controls from power surges. Ifa fuse has
opened (blown), the green fan setting or light setting indicators will
not operate properly when the fan or light buttons are pressed, and
the fan and lights will not turn on.
New fuses can be purchased at your local electronic supply store.
Use 8A, 120V, 5 mm diameter, 20 mm long, fast-acting, cartridge-
type fuses.
To replace a fuse (by qualified person(s):
1. Disconnect power at service entrance.
2. Remove filters and bottom pan.
3. Remove and inspect fuse. If it is not open (blown), additional
diagnostics are needed.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS
Page 5
PREPARE HOOD LOCATION
53
ROOF CAP 3%" X 14" or
7" ROUND DUCT
(For vertical
discharge)
HOUSE WIRING
or Back of hood)
CAP
t HOOD
30"- 36" ABOVE 3%"X 14" DUCT
COOKING SURFACE (For horizontal discharge)
Determine whether hood will discharge vertically (3W'
x 14" or 7" Round), or horizontally (3W' x 14" only). For
vertical or horizontal discharge, run ductwork between
the hood location and a roof cap or wall cap. For best
results, use a minimum number of transitions and elbows.
Use the proper diagram, as follows, for placement of
ductwork and electrical cutout in cabinet or wall.
VERTICAL DISCHARGE
CABINET FRONT DUCT & ELECTRICAL CUTOUTS
m I
I
t ELECTRICAL
CENTER ACCESS HOLE
LINE (in cabinet bottom)
HORIZONTALDISCHARGE
DUCT & ELECTRICAL CUTOUTS
35/8"
II mC ,.ETFRO.Tj3Js"ll-
I.OR,ZO.TALOOCTIT=H9
1 4" L AccEss.oLEj ,( _CABINET ._
oo,,oo t
CENTER
LINE
"_ ELECTRICAL
ACCESS
HOLE
(in wall)
MAKE-UPAIR
DAMPER ELECTRICAL
CONNECTION HOLE
(in wall)
7=INCHROUND DISCHARGEDUCT & ELECTRICAL CUTOUTS
CABINET FRONT
ELECTRICAL
CENTER ACCESS HOLE
LINE (in cabinet bottom)
30" HOOD
MOUNTING SCREW LOCATIONS
12 13/16" 115/8"
115/8" t"
WOOD SHIMS l HOOD MOUNTING
(recessed-bottom CENTER LINE SCREWS (5)
cabinets only)
36" & 42" HOODS
MOUNTING SCREW LOCATIONS
I45/8" (36" hood) 145/8" (36" hood)
_- 175/8" (42" hood) -_ 175/8" (42" hood)
CABINET FRONT I 3/
ii CABINET I'11_
I
WOOD SHIMS t'
(recessed-bottom CENTER
cabinets only) LINE
HOOD MOUNTING
SCREWS (5)

BR N MODELS QP430SS •QP436SS •QP442SS
Page 6
PREPARE THE HOOD
Remove parts bag and 3W' x 14" damper/duct connector
from inside the hardware box included with the hood.
Remove all protective polyfilm from the hood.
El Remove 6 Screws holding Bottom Pan to hood. Set bot-
tom pan and screws aside.
SCROLL
CAP
BUSHING _ °
I
_ SCREWS
LEFT-HAND
LIGHT PANEL
7" ROUND
DUCT
PLATE
VERTICAL 7" ROUND & 3W' X 14" INSTALLATION
ONLY:
Attach 3W' x 14" Damper/Duct Connector (if using 3W'
x 14" duct) or 7" Round Duct Plate (if using 7-inch round
duct) over the knockout opening.
Notes:
To accomodate off-center ductwork, the 3W'x 14" damper/
duct connector can be installed up to 1/2"on either side
of the hood center and the 7" round duct plate can be
installed up to W' on either side of the hood center.
Install the 3W'x 14" Damper/Duct Connector with the
Damper Flap Pivot nearest the Top/Back Edge of Hood.
FOR 30" MODEL ONLY:
Remove Le_Hand Light Panel by removing (2) Screws
and disconnecting electrical connector.
Remove Rubber Bushing in Scroll Cam. Set parts aside.
7" ROUND
KNOCKOUT
PLATE (also .......
remove 3W'x 14" <%
vertical plate)
./_ (_ 31A"X 14"
VERTICAL
KNOCKOUT
3W' X 14" .1_j PLATE
®
KNOCKOUT
PLATE
3 Remove 3_A'' x 14"vertical, 3W' x 14" horizontal, or 7-inch
round Knockout Plate(s) as appropriate for your ducting
method. I_ HORIZONTAL 3W' X 14" INSTALLATION ONLY:
Remove and discard Vertical Diverter Plate.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS
INSTALL THE HOOD
_ARNING
To reduce the risk of electrical shock, switch power off
at service panel. Lock or tag service panel to prevent
power from being switched on accidentally.
ELECTRICAL
WIRING BOX
COVER
ELECTRICAL
POWER
CABLE
KNOCKOUT
J
El Remove Electrical Wiring Box Cover from inside
of hood and appropriate Electrical Power Cable
Knockout from top or back of hood.
Page 7
CONNECT THE WIRING
GROUND
SCREW
El HOUSE POWER CABLE
Connect House Power Cable to range hood wiring -
BLACK to BLACK, WHITE to WHITE, and GREEN or
BARE WIRE to Ground Screw. Replace electrical wiring
box cover.
FOR 30" MODEL ONLY:
Replace rubber bushing, re-connect left-hand light panel
electrical connector, and re-attach light panel with (2)
screws removed in Step 6.
Re-attach Bottom Pan with 6 Screws removed in Step 5.
Install aluminum filters.
HOWTO CHANGE LIGHT BULBS
o I
HOUSE
POWER CABLE
[_ Run House Power Cable between service and hood
panel
location. Attach power cable to hood using appropriate clamp.
[_ Hang hood from (4) mounting screws driven into
part-way
cabinet locations (shown in illustrations under "PREPARE
HOOD LOCATION"). Mounting screws are included in
parts bag. Slide hood back towards wall until mounting
screw heads are engaged in narrow end of keyhole slots
in top of hood. Tighten screws securely. Add 5th mounting
screw in center hole in hood and tighten securely.
[_ Connect ductwork hood and duct make
to use tape to
joints secure and air-tight. Make sure the damper/duct
connector enters the ductwork and that the damper opens
and closes freely.
CAUTION: Bulbs may be hot. Refer to bulb
packaging for further information.
Install (4) _en Bulbs (included with hood). Use 120 V, 50
W, shielded halogen bulbs - MR16 with GU10 base.
NOTE: Suction CupTool (included with hood) can be used to
install and remove light bulbs.
Align pins on bulb with large diameter opening on socket, then
push bulb in towards hood and rotate clockwise until firmly
seated.
The position of the bulb socket (depth) is adjustable and may
require adjustment when:
a) certain brands of bulbs are difficult to install.
b) the bulb protrudes too far below the light panel.

BR N MODELS QP430SS ,, QP436SS ,, QP442SS
LAMP SOCKET
BRACKET
LIGHT
PANEL SCREWS
To change the depth of bulb sockets:
1. Remove bottom pan (See Step 5).
2. Remove 2 _ht Panel Screws and _ Panel. Set
screws aside.
3. Loosen 2 Screws holding Lamp Socket Bracket to
Panel.
4. Adjust socket/bracket to desired depth.
5. Re-tighten screws securely.
6. Re-attach light panel and bottom pan.
SERVICE PARTS Page 8
WARRANTY
OneYearLimitedWarranty
Broan-NuTonewarrantsto the originalconsumerpurchaserof its products
that suchproductswill be freefrom defectsin materialsor workmanship
for aperiodof one(1) yearfrom thedateoforiginalpurchase.THEREARE
NOOTHERWARRANTIES,EXPRESSORIMPLIED,INCLUDING,BUTNOT
LIMITEDTO,IMPLIEDWARRANTIESOFMERCHANTABILITYOR FITNESS
FORA PARTICULARPURPOSE.
During this oneyear period, Broan-NuTonewill, at its option, repairor replace,
without charge,any product or partwhich isfound to bedefectiveunder normal
use and service. THIS WARRANTY DOESNOT EXTENDTOFLUORESCENT
LAMP STARTERS,TUBES, HALOGENAND INCANDESCENTBULBS,FUSES,
FILTERS,DUCTS,ROOFCAPS,WALL CAPSANDOTHERACCESSORIESFOR
DUCTING.This warranty does not cover (a) normal maintenanceand service
or (b) any products or parts which havebeensubject to misuse, negligence,
accident, improper maintenanceor repair(other than by Broan-NuTone),faulty
installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one year period as
specifiedfor the expresswarranty.Some statesdo notallow limitation on how
long animplied warranty lasts, so theabove limitation maynot apply to you.
BROAN-NUTONE'SOBLIGATIONTO REPAIR OR REPLACE,AT BROAN-
NUTONE'SOPTION,SHALL BE THE PURCHASER'SSOLEAND EXCLUSIVE
REMEDYUNDERTHISWARRANTY.BROAN-NUTONESHALLNOTBELIABLE
FORINCIDENTAL,CONSEQUENTIALORSPECIALDAMAGESARISINGOUTOF
OR IN CONNECTIONWITH PRODUCTUSE OR PERFORMANCE.Some states
donot allowthe exclusionor limitationof incidental or consequentialdamages,
so theabove limitation or exclusion maynot apply to you. Thiswarranty gives
you specific legal rights, andyou may also haveother rights, which vary from
stateto state.This warranty supersedesall prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuToneat the
address or telephone number below, (b) give the model number and part
identification and (c) describe the natureof any defect in the product or part.
At the time of requestingwarranty service, you must present evidenceof the
originalpurchasedate.
Broan-NuToneLLC,926 W.State Street, Hartford, Wisconsin53027
www.broan.com 800-558-1711 Rev.08/2007
KEYNO. PARTNO.
1 97018567
2 97018257
3
4
5
99528259
97018568
97018227
97018205
97018206
97018207
7 97018569
8 97018570
9 97018571
10 97018231
11 97017731
12 97018233
13 97018572
97018573
97018574
14 97018260
15 97018262
16 97018575
17 97018582
* 97017735
* 99526707
* 97018252
* 97018253
* 97018261
* V05921
DESCRIPTION
7" RoundDuctPlate(includesmounting hardware)
UserInterfaceAssembly Black(includes interface,
nameplate,mounting hardware)
Nameplate,Black
CapacitorKit (includeswire nuts, mounting screw)
LightPanelRHStainless
(includesmounting hardware)
FilterKitfor 30" (2 perbag)
FilterKitfor 36" (2 perbag)
FilterKitfor 42" (3 perbag)
BlowerWheel(includesspring clip)
Motor Kit (includesmotor, isolators,
mounting hardware)
Damper/Duct Connector(includes mounting
hardware)
Light PanelLH Stainless(includes mounting
hardware)
LampSocket(includeslampsocket,wire nuts,
mountingscrews)
LampSocketBracket
BottomPan30" (includesmounting hardware)
BottomPan36" (includesmounting hardware)
BottomPan42" (includesmounting hardware)
CircuitBoard
Transformer(includesmounting hardware)
VerticalDiverter
RubberBushing
PartsBag
SuctionCupTool
HeatSensor
Fuse
RibbonCableKit (contains3)
50WHalogenGUIO Bulb
* Not shown
Order replacementparts byPARTNO.- not by KEYNO.
99527577B

BR N ooEL sQP4 OSS.QP4 SS.QP44 SS
EVOLUTION'" 4 P ge9
ottes de cuisine de s rie QP4
POUR USAGE DOMESTIQUE SEULEMENT
AVERTISSEME.TZ& AVERTISSEME.T
OBSERVEZ LES DiRECTiVES CI-DESSOUS AFIN DE RC:DUIRE
LES RISQUES D'INCENDIE, DE CHOC ¢:LECTRIQUE OU DE
BLESSURES CORPORELLES :
1. N'utilisezcetappareilque de la [e-mail] vous
avezdes questions,communiquezavecle fabricanta I'adresseou au
num@odetel@hone indiquesdans la garantie.
2. Avantde proceder& I'entretienou au nettoyagede rappareil,coupez
ralimentationdu panneauelectriqueet verrouillezrinterrupteurprincipal
din d'emp@herque le courantne soit accidentellementretabli.S'il est
impossibledeverrouillerrinterrupteurprincipal,fixezsolidementunmessage
d'avertissement,parexempleuneetiquelte,surle panneauelectrique.
3. La posede rappareil etles travauxd'electricite doivent6treeffectues
par des personnes qualifiees conformement & fa reglementation
en vigueur, notamment les normes de construction ayant trait & la
protection contre les incendies.
4. Pour@iterles refoulements,I'apportd'air dolt_tre suffisantpourbrOler
les gaz produitspar les appareils& combustionet les @acuerdartsle
conduitdefumee (cheminee).Respectezles directivesdu fabricantde
I'appareil de chauffage et les normes de securit& notammentcelles
publieesparla NationalFire ProtectionAssociation(NFPA),IAmerican
Society of Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE)et les codesdes autoriteslocales.
5. Ce produit peutcomporter des ar_tes tranchantes.Prenezgarde aux
coupureset aux@afluresIorsde I'installationet dunettoyage.
6. Veillez & ne pas endommager le c&blage electrique ou d'autres
equipements non @parents lots de la decoupe ou du per_;agedu
tour ou du plafond.
7. Les ventilateurs canalises doivent toujours rejeterrair & rext@ieur.
8. N'utilisez quedes conduits metalliques.
9. N'utilisezpas de commandede regime & semi-conducteursavec ce
ventilateur.
10. Ce produitpeut egalement6tre installe avec un ensemblede cordon
electrique homologue UL de conception speciale, en suivant les
instructionsaccompagnantI'ensemblede cordonelectrique.
11. Cet appareildolt6tre relie&une mise &la terre.
POUR REDUIRE LES RISQUES D'INCENDIE CAUSES PAR
DE LA GRAISSE SUR LE PLAN DE CUJSSON :
1. Nelaissezjamais lesel6mentsdesurfaceallumesahautetemp@ature.
Les debordements produisentde la fumee et des ecoulementsde
graisseinflammables.Ehuiledolt _trechauffeegraduellementa basse
ou &moyennetemp@ature.
2. Metteztoujours la hotte en MARCHEIors de la cuisson a feu vif ou
Iorsde lacuissond'aliments&flamber(parex.,cr@es Suzette,cerises
jubil& bceufau poivreflambe).
3. Nettoyezsouventla hotte.Ne laissezpas la graisses'accumulersur le
ventilateurou lesfiltres.
4. Utilisezdes casserolesde dimensionappropriee.Utiliseztoujoursune
batteriede cuisineadaptee& la dimensionde lasurfacechauffante.
OBSERVEZLES CONSlGNESSUIVANTES DE IVlANI#RE_. RE_DUIRE
LES RISQUESDE BLESSURESCORPORELLESEN CASD'INCENDIE
CAUSEPARDE LA GRAISSESUR LE PLANDE CUISSON:*
1. ETOUFFEZLES FLAMMES& I'aided'uncouvercleetanche,d'une t61e
biscuits ou d'un plateau en metalpuis eteignez le brOleur.FAITES
ATTENTIONDE NE PASVOUS BRULER. SI LES FLAMMES NE
S'ETEIGNENT PAS IMMEDIATEMENT,QUITTEZ LES LIEUX ET
APPELEZLESERVICEDESINCENDIES.
2. NERETIREZJAMAISUNEPOELEENFLAMMESDELACUISINIERE.
Vousrisquezdevous brOleret depropagerI'incendie.
3. N'UTILISEZPASD'EAU,ni de serviettesou de lingesmouilles- une
violenteexplosionde vapeurpourraitsurvenir.
4. UtilisezunextincteurSEULEMENTsi :
A. Vous savezqu'il est de classeABC et vous connaissezdej& son
modede fonctionnement.
B. Eincendien'estpastres importantetnese propagepus.
C. Lespompiersontet6 avises.
D. VouspouvezcombattreI'incendieen faisantdos a une sortie.
* Conseilstires de la publicationde la NFPA_ KitchenFireSafetyTips _.
ATTENTION
1. Pourusageinterieurseulement.
2. [e-mail] pasutilisercet appareil pour
evacuerdesmati@esoudesvapeursdangereusesouexplosives.
3. Pourne pas endommagerles roulementsdu moteur,des@uilibrerles
pales ou les rendre bruyantes,prot_gez I'appareilde la poussi_rede
pl&tre,de construction,etc.
4. Ne pas utiliser cette hotte au-dessus d'un appareil de cuisson
d@assant70000 BTU/heurecar le moteurduventilateurs'arr_terapar
intermittence.
5. Lemoteurde lahotteestmunid'undispositifdeprotectiondesurcharge
electriquequi coupeautomatiquementle moteurencasde surchauffe.
II se remet en marche Iorsqu'ila refroidi.Faitesr@arer la hottesi le
moteurcontinue &fonctionnerpar intermittence.
6. Pour mieux capter les vapeurs de cuisson, le bus de la hotte DOlT
ETREAU MINIMUMa76 cm (30po) etau maximum& 91 cm (36po)
au-dessusde la surfacede cuisson
7. Cettehotten'estpas con_uepourservird'etag@e.
8. VeuillezlireI'etiquettede specificationsdu produitpourobtenir plusde
renseignements,notammentsur lesexigences.
- Enregistrez votre produit en ligne &:www.broan.corn. -
Installateur : Veuillez remettre
cemanuel au propri taire.
Propri taire : Nettoyage,entretien
et mode d'emploi la page 10.

BR N MODI=LES QP430SS ,, QP436SS ,, QP442SS
Page 10
CONTENU FONCTIONNEIVIENT
INCLUS AVEC LA HOTTE "
t4)
AMPOU.LES "t_:_
HALOGENES
ill _----_.._ (1) CLAPET /RACCORD
_"_".._._ DE CONDUIT
_N__._-.........,_ 8,2 X 35,5 CM
-_1 (3,_POx14PO)
FILTRES A GRAISSES v-,
[2 - POUR LES HOTTES
DE 76 CM (30 PO)
ET 91 CM (36 PO)
3 - POUR LES HOTTES
DE 106 CM (42 PO)] (1) RACCORD
_(I_,A DE CONDUIT ROND
DE 18 CM (7 PO)
REPARTITEUR
IR VERTICAL
(1) SACHET DE PIECES CONTENANT "
_ (1) VENTOUSE
(3) (9) _ _ POUR
SERRE-FILS VlS N° (_ AMPOULE
8 X 1/4 PO
POUR RACCORD
DE CONDUIT (_ (5)
VlS DE .
MONTAGE A
TETE RONDE
N° 10 X 5/8 PO
Mettez toujours la hotte en MARCHE avant de cuisiner afin
d'6tablir une circulation d'air dans la cuisine. Laissez la hotte
fonctionner quelques minutes apr_s I'arr6t de la cuisini_re afin
de nettoyer I'air.
Pour utiliser la hotte, faites comme suit "
0 0 () ¢) 0 0 0
[_. .................................................................................".) o o
REMARQUE o
Les boutons e_et o+o servent A configurer le menu et la minuterie
et A passer de I'un A I'autre.
"_ ¢CLAIRAGE (3 boutons=poussoirs 4 r6glages d'_clairage)
• Allume 1'6clairage& faible intensit6 et active un t6moin vert au-
dessus du bouton. Appuyer de nouveau sur _oactive le reglage de
nuit et illumine le t6moin (_.
• ®Allume 1'6clairage A moyenne intensit6 et active un t6moin vert
au-dessus du bouton.
e
• o Allume I'eclairage A haute intensite et active un temoin vert
au-dessus du bouton.
Appuyer de nouveau sur le m6me bouton et le maintenir eteint
1'6clairage.
Lorsque le r6glage de nuit est activ6, appuyer de nouveau sur le
bouton d'6clairage & faible intensit6 _oet le maintenir d6sactive le
reglage de nuit.
NETTOYAGE ET ENTRETIEN
Pour des raisons de sant6, de performance et d'apparence,
nettoyez lefiltre, le ventilateur et les surfaces graisseuses. Utilisez
seulement un chiffon propre et une solution de d6tergent doux
sur I'acier inoxydable et les surfaces peintes.
Nettoyez les filtres enti_rement m6talliques au lave-vaisselle avec
un d6tergent sans phosphate. Une d6coloration du filtre peut se
produire si des d6tergents phosphat6s sont utilis6s et selon les
conditions locales de I'eau, sans toutefois affecter le rendement
du filtre. Cette d6coloration n'est pas couverte par la garantie.
Le moteur est lubrifi6 en permanence et n'a pas besoin d'6tre
huil& Si les roulements du moteur sont anormalement bruyants,
remplacez le moteur exactement par le m6me module. La roue
&ailettes doit aussi 6tre remplac6e.
Utilisez des ampoules halog_nes avec 6cran de 120 V, 50 W -
MR16 &culot GU10.
VENTILATEUR (3 boutons-poussoirs 4 r_gimes de ventilateur)
• Met le ventilateur en marche au regime lent et active un t6moin
vert au-dessus du bouton.
•o Met le ventilateur en marche au regime moyen et active un
t6moin vert au-dessus du bouton.
°+°eMet le ventilateur en marche au r6gime 61ev6 et active un
t6moin vert au-dessus du bouton. Appuyer de nouveau sur le
bouton o+o active le ventilateur & la vitesse maximale et illumine
le t6moin _¢,,).
Appuyer sur le m6me bouton et le maintenir arr6te le ventilateur.
Lorsque la vitesse maximale est activee, appuyer sur le bouton de
regime 61ev6et le maintenir d6sactive la vitesse maximale.
REMARQUE
Cette hotte comporte un ventilateur & conception d6calee offrant
un meilleur rendement tout en r6duisant le niveau sonore. Par
consequent, vous remarquerez peut-6tre que les impuret6s de
cuisson sont davantage attir6es d'un c8t6 ou semblent aspir6es
plus rapidement que de I'autre c8t6, ce qui est normal. La hotte
a6t6 con(_ue et test6e pour capter les impuret6s et odeurs de
cuisson dans des conditions normales, quel que soit I'endroit ot_ la
cuisson s'effectue sur la cuisiniere. Veuillez noter que cuisiner sur
les brMeurs arriere permet toujours une meilleure captation des
impuret6s de cuisson, quelle que soit la conception de la hotte.
