Bromley Ghost hunter User manual

Bromley Incorporated in conjunction with Universal Space.

420-Crossen Avenue

Elk Grove IL 60007

847-427-0639 Service Dept.

Be sure to read this Operation Manual before use.

WARNING

1．Specifications

(1) Rated power supply :AC 110V±5% 60Hz or

:AC 220V±5% 50Hz;

(Note: As the actual voltage, please refer the label of the machine.)

(2) Power Consumption :Min power consumption：250W；

:Max power consumption：300W；

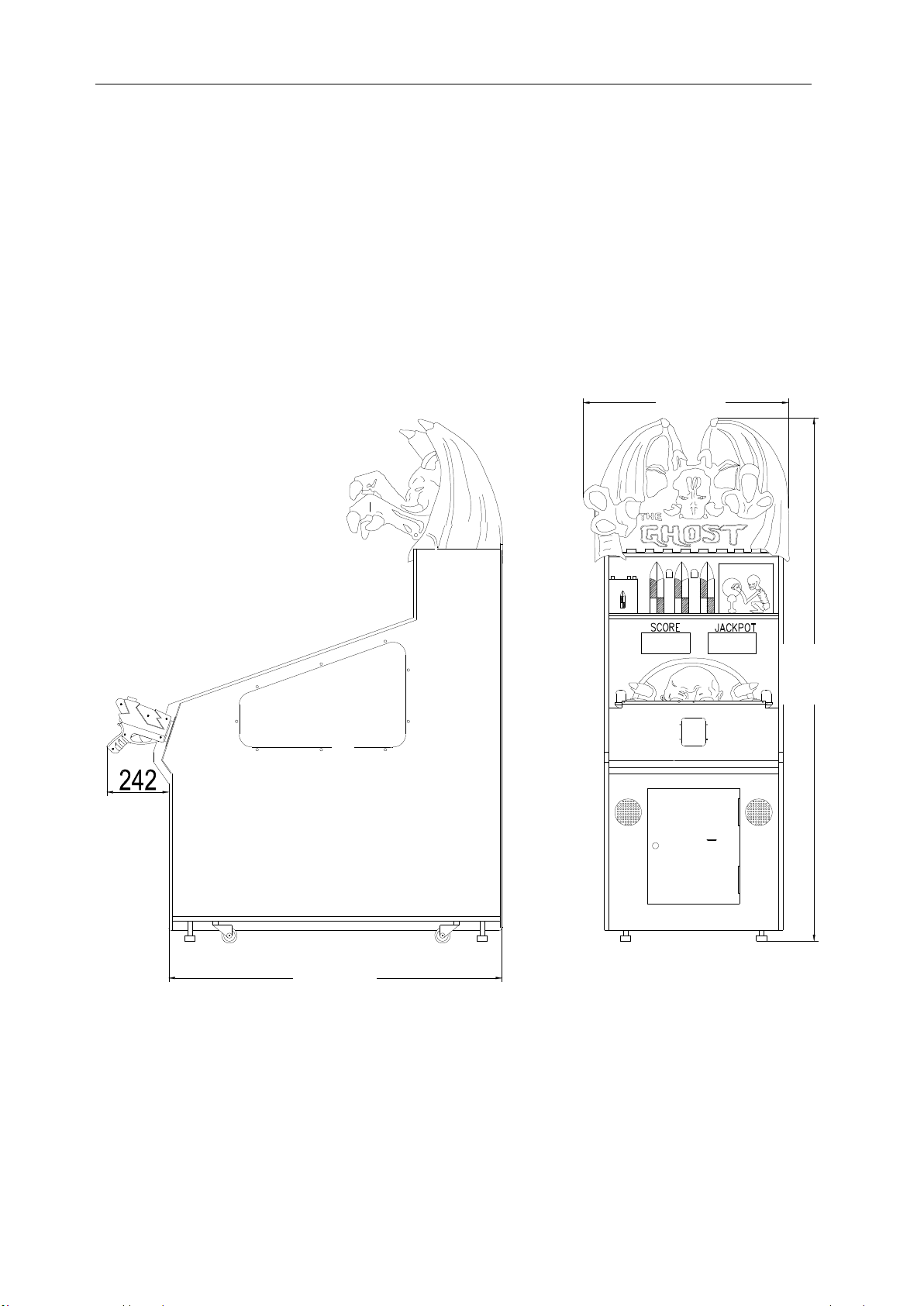

(3) Dimensions :W2.49×D5.06×H6.68(inch)；

(4) Weight :441lbs；

Note: Game parameters are subject change without notice.

5.06

6.68

2.49

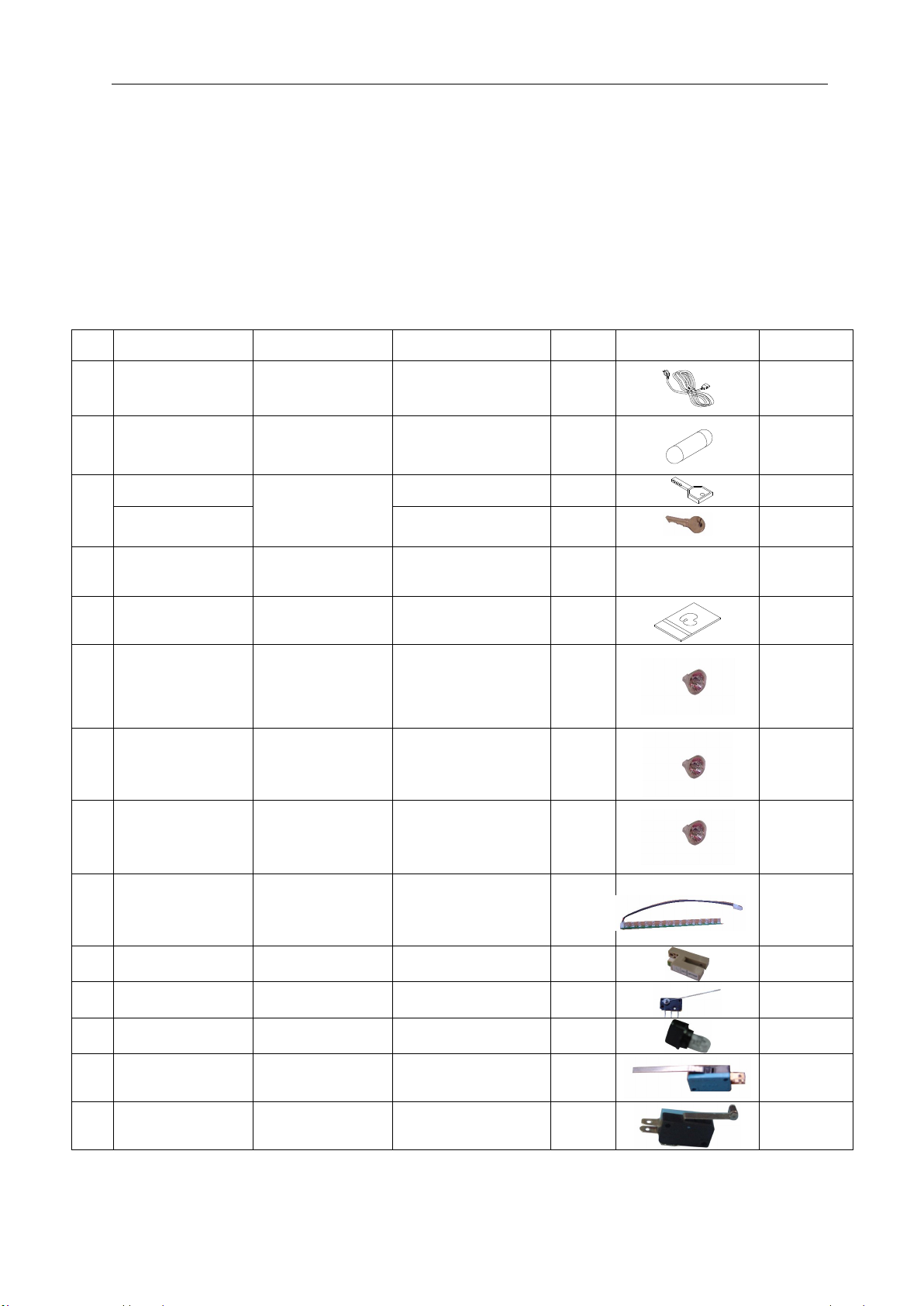

2 Package Contents

(1) Body Assembly: 1 unit

(2) Accessories：

When transporting the machine, make sure that the following parts are

supplied:

No. Part Number Component Specification Qty Illustration Note

1G101-401-000 Power cord 1．5m 1

2G101-402-000 Fuse φ5-20mm 3 6A For

110V

G101-403-000 2222 1

3G101-404-000 Keys 171 2

4G101-801-000 Regulator 7805 1

5G101-701-000 Operate

Manual

6G101-405-000 Fire Ghost

light

12/20W

Yellow(Big) 2

7G101-406-000 Fire Spotlight 12V/20W

White(small) 2

8G101-407-000 Console LED

Spotlight 12V/1W(Green) 1

9G101-408-000 LED Light

Board 1

10 G101-409-000 Sensor YENOX NO 2

11 G101-410-000 Micro-SW 2

12 G101-411-000 Bulb 1 12V/3W 4

13 G101-412-000 Long arm SW 2

14 G101-413-000 Pulley Switch 2

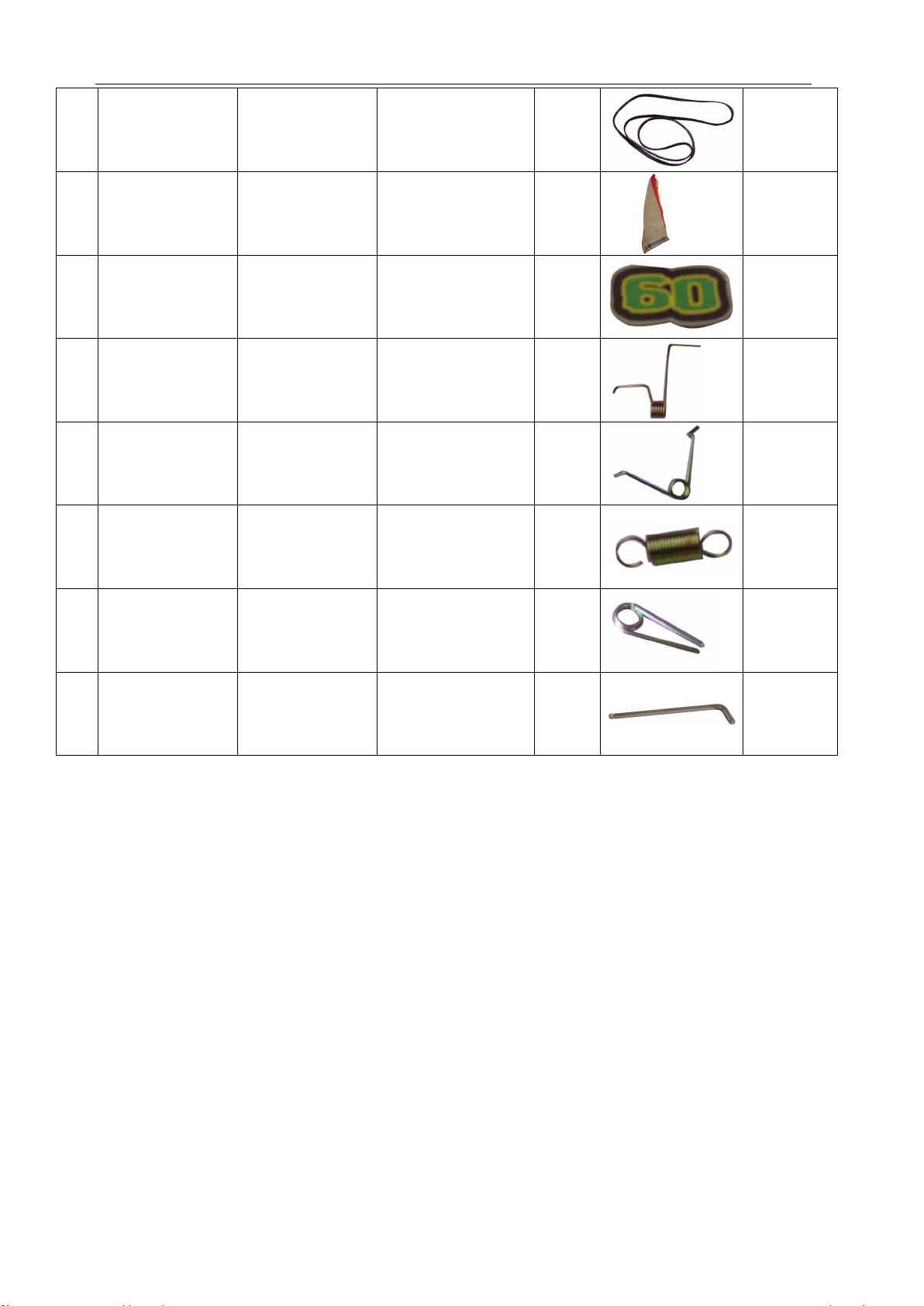

15 G101-414-000 Synchronous

Belt 670XL×8 1

16 G101-415-000 Fire 1set

17 G101-702-000 Score Sticker With magnetic 1set

18 G101-101-000 Trip Spring 2

19 G101-102-000 Spring 2

20 G101-103-000 Trigger Spring 2

21 G101-104-000 Limit Spring 2

22 G101-301-000 L-Wrench M3 1

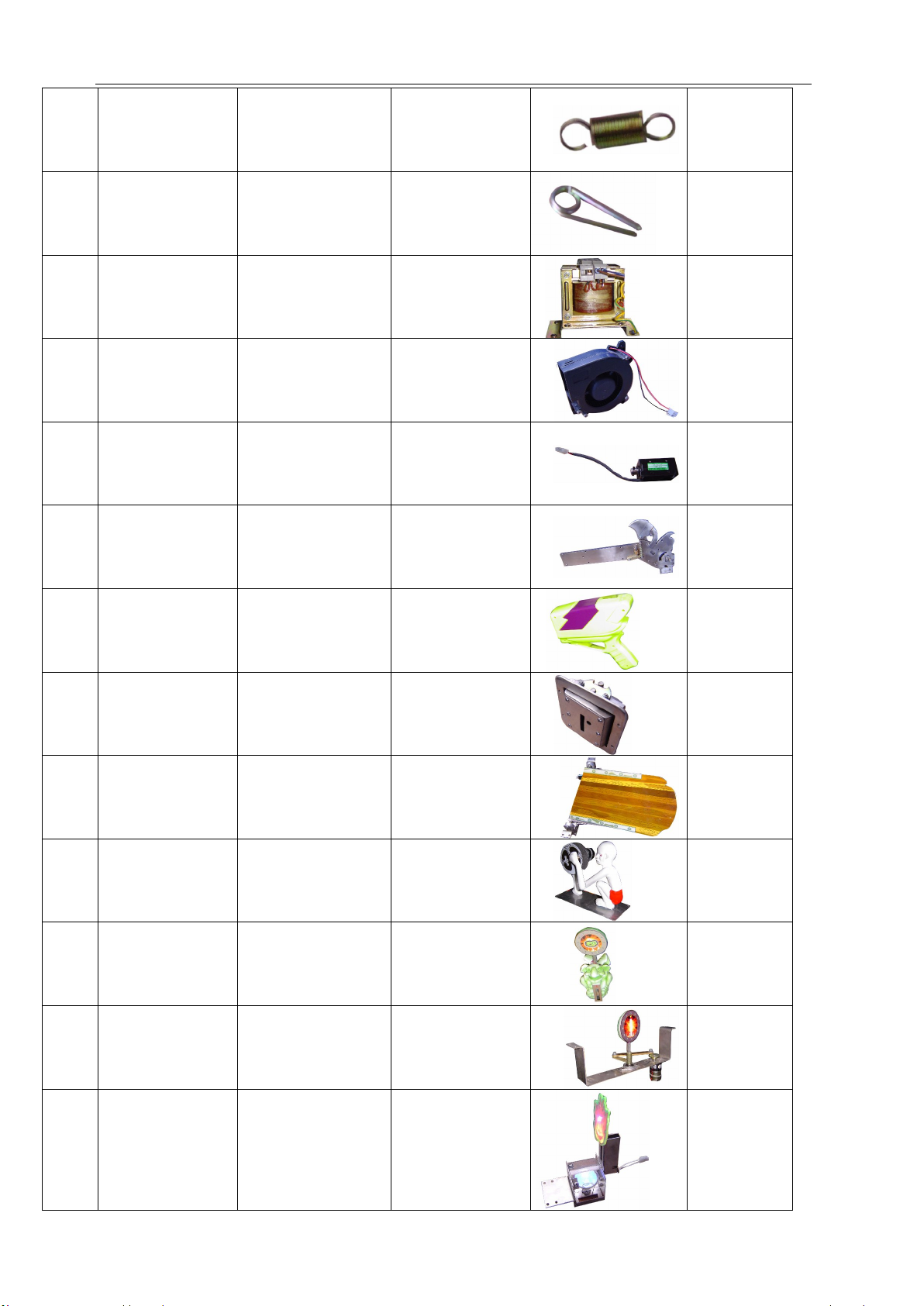

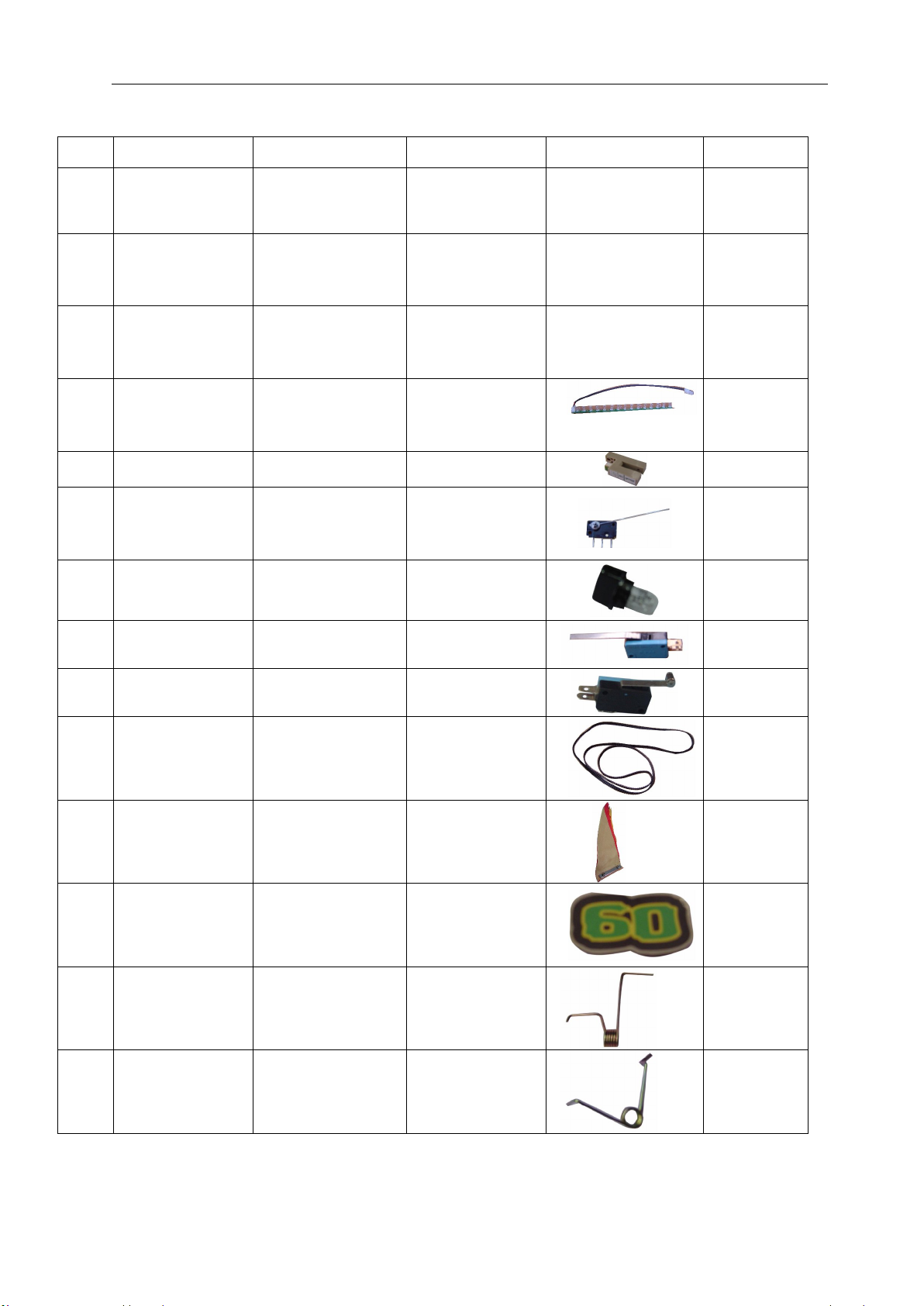

(3) The following parts you can oder if you need for it:

No. Parts No. Component Specification Illustration Note

G101-405-000 Fire Ghost light 12/20W

Yellow(Big) 2

G101-406-000 Fire Spotlight 12V/20W

White(small) 2

G101-407-000 Console LED

Spotlight

12V/1W(White

G101-408-000 LED spotlight

5G101-409-000 Sensor YENOX NO

G101-410-000 Micro-SW Epecially

7G101-411-000 Bulb 1 12V/3W

8G101-412-000 Long arm SW

9G101-413-000 Pulley Switch

G101-414-000 Synchronous

Belt 670XL×8

G101-415-000 Fire

G101-702-000 Score Sticker With magnetic

G101-101-000 Trip Spring

G101-102-000 Spring

G101-103-000 Trigger Spring

G101-104-000 Limit Spring

G101-416-000 Transformer DK2-60VA

G101-417-000 Fan

G101-418-000 Elentromagnet

G101-001-000 Gun Ogran Assy

G101-002-000 Gun Cover

G101-003-000 Gun Hold

G101-004-000 Bridge Assy

G101-005-000 Wheel Ghost

Assy

G101-006-000 Gargoyle Target

Assy

G101-007-000 Boss Target

Assy

G101-008-000 Fire Trarget

Assy

3. Installation

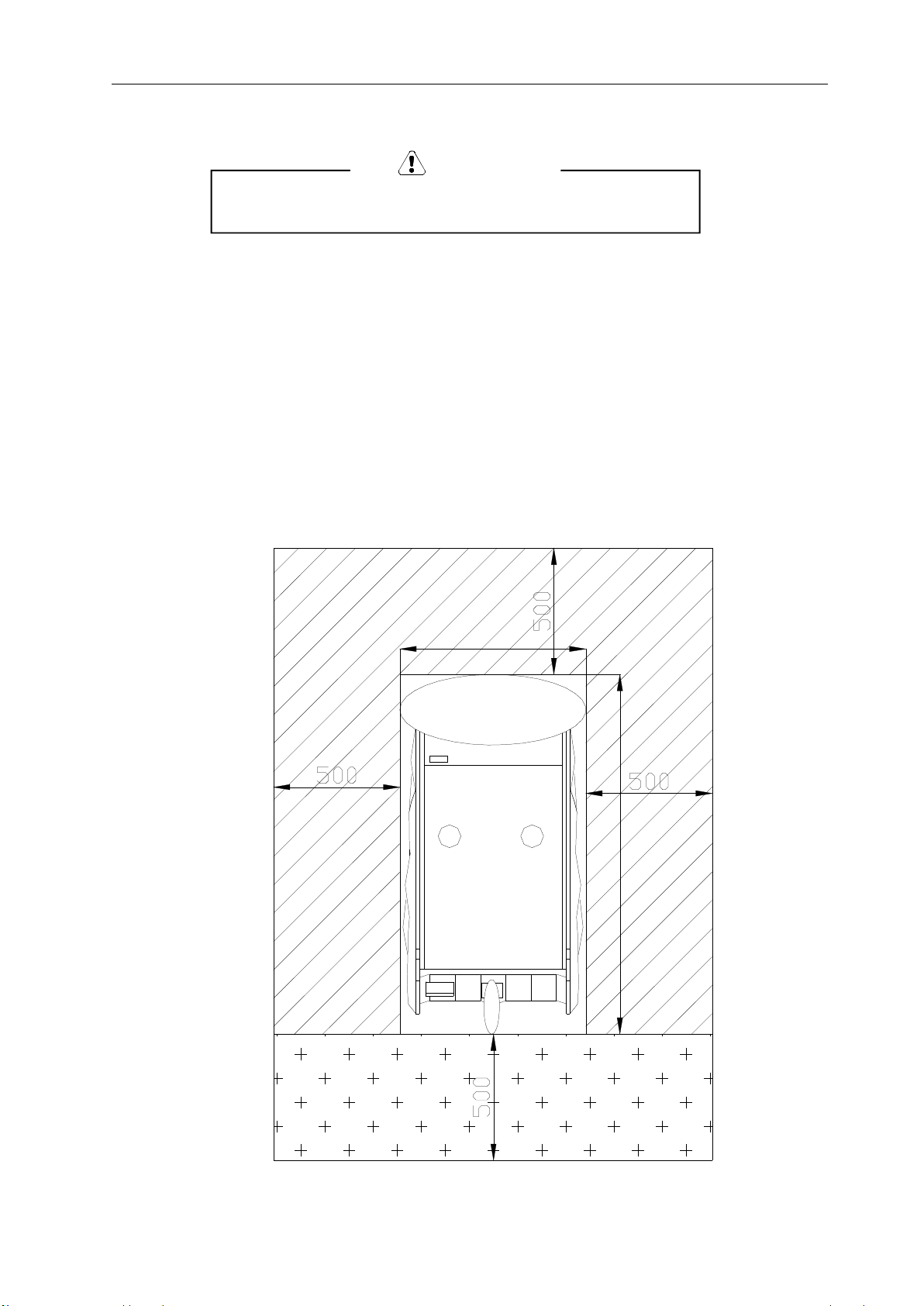

3.1 Play Zone

Space for Operation and Maintenance

This machine requires space for playing the game(play zone) and for

maintenance( maintenance zone) as shown below. Also for maintenance.

Be sure to leave enough space when installing the machine.

800

1600

Play

Zone

Maintenance

Zone

●For indoor use only!

WARNING

3.2 Locations to avoid installing:

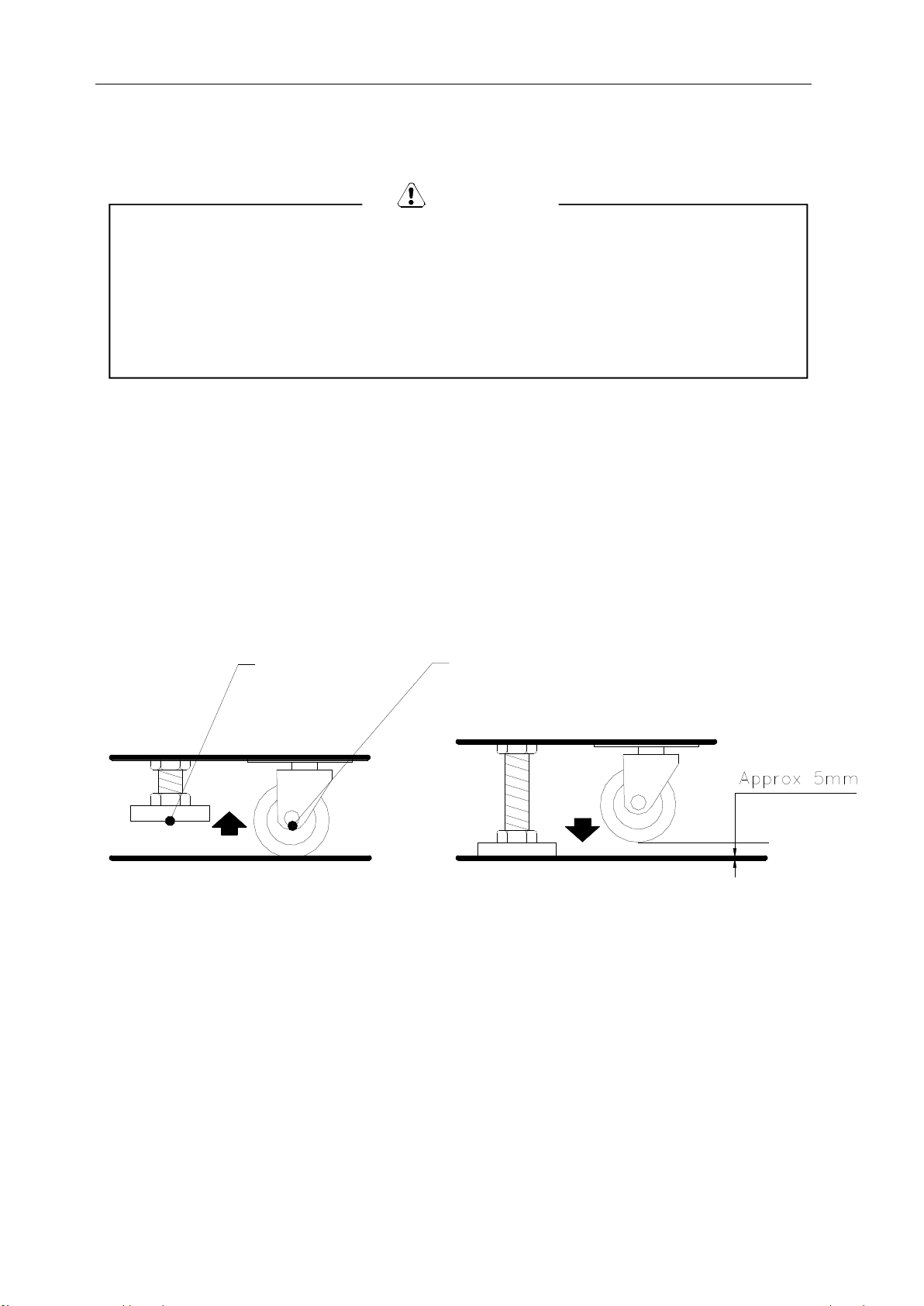

3.3 Game Leveling

Install this machine on a flat surface. Adjust levelers to lift

casters off the ground and level game.

· Make sure that the machine is level with the floor. If the machine

is not level medals may not be play well.

Caster

Fix

Level Adjust

Move

4. Movement and Transport

4.1 Movement :

1. Turn off the power switch before moving this machine.

2. Unplug the power cable and put it in the Main Assy from the

maintenance door.

This machine is designed for indoor only. Never install this machine

outdoor or at any of the following:

● Locations exposed to direct sunlight.

● Locations subjected to rain or water leakage.

● Damp、dust or hot places.

● Do not place close to a heat source.

WARNING

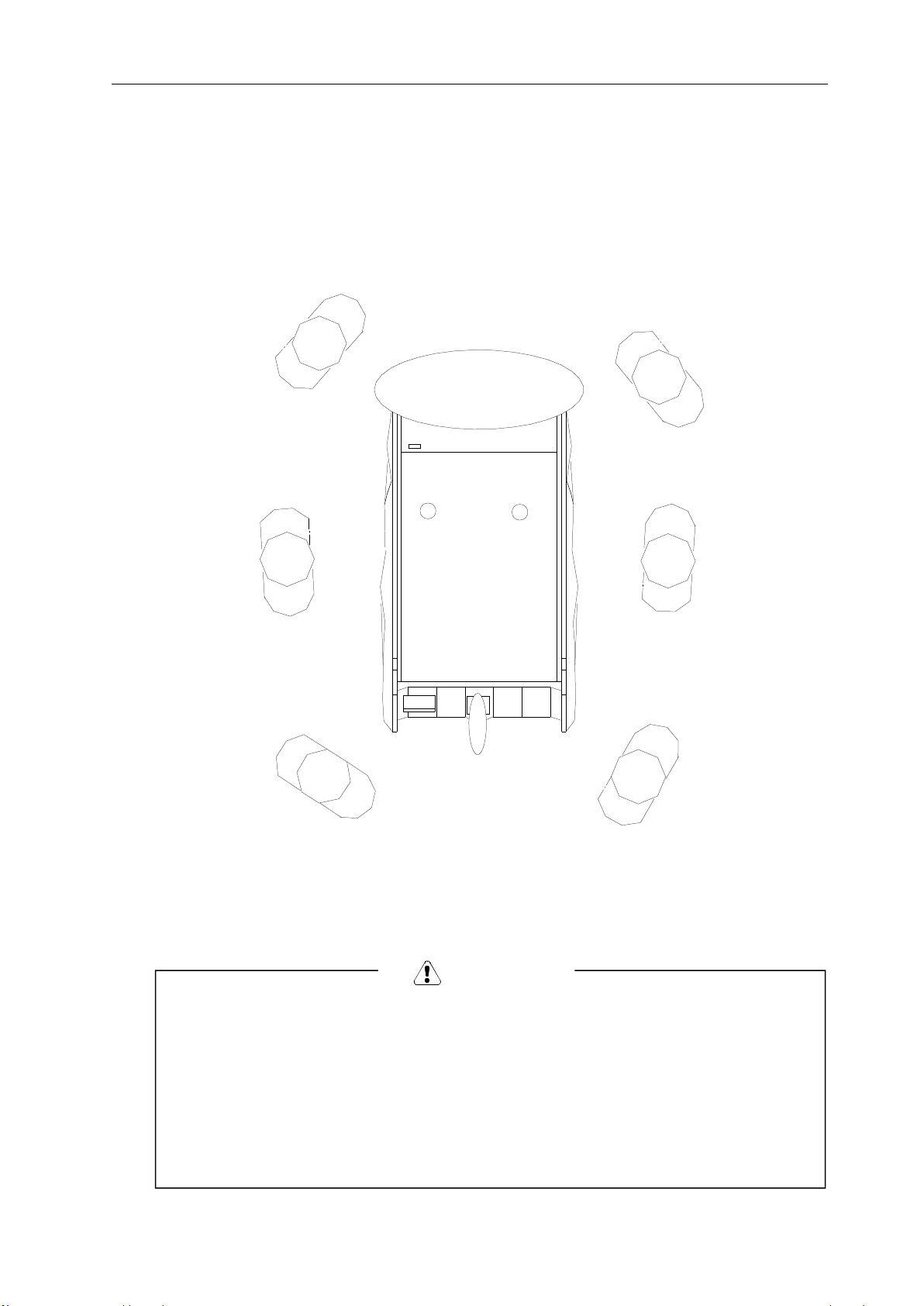

3. Hold the machine in the specified position on the sides of the Main

Assy and lift the machine. While keeping its balance, carry the

machine.

4. This machine must be carried by 6 or more persons.

4.2 Transport

·Be careful not to damage the machine during transport.

· Do not give a shock to the molded parts. These parts are fragile.

· Be careful not to give a shock to the machine when bringing it down

from a higher level.

WARNING

When transporting this machine, must use bubble wrap cove on

the machine, care for the Playfield glass, sand or other hard

substances may scratch the surface.

Avoid to crack up the machine, please set down the lever adjustor

while in packing.

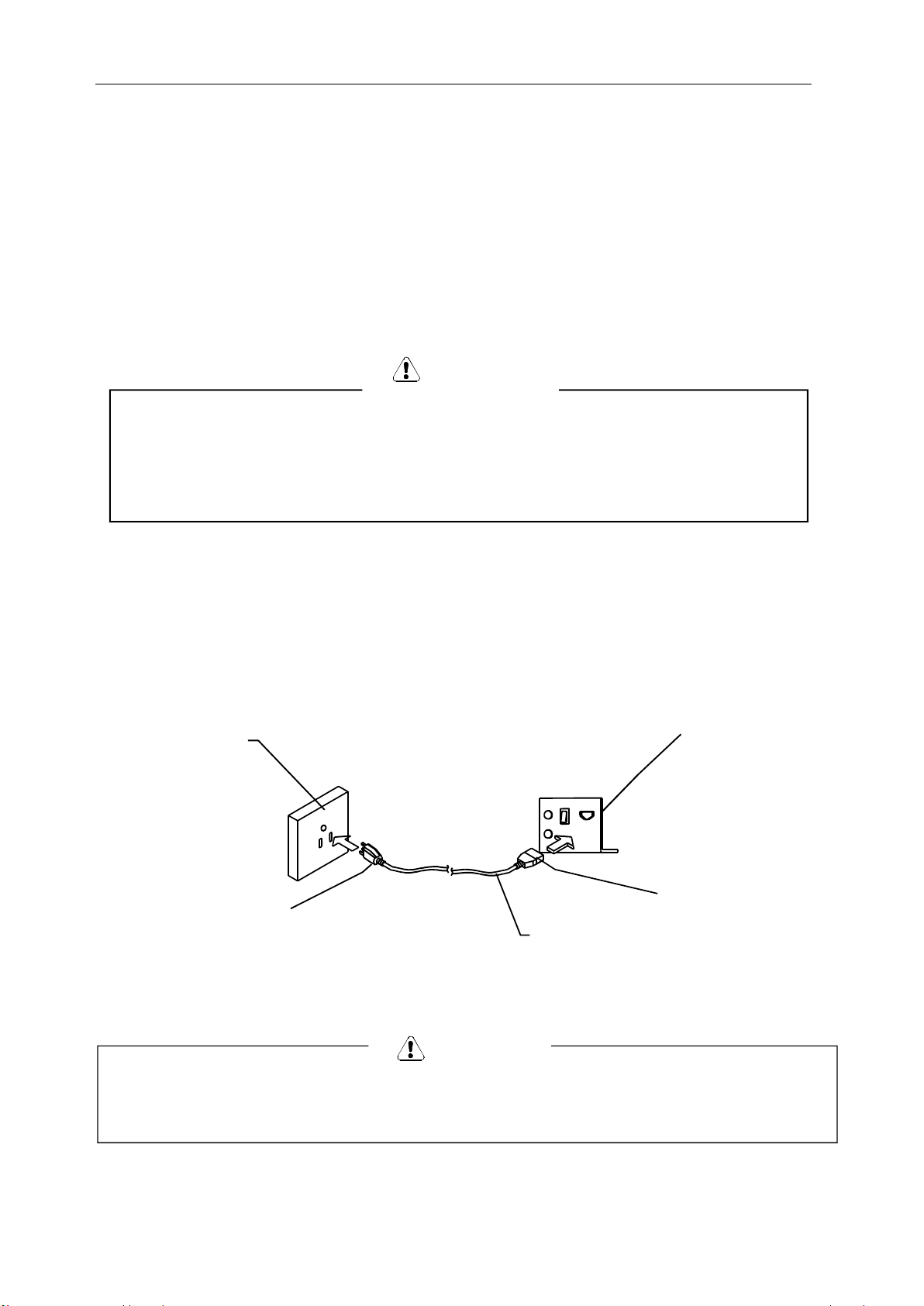

5. Connecting the power cord and grounding

5.1 The Connection:

1. Insert the plug of power cord into the power socket of the machine.

2. Insert the power cord plug into a service outlet.

● Be sure trun off the power switch and unplug the machine when moving it.

NOTICE

※

Be sure to connect the ground wire before turn on the machine. Failure to

connect the ground wire could result in electric shock if power occurs.

WARNING

Power box

Power plug

Power cord

Power plug

Power socket

5.2 The Power socket:

This power socket is fixed to the underside of the machine Assy.

1. This machine’s supply voltage is 110V±5% 60Hz, or 220V±5%

50Hz”, for actual supply voltage, please refer the label of the machine.

2. Fuse specifications

110V 60Hz use 110V 6Aφ5-20mm

220V 50Hz use 220V 3Aφ5-20mm.

3. Power switch: Main game power.

4. Ground terminal：Use to connect the ground cord.

6. Construction

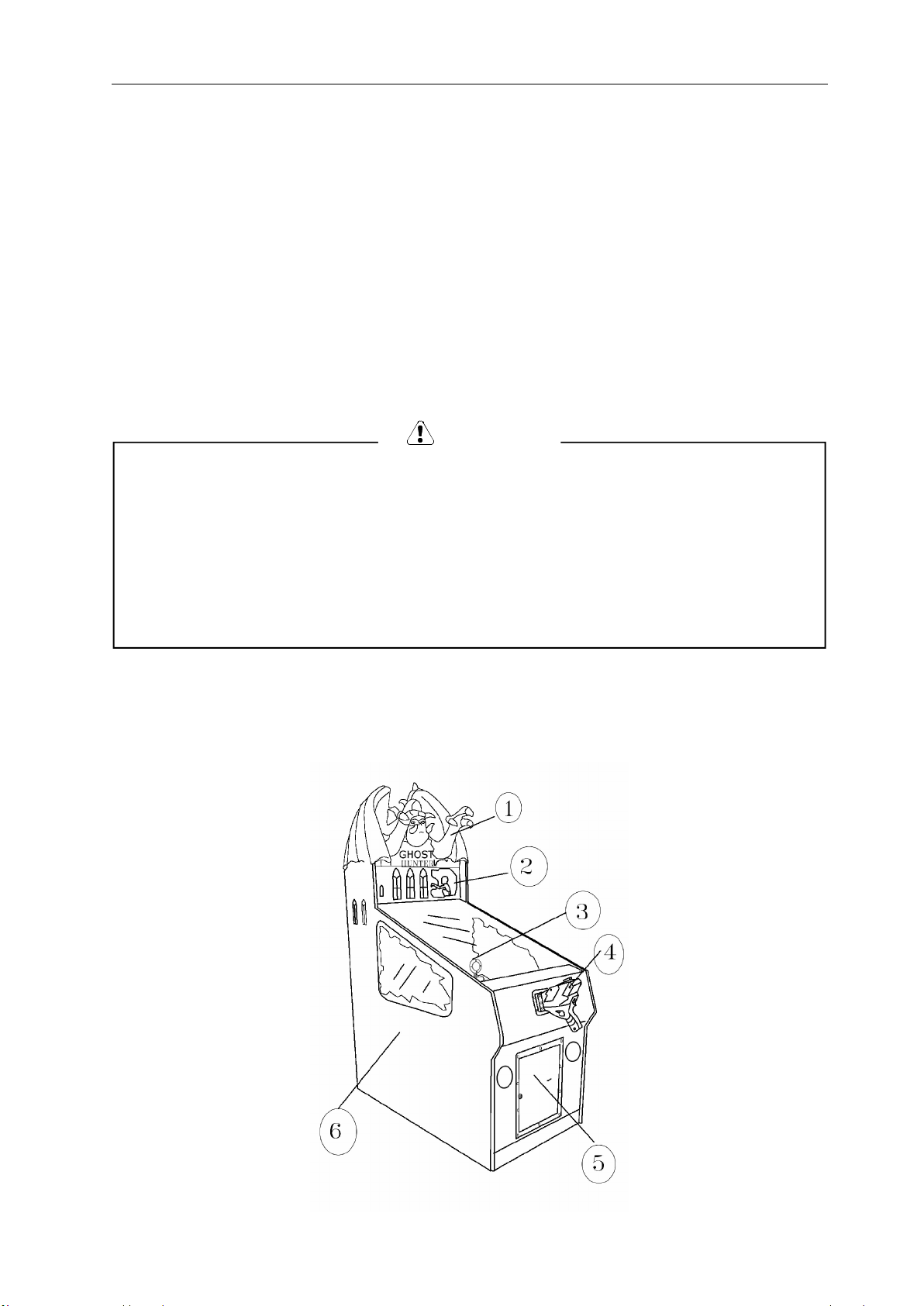

6.1 The Components of the Machine

● Do not put heavy items on power cord.

● Do not touch the power plug with a wet hand.

● Do not draw or twist the cord.

● Do not place the cord near a heat source.

● Do not place the cord where the player can easy to touch or kick.

● Run this machine with the correct power configuration

WARNING

1. The Signboard

2. The Display panel

3. The Playfield

4. The coin shooter

5. The front door

6. The machine cabinet: It is manufactured with wood, and get some

stickers on.

6.2 The Components of each part:

1. The Signboard: It is manufactured with fiberglass, colors on, it made

the machine more vitality.

H U N T E R

When transport the machine, make sure to used the bubble-bubble wrap

to protect, Sand or other hard substances may scratch the surface of it.

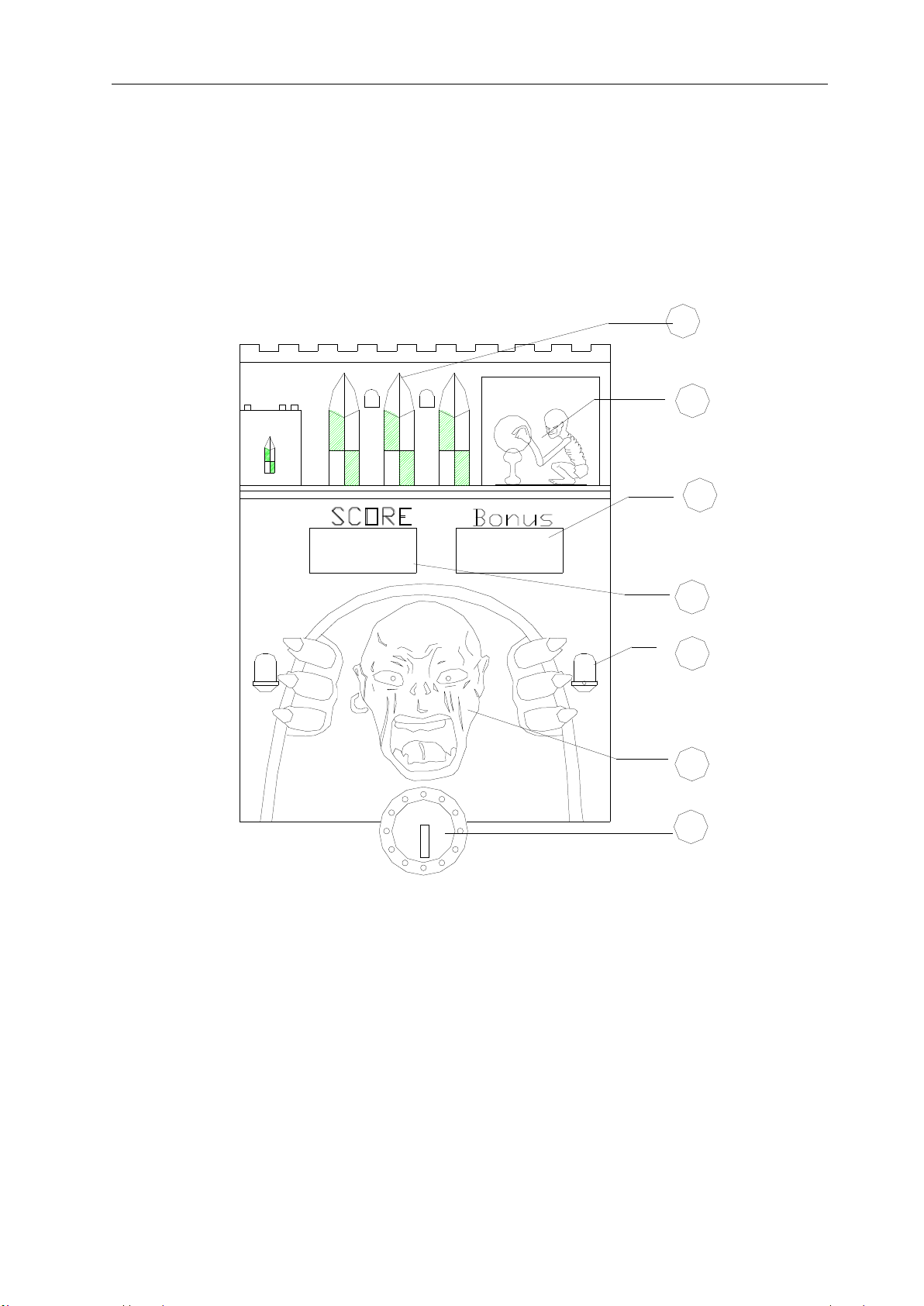

2. The Display Panel:

1. Castle Windows: There have lights on the back to lighted on the

windows. It is the adorning of the machine.

2. The Castle Ghost Organ:

It is the master of the castle, he will say some words along the game,

and it’s hand can turn the wheel around, while the targets(two gargoyles

on the playfield and one fire ghost ) has been hit, the master will move it’s

hand to let the wheel rotate, at the same time to lay down the bridge

which on the front of the boss, so that the player can challenge with the

boss.

At true, it is also a adorning of the game. It make the game more reality.

3.The Bonus LED: It shows the value of the bonus. The player can get

this socre while the coin is drop into the targets which on the front of the

boss.

3. The Score LED: It shows the value that the player got in the game.

4. Castle Fire: It is a adorning of the machine. The fires is made of silk

cloth, behind it there are a fan and a spotlight, so make the fire looks

more trueness.

5. Boss: It is manufactured with fiberglass, it’s the captain of the game,

challenge it you can get the chance to win the Bonus.

6. Boss Target: It is the target of the boss, get the bouns value while the

coin drop on this target. It will be move side to side, so the player must

take much skill on shooting it.

The value of Bouns can increase by inserting coin, and also can be

adjustable.

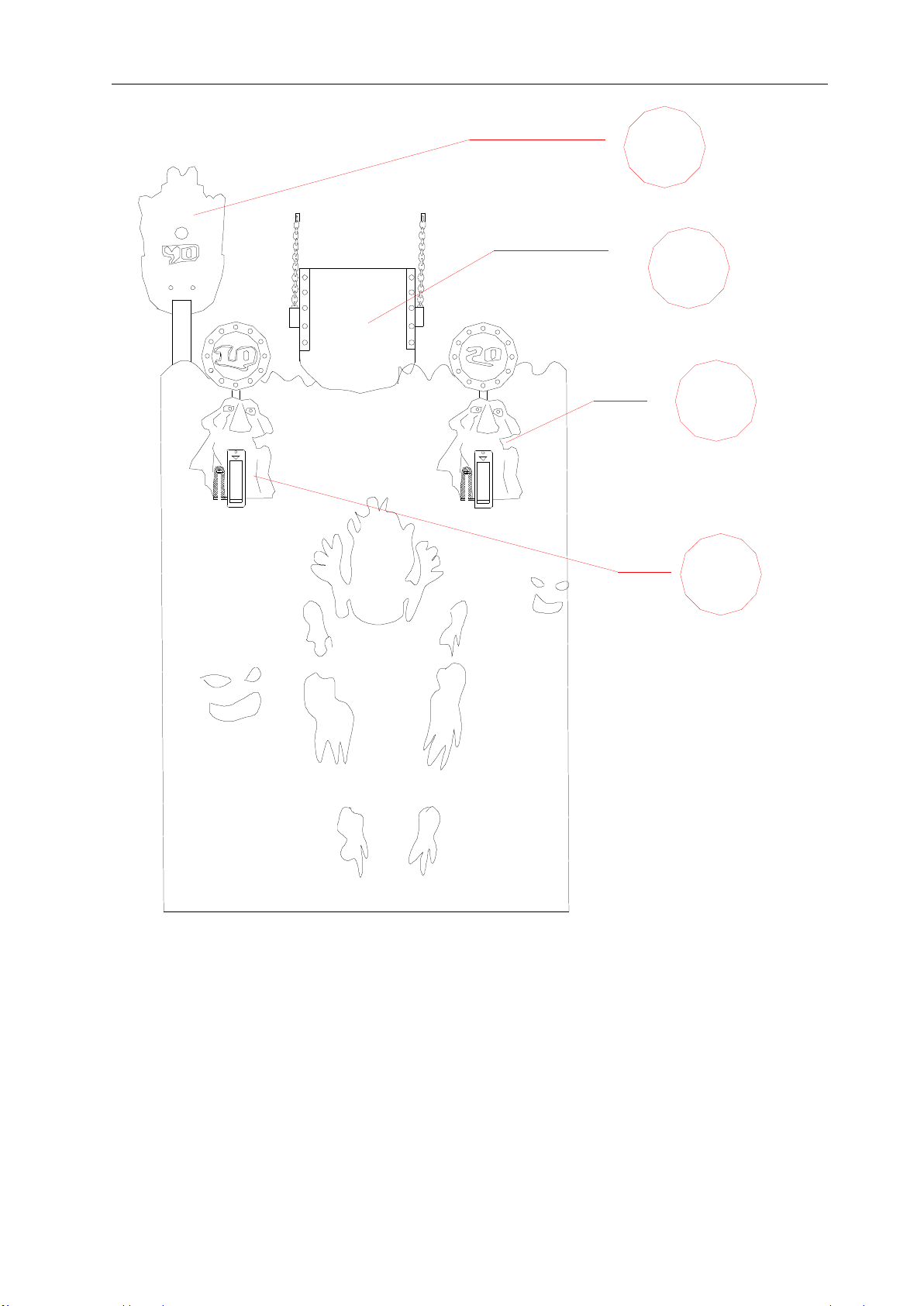

3. The Playfield:

1. Fire Ghost Target: This is the target for player to shoot on, it will be

moved side to side, stop at a side while it has been shot, it is

high-difficulty targetsof the game, so the player should take highly skill

on shooting it to get more score.

2. Bridge: It is the bridge and only the way extend to shooting the boss

target. It will be lay down a space base on shooting the targets that on

front has been shot, fully lay down while three targets all been shot.

Shoot at the boss target while the bridge fully lay down as soon as you

can, shoot on the Boss target you can get the Bonus prize. Or the

bridge will be rise up in a interval, then you miss the chance.

3. Gargoyles Target(Higher Score): Shoot on it, you can get it’s score

which showed on it’s head; the score and the target slot adjustable, so

that the user can setting the percentage of the game.

4. Gargoyles Target(Lower Score): It is as the same as the high score

gargoyles target, just the slot size is larger and the score is lower.

※Note: Don’t shooting while the playfield is in the state of cleaning

coin(s).

4. The Control Panel:

1. Coin Shooter

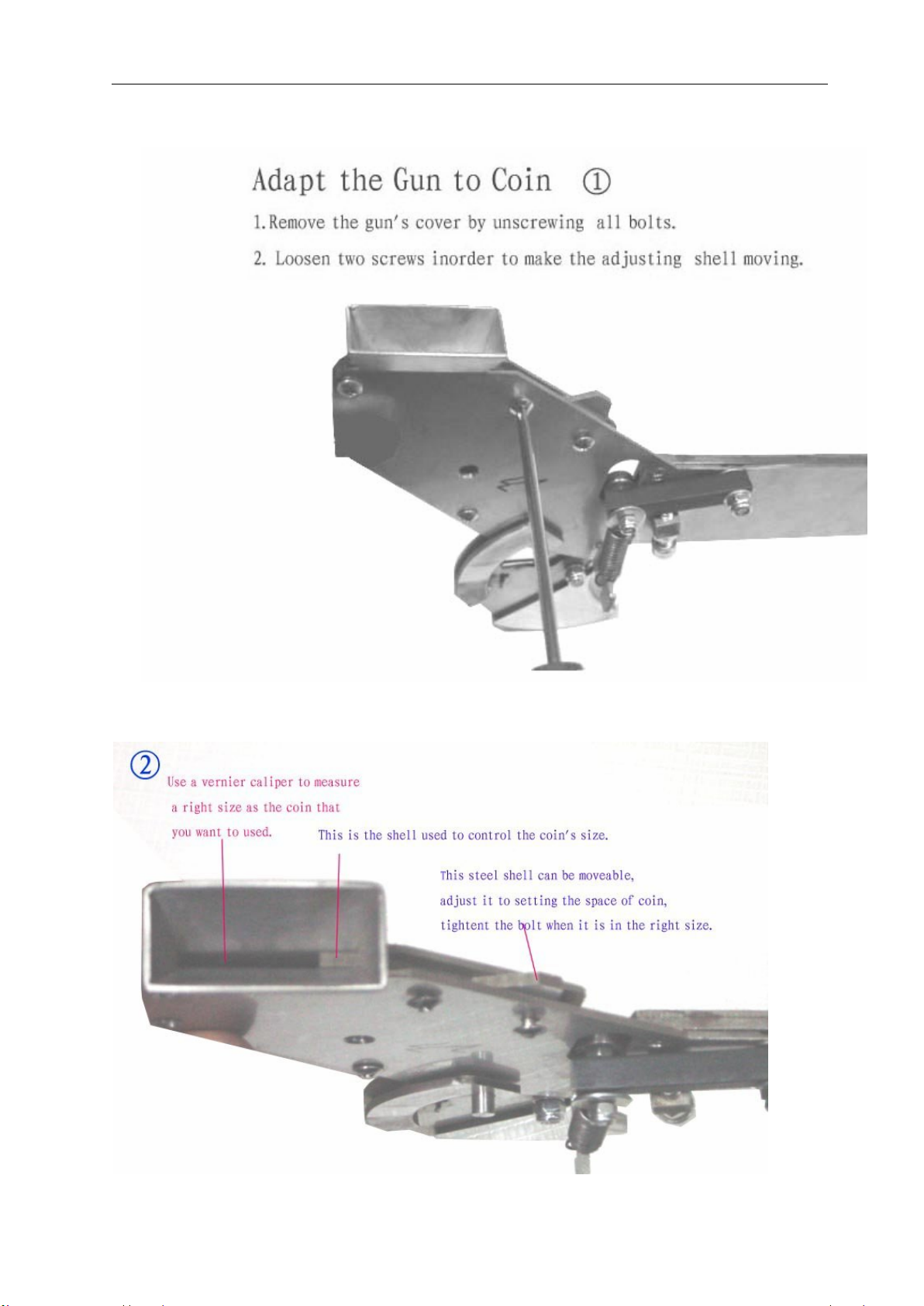

This is the main part of the game, inser coin from here, pull the

trigger to release coin to hit on the targets. The gun’s coin acceptor is

adjustable, the user can adjust it base on the size of coin that he want

to used, as the adjusting method as following:

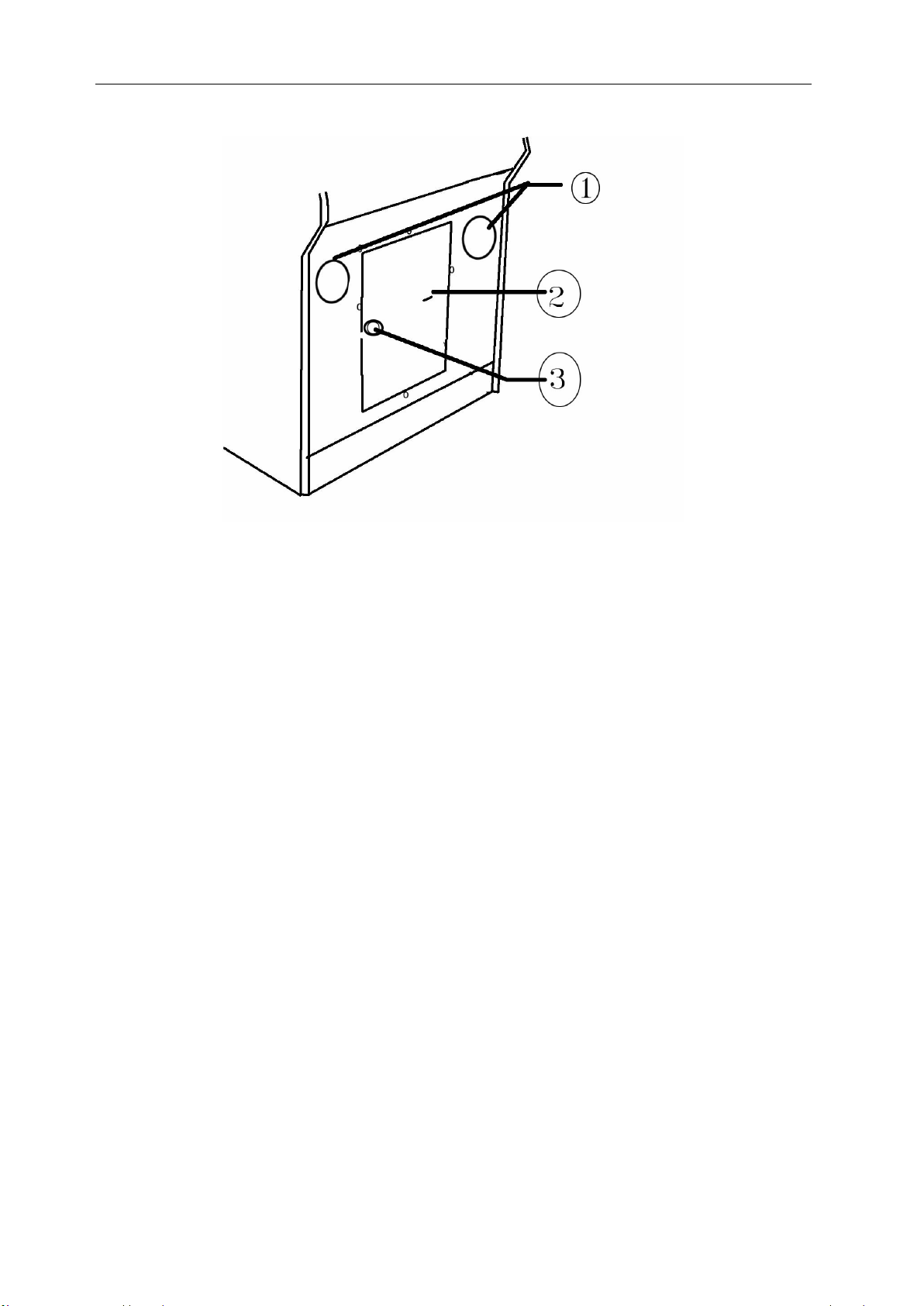

2. Front Door:

Open it to install tickets r reclaim coins.

1). Speaker: Play out sounds on the game.

2). Ticket Dispenser: Pay out tickets that the player got.

3). Lock: Unlock it to replace the tickets, reclaim coins, and also can

check or maintenance the machine.

3. Rear Door:

Open it to check the electric elements or maintain the machine.

7. Instructions of Play

1. Insert 1-4 Tocken.

2. Aim at targets when coin goes through targets, drawdridge come

down.

3. Quickely get coin in target at end of drawbridge to receive Bonus.

8.Adjustments

①Bonus Value:

Adjust it to setting the Bonus Value of this game. There are 4

options for user to select. It is controlled by SW 11～12.

Bonus

Value Options SW11 SW12 Note

100 ON ON Bonus value is 100

200 off on Bonus value is 200

300 on off Bonus value is 300

SW11

～

SW12 500 off off Bonus value is 500

②JP Increase:

This is the incremental value for the game Bonus, Setting 1 will

increment the bonus one for every coin inserted, 0 will turn the

increment off, leaving the value continuously at the start/reset value.

The 1/2 value will increment the Bonus one for every two coins

inserted and the 1/3 will increment the Bonus one for every 3 coins

inserted. It is controlled by SW13～SW14.

Bonus

Increase Options SW13 SW14 Note

0 ON ON No increase

1/3 off on Increase 1 coin by insert 3

coins

1/2 on off Increase 1 coin by insert 2

coins

SW13

～

SW14

1 off off Increase 1 coin by insert 1

coins

③Bouns Time:

The delay time for wining Bonus. There are 4 options for user to

select. It is controlled by SW 15～SW16.

Bonus

Time Options SW15 SW16 Note

20s ON ON 20s for player to shoot on the

boss target

30s off on 30s for player to shoot on the

boss target

40s on off 40s for player to shoot on the

boss target

SW15

～

SW16

60s off off 60s for player to shoot on the

boss target

④Target Reset Time:

It is the time for target to reset. There are 4 options for user to select.

It is controlled by SW 17～SW18.

Bonus

Time Options SW17 SW18 Note

20s ON ON 20s for target to reset

30s off on 30s for target to reset

50s on off 50s for target to reset

SW17

～

SW18 9999s off off Can’t reset!

⑤The score for Left Ghost:

Setting it to confirm that how many score the player can get by

hitting on the left ghost which seat on the playfield. It is controlled by

SW21～SW22.

Ghost-L

Score Options SW21 SW22 Note

10 ON ON 10 score in hitting on the left ghost

target.

20 off on 20 score in hitting on the left ghost

target.

30 on off 30 score in hitting on the left ghost

target.

SW21

～

SW22

40 off off 40 score in hitting on the left ghost

target.

Table of contents

Bromley Ghost Hunter User manual

Popular Video Gaming Accessories manuals by other brands
