Brookstone tranquil moments User manual

849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Tranquil Moments®
Baby Monitor & Sleep Sounds
WARNING
Strangulation Hazard-Children have STRANGLED in cords. Keep this cord out of the reach of children–
more than 3 ft (0.9m) away. Do not remove this tag. Never place camera or cords within the crib.

849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
1
TABLE OF CONTENTS
Warnings and Cautions................................................................2
Location of Parts and Controls.........................................................8
Monitor to Wi-Fi Network Set-Up Screen (Apple Devices)..............................10
Monitor to Wi-Fi Network Set-Up Screen (Android Devices)............................11
Settings App Control .................................................................12
Camera App Control .................................................................13

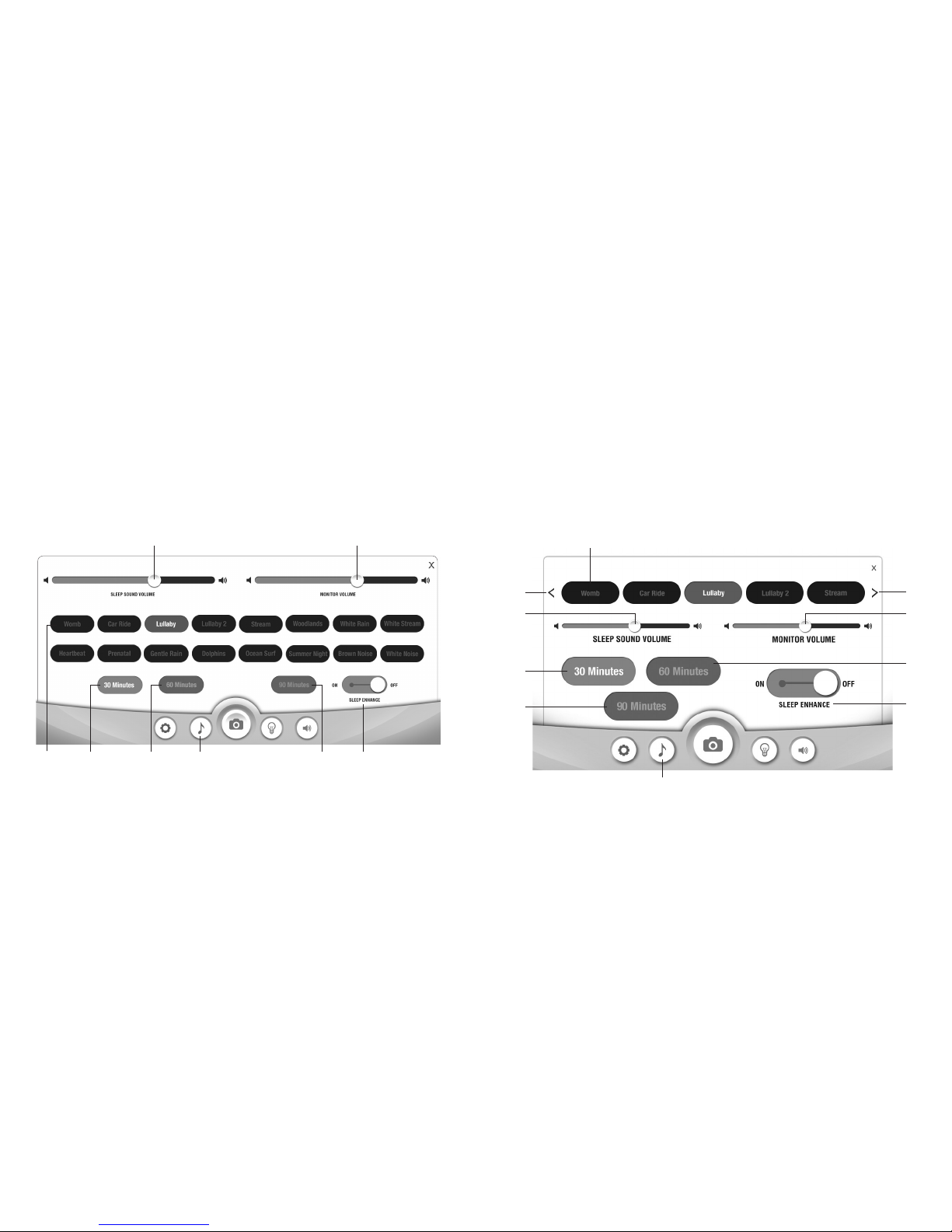

Sleep Sounds App Control (Tablet)....................................................14
Sleep Sounds App Control (Phone) ...................................................15

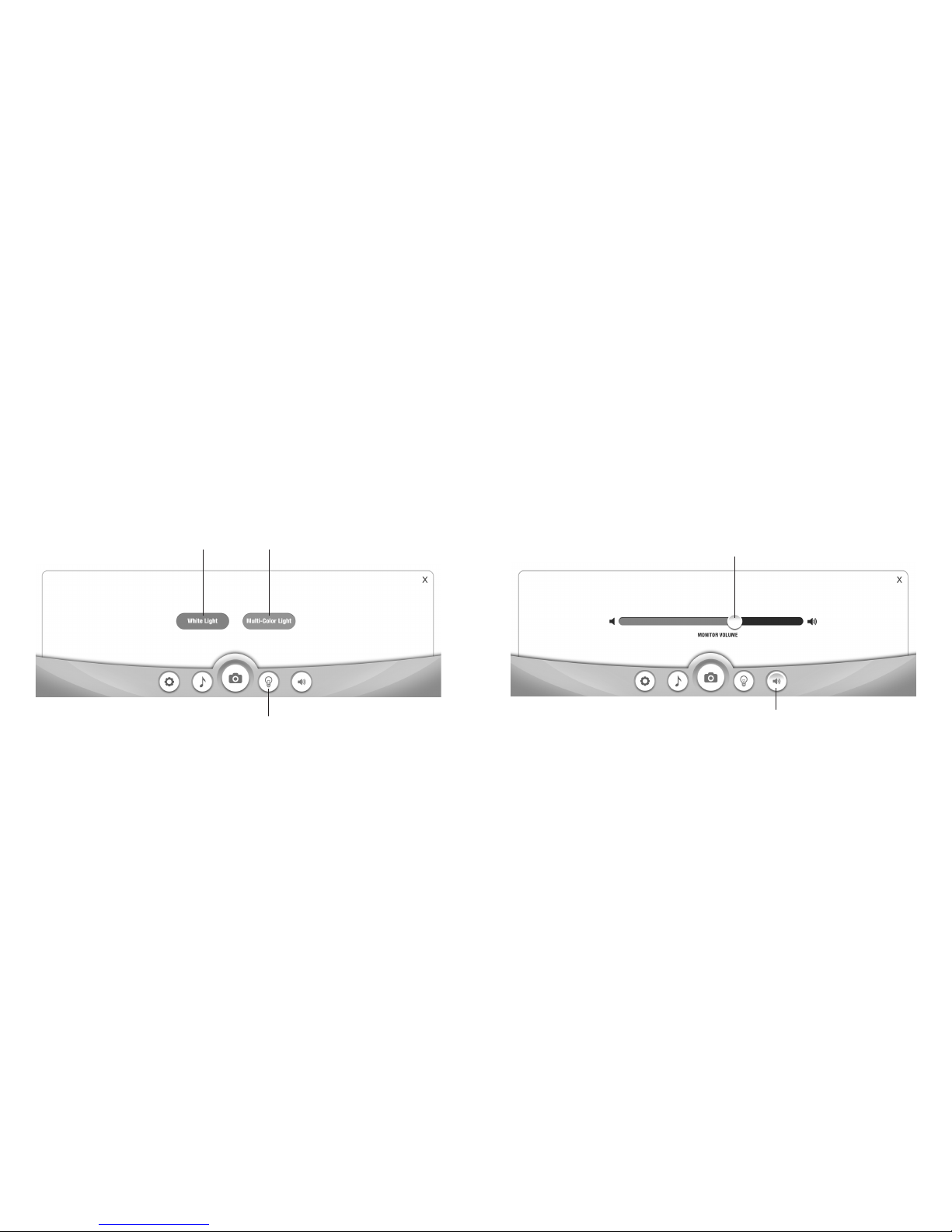

Night Light App Control ..............................................................16
Monitor Volume App Control..........................................................17
Compatibility.........................................................................18
Downloading Free App...............................................................18
Monitor Set Up ......................................................................19
Wi-Fi Connection Set-Up Options.....................................................19
Connecting Monitor to Device ........................................................20
Connecting Monitor to a Wi-Fi Network ...............................................22
Connecting Multiple Monitors to a Wi-Fi Network ......................................25
Turning Wi-Fi Connection On and Off..................................................31
Turning LEDs On and Off.............................................................32
Using the Night Light ................................................................33
Playing Sleep Sounds ................................................................34
Using the Sleep Timer................................................................35
Using Sleep Enhancement ...........................................................37
Using the Camera ...................................................................38
Monitor Volume ......................................................................38
Continuous Listening ................................................................39
Using the Angled Mount .............................................................40
Using the Wall Mount ................................................................41
Tranquil Moments Sounds For Baby ...................................................44
Reset ...............................................................................46
Care and Maintenance ...............................................................46
Frequently Asked Questions..........................................................47
Specifications .......................................................................55
Warranty ............................................................................56

IMPORTANT SAFETY INSTRUCTIONS
All of the safety and operating instructions should be read, adhered to and
followed before the unit is operated.
WARNING
Strangulation Hazard-Children have STRANGLED in cords. Keep this cord out of
the reach of children–more than 3 ft (0.9m) away. Do not remove this tag. Never
place camera or cords within the crib.
WARNING
• This product cannot replace responsible adult supervision.
• Please keep packaging and instructions since they contain important information.
• Close supervision is necessary when this unit is used by or near children or
mentally disabled individuals.
• When an AC adapter is plugged into an electrical outlet, do not touch exposed
end.
• Test monitor before first use, periodically, and when changing location of camera.
• Do not use monitor near water (such as bathtub, sink, etc.).
• Use this unit only for its intended use as described in this manual.
• The unit should be situated away from direct sunlight or heat sources such as
radiators, electric heaters, heat registers, stoves or other units that produce heat.
• This product is not a toy. Do not allow children to play with it.
• For privacy reasons, a secure Wi-Fi connection is always recommended.
• Respect the privacy of others when using the Tranquil Moments Baby Monitor.
CAUTION
• The Tranquil Moments Baby Monitor is recommended for indoor use only.
• The Tranquil Moments Baby Monitor is not waterproof. Do not spray or pour liquid
on it, and do not immerse it in liquid.
CHOKING
WARNING: This product may contain small parts which may pose a choking
hazard to children.
2 3
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

4 5
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
POWER ADAPTER PRECAUTIONS
1. STRANGULATION HAZARD - Keep the adapter cord out of baby's reach.
2. NEVER place the adapter cord within the cot/crib.
3. Secure the adapter cord some distance away from baby's reach.
4. Never use extension cords with AC Adapter. Only use the AC Adapter provided.
5. Only use the power adapter provided. Do not use other power adapters as this
may damage the device.
6. Do not touch the plug contacts with sharp or metal objects.
7. Do not spray or pour liquid on the unit, and do not immerse it in liquid.
8. The AC/DC adapter which provides disconnection from mains supply shall
remain readily operable. Unplug this product when unused for long period of
time.
9. Heed all warnings.
10. Follow all instructions.
11. Do not block any ventilation openings. Do not place on sofas, cushions, beds,
etc. which may block ventilation. Install in accordance with the manufacturer’s
instructions.
12. Do not install near any heat radiators, heat stoves or other products
(including amplifiers) that produce heat.
13. Unplug this product during lightning storms or when unused for long periods
of time.
14. WARNING: To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture and objects filled with liquids, such as vases, should
not be placed on this product. This product is designed for indoor use only.
Do not expose the product to outside temperatures below 5°C or above
40°C. The product could be damaged. Avoid placing the product near a source
of heat or exposing it to sunlight (even through a window). Similarly, excessively
low temperatures and humidity could damage the device.
RECOMMENDATIONS FOR USE:
• If being used in a room with an infant, place the device as far away from infant as
possible and never in the crib or on a crib rail.
• Always start with the lowest volume setting and adjust as needed.
• Limit the duration of continuous noise by using timed shut-off or turn off device
after infant falls asleep.
Please note this content is provided for reference purposes only. It is not intended to
substitute for advice given by a licensed healthcare professional.
WARNING: LONG-TERM EXPOSURE TO LOUD SOUNDS MAY CAUSE HEARING
DAMAGE. IT IS BEST TO AVOID EXTREME VOLUME WHEN USING THIS PRODUCT,
ESPECIALLY FOR EXTENDED PERIODS.

FCC INFORMATION FCC ID : ZRB849264-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received including interference
that may cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This unit generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: To comply with FCC's RF radiation exposure limits for general population/
uncontrolled exposure, the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be col-
located or operating in conjunction with any other antenna or transmitter.
RSS INFORMATION
To comply with Industry Canada's RF radiation exposure limits for general population/
uncontrolled exposure, the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
6 7
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

17. Mount Connector
18. SSID Address
19. Wi-Fi Connection Switch
20. Reset Button
21. Wi-Fi Connect LED Indicator
22. Speaker
23. DC In port
24. Wall Mount
25. Angled Mount
26. AC Adapter
8 9
LOCATION OF PARTS AND CONTROLS (MONITOR)
1. Night Vision Lens
2. Camera
3. Sleep Sounds (16)
4. Microphone
5. Night Light
6. Volume - Button
7. Volume + Button
8. Night Light Button
9. Wi-Fi Connect Button
10. Sleep Sound Button
11. Sleep Enhance LED
Indicator
12. Sleep Enhance Button
13. Sleep Timer Button
14. 90 Min. Sleep Timer
LED Indicator
15. 60 Min. Sleep Timer
LED Indicator
16. 30 Min. Sleep Timer
LED Indicator
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
LOCATION OF PARTS AND CONTROLS (MONITOR)
18
17 20
19
1
2
21
22
23
24
25
26
15
14
13
3
1
2
4
6 75 11
12
108 9
16

10 11

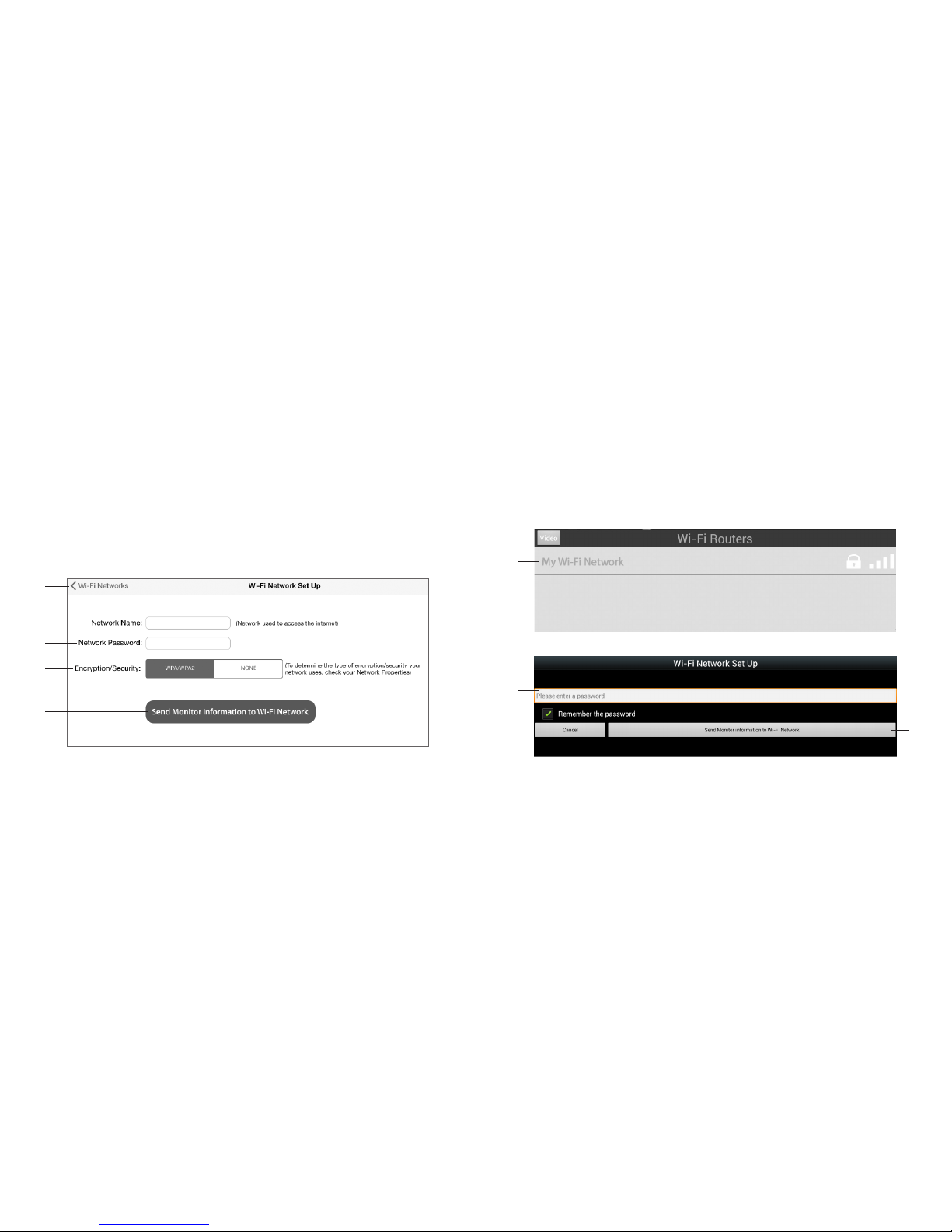

MONITOR TO WI-FI NETWORK SET-UP SCREEN
APPLE DEVICES
MONITOR TO WI-FI NETWORK SET-UP SCREEN
ANDROID DEVICES
1. Return to Video
2. Select Wi-Fi Network Name
3. Enter Wi-Fi Network Password Field
4. Send Monitor information to Wi-Fi
Network Button
1. Return Wi-Fi Networks List (path to return to Video)
2. Enter Wi-Fi Network Name Field
3. Enter Wi-Fi Network Password Field
4. Select Encryption/Security
5. Send Monitor information to Wi-Fi Network Button
1
2
3
4
5
1
2
Note: The control layout may not appear exactly as shown, depending upon your device.
Note: The control layout may not appear exactly as shown, depending upon your device.
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
3
4

12
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
13

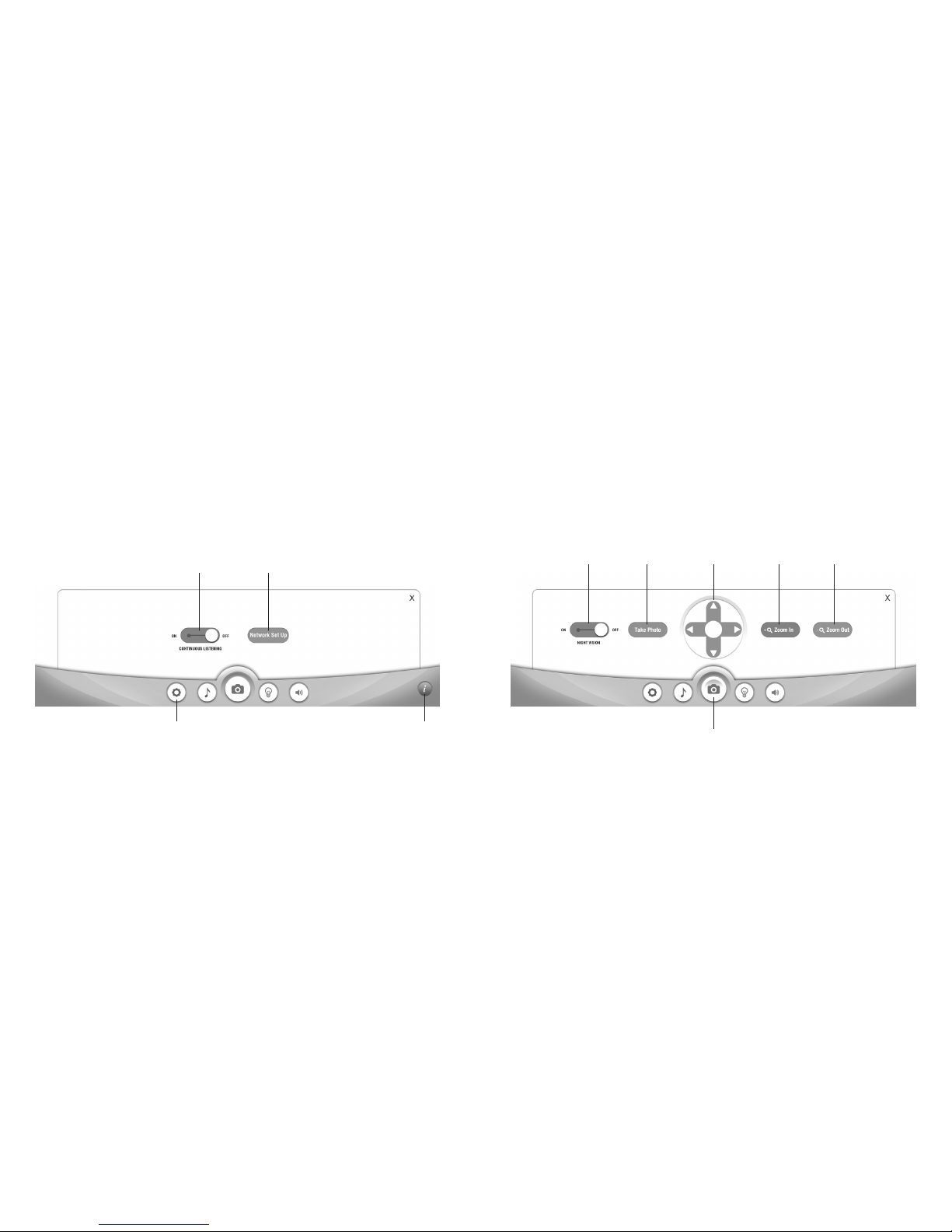

CAMERA APP CONTROL
Note: The control layout may not appear exactly as shown, depending upon your device.
SETTINGS APP CONTROL
1. Continuous Listening On/Off
2. Network Set Up/Monitors List
3. Settings Menu Open/Close
4. Terms of Use/Quick Start Guide
Note: The control layout may not appear exactly as shown, depending upon your device.
1. Night Vision On/Off
2. Take Photo
3. Camera Controller
4. Zoom In
5. Zoom Out
6. Camera Menu Open/Close
31 2 4
6
5
1 2
34

14 15
SLEEP SOUNDS APP CONTROL (PHONE)
Note: The control layout may not appear exactly as shown, depending upon your device.
SLEEP SOUNDS APP CONTROL (TABLET)
1. Sleep Sound Volume Indicator
2. Monitor Volume Indicator
3. Sleep Enhance On/Off
4. 90 Min. Sleep Timer
5. Sleep Sound Menu Open/Close
6. 60 Min. Sleep Timer
7. 30 Min. Sleep Timer
8. Sleep Sounds (16)
Note: The control layout may not appear exactly as shown, depending upon your device.
3
3
4
6
7
85
1. Sleep Sounds (16)
2. Sleep Sound Scroll Forward
3. Monitor Volume Indicator
4. 60 Min. Sleep Timer
5. Sleep Enhance On/Off
6. Sleep Sound Menu Open/Close
7. 90 Min. Sleep Timer
8. 30 Min. Sleep Timer
9. Sleep Sound Volume Indicator
10. Sleep Sound Scroll Backward
1
4
5
7
8
9
6
12
2
10
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk

849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
MONITOR VOLUME APP CONTROL
Note: The control layout may not appear exactly as shown, depending upon your device.
NIGHT LIGHT APP CONTROL
1. White Night Light On/Off
2. Multi-Color Night Light On/Off
3. Night Light Menu Open/Close
Note: The control layout may not appear exactly as shown, depending upon your device.
3
12
1. Monitor Volume Indicator
2. Monitor Volume Menu Open/Close
1
2
16 17

18 19
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
MONITOR SET-UP
Place the Monitor at least 3 feet away from your baby’s crib or bed. Never place the
Monitor or cords within a crib or bed.
Insert the AC ADAPTER into the Monitor's DC IN PORT. Plug the AC ADAPTER into
a wall outlet. The MULTI-COLOR NIGHT LIGHT will show for several seconds while
the Monitor is powering on. When the MULTI-COLOR NIGHT LIGHT turns off the
Monitor is ready to be used.
WI-FI CONNECTION SET-UP OPTIONS
There are two ways to use the Monitor with your device:
1. MONITOR TO DEVICE
The monitor has it's own ad-hoc Wi-Fi network that can be connected directly with
your device (a separate Wi-Fi network is not needed). When the Monitor is connected
directly to your device, you will not be able to access the internet or use apps that
need an internet connection with your own Wi-Fi network.
2. MONITOR TO WI-FI NETWORK, DEVICE TO WI-FI NETWORK
The Monitor and your device can be connected to your own Wi-Fi network, enabling
the TM Baby app to be active while other apps or the internet can be accessed as
well using your own Wi-Fi network .
iPod touch® (3rd,
4th, 5th generation)
iPhone 6 Plus
iPhone 6
iPhone 5s
iPhone 5c
iPhone 5
iPhone® 4s
iPhone 4
iPhone 3GS
iPad Air 2
iPad Air
iPad mini 3
iPad mini 2
iPad mini
iPad® (4th generation)
iPad® (3rd generation)
iPad 2
iPad
Apple® iOS: 4.3 and later
Android 2.2 and later,
CPU: 800MHz
RAM: 512M
SD card: 256 MB or higher
COMPATIBILITY
Visit Brookstone.com for compatibility updates.
DOWNLOADING FREE APP
Go to the iTunes® App StoreSM (for Apple devices)
or Google PlayTM (for Android devices) to download
the Tranquil Moments Baby Monitor & Sleep
Sounds App, "TM Baby". TM Baby

2120
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
CONNECTING MONITOR TO DEVICE
A separate Wi-Fi network is not needed when direct-connecting the Monitor and your
device.
1. Download the TM Baby app from the App Store or Google Play.
2. Switch the Wi-Fi CONNECTION SWITCH on the bottom of the Monitor to
“DIRECT CONNECT”.
3. Insert the AC ADAPTER into the Monitor's DC IN PORT. Plug the AC
ADAPTER into a wall outlet. The MULTI-COLOR NIGHT LIGHT will show for
several seconds while the Monitor is powering on.
4. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After several seconds, the Wi-Fi CONNECT
LED INDICATOR will start to blink slowly indicating that the monitor is ready to
connect.
5. On your device, go to Settings and turn Wi-Fi on.
6. Locate the SSID address of your Tranquil Moments Wi-Fi Baby Monitor which
is printed on the underside of the Monitor. The SSID address starts with
“TMBaby” and is followed by 12 unique digits.
APPLE DEVICES:
1. Select “Other” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Name.”
3. Select “None” for “Security.”
4. Select “Join” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
ANDROID DEVICES:
1. Select “Add Wi-Fi network” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Network SSID.”
3. Select “None” for “Security.”
4. Select “Save” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
Note: To ensure privacy, the Monitor does not broadcast its SSID address.
7. Exit out of Settings and open the TM Baby app. The Wi-Fi CONNECT LED
INDICATOR will change from blinking to solid and the video will
live-stream.

CONNECTING MONITOR TO A Wi-Fi NETWORK
Connecting the Monitor to your Wi-Fi Network enables the TM Baby app to be active
while other apps or the internet are accessed.
1. Download the TM Baby app from the App Store or Google Play.
2. Switch the Wi-Fi CONNECTION SWITCH on the bottom of the Monitor to
“DIRECT CONNECT”.
3. Insert the AC ADAPTER into the Monitor's DC IN PORT. Plug the AC
ADAPTER into a wall outlet. The MULTI-COLOR NIGHT LIGHT will show for
several seconds while the Monitor is powering on.
4. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After several seconds, the Wi-Fi CONNECT
LED INDICATOR will start to blink slowly indicating that the monitor is ready
to connect.
5. On your device, go to Settings and turn Wi-Fi on.
6. Locate the SSID address of your Tranquil Moments Wi-Fi Baby Monitor which
is printed on the underside of the Monitor. The SSID address starts with
“TMBaby” and is followed by 12 unique digits.
APPLE DEVICES:
1. Select “Other” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Name.”
3. Select “None” for “Security.”
4. Select “Join” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
ANDROID DEVICES:
1. Select “Add Wi-Fi network” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Network SSID.”
3. Select “None” for “Security.”
4. Select “Save” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
Note: To ensure privacy, the Monitor does not broadcast its SSID address.
7. Exit out of Settings and open the TM Baby app. The Wi-Fi CONNECT LED
INDICATOR will change from blinking to solid and the video will live-stream.
Tap the Settings icon in the app to open the Settings menu. Tap NETWORK
SET UP.
APPLE DEVICES:
1. Enter your Wi-Fi Network name and password (network name and
password are case sensitive).
2. Choose the type of security encryption your Wi-Fi Network uses.
To determine the type of security encryption your network uses, check your
Network Properties.
Note: The Monitor is compatible with WPA or WPA2 network security only.
ANDROID DEVICES:
1. Select your Wi-Fi Network from the Wi-Fi Networks list.
2. Enter your Wi-Fi Network password (password is case sensitive).
Note: The Monitor is compatible with WPA or WPA2 network security only.
8. Tap SEND MONITOR INFORMATION TO Wi-Fi NETWORK to link the
Monitor with your Wi-Fi Network.
22 23

849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_ Prints:1/1,Blk
9. Quit the TM Baby app (quitting the app is different from closing or exiting the
app, refer to your device’s user manual for details if necessary).
10. Switch the Wi-Fi CONNECTION SWITCH on the bottom of the Monitor to
“HOME NETWORK”. The MULTI-COLOR NIGHT LIGHT will show for several
seconds while the Monitor is restarting.
11. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After approximately 60 seconds, the Wi-Fi
CONNECT LED INDICATOR will start to blink slowly indicating that the
monitor is ready to connect.
12. On your device, go to Wi-Fi Settings. Select the SSID address of your Wi-Fi
Network to connect to your Wi-Fi Network.
Note: If the Monitor's SSID address is listed as a network on your device, it is not
properly linked to your Wi-Fi Network. Repeat Steps 2-12 to link the Monitor to
your Wi-Fi Network.
13. Exit out of Settings and open the TM Baby app. The Wi-Fi CONNECT LED
INDICATOR will change from blinking to solid and the video will live-stream.
CONNECTING MULTIPLE MONITORS TO A
Wi-Fi NETWORK
Connect Multiple Monitors to your Wi-Fi Network to view video from different
Monitors and enable the TM Baby app to be active while other apps or the internet
are accessed.
1. Download the TM Baby app from the App Store or Google Play.
2. Switch the Wi-Fi switch on the bottom of the first Monitor to "DIRECT
CONNECT".
3. Insert the AC ADAPTER into the first Monitor's DC IN PORT. Plug the AC
ADAPTER into a wall outlet. The MULTI-COLOR NIGHT LIGHT will show for
several seconds while the Monitor is powering on.
4. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After several seconds, the Wi-Fi CONNECT
LED INDICATOR will start to blink slowly indicating that the monitor is ready
to connect.
5. On your device, go to Settings and turn Wi-Fi on.
6. Locate the SSID address of the first Tranquil Moments Wi-Fi Baby Monitor
which is printed on the underside of the Monitor. The SSID address starts with
“TMBaby” and is followed by 12 unique digits.
APPLE DEVICES:
1. Select “Other” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Name.”
3. Select “None” for “Security.”
24 25

26 27
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
4. Select “Join” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
ANDROID DEVICES:
1. Select “Add Wi-Fi network” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Network SSID.”
3. Select “None” for “Security.”
4. Select “Save” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
Note: To ensure privacy, the Monitor does not broadcast its SSID address.
7. Exit out of Settings and open the TM Baby app. The Wi-Fi Connect LED will
now revert from blinking to solid. Press the Settings icon in the app to open
Setting options. Tap NETWORK SET UP.
APPLE DEVICES:
1. Enter your Wi-Fi Network name and password (network name and
password are case sensitive).
2. Choose the type of security encryption your Wi-Fi Network uses.
To determine the type of security encryption your network uses, check your
Network Properties.
Note: The Monitor is compatible with WPA or WPA2 network security only.
ANDROID DEVICES:
1. Select your Wi-Fi Network from the Wi-Fi Networks list.
2. Enter your Wi-Fi Network password (password is case sensitive).
Note: The Monitor is compatible with WPA or WPA2 network security only.
8. Tap SEND MONITOR INFORMATION TO Wi-Fi NETWORK to link the first
Monitor with Wi-Fi Network.
9. Quit the TM Baby app (quitting the app is different from closing or exiting the
app, refer to your device’s user manual for details if necessary).
10. Switch the Wi-Fi CONNECTION SWITCH on the bottom of the first Monitor
to “HOME NETWORK”. The MULTI-COLOR NIGHT LIGHT will show for several
seconds while the Monitor is restarting.
11. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After approximately 60 seconds, the Wi-Fi
CONNECT LED INDICATOR will start to blink slowly indicating that the
monitor is ready to connect.
12. On your device, go to Wi-Fi Settings. Select the SSID address of your Wi-Fi
Network to connect to your Wi-Fi Network.
Note: If the Monitor’s SSID address is listed as a network on your device, it is not
properly linked to your Wi-Fi Network. Repeat Steps 2-12 to link the Monitor to
your Wi-Fi Network.
13. Exit out of Settings and open the TM Baby app. The Wi-Fi CONNECT LED
INDICATOR will change from blinking to solid. Confirm the first Monitor is
connected by selecting the Monitor's SSID on the Monitor list, video will live
stream.
14. Switch the Wi-Fi switch on the bottom of the next Monitor to “DIRECT
CONNECT”.
15. Insert the AC ADAPTER into the next Monitor's DC IN PORT. Plug the AC
ADAPTER into a wall outlet. The MULTI-COLOR NIGHT LIGHT will show for

28 29
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
several seconds while the Monitor is powering on.
16. The Wi-Fi CONNECT LED INDICATOR will blink rapidly while the Monitor
is searching for a connection. After several seconds, the Wi-Fi CONNECT
LED INDICATOR will start to blink slowly indicating that the monitor is ready
to connect.
17. On your device, go to Settings and turn Wi-Fi on.
18. Locate the SSID address of the next Tranquil Moments Wi-Fi Baby Monitor
which is printed on the underside of the Monitor. The SSID address starts with
“TMBaby” and is followed by 12 unique digits.
APPLE DEVICES:
1. Select “Other” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Name.”
3. Select “None” for “Security.”
4. Select “Join” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
ANDROID DEVICES:
1. Select “Add Wi-Fi network” in your device’s Wi-Fi menu.
2. Enter the entire SSID address as it appears on your Monitor for “Network SSID.”
3. Select “None” for “Security.”
4. Select “Save” to add your Monitor as a Wi-Fi network.
5. Select the Monitor’s SSID address in the Wi-Fi menu to connect.
Note:
• To ensure privacy, the Monitor does not broadcast its SSID address.
• During the connection set up of the next Monitor, the first Monitor’s connection
will be temporarily interrupted. Warnings that the Wi-Fi connection is lost may
appear on your device’s screen. Once the next Monitor is connected, the first
Monitor’s connection will be restored.
19. Exit out of Settings and open the TM Baby app.
20. The Wi-Fi Connect LED will now revert from blinking to solid. Press the
Settings icon in the app to open Setting options. Tap NETWORK SET UP.
21. Select your Wi-Fi Network from the list of Wi-Fi Networks. The network/
password screen will appear with your Network name and password.
22. Tap SEND MONITOR INFORMATION TO Wi-Fi NETWORK to link the next
Monitor with your Wi-Fi Network.
23. Quit the TM Baby app (quitting the app is different from closing or exiting the
app, refer to your device’s user manual for details if necessary).
24. Switch the Wi-Fi switch on the bottom of the next Monitor to “HOME
NETWORK”. The night light will show that the unit is restarting. Once the night
light turns off the Wi-Fi CONNECT LED INDICATOR will blink rapidly. After
several minutes the Wi-Fi CONNECT LED INDICATOR will blink slowly
showing that the second monitor is ready to connect.
25. On your device, go to Wi-Fi Settings. Select the SSID address of your Wi-Fi
Network to connect to your Wi-Fi Network.
Note: If the Monitor’s SSID address is listed as a network on your device, it is not
properly linked to your Wi-Fi Network. Repeat Steps 14-25 to link the Monitor to
your Wi-Fi Network.

849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
26. Exit out of Settings and open the TM Baby app. The Wi-Fi CONNECT LED
INDICATOR will change from blinking to solid. Press the Settings icon in the
app to open Setting options. Tap MONITORS.
27. Confirm the next Monitor is connected by selecting the Monitor's SSID on
the Monitor list, video will live stream.
28. To switch between connected Monitors, press the Settings icon in the app to
open Setting options. Tap MONITORS. Select the desired Monitor's SSID on
the Monitor list, video will live stream.
29. To connect additional monitors follow Steps 14-28.
TURNING Wi-Fi CONNECTION ON AND OFF
As a default, the Monitor’s Wi-Fi Connection is on when the Monitor is plugged in.
1. Press the Wi-Fi CONNECT button to turn the Monitor's Wi-Fi connection off.
2. Press the Wi-Fi CONNECT button to turn the Monitor's Wi-Fi connection on.
Note:
• Turning off the Wi-Fi connection will require repeating Wi-Fi connection set up
to use the Monitor with the TM Baby app.
• The Wi-Fi connection can not be turned off if the Monitor is searching for a
connection (WI-FI CONNECT LED INDICATOR blinking rapidly).
30 31

TURNING LEDS ON AND OFF
1. Touch the dot under any SLEEP SOUND or press the SLEEP SOUND
button to turn SLEEP SOUND on.
2. Press and hold the SLEEP SOUND button for 2 seconds to change the
SLEEP SOUND's backlight and Monitor LED indicators setting to off.
3. When the SLEEP SOUND's backlight and Monitor LED indicators are set to
off, pressing any button or touching the dot under a SLEEP SOUND will
activate the current SLEEP SOUND's backlight and Monitor LED indicators.
Press the button or touch the dot under a SLEEP SOUND again to activate
the function. After 5 seconds, the SLEEP SOUND's backlight and Monitor
LED indicators will return to off.
4. Press and hold the SLEEP SOUND button for 2 seconds to change the
SLEEP SOUND's backlight and Monitor LED indicators to on.
32 33
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
USING THE NIGHT LIGHT
1. Press the NIGHT LIGHT button to turn on the White Night Light.
2. Press the NIGHT LIGHT button again to turn on the Multi-Color Light.
3. Press the NIGHT LIGHT button again to turn off the Night Light.
1. Tap WHITE LIGHT to turn the White Night Light on and off on the Monitor.
2. Tap MULTI-COLOR LIGHT to turn the Multi-Color Night Light on and off on the
Monitor.

34 35
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
USING THE SLEEP TIMER
1. Press the SLEEP TIMER button to select 30 minutes of selected SLEEP
SOUND play. The 30 minute SLEEP TIMER LED INDICATOR will turn on.
2. Press the SLEEP TIMER button again to select 60 minutes of selected
SLEEP SOUND play. The 60 minute SLEEP TIMER LED INDICATOR will turn on.
3. Press the SLEEP TIMER button again to select 90 minutes of selected
SLEEP SOUND play. The 90 minute SLEEP TIMER LED INDICATOR will turn on.
4. Press the SLEEP TIMER button again to turn the SLEEP TIMER off and play
the SLEEP SOUND continuously.
1. Tap 30 MINUTES to select 30 minutes of selected SLEEP SOUND play.
Tap 30 MINUTES to turn the SLEEP TIMER off and play the SLEEP SOUND
continuously.
2. Tap 60 MINUTES to select 60 minutes of selected SLEEP SOUND play.
Tap 60 MINUTES to turn the SLEEP TIMER off and play the SLEEP SOUND
continuously.
3. Tap 90 MINUTES to select 90 minutes of selected SLEEP SOUND play.
Tap 90 MINUTES to turn the SLEEP TIMER off and play the SLEEP SOUND
continuously.
PLAYING SLEEP SOUNDS
1. Touch the dot under the SLEEP SOUND or press the SLEEP SOUND
button to turn on the SLEEP SOUND. The selected SLEEP SOUND name
is backlit.
2. Press the VOLUME + button to increase the SLEEP SOUND volume.
3. Press the VOLUME - button to decrease the SLEEP SOUND volume.
4. Touch the dot under the SLEEP SOUND or press the SLEEP SOUND
button to turn off the SLEEP SOUND.
1. Tap the SLEEP SOUND to turn on the SLEEP SOUND.
Note: For phones and smaller devices, tap the arrows surrounding the SLEEP
SOUNDS to scroll through the SLEEP SOUNDS.
2. Slide the SLEEP SOUND VOLUME INDICATOR to the right to increase the
SLEEP SOUND volume.
3. Slide the SLEEP SOUND VOLUME INDICATOR to the left to decrease the
SLEEP SOUND volume.
4. Tap the SLEEP SOUND to turn off the SLEEP SOUND.

USING SLEEP ENHANCEMENT®
Sleep Center research has proven that a gradual slowing of sounds helps promote
better sleep and relaxation. When activated, the playback speed of the selected
SLEEP SOUND gradually slows down over a 30-minute period. Once the playback
speed reaches its slowest point (close to one half of normal speed) at the 30-minute
mark, the playback speed will remain at this level until the Monitor automatically turns
itself off with the SLEEP TIMER or the SLEEP SOUND is manually turned off.
1. Press the SLEEP ENHANCE button to turn SLEEP ENHANCE on. The
SLEEP ENHANCE LED INDICATOR will turn on.
2. Press the SLEEP ENHANCE button to turn SLEEP ENHANCE off. The
SLEEP ENHANCE LED INDICATOR will turn off.
1. Tap SLEEP ENHANCE ON turn SLEEP ENHANCE on.
2. Tap SLEEP ENHANCE OFF turn SLEEP ENHANCE off.
Note: SLEEP ENHANCE will be activated the next time the unit is turned on if the
SLEEP ENHANCE was activated before the unit turned off.
36 37
849264_INS01113_TM_Wi-Fi_Baby_Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Note:
• When the SLEEP TIMER is being used, the SLEEP SOUND will gradually
fade away and shut off during the last 10 minutes of play time.
• The SLEEP TIMER will be activated the next time the unit is turned on if the
SLEEP TIMER was activated before the unit turned off.
