Brute 7800822 - BTXPV22700E User manual
Not for
Reproduction
Parts Manual
7800822 - BTXPV22700E
Revision -
Manual Part No. 1752882
Rev. Date: 5/10/2011
Not for
Reproduction
Not for
Reproduction
Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Handles Group ..................................................................................................................................................... 4
Engine Group ....................................................................................................................................................... 6
Transmission Group ............................................................................................................................................. 8
Wheels Group ...................................................................................................................................................... 10
Decals Group ....................................................................................................................................................... 12
Deck Group .......................................................................................................................................................... 14
Grass Bagger, 22" ................................................................................................................................................ 16
Not for
Reproduction
Handles Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
4
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Handles Group
Footnotes
BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G50020 1931337SM 2
NUT, Hex Flange, Esna, 1/4-200030 2860694SM 1
IGNITION KEY, Pair0040 7011138YP 1
WIRE TIE, 11 Inch Std Black Nylon0050 7024649YP 2
GUIDE, Rope0060 7028488MA 1
SWITCH, ES Start / Run0070 7028765YP 1
WASHER, Internal Tooth Lock, 5/16”0080 7090391SM 4
NUT, 5/16-18 Hex Large Flange Center Lock0090 7090951SM 2
BOLT, Curved Head Square Neck, 5/16-18 x 2”, GR 20100 7091189YP 2
SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix0110 7100225YP 4
NUT, Electric Start 5/8-320120 7100329YP 1
CAP, Electric Start0130 7100330YP 1
WIRING HARNESS, Electric Start0150 7103676YP 1
CONTROL BOX ASSEMBLY0160 7103890YP 1
CABLE, Bail, 21", WBM, Brute, Electric Start0170 7103973YP 1
BAIL, Brute SP, Operator Presence Control0220 7101731AMA 1
HANDLE, Lower, 21” Rear Discharge0230 7300592AMA 1
HANDLE, Upper, Propelled0240 7300676AMA 1
PLATE, Control Panel0250 7300130AMA 1
BOLT, Carriage, 5/16 - 18 x 3/40260 340720MA 2
KNOB, 5/16-18, Wing, Black0270 7035744YP 4
The above parts group applies to the following Mfg. Nos.:
5
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
Engine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
6
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Engine Group
Footnotes
WASHER, Cone0010 7012063SM 1
CAPSCREW, Hex Head, 3/8-16 x 2, GR 50020 7090167SM 1
KEY, Hi-Pro, #6050030 7091214YP 1
SET SCREW, Hex Recess, 5/16-18 x 1/20040 7092086YP 1
PULLEY, ENGINE0050 7100437YP 1
BLADE HUB, 21" WBM, Rear Discharge, 2 Position0060 7101414YP 1
BATTERY, 12V, 1.3 A/HR, Type G Terminals0070 7102931YP 1
HARNESS, Battery, 1.3 A/HR0070-10 7102968YP 1
BLADE, Wave, Steel Deck0080 7103288YP 1
BELT GUIDE, Engine, Front Wheel Drive0090 7103517YP 2
* ENGINE, 700 Series Quantum Electric Start0100 128T05-0120-B1 1
SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/40110 7900072YP 3
CHARGER, Battery, 120V/14V 260MA0500 7103988YP 1
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
7
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction

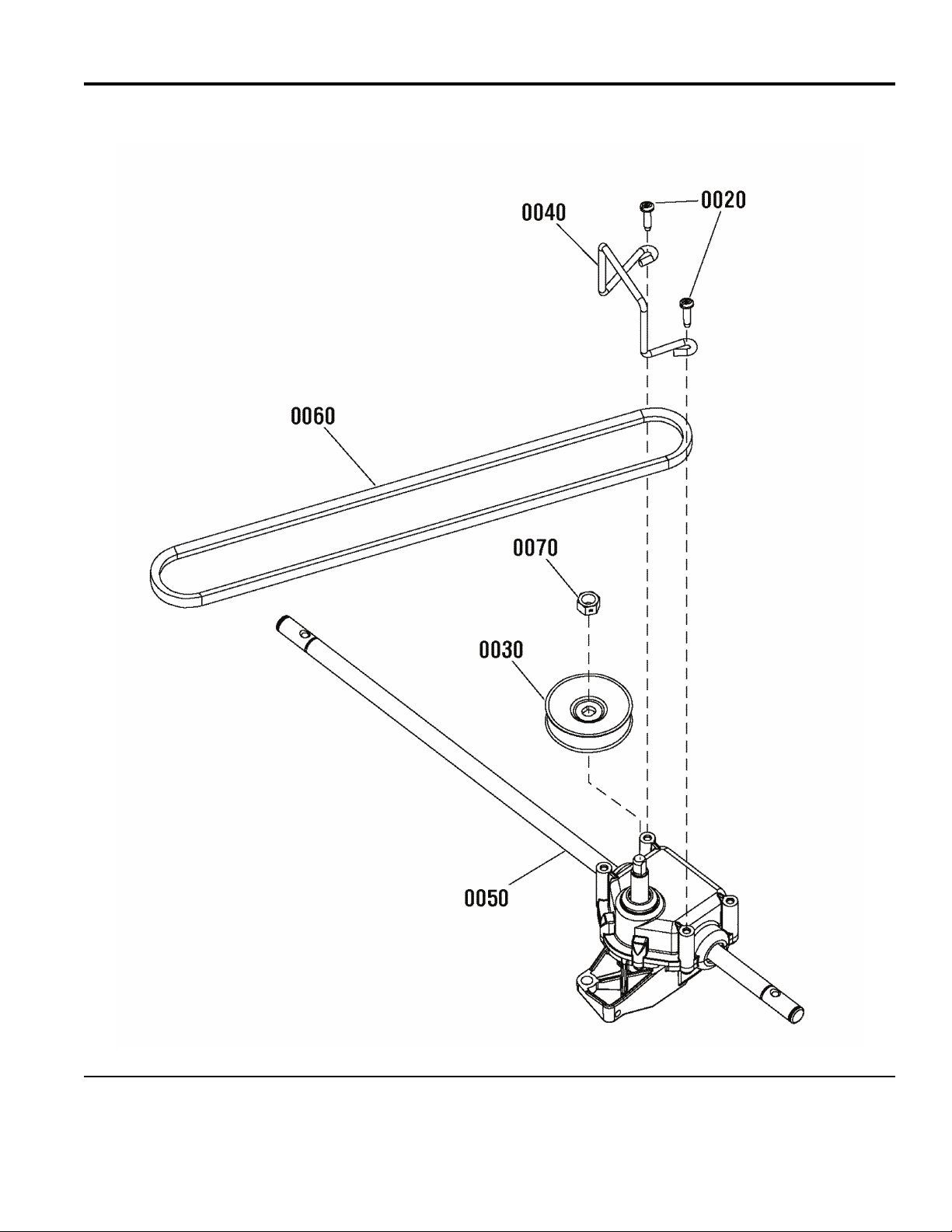

Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
8
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Transmission Group
Footnotes
SCREW, Pan Head Combo Taptite, #10-16 x 3/40020 7091195SM 2
PULLEY, Transmission, Var Speed0030 7100240YP 1
BELT GUIDE, Transmission0040 7100863YP 1
TRANSMISSION, VS, RWD0050 7103312YP 1
BELT, 3L, Traction Drive, 22 WBM, RWD0060 7103364YP 1
NUT, Center Lock Hex, 3/8-16, GR 50070 7091585SM 1
The above parts group applies to the following Mfg. Nos.:
9
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction

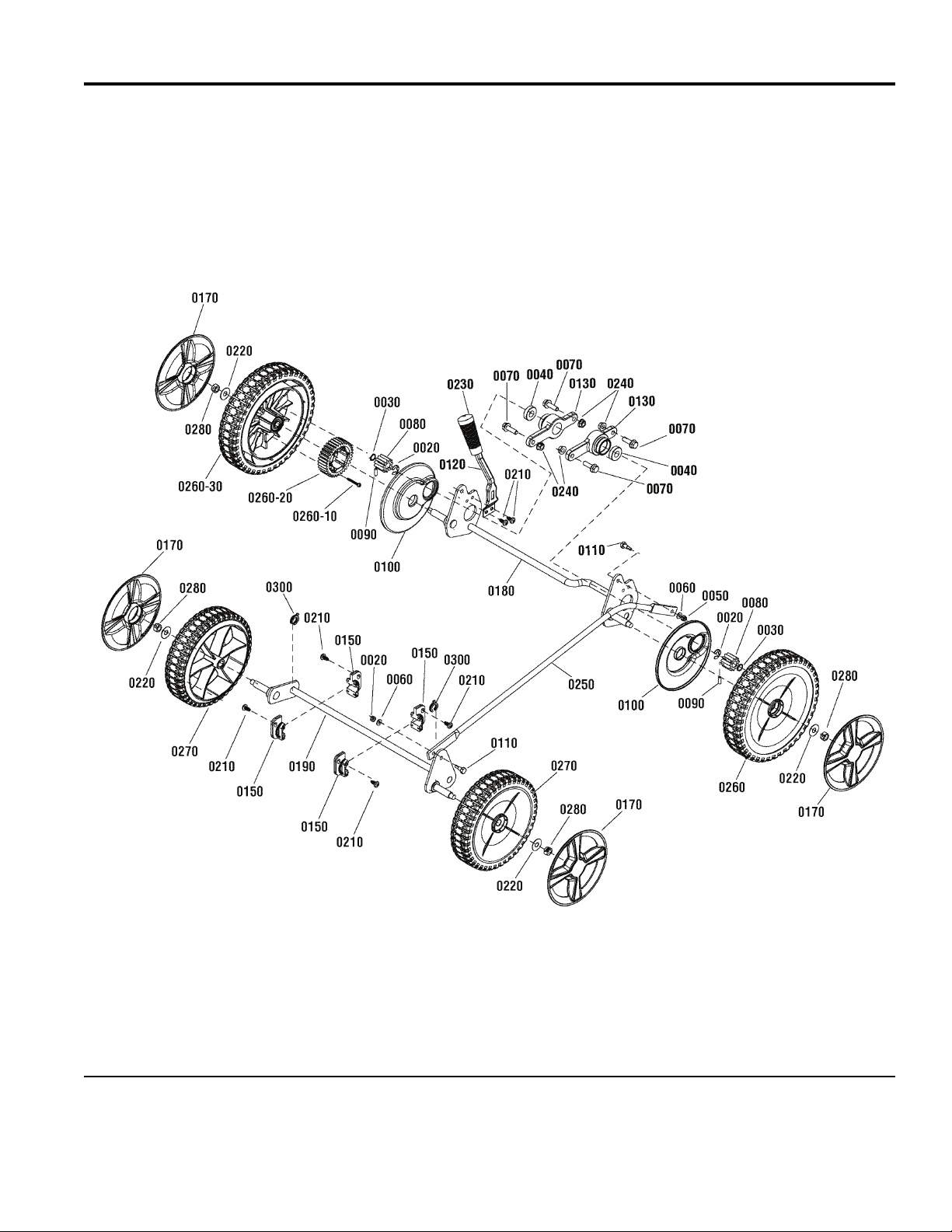

Wheels Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
10
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Wheels Group
Footnotes
RING, External Retaining0020 7014341YP 2
RING, Retaining0030 7027999YP 2
BALL BEARING, Axle0040 7078243YP 2
NUT, #10-24 Hex Nyloc0050 7091290SM 2
WASHER, Flat, 1/40060 7091552SM 2
BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ0070 7091591SM 4
GEAR, Pinion0080 7100820YP 2
PIN, Axle0090 7100861YP 2
SHIELD, DUST, 21” WBM, RD0100 7101367YP 2
BOLT, Shoulder, 1/4 x 3/80110 7101774YP 2
LEVER, Spring, Height-Of-Cut0120 7103289YP 1
HOLDER, Bearing, Rear Wheel Drive0130 7103290YP 2
BUSHING, Bearing, RWD0150 7104518YP 4
HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow0170 7103539YP 4
WELDMENT, Rear Crossbar, RWD0180 7400259YP 1
AXLE, Front0190 7400306YP 1
SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/20210 7900067YP 6
WASHER, Flat, 3/80220 17X169MA 4
GRIP, Height-Of-Cut0230 671297MA 1
NUT, Hex Flange Centerlock, 5/16-180240 7091601SM 4
ROD, Lifter Link, WBM0250 7103306ZYP 1
WHEEL ASSEMBLY0260 ----- 2
SCREW, Hex Washer Self-Tap, Hi-Lo, #8 x 1-1/40260-10 7091196SM 3
GEAR, External Wheel0260-20 7100914YP 1
WHEEL ASSEMBLY, 9" x 2" with external gear0260-30 7501793YP 1
WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black0270 7103541YP 2
NUT, Center Lock Hex, 3/8-16, GR 50280 7091585SM 4
SPACER, Shaft, 1/2"0300 7104525YP 2
The above parts group applies to the following Mfg. Nos.:
11
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
Decals Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
12
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Decals Group
Footnotes
DECAL, Danger, Cut Finger0010 7013010SM 1
DECAL, OPC Bail International Symbol0020 7029782MA 1
DECAL, Warning, Rear Discharge Door0030 7101394YP 1
DECAL, Control Head0050 7101814MA 1
DECAL, Customer Service, Brute0060 7102372YP 1
DECAL, Brute Walk-Behind Mower0070 7103545YP 1
DECAL, Ignition, Run-Start0080 7104877YP 1
DECAL, Engine, 700 Series Quantum0500 7103549YP 1
The above parts group applies to the following Mfg. Nos.:
13
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
Deck Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
14
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Deck Group
Footnotes
SPEED NUT, #10-24 Retainer with Extrusion0010 1960593SM 3
U-NUT, 1/4-200020 7023295SM 4
BOLT, 1/4-20 x 3/4” Hex Flange Lock, GR 50030 7090699YP 4
BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 50040 7090803YP 5
PUSHNUT, 1/4”0050 7091020YP 2
SCREW, Hex Washer Self Tap, #10C x 5/8, GR 50060 7091075SM 3
ROD, Pivot0080 7101067YP 1
BAFFLE, Rear, Rear Wheel Drive WBM0110 7103293YP 1
COVER, Belt Drive, Rear0120 7104819YP 1
COVER, Mulching0130 7103298YP 1
CHUTE, Side Discharge, 22" WBM0140 7103299YP 1
GUARD, Rear 22"0170 7103323YP 1
PLUG, Mulching, 22" Deck0180 7103453YP 1
BOTTOM, Battery Box, Miniature0190 7103457YP 1
TOP, Battery Box, Miniature0200 7103458YP 1
SCREW, Hi-Lo, 4.8 x 1.59 x 13mm Round Washer Head0260 7900018YP 2
SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/20270 7900067YP 6
BOLT, Drag Shield, 1/4 - 20 x 1-1/20280 7900073YP 2
SPRING, Torsion, Chute0290 166X38MA 1
FRONT SHIELD, Debris0300 7103296YP 1
BRACKET, Chute0310 7300855BMYP 1
BRACKET, Lower Handle, LH0320 7300885AYP 1
BRACKET, Lower Handle, RH0330 7300915AYP 1
BAFFLE, Front0340 7301020YP 1
DECK, 22", RWD, ES, Washout0350 7301113ZYP 1
NUT, Flange Lock, 1/4-200360 15X143MA 3
NUT, 1/4-20 Hex Flange Whiz Lock0370 780285MA 2
ASSEMBLY, Door, 22" WBM0380 7501541YP 1
RETAINER, 1/4” Bolt0390 1960518SM 3
WASHOUT PORT ASSEMBLY-- ----- 1
NUT, 5/8-11 NC-2B Hex Jam0610 1960716SM 1
ADAPTOR, Washout Port, WBM0620 7103804YP 1
COUPLING, Hose0630 7103919YP 1
WASHER, Hose0640 7103957YP 1
WASHER, Internal Tooth, 5/80650 7090880YP 1
The above parts group applies to the following Mfg. Nos.:
15
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
Grass Bagger, 22"
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
16
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Grass Bagger, 22"
Footnotes
KIT, 22" GRASS CATCHER (Incl. Ref. 0010 & 0020)0100 7600107YP 1
FRAME, Grass Bag (Included with Ref. No 0100)0010 7103305AYP 1
GRASS BAG, 22" Rear Discharge (Included with Ref. No 0100)0020 7103375YP 1
The above parts group applies to the following Mfg. Nos.:
17
Briggs & Stratton Power Porducts Group
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
7800822 - BTXPV22700E
Not for
Reproduction
BRITISH COLUMBIA ALBERTA SASKATCHEWAN MANITOBA
ONTARIO QUEBEC
Small Engine Clinic
12/07
HAWAII
INCLUDES TRUST ISLANDS WITH
UNITED STATES ZIPCODES
Magneto Power
Atlantic Power
MWE
Central Power
Preferred Power
SEDCO
Power Source Canada
(800) 733-7388
(800) 456-5692
(800) 683-8484 (800) 331-7164 (905) 829-0006
(800) 444-7774 (800) 346-4260
Not for
Reproduction
Briggs & Stratton Corporation
INTEGRATED DISTRIBUTOR NETWORK
Midwest Engines 700 Enterprise Rd Aurora, IL 60504 www.mwe.net (800) 683-8484
Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774
Atlantic Power 20 Empire Stat Rd Castleton, NY 12033 www.atlanticpowerinc.com (800) 456-5692
Preferred Power Inc 6509-A Northpark Blvd Charlotte, NC 28216 www.centralpower.com (800) 331-7164
Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774
Magneto Power LLC 1000 W. Donges Bay Rd Suite 100 Mequon, WI 53092 www.magnetopower.com (800) 733-7388
Sedco, Inc 225 Henry D. Robinson Blvd Pendergrass, GA 30567 www.sedcoinc.com (800) 346-4260
Power Source Canada, LTD 2815 Bristol Circle, Unit 1 Oakville, ON L6H 6X5 www.powersourcecanada.ca (905) 829-0006
Not for
Reproduction
Table of contents
Other Brute Lawn Mower manuals
Brute
Brute BSG1221SB User manual
Brute
Brute BTP2265HW User manual
Brute
Brute 7800882 User manual
Brute
Brute 7800583 User manual
Brute
Brute 7800886 User manual
Brute
Brute 7800802 User manual
Brute
Brute 881403 User manual
Brute
Brute 7800806 User manual
Brute
Brute BTPV22675HWFC User manual
Brute
Brute 30534379 Owner's manual
