Buchi Interface I-300 User manual

Interface I-300
Operation Manual
STOP
11593772 | G en

Imprint
Product Identification:
Operation Manual (Original) Interface I-300
11593772
Publication date: 02.2022
Version G
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: [email protected]
BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience,
especially with respect to structure, illustrations and technical details.
This manual is copyrighted. Information from it may neither be reproduced, distributed, or used for
competitive purposes, nor made available to third parties. The manufacture of any component with the
aid of this manual without prior written agreement is also prohibited.

Büchi Labortechnik AG Table of contents
Operation Manual Interface I-300 iii
Contents
1 About this document...........................................................................................................6
1.1 Warning notices in this document..........................................................................................6
1.2 Symbols.................................................................................................................................6
1.2.1 Warning symbols ......................................................................................................6
1.2.2 Mark-ups and symbols .............................................................................................7
1.3 Trademarks ...........................................................................................................................7
2 Safety....................................................................................................................................8
2.1 Intended use..........................................................................................................................8
2.2 Use other than that intended .................................................................................................8
2.3 Staff qualification ...................................................................................................................8
2.4 Residual risks ........................................................................................................................9
2.4.1 Faults during operation.............................................................................................9
2.5 Personal protective equipment ..............................................................................................9
2.6 Modifications..........................................................................................................................9
3 Product description...........................................................................................................11
3.1 Description of function .........................................................................................................11

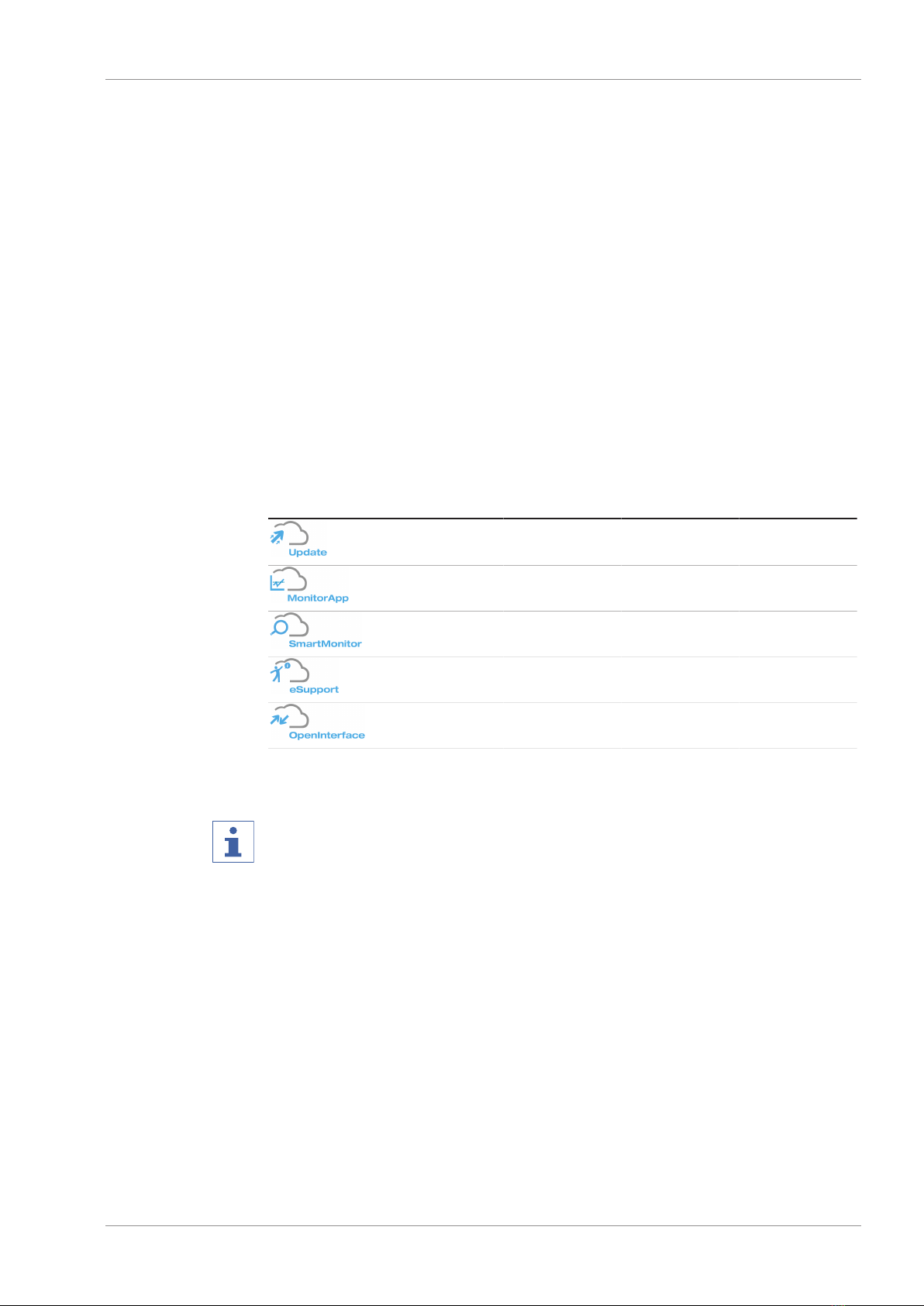

3.2 Description of function Cloud Services (Option)..................................................................11
3.3 Configuration .......................................................................................................................12

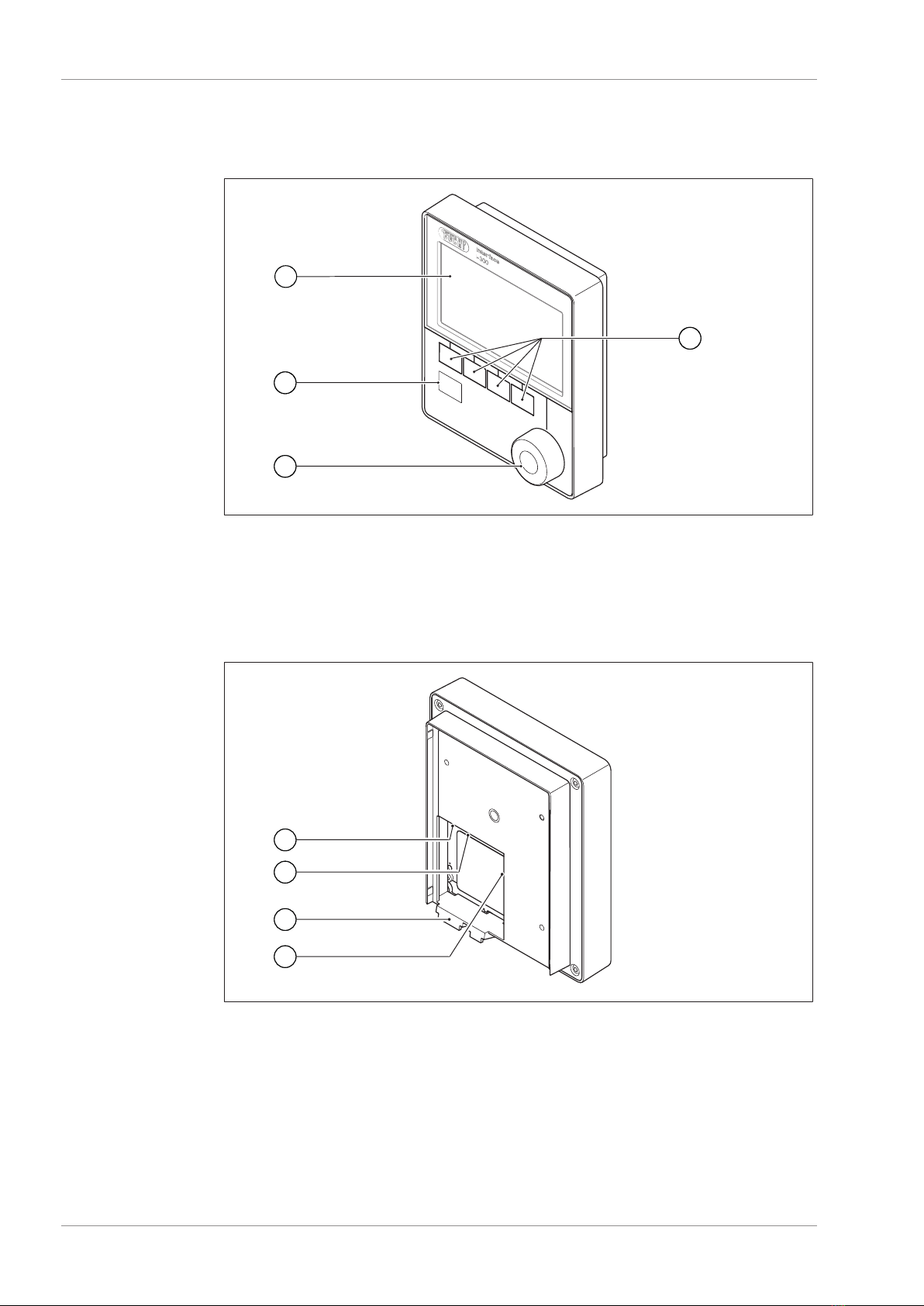

3.3.1 Front view ...............................................................................................................12
3.3.2 Rear view................................................................................................................12
3.3.3 VacuBox (connections)...........................................................................................13
3.3.4 LegacyBox (connections) .......................................................................................14

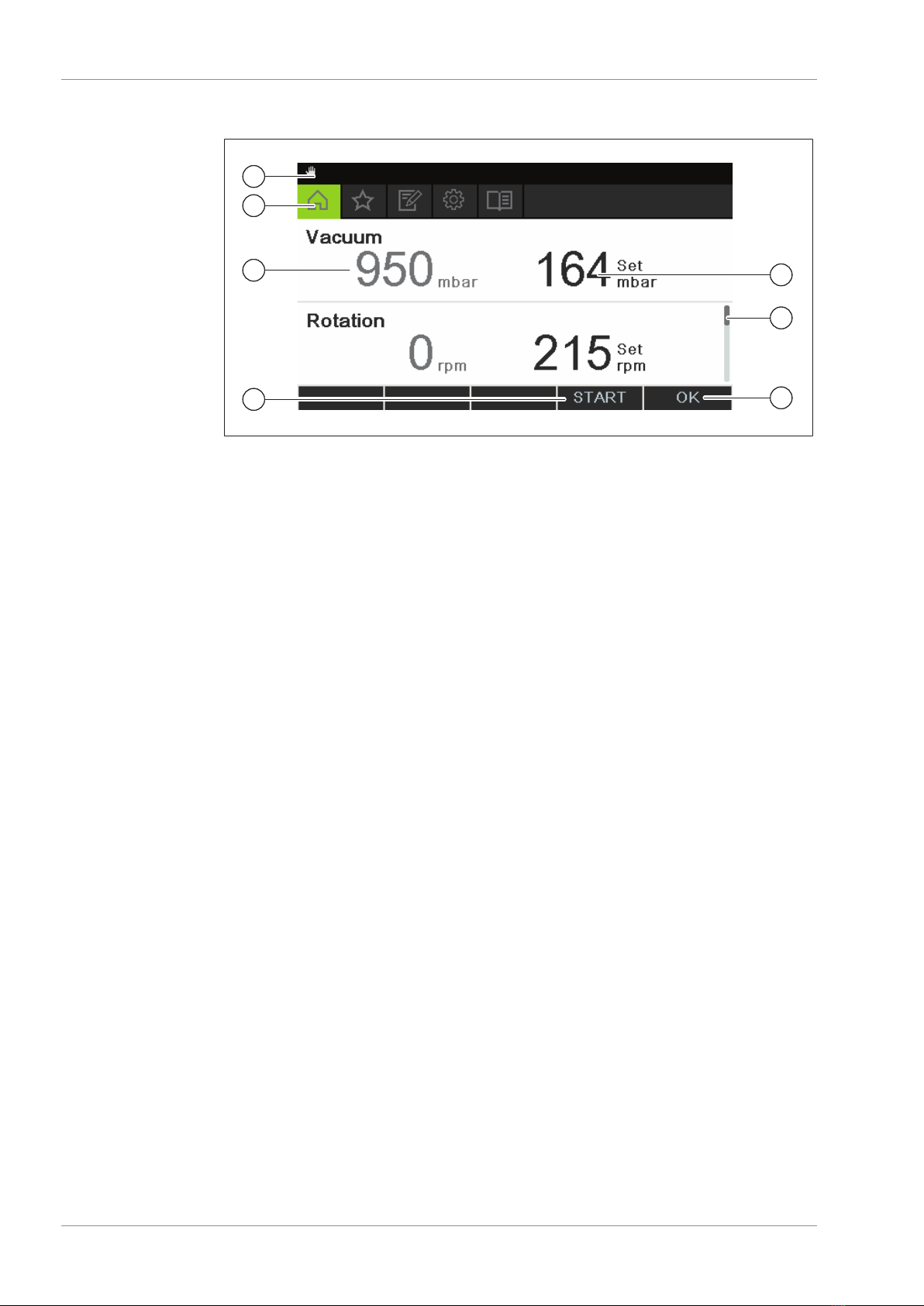

3.3.5 Display (touch-screen)............................................................................................16

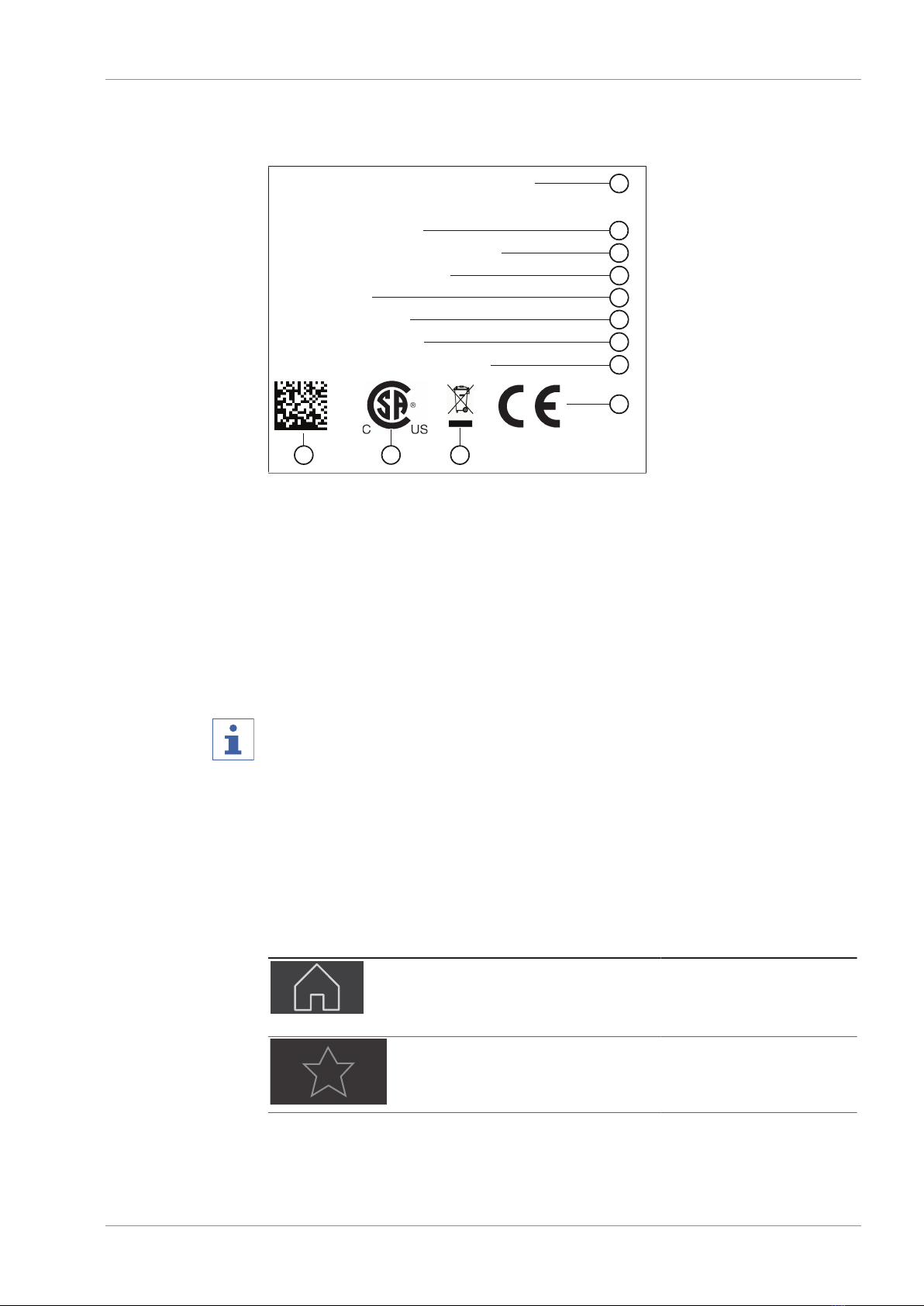

3.3.6 Type plate...............................................................................................................17
3.4 Navigating through the menu system ..................................................................................17
3.4.1 Menu bar ................................................................................................................17
3.4.2 Favorites menu.......................................................................................................18
3.4.3 Operating modes menu ..........................................................................................18
3.4.4 Configuration menu ................................................................................................19
3.4.5 Libraries menu........................................................................................................22
3.4.6 Symbols on the status bar ......................................................................................22
3.5 Scope of delivery .................................................................................................................23
3.6 Technical data .....................................................................................................................23
3.6.1 Interface..................................................................................................................23
3.6.2 Junction boxes........................................................................................................23
3.6.3 Ambient conditions .................................................................................................24
3.6.4 Materials .................................................................................................................24
4 Transport and storage ......................................................................................................25
4.1 Transport .............................................................................................................................25
4.2 Storage ................................................................................................................................25

Table of contents Büchi Labortechnik AG
iv Operation Manual Interface I-300
5 Installation..........................................................................................................................26
5.1 Fitting the Interface I-300/I-300 Pro.....................................................................................26
5.1.1 Mounting interface on Rotavapor R-300.................................................................26
5.1.2 Fitting interface unit on Vacuum Pump V-300 ........................................................28
5.1.3 Mounting interface unit on laboratory stand (optional accessory) ..........................29
5.1.4 Mounting interface unit on a wall bracket (optional accessory) ..............................30
5.2 Connecting the interface unit...............................................................................................30
5.2.1 Connecting communication cables to interface unit ...............................................31
5.2.2 Establishing LAN connection..................................................................................32
5.2.3 Overview: Setting up communication connections (COM) .....................................33
5.2.4 Overview: setting up coolant tubing connections ...................................................33
5.2.5 Overview: setting up vacuum tubing connections ..................................................34
5.3 Connecting AutoDest sensor to vapor temperature sensor (optional accessory) ...............36
5.4 Connecting foam sensor (optional accessory) ....................................................................37
5.5 Connecting valve unit for external vacuum..........................................................................39
5.6 Operating I-300 and I-300 Pro in parallel ............................................................................39
6 Operation............................................................................................................................40
6.1 Navigating the menu............................................................................................................40
6.1.1 Selecting menu items .............................................................................................40
6.1.2 Entering parameter settings ...................................................................................41
6.1.3 Changing settings...................................................................................................41
6.2 Performing distillation ..........................................................................................................42
6.2.1 Overview: typical distillation sequence ...................................................................42
6.2.2 Basic functions .......................................................................................................43
6.2.3 Executing Manual mode .........................................................................................44
6.2.4 Executing Timer mode............................................................................................47
6.2.5 Executing Continuous Pumping mode ...................................................................50
6.2.6 Performing automatic distillation.............................................................................52
6.2.7 Executing Drying mode ..........................................................................................55
6.3 Using the solvent library ......................................................................................................56
6.4 Activating eco mode ............................................................................................................58
6.5 Setting hysteresis ................................................................................................................59
6.6 Creating favorites ................................................................................................................59
6.7 Activating Come here function.............................................................................................60
7 Cleaning and servicing .....................................................................................................61
7.1 Cleaning the casing/display.................................................................................................61
7.2 Performing a leak test..........................................................................................................61
7.3 Checking vacuum seal ........................................................................................................62
7.4 Fitting GL14 cap nut with tube seal .....................................................................................62
7.5 Checking seals ....................................................................................................................63
7.6 Calibrating AutoDest sensor................................................................................................63
7.7 Calibrating the pressure sensor...........................................................................................64
7.7.1 Offset calibration.....................................................................................................65
7.7.2 Simple calibration ...................................................................................................65
7.7.3 Loading factory calibration......................................................................................66

Büchi Labortechnik AG Table of contents
Operation Manual Interface I-300 v
8 Help with faults ..................................................................................................................67
8.1 Faults, possible causes and remedies ................................................................................67
8.2 Error messages ...................................................................................................................67
8.3 Customer service.................................................................................................................67
8.4 eSupport ..............................................................................................................................68
9 Taking out of service and disposal..................................................................................69
9.1 Taking out of service ...........................................................................................................69
9.2 Disposal ..............................................................................................................................69
10 Appendix ............................................................................................................................70
10.1 Solvent table........................................................................................................................70
10.2 Spare parts and accessories ...............................................................................................71
10.2.1 Accessories ............................................................................................................71
10.2.2 Wearing parts .........................................................................................................74
10.2.3 Spare parts .............................................................................................................75
10.3 Health and safety approval..................................................................................................75
10.4 Health and safety.................................................................................................................76
10.5 Handling data ......................................................................................................................77
10.5.1 Counter data...........................................................................................................79
10.5.2 Distillation session data ..........................................................................................79
10.5.3 Error data................................................................................................................79
10.5.4 Maintenance data ...................................................................................................79
10.5.5 System configuration data ......................................................................................79
10.5.6 Data storage period ................................................................................................79
10.5.7 Device settings .......................................................................................................80
10.5.8 Contact data ...........................................................................................................80
10.5.9 Location data ..........................................................................................................80

1 | About this document Büchi Labortechnik AG
6/82 Operation Manual Interface I-300
1 About this document
This operation manual is applicable for all variants of the instrument.
Read this operation manual before operating the instrument and follow the
instructions to ensure safe and trouble-free operation.
Keep this operation manual for later use and pass it on to any subsequent user or
owner.
BÜCHI Labortechnik AG accepts no liability for damage, faults and malfunctions
resulting from not following this operation manual.
If you have any questions after reading this operation manual:
uContact BÜCHI Labortechnik AG Customer Service.
https://www.buchi.com/contact
1.1 Warning notices in this document
Warning notices warn you of dangers that can occur when handling the device.
There are four danger levels, each identifiable by the signal word used.
Signal word Meaning
DANGER Indicates a danger with a high level of risk which could result in
death or serious injury if not prevented.
WARNING Indicates a danger with a medium level of risk which could result in
death or serious injury if not prevented.
CAUTION Indicates a danger with a low level of risk which could result in mi-
nor or medium-severity injury if not prevented.
NOTICE Indicates a danger that could result in damage to property.
1.2 Symbols
The following symbols are displayed in this operation manual or on the device:

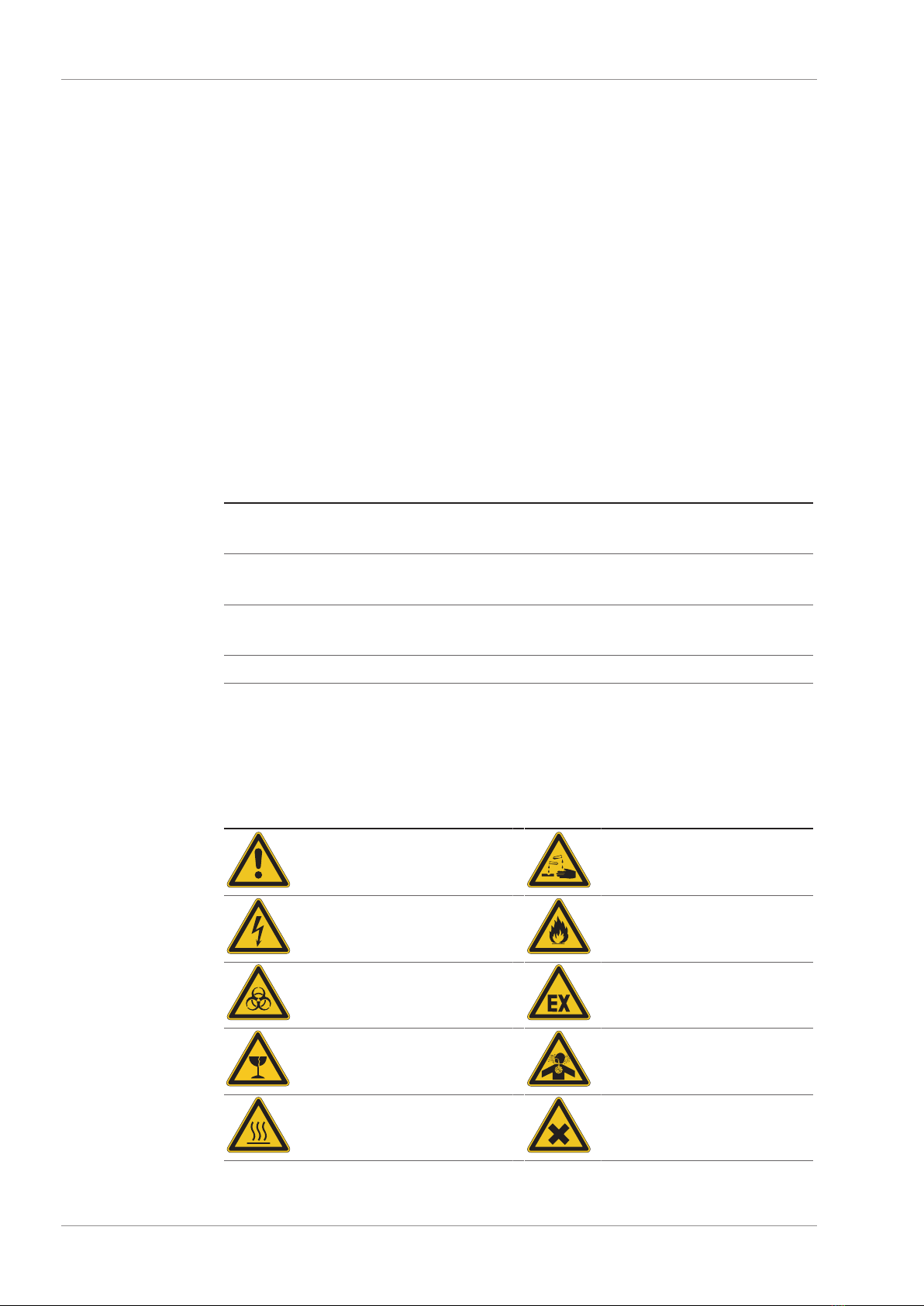

1.2.1 Warning symbols
Symbol Meaning Symbol Meaning
General warning Corrosive substance
Dangerous electrical voltage Flammable substance
Biological hazard Potentially explosive atmos-
phere
Breakable items Dangerous gases
Hot surface Health-harming or irritant
substances

Büchi Labortechnik AG About this document | 1
Operation Manual Interface I-300 7/82

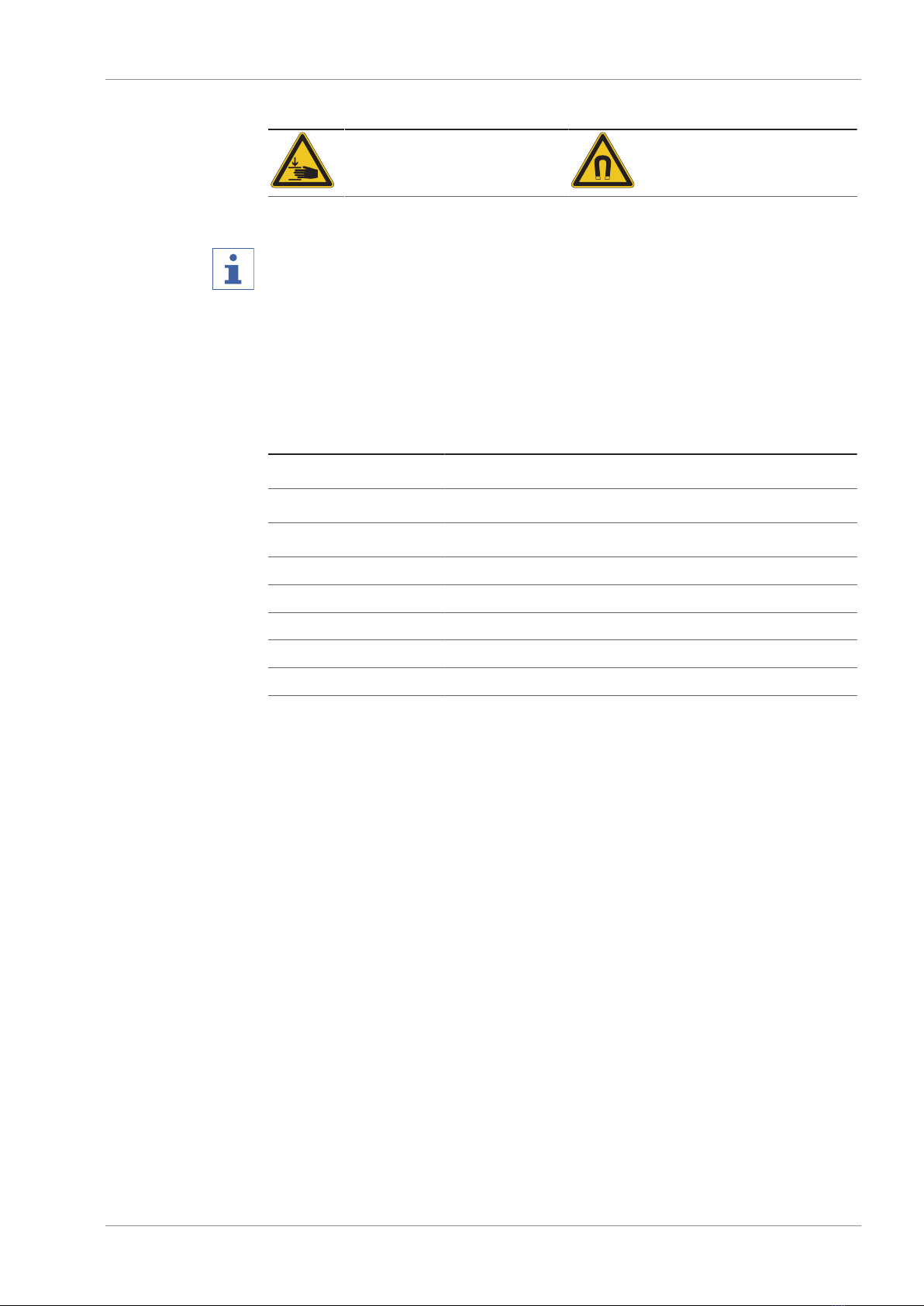

Symbol Meaning Symbol Meaning
Risk of hand injury Strong magnetism
1.2.2 Mark-ups and symbols
NOTE
This symbol draws attention to useful and important information.
RThis character draws attention to a requirement that must be met before the
instructions below are carried out.
uThis character indicates an instruction that must be carried out by the user.
ðThis character indicates the result of a correctly carried out instruction.
Mark-up Explanation
Window
Software Windows are marked-up like this.
Tab
Tabs are marked-up like this.
Dialog
Dialogs are marked-up like this.
[Button] Buttons are marked-up like this.
[Field names] Field names are marked-up like this.
[Menu / Menu item] Menus or menu items are marked-up like this.
Status Status is marked-up like this.
Signal Signals are marked-up like this.
1.3 Trademarks
Product names and registered or unregistered trademarks that are used in this
document are used only for identification and remain the property of the owner in
each case.

2 | Safety Büchi Labortechnik AG
8/82 Operation Manual Interface I-300
2 Safety
2.1 Intended use
The [Interface I-300] is intended for indicating vacuum within an operating range of
0mbar to ambient atmospheric pressure. The measurement and regulation of the
vacuum is performed by means of a VacuBox. The [Interface I-300] has been
designed and built as an item of laboratory equipment and can be used in
conjunction with the following devices:
Distillation apparatus, especially rotary evaporators
Vacuum-drying cabinets
Vacuum pumps
Recirculating chiller
2.2 Use other than that intended
Use of any kind other than that described in the section Chapter2.1 "Intended use",
page8 and any application that does not comply with the technical specifications
(see Chapter3.6 "Technical data", page23) constitutes use other than that
intended.
In particular, the following applications are not permissible:
Use of the device in areas that require apparatus that is safe to use in potentially
explosive atmospheres.
Use as a calibration device for other equipment.
Operation at pressures above atmospheric
Damage or hazards attributable to use of the product other than as intended are
entirely at the risk of the user alone.
2.3 Staff qualification
Unqualified persons are unable to identify risks and are therefore exposed to greater
dangers.
The device may only be operated by suitably qualified laboratory staff.
These operating instructions are aimed at the following target groups:
Users
Users are persons that meet the following criteria:
They have been instructed in the use of the device.
They are familiar with the contents of these operating instructions and the
applicable safety regulations and apply them.
They are able on the basis of their training or professional experience to assess
the risks associated with the use of the device.

Büchi Labortechnik AG Safety | 2
Operation Manual Interface I-300 9/82
Operator
The operator (generally the laboratory manager) is responsible for the following
aspects:
The device must be correctly installed, commissioned, operated and serviced.
Only suitably qualified staff may be assigned the task of performing the
operations described in these operating instructions.
The staff must comply with the local applicable requirements and regulations for
safe and hazard-conscious working practices.
Safety-related incidents that occur while using the device should be reported to
the manufacturer ([email protected]).
BUCHI service technicians
Service technicians authorized by BUCHI have attended special training courses and
are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair
measures.
2.4 Residual risks
The device has been developed and manufactured using the latest technological
advances. Nevertheless, risks to persons, property or the environment can arise if
the device is used incorrectly.
Appropriate warnings in this manual serve to alert the user to these residual
dangers.
2.4.1 Faults during operation
If a device is damaged, sharp edges, moving parts or exposed electrical wires can
cause injuries.
uRegularly check device for visible damage.
uIf faults occur, switch off the device immediately, unplug the power cord and
inform the operator.
uDo not continue to use devices that are damaged.
2.5 Personal protective equipment
Depending on the application, hazards due to heat and/or corrosive chemicals may
arise.
uAlways wear appropriate personal protective equipment such as safety goggles,
protective clothing and gloves.
uMake sure that the personal protective equipment meets the requirements of
the safety data sheets for all chemicals used.
2.6 Modifications
Unauthorized modifications may impair safety and lead to accidents.
uUse only genuine BUCHI accessories, spare parts and consumables.
uTechnical modifications to the device or accessories should only be carried out
with the prior written approval of BÜCHI Labortechnik AG and only by authorized
BUCHI technicians.

2 | Safety Büchi Labortechnik AG
10/82 Operation Manual Interface I-300
BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized
modifications.

Büchi Labortechnik AG Product description | 3
Operation Manual Interface I-300 11/82
3 Product description
3.1 Description of function
The [Interface I-300] is designed for indicating, adjusting and controlling the
complete distillation system. The Interface I-300 settings enable precise specification
of the individual process parameters.For example:
Rotation speed of the evaporating flask
Specified temperature of the heating bath
Specified temperature of the coolant
Specified vacuum pressure
Duration of the distillation process
The pressure is measured and regulated by the associated VacuBox. Measurement is
independent of the solvent used.
3.2 Description of function Cloud Services (Option)
Dongle LAN App System owner
X X
X X
X x* X X
X x* X X
1
X
* Option
1 Interface I-300 Pro only
NOTE
uFor update details, see "Firmware Update Quick Guide"
uFor details of Monitor app, see "BUCHI Monitor App Quick Guide"
uFor details of eSupport, see Chapter8.4 "eSupport", page68

3 | Product description Büchi Labortechnik AG
12/82 Operation Manual Interface I-300
3.3 Configuration
3.3.1 Front view
STOP
1
3
2
4
Fig.1: Front view of Interface I-300
1 Display 3 Navigation control
2 STOP button (emergency stop) 4 Function buttons
3.3.2 Rear view
3
4
1
2
Fig.2: Rear view of Interface I-300
1 LAN port 3 Locating lug for bracket
2 Standard BUCHI communication port
(COM)
4 MicroSD card (not used)

Büchi Labortechnik AG Product description | 3
Operation Manual Interface I-300 13/82
3.3.3 VacuBox (connections)
Other BUCHI laboratory equipment is connected to the [Interface I-300] in series
together with the VacuBox. The individual devices are connected to one another via
the standard BUCHI communication port (7). See Chapter5.2.3 "Overview: Setting
up communication connections (COM)", page33.
1
1
3
4
5
6
7
1
2
Fig.3: Connections on the VacuBox
1 Vacuum connection 5 Connection for vapor temperature/
AutoDest sensor (VT/AS)
2 Venting valve/inert gas connection
(optional)
6 Foam sensor connection (FS)
3 Water coolant valve connection (CW) 7 Standard BUCHI communication port
(COM)
4 Connection for valve unit or straight-
way valve (VALVE)

3 | Product description Büchi Labortechnik AG
14/82 Operation Manual Interface I-300
3.3.4 LegacyBox (connections)
Connection of a LegacyBox is required whenever legacy BUCHI laboratory equipment
is to be controlled via the [Interface I-300]. The LegacyBox is connected to the
distillation system using a standard BUCHI communication cable and has other
connection options such as an RS-485 communication port. There is also the option
of incorporating pumps of other makes in the Rotavapor system and controlling
them via the interface. In that case, the pump requires a 0 – 10 V input.
The LegacyBox is fixed to a Rotavapor R-300 or a laboratory stand clamp.
2
4
3
1
6
5
Fig.4: Connections on the LegacyBox
1 Standard BUCHI communication port
(COM)
4 RS-232 (not used)
2 0 – 10 V communication port – for
connecting pumps of other makes
5 External power supply – for genuine
BUCHI mains adaptor, 30 V, 30 W
(see Accessories)
3 RS-485 communication port – for
connecting legacy BUCHI laboratory
equipment (Vacuum Pumps V-700 /
V-710, Rotavapors: R-210 / R-215,
Recirculating Chiller F-1xx)
6 On/Off switch
NOTE
The external power supply is only necessary if the LegacyBox is not connected to a
Rotavapor or a vacuum pump and is used for other vacuum control applications
instead. Otherwise the vacuum pump or the Rotavapor supplies the LegacyBox with
power.

Büchi Labortechnik AG Product description | 3
Operation Manual Interface I-300 15/82
0 – 10 V communication port
This connection comprises a 0 – 10 V output for connecting pumps of other makes
and electrically isolated relay contacts. There is also a valve control contact.
Fig.5: 8-pin MiniDin pin assignment, view of socket
Pin
8-pin notation
Symbol Description
1 Ground Ground connection for valve and 10 V
output
2 Valve Vacuum valve connection
3 Spare
4 10 V output 0 – 10 V (max. 20 mA, min. 500 Ohm)
5 Relay In Max. 30 V 2 A, electrically isolated
6 Spare
7 Spare
8 Relay Out Max. 30 V 2 A, electrically isolated
S Shield Shield, connected to ground

3 | Product description Büchi Labortechnik AG
16/82 Operation Manual Interface I-300
3.3.5 Display (touch-screen)
1
2
3
4
1
5
6
7
1
1
Fig.6: Display layout
1 Status bar 5 Current setting (e.g. vacuum)
2 Menu bar 6 Scroll bar
3 Current reading (e.g. vacuum) 7 Function activated if navigation con-
trol is pressed
4 Functions of the function buttons be-
low (context-dependent)

Büchi Labortechnik AG Product description | 3
Operation Manual Interface I-300 17/82
3.3.6 Type plate
The type plate is on the rear of the [Interface I-300].
BÜCHI Labortechnik AG
CH-9230 Flawil/Switzerland
Type: I-300
SN: 1000000000
Volt: 30 VDC
Frequ.:
Power: 3 W
Built: 2014
Made in Switzerland
3
7
2
1
5
4
6
8
9
1011
9
Fig.7: Type plate (example)
1 Company name and address 7 Year of manufacture
2 Device name 8 Country of manufacture
3 Serial number 9 Approvals
4 Input voltage 10 Symbol for "Do not dispose of as
household waste"
5 Frequency 11 Product code
6 Maximum power rating
NOTE
The VacuBox and the LegacyBox each have their own type plate on the rear.
3.4 Navigating through the menu system
3.4.1 Menu bar
The menus are represented by symbols on the menu bar. Navigation through the
menus is by the input controls.
The following menus are available:
Symbol Meaning Sub-items
Home screen Process control
parameters
Graphs
Favorites Bookmarks for
frequently used
individual starting points

3 | Product description Büchi Labortechnik AG
18/82 Operation Manual Interface I-300
Symbol Meaning Sub-items
Operating modes Manual
Timer
Continuous pumping
AutoDest
Drying
Configuration Maintenance
Settings
BUCHI Cloud Services
Service
System information
Libraries Solvent library
Wearing parts
Startup info
3.4.2 Favorites menu
For creating favorites. See Creating favorites
3.4.3 Operating modes menu
The Interface I-300 distinguishes between the following operating modes for a
distillation system:
Operating mode Purpose Content
[Manual] Carrying out distilla-
tion with manually
set parameters
See Chapter6.2.3 "Executing Manual
mode", page44
[Timer] Carrying out a distil-
lation process with
manually set param-
eters which is to be
stopped after a set
time has elapsed
See Chapter6.2.4 "Executing Timer
mode", page47
[Continuous pump-
ing]
Drying the system
after distillation
See Chapter6.2.5 "Executing Continuous
Pumping mode", page50
[AutoDest] Carrying out auto-
matic single or
multi-stage distilla-
tion with specified
settings for the vac-
uum continuously
adjusted by the sys-
tem
See Chapter6.2.6 "Performing automatic
distillation", page52

Büchi Labortechnik AG Product description | 3
Operation Manual Interface I-300 19/82
Operating mode Purpose Content
[Drying] Post-drying of con-
tents of evaporating
flask. (This feature is
only available in
conjunction with
the Rotavapor
R-300.)
See Chapter6.2.7 "Executing Drying
mode", page55
3.4.4 Configuration menu
The [Configuration] menu contains the following submenus:
Maintenance see Maintenance submenu
Settings see Settings submenu
BUCHI Cloud Services see Chapter "BUCHI Cloud Services submenu ", page21
System information see System Information submenu
Maintenance submenu
The submenu [Maintenance] contains the following actions:
Action Option Explanation
[Leak test] START For carrying out a leak test on the distilla-
tion system
[Seal servicing] Info Hours of rotation since last service.
Resets the hours of rotation recorded.
Settings submenu
The submenu [Settings] contains options for settings that can be made on the
distillation system.
Action Option Explanation
[Mobile connection
QR code]
View Interface unit shows QR code for the con-
nected distillation system.
[Mobile connection
password]
View For viewing password and entering on
mobile device (alternative to QR code)
[On finish: Aerate
system]
On/Off System is vented after automatic or man-
ual termination of distillation.
[On start: start rota-
tion]
On/Off Evaporating flask starts rotating when
distillation is started.
[On finish: Stop ro-
tation]
On/Off Evaporating flask stops rotating after au-
tomatic or manual termination of distilla-
tion.
[On start: immerse
flask]
On/Off Evaporating flask is automatically im-
mersed in the heating bath when distilla-
tion is started.

3 | Product description Büchi Labortechnik AG
20/82 Operation Manual Interface I-300
Action Option Explanation
[On finish: lift out
flask]
On/Off Evaporating flask is automatically lifted
out of the heating bath after automatic
or manual termination of distillation.
[On finish: stop
heating]
On/Off Heating of heating bath stops after auto-
matic or manual termination of distilla-
tion.
[On finish: stop cool-
ing]
On/Off The Recirculating Chiller F-3xx automati-
cally switches off after automatic or man-
ual termination of distillation.
[On finish: play
sound]
On/Off An audible signal is sounded after auto-
matic or manual termination of distilla-
tion.
[Pressure hysteresis] Entry of pressure Entry of figure for the maximum allow-
able difference between the actual vac-
uum and the specified figure before the
vacuum pump switches on again.
[Language] Choice of language
used for Interface
display
English, Deutsch, Francais, Italiano, Es-
panol, Russian, Portugues, Japanese, Chi-
nese, Indonesian, Korean
[Button tone] On/Off A beep sounds when a function button or
the navigation control is pressed.
[Seal servicing infor-
mation]
On/Off The interface shows information about
regular servicing of the system seals. The
message appears periodically after every
500 hours of rotation.
[Temperature unit] Choice of unit for in-
dication of tempera-
tures
°C(Celsius), °F(Fahrenheit) or K(Kelvin)
[Pressure Unit] Choice of unit for in-
dication of (nega-
tive) pressure
hPa (hectopascals), mbar (millibars), torr
(=mmHg), mmHg (millimeters of mer-
cury)
[Height above sea
level]
Enter value Altitude of location above mean sea
level: Max. 4000 m.
For determination of max. allowable
pressure when working with the solvent
library.
[Max. permissible
pressure]
Enter value Max. pressure level present in the sys-
tem: max. 1300 mbar.
[Max. pump deliv-
ery]
Enter value Max. pump speed in %: 10 –100 %.
[Display brightness] Enter value Display illumination level in %: 0 – 100 %.
[eco mode] On/Off and entry of
figures
See Chapter6.4 "Activating eco mode",
page58
