Bucktool BG2600 User manual

6”Bench Grinder &
2”x 42”Sander Combo
INSTRUCTION
MANUAL
IMPORTANT:
For your own safety, read and follow all of the Safety
Guidelines and Operating Instructions before operating
this product.
GET IT DONE !
Contact Us:
email: [email protected]
https://www.bucktool.com
909-255-1088 (8AM-5PM PST)

Specifications 2
Safety guidelines 3
Package contents 8
Key parts diagram 9
Operating instructions 10
Maintenance 14
Troubleshooting 17
Exploded view 19
Parts list 20
Warranty 23
2
SPECIFICATIONS
Motor 120VAC, 60Hz , 3.5A
Speed (no load) 3450RPM
Belt size 2" x 42"
Belt speed
Belt grit
Wheel grit
4480 FPM
Wheel speed 3450RPM
60 #
120 #
Wheel size 6" x 1" x 1/2"
TABLE OF CONTENTS
BG2600

GENERAL SAFETY GUIDELINES
3
SAFETY GUIDELINES
BG2600
• Operate in a safe work environment. Keep your work area clean, well lit and free
of distractions.
• Keep anyone not wearing the appropriate safety equipment away from the work area.
• Store tools properly in a safe and dry location. Keep tools out of the reach of children
.
• Do not install or use in the presence of flammable gases, dust or liquids.
• Always wear impact safety goggles that provide front and side protection for the
eyes. Wear a full-face shield if your work creates metal filings or wood chips.
(Eye protection equipment should comply with ANSI Z87.1 standards.)
• Wear gloves that provide protection based on the work materials or to reduce
the effects of tool vibration.
• Non-skid footwear is recommended to maintain footing and balance in the work
environment.
• Wear the appropriate rated dust mask or respirator.
• Do not operate any tool when tired or under the influence of drugs, alcohol or
medications.
• Avoid wearing clothes or jewelry that can become entangled with the moving
parts of a tool. Keep long hair covered or bound.
• Do not overreach when operating the tool. Proper footing and balance enables
better control in unexpected situations.
• Securely hold the material using both hands. Applying the material to the grinder
with only one hand can result in a loss of control.
• Never use a tool with a cracked or worn grinding wheel. Change the grinding
wheel before using.
• Replace cracked wheel immediately. Use only flanges supplied with the grinder.
• Clean dust and debris from beneath the grinding wheels frequently.
• Do not start the tool if the grinding wheel is in contact with the workpiece.
• Always ensure the safety guards are attached correctly and do not operate the
bench grinder without the guards attached. Adjust the distance between the
wheel and the tool rest to maintain a 1/16 in. or less separation as the diameter
of the wheel decreases with use.
• Use an appropriate dust respirator when working for an extended period of time.
This will help prevent breathing in the fine dust created while grinding.
• Do not grind on the sides of grinding wheels unless they are specifically designed
for that purpose.
• Before using the tool on the workpiece, run the tool at the highest speed, without
a load, for at least 30 seconds in a safe position. Stop immediately if there is any
vibration or wobbling that could indicate poor installation or a poorly balanced
grinding wheel. Check the tool to determine the cause.
• Do not allow the motor to overload or overheat. Take breaks to rest the tool.
• Do not subject the grinding wheel to any lateral pressure as it may damage the
tool or cause it to kickback.

ADDITIONAL SPECIFIC SAFETY RULES
4
SAFETY GUIDELINES
BG2600
1. Only use a grinding wheel with the correct arbor size and shape that matches
the grinder’s spindle.
2. Ensure the grinding wheel has a clean edge. Check the grinding wheel for wear
or chipping and replace if necessary.
3. Never install more than one grinding wheel at a time unless the tool and wheels
are designed for that purpose.
4. A large amount of sparks will be created when working with a grinding wheel.
Hold the tool so that sparks fly away from you and other persons or flammable
materials. Have a fully charged fire extinguisher present.in the event of a fire.
5. Do not subject the grinding wheel to any lateral pressure as it may damage the
tool or cause it to kickback.
6. Disconnect tool from power source before cleaning, servicing, changing
parts/accessories or when not in use.
7. Protect yourself against electric shocks when working on electrical equipment.
Avoid body contact with grounded surfaces. There is an increased chance of
electrical shock if your body is grounded.
8. Do not expose tool to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
9. Do not disconnect the power cord in place of using the ON/OFF switch on the
tool. This will prevent an accidental startup when the power cord is plugged into
the power supply.
10. Do not alter any parts of the tool or accessories. All parts and accessories are
designed with built-in safety features that may be compromised if altered.
11. Make certain the power source conforms to requirements of your equipment.
12. Do not allow the tool to run without load for an extended period of time, as this
will shorten its life.
13. Do not cover the air vents. Proper cooling of the motor is necessary to ensure
normal life of the tool.
14. Avoid unintentional starting. Ensure the switch is off when connecting to the
power source.
15. In the event of a power failure, turn off the machine as soon as the power is
interrupted. The possibility of accidental injury could occur if the power returns
and the unit is not switched off.
16. Disconnect the power source before installing or servicing the tool.
17. After making adjustments, make sure that any adjustment devices are securely
tightened.
18. Remove adjusting keys and wrenches before turning the tool on. A wrench or a
key that is left attached to a rotating part of the tool increases the risk of personal
injury.
19. Never force the tool. Excessive pressure could break the tool, resulting in
damage to your workpiece or serious personal injury. If your tool runs smoothly
under no load, but does not run smoothly under load, then excessive pressure
is being used.

5
BG2600
SAFETY GUIDELINES
20. Do not touch an operating motor. Motors can operate at high temperatures.
21. Only use accessories that are specifically designed for use with the tool. Ensure
the accessory is tightly installed.
22. Only use an accessory that exceeds the No Load Speed rating.
23. Do not touch an operating motor. Motors can operate at high temperatures and
can cause a burn injury.
24. Insert the power cord plug directly to the power supply whenever possible. Use
extension cords or surge protectors only when the tool's power cord cannot
reach a power supply from the work area.
25. Do not operate this tool if the power cord is frayed or damaged as an electric
shock may occur, resulting in personal injury or property damage.
26. Inspect the tool's power cord for cracks, fraying or other faults in the insulation
or plug before each use.
27. Discontinue use if a power cord feels more than comfortably warm while
operating the tool.
28. Keep all connections dry and off the ground to reduce the risk of electric shock.
Do not touch plug with wet hands.
29. Do not allow people, mobile equipment or vehicles to pass over unprotected
power cords.
30. This tool vibrates during use. Repeated or long-term exposure to vibration may
cause temporary or permanent physical injury, particularly to the hands, arms
and shoulders.
Read, understand and observe all instructions in this manual before using or
operating the tool for which it is written and supplied. Ensure that anyone who
is to use the tool has read and understood the instructions provided.
WARNING!
!

6
SAFETY GUIDELINES
BG2600
IMPORTANT INFORMATION-Electrical
A separate electrical circuit should beused for your machines. This circuit should
notbeless than #12 wire and should be protected with a 20-A time-lag fuse. If an
extension cord isused, use only 3-wire extension cords which have 3-pronged
grounding type plugs and matching receptacle which will accept the machine’s plug.
Before connecting the machine to the power line, make sure the switch isin the
"OFF"position and be sure that the electric current isof the same characteristics as
indicated on the machine. All line connections should make good contact. Running
on low voltage will damage the machine.
GROUNDED
OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLETBOX
GROUNDING
MEANS
ADAPTER
Figure. 1 Figure. 2
MOTOR SPECIFICATIONS
Your machine is wired for 120 V, 60Hz alternating current. Before connecting the
machine tothe power source, make sure the switch is in the "OFF" position.
GROUNDING INSTRUCTIONS
All grounded, cord-connected machines: In the event of a malfunction orbreakdown,
grounding provides a path ofleast resistance for electric current to reduce the risk of
electric shock. This machineis equipped with an electric cord having an equipment
grounding conductor and agrounding plug.
!
DANGER!
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN
DAMP LOCATIONS.
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE
OPERATOR FROM ELECTRIC SHOCK.

7
BG2600
SAFETY GUIDELINES
The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided–if it will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in risk of
electric shock. The conductor with insulation having an outer surface that is green
with or without yellow stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if thegrounding instructions
are not completely understood, or if in doubt as to whether the machineis properly
Use only 3-wire extension cords that have 3-pronged grounding type plugs and
matching 3-conductor receptaclesthat accept the machine’s plug, as shown in Fig.A.
Repair or replace damaged or worn cord immediately.
grounded.
Use proper extension cords. Make sure your extension cord is in good condition
and is a 3-wire extension cord which has a 3-pronged grounding type plug and
matching receptacle which will accept the machine’s plug. When using an extension
cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and
gauge to use depending on the cord
length. If in doubt, use the next heavier gauge. The smaller the gauge number, the
heavier the cord.
MINIMUM GAUGE FOR CORD SETS
overheating. The table shows the correct
Ampere rating of the tool
(120V circuit only)
more than not more than
Total length of cord
Minimum Gauge for the extension cord (AWG)
In all cases,make certain the receptacle in question is properly grounded.
If you are not sure,have a electrician check the receptacle.
WARNING!
!

8BG2600
PACKAGE CONTENTS
1
3
5
8
46
7
2
Package contents
9
10 11 12
13 14 15 16
No. Description Qty.
1Bench grinder sander 1
2Sanding belt 2”x42” 3
3Tool rest for grinding 1
4
5
6
Tool rest locking knob 1
7
Eye shield Knife sanding work table1
8
LED light 1
9
Flat washer D8
1
Philips screw assy M5x10 2
Dust port 1
Inner hex bolt assy M5x10 2
Inner hex bolt M10x16 1
Flat washer D10 1
Work table support 1
1
Flat washer D8 1
Table lock lever
1
17
No. Description Qty.
10
11
12
13
14
15
16
17 Wood sanding work table
1

KEY PARTS DIAGRAN
9
BG2600
2 in. width / 42 in. length
Eye shield locking knob
LED light
Eye shield
Spark deflector
sanding belt (blue)
Dust port
Belt cover support
Power switch
Tool rest
Grinding wheel
Knife sanding
work table
Table lock knob
Belt tension handle
Belt tracking knob

10
INSTALLING WORK REST ON GRINDING WHEEL
INSTALLING THE LED LIGHT AND EYE SHIELD ASSEMBLY
1. Attach the left tool rest (1) to the grinder
as the upper slot (2) to the nut (3) and
lower slot (4) to the protrude cylinder (5).
2. Place the lock knob (6) through the
washer (7) and lower slot (5) into the
hold (8) to lock the tool rest (1) in place.
1. Tighten the LED light assembly (1) to grinder with two composite screws (2)
using a Philips screwdriver.
2.
Attach eye shield (3) to the support bracket (4) of the LED light assembly.
3. Tighten the eye shield (3) by using a carriage bolt (5) and lock knob (6) as shown.
BG2600
OPERATING INSTRUCTIONS
1
2
3
5
8
476
Estimated Assembly Time: 5 - 10 Minutes.
NOTE:When in use, the tool rests should
be adjusted to within 1/8 in. (3.2 mm) of
the grinding wheel or other accessory
being used.
NOTE:
Adjust eye shield to appropriate distance from tool rest avoiding interference
when operation.
1
2
6
5
4
3

11
1. Mount the work table support (1) to left side of
belt housing (2) using flat washer (3) and hex
cap screw (4).
2. Belt work talbe knob (5) and flat washer (6)
through hole in the work table (7).
3. Thread knob into the work table support (1).
Tighten finger tight.
4. Position work table so that distance between
work table and belt is 1/16˝ or less. Use square
to set work table 90º to belt. Secure all nuts
and bolts tight.
1. Mount work table (1) to left side of belt
housing (2) using hex cap screw (3) and
flat washer (4).
2. Set the work table at right angle to the belt
3. Be sure gap between table and belt is 1/16˝
or less. Tighten hex cap screw (3) to secure
table position.
INSTALLING KNIFE SANDING WORK TABLE
INSTALLING WOOD SANDING WORK TABLE
MOUNTING BELT / DISC SANDER TO WORKBENCH
1. Place the sander on a surface that is level but also provides enough room
on all sides for the workpiece and for the operator (or bystanders) to not be
standing in line with the wood while using the tool. Allow room for the belt to be
positioned horizontally or vertically.
2. The hardware to mount this sander is NOT supplied with the sander.
BG2600
OPERATING INSTRUCTIONS
Attach the belt dust port (1) to the sanding belt
with the philips screws (2). The opening of the
dust port is 1-7/32 inch in diameter and can be
connected to a utility vacuum or a dust collector.
INSTALLING BELT DUST PORT
1
3
2
2
4
5
2
1
6
1
34
7

12 BG2600
OPERATING INSTRUCTIONS
up
TO PROPERLY TRACK THE SANDING BELT
1. Plug in the sander.
2. Turn power switch ON, then immediately
OFF, noting whether the belt (1) tends to
slide off its track, and to which side (front
or back) of the sander.
3. If the sanding belt does not slide to either
side, it is tracking properly.
4. Viewed from the switch end, if the sanding
belt runs toward the grinding wheel side,
slightly turn the belt tracking knob (2)
counterclockwise (up).
5. Viewed from the switch end, if the sanding
belt runs away from the grinding wheel
side, slightly turn the tracking knob (2)
clockwise (down).
6. Turn power switch ON, then immediately
OFF again, again taking note of any belt
movement.
7. Readjust tracking knob (2) another 1/4
turn, necessary.
LEVELING THE SANDING BELT
ON/OFF SWITCH
The support rod is designed for adjusting the level of sanding belt. To adjust,
please do the following.
1. Loosen the lock nut (1) on the upper end
of the support rod (2) with the adjustable
wrench.
2. Adjust the support rod (2) upward or
downward to leveling the sanding belt (3).
3. When the level of the sanding belt (3) is
achieved, tighten the lock nut (1).
The ON/OFF power switch is located on the front of the sander, and
incorporates a removable safety key.
In situations where the sander may be left unattended, the operator has the
option of removing the “black” safety key of the ON/OFF switch to render the
sander inoperable. When the operator is ready to use the machine again,
simply insert the "black" safety key into the slot in the switch and pushing it in
until it "seats."
1
1
2
2
3
down

13
CLEANING
1. Keep machine and workshop clean. Do not allow sawdust to accumulate on the belt.
2. Keep the wheels clean. Dirt on wheels will cause poor tracking and belt slippage.
3. Operate sander with dust collector to keep dust from accumulating.
4. Be certain motor is kept clean and is frequently vacuumed free of dust.
5. Use soap and water to clean painted parts, rubber parts and plastic guards.
BG2600
OPERATING INSTRUCTIONS
BELT VERTICAL SANDING
Your bench grinder sander - belt station can sand vertically as well as horizontally.
Depending on operator needs and the workpiece, the work table can be used
with either the horizontal or vertical position.
To change from one position to the other:
1. Loosen the inner hex screw (1) by turning
it counterclockwise with the 8 mm hex key.
2. Manually move the work support station
into the vertical or horizontal position, as
required.
3. Retighten the inner hex screw (1) by
turning it clockwise.
CONTOUR SANDING
1. Belt platen (1) can be removed for contour
sanding. Loosen locking knob (2) holding
platen to belt housing (3). Control the belt
platen down or remove to use.
2. Replace belt cover and belt cover knobs.
When contour sanding is complete,
replace belt platen. Position belt platen
as close to belt as possible so that platen
does not contact belt.
1
1
3
NOTE: The maximum down distance of the belt platen is 2.5cm.
NOTE: After sanding wood or non-metallic material, always clean dust collector and
guards of sawdust before grinding metal. Sparks could ignite debris and cause a fire.
2

14
5. Loosen the hex nut (9) by an adjustable
wrench as shown in Fig. F.
NOTE: The nut on the left side of the
grinder has a standard left-hand thread
(turn clockwise to loosen). The wheel
nut tighten when turning toward the rear
of the grinder and loosen when turning
toward the front of the grinder.
BG2600
REPLACING GRINDING WHEEL

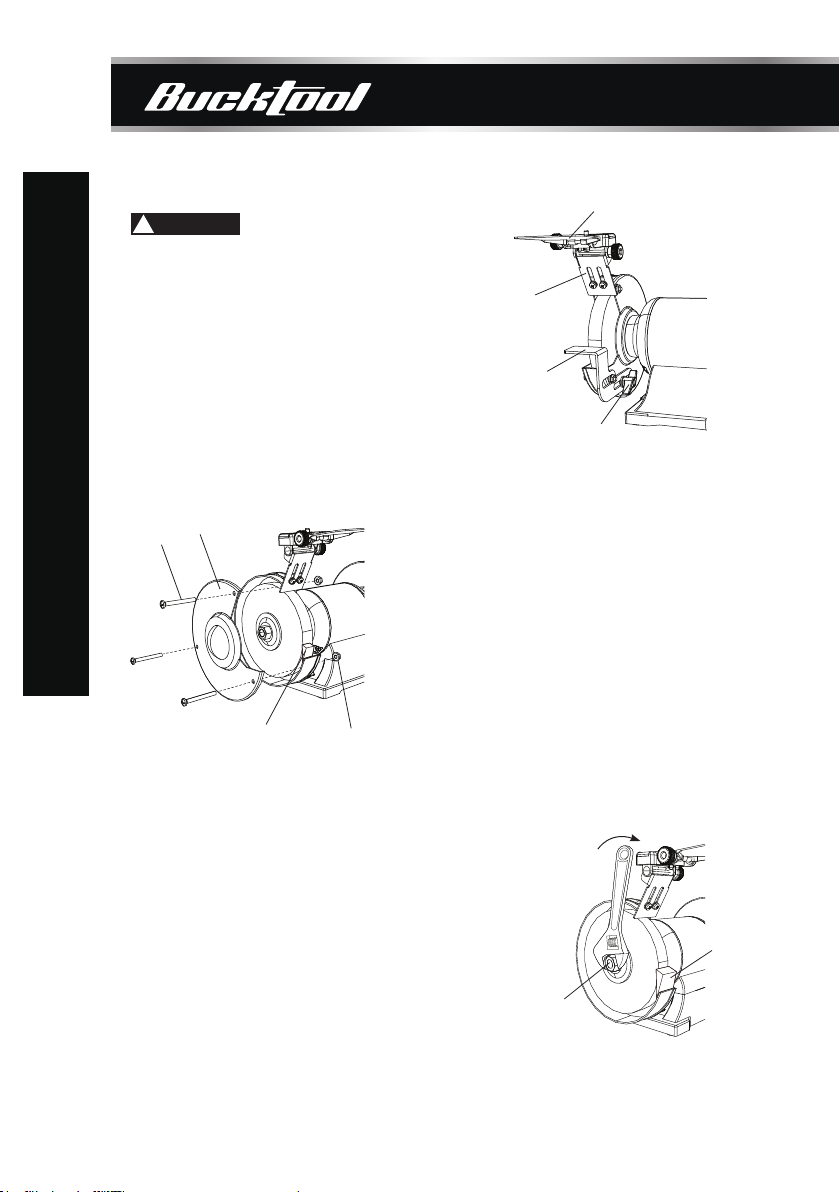

1. Raise the eye shield (1) out of the way
and adjust the spark deflector (2) in its
highest setting.
2. Loosen the knob (3) and remove the
tool rest assembly (4).
3. Remove three screws (5) and lock nuts
(6) from the left side wheel cover and
then remove the outer cover (7).
4. To prevent wheel rotating, place a wood
wedge (8) (not supplied) between the
wheel and the wheel cover.
Turn off and unplug the bench grinder.
Use only grinding wheel that measure
6 in. (150 mm) in diameter. This tool has
1/2 in. (12.7 mm) arbors on both sides.
NOTE:
Using a metal object, like a
screwdriver, is not recommended as it
may damage the grinding wheel.
CAUTION
!1
4
3
2
57
6
8
9
8
loosen
MAINTENANCE

8. Install the new wheel and make sure
both wheel flanges (10) are in place
with the concave sides toward wheels.
9. To prevent wheel rotating, place a
wood wedge (12) (not supplied)
between the wheel and the wheel
cover.
10. Tighten the hex nut (9) by an adjustable
wrench.
NOTE: Do not overtighten the nut as this
can crack the grinding wheel.
11. Replace the wheel cover (7) and screws (5).
12. Reinstall and adjust the tool rest to 1/16 in. (1.6 mm) away from the wheel and
tighten securely.
13. Adjust the eye shield (1) to a point between your eyes and the wheel.
6. Remove the hex nut (9), the outside
wheel flange (10) and the wheel (11).
7. Inspect the wheel (11) for cracks, chips
or any other visible damage (other than
normal wear) and discard if such damage
is found. Inspect the blotter/cardboard
disc for damage. If the blotter is missing
or severely damaged, replace it with a
piece of thin cardboard or blotter paper
cut in the same shape. NEVER USE
A GRINDING WHEEL WITHOUT A
BLOTTER.
15
BG2600
MAINTENANCE
910 11 10
9
1
12
tighten
REPLACING WIRE WHEEL (NOT INCLUDED)
Awire wheel (not included) can be used with
your grinder. You will need to add one or more
spacers (1) (not included) to allow the arbour
hex nut to tighten correctly.

REPLACING SANDING BELT
Sanding belt should be replaced when worn, torn, or glazed.

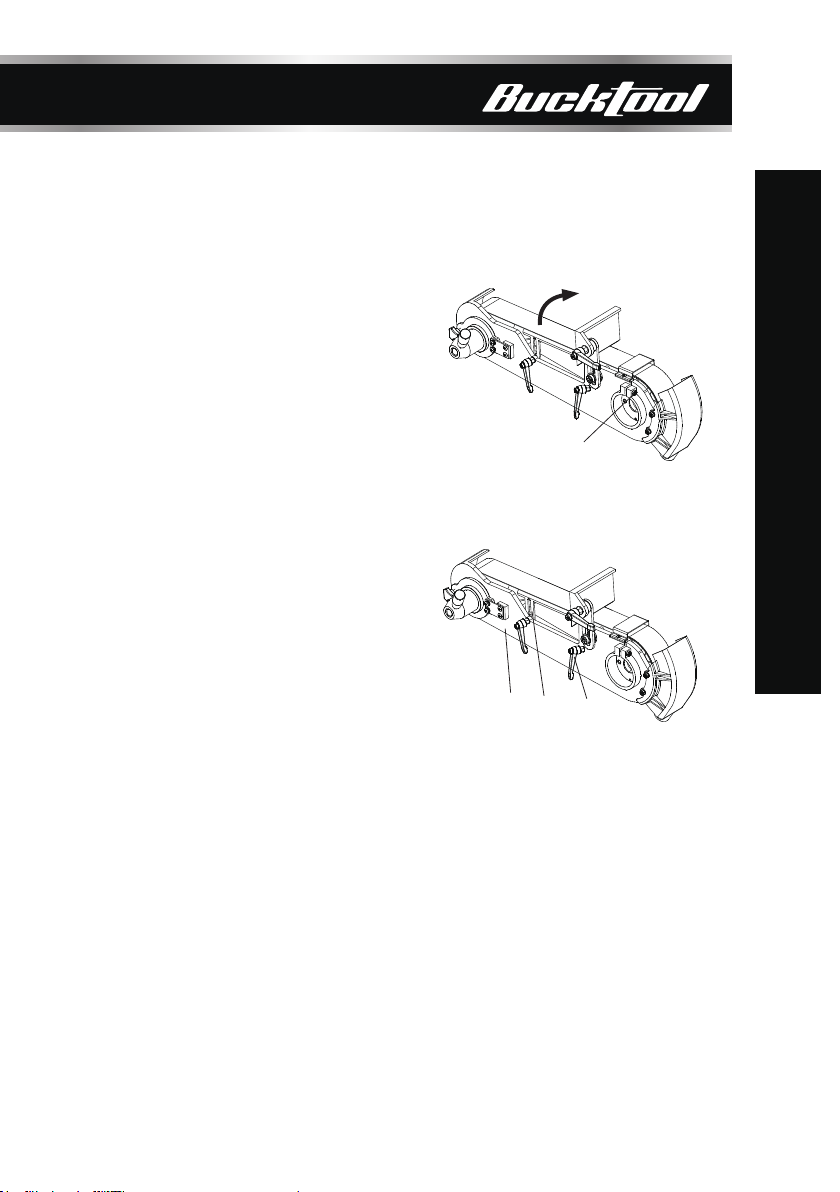

1. Position the belt housing horizontally as shown. Loosen the inner hex screw (1)
by using a 8 mm hex wrench, turning it counte rclockwise.
2. Loosen the belt cover lock knobs (2) to remove the belt cover(3).
3. Remove the philips screw (4) by using a phillips screwdriver and then remove the
belt cover support (5).
4. Release belt tension by pulling down on tension handle (6). Slide old belt off the
drive and tracking wheels.
5. Pull down on the tension handle (6) and slide new belt over the drive and tracking
wheels, center belt on wheels.
6. Replace the belt cover support (5) and tighten screw (4).
7. Replace belt cover (3) and knobs (2).
8. Push the belt by hand and check if the sanding belt tends running to one side or
the other of the two drums.
9. View from the switch end of sander, if the sanding belt runs toward the grinding
wheel size, slightly turn the tracking knob (7) counterclockwise (up).
10. View from the switch end of sander, if the sanding belt runs away from the grinding
wheel side, slightly turn the tracking knob (7) clockwise (down).
11. Plug in the sander and turn the switch ON and OFF quickly to check if the
sanding belt moves to either side. Re-adjust and fine-tune the belt tracking
if necessary.
NOTE: The tension of belt can be adjust by choosing different spring locking position.
Pls choose hole a or b for thicker and harder belts ; choose hole c or d for thin
and soft belts.
BG2600
16
1
5
Tighten
Loosen Spring hole
a
bcd
4
6
723
MAINTENANCE

WARNING!
To avoid injury from an accidental start, turn the switch OFF
and always remove the plug from the power source before
making any adjustments.
TROUBLESHOOTING GUIDE
17
BG2600
Problem(s) Possible Cause(s) Suggested Solution(s)
Grinder won’t start. 1. Blown line fuse or tripped
circuit breaker.
2. Low line voltage.
3. Material wedged between
wheel and guard.
4. Defective switch.
5. Defective, blown capacitor.
6. Defective circuit board.
1. Replace with fuse of proper size, if
fuse is blown. Reset tripped breaker.
2. Check power supply for voltage and
correct as needed.
3. Turn grinder off and remove
material.
4. Replace switch.
5. Replace capacitor
6. Replace circuit board.
Excessive
vibration. 1. Improper mounting of
grinder or accessories.
2. Grinding wheel out of
balance.
1. Remount bench grinder.
2. Dress wheels or replace wheels.
Motor
overheating. 1. Excess pressure required
to grind material.
2. Grinding on side of wheel.
3. Motor not turning freely
(without power).
1. Dress or replace wheels.
2. Grind only on face of wheel.
3. Clean aroundwheelsand shaft
and/or replace bearings.
Fuses are being
blown or circuit
breakers tripped.
1. Overloading due to
binding.
2. Defective plug.
3. Defective cord.
4. Defective switch.
1. Clean aroundwheelsand shaft
and/
or replace bearings.
2. Replace plug.
3. Replace cord.
4. Replace switch.
Machine slows
when operating.
1. Depth of cut too great. 1. Slow downthe rate of movement of
the workpiece into wheel.
Wavy condition on
surface of
workpiece.
1. Machine vibrating.
2. Workpiece not being held
firmly.
3. Wheel face uneven.
4. Wheel is too hard.
Make sure machines is securely
mounted on a solid surface.
2.
1.
Use a holding device to firmly
retain the workpiece.
3. Dress the grinding wheel.
4. Use softer wheel, or reduce the
feed rate.

BG2600
18
Problem(s)
Possible Cause(s)
Suggested Solution(s)
Lines on surface of
workpiece.
1. Impurity on wheel
surface.
2. Workpiece not being held
tightly.
1. Dress the grinding wheel.
2
.Use a holding device to firmly
retain the workpiece.
Burning spots or
cracks in the
workpiece.
1. Improper type of grinding
wheel.
2. Improper feed rate.
3. Coolant required.
1. Trya wheelwhich is softer style
or a coarser grit.
2
.Slow down the rate of movement
of the workpiece into wheel.
3.
Add optional coolant system or
introduce coolant by hand.
Wheel dulls quickly,
grit falls off.
1. Depth of cut too great.
2. Wheel is soft.
3. Wheel diameter too small.
4. Bad wheel dress.
5. Defective wheel bonding.
1. Slow down the rate of movement
of the workpiece into wheel.
2. Wheel too soft forthe material
being ground, select harder bond.
3
.Replace the wheel.
4
.Dress the wheel.
5
.Consult manufacturer of grinding
wheel.
Wheel clogs and
workpiece shows
burn marks.
1. Wheel is too hard.
2. Feed rate too slow.
3. Bad wheel dress.
4. Coolant required.
1. Wheel too hard for the material
being ground, select softer bond.
2. Increase the rate of movement of
the workpiece into wheel.
3
.Dress the wheel.
4. Add optional coolant system or
introduce coolant by hand.
TROUBLESHOOTING GUIDE

19
BG2600
EXPLODED VIEW

BG2600
20
PARTS LIST
Item DESC. SPEC. QTY
1 Philips Screws
M5X45 3
2 Left Guard Cover 1
3 HexNut M12 left 1
4 Flange 2
5 White Grinding Wheel 60# 1
6 Philips Screws + Spring Washer Assy M5X10 6
7 Left Inner Guard 1
8 HexFlange Nut M5 3
9 Left Tool Rest 1
10 Flat Washer D8 2
11 Tool Rest Locking Knob M8X9 1
12 Spark Deflector 1
13 Bushing 1
14 Eye Shield Locking Knob 1
15 Battery 2
16 Led Light 1
17 HexFlange Nut M5 2
18 Left End Cap 1
19 Wave Spring Washer D35 1
20 Bearing 6003 2
21 Cord & Pulg 1
22 Cord Plate 1
23 Philips Screw M5X8 4
24 Cord Clip 6P4 1
25 Rotor 1
26 Stator 1
27 Right End Cap 1
28 Philips Screw + Flat Washer Assy M5X190 4
29 Toothed Lock Washer D4 1
29-1 Philips Screw Assy
M4X8 1
30 Cord Bushing 1
31 Switch HY7 1
32 Philips Screw M4X8 1
