Buffalo Tools MT43CC User manual

!
!
MT43CC
!
2-CYCLE EARTH CULTIVATER
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER!
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR
FUTURE REFERENCE.

!
!
2!
Read this
entire
manual before installation
and use.
We reserve
the right to
change,
alter or
improve
the
product and this document
at
any
time
without prior
notice.
!
!
!
!
C
O
NTENT
S
!
!
Specifications ................................................................................................................................................................. 3
Warnings and
S
af
et
y
P
r
ecautions
................................................................................................................. .................................... ..............................
4-7
Unpacking and Assembly ............................................................................................................................................... 7
Operating Your Cultivator...................................................................................................................................................8
Maintenance................................................................................................................................................................. 11
Transporting and Storage............................................................................................................................................. 14
Troubleshooting ...............................................................................................................................................................15
Parts Diagrams & Parts Lists ..........................................................................................................................................16
2 YEAR LIMITED EMISSION-RELATED WARRANTY
THIS ENGINE MEETS U.S. EPA EMISSION STANDARDS UNDER 40 CFR 1054.625 .The emission-related limited warranty is valid for two (2) years. Keep the
purchase receipt and mail in the product registration card for proof of purchase. Buffalo Corp limits emission
n-related warranty repairs to authorized service centers for owners located within 100 miles of an authorized service center. For owners located more than 100 miles from
an authorized service center, Buffalo Corp will, in its sole discretion, either pay for shipping costs to and from an authorized service center, provide for a service
technician to come to the owner to make the warranty repair, or pay for the repair to be made at a local non-authorized service center. The provisions of this paragraph
apply only for the contiguous states, excluding the states with high-altitude areas identified in 40 CFR part 1068, Appendix III.
To exercise this warranty, DO NOT RETURN TO RETAILER. Instead, call Customer Service toll free at 1-636-532-9888 (email address info@buffalotools.com) and you
will be instructed on where to take the engine for warranty service. Take the generator and proof of purchase (your receipt) to the repair facility recommended by the
Customer Service Representative. The warranty does not extend to generators damaged or affected by fuel contamination, accidents, neglect, misuse, unauthorized
alterations, use in an application for which the product was not designed and any other modifications or abuse.
1 YEAR LIMITED WARRANTY (30 Day Limited Warranty for Commercial and Rental Purpose)!
This product is warranted to be free from defects in materials and workmanship for a period of 1 YEAR from date of original purchase. Buffalo Corp. is not liable for any
indirect, incidental or consequential damages from the sale or use of this product. Any implied warranties are limited to 1 YEAR as stated, or as otherwise stated, in this
written limited warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages. Some states do not allow limitation on the length of
an implied warranty. Buffalo Corp will repair or replace, at its discretion, any part that is proven to be defective in materials or workmanship under normal use during the
1 YEAR warranty period. Warranty repairs or replacements will be made without charge for parts or labor. Parts replaced during warranty repairs will be considered as
part of the original product and will have the same warranty period as the original product. This warranty gives you specific legal rights, and you may have other rights that
vary state to state

!
!
3!
!
REGISTRATION
Record your model number and serial number in the space provided for easy reference. Fill out and mail the registration card located in your parts
packet. Warranty is valid only if the completed registration card is received by within 30 days of purchase.
Item Number
Serial Number
!
Engine Serial Number
!
Date of Purchase
!
Place of Purchase
!
INTRODUCTION
OWNER’S RESPONSIBILITY
Accurate assembly and safe and effective use of the cultivator is the owner’s responsibility.
• Read and follow all safety instructions.
• Carefully follow all assembly instructions.
• Maintain the cultivator according to directions and schedule included in this operator’s manual.
• Ensure that anyone who uses the cultivator is familiar with all controls and safety precautions.
SPECIFICATIONS
ENGINE DISPLACEMENT
43cc
FUEL TANK CAPACITY
27 ounces
GAS/OILRATIO
50:1 (2.6 ounces oil per gallon of gasoline)
OIL TYPE
2 CYCLE ENGINE OIL
GAS TYPE
UNLEADED REGULAR GAS
SPARKPLUG
BM6A
SPARK PLUG GAP
.028
TRANSMISSION
GEAR DRIVE
GEAR RATIO
32:1
TILLIN
G
WIDTH
6 inch minimum - 10 inch maximum
TILLlN
G
DEPTH
8 inch maximum
TINE SPEED
250 RPM
WHEEL SIZE
1.375 x 7.0 inch diameter

!
!
4!
GENERALSAFETYRULES
SPECIAL MESSAGES
Your manual contains special messages to bring attention
to potential safety concerns, machine damage as well as
helpful operating and servicing information. Please read
all the information carefully to avoid injury and machine
damage.
NOTE: General information is given throughout
the manual that may help the operator in the
operation or service of the machine.
IMPORTANT SAFETY PRECAUTIONS
Please read this section carefully. Operate the cultivator
according to the safety instructions and recommendations
outlined here and inserted throughout the text. Anyone
who uses this cultivator must read the instructions and be
familiar
with the controls.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST FROM THIS PRODUCT
CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA
TO CAUSE CANCER, BIRTH
DEFECTS, OR OTHER REPRODUCTIVE HARM.
This symbol points out important safety
instructions which if not followed could
endanger your personal safety. Read and
follow all instructions in this manual before
attempting to operate this equipment.
•Do not transport the cultivator from one place to another
with the engine running.
•The tines of the cultivator should not rotate when the
engine is idling. If it does rotate when engine is idling,
contact the distributor for instructions.
•Dress appropriately when operating the cultivator.
Always wear sturdy footwear (e.g., steel-toed boots).
Never wear sandals, sneakers, or open shoes, and
never operate the cultivator with bare feet. Do not wear
loose clothing that might get caught in moving parts.
Always wear ANSI-approved safety glasses for eye
protection.
•Always keep hands, feet, hair and loose clothing away
from any moving parts on engine and cultivator.
•Always wear a protective hearing device.
•Do not allow children to operate this cultivator. Do not
allow adults to operate the cultivator without proper
instruction.
•Do not operate any power equipment under the
influence of alcohol or drugs.
•Keep all screws, nuts and bolts tight.
•Engine should be turned off and cool, spark plug wire
must be removed from spark plug before any repairs
or adjustments are attempted.
•Temperature of muffler and nearby areas may exceed
150° F (65° C). Avoid these areas.
•Never run engine indoors or in an enclosed area. Engine
exhaust contains carbon monoxide, an odorless and
deadly gas.
•Carefully inspect the area to be cultivated, and remove
all foreign objects. Do not cultivate above underground
utilities, including water lines, gas lines, electric cables,
or pipes. Do not operate the cultivator in soil with
large rocks and foreign objects which can damage the
equipment.
•If an object becomes lodged in the tines, turn engine off,
remove the wire from the spark plug and secure, allow
to cool before attempting to remove the foreign object.
CAUTION
AVOID INJURY! THIS SYMBOL AND TEXT
HIGHLIGHT POTENTIAL HAZARDS OR DEATH TO
THE OPERATOR OR BYSTANDERS THAT MAY OCCUR
IF THE HAZARDS OR PROCEDURES ARE IGNORED.
IMPORTANT

!
!
5!
ENGINE SAFETY PRECAUTIONS
Warning Carbon Monoxide Poisoning
All engines contain carbon monoxide in their exhaust.
Carbon monoxide is a deadly, colorless, tasteless, odorless gas
which may be present even if you do not smell or see any engine exhaust. Levels of carbon monoxide, which can be
deadly, can be present for days in an enclosed area that has poor ventilation. Any level of carbon monoxide, if
inhaled, can cause headaches, drowsiness, nausea, dizziness, confusion and eventually death. If you experience any of
these symptoms, seek fresh air and medical attention immediately.
Preventing Carbon Monoxide Poisoning
Never run engine indoors.
•Never try to ventilate engine exhaust indoors. Carbon monoxide can reach dangerous levels very quickly.
•Never run engine outdoors where exhaust fumes may be pulled into a building.
•Never run engine outdoors in a poorly ventilated area where the exhaust fumes may be trapped and not easily taken
away. (Examples include: in a large hole or areas where hills surround your working area.)
•Never run engine in an enclosed or partially enclosed area. (Examples include: buildings that are enclosed on one or
more sides, under tents, car ports or basements.)
•Always run the engine with the exhaust and muffler pointed in the direction away from the operator.
•Never point the exhaust muffler towards anyone. People should always be many feet away from the operation of
the
engine and its attachments.
Gasoline Fires and Handling Fuel Safely
Fuel and fuel vapors are highly flammable. Never use fuel where a spark or flame may be present. Never use fuel where
a potential source of ignition could occur. (Examples include: hot water or space heaters, clothes dryer, electric motors, etc.)
Keep flames and sparks away from engine and fuel to prevent fires. Fuel fires spread very quickly and are highly
explosive.
Prevention of Gasoline Fires
•Never fill your fuel tank indoors. (Examples include: basement, garage, barn, shed, house, porch, etc.)
Always fill fuel tank outside in a well-ventilated area.
•Never remove the fuel cap or add fuel with the engine running. Stop engine and allow to cool before filling.
•Never drain fuel from engine in an enclosed area.
•Always wipe up excess (spilled) fuel from engine before starting. Clean up spilled fuel immediately.
•Allow spilled fuel to dry, after wiping and before starting.
•Allow fuel fumes/vapors to escape from the area before starting engine.
•Test the fuel cap for proper installation before starting and using engine.
•Always run the engine with fuel cap properly installed on the engine.
•Always unscrew gas cap vent screw while engine is running.
•Never smoke while refilling engine fuel tank.

!
!
6!
•Prevent fire and explosion caused by static electric discharge. Use only nonmetal, portable fuel containers
approved by the Underwriter’s Laboratory (U.L.) or the American Society for Testing & Materials (ASTM).
•Do not store engine with fuel in fuel tank indoors. Fuel and fuel vapors are highly explosive.
•During storage, screw down gas cap vent screw tightly.
•Never pour fuel from engine fuel tank.
•Never siphon fuel by mouth to drain fuel tank.
•Always have an adult fill the fuel tank.
•Never allow an adult or anyone under the influence of drugs or alcohol to fill engine.
•Never allow children to fill the engine.
•The clutch will transfer maximum power after about two hours of normal operation. During this break-in period clutch
slippage may occur. The clutch should be kept free of oil or other moisture for efficient operation.

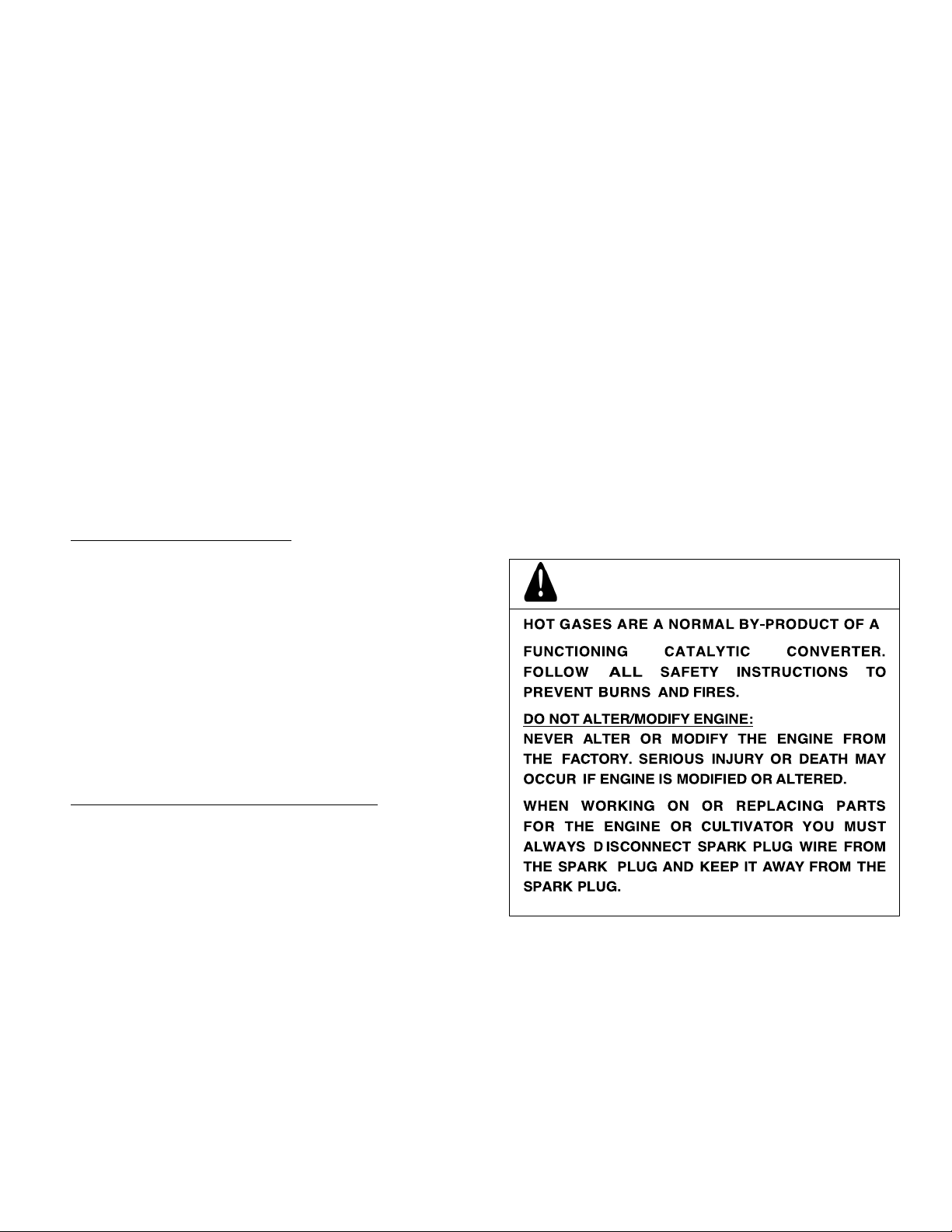

BURNS AND FIRES
The muffler, muffler guard and other parts of the engine become extremely hot during the operation of the engine.
These parts remain extremely hot after the engine has stopped. Do not touch.
Prevention of Burns and Fires
•Never remove the muffler guard from the engine.
•Never touch the muffler guard because it is extremely
hot and will cause severe burns.
•Never the engine that becomes hot after operation.
•Always keep materials and debris away from muffler
guard and other hot parts of the engine to avoid fires.
This engine is designed to operate using a catalytic
converter which contributes to the engine’s compliance
with the EPA.
Steps for Working on Engine or Cultivator
1.
Turn off engine switch.
2.
Disconnect the spark plug wire from the spark plug.
3.
Securely place the disconnected spark plug wire
away from the spark plug and any metal parts. This
must always be done or arcing may occur between
spark plug wire and metal parts.
4.
Replace or repair the part on the engine or cultivator.
5.
Check all parts that were repaired, or removed during
repair, that they are secure and fit correctly.
NOTE: All repair parts must come from the
factory.
6.
Replace spark plug wire.
CAUTION

!
!
7!

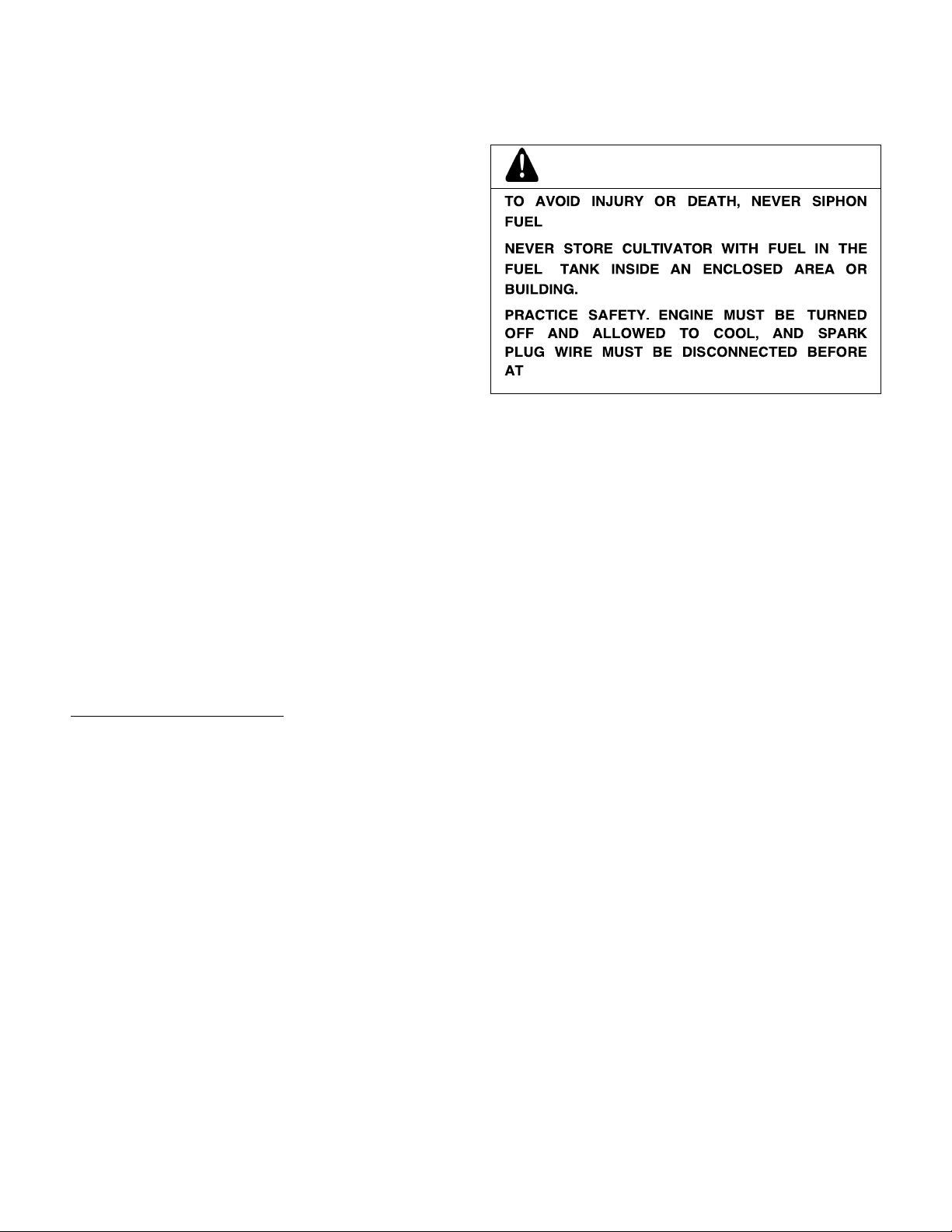

SAFETY DECALS
Reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to oper-
ate this equipment safely and effectively. We have placed a safety decal on the cultivator to remind you of some of this
important information while you are operating the unit.
Familiarize yourself with the location and content of the safety messages you will see as you perform normal
cultivating operations. Please review this decal (above). If you have any questions regarding its meaning or how to
comply with these instructions, reread the complete safety
instruction text in this manual, or contact your local dealer.
Should!this!decal!become!unreadable!because!of!being!worn,!faded,!or!otherwise!damaged!during!the!use!of!your!!
cultivator,!please!use!the!part!number!information!provided!to!order!a!replacement!label!from!customer!service.
!
These!
decals!are!easily!applied,!and!will!act!as!a!constant!visual!reminder!to!you,!and!others!who!may!use!the!equipment,!to!
follow!the!safety!instructions!necessary!for!safe,!effective!operation!of!your!cultivator.!
!
!
!
!
UNPACKING & ASSEMBLY
UNPACK CULTIVATOR
1. Carefully lift the cultivator out of the box, remove any packing material and cut any ties holding the handlebar pieces to
the cultivator assembly.
ASSEMBLY
1. Stand the cultivator assembly upright with tines and wheels on a level surface. Wheels should be set in the lowest
position. DO NOT place the cultivator on a high surface where it can fall and cause property damage or personal
injury.
2. Using two tee handle nuts, two bolts, and two curved washers, assemble the middle handlebar to the lower
handlebar that
is already attached to the cultivator assembly. The middle handlebar can be installed in two positions
one high and one low. DO NOT overtighten the tee handle nuts.
3. Attach the upper right and left handlebars to the middle handlebar using the two remaining tee handle nuts, bolts, and
curved washers.
DO NOT overtighten the tee handle nuts.
4. The drag stake is shipped with point facing upwards. Before using, remove detent pin and turn the drag stake
around so the point is directed in the downward position facing towards the tines. Re-insert detent pin.

!
!
BM6A
GAP
.028
TRANSMISSION
32:1
maximum
SPEED
x diameter
!
8!
S
P
ECIFIC
A
TIO
NS
!
Two adjustable wheel height settings for cultivating, plus Low Height setting for easy transport
OPERATING YOUR CULTIVATOR
PREPARING ENGINE FOR STARTING
GAS AND OIL
Use a quality 2-cycle oil and use unleaded regular gas
only. Run engine with a 50:1 ratio (gas/oil).
Mixing Fuel
1. Fuel must be mixed in a container outside in a well
ventilated area.
2. Fill certified fuel container 1/4 full of recommended fuel.
3. Add recommended amount of 2 cycle oil.
4. Screw container cap on straight and tight.
5. Shake the container to mix fuel and oil.
6. Unscrew gas cap slowly to vent, add the remainder of
fuel requirements.
7. Wipe away any spilled fuel or oil and allow to evaporate
before moving or transporting.
Filling Fuel Tank
1.
Shut off engine and allow engine to completely cool
before refilling the fuel tank.
2.
Move to a well-ventilated area, outdoors, away from
flames and sparks.
3.
Clean debris from area around the fuel cap.
4.
Loosen fuel cap slowly. Place the cap on a clean, dry
surface.
5.
Carefully add fuel without spilling.
6.
Do not fill gas tank completely full, allow space for fuel
to expand.
7.
Immediately replace fuel cap and tighten. Wipe off
spilled fuel and allow to dry before starting engine.
ENGINE
DISPLACEMENT
43cc
FUEL TANK
C
AP
A
CIT
Y
27
ounces
GAS/OIL
R
A
TIO
50:1
OIL
T
Y
PE
2
CYCLE ENGINE
OIL
FUEL
T
Y
P
E
Minimum
87 octane gasoline
with
NO ethanol
content
CAUTION
NEVER STOREENGINE WITH FUEL IN THE TANK INDOORS.
NEVER MIX FUELAND OIL DIRECTLY IN ENGINE
FUEL TANK. USE ONLY NON METAL, PORTABLE
FUELCONTAINERS APPROVED BY THE
UNDERWRITER’S LABORATORY (U.L.) OR THE
AMERICAN SOCIETY FOR TESTING & MATERIALS
(ASTM).
IMPORTANT
DO NOT START ENGINE WITH BATTERY
CHARGER CONNECTED TO BATTERY. THIS COULD
CAUSE DAMAGE TO THE CULTIVATOR.

!
!
9!
NORMAL OPERATION
1. The clutch will transfer maximum power after about two
hours of normal operation. During this break-in period
clutch slippage may occur. The clutch should be kept
free of oil and other moisture for efficient operation.
2. Cultivate without placing excessive body weight on
the unit. The cultivator operates most efficiently with
the weight of the unit itself.
3. Never run engine indoors. Exhaust fumes are deadly.
Using the Screw Type, manual venting Gas Cap
Your cultivator is equipped with a screw type, manual
venting gas cap.
1.
Before starting the engine, turn the screw in the top of
the gas cap 2-3 turns (counterclockwise) to its venting
position. DO NOT turn the screw to the point that it stops
(4-5 turns counterclockwise). Check that the gas cap is
screwed on tightly and the gas cap screw is in the
venting position.
2.
After using the cultivator and before putting away or
transporting it in a truck bed, screw the gas cap screw
and gas cap on (clockwise) tightly. This will prevent gas
from leaking during storage. The gas cap will not leak
during storage if gas cap is tight and the screw at the
top is tight.
STARTING AND STOPPING ENGINE
•Move engine to a well ventilated area, outdoors, to
prevent carbon monoxide poisoning.
•Move to an area away from flames or sparks, to avoid
ignition of vapors if present.
•Remove all debris from air cleaner holes and gas cap
to ensure proper air flow.
COLD ENGINE START: Starting engine for first time
or after engine has cooled off or after running out of fuel.
1.
Move choke lever to RUN position.
NOTE: Choke must be in the RUN position when
pushing or using the primer bulb.
2.
Prime unit until primer hose is filled with gas.
NOTE: Allow the primer bulb to return completely
to its original position between pushes.

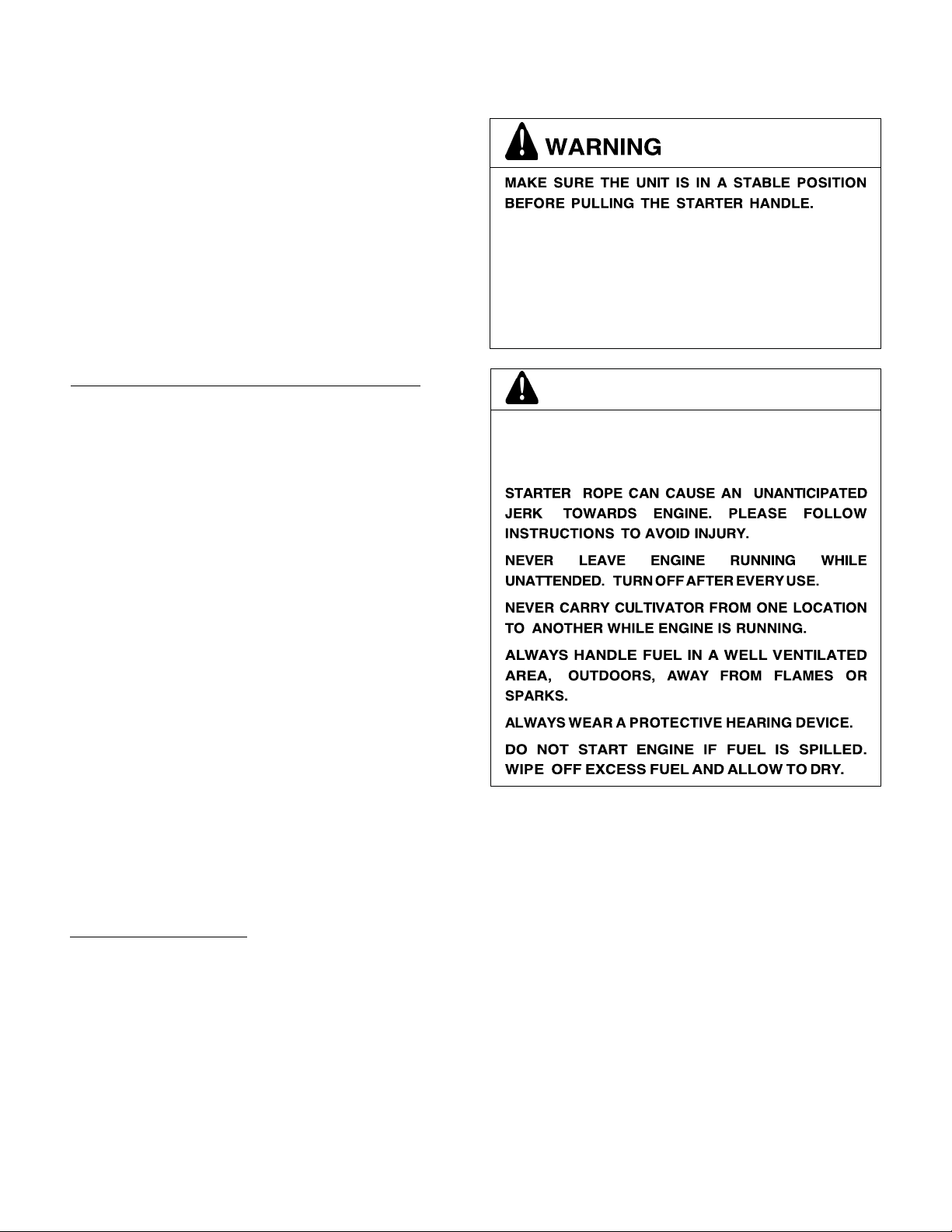

CAUTION
IF ENGINE FAILS TO START AFTER TRYING
STARTING PROCEDURES, PLEASE CONTACT OUR
CUSTOMER SERVICE DEPARTMENT.
WHEN THE UNIT STARTS TO FIRE OR RUN,
RELEASE THE THROTTLE CONTROL MOMENTARILY
WITH YOUR RIGHT HAND AND RETURN YOUR LEFT
HAND TO THE HANDLEBAR POSITION TO
MAINTAIN CONTROL AND STABILITY OF THE UNIT
WITH BOTH HANDS.

!
!
10!
3.
Move choke lever to CHOKE position.
Note: Choke position is defined by moving
the choke lever as far to the Choke position
as possible.
4.
Push rocker switch to the ON position.
5.
Squeeze throttle control with right hand. Grasp
starter
handle with left hand and pull out slowly,
until it pulls slightly harder. Without letting starter
handle retract,
pull rope with a rapid full arm
stroke. Let it return to
its original position very
slowly until unit fires or runs. Repeat this step
every time the starter rope is pulled.
Note: if engine fails to start after 5-6 pulls,
push
primer 1 time and pull starter rope again.
6.
After engine starts running, move choke lever to
HALF
CHOKE position until unit runs smoothly.
Note: Half choke is defined when the
choke
leveris between CHOKE and RUN.
7.
Move choke lever to RUN position and move throttle
to
desired speed.
NOTE: Run at full throttle when possible. Do not
let unit idle for extended periods of time.
8.
To stop engine, push rocker switch to OFF position.
WARM ENGINE START:
1.
Move choke lever to CHOKE position.
Note: Choke position is defined by moving
the choke lever as far to the CHOKE position
as possible.
2.
Continue with Step 4 of Cold Engine Starting.
HOT ENGINE START:
1.
Continue with Step 4 of Cold Engine Starting.
2.
If engine does not fire, refer to Step 1 of Warm
Engine Starting.

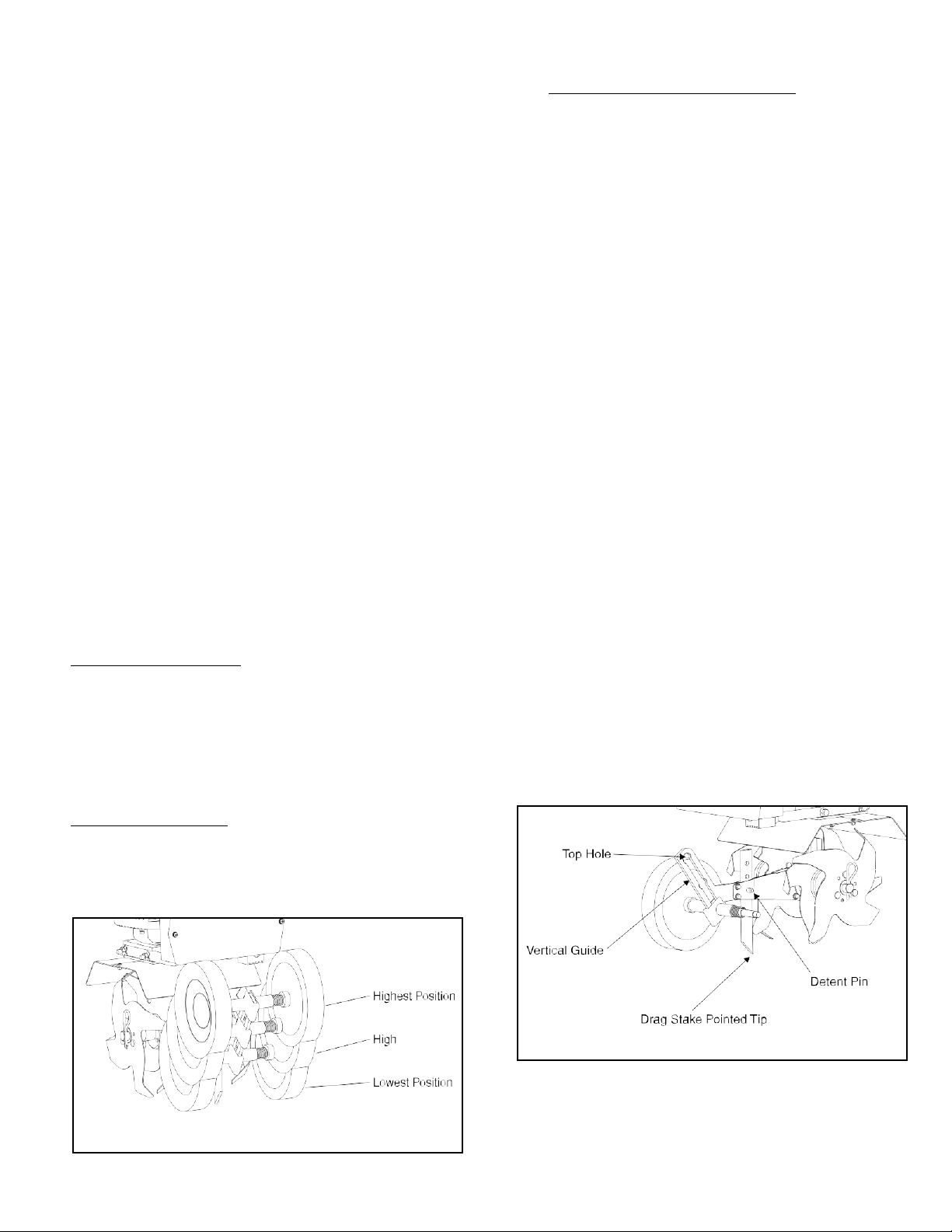

Adjusting Wheels and Drag Stake
The wheels on the cultivator can be adjusted to one
of
three positions. The lowest wheel position is used
for
transporting the cultivator across a smooth level
surface while the engine is not running. The two
higher positions are used when cultivating in soil
and help stabilize the unit when cultivating at
different depths.
To adjust wheels up or down:
1.
Pull the locking metal sleeve against the spring
until it releases from one of the three holes in
the vertical guide.
2.
Slide the wheel set up or down to the desired
position, and release the locking metal sleeve
until it locks into one of the three holes in the
vertical guide.
The drag stake is used to help regulate cultivating
depth and control the cultivator from leaping
forward during operation. Resistance to forward
motion is greatest when the drag stake is set in its
lowest position allowing for deeper cultivation.
To adjust the drag stake:
1.
Pull the pin out of the drag stake mount hole.
2.
Position the drag stake so the pointed tip is
directed downward.
3.
Insert the pin into the hole that achieves
desired depth.

!
!
CAUTION
ATTEMPTING ANY MAINTENANCE OR
REPAIR.
OR
EQUIPMENT.
TEMPERATURE OF MUFFLER AND NEARBY AREAS
MAY EXCEED 150° F (65° C). AVOID THESE AREAS.
11!

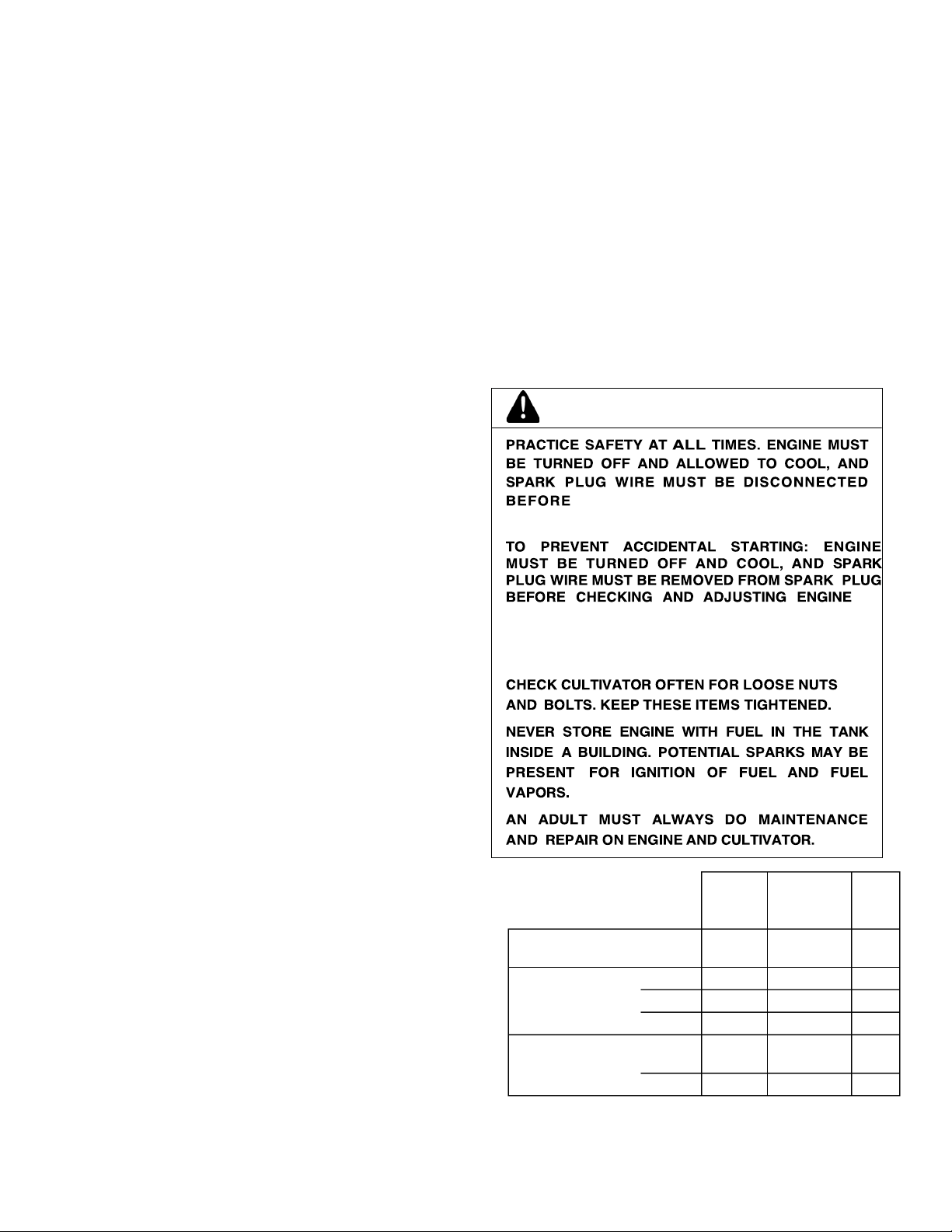

MAINTENANCE
STEPS FOR WORKING ON EQUIPMENT
1.
Turn off engine switch.
2.
Disconnect the spark plug wire from the spark plug.
3.
Securely place the disconnected spark plug wire away
from the spark plug and any metal parts. This must al-
ways be done or arcing may occur between spark plug
wire and metal parts.
4.
Replace or repair the part on the cultivator.
5.
Check all parts that were repaired, or removed during
repair, that they are secure and fit correctly.
Note: Never replace parts that are not
specifically designed for the cultivator.
6.
Reconnect the spark plug wire.
CULTIVATOR MAINTENANCE
1. The transmission case has grease installed at the factory.
It is recommended that once a year the gear case be split
by a qualified service professional and the grease
level checked. Add a molylithium type grease only if
level of
grease is below top of the gears. DO NOT
OVERFILL.
2. Keep all screws, nuts, and bolts tight.
3. For cold weather operation, store the unit in a cool
environment. Transferring the unit from a cold to a
warm place can cause the build up of harmful
condensation.
ENGINE MAINTENANCE
Read the maintenance schedule and observe these
recommendations to extend the life of your engine.
To help you properly care for your engine, the following
pages include a maintenance schedule, routine
inspection procedures, and simple maintenance
procedures using basic hand tools. Other service tasks
that are more difficult, or require special tools, are best
handled by professionals and are normally performed by
a technician or other qualified mechanic.
Maintenance, replacement or repair of the emissions
control devices and systems may be performed by any
non-road engine repair establishment or individuals.
The maintenance schedule applies to normal operating
conditions. If you operate your engine under unusual
conditions, such as
sustained high-load or
high-temperature
operation, or use in
unusually wet or dusty
conditions, consult your
servicing dealer for
recommendations
applicable to your
individual needs and
use.
* Service more frequently
!
Every 8
hours
(daily)
Every 20
hours or
seasonally
Each
Year
Clean Engine and
Check Bolts & Nut
X
!
!
Air Filter
(See Air Filter section)
Check
X
!
!
Clean *
!
X
!
Replace
!
X
X
Spark Plug
(Gap .028”)
(See Spark Plugsection)
Check/
Adjust
!
X
!
Replace
!
!
X
!

!
!
12!
Cooling Fins
Cooling fins, air inlets & linkages must be free from any
debris before each use.
Air Filter
Never run engine without air cleaner properly installed.
Added wear and engine failure may occur if air cleaner is
not installed on engine.
Service air cleaner every 3 months or after 20 hours of
operation. Follow Figure A to remove cover and removing
and replacing filter.
Clean filter daily in extremely dusty conditions.
!
!
!
!
!
!
!!!!!!!!!!!!Figure!A
Spark Plug
The recommended spark plug is a BM6A which cross
references to a Champion CJ8.
1.
Check spark plug at the beginning of each season.
2.
Disconnect the spark plug cap, and clean any debris
from around the spark plug area.
3.
Remove spark plug and replace if any of the following
occur; pitted electrodes, burned electrodes, cracked
porcelain, or deposits around electrodes.
4.
After analysis, seat spark plug and tighten with spark
plug wrench. Reconnect the spark plug wire.
•Reinstall original spark plug, tighten additional 1/2 turn.
•Installing new spark plug, adjust spark plug gap to .028in.
and tighten additional 1/8 – 1/4 turn .
NOTE: Loose spark plug may overheat and damage
engine. Over tightened spark plug may damage threads
in the cylinder head.
Carburetor
Never tamper with factory setting of the carburetor.
To Remove Tines
1.
Remove cotter pins from each end of tine shaft.
2.
Slide the four tines off the shaft.
To Install Tines
1.
Slide the inside tines onto each end of the tine
shaft. Stamped with a “B” and the other with a “C”.
2.
Slide the outside tine “A” and tine “D” onto each end
of the shaft next. The tines should be installed in the
correct order so that they are positioned left to right
A, B, C, D, as viewed from the user’s position on the
cultivator. Make sure that the hub collars on both the
right and left pairs of tines face each other so that
there is adequate spacing between the tine blades.
3.
Insert the cotter pins into the holes at each end of the
tine shaft to lock the tines into place.
IMPORTANT

!
!
13!
TRANSPORTING YOUR EARTH CULTIVATOR
1.
After using the cultivator and before transporting it in
a truck bed, screw the gas cap screw and gas cap on
(clockwise) tightly. The gas cap will not leak during
transporting if gas cap is tight and the screw at the top
is tight. Never transport engine inside an enclosed space
within a vehicle. Fuel or fuel vapors may ignite causing
serious injury or death.
2.
If fuel is present in the fuel tank, transport in an open
vehicle in an upright position.
3.
If an enclosed vehicle must be used, remove gas into
an approved red fuel container. DO NOT siphon by
mouth.
4.
Run engine to use up the fuel in the carburetor and fuel
tank. Always run engine in a well-ventilated area.
5.
Wipe away any spilled fuel from engine and cultivator.
Allow to dry.
6.
Gas cap and gas cap vent screw should be turned
down tightly before transporting cultivator in a vehicle.
LONG TERM STORAGE
If your cultivator will not be used for more than one month,
prepare it for long term storage.
Steps for long Term Storage
1. Remove the remainder of the fuel from the gas tank into
an approved fuel container.
2. Store cultivator engine in a vertical position.
3. Remove all debris from cultivator tines and engine.
SERVICE INFORMATION
This Cultivator is built with quality for long- lasting
durability, but no amount of careful design by us, and
careful maintenance by you, can guarantee a repair-free
life for your machine. Most repairs will be minor, and easily
fixed by following the suggestions in the troubleshooting
guide in this section.
The guide will help you pinpoint the causes of common
problems and identify remedies.
For more complicated repairs, contact your place of pur-
chase or, Inc. for an authorized service center in your area.
CAUTION
BY MOUTH.
TEMPTING ANY MAINTENANCE OR REPAIR.

!
!
14!
TROUBLESHOOTING
GUIDE
!
PROBLEM
POSSIBLE
C
A
USE
REMED
Y
/
A
C
TION
Engine
will not start
1. Power switch
off
1. Flip switch
to
ON
position
2. Spark
plug wire disconnected
2.
C
onnec
t
spark
plug wire to
spark
plug
3. Out
of fuel
3.
R
efuel
4. Spark
plug
w
et
,
faulty or improperly
gapped
4. Clean, replace
or
gap spark
plug
5. Fuel
line
hose
not
positioned
in
bot
-
tom of
gas
tank
5. Push
fuel line down into fuel in
gas
tank
Engine runs rough, floods
during
operation
1.
Dirty
air
filt
er
1. Clean
or
replace air
filt
er
2. Choke partially
engaged
2. Turn
off choke
3. Carburetor
out of adjustment
3. Call customer
service
Engine is hard
to start
1.
S
tale
fuel
1. Drain
old fuel
and replace
with fresh.
Use gas stabilizer
at
end
of season
2. Spark
plug wire loose
2. Make sure spark
wire
is securely attached
to
spark
plug
3.
Dirty carburetor
3. Clean
car
bur
et
or
,
use gas
stabiliz
er
,
new gas
can
4.
Throttle
control not held open
4. Prime
unit 3
more times
,
then pull
recoil
handle
Engine misses
or
lacks
power
1. Clogged gas
tank
1.
R
emov
e
and clean gas
tank
2. Clogged air
filt
er
2. Clean
or
replace air
filt
er
3. Carburetor
out of
adjustment
or bad
3. Call customer
service
4. Spark
plug
w
et
,
faulty or improperly
gapped
4. Clean, replace
or
gap spark
plug
Engine
runs
,
then quits
1. Gas cap
not venting
1. Clean
or
replace gas
cap
,
check
vent
2. Plugged
fuel
filt
er
2. Clean
or
replace
fuel
filt
er
3. Carburetor
out of
adjustment
or bad
3. Call customer
service
Engine revs
too high
1. Carburetor
out of adjustment
1. Call customer
service
Tines
turn at idle
1. Idle speed
too high
1. Adjust
idle
speed
lower
2. Broken clutch
spring
2. Replace
spring

!
!
15!
ENGINE PARTS
EXPLOSION

!
!
16!
!

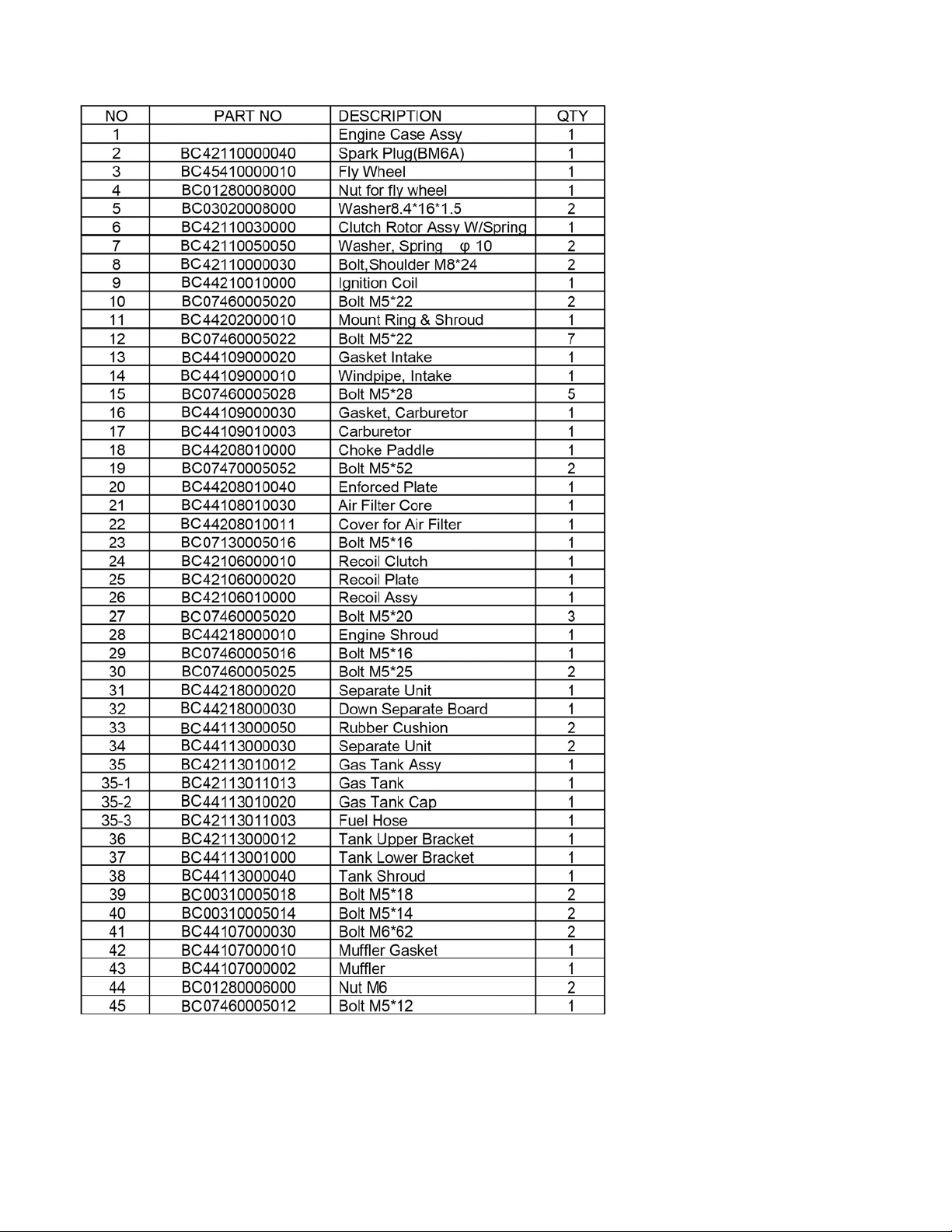

ENGINE PARTS
LIST
!

!
!
17!
17!

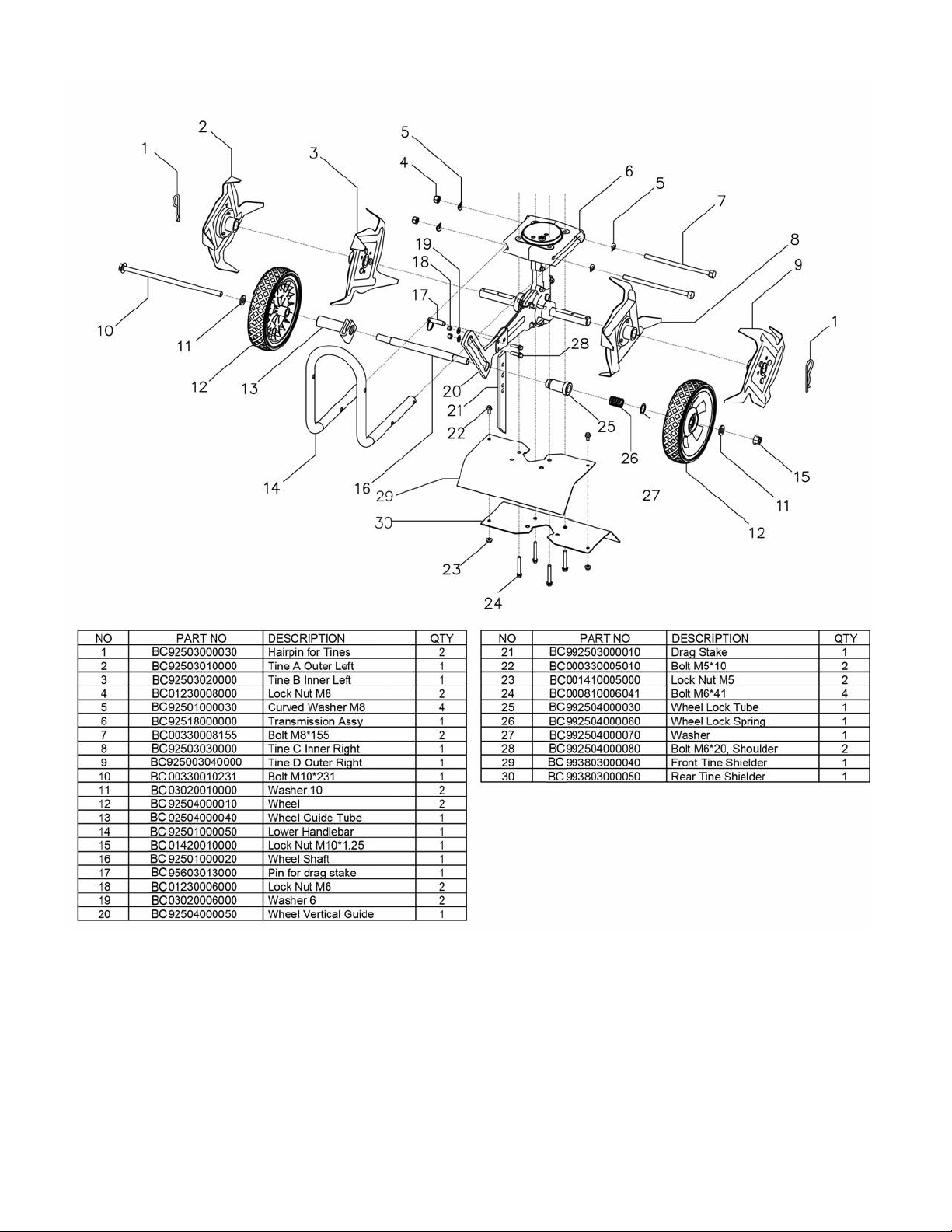

HOOD & TINES PARTS
EX
P
L
O
SIO
N
!
!
!
!
!
!
!
!
!
!
!
!

!
!
18!

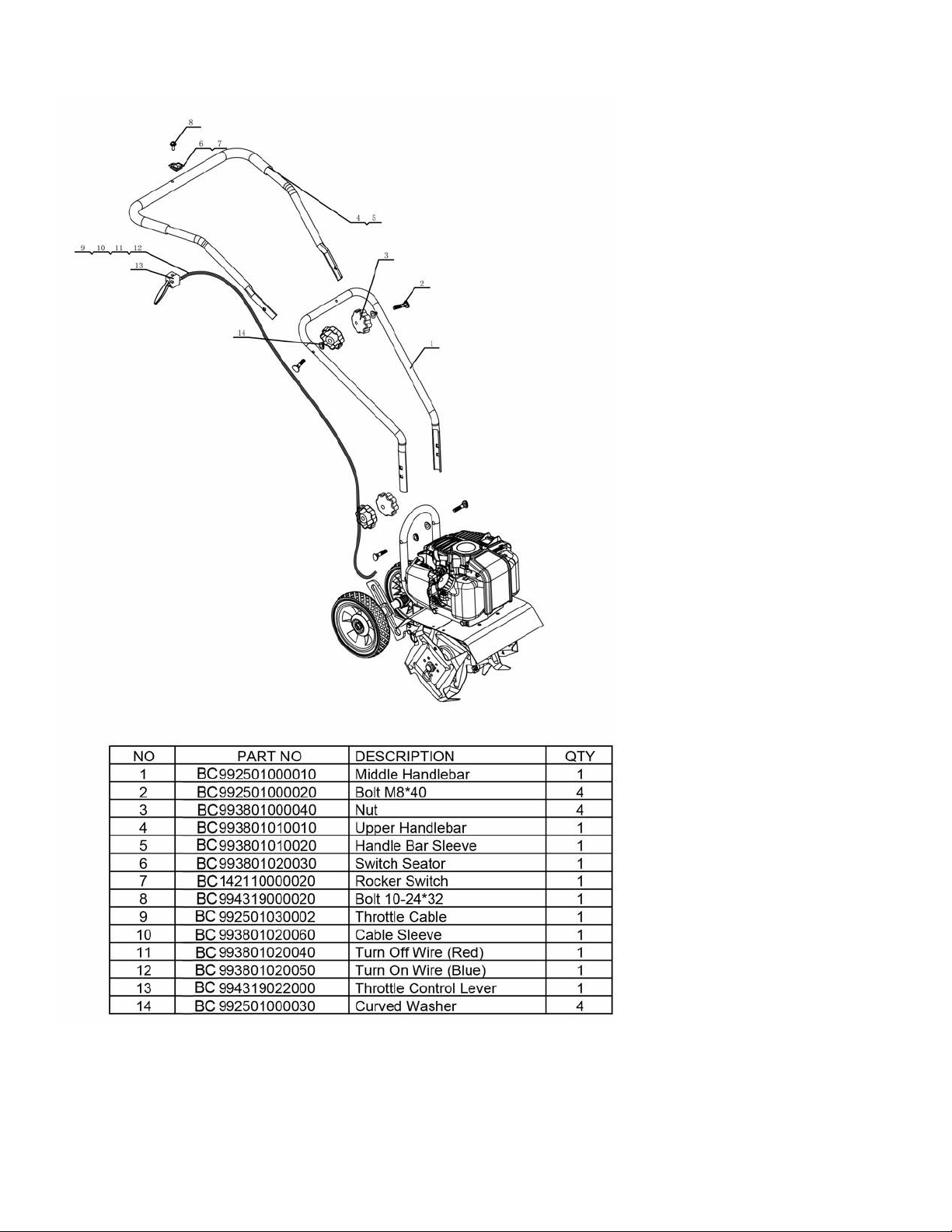

HANDLEBAR PARTS
EXPLOSION
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

!
!
EMISSION CONTROL SYSTEM WARRANTY
Buffalo Corporation
Your Warranty Rights and Obligations:
The California Air Resources Board, U.S. EPA and Buffalo Corp are pleased to explain the Emission Control System Warranty on your new 2017 model
year outdoor power equipment engine.
California
In California, new spark-ignited small off-road equipment engines must be designed, built and equipped to meet the State’s stringent anti-smog standards.
Other States, U.S. Territories
In other areas of the United States, your engine must be designed, built and equipped to meet the U.S. EPA emission standards for spark-ignited engines at
or below 19 kilowatts.
All of the United States
Buffalo Corp must warrant the emission control system on your power equipment engine for the periods of time listed below provided there has been no
abuse, neglect or improper maintenance of your power equipment engine. Where a warrantable condition exists, Buffalo Corp will repair your power
equipment engine at no cost to you including diagnosis, parts and labor.
Your emission control system may include parts such as: carburetors or fuel injection system, ignition system, catalytic converters, fuel tanks, valves, filters,
clamps, connectors, and other associated components. Also, included may be hoses, belts, connectors, sensors, and other emission-related assemblies.
Manufacturer’s Warranty Coverage:
Emission control system is warranted for two years. If any emissions-related part on your engine is defective, the part will be repaired or replaced by Buffalo Corp.
Owner’s Warranty Responsibility
As the power equipment engine owner, you are responsible for the performance of the required maintenance listed in your owner’s manual. Buffalo Corp
recommends that you retain all receipts covering maintenance on your power equipment engine, but Buffalo Corp can not deny warranty solely for the lack
of receipts or for your failure to ensure the performance of all scheduled maintenance.
As the power equipment engine owner, you should however be aware that Buffalo Corp may deny your warranty coverage if your power equipment engine
or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your power equipment engine to distribution center or service center authorized by Buffalo Corp as soon as the problem
exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Buffalo Corp customer service representative at 1-636-532-9888 or email customer service: CS @ BUFFALOTOOLS.COM .
DEFECTS Warranty Coverage:
Adopted by the Air Resources Board, Buffalo Corp warrants to the ultimate purchaser and each subsequent purchaser that the small off-road engine
(SORE) (1) has been designed, built and equipped so as to conform with all applicable regulation; and (2) is free from defects in materials and workmanship
that cause the failure of a warranted part to conform with those regulations as may be applicable to the terms and conditions stated below.
(a) The warranty period begins on the date the engines is delivered to an ultimate purchaser or first placed into service. The warranty period is two years.
(b) Subject to certain conditions and exclusions as stated below, the warranty on emissions related parts is as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in your Owner’s Manual is warranted for the warranty period stated
above. If the part fails during the period of warranty coverage, the part will be repaired or replace by Buffalo Corp according to Subsection (4) below. Any
such part repaired or replaced under warranty will be warranted for the remainder of the period.
(2) Any warranty part that is scheduled only for regular inspection in your Owner’s Manual is warranted for warranty period stated above. Any such part
repaired or replaced under warranty will be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in your Owner’s Manual is warranted for the period of time before the first
scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by Buffalo Corp
according to the Subject (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first
scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.
(5) Notwithstanding the provisions herein, warranty services or repair will be provided at all of our distribution centers that are franchised to service the
subject engines.
(6) The engine owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such
diagnostic work is performed at a warranty station.
(7) Buffalo Corp is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.
(8) Throughout the engine warranty period stated above, Buffalo Corp will maintain a supply of warranted parts sufficient to meet the expected demand for
such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner. Such
use will not reduce the warranty obligations of Buffalo Corp.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts
by the ultimate purchaser will be grounds for disallowing a warranty claims. Buffalo Corp will not be liable to warrant failures of warranted parts caused by
the use of a non-exempted add-on or modified part.
(11) The manufacturer issuing the warranty shall provide any documents that describe that manufacturer’s warranty procedures or policies within five
working days of request by the Air Resources Board.
EMISSION WARRANTY PARTS LIST
(1) Fuel Metering System:
(a) Gasoline carburetor assembly and its internal components
(b) Carburetor gaskets (e) Fuel tank
(c) Fuel line (f) Fuel line fittings
(d) Clamps (g) pressure regulator (if equipped)
(h) Mixer assembly and its internal components (if equipped)
(2) Air induction system including:
(a) Intake pipe/manifold (b) Air cleaner
(3) Ignition system including:
(a) Spark plug (b) Ignition coil
(4) Catalytic muffler assembly including:
(5) Crankcase breather assembly including
(a) Breather connection tube
(6) Fuel tank evaporative emissions control system including:
(a) purge valves (b) Carbon canister
(c) canister Mounting Brackets (d) Fuel Cap
(e) Fuel Tank
(7) Miscellaneous items used in above systems including:
(a) Switches (b) Hoses, belts connectors, assemblies
(8) Air injection system
(a) Pulse valve
201702
Table of contents
