OWNERS MANUALFOR 30” COMMERCIAL GRIDDLE
MODELS
92008 LIQUID PROPANE (LP)
92009 NATURAL GAS (NG)

2
We care about your safety, so please ….
BE SURE YOUR GRIDDLE IS PROPERLY INSTALLED ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW
INSTRUCTIONSINTHISMANUALMAYRESULTINSERIOUSBODILYINJURYAND/ORPROPERTYDAMAGE.IFYOUHAVE
QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR DEALER OR APPLIANCE SERVICE
REPRESENTATIVE FOR ASSISTANCE.
NOTE TO ASSEMBLER, PLEASE RETURN THIS MANUAL TO CONSUMER AFTER INSTALLATION.
NOTE TO CONSUMER, RETAIN THIS MANUAL FOR FUTURE REFERENCE.
THIS PRODUCT IS NOT INTENDED FOR USE IN OR ON RECREATIONAL VEHICLES AND OR BOATS.
REGISTERING YOUR GRIDDLE LOCATIONS OF SERIALNUMBER ...................................................................................................3
REPLACEMENT PARTS LIST AND EXPLODED ILLUSTRATION .........................................................................................................4
SAFETYINSTRUCTIONS
CHECKING FOR GAS LEAKS.............................................................................................................................................................5
NATURAL GAS SAFETY.............................................................................................................................................................6
PROPANEGASSAFETY............................................................................................................................................................6
INSTALLATION INSTRUCTIONS...........................................................................................................................................................
SPECIFICATIONSFOR GRIDDLE STRUCTURE.........................................................................................................................7
ENCLOSUREVENTILATION.......................................................................................................................................................7
NATURAL GAS CONNECTIONS..................................................................................................................................................8
PROPANEGASCONNECTIONS.................................................................................................................................................9
OUTDOOR PROPANE GAS GRIDDLE INSTALLATIONSPECIFICATIONS................................................................................10
OUTDOOR NATURAL GASGRIDDLEINSTALLATIONSPECIFICATIONS.................................................................................10
LPGAS TANKRETENTION.......................................................................................................................................................11
REMOVAL, INSPECTING ANDCLEANING BURNERS AND GAS VALVE ORIFICES ............................................................................
BURNER REMOVAL, INSPECTION AND CLEANING................................................................................................................12
BURNER SHUTTER CLIP INSPECTION / ADJUSTMENT...........................................................................................................13
BURNER REPLACEMENT INTOINSERT...................................................................................................................................14
IGNITOR / ELECTRODE CHECK................................................................................................................................................15
BURNER OPERATIONCHECK...................................................................................................................................................15
FLEXLINE ANDREGULATOR PLACEMENT..............................................................................................................................16
LIGHTING& OPERATING INSTRUCTIONS............................................................................................................................................
LIGHTINGPROCEDURES..........................................................................................................................................................17
OPERATINGPROCEDURE........................................................................................................................................................17
CLEANING& MAINTENANCE.............................................................................................................................................................17
TROUBLESHOOTING.............................................................................................................................................................................
IFGRIDDLE FAILS TOOPERATEPROPERLY...........................................................................................................................19
YELLOWFLAME........................................................................................................................................................................19
FLASHBACK...............................................................................................................................................................................19
LIMITEDWARRANTY.................................................................................................................................................................... 20-22
- READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRIDDLE ISPROPERLY INSTALLED, ASSEMBLED AND CARED FOR.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY AND/ORPROPERTY DAMAGE. IF YOU HAVE QUESTIONS
CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR DEALER, GAS APPLIANCE SERVICE REPRESENTATIVE OR YOUR GAS COMPANY.
-NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
- NOTE TOTHE CONSUMER:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- THIS OUTDOOR COOKING GAS APPLIANCE IS NOT INTENDED TO BE INSTALLED IN OR ON RECREATIONAL VEHICLES AND/OR BOATS.
FOR WARRANTY PURPOSES, PLEASE RECORD YOUR MODEL NUMBER, SERIAL NUMBER, DATE OF PURCHASE USINGTHE PRODUCT INFORMATION CARD
PROVIDED ON PAGE 3 AND A COPY OF YOUR RECEIPT AND OR INVOICE
v.2022.2.25

3
REGISTERING YOUR GRIDDLE
MODEL AND SERIAL NUMBER LOCATIONS
HOW TO ORDER REPLACEMENT PARTS
This is where your Product Information Reference Card will come in handy for supplying
necessary info needed by your Bull Authorized Dealer to assure you get the correct part(s)
for your Griddle or additional accessories to keep your Griddle in top working condition. If
you don’t have the card, you can still get the Griddle model number and type of gas hook up
used as stated on the data sticker which is located on the right side of the grease tray
drawer or on the inside of the left side panel as shown in your owner manual. That
information is required for parts orders.
Please refer to your owner’s manual parts list and illustration to identify what you need.
To Order Replacement Parts on-line go to: https://www.bullbbq.com/buy-parts
Ordering Parts by phone:
Bull is ready to help with two regional suppliers
open 8:00 am to 5:00 pm Monday through Friday.
For the Western Region, call [phone]
For the Eastern Region, call [phone] 
INSPECT YOUR SIDE BURNER FOR ANY DAMAGE AND CONTACT OUR SERVICE CENTER OR LOCAL DEALER FOR
REPLACEMENT OF ANY DAMAGED PARTS. IF DAMAGED DO NOT ATTEMPT INSTALLATION.
Sides of the Shipping Box Right Side o
f
Grease Tray Inside of Left Side Panel
CAUTION: REGARDING CONVERTING YOUR GRILL FROM
LIQUID PROPANE TO NATURAL GAS OR VISA-VERSA.
Your Grill’s gas valves are pre-set at the factory
specifically for the gas the grill was intended for. That
means a different or specific gas valve must be
installed when converting from one type of gas to
another.
Before you start, be sure to contact your gas supplier
or your Bull Grill Dealer who will be ready to supply the
correct conversion kits needed.
ForWarrantyClaimsorReplacementPartsordering,
pleasefillouttheareaprovidedbelow:
PRODUCTINFORMATIONREFERENCECARD
1) ModelNumber_____________________________
2) SerialNumber______________________________
(TheSerialNumberisencodedwithessential
informationfororderingreplacementpartsor
submittingWarrantyclaims.LocationofSerial
Numbersisshownbelow)
3) DateofPurchase______________________
4) CopyofyourPurchaseReceiptorInvoice.
For Warranty Questions call Customer Service at [phone]
Thank you for purchasing yourBull Outdoor Products
Grill. To validate your Limited Warranty, you must submit
the completed the Warranty Registration Form within 90
days from the date of purchase. Registration can be
completed on-line at Submit ticket (ladesk.com) or by
sending the completed Warranty Registration Form and
copy of your Purchase Receipt or Invoice as proof of
purchase to:
BULL OUTDOOR PRODUCTS, INC.
1011 East PineSt.
Lodi
,
CA9524
0


4
REPLACEMENT PARTS LIST & ILLUSTRATION
MODELS # 92008 LP (LIQUID PROPANE) & # 92009 NG (NATURAL GAS)
REF# PARTS# DESCRIPTION QTY
WARRANTY PERIOD
(SHOWN IN YEARS)
1 92010 LID - FRONT 1 1
2 92011 LID - REAR 1 1
3 92012 INSERT ASSEMBLY 1 Lifetime
4 92013 CONTROL PANEL 1 1
5 47011 GREASE TRAY 1 1
6 44305 WELDED STAINLESS STEEL BURNER 4 5
7 92014 GRIDDLE INSERT 1 Lifetime
8 16523 LID HANDLE CENTER BAR 1 3
9 16522 LID HANDEL END CAP 2 3
10 16629 BEZEL - MAIN BURNER 4 1
11 16613 KNOB - MAIN BURNER 4 1
12 47024 BACK PANEL 1 1
13 92016 BULL GRIDDLE HOOD INSTALL PIECE 2
14 16525 (LP ONLY) GAS VALVE, MAIN BURNER (LIQUID PROPANE ONLY) 4 1
15 16524 (NG ONLY) GAS VALVE, MAIN BURNER (NATURAL GAS ONLY) 4 1
16 26103 MANIFOLD 1 3
17 16577 LOGO 1
18 47006 STAINLESS FLEX TUBE 1 1
19 16507 (NG ONLY) REGULATOR, (NATURAL GAS ONLY) 1 1
20 16589 (LP ONLY) LP HOSE & REGULATOR (LIQUID PROPANE ONLY) 1 1
21 16599 (NG ONLY) REGULATOR ADAPTER (NATURALGAS ONLY) 2 1
22 16598 (LP ONLY) FLARE TO FLARE UNION (LIQUID PROPANE ONLY) 1 1
WARNING: Use of any part that is not factory authorized will void your warranty and may be dangerous.

5
SAFETY INSTRUCTIONS
This gas griddle must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the
National Fuel Gas Code ANSI Z223.1. In Canada, installation must conform to the standard CAN/ CGA 1-b149.1 and/or .2
(Installation Code for Gas Burning Appliances and Equipment) and any local codes.
WARNING:Fuels used in gas or oil-fired appliances and the products of combustion of such fuels, contain chemicals knownto the State of
California to cause cancer, birth defects and/or reproductive harm. This warning is issued pursuant to California Health & Safety Code Sec.
25249.6.
THELOCATION FOR YOUR GRIDDLE
DO NOT use your gas griddle in garages, porches, breezeways, sheds orother enclosed areas. Your gas griddleisto be used OUTDOORS
ONLY, with at least 21 inches clearance from the back and side of any combustible surface. The griddle should not be placed under or on top
of any surface that will burn. Do not obstruct the flow of combustion and ventilation air around the griddle housing.
PROTECT CHILDREN:
Keep children away from the griddle during use and until the griddle has cooled after you are finished. Do not allow children to
operate the griddle.
WARNING! FOR YOUR SAFETY...
1) DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2) DO NOT store empty or full spare gas cylinders and/or chemicals under or nearthis or any other appliance.
3) Keep the fuel hose away from hot surfaces. Protect the fuel hose from dripping grease. Avoid unnecessary twisting of
the hose. Visuallyinspect the hoseprior to each use for cuts, cracks excessive wear or other damage and replace if
necessary.
4) NEVER test for gas leaks with a lighted match or open flame.
5) NEVER light griddle with lid closed or before checking to ensure burner tubes are fully seated over gas valve orifices.
6) NEVER lean over cooking surface while lighting griddle. Use barbecue tools with wood handles and good quality
insulated oven mitts when operating griddle.
DANGER! IF YOU SMELL GAS...
1) Shutoff gas tothe appliance at itssource.
2) Extinguish any openflame.
3) Open griddle lid to release any accumulation of fumes.
4) If gas odor persists, immediately contact your gas supplier or your firedepartment.
CHECKING FOR GAS LEAKS NEVER TEST FOR GAS LEAKS WHILE THE GRIDDLE IS LIT!
Prior to the first use and at the beginning of each new season (or, if using LP, whenever gas cylinder is changed), it is a must that
you check for gas leaks.
Follow these steps:
1) Make a soap solution by mixing 1 part liquid detergent and one part water.
2) Turn off heat control valves, and then turn on gas at source.
3) Apply the soap solution to all gas connections: bubbles will appear in the soap solution if connections are not properly
sealed Tighten or repair as necessary.
4) If you have a gas leak that you cannot repair, turn off the gas at the source, disconnect fuel line from the double side burner
and immediately call your dealer and gas supplier for professional assistance.
WHEN THE OUTDOOR COOKING GAS APPLIANCE IS NOT IN USE
WARNING: When theoutdoor cooking gas appliance is not in use, the gas must beturned off atthe supply cylinder. Storage of an outdoor
cooking gas appliance indoors is permissible only if the cylinder is disconnected and removedfromthe outdoor cooking gas appliance.
Cylinder must be stored outdoors, out of reachof childrenand must not be stored in a building, garage or any other enclosed area.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that
is providedwith the cylinder valve. Other types of caps or plugs may result in leakage of propane.
1) Do not store a spare LPgas cylinder under or near thisappliance.
2) Never fill the cylinder beyond 80 percent full.
3) If the information in 1) and Clause 2) is not followed exactly, a fire causing death or serious injury may occur.
READ CAREFULLY BEFORE ASSEMBLY AND OPERATION OF YOUR GRIDDLE

6
SAFETY INSTRUCTIONS (CONTINUED)
NATURAL GAS SAFETY:
1) Your Natural Gas griddle is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.)
regulated at the natural gas regulator attached at the back of the griddle. Check with your gas utility for local gas
pressure and with your local municipality for building code requirements.
2) Check with your gas utility or with local building codes for instructions to install gas supply line or call a licensed and
knowledgeable installer.
3) It is recommended that an “ON-OFF” shutoff valve be installed at the gas supply source:
4) Outdoors after gas line piping exits outside wall or before gas line piping enters ground.
5) Indoors in the branch fuel line in an accessible location near the supply line.
6) Do not use Teflon ® tape or pipe sealant on any flare ends because you will not obtain a leak-free seal.
7) Pipe sealing compound or pipe thread tape of the type resistant to the action of natural gas must be used on all
male pipe thread. Apply compound or tape to at least the first three threads when making the connection.
8) The outdoor cooking gas appliance and its individual shut-off valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa)
9) The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual
manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or
less than 0.5 psi (3.5 kPa)
10) Turn off your gas griddle when the gas supply is being tested at low pressures. This appliance must be isolated
from the gas supply piping system by closing its individual valve.
WARNING:
Gas valves are preset at the factory to operate on LP or natural gas. If you wish to convert to a different gas type, be
sure to contact your griddle dealer, licensed plumber or authorized service center for further details. Conversion kits
are not sold to the general public and require a professional to perform service. Failure to properly convert a unit can
cause serious injury to yourself and/or others, irreparable damage to your griddle and void of warranty.
PROPANE GAS SAFETY:
1) Your Propane gas griddle is designed to operate on propane gas ONLY, at a pressure regulated at 11” water column
(W.C.) when equipped with the correct propane orifices on the valves and a propane regulator on the supply line
regulated at the residential meter.
2) Your propane gas griddle is designed to be used with a standard 20 lb. gas cylinder with size of 18.1 / 46cm (Height) /
* 12.5 in /32cm (Width). In the United States, the gas cylinder must be constructed and marked in accordance with
specifications of the US Department of Transportation for Propane Gas Cylinders.
• Always keep cylinder securely fastened in an upright position.
• Never connect an unregulated propane gas cylinder to the griddle. Do not subject propane cylinders to
excessive heat.
CAUTION:
Never store a propane gas cylinder inside a building or in the vicinity of any gas-burning appliance.
WARNING
• Do not store a spare or disconnected liquid propane cylinder under or near this appliance.
• A dented or rusty liquid propane cylinder may be hazardous and should be check by your liquid propane provider.
• Do not use a liquid propane cylinder with a damaged valve.
BEWARE OF SPIDERS CAUTION: BURNERS MUSTBE INSPECTED AND CLEANED BEFORE FIRST USE.
Spidersand small insects occasionally spinwebs or make nests in the burners during warehousing, transit and/or after
long periods of non- use. These webs can lead to a gas flow obstruction, which could result in a fire in and around the
burner tubes. This type of fire is known as “FLASH-BACK” and can cause serious damage to your griddle and create an
unsafe operating condition for the user. Although an obstructed burner tube is not the only cause of “FLASH BACK” it is
the most common cause, andfrequent inspection and cleaning of the burners is necessary.

7
INSTALLATION INSTRUCTIONS
Your built-in gas griddle comes to you fully assembled. We strongly recommend professional installation and hookup of the gas griddle.
These instructions will provide you with the measurements necessary for you or your builder to construct a masonry structure to house
your outdoor gas griddle.
NOTE TO INSTALLER: Leave these instructions with the consumer for future reference. The griddle must be installed in accordance
with all local building codes.
NOTE: Please remove the cotter pins from the burners before installing unit into an island. See page 12 for cotter pin removal.
SPECIFICATIONS FOR BARBECUE STRUCTURE:
1) Your choice of masonry can be used for cabinet construction for the built-in gas griddle; however, it must be non-combustible
material.
2) Keep in mind when choosing a location for your griddle that it should NOT be located under any overhead combustible construction.
3) Upper and lower-level vents must be provided for combustion air on both sides of built-in cabinet.
4) Vents on griddle insert must remain unobstructed to allow for combustion air and ventilation.
5) Upper vents must be located within 5 inches from the top of the island enclosure to the bottom of the vent.
6) Lower vents must be located within 1 inch from the bottom of the island enclosure to the bottom of the first vent openings
and no more than 5 inches from the bottom of the island enclosure to the top of the vent.
7) If not using Bull vents, the vents you use must meet ANSI Standard codes.
8) The upper vents must have openings that have a total free area of not less than 1 sq in per lb of stored fuel capacity per
vent and the lower vents must have openings that have a total free area of not less than 1/2 sq in per lb of stored fuel
capacity per vent.
9) Both upper and lower vent openings must have minimum dimensions to permit the entrance of a 1/8 in diameter rod.
10) The griddle requires a wall opening of the following dimensions: See PAGES 7 & 8 for different models.
11) Place gas griddle assembly into wall opening as shown in illustration on pages 7 & 8. Griddle rests on side and back
edges of the griddle insert.
12) For propane gas LP TANK STORAGE AREA MUST BE ISOLATED FROM GRIDDLE AND VENTED.
13) Do not use any combustible materials for this construction. Minimum horizontal clearance to adjacent combustible
surface from side and back of the griddle must be 21 inches. A 6-inch clearance is required behind griddle to allow front
portion of hood to open and for ventilation purposes.

8
INSTALLATION INSTRUCTIONS (CONTINUED)
CONNECTING TO GAS SOURCE
Refer to the following instructions and illustrations for typical gas supply connections. We strongly suggest professional
installation and hook-up of the gas griddle.
IMPORTANT: Before connecting griddle to gas source, make sure griddle control knobs are in “OFF” position.
Be sure to follow instructions for connecting an appliance to a fixed fuel piping system specifying the use of a rigid pipe,
semi-rigid tubing, and/or a connector that complies with the Standard for Connectors for Outdoor Gas Appliances and
Manufactured Homes, ANSI Z21.75 * CSA 6.27.
NATURAL GAS CONNECTIONS
IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of
these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit.
1) Do not use Teflon ® tape or pipe sealant on any flare ends because you will not obtain a leak-free seal.
2) Remove plastic cap from regulator installed on grill.
3) Attach stainless steel flex line 3/8” flare-female end to theregulator.
4) Attach the other end of flex line to shut-off valve through a nipple.
5) Attach a shut-off valve to gas supply pipe.
TO PERFORM GAS LEAK CHECK – REFER TO PAGE 5

9
PROPANE GAS CONNECTIONS
CAUTION: Changing the gas tanks must be done away from any source of ignition.
LP Gas Tank must be marked in accordance with the Specifications for LP Gas Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Commission LP Gas Tank connection device is compatible with outdoor cooking
appliances.
1) LP Gas Tank has appropriate vapor withdrawal.
2) LP Gas Tank must include a collar to protect the cylinder valve.
3) LP Gas Tank uses a type 1 tank valve that is firmly
secured in an uprightposition.
4) LP Gas pressure regulator and hose assembly supplied with this unit must be used without alteration and must be less
than 59 inches in length.
5) If the hose assembly needs to be replaced, use only the type 1 specified in the parts list supplied with this unit. The
replacement hose assembly shall be that specified by the manufacturer.
6) To connect, turn the black coupling nut of the hose and regulator assembly in a clockwise direction (see illustration below)
until it is completely threaded onto the cylinder valve before turning gas supply on. To remove turn the black coupling nut
of the hose and regulator assembly in a counter-clockwise direction.
7) LP Gas Tank must have a listed overfilling prevention device.
When installing a LP gas supply, the following criteria must be met:
1) LP cylinder must be marked in accordance with the Specifications for LP gas Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSAB339, as applicable.
2) Must have a listed overfilling prevention device.
3) A cylinder connection device compatible with the connection for outdoor cooking appliances.
4) The cylinder must be equipped with an arrangement for vapor withdrawal.
5) The cylinder must include a collar to protect the cylinder valve.

10
INSTALLATION INSTRUCTIONS (CONTINUED)
OUTDOOR NATURAL GAS GRIDDLE INSTALLATION SPECIFICATIONS
1) Vents must be provided for combustion air and ventilation on both sides of built-in cabinet.
2) When choosing a location for your gas griddle keep in mind that it should never be located under any overhead
combustible construction.
3) The sides and back of the griddle should not be any closer than 21 inches to combustible construction.
4) DO NOT store empty or full spare tanks under or near this or any other appliance.
5) There must be a minimum of 6” counter space behind the griddle to allow the griddle hood to clear properly.
OUTDOOR PROPANE GAS GRIDDLE INSTALLATION SPECIFICATIONS
1) Vents must be provided for combustion air and ventilation on both
sides of built-in cabinet.
2) When choosing a location for your gas griddle keep in mind that it
should never be located under any overhead combustible
construction.
3) The sides and back of the griddle should not be any closer than 21
inches to combustible construction.
4) DO NOT store empty or full spare tanks under or near this or any other
appliance.
5) There must be a minimum of 6” counter space behind the griddle in order
to allow the griddle hood to clear properly.
6) The cylinder valve on the tank must be readily accessible for hand
operation. The tank must be isolated enough to where it is shielded from
radiation, open flames and protected from foreign matter such as hot
drippings.
7) There must be access so the tank can be connected, disconnected,
inspected and leak tested outside of the cabinet. As well as access so that
connections which could be disturbed when installing the tank in the cabinet
can be leak tested inside the cabinet.
8) The connector must comply with the Standard for Connectors for Outdoor
Gas Appliances and Manufactured Homes, ANSI Z21.75 • CSA 6.27, and
suitable for outside installation. The instructions shall indicate that the
maximum length of the connection shall be 6 ft. Please ensure visibility of
the connector and directions for supporting the piping, flexible tubing, or
gas connector within the built-in enclosure.

11
INSTALLATION INSTRUCTIONS (CONTINUED)
LP GAS TANK RETENTION
LP tank must be properly secured within the structure to prevent being knocked over.
The tank retention system must be securely fastened to the bottom of the island with the use of bolts,washers.
There must be a minimum clearance of 2 inches between the floor and the cylinder enclosure.
Once secured, place the LP tank in the tank retention system and tighten the tank retention bolt until the tank
is held securely.
6 INCHES
MINIMUM
2 INCHES MINIMUM
BETWEEN GROUND
AND TANK
6 INCHES MINIMUM
BETWEEN TANK AND
SURROUNDING WALLS
REFERENCE PROPANE TANK RETENTION SYSTEM
SHOWING BULL PART NO. 16674 USING 8 SCREWS
WITHLOCK WASHERS AND OR LOCK NUTS FOR
ATTACHMENT TO ISLAND BASE
PROPANE TANK HOLDER RETENTION BOLT
TURN CLOCKWISE TOSECURE TANK
TURN COUNTER-CLOCKWISE TO REMOVE TANK.

12
REMOVAL,INSPECTION AND CLEANING OF BURNERS AND GAS VALVES
CAUTION – Always turn off the gas supply prior to clearing Burners.
Following these procedures on a timely basis, will keep the Burners and Gas Valves working properly with minimum effort.
INSTRUCTIONS FOR BURNER REMOVAL:
(1) Remove these screws to detach and lift the Front Lid off the Griddle Insert.
(2) Remove the 8 screws to detach the Rear Lid
from the Griddle Insert
(3) Remove the last 2 screws that hold the
Griddle Insert to the Griddle Frame.
(4) Carefully remove the Griddle Insert to expose the
Burners

13
REMOVAL,INSPECTION AND CLEANING OF BURNERS AND GAS VALVES (CONTINUED)
CAUTION – Always turn off the gas supply prior to clearing Burners.
2) Per view below showing underside of Griddle, Remove the cotter pin from each burner before attempting to lift up the
Burners. You’ll need to remove thecotter pin fromcastpeg before carefully lifting burner from the gas valve orifice
(See Drawing and Details) or using this link you can see ‘How to remove Cotter Pins from a Bull Grill’ on-line at
https://www.youtube.com/watch?v=yhlJR5svLSA
BURNER CLEANING
1) Remove burners from the insert assembly.
2) Bend a stiff wire (a light-weight coat hanger works well)
into a small hook as shown.
3) Run the hook through each burner tube and burner several times.
4) Use a narrow bottlebrush with a flexible handle.
5) Wire brush entire outside surface of burner to remove loose
corrosion.
6) Clean any clogged hole with a stiff wire (such as an open paper clip).
7) Inspect the burner assembly for any openings caused by corrosion.
BURNER SHUTTER CLIP INSPECTION / ADJUSTMENT
The burners are set to a factory setting; however, the air to fuel mixture may need to be adjusted to
accommodate different gas pressures. In order to adjust the air to fuel mixture, loosen the screw and rotate the
shutter clip to the appropriate setting (see diagrams below). Tighten the screw and repeat adjustment
procedure to the remaining burners. This should improve burner efficiency.
Remove cotter pinfrom cast peg
before lifting the Burner.
Cast peg
on Burne
r

14
INSPECTION AND CLEANING OF BURNERS AND GAS VALVES ORIFICES
CAUTION – Always turn off the gas supply prior to clearing Burners.

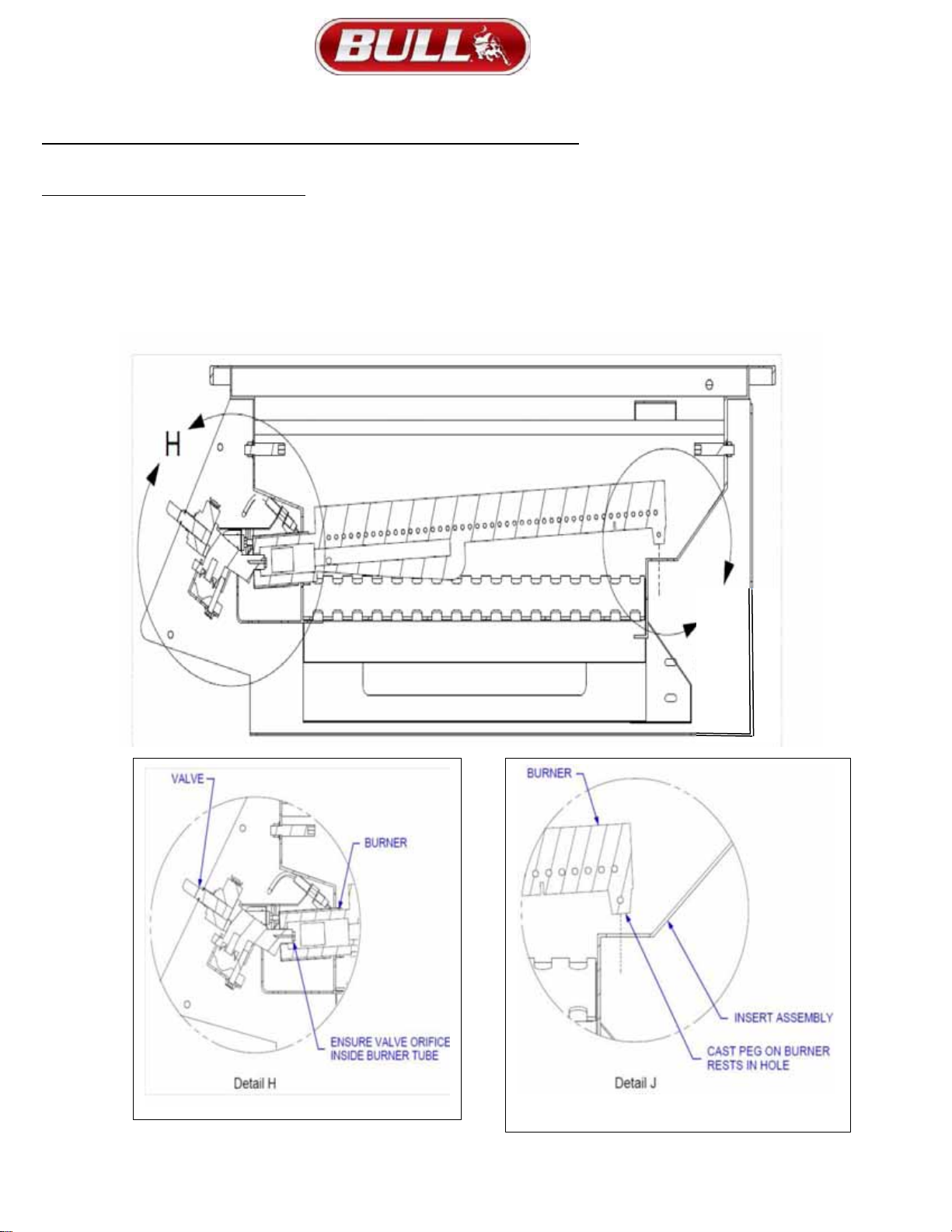

BURNER REPLACEMENT INTO INSERT
(1) Replace burners back into the insert assembly. There is no need to replace the cotter pin back into the cast peg,
it is for shipping purposes only.
(2) Check the burners for proper location after replacing. Make sure the valve orifices are inside of the
burner tubes (see drawing below). If the valve orifices do not fit inside the burner tubes, lighting the
burners may cause explosion and/or fire.
J

15
BURNER IGNITOR ELECTRODE CHECK
With all control knobs set to “OFF”, check each igniter individually for presence of spark at electrode. In turn, push
each control knob in fully and turn slowly about a 1/4 turn to the left (counter-clockwise) until a click is heard; the trigger
hitting the strike block should produce a blue spark at the electrode tip. Return control knob to “OFF” before checking
next igniter.
BURNER OPERATION CHECK
CAUTION – Always turn off the gas supply prior to clearing Burners.
1) With Griddle control knobs in “OFF” position, turn on the Gas supply.
2) Light any burner by pushing its control knob in fully and slowly (3 to 4 seconds) turning it about 1/4 turn to
the left (counter clockwise) until a click is heard. The 3 to 4 second duration should provide enough gas to
light the burner. If the burner does not light, immediately return the control knob to “OFF”, wait several
minutes for the gas to disperse, and repeat the process. After burner lights successfully, turn control knob to
“OFF”.
3) Repeat process for each control knob/igniter, in turn, ensuring that other knobs are in “OFF” position as you
perform each check.
If any burners fail to light after several attempts, discontinue gas supply at source and re-inspect for
obstructions to gas flow and orifices. If an obstruction is suspected in gas valve(s) or gas valve bracket,
please contact your dealer or gas appliance service person for assistance.

16
FLEX LINE AND REGULATOR REPLACEMENT
Due to packaging purpose, the regulator will be assembled horizontally in the carton. It is imperative that the
regulator carefully be turned pointing downward before use.
NOW YOUR GAS GRIDDLE IS READY TO USE!
Before first use and at the beginning of each season:
(1) Please read Safety, Lighting and Operating Instructions carefully.
(2) Check gas valve orifices, burner tubes and burner ports for any obstructions.
(3) PERFORM GAS LEAK CHECK – REFER TO PAGE 5.
FLEX LINE SHIPPED HORIZONTAI.L
Y
FLEX LINE MUST BE POINTING DOWN

17
BURNER LIGHTING PROCEDURE
(1) Become familiar with the safety guidelines at the front of the manual.
NEVER SMOKE WHILE LIGHTING GRIDDLE OR CHECKING GAS SUPPLY CONNECTIONS!
(2) If your griddle fuel source is a LP gas cylinder, check to see that cylinder is filled.
(3) Check that the end of each burner tube is properly located over each valve orifice.
(4) Make sure all gas connections are securely tightened.
TEST FOR LEAKS WITH A SOAP SOLUTION, NEVER WITH A FLAME.
(Gas Leak Check instructions are on page 5).
(5) Always open lid before lighting.
(6) Set ALL griddle control knobs to “OFF” and open gas supply, LP cylinder or Natural Gas Valve.
(7) Ignite only the burners you intend to use, using the same method for each: Push in control knob completely and rotate slowly (3 to 4
seconds) about 1/4 turn to the left (counter clockwise) until a click is heard. The 3 to 4 second duration should provide enough gas to
light the burner. If the burner does not light, immediately return the control knob to ‘OFF’, wait several minutes for the gas to disperse,
and repeat the process. After burner ignites, repeat procedure with any other burner needed.
(8) Adjust control knob(s) to desired cooking temperature.
INSTRUCTIONS FOR MANUALLY LIGHTING YOUR GRILL
1) Before attempting to manually light grill you should wait 5 minutes after last attempt with grill ignitor to allow any accumulated gas to
dissipate.
2) Clip a paper match to lighting rod (match holder) provided with your grill as shown
OPERATING PROCEDURE
(1) WARNING! GRIDDLE HOOD NEEDS TO STAY OPEN WHILE IN USE
(2) Burn-off: Before cooking on your gas griddle for the first time, burn the griddle to get rid it of any odors or foreign matter by
igniting the burners, closing the lid, and operating at “HIGH” setting for about five minutes. You may then either set the controls to
“OFF” or cook on your griddle immediately by turning the control knobs to a lower setting.
(3) CAUTION: DO NOT LEAVE GRIDDLE UNATTENDED WHILE IN USE.
(4) Preheating: It is necessary to preheat the griddle for a short time before cooking certain foods, depending on the type of food and
the cooking temperature. Food that requires a high cooking temperature needs to preheat for five minutes; food that requires a
lower cooking temperature needs only a period of two to three minutes. There is no need to preheat for foods that require slow
cooking.
(5) CAUTION: If burners go out during operation, close gas supply at source, and turn all gas valves off. Open lid and wait five
minutes before attempting to re-light (this allows accumulated gas fumes to clear).
(6) CAUTION: Should a grease fire occur, close gas supply at source, turn off all burners and leave lid closed until fire is out. Do not
use water or any liquid to extinguish a grease fire.
(7) CAUTION: Do not attempt to disconnect any gas fitting while your griddle is in operation or while gas feed is on.
WARNING: ANY MODIFICATION OF THE APPLIANCE MAY BE DANGEROUS TO YOU OR OTHERS
AND MAY VOID PRODUCT WARRANTY

18
CLEANING AND MAINTENANCE
(1) Keeping outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
(2) Not obstructing the flow of combustion and ventilation air.
(3) Keeping the ventilation opening(s) of the cylinder enclosure free and clear from debris.
(4) Visually checking burner flames including pilot burner flame if provided, with pictorial representations.
CLEANING THE GRIDDLE INSERT
If grease is allowed to accumulate on the griddle surface, it will carbonize and become difficult to remove. In
order to avoid this, regular maintenance and cleaning is required.
(1) To clean griddle surface, follow these steps:
(2) Remove excess oil, grease and food with a thin scraper.
(3) Use a damp, non-abrasive cloth with a non-chlorinated cleaner.
(4) Wipe surface with the clean damp cloth.
DO NOT use steel wool, abrasives or griddle stones on the griddle surface.
DO NOT use any type of grill cleaner on the griddle surface.
DO NOT hit the griddle surface with any sharp object or utensil.
CLEANING THE BURNERS
(1) Remove burners from griddle by carefully lifting each burner up and away from gas valve orifice.
(2) Wire brush entire outer surface of burner to remove residue and dirt. Clean any clogged ports with a stiff wire
such as an open paper clip.
(3) Inspect the burner for damage (cracks or holes) and if such damage is found, order and install a new burner.
(4) After installation, be sure to check that gas valve orifices are correctly placed inside ends of burner tubes. Also
check position of spark electrode.
CLEANING THE GREASE TRAY
The grease tray should be emptied and wiped down periodically and washed in a mild detergent and warm water solution.
ANNUAL CLEANING OF GRIDDLE HOUSING
Cleaning the griddle after every cookout will keep it ready for instant use. However, periodically the griddle should be
given an entire thorough cleaning to ensure optimal performance.
(1) Shut off gas supply at source and disconnect fuel line from gas valve manifold. Protect fuel line fitting.
(2) Remove and clean (as explained above) the griddle inserts, burners and grease tray.
(3) Cover the gas valve orifices with a piece of aluminum foil.
(4) Brush the inside and bottom of the insert assembly with a stiff wire brush and wash down with a mild soap and
warm water solution. Rinse thoroughly and let dry.
(5) Remove aluminum foil from orifices and check orifices for obstruction.
(6) Check electrode as instructed on page 13.
(7) Replace grease tray, burners and griddle insert.
(8) Reconnect to gas source and observe burner flame for correct operation.
IMPORTANT: You should NOT line the bottom of the griddle housing with aluminum foil, sand or any other grease
absorbent substance. Grease will not be able to drip down into the grease tray and a grease fire could occur.
STAINLESS STEEL CLEANING AND MAINTENANCE
Stainless steel is a corrosion resistant chromium/nickel alloy steel that is both durable as well as strong with an
outstanding luster. The goal of your cleaning and maintenance routine should be to keep the stainless steel’s
protective chromium oxide layer intact. This is what prevents corrosion. Contrary to popular belief, stainless steel is
NOT rustproof, especially in the environment of a swimming pool. Chlorine, bromine, some fertilizers and other
elements are extremely caustic chemicals for stainless steel. These chemicals combined with heat and humidity
greatly increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and
add years of enjoyment to your Bull stainless steel products.

19
TROUBLESHOOTING
IF GRIDDLE FAILS TO OPERATE PROPERLY
(1) Turn off gas at source, turn control knobs to “OFF”, and wait five minutes before trying again.
(2) Check gas supply/connections.
(3) Repeat lighting procedure.
If griddle still fails to operate properly
TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOBS TO “OFF”, wait for griddle to cool, and check the following:
(1) Misalignment of burner tube(s) over venturitube(s)
CORRECTION: Reposition burner tube(s) to properly seat inside venturi tube(s).
(2) Obstruction in gas line
CORRECTION: Remove fuel line from the Griddle. DO NOT SMOKE AROUND EXPOSED GAS LINE! Open gas
supply for one second to blow any obstruction from fuel line. Close off gas supply at source and reconnect fuel line to
the Griddle.
(3) Plugged orifice
CORRECTION: Remove the orifice from the venturi tube and gently clear any obstruction with a fine wire. Re-install
the orifice onto venturi tube. If an obstruction is suspected in the gas valve or the venturi tube, please contact your
dealer or gas appliance service person for assistance.
MISALIGNMENT OF IGNITER ON BURNER / CORRECTION:
• Check for proper position of electrode tip. The tip of the electrode should be pointing forward toward the front and free from
grease for spark discharging. The ignition wire should be firmly connected to the valve ignition and electrode.
• Replace the ignition wire if the wire is broken or cracked. With gas supply closed and all control knobs set to “OFF”, check
each positive igniter individually for presence of spark at electrode. In turn, push each control knob in fully and rotate about
1/4 turn to the left (counter clockwise) until click is heard; the trigger hitting the strike block should produce a blue spark at
the electrode tip. Return control knob to “OFF” before checking next igniter.
IF RE-IGNITION IS NECESSARY
While the gas grill is still hot, you must wait for a minimum of five minutes before commencing to re-ignite (this allows accumulated gas
fumes to clear). If all checks/corrections have been made and gas grill still fails to operate properly, consult your grill dealer or gas
appliance service person.
FLAME COLOR
•Once the entire burner is operating, check the flame color to be sure it is mostly blue (some yellow color will be present because of
impurities in the fuel).
•If the flame is golden or yellow in color the reason could be seasoning salts, oil film, or other foreign matter on burner.
CORRECTION: Remove burners and use compressed air to blow out residue from interior of burner.
FLASH BACK
When fire occurs in and around the burners, immediately turn off gas at its source and turn the control knob(s) to “OFF”. Wait until
the grill has cooled, then cleanthe burners and burner ports as described on page 13.

20
WarrantyPolicy
LIMITEDWARRANTYONBULLOUTDOORPRODUCTS,INC.,PRODUCTS

THISLIMITEDWARRANTYGIVESYOUSPECIFICLEGALRIGHTS.YOUMAYALSOHAVEOTHER
RIGHTS,WHICHVARYFROMSTATETOSTATE.

THISLIMITEDWARRANTYCANALSOBEFOUNDONOURWEBSITEAT:
https://www.bullbbq.com/support-warranty(UnitedStatesCustomers);
https://www.bullbbq.eu/en/warrantyform.htm(InternationalCustomers)ANDIN
THEOWNER’S/INSTALLATIONMANUALTHATWEPROVIDEWITHOUR
PRODUCT.

THISLIMITEDWARRANTYISSUBJECTTOTHEEXCLUSIONS,CONDITIONSANDLIMITATIONS
SETFORTHBELOW.

ANYIMPLIEDWARRANTIESIMPOSEDBYLAW,INCLUDINGWITHOUTLIMITATIONTHEIMPLIED
WARRANTIESOFMRECHANTABILITYANDFITNESSFORAPARTICULARPURPOSE,ARELIMITED
INDURATIONTOTHEDURATIONOFTHISEXPRESSLIMITEDWARRANTY.SOMESTATESDONOT
ALLOWLIMITATIONSONHOWLONGANIMPLIEDWARRANTYLASTS,SOTHEABOVELIMITATION
MAYNOTAPPLYTOYOU.

WHOMAYUSETHISWARRANTY?
BULL OUTDOOR PRODUCTS, INC. located at address 1011 East Pine St. Lodi, CA. 95240
("we") extend this limited warranty only tothe consumer who originally purchased the product ("you") at
the original site of delivery or installation. It does not extend to any subsequent owner or other transferee
of the product. It does not apply to products installed in any rental, commercial or non-residential
application. Examples ofexcluded applicationsinclude,butarenotlimitedtoday carecenters,schools,bed
and breakfast centers, churches, private clubs, fire stations, club houses, common areas in multi-family
dwellings, restaurants, hotels, nursing homes, food service locations and institutional food service
locations.
WHATDOESTHISWARRANTYCOVER?
This limited warranty covers defects in materials and workmanship of the product and product
components identified below for the Warranty Periods defined below.

WHATISTHEPERIODOFCOVERAGE?
This limited warranty starts on the date of your purchase and lasts for the time period or time periods
specified above (the "WarrantyPeriod"). The Warranty Period is not extended if we repair or replace
the product. We may change the availability of this limited warranty at our discretion, but any changes
will not be retroactive.




