Bullit NAV3500BT User manual

WS-163B ENGLISH
USER MANUAL
NAV3500BT

NAV3500BT ENGLISH
Copyright Information
©2008 Rho-Delta Automotive & Consumer Products BV. All rights reserved. This
document may not in whole or in part be reproduced, stored in a retrieval system,
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, or reduced to any electronic medium or machine-readable form
without prior consent, in writing, from Rho-Delta Automotive & Consumer Products BV.
NAV3500BT and Bullit are registered trademarks of Rho-Delta Automotive & Consumer
Products BV. The logo’s, standards, software, and/or product names mentioned herein
are manufacturer and publisher trademarks and are used only for the purpose of
identification.
Disclaimer
The publishers and author assume no responsibility whatsoever for the uses made of this
material or for decisions based on its use. Further, Rho-Delta Automotive & Consumer
Products BV makes no warranties, either expressed or implied, regarding the contents of
this product, its completeness, accuracy, merchantability, or fitness for any particular
purpose. Neither the publisher nor anyone else who has been involved with the creating,
production, or delivery of the material shall be liable for any reason. Rho-Delta
Automotive & Consumer Products BV may make improvements and/or changes in the
products and/or options described in this document at any time and without notice.
All brand and product names used throughout this document are trademarks or
registered trademarks of their respective companies. The brand and product names are
used in editorial fashion only and for the benefit of such companies. No such use, or the
use of any trade name, is intended to convey endorsement or other affiliation with the
document.
Product specifications are subject to change without prior notice
www.rhodelta.nl
WEEE (Waste Electrical and Electronic Equipment Directive)
If at any time in the future you should need to dispose of this product
please note that: Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
Disposing of the battery / batteries
Please check local regulations for disposal of batteries or call your local city office or your
household waste disposal service or the shop where you purchased the product.
The battery / batteries should never be placed in municipal waste. Use a battery disposal
facility in your neighborhood or community, if available.

NAV3500BT ENGLISH
Dear Customer,
Thank you for selecting our unit. In order for you to utilize this device and all its options, we
recommend that you read the corresponding instructions in this manual before the initial use of the
device, even if you’re familiar with handling electronic devices. Please pay particular attention to the
chapter “Important safety instructions”. Store this manual in a safe location for future reference. The
descriptions and features in this manual only serve as general information and do not represent a
guarantee. In order to offer you a product of the highest quality, we reserve the right to make possible
improvements or changes without prior notification.
Important safety instructions
Please read and strictly observe the following instructions!
The supplier waves any and all liability when these warnings are not followed:
- Never open the case of the car radio; it does not contain any serviceable parts! If the case is
open, there is a risk of fatality due to electric shock.
- Do not give your car radio and especially the accessories to children. Never let your children
use electrical devices without supervision. Children are not always able to recognize
potential hazards. Also keep the packaging films away from children. There is a danger of
suffocation.
- The car radio and the accompanying components may not be exposed to dripping or
sprayed water. Make sure that no containers filled with liquid, such as e.g. cups or bottles,
are placed in the vicinity of the device.
- Please familiarize yourself with the different functions of your device before you begin
driving. Excessively high volumes can pose a risk for you and other people in traffic.
Therefore always select the volume at such a level that environmental sounds (horns,
sirens, etc.) can still be perceived.
- Don’t use the car radio at an excessive volume. This poses a risk to your hearing.
- Please only perform lengthy changes of the device settings while the vehicle is parked. Your
concentration might be affected by the changes.
- To promote safety, certain functions are disabled unless the parking brake is on. The Unit is
designed to detect parked status and must be connected to the power supply side of the
parking brake switch. Improper connection or use of his connection may violate applicable law
and may result in serious injury or damage. To avoid the risk of damage and injury and the
potential violation of applicable laws, this unit is not for use with a video screen that is visible
to the driver.
- Only install the device in such a manner that safe driving is assured. To avoid the risk of
accident and the potential violation of applicable laws, the front Video image feature should
never be used while the vehicle is being driven. Also, other video displays should not be in a
location where it is a visible distraction to the driver. In some countries or states the viewing of
images on a display inside a vehicle even by persons other than the driver may be illegal.
Where such regulations apply, they must be obeyed and this unit’s DVD features should not
be used.
- Install the device in such a manner that it doesn't impede the driver and can't injure any of
the vehicle’s occupants in the event of emergency braking.
- Don’t flip the monitor mechanism by hand. This could damage the mechanics.
- The TFT color monitor consists of glass and liquid crystals. Don’t put any excessive pressure
on the monitor, since otherwise it might scratch, break, or sustain other damages. In addition,
the image quality might be impaired.
- Don’t touch the monitor surface with hard objects and only clean it with a soft, dry cloth and
special TFT cleaner.
- Don’t use the device for a longer period while the vehicle's engine isn't running. This could
drain the vehicle battery to the degree that the car can no longer be started. In addition, this
might reduce the lifespan of the battery.
- Don’t park your vehicle in direct sunlight for extended periods, otherwise the temperature in
the car’s interior could rise to the point that the device overheats and causes malfunctions. If
possible, cool the interior of the vehicle in order to ensure that the device will operate properly.
- Only let the device be installed by qualified vehicle technicians.

NAV3500BT ENGLISH
- Before the final installation of the device into a DIN insertion compartment in the dashboard,
connect the cables and test the connections.
- Only use the accessories included in the delivery. Usage of unauthorized components can
cause damages.
- If you need to drill holes or make other changes for the installation, consult a specialized
workshop in your area.
- This device is designed for a vehicle power supply of 12 V with the ground on the car body
(negative pole). Check the battery voltage before installing it into a camping vehicle, bus, or
truck.
- To avoid short circuits, the battery has to be disconnected before the installation.
- Read the guidelines in this handbook for the connection of the power supply and other
options.
- Secure the installed cables with insulating tape, cable ties, or cable clamps. To protect the
cables from damage, use insulating tape when guiding them past metal components. Place
and secure all cables in such a manner that they are not in the vicinity of movable parts, such
as e.g. the parking brake, gas/brake/coupling pedals, handle bars and seat tracks.
- Don’t place any cables in the vicinity of heat sources (e.g. near the heater ventilation), since
the insulation of the cables might get damaged and result in short circuits.
- Don’t short circuit any cables. This can result in damages to the vehicle and device.
- Never establish a power supply to other devices by removing the insulation of the device’s
power supply and connecting an additional cable. Otherwise, the maximum power rating of the
cable will be exceeded and there will be a danger of overheating.
- If you have to replace the fuse, only use an identical one with the same rating.
- The connected speakers have to be high-performance speakers with a minimum output of 40
W and an impedance ranging from 4 to 8 ohm. If you connect speakers with other output or
impedance ratings, the speakers may burn, smoke, or sustain other kinds of damage.
- When the device is turned on, a control signal adjoins the blue cable of the connection A5
(ISO plug A). You can connect this to the relay of the extendable vehicle antenna (max. 100
mA, 12 V=). If your vehicle has a wire antenna inside the windshield, connect the blue cable
A5 (ISO plug A) to the pre-amplifier of the antenna.
- If an external audio amplifier is connected to the device, the blue cable of connection A5 (ISO
plug A) may not be connected to the power supply of the amplifier. Likewise, you may not
connect it to the power supply of an active car antenna. This poses a risk of short circuits and
malfunctions.
- Insulate unused connection cables with insulating tape. The same applies to unused speaker
cables. Otherwise there is a risk of short circuits.
- Dirt or condensed moisture on the lens of the CD/DVD drive may impede and even prevent
the playback of data carriers.
- In general, the playback of self-burned data carriers is possible, but it depends on the used
software and the settings made with it, so that there may be problems during playback in
individual cases. You can receive further information from the manufacturer of your software.
- Additional CD data carriers can be played back just like audio CDs. It’s possible that CD-
R/CD-RW data carriers can’t be played back correctly if they were recorded by a device other
than an audio CD recorder.
- In addition, it may be the case that a data carrier (CD-R/CD-RW) recorded with an audio CD
recorder can’t be played back due to the conditional features, irregular formats, or soiling of
the data carriers.
- The information recorded on the data carrier (ID3TAG) is displayed by this device.
- After inserting a CD-RW data carrier, it takes a little longer for the playback to begin than with
regular CD or CD-R data carriers. Also read the guidelines on the sleeves of the CD-R/CD-
RW data carriers before you insert them.
- Do not turn on or off the product in short intervals. When turning the unit off, wait for at least
10 seconds prior to turning the unit on again. Do not operate the player with scratched,
bended or broken discs and when a disc is not loaded properly, do not force it into the player.
NOTE
- Please dispose empty batteries according the regulations in your country
- All On Screen Displays (OSD) and Pictures will be based on the English version.
- Design and Specifications may vary in the manual from the actual product in use.

NAV3500BT ENGLISH
TABLE OF CONTENTS
Important safety instructions ................................................................................................................... 2
PREPARATION BEFORE USING THE CAR RADIO NAV3500BT........................................................ 3
Unpacking and checking the contents ................................................................................................ 3
INSTALLATION / CONNECTION............................................................................................................ 4
DETACHABLE CONTROL PANEL ......................................................................................................... 5
Detaching the control panel ................................................................................................................ 5
Attaching the control panel.................................................................................................................. 5
ELECTRICAL CONNECTION ................................................................................................................. 6

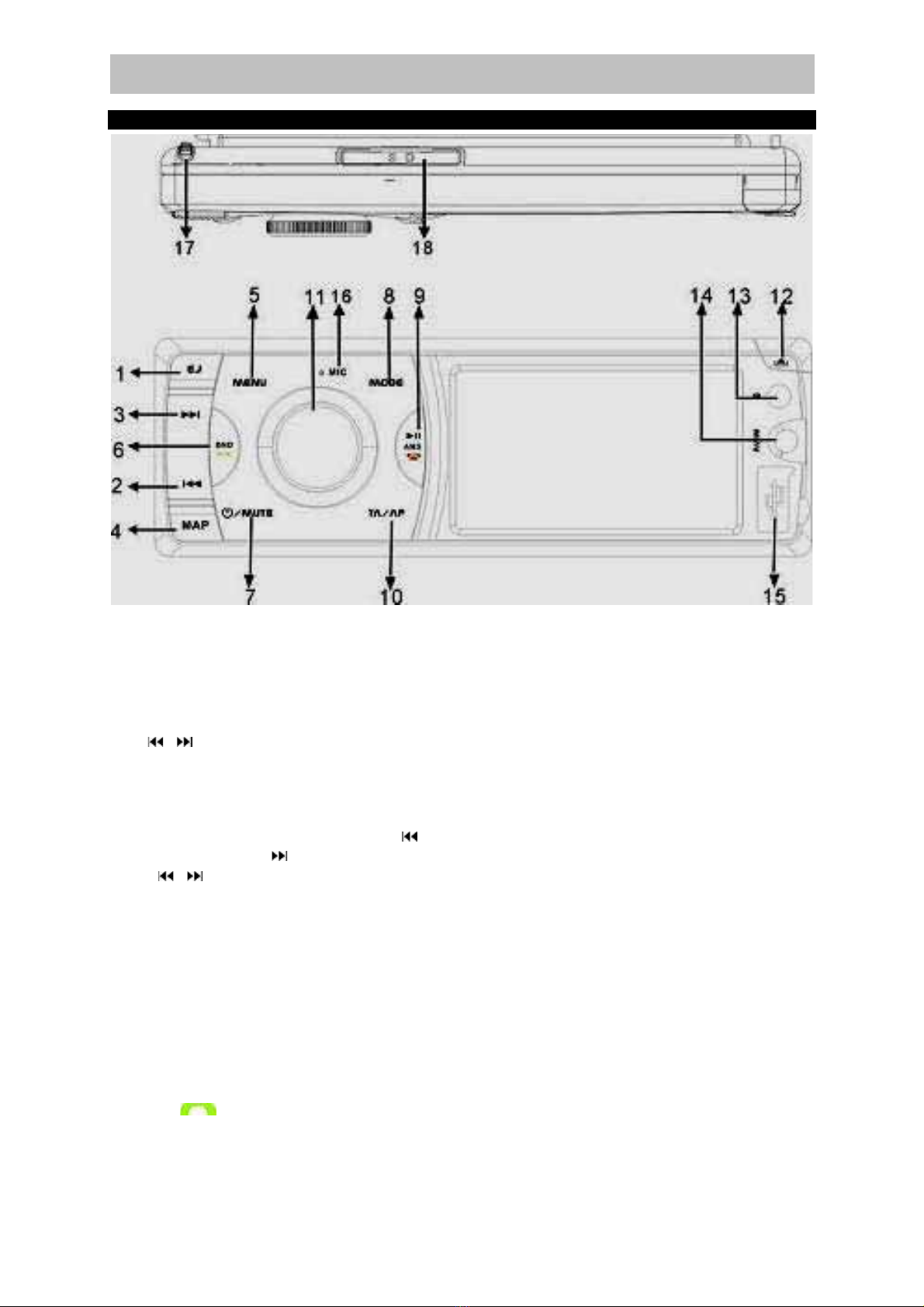

Front panel .............................................................................................................................................. 7
1. EJECT Button ............................................................................................................................. 7
2, 3. / Buttons......................................................................................................................... 7
4. MAP Button................................................................................................................................. 7
5. MENU Button.............................................................................................................................. 7
6. BND / Button...................................................................................................................... 7
7. POWER / MUTE Button.............................................................................................................. 8
8. MODE Button.............................................................................................................................. 8
9. / AMS / Button............................................................................................................... 8
10. TA / AF Button .......................................................................................................................... 8
11. VOL Knob / SEL Button ............................................................................................................ 8
12. OPEN Button ............................................................................................................................ 8
13. IR Sensor .................................................................................................................................. 8
14. AV-in Jack................................................................................................................................. 8
15. USB Jack .................................................................................................................................. 8
16. Built-in Microphone ................................................................................................................... 8
17. Stylus Slot ................................................................................................................................. 8
18. SD Card (with map) Slot ........................................................................................................... 8

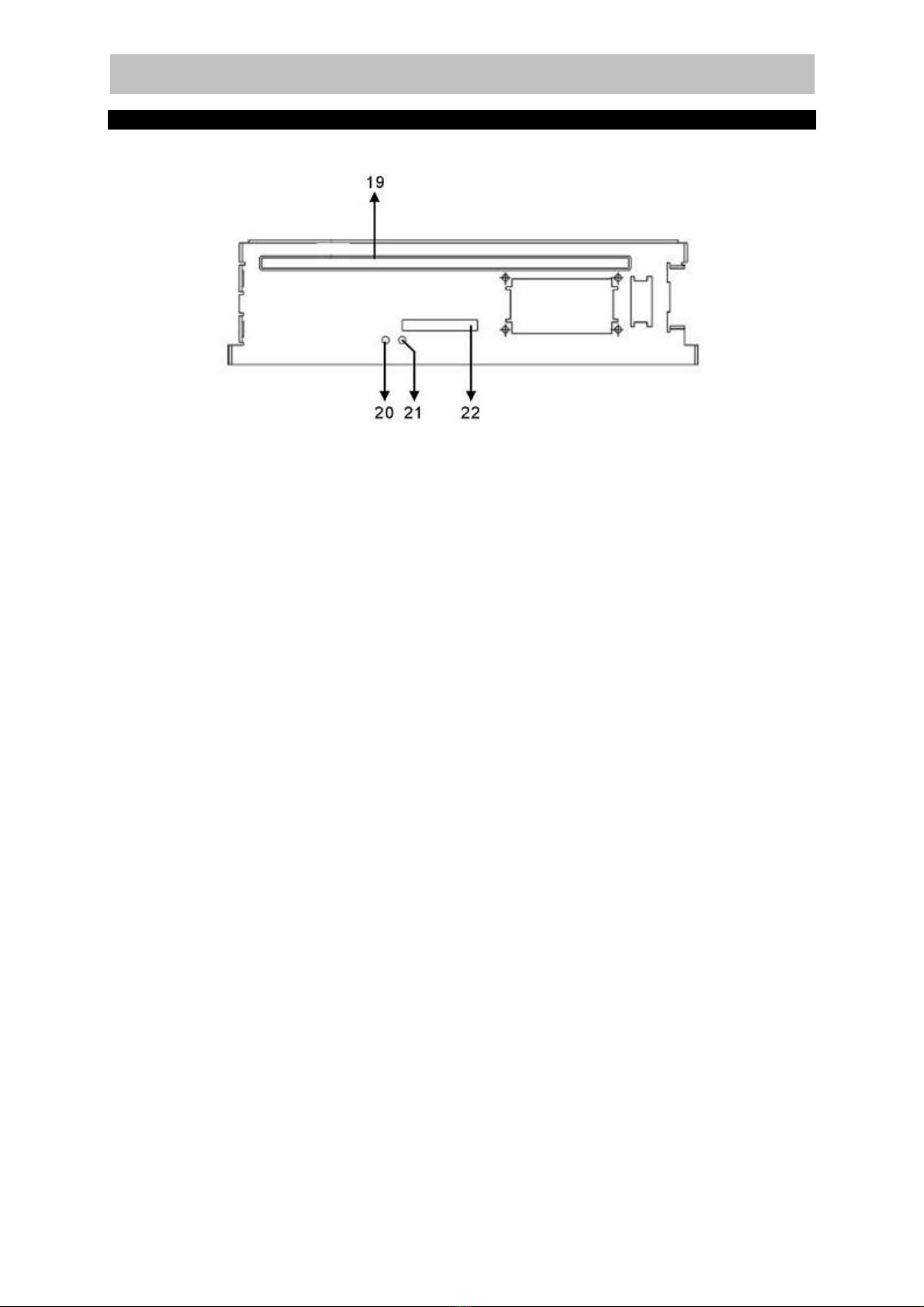

Inner panel............................................................................................................................................... 9
19. DISC Slot .................................................................................................................................. 9
20. RESET Button........................................................................................................................... 9
21. LED Indicator ............................................................................................................................ 9
22. Main SD/MMC Card Slot .......................................................................................................... 9

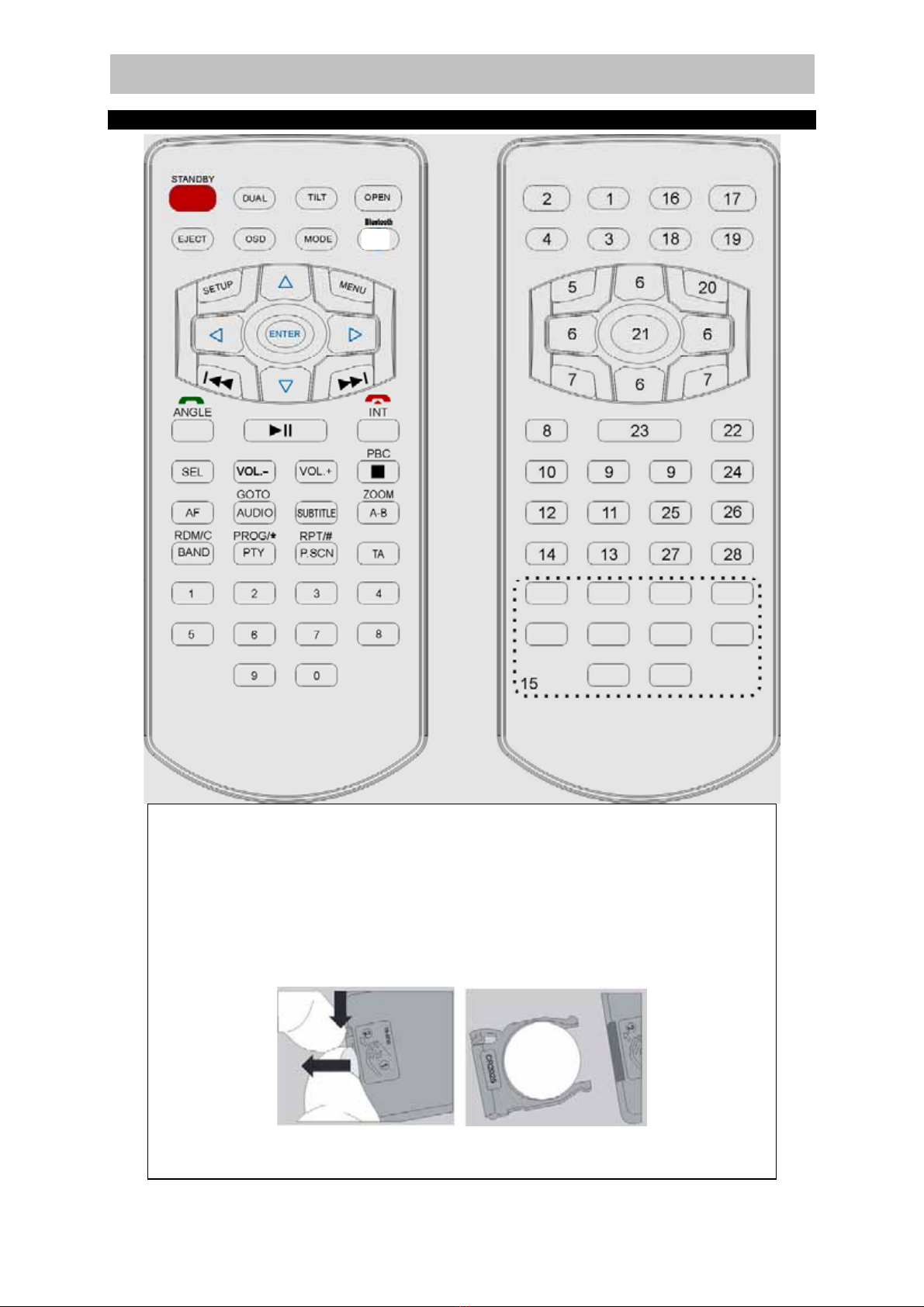

REMOTE CONTROL............................................................................................................................. 10
1. DUAL Button ............................................................................................................................. 11
2. STANDBY / MUTE Button ........................................................................................................ 11
3. OSD Button............................................................................................................................... 11
4. EJECT Button ........................................................................................................................... 11
5. SETUP Button........................................................................................................................... 11
6. Cursor / / / Buttons ................................................................................................ 11
7. /  Buttons ........................................................................................................................ 11
8. ANGLE / Button............................................................................................................... 11
9. VOL +/- Buttons ........................................................................................................................ 11
10. SEL Button.............................................................................................................................. 11
11. AUDIO/GOTO Button ............................................................................................................. 11
12. AF Button................................................................................................................................ 11
13. PROG/PTY/*/+ Button ............................................................................................................ 11
14. BAND/RDM/C Button.............................................................................................................. 12
15. Digit 0-9 Keys.......................................................................................................................... 12
16. TILT Button ............................................................................................................................. 12
17. OPEN Button .......................................................................................................................... 12
18. MODE Button.......................................................................................................................... 12
19. MUTE/ BLUETOOTH Button .................................................................................................. 12
20. MENU Button.......................................................................................................................... 12
21. ENTER Button ........................................................................................................................ 12
22. INT / Button.................................................................................................................... 12
23. Button................................................................................................................................. 13
24.  / PBC Button ........................................................................................................................ 13
25. SUBTITLE Button ................................................................................................................... 13
26. A-B/ ZOOM Button.................................................................................................................. 13

NAV3500BT ENGLISH
27. RPT/P.SCN/# Button .............................................................................................................. 13
28. TA Button ................................................................................................................................ 13
MAIN MENU .......................................................................................................................................... 14
BUTTON DISCRIPTION ................................................................................................................... 14
NAVIGATION .................................................................................................................................... 14
DVD PLAYER.................................................................................................................................... 14
TOUCH SCREEN MENU.................................................................................................................. 14
BUTTON DISCRIPTION IN DVD/SD/USB MODE............................................................................ 15
File Management .............................................................................................................................. 15

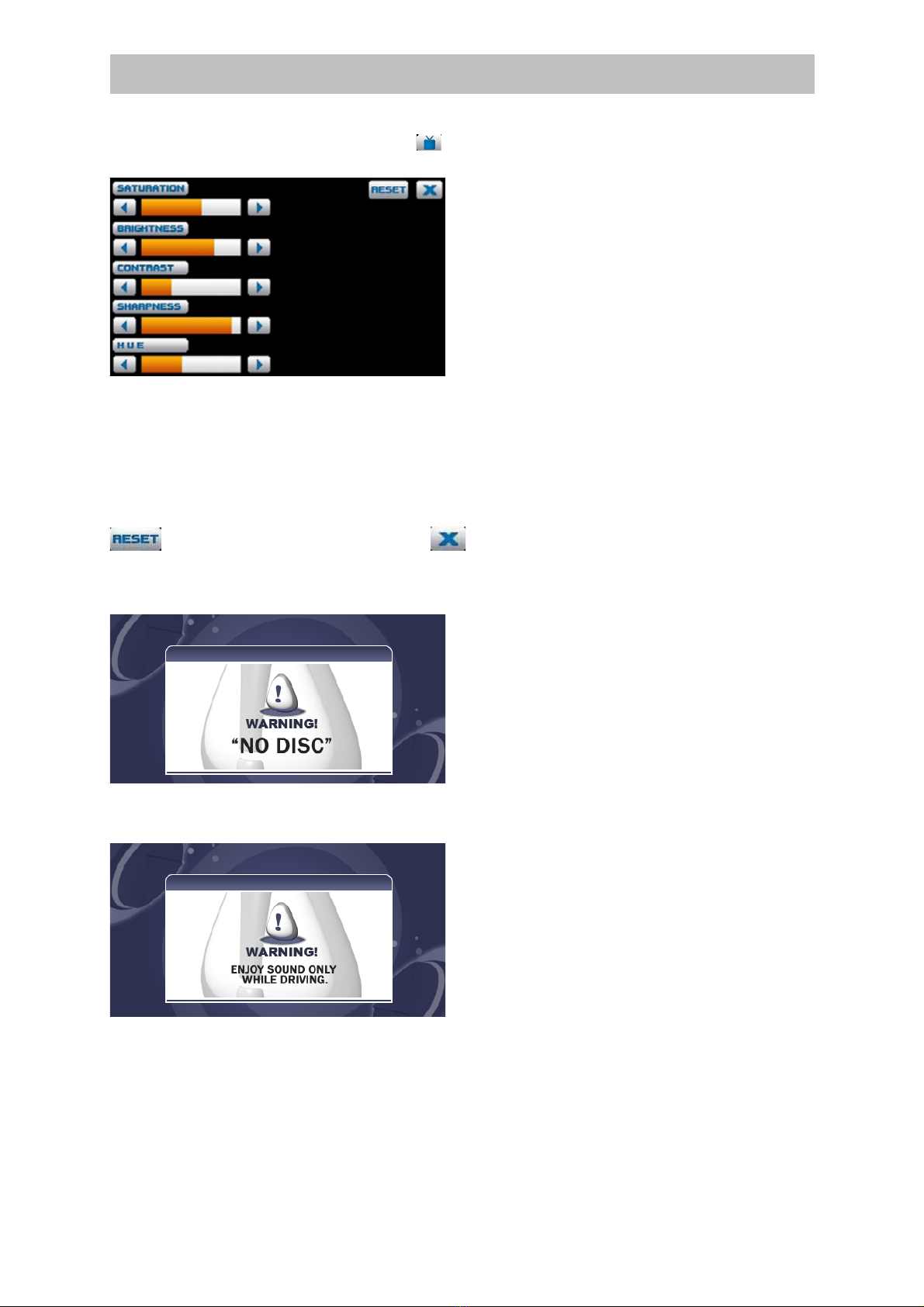

COLOR CONFIGURATION .............................................................................................................. 16
No Disk Warning ............................................................................................................................... 16
Drive Warning.................................................................................................................................... 16
RADIO PLAYER .................................................................................................................................... 17
RADIO BUTTON DISCRIPTION....................................................................................................... 17
AV-IN Mode ........................................................................................................................................... 17
Function description .......................................................................................................................... 17
BLUETOOTH SECTION........................................................................................................................ 18
BT Main Menu................................................................................................................................... 18
Pairing Mode ..................................................................................................................................... 18
Auto-connect - Disconnect ................................................................................................................ 19
BT PHONE BOOK ............................................................................................................................ 20
Call mode .......................................................................................................................................... 21
Voice Transfer................................................................................................................................... 22
Speed Dial Mode............................................................................................................................... 22
Call history mode .............................................................................................................................. 22
(A2DP) Music Mode .......................................................................................................................... 23
UTILITY............................................................................................................................................. 23
CALCULATOR .................................................................................................................................. 23
CALENDAR....................................................................................................................................... 24
SETTING CONTROL ............................................................................................................................ 24
SOUND CONTROL........................................................................................................................... 24
DISPLAY CONTROL ........................................................................................................................ 25
DATE&TIME CONTROL ................................................................................................................... 26
RDS &RADIO CONTROL ................................................................................................................. 26
TA...................................................................................................................................................... 27
EONTA .............................................................................................................................................. 27
REG................................................................................................................................................... 27
PI ....................................................................................................................................................... 27
SYSTEM INFORMATION ................................................................................................................. 28
CALIBRATION .................................................................................................................................. 28
DVD SET UP MENU ............................................................................................................................. 29
Language setup ................................................................................................................................ 29
Display setup..................................................................................................................................... 30
Audio setup ....................................................................................................................................... 30
Parental setup ................................................................................................................................... 30
Anti-theft system.................................................................................................................................... 31
Remove the panel ............................................................................................................................. 31
Handling discs ....................................................................................................................................... 31
Cleaning................................................................................................................................................. 31
Troubleshooting..................................................................................................................................... 32
SERVICE AND WARRANTY................................................................................................................. 32
TECHNICAL SPECIFICATIONS ........................................................................................................... 33

Page 3 of 35 pages
NAV3500BT ENGLISH
PREPARATION BEFORE USING THE CAR RADIO NAV3500BT
Unpacking and checking the contents
Please check if the following items and accessories are included in the received package:
Car Radio NAV3500BT
1x Mounting Bracket
1x Assemble Bar
1x Screw B15x16
4x Bolt M5
1x Nut M5
1x Flat washer
1x Spring washer
2x Unit ejection bars
This User Manual.
1x Protective Carrying
Case for detachable
front panel.
1x ISO Wire Cable
1x UNIT IR-Remote
Control with one
CR2025 3Volt cell
battery.
1x GPS Antenna
1x SD card
with Navigation

Page 4 of 35 pages
NAV3500BT ENGLISH
INSTALLATION / CONNECTION
First complete the electrical connections, and then check them for correctness.
Before start operation, take out the protection screws.
Installation opening
This unit can be installed in any dashboard having an opening as shown in the picture. The
dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.
1) Insert mounting collar into the dashboard, and bend the mounting tabs out with a
screwdriver. Make sure that lock lever is flush with the mounting collar (not projecting
outward).
2) Secure the rear of the unit. After fixing mounting bolt and power connector, fix the
rear of the unit to the car body by rubber cushion.
3) Insert trim plate. When you prepare to insert trim plate, please check its direction.
Once it is installed upside down, it cannot be removed and fixed.
IMPORTANT:
Remove these two
screws before
installation.
Otherwise, the DVD
Player will not work.
Lock lever

Page 5 of 35 pages
NAV3500BT ENGLISH
DETACHABLE CONTROL PANEL
Detaching the control panel
zTurn the Power off.
zPress OPEN button release the panel.
zPull the panel out.
Attaching the control panel
zInsert the left side of the control panel into the main unit.
zPress the control panel right side until the “click” sound is heard.
Caution:
DO NOT insert the control panel from the right side. It can damage the control panel.
The control panel can easily be damaged by shocks. After removing it, place it in a protective
case and be careful not to drop it or subject it to strong shocks.
The rear connector that connects the main unit and the control panel is an extremely
important part. Be careful not to damage it by pressing on it with fingernails, pens,
screwdrivers, etc.
Note:
If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab
soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Page 6 of 35 pages
NAV3500BT ENGLISH
ELECTRICAL CONNECTION
1) Audio Video Input
2) Audio Video output
3) Subwoofer Output (Blue)
4) ISO cable connection
5) Driver Safety wire
(Brown), has to be connected to
the parking brake or other suitable
components of the vehicle in such a
way that the video playback of the
device is interrupted for the driver
while the vehicle is in motion.
Please consider that your insurance
coverage may be restricted or
exempted otherwise. Please consult
a specialist in your area if you have
any questions about the
connections.
6) (PINK) Connection to the reverse
light to switch on the rear view
camera when the reverse gear is
put in
7) Line Output (front)
8) Line Output (rear)
9) GPS Antenna
10) Radio Antenna
Note on ISO-A Connector:
Depending on the manufacturer, the
contacts on your vehicle connection
may be assigned differently. This is
not a defect of the device but
caused by a deviating connector pin
assignment by the manufacturer of
your vehicle. To provide a
connection that conforms to this
device, please purchase an
appropriate adapter cable from a
specialized dealer if required.
Please consult a specialist in your
area if you have any questions
about the connections..
ISO CONNECTOR
RCA
CONNECTORS
Left = White
Right = Red
Yellow = Video
ISO-
A
A4 YELLOW (B+).Connection for
+12V operational voltage
(diameter at least 2.5 mm²) to
permanent plus of the vehicle.
A5 BLUE To system control
terminal of an external amplifier
or Automatic Antenna (max.
100mA / 12Vdc).
A7 RED ACC (+).Connection for
+12V trigger voltage. Connect
to ignition key of the vehicle. If
contacts A4 and A7 are
switched, the device will “forget”
the stored stations after the
ignition is turned off.
A8 GND. ( - / Ground) Attach the
connection for the ground
(diameter at least 2.5 mm) to
the ground of the vehicle.
ISO-B
FRONT SPEAKER
B3 Right + (Gray)
B4 Right – (Gray/Black)
B5 Left + (White)
B6 Left – (White/Black)
REAR SPEAKER
B1 Right + (Violet)
B2 Right – (Violet/Black)
B7 Left + (Green)
B8 Left – (Green/Black)

Page 7 of 35 pages
NAV3500BT ENGLISH
Front panel
1. EJECT Button
Press to flip the front panel down and eject the disc. If the disc is not removed for about 10
seconds after eject, the disc is reinserted automatically.
*When disc in/ out, put front panel at 0 degree to avoid distortion of disc.
2, 3. / Buttons
In Radio mode, press to search a previous / next station. Press and hold for two seconds to
start search a station manually, then press them to tune each frequency step upward or
downward.
In DVD / SD-MMC / USB mode, press button to restart a track, press it twice to skip to the
previous track; press button to skip to the next track.
Press / buttons and hold for two seconds to activate fast forward (FF) or fast reverse
(REW) search in a track.
4. MAP Button
Press to enter NAVIGATION mode.
Press and hold to tilt the front panel of position 1 or position 0.
5. MENU Button
Press to enter main menu.
Press and hold to activate/disable DUAL ZONE function. Press and Hold again to choose the
next Dual Zone mode.
6. BND / Button
In Radio mode, press to change radio band in sequence of FM1  FM2  FM3  AM1 
AM2.
In Bluetooth mode, press to make a call after inputted a phone number or accept a coming
call.

Page 8 of 35 pages
NAV3500BT ENGLISH
7. POWER / MUTE Button
Press to turn on the unit, press and hold to turn it off.
(* Press any button except OPEN&EJECT buttons to turn on the unit.)
Press to cut down the volume output, press it again to resume volume when the power is on.
8. MODE Button
Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB
device in the unit), CARD (if there is a SD/MMC card in the unit), AV IN, and BLUETOOTH (if
the connection is ok).
9. / AMS / Button
In Radio mode: Short press to scan all preset stations in the memory of the current band and
stay on each memory stations for about 5 seconds. Long press it to save the stations with
good reception automatically and scan each station for about 5 seconds
In DVD mode, press to pause / play. Press and hold to r. stop / stop, press again to play.
In BLUETOOTH mode, press to reject a coming call or hang up while calling.
10. TA / AF Button
Short press it to enable or disable TA mode.
Press and hold it for 2 seconds to enable or disable AF mode.
11. VOL Knob / SEL Button
VOL Knob: Adjust the volume level by turning the knob clockwise to increase or
counterclockwise to decrease.
SEL Button: Press and hold the knob for 2 seconds to enter SOUND SETTING menu.
Press / buttons to choose a setting page, Rotate the VOL knob to browse or adjust,
press to enter and confirm.”
12. OPEN Button
Press to detach the front panel.
13. IR Sensor
IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.
14. AV-in Jack
Receive signals by connecting to outside input device.
15. USB Jack
Insert a USB Flash Storage Device and music starts to play automatically. If there is no
music file, “NO FILES” is shown on LCD display.
* Support Music File Format: MP3, WMA Files
16. Built-in Microphone
Transfers your voice via Bluetooth during phone call.
17. Stylus Slot
Preserve a stylus in it. To insert or remove the stylus, press and hold MAP button to tilt the
front panel first.
You can use either fingertips or the stylus to tap on the touch screen.
18. SD Card (with map) Slot
To insert the NAVIGATION SD card (with map), press and hold MAP button to tilt the front
panel first.

Page 9 of 35 pages
NAV3500BT ENGLISH
Inner panel
Press EJECT button on the front panel first to show the inner panel, and there are SD/MMC
card slot, LED indicator and RESET button.
19. DISC Slot
20. RESET Button
In case the unit is malfunctioned or need to reset to factory default setting, press the RESET
button with clip or pin to restore the unit to the original factory settings.
21. LED Indicator
Red LED light will flicker if the front panel is detached.
22. Main SD/MMC Card Slot
To insert a SD card, press OPEN button to detach the front panel first.

Page 10 of 35 pages
NAV3500BT ENGLISH
REMOTE CONTROL
Changing the batter
y
1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing
upward. Insert the battery tray into the remote control.
Warning:
Store the battery where children cannot reach. If a child accidentally swallows the battery, consult
a doctor immediately. Do not recharge, short, disassemble or heat the battery or dispose it in fire.
Do not expose or bring into contact the battery with other metallic materials. Doing this may cause
the battery to give off heat, crack or start a fire. When throwing away or saving the battery, wrap it
in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.
+3V
(CR 2025)
MUTE

Page 11 of 35 pages
NAV3500BT ENGLISH
1. DUAL Button
Press to enable/disable Dual Zone function. Press again to choose the next Dual Zone
mode.
2. STANDBY / MUTE Button
Press to turn on the unit, press and hold to turn it off.
(* Press any button except OPEN&EJECT buttons to turn on the unit.)
3. OSD Button
Press it to show the current mode information on the display.
4. EJECT Button
Press to flip the front panel down and eject the disc. If the disc is not removed for about 10
seconds after eject, the disc is reinserted automatically.
*When disc in/ out, put front panel at 0 degree to avoid distortion of disc.
5. SETUP Button
In DVD mode, press to enter the DVD setup menu.
6. Cursor / / / Buttons
Press to browse and adjust.
7. /  Buttons
In RADIO mode, press to search a previous or next station automatically, press and hold for
two seconds to start search a station manually, then press them to tune each frequency step
upward or downward.
In DVD mode, press button to restart a track, press it twice to skip to the previous track,
and press button to skip to the next track. Press or button and hold to activate fast
forward (FF) or fast reverse (REW) search.
8. ANGLE / Button
In DVD mode, press repeatedly to change the viewing angle.
In Bluetooth mode, press to make a call after inputted a phone number or accept an
incoming call.
9. VOL +/- Buttons
Press to adjust volume level.
10. SEL Button
Press to enter the SOUND SETTING menu.
11. AUDIO/GOTO Button
In DVD mode, press repeatedly to select the audio language with DVD disc, press repeatedly
to select sound track: L-Mono=> R-Mono=> Mix Mono=> Stereo with VCD disc, press and
hold to go to the set chapter/track/time directly.
12. AF Button
In Radio mode, press to enable / disable AF function.
13. PROG/PTY/*/+ Button
Press this button to enter the program search menu and use the up/down/left/right cursor
buttons to select a position. Press a digit buttons to enter the number (To enter a number
larger than 9, e.g. 123: long press digit buttons 1, and long press 2, then short press 3.). For

Page 12 of 35 pages
NAV3500BT ENGLISH
DVD and File disc, select title and chapter number. For VCD and CD, select track number.
For a disc with mixed files, select folder and file number. Press the PLAY/ PAUSE button to
play, or move the cursor to select PLAY and press ENTER to play. If you want to delete the
list, move the cursor to CLEAR ALL, press ENTER to delete the entire list set before. Press
PROG/PTY again to exit program play.
PTY: In Radio mode press to activate the PTY function, press it repeatedly to show PTY
MUSIC group  PTY SPEECH group  PTY off, choose your intended PTY type by
pressing the icon in the touch screen or pressing the corresponding preset digit keys on the
remote control. When PTY search is on and the selected type matches, PTY information is
displayed. If the PTY code is different or not available, PTY NONE icon will blink. PTY
engaging is automatically exit to normal mode.
In BLUETOOTH mode, press and hold to make a */+ symbol in BLUETOOTH NUMBER
DIAL mode.
14. BAND/RDM/C Button
In Radio mode, press to change radio band.
In DVD mode, press to play randomly.
In BLUETOOTH mode, press to clear an inputted number or a saved number.
15. Digit 0-9 Keys
Digit 0-6- in radio mode, select the desired band; digit 0-9 in DVD mode, select track.
16. TILT Button
Press it to enter the monitor tilt angle adjustment mode.
Press it repeatedly to select the position: 0 => 1 => 2 => 3 => 4 => 5 =>6.
The monitor will flip down accordingly.
17. OPEN Button
Press it to open the monitor.
18. MODE Button
Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB
device in the unit), CARD (if there is a SD/MMC card in the unit), AV IN, BLUETOOTH (if the
connection is ok)
19. MUTE/ BLUETOOTH Button
MUTE: Short press this button to mute the volume output, press it again to resume volume.
Bluetooth mode: When Bluetooth is connected with a mobile phone, long press this button to
enter into the Bluetooth mode. When Bluetooth is in standby mode (disconnected), long
press it to start searching and connecting the last paired phone automatically.”
20. MENU Button
Press it to show main menu, in DVD mode, long press it to enter TITLE MENU (Enabled only
if the DVD disc is with title menu).
21. ENTER Button
Press it to confirm setting.
22. INT / Button
Press it to activate the intro function.
Press to reject a call or hang up while calling only if the BLUETOOTH is connected.

Page 13 of 35 pages
NAV3500BT ENGLISH
23. Button
In DVD mode press it to start playback.
Press during playback to pause it. Press again to resume.
24.  / PBC Button
Press to R.STOP, press it again to final stop playback. In VCD mode, press it and hold for 2
seconds to set PBC on/ off.
25. SUBTITLE Button
Press it to select the subtitle language.
26. A-B/ ZOOM Button
Press it to start repeating of the A-B fragment.
Press it and hold for 2 seconds to zoom the image in or out.
27. RPT/P.SCN/# Button
In CD mode, press to repeat track/disc; In DVD mode, press to start repeat file/repeat all
playing, press and hold for two seconds to start repeat folder playing; In VCD mode when
PBC is off, press to repeat track/off, long press it to repeat disc.
In Radio mode:
PS (Preset Scan): Press to scan all preset stations in the memory of the current band and
stay on each memory stations for about 5 seconds.
AS (Auto Save): Long press to save the stations with good reception automatically and scan
each station for about 5 seconds.
In Bluetooth mode: Press to make a # symbol.
28. TA Button
Press it to activate the TA function, press and hold for two seconds to choose EON
LOCAL/EON DX.

Page 14 of 35 pages
NAV3500BT ENGLISH
MAIN MENU
The best way to discover the program is to explore each screen in detail, and to find out how
to move from one to another. Read this chapter for a guided tour.
Unit starts by displaying the Main menu.
This is the root of the screen hierarchy, and you can simply access all features by tapping on
the touch screen buttons.
Tap / buttons on touch screen to change pages, then tap the icons to enter a
desired mode.
BUTTON DISCRIPTION
BUTTON FEATURE BUTTON FE
A
TURE
Start GPS Navigation Start DVD Player
Start RADIO Player AV-IN Display Mode
Enter BLUETOOTH
Mode Enter Setting
Enter Utility Control Enter Setting
NAVIGATION
To start GPS Navigation, tap on NAVI button from main menu screen.
Note: Insert SD card with map into the SD card slot of the front panel before
tapping NAVI button. The device will warn you if SD card with map is not properly
inserted into the SD card slot of the front panel.
NOTE: Navigation is explain in the Digital Manual, which is located on the SD card. You can
read the extensive manual with a PDF viewer on your PC
DVD PLAYER
To start DVD Player, tap on DVD button from main menu screen.
TOUCH SCREEN MENU
You will not see any buttons while DVD is played. Buttons will appear when you tap on LCD
screen. Tap the screen again to hide the buttons.

Page 15 of 35 pages
NAV3500BT ENGLISH
BUTTON DISCRIPTION IN DVD/SD/USB MODE
BUTTON FUNCTION
Start Navigation
Start Voice guide only while DVD mode
Color Setting
Read/Play files in USB memory
Play files from Disc
Read/Play files in main SD card**
Quit DVD Player
Press button to restart a track, press it twice
to skip to the previous track. Press button to
skip to the next track.
Press or button and hold for two seconds
to activate fast forward (FF) or fast reverse
(REW) search in a track.
Pause/Play
Stop
Navigate by using arrows and press
button to enter or start selected.
NOTE
1. DVD Player will automatically start playing when you insert any DVD disc, SD card or
USB device.
2. Warning displays if the vehicle is moving for driver's safety.
3. DVD Player will not only play video, but also picture and music files as well.
File Management
DVD mode plays files in a) Disc b) USB c) SD card (in main SD card slot on inner panel).
**IMPORTANT**
SD card inserted into front panel will not be played by DVD player.
Front panel SD slot only supports SD card for NAVIGATION.
Only SD card in main SD slots will be accessed by DVD player, and the picture or music files
will be also played by DVD player.

Page 16 of 35 pages
NAV3500BT ENGLISH
COLOR CONFIGURATION
You can set color preference by tapping button.
BUTTON DISCRIPTION
SATURATION: Adjust level of screen saturation
BRIGHTNESS: Adjust level of screen Brightness
CONTRAST: Adjust level of screen Contrast
SHARPNESS: Adjust level of screen Sharpness
HUE: Adjust level of screen Hue
: Reset to default setting : Exit Color configuration menu
No Disk Warning
No Disc Warning displays when disc, SD card, or USB is not detected.
Drive Warning
Enjoy sound only warning displays while vehicle is moving for driver’s safety.
