Bunker360 BNK-MOV01 User manual
MoviKit(Children GPS Phone)
User Manual
(Version 1.3)
1Appearanceandaccessories

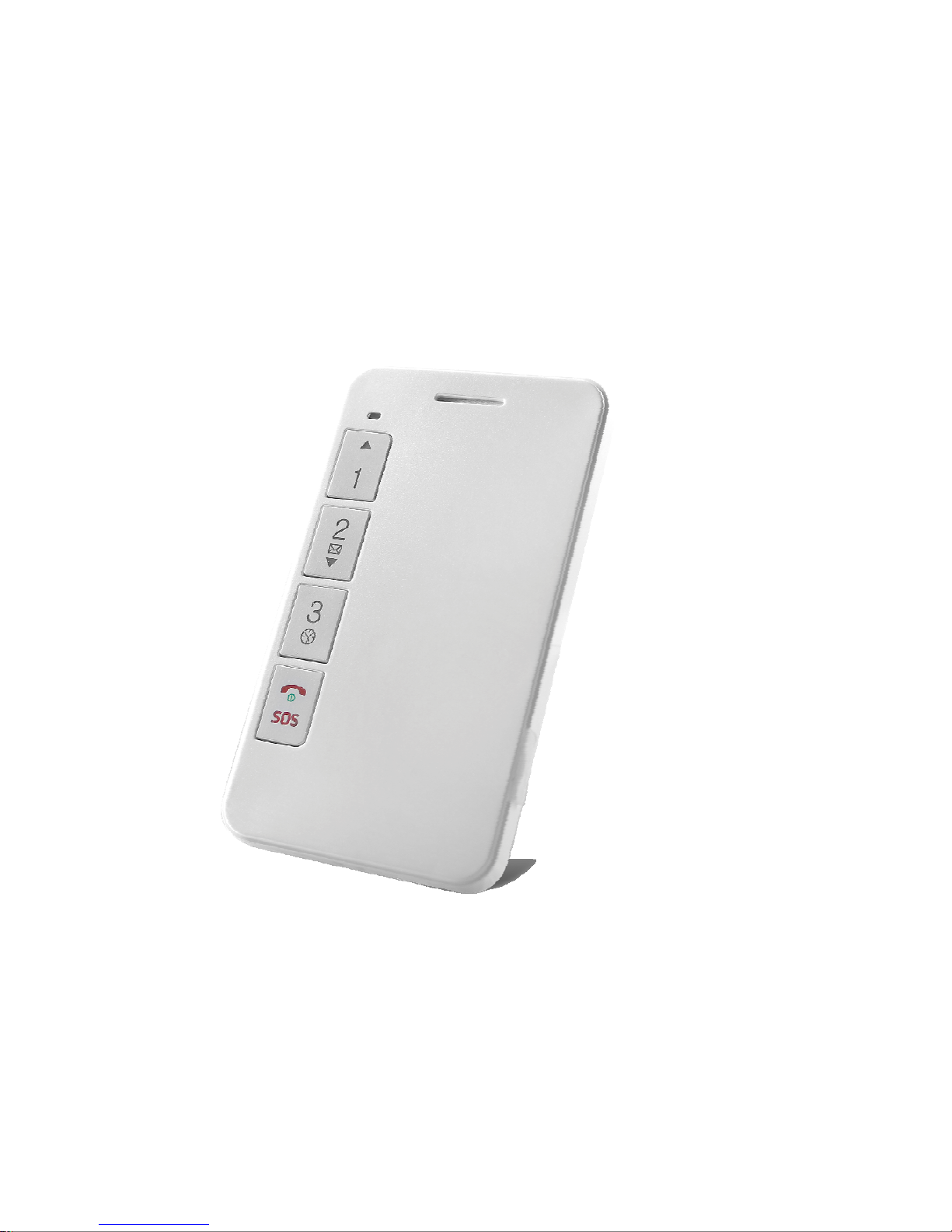

1.1 Appearance
1.2 Accessories
1.3 Quickstart
1.4 LEDindicator
StatueGreen–GSMBlue–GPSRed–
Power
Purple–MissedSMS/Calls
DarkNointernet/NoSIMcard
Flashing(every
1second)
GSMisonSearchingfor
GPSsignal
LowbatteryMissedSMS/calls
BrightGPRSisconnectedGPSislocatedCharging
Indicatedorder:
(1)Nointernet/NoSIMcard
(2)MissedSMS/calls
(3)Lowbattery/GPSisworking
(4)GPRSisconnected
(5)GSMison
2Functionofbuttons
ButtonFunction
FamilyNumber1Longpressfor2secondstocallthefamilynumber1onthestandby.
Whensomeonecalls,pleasepressthisbuttontoanswerit.
FamilyNumber2Longpressfor2secondstocallthefamilynumber2onthestandby.
Whensomeonecalls,leasepressthisbuttontoanswerit.
FamilyNumber3Longpressfor2secondstocallthefamilynumber3onthestandby.
Whensomeonecalls,pleasepressthisbuttontoanswerit.
SOSButtonWhenthedeviceisoff,longpresstoturniton.
Instandbymode,longpressingthebuttonwillcallthepre‐setSOSnumbers
inturnsforthreetimesuntilthecallispickedup.
Duringphonecalls,shortpresstohangup.
Duringringtonesetting,whentheringtoneisplaying,shortpresstostop.
PowerOffThedevicecanonlybeturnedoffwhentherestrictedpowerofffunctionis
off.
NOTE:
(1)Instandbymode,longpressanyFamilyNumberstodialtherelativenumber;
(2)WhenFamilynumberscallin,shortpressanyFamilyNumberbuttonstoanswerthephone
call;
(3)Duringphonecalls,longpressfamilynumberscanswitchbetweenreceiverandspeaker.
3Beforeuse
3.1 Checktheaccessories
Afteropenthebox,pleasecheckwhethertheaccessoriesarecomplete.Ifthereisanything
missing,pleasecontactyoursupplier.
3.2 Operatingenvironment
Thedeviceshouldbeoperatedinthetemperatureof 0℃‐40℃andinthehumidityof45℃
‐85℃. ThedeviceshouldbeusedawayfromTV,computer,telephoneandotheroffice
equipment;otherwisethecommunicationmaybeinfluenced.
3.3 Battery
WhentheredLEDlightisflashing,itmeansthebatteryislowandneededtobecharge.The
standbytimeprovidedbyyoursupplierisbasedonanidealenvironment,forreferenceonly.The
realstandbyorworkingtimevariesfromtheoperatingenvironmentandinternetstatue.
3.4 Charging
(1)Connectthewallchargerwiththechargingcable;
(2)Opentherubberplugofthedockconnectorandconnectitwiththechargingcable;
(3)Thechargingprocesswilltake3to4hours.Inthemeanwhile,itisnormalthatthebatteryand
thedevicewillbecomehot;
(4)Thedevicecanstillbeworkingduringcharging;
NOTE:Itisnormalthattheindicatorwilllightupafterfewsecondsifthedeviceshutsdown
becausethebatteryrunsout.
Warning:Pleasechargeinaventilatedplacewiththetemperatureof0℃‐40℃andusestandard
chargerprovidedbyyoursupplier.Thedamagecausedbyinappropriatechargerwillbeagainst
ourwarranty.
3.5 SIMcard
(1)TurnoffthedevicebeforeyouinsertortakeouryourSIMcard;
(2)Openthefrontcoverofthedevice;
(3)InserttheSIMcardintheSIMcardslotwiththemetalpartfacingdown.
NOTE:PleaseuseaSIMcardwithGSMnetwork,GPRSandcallerIDfunction.
Warning:PleaseturnoffthedevicebeforeyouinsetortakeoutyourSIMcard.Itisforbiddento
doitwithexternalpowerconnected;otherwiseyourSIMcardmaybedamaged.
4Parametersetting
4.1 SetAPN
PleasesendSMScommandtothenumberofdevicesoastosetuptheAPNparameter.The
devicewillreply“OK”automaticallyaftersettingsuccessfully.TheSMScommandisasfollows:
APN,APN’sname#
E.g.APN,internet#
NOTE:TheAPNofsomecountrieshaveusernameandpassword,youmayneedtosendSMS
commandasfollowing:
APN,APN’sname,username,password#
E.g.APN,internet,CLIENTE,AMENA#
4.2 AddSOSNumber
4.2.1 AddSOSnumberViaSMScommand
SendSMScommand:SOS,A,number1,number2,number3#(Ameansaddnumber).
Youcouldset3SOSnumbersinmaximum.Ifsetsuccessfully,theterminalwillreply“ok”.
e.g.SOS,A,13510****60,135116****6,136126****8#(setall3SOSnumbers)
SOS,A,13510****60#(setthefirstSOSnumber)
SOS,A,,135116****6#(setthesecondSOSnumber)
SOS,A,,,136126****8#(setthethirdSOSnumber)
4.2.2 DeleteSOSNumbersViaSMScommand
SendSMScommand:SOS,D,1,2,3#(DmeansdeleteSOSnumber)
e.g.SOS,D,1#meansdeletethefirstnumber
SOS,D,3#meansdeletethethirdnumber
Ifyoudonotknowthesequencenumber,youcanalsodeletethenumberbySMScommandlike
this:SOS,D,number#
e.g.SOS,D,13527852360#meansdeletethisSOSnumberdirectly.
Itwillreply“OK”ifthenumberisdeletedsuccessfully.
4.2.3 AddSOSnumbersviaplatform
YoucansetSOSnumberviatheplatformafteractivatingtheterminal.
4.3 SetFamilyNumbers
4.3.1 Add/deleteFamilyNumbersviaSMScommand
FamilynumberscanonlybeaddedordeletedbythecommandssentbySOSnumbers.
(1)AddthreeFamilyNumbers
SendSMScommand:FN,A,Name1,PhoneNumber1,Name2,PhoneNumber2,Name3,Phone
Number3#(Ameansaddnumbers)
e.g.FN,A,Dad,13510***360,Mom,1351***85136,Grandma,1352****9982#
(2)AddoneFamilyNumber
ToaddthefirstFamilyNumber,sendSMScommand:FN,A,Name1,PhoneNumber1#
e.g.FN,A,Dad,13510***360#
ToaddthefirstFamilyNumber,sendSMScommand:FN,A,,Name2,PhoneNumber2#
e.g.FN,A,,Mom,1351***85136#
ToaddthethirdFamilyNumber,sendSMScommand:FN,A,,,Name3,PhoneNumber3#
e.g.FN,A,,,Grandma,1352****9982#
(3)DeleteFamilyNumbersviaSMS
SendSMScommand:FN,D,1,2,3#(Dmeansdeletethenumber)
1,2,3meanssequencenumbers
OR
SendSMScommand:FN,D,PhoneNumber#
4.3.2 Add/deleteFamilyNumbersviaplatform
YoucansetSOSnumbersviatheplatformwhentheterminalconnectstotheplatform.
4.4 CallFamilyNumbers
LongpressFamilyNumberbuttonscancallpresetnumbers.ShortpressSOSbuttoncanhangoff
thecall.
NOTE:Whenthepeopleyoucallpickupthephone,theterminalwillvibrateslightly.
4.5 Answerphonecalls
Whencallscome,itwillringorvibrateaccordingtothesettings.
ThebuttonwilllightupwhenrelevantFamilyNumberscallin.IfthecallscomefromtheWhite
List,button1,2and3willlightup.
4.6 WhiteList
Toavoidthesituationwherestudentsmightbeinterfered,15WhiteListnumberscanbeseton
platform.
4.7 Antidisturbmode(offasdefault)
Thedevicehasanti‐disturbfunctionanditsdefaultstateisoff.
Itcanbescheduledtobeoffinclasshour.Whenthedeviceisinoffstate,noonecancallin.
OffDay:Schoolday,Saturday,Sunday
8Periodcanbeset.
4.8 Lowbatteryalarm
SOSnumberwillreceivelowbatteryalarmwhenthedeviceisrunningoutofbattery.
4.9 Callremindermode
Therearethreemodesofcallreminder:ringtone/vibration/ringtoneandvibration.Itcanbeset
bysendingSMS:CALLMODE,0/1/2#(0meansringtone;1meansvibration;2meansringtoneand
vibration).
e.g.CALLMODE,1#meansthedevicewillvibratewhencallscomein.
NOTE:10ringtonescanbesetonplatform.
4.10 PowerOffLimitedfunction
Sendcommand:PWRLIMIT,ON#toturnonthefunction;
PWRLIMIT,OFF#toturnoffthefunction.
NOTE:OnlycanSOSnumberturnon/offthefunction.Thefunctioncanalsobeturnedon/offon
platform.
5SOSalarm
LongpressSOSbuttonfor3secondscanactivateGPS.Thedevicewillvibratetwiceanddial
pre‐setSOSnumbersinturnsforthreetimesuntiloneofthemanswers.Inthemeanwhile,itwill
sendlocationtoSOSnumbers.
NOTE:SOSnumbershouldbeset.
6GPSworkingperiod
Iftheworkingperiodisset,GPSwillworkduringthepre‐setperiod.Iftheworkingperiodisnot
set,itwillnotuploadGPSdata.Itisrecommendedtosetworkingperiodonthetimeafter
classes.
NOTE:Workingperiodshouldbesetonplatform.
7Checklocation
7.1 Checkbycalls
SOSnumberscallthedeviceandhangupafter5secondswillactivateGPS.ItwilluploadGPSdata
totheplatformandsendlocationinformationtoSOSnumbers.ThelongestGPSsearchingtimeis
5minutes.
7.2 CheckbySMS
SOSnumberssendcommand:WHERE#tocheckthecoordinates.Thedevicewillreply
coordinatesinformation.
e.g.Lat:N22.571285,Lon:E113.877115,Course:42.20,Speed:0.0740,DateTime:10‐11‐2322:28:51
IfGPSisnotlocatedatall,thedevicewillreplyafter5mins:“NODATA!”
SOSnumberssendcommand:URL#
IfGPSislocated,itwillreplygooglelinkofthelatestlongitudeandlatitude:
e.g.Googlelinkreply
<DateTime:10‐11‐2323:42:51>http://maps.oogle.com/maps?q=N22.571490,E113.877103
IfGPShasneverbeenlocatedbefore,itwillreply“NODATA!”after5mins.
8Voicemonitor
WhenSOSnumbersendsmonitorcommand:MONITOR#totheterminal,theterminalwillreply
“OK”andcalltheSOSnumber.Afterthecallconnected,theterminalwillentermonitorcondition.
TheSOSnumbercanhearthesoundaroundtheterminal.
9Geo‐fence(Offasdefault)
Logintheplatformtosetthegeo‐fence.Whenthedeviceisleavingorenteringapre‐setarea,it
willsendalarmtopre‐setfamilynumber.
10 Appendix
10.1 Batterysecurity
Pleaseusetheoriginalbattery.Thewarrantywillbeinvalidbyusinganyother
accessory.Themanufacturerwillnottakeanyresponsibilityforanydamage
causedbynotusingtheoriginalbattery.
Thenewbatterycanrealizetheoptimalperformanceafterfully‐chargingfor2
or3times.
Thebatterycanbeusedforhundredsoftimes,yetitwillwearouteventually.
Whenitstalkingtimeandstandbytimeshrinkssharply,youneedanewone.
Cutoffpowersupplywhennotusingthecharger.Don’tchargethebatteryfor
morethanoneweek,sinceoverchargingwillreduceitsusingtime.
Donotshort‐circuitthebatterywithmetalstuff(suchasthekeyinyourpocket)
Donotbendoropenthebattery.
Donotputthebatteryintowaterorfire.
Thebatteryshouldneverbechargedattemperaturebelow0degreesor
above45degreesCelsius.
10.2 Troubleshooting
CommonproblemsCausesSolutions
Badreception
Radiowavescannotcommunicate
withdevicewhenitisusedina
badsignalarea,likebasementor
spacebesidestallbuilding.
Replacethefuse
CannottalkinCall‐intensive
period.
Devicefailstoswitch
onNopower
Callsfailtoget
through
Havenotsetupthefamily
numberforthatkey.
Devicefailsconnect
tothenetwork
SIMcardinstalledincorrectlyChecktheSIMcard
ThesheetmentalofSIMcardis
dustyWipewithacleanwiper.
InvalidSIMcardContactyourinternetservice
provider
OutofGSMserviceareaMovebacktotheGSMservice
coveredarea.
WeaksignalTryagaininastrongsignalarea
Devicefailstobe
charged
Voltageisoutofchargingrangeof
charger.Changetothepropervoltage
Usenon‐standardchargerUsechargerthatcomewiththe
package
PoorcontactCheckiftheplugisin.
Failtochecklocation
information
SIMcarddoesnotsupportGPRS
functions
PleasecontactSIMcardsellservice
toactivateGPRSfunctions
Reply“notreceivingdata,please
tryagain”allthetime
Pleasecontactwithyour
distributorsorsellingservices
Cannotcheckwithnonepreset
familynumbers
Pleasesetyourphonenumberas
familynumber
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types BNK-MOV01 (FCC ID: 2AG9H-BNKMOV01) has also been
tested against this SAR limit. The highest reported SAR values for head,
body-worn accessory are 0.45 W/kg, 0.23 W/kg respectively. This device was
tested for typical body-worn operations with the back of the handset kept
10mm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 10mm separation distance
between the user's body and the back of the handset. The use of belt clips,
holsters and similar accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these requirements may
not comply with FCC RF exposure requirements, and should be avoided.
This device can be used as normal mobile phone, it is a portable device, the
users can take phones by it and used near body.
Table of contents
