Bunn FMD-2 Instruction Manual

BUNN
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: [phone] FAX: [phone]
28365.0000 12/01 ©1998 Bunn-O-Matic Corporation
FMD-2
FMD-3
(prior to S/N FMD0013000)
HOT
LIQUID
RELEASE BUTTON WHEN CUP IS 2/3 FULL
PLACE
CUPHEREPLACE
CUPHERE
PLACE
CUPHERE
!WARNING
PUSHandHOLDBUTTONUNTIL CUPIS 2/3 FULL, THENRELEASE

2
WARRANTY
Bunn-O-MaticCorp.(“Bunn”)warrantstheequipmentmanufacturedbyittobecommerciallyfreefromdefects
in material and workmanship existing at the time of manufacture and appearing within one year from the date of
installation. In addition:
1.)Bunnwarrantselectroniccircuitand/orcontrolboardstobecommerciallyfreefromdefectsinmaterialand
workmanship for two years from the date of installation.
2.)Bunnwarrantsthecompressoronrefrigerationequipmenttobecommerciallyfreefromdefectsinmaterial
and workmanship for two years from the date of installation.
3.)Bunnwarrantsthatthegrindingburrsoncoffeegrindingequipmentwillgrindcoffeetomeetoriginalfactory
screensieveanalysisforthreeyearsfromdateofinstallationorfor30,000poundsofcoffee,whichevercomesfirst.
Thiswarrantydoesnotapplytoanyequipment,componentorpartthatwasnotmanufacturedbyBunnorthat,
inBunn’sjudgement,hasbeenaffectedbymisuse,neglect,alteration,improperinstallationoroperation,improper
maintenance or repair, damage or casualty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITYORFITNESS FORAPARTICULARPURPOSE. Theagents,dealersoremployeesofBunnare
not authorized to make modifications to this warranty or to make additional warranties that are binding on Bunn.
Accordingly,statementsbysuchindividuals,whetheroralorwritten,donotconstitutewarrantiesandshouldnot
be relied upon.
The Buyer shall give Bunn prompt notice of any claim to be made under this warranty by telephone at (217)
529-6601orbywritingtoPostOfficeBox3227,Springfield,Illinois,62708-3227.IfrequestedbyBunn,theBuyer
shall ship the defective equipment prepaid to an authorized Bunn service location. If Bunn determines, in its sole
discretion,that the equipmentdoesnot conformtothe warranty, Bunnshallrepair theequipmentwithno charge
forpartsduringthewarrantyperiodandno charge for labor by a Bunn Authorized Service Representative during
the warranty period. If Bunn determines that repair is not feasible, Bunn shall, at its sole option, replace the
equipment or refund the purchase price for the equipment.
THEBUYER’SREMEDYAGAINSTBUNNFORTHEBREACHOFANYOBLIGATIONARISINGOUTOFTHESALE
OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AS
SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND.
InnoeventshallBunnbeliableforanyotherdamageorloss,including,butnotlimitedto,lostprofits,lostsales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
28365 051200

TABLE OF CONTENTS
TITLE PAGENO.

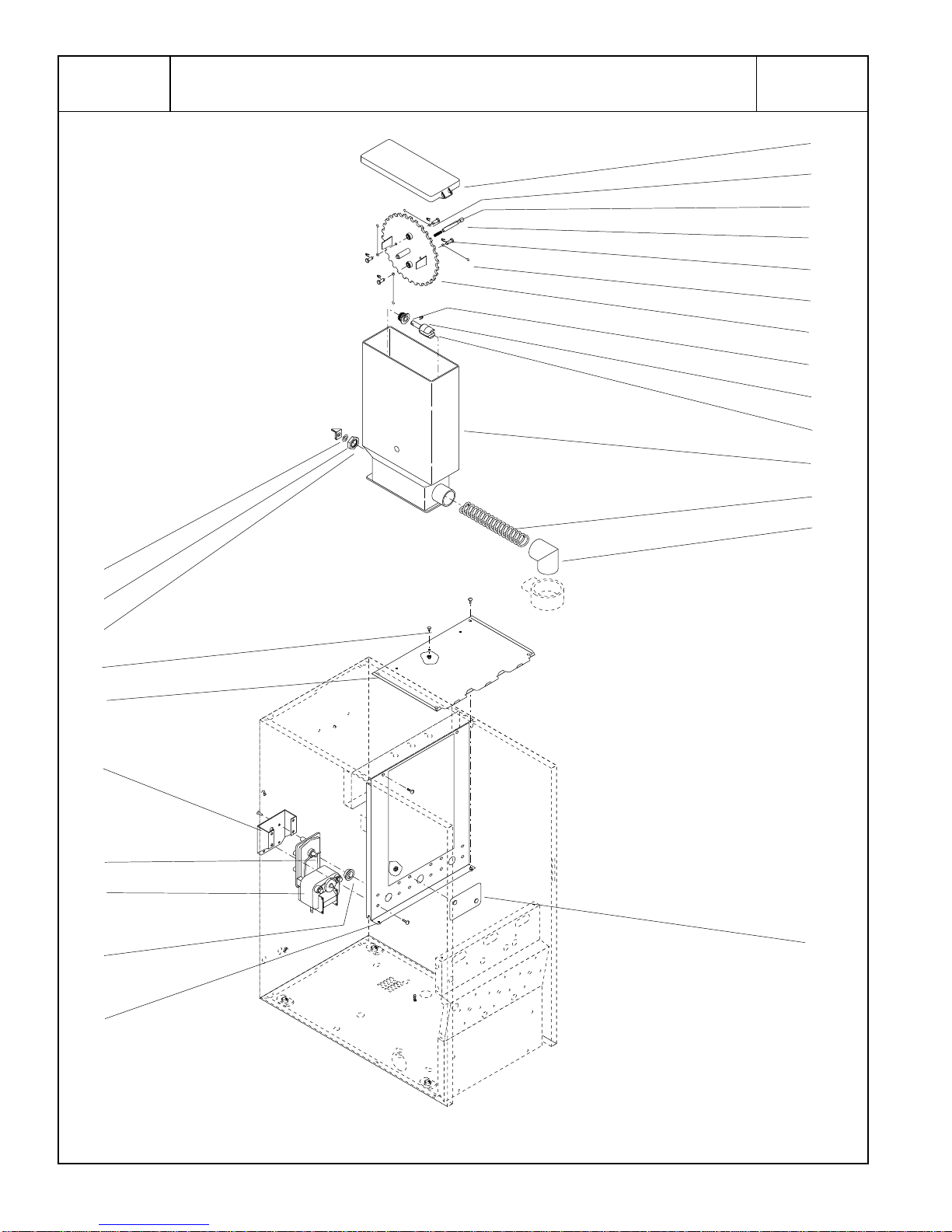

Auger Drive and Hopper Assembly..............................................................................................................................................10
Covers, Panels and Drip Tray.........................................................................................................................................................4
Dispense Valves and Lines ..........................................................................................................................................................18
Door, Lamp, Dispense Switches and Panels..................................................................................................................................8

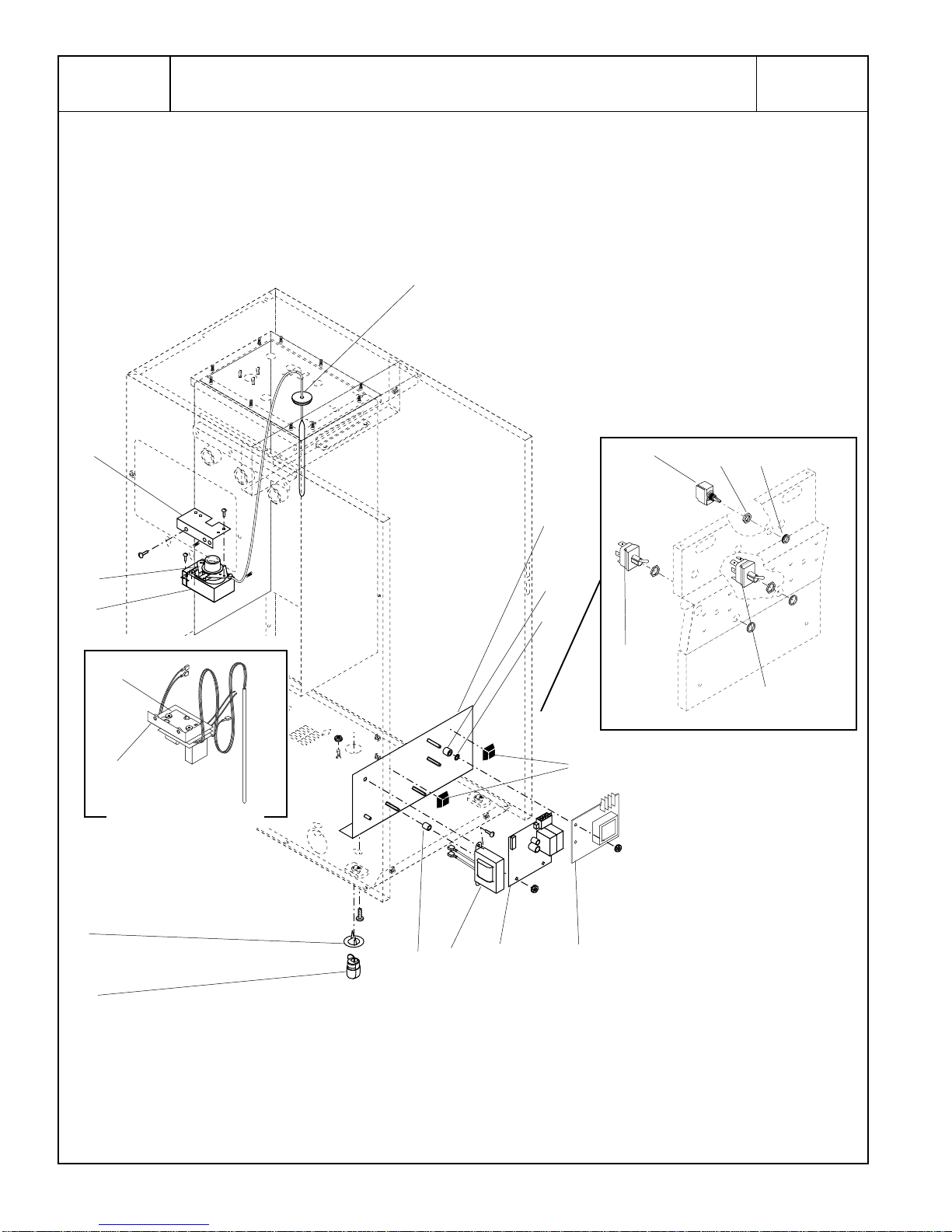

Electrical Controls........................................................................................................................................................................20

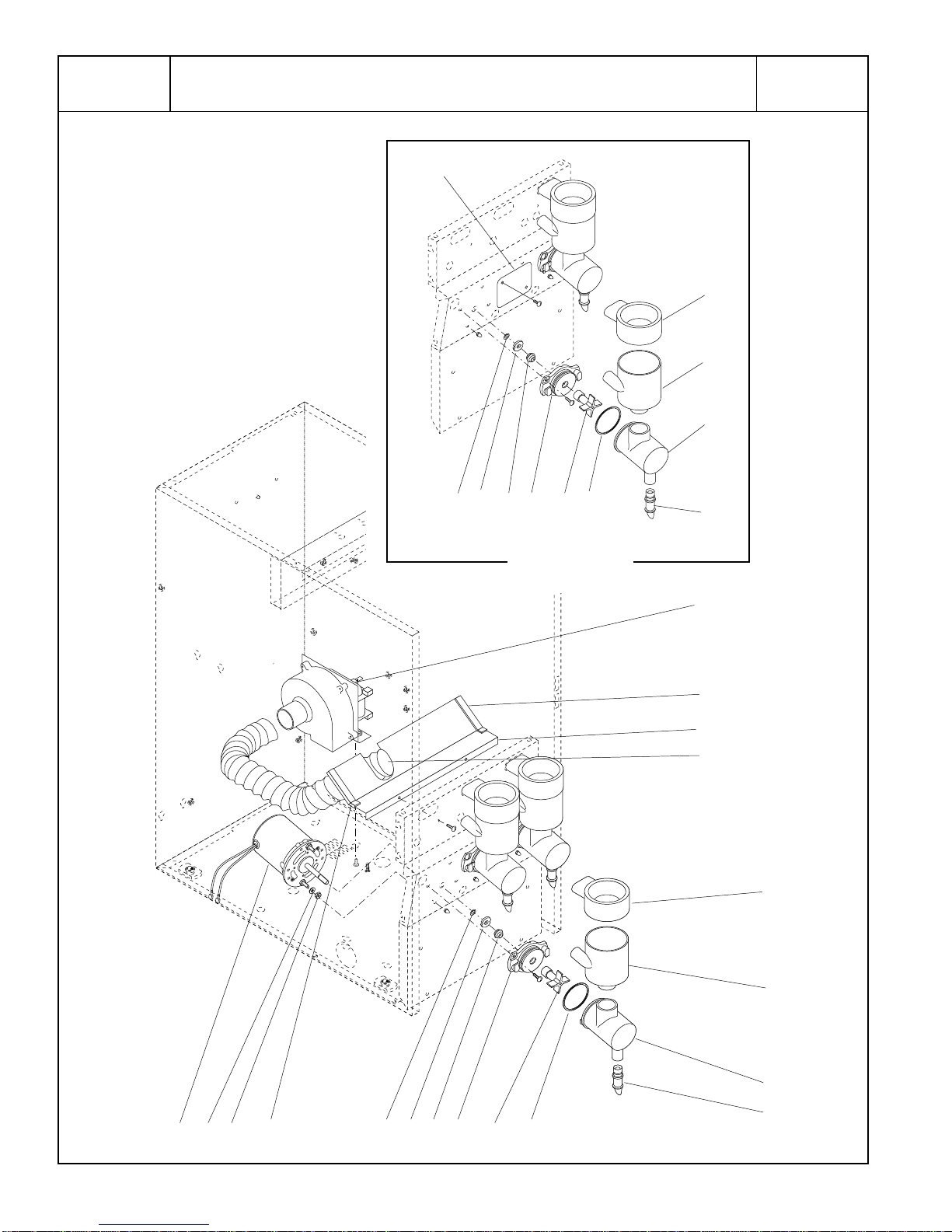

Mixing/Whipper Chambers and Drive Motor ...............................................................................................................................12
Numerical Index ..........................................................................................................................................................................24

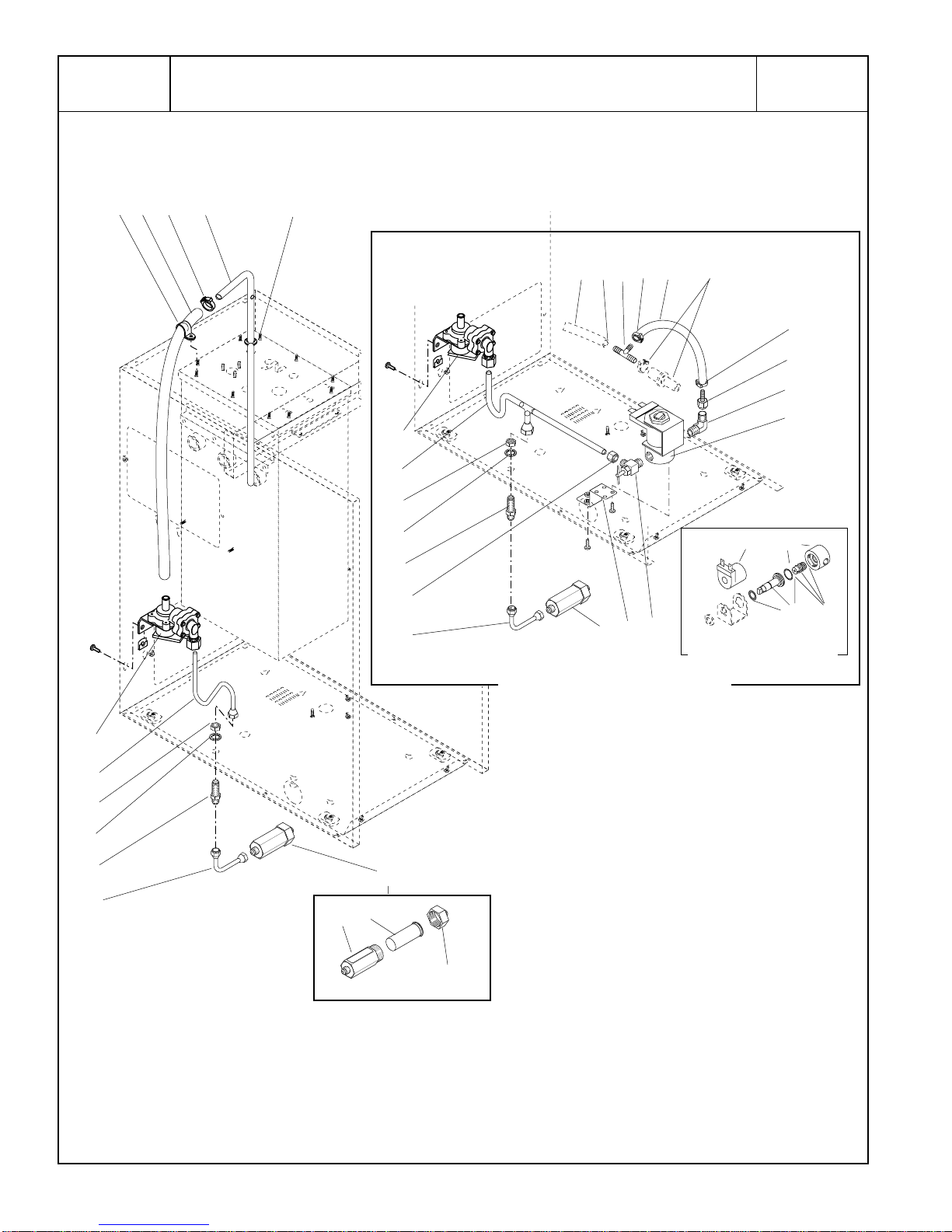

Strainer, Solenoid, Fill Valve and Lines ........................................................................................................................................16

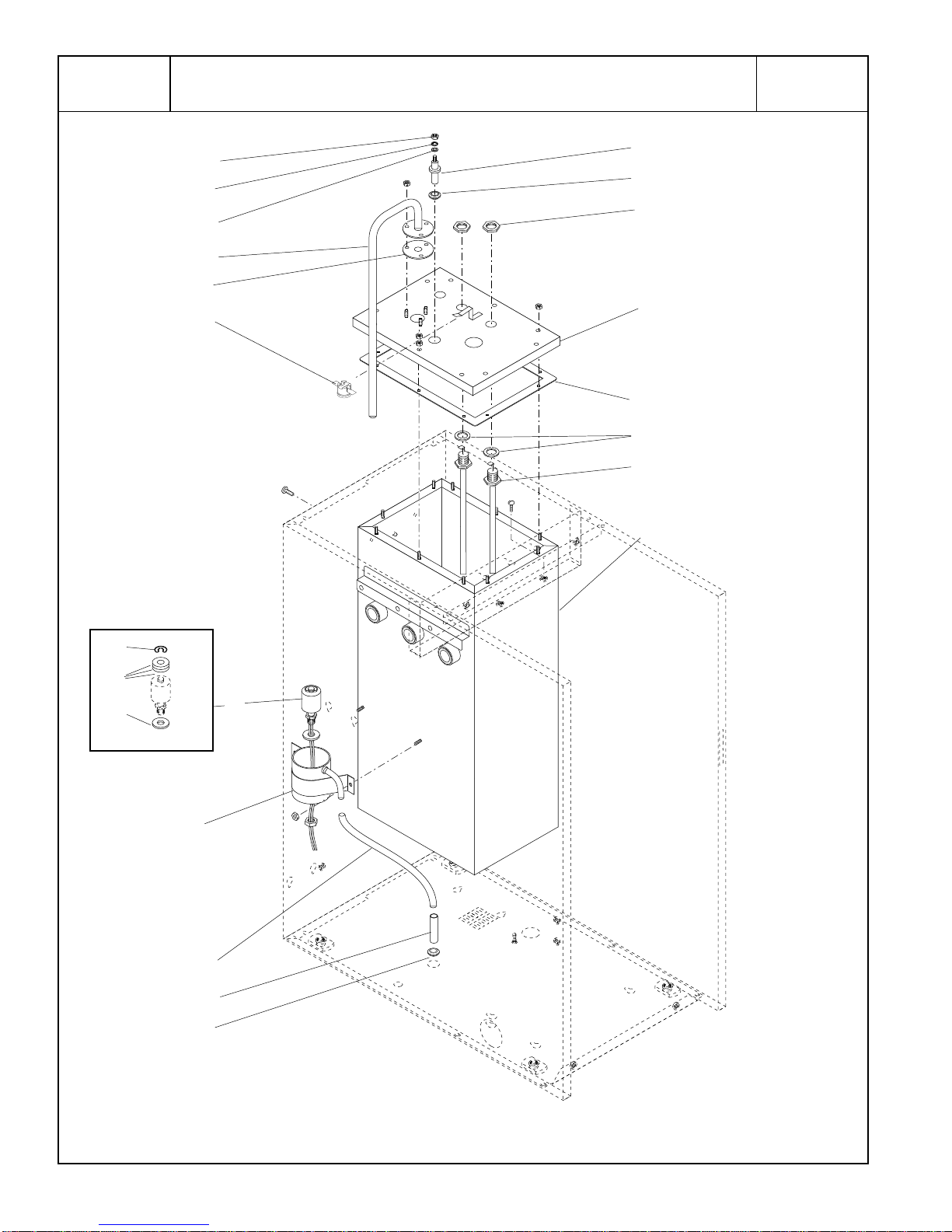

Tank, Heater and Overflow Protection..........................................................................................................................................14
328365 051200

4
BUNN
®FMD-2
FMD-3
COVERS, PANELS AND DRIP TRAY
RED/WHI
FLUORESCENT
LAMP
BALLAST
SOL
DISPENSE
M
WHIPPER
M
HOPPER
RUN/RINSESWITCH
WHI
WHI WHI REDWHI/RED
WHI
WHI/RED
SOL
LEFTDISPENSE
M
RIGHTWHIPPER
M
RIGHTHOPPER
SOL
RIGHTDISPENSE
M
LEFTWHIPPER
M
LEFTHOPPER
M
CENTERHOPPER
M
CENTERWHIPPER
SOL
CENTERDISPENSE
WHI
WHI/VIOWHI/VIOWHI/VIO WHI
WHI
WHI
WHI
WHI
WHI
ORAORAORA
RED
RED
WHI/VIO
ORA
WHI
TAN
WHI/VIO
ORA
RED
RED
WHI
TAN
WHI
RED
RED
JUMPERPLUGMUSTBE
USEDWHENCOLD
DRINKFEATURENOT
INSTALLED
RED
SOL
HOT/COLDSWITCH
WHI/YEL
RED
RED
TAN
WHI
COLDDRINKOPTION(LEFT ONLY)
BLK-16
120VOLTSA C - 2 WIRE OR
120/208-240VOLTSAC - 3WIRE
SINGLEPHASE, 60HZ
28341.0000A10/97 ©1997 BUNN-O-MATICCORPORATION
SCHEMATICWIRING DIAGRAM PDS-1,PDS-2,& PDS-3
GRN
L1 NL2
LIMIT
THERMOSTAT
BLK-16
TANKHEATER
RED-16(3-WIRE MODELS)
WHI-16(2-WIRE MODELS)
BLK-16
SOL
TANKINLET
BLK
WHI
WHI
BLU
PROBE
1
4
3
2
LIQUID
LEVEL
BOARD
VIO
WHI
PNK-20
RED RED
OVERFLOWSWITCH
FAN
HEATERSW.
THERMOSTAT
BLK-16
1
2
3
4
5
6
7
8
BLK
RED
WHI/VIO
ORA
WHI
HOPPER
DELAY
BLK WHI WHI
WHI
BLK
BLK
WHI
RED
BLU
STARTER
BLK
BLK
BLU RED
RED/BLK
BLK
BLK
RED
BLK
BLK
RED
RED/BLK
RED/WHI
BLU
WHI
BLK
BLK
BLK
WHI
DISPENSESWITCH
(RIGHT,MODELSPDS-2& PDS-3)
DISPENSESWITCH
(CENTER,MODELPDS-3ONLY)
DISPENSESWITCH
(LEFT,MODELSPDS-2& PDS-3)
(ALSOPDS-1 SWITCH)
BLK
BLK
BLK
1
141
1
4
PDS1Components
PDS2&PDS3Components
(CENTERCOMPONENTSELIMINATEDONPDS-2)
GRY
GRY
GRY WHI
GRY
GRY
GRY
GRY
CHASSIS
DOOR
GRN
200°F190°F180°F
HOT
LIQUID
RELEASEBUTTONWHENCUPIS2/3FULL
PLACE
CUPHEREPLACE
CUPHERE
PLACE
CUPHERE
!WARNING
2 1 3
4 26 5
6
7
8
10
9
11 12 13 14 15
19 17 18 16
23 22 21 20
24 25
1
P1437.28
27
27
10
28
28365 051200

ITEM PART NO. QTY. DESCRIPTION
5
1 26504.0000 4 Hinge
02308.0000 12 Screw, Pan Head #8-32 x .375"
2 28299.0000 1 Cover, Top Rear - BLK
28671.0000 1 Cover, Top Rear - SST
02308.0000 2 Screw, Pan Head #8-32 x .375"
3 28204.0000 1 Cover, Top Front - BLK
28670.0000 1 Cover, Top Front - SST
4 28209.1000 1 Housing W/Decals - BLK (Includes items 24 & 25)
28661.1000 1 Housing W/Decals - SST (Includes items 24 & 25)
5 28269.0001 1 Panel, Right
01311.0001 4 Screw, Truss Head - Locking #8-32 x .25"
6 28270.0000 1 Panel, Whipper Motor Mounting (Also order items 7, 8, 9 - dispensers w/out cold
water option & 28 dispensers w/cold water option)
00991.0000 6 Nut, Elastic Lock #8-32
7 26524.0000 1 Decal, Tank Heater Switch
8 26523.0000 1 Decal, Rinse/Run Switch
9 00619.0010 1 Plug, Hole .437" Dia (Not used on dispensers w/cold water option)
10 -------------- 2 Gasket, Foam W/Adhesive 10.1" LG (Order item 29)
11 28283.0000 1 Panel, Lower Front Access
01311.0000 2 Screw, Truss Head #8-32 x .25"
12 28436.0000 1 Panel W/Decal, Splash (Includes item 13)(FMD-3 Models)
28436.0001 1 Panel W/Decal, Splash (Includes item 13)(FMD-2 Models)
01311.0000 2 Screw, Truss Head #8-32 x .25"
13 28328.0000 1 Decal, Caution-Hot Liquid & Cup Placement (FMD-3 Models)(Shown)
28328.0003 1 Decal, Caution-Hot Liquid & Cup Placement (FMD-2 Models)
14 28267.0000 1 Cover, Drip Tray
15 28268.0000 1 Drip Tray Assembly
16 28269.0000 1 Panel, Left
01311.0001 4 Screw, Truss Head - Locking #8-32 x .25"
17 26528.0000 4 Leg, 4.0" Adjustable (Also see item 30)
18 03996.0000 4 Pad, Rubber 1.25" Dia. (Also see item 30)
19 23164.0002 1 Plug, Hole 1.50" Dia. - BLK
00619.0011 1 Plug, Hole 1.50" Dia - SST
20 28206.0000 1 Cover, Left Side Access - BLK (Also order item 21)
28668.0000 1 Cover, Left Side Access - SST (Also order item 21)
01311.0003 2 Screw, Truss Head - BLK #8-32 x .25"
01311.0000 2 Screw, Truss Head - SST #8-32 x .25"
21 28368.0000 1 Decal, Thermostat Adjustment
COVERS, PANELS AND DRIP TRAY
(Continued)
28365 051200

6
BUNN
®FMD-2
FMD-3
COVERS, PANELS AND DRIP TRAY
(Continued)
RED/WHI
FLUORESCENT
LAMP
BALLAST
SOL
DISPENSE
M
WHIPPER
M
HOPPER
RUN/RINSESWITCH
WHI
WHI WHI REDWHI/RED
WHI
WHI/RED
SOL
LEFTDISPENSE
M
RIGHTWHIPPER
M
RIGHTHOPPER
SOL
RIGHTDISPENSE
M
LEFTWHIPPER
M
LEFTHOPPER
M
CENTERHOPPER
M
CENTERWHIPPER
SOL
CENTERDISPENSE
WHI
WHI/VIOWHI/VIOWHI/VIO WHI
WHI
WHI
WHI
WHI
WHI
ORAORAORA
RED
RED
WHI/VIO
ORA
WHI
TAN
WHI/VIO
ORA
RED
RED
WHI
TAN
WHI
RED
RED
JUMPERPLUGMUSTBE
USEDWHENCOLD
DRINKFEATURENOT
INSTALLED
RED
SOL
HOT/COLDSWITCH
WHI/YEL
RED
RED
TAN
WHI
COLDDRINKOPTION(LEFT ONLY)
BLK-16
120VOLTSA C - 2 WIRE OR
120/208-240VOLTSAC - 3WIRE
SINGLEPHASE, 60HZ
28341.0000A10/97 ©1997 BUNN-O-MATICCORPORATION
SCHEMATICWIRING DIAGRAM PDS-1,PDS-2,& PDS-3
GRN
L1 NL2
LIMIT
THERMOSTAT
BLK-16
TANKHEATER
RED-16(3-WIRE MODELS)
WHI-16(2-WIRE MODELS)
BLK-16
SOL
TANKINLET
BLK
WHI
WHI
BLU
PROBE
1
4
3
2
LIQUID
LEVEL
BOARD
VIO
WHI
PNK-20
RED RED
OVERFLOWSWITCH
FAN
HEATERSW.
THERMOSTAT
BLK-16
1
2
3
4
5
6
7
8
BLK
RED
WHI/VIO
ORA
WHI
HOPPER
DELAY
BLK WHI WHI
WHI
BLK
BLK
WHI
RED
BLU
STARTER
BLK
BLK
BLU RED
RED/BLK
BLK
BLK
RED
BLK
BLK
RED
RED/BLK
RED/WHI
BLU
WHI
BLK
BLK
BLK
WHI
DISPENSESWITCH
(RIGHT,MODELSPDS-2& PDS-3)
DISPENSESWITCH
(CENTER,MODELPDS-3ONLY)
DISPENSESWITCH
(LEFT,MODELSPDS-2& PDS-3)
(ALSOPDS-1 SWITCH)
BLK
BLK
BLK
1
141
1
4
PDS1Components
PDS2&PDS3Components
(CENTERCOMPONENTSELIMINATEDONPDS-2)
GRY
GRY
GRY WHI
GRY
GRY
GRY
GRY
CHASSIS
DOOR
GRN
200°F190°F180°F
HOT
LIQUID
RELEASEBUTTONWHENCUPIS2/3FULL
PLACE
CUPHEREPLACE
CUPHERE
PLACE
CUPHERE
!WARNING
2 1 3
4 26 5
6
7
8
10
9
11 12 13 14 15
19 17 18 16
23 22 21 20
24 25
1
P1437.28
27
27
10
28
28365 051200

ITEM PART NO. QTY. DESCRIPTION
7
COVERS, PANELS AND DRIP TRAY
22 28435.0000 1 Cover, Rear Access - BLK (Includes item 23)
28684.0000 1 Cover, Rear Access - SST (Includes item 23)
01311.0003 2 Screw, Truss Head - BLK #8-32 x .25"
01311.0000 2 Screw, Truss Head - SST #8-32 x .25"
23 28341.0000 1 Schematic, 120V, 120/208V & 120/240V
24 00831.0000 1 Decal, Warning-Electrical
25 00656.0000 1 Decal, Comply to Plumbing Code
26 21436.0000 2 Catch, Magnetic
27 01311.0001 4 Screw, Truss Head - Locking #8-32 x .375"
28 26522.0000 1 Decal - HOT/COLD (Models w/cold water option)
29 28366.1000 - Gasket, Foam W/Adhesive - 12" LG
28366.1001 - Gasket, Foam W/Adhesive - 36" LG
28366.1002 - Gasket, Foam W/Adhesive - 120" LG
30 13255.0003 - Kit, Leg 4.0" Adjustable (Includes 4 each of items 17 & 18)
Not
Illustrated
28365 051200

8
BUNN
®FMD-2
FMD-3
DOOR, LAMP, DISPENSE SWITCHES AND PANELS
PUSH and HOLD BUTTON UNTIL CUP IS 2/3 FULL, THEN RELEASE
14 15 10 13 12
1 2 3 4 5
16
8
11
7
9 13 6
P1438.40
17
18
28365 051200

ITEM PART NO. QTY. DESCRIPTION
9
1 28147.1000 1 Door W/Decal (Includes items 2 and 18)(FMD-3 Models)
28147.1002 1 Door W/Decal (Includes items 2 and 18)(FMD-2 Models)
01390.0000 4 Screw, Round Head #8-32 x .625"
01522.0000 4 Washer, Flat .203 I.D. x .50 O.D."
00991.0000 4 Nut, Elastic Stop #8-32
2 28301.0000 1 Decal, Door Front (FMD-3 Models)
28301.0002 1 Decal, Door Front (FMD-2 Models)
3 28284.0001 1 Window, Door - Inside
02336.0000 2 Screw, Truss Head #4-40 x .375"
4 28362.0000 1 Display, Graphics (Cafe Scene)
5 28284.0000 1 Window, Door - Outside
6 -------------- 1 Hinge, Door (See Covers, Panels and Drip Tray)
7 26892.0000 1 Plate, Strain Relief
8 26444.0000 2 Bushing, Strain Relief
9 28325.0000 1 Socket W/Terminals, Starter
10 27619.0000 1 Starter, Lamp
11 28261.0000 1 Panel, Door - Lower
01383.0001 5 Screw, Pan Head #6-32 x .375"
12 26239.0000 1 Lamp, Fluorescent - 8 Watts
13 28322.0000 2 Lamp Holder, Fluorescent
02328.0002 2 Screw, Pan Head #6 - 32 x .188"
14 28332.1000 1 Panel W/Decal, Door - Upper (Includes item 15)
01383.0001 5 Screw, Truss Head #6 - 32 x .25"
15 28370.0000 1 Decal, Cleaning
16 28335.0000 2 Clip, Ground
17 28296.0000 3 Switch Assembly, Dispense (One less used on FMD-2 Models)
18 27298.0000 1 Striker Assy.
19 21004.0192 1 Lead, Electrical 18AWG Green - 11.5" Lg
20 28338.0000 1 Wiring Harness, Door Interconnect 120V (Includes item 7 & 1 of item 8)
21 28336.0000 1 Wiring Harness, Door 120V
22 26537.0000 1 Decal, Flavors (Almond Amaretto, Cappuccino, French Vanilla,
Hazelnut, Hot Chocolate and Raspberry Mocha)
26537.0001 1 Decal, Flavors (Swiss Mocha, Mocha, Raspberry Vanilla,
Irish Creme, Coffee and Original)
26537.0003 1 Decal, Flavors (White Chocolate, Cinnamon Vanilla Nut, Decaf,
Regular, French Vanilla and Hot Chocolate)
26537.0007 1 Decal, Flavors (Fat Free French Vanilla, Cinnamon Vanilla, Cinnamon
Vanilla Nut, English Toffee, Hot Chocolate and Apple Cider)
DOOR, LAMP, DISPENSE SWITCHES AND PANELS
Not
illustrated
28365 051200

10
BUNN
®FMD-2
FMD-3
AUGER DRIVE AND HOPPER ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
24
14
15
16
17
18
19
22
20
21
23
P1439.40
28365 051200

ITEM PART NO. QTY. DESCRIPTION
11
*FMD-2
**FMD-3
* **
- 28424.1000 2 3 Hopper Assy (22 Tooth Agitator Disk)(Includes items 1 thru 16)
1 28061.0000 1 1 Lid, Hopper
2 21358.0000 4 4 Clip, Retainer
3 21357.0000 4 4 Shaft, Wiper
4 26436.0000 1 1 Rod, Agitator Support
5 26449.0000 1 1 Spring
6 26441.0000 4 4 Wire, Agitator
7 26435.0000 1 1 Disk, Agitator (22 Tooth)
8 28067.0000 1 1 Bushing, Auger Drive Shaft
9 21358.0000 1 1 Clip, Retainer
10 26940.0000 1 1 Shaft, Auger Drive
11 28425.0000 1 1 Hopper
12 26112.0001 1 1 Auger, Wire
13 25903.0000 1 1 Elbow, Ejector
14 25744.0000 1 1 Bracket, Auger Drive
15 21365.0000 1 1 Washer, .31" I.D. x .56" O.D.
16 25743.0000 1 1 Locknut
17 20960.0000 2 3 Screw, Shoulder #6-32 x .375"
00991.0002 2 3 Nut, Elastic Lock #6-32
01308.0000 1 0 Screw, Truss Head, #6-32 x .25”
00973.0000 1 0 Nut, Keps #6-32
18 28333.0000 1 1 Panel, Hopper Support
01311.0000 4 4 Screw, Truss Head #8-32 x .25"
19 25794.0000 2 3 Bracket, Motor Mounting
01311.0001 8 12 Screw, Truss Head #8-32 x .25" Locking
20 26754.0000 2 3 Gearmotor W/Pin, Auger 120V (Includes item 22)
01311.0000 8 12 Screw, Truss Head #8-32 x .25"
21 26401.0000 2 3 Dust Seal, Hopper Motor
22 26247.0000 2 3 Pin, Spring .094" Dia. x 1.0"
23 28286.0000 1 1 Panel, Hopper Motor Mounting
01311.0001 2 2 Screw, Truss Head - Locking #8-32 x .25"
24 26496.0000 1 - Plate, Hopper Motor
00970.0000 2 - Nut, Keps #8-32
AUGER DRIVE AND HOPPER ASSEMBLY
28365 051200

12
BUNN
®FMD-2
FMD-3
MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR
2
17
1
3
4
5
6
7
14 15 16 17 13 12 11 10 9 8 P1440.55
FMD-2 MODELS
4
5
6
7
13 12 11 10 9 8
18
28365 051200

ITEM PART NO. QTY. DESCRIPTION
13
*FMD-2
**FMD-3
1 28208.1000 1 1 Baffle Assembly, Fan (Includes item 17)
02336.0000 2 2 Screw, Truss Head #4-40 x .25"
2 28295.0000 1 1 Fan & Bracket Assembly 120V
28295.0001 1 1 Fan & Bracket Assembly 220V
01311.0001 2 2 Screw, Truss Head - Locking #8-32 x .25"
3 28297.0000 1 1 Hose, Vacuum
4 25732.0000 2 3 Steam Collector
5 25733.0000 2 3 Mixing Chamber
6 25734.0000 2 3 Whipper Chamber
7 25736.0000 2 3 Dispense Tip
8 24733.0010 2 3 O-Ring
9 25902.0000 2 3 Frother
10 26359.0000 2 3 Receptacle, Whipper Chamber
02328.0003 4 6 Screw, Pan Head #6-32 x .312"
11 26356.0000 2 3 Seal, Shaft
12 26355.0000 2 3 Washer, Teflon
13 24331.0000 2 3 O-Ring
14 26393.1000 2 3 Motor, Whipper 120V (Includes items 15 & 16)
02324.0000 4 6 Nut, Acorn - High Crown #8-32
15 01522.0000 - - Washer, Shimming (Use as Required)
16 00908.0000 4 6 Nut, Hex #8-32
17 -------------- 2 2 Gasket, Silicone 2.25" LG (Order item 19)
18 26493.0000 1 - Plate, Receptacle
01308.0000 2 - Screw, Truss Head #6-32 x .25"
19 02434.1000 - - Gasket, Silicone 18" LG
MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR
* **
28365 051200

14
BUNN
®FMD-2
FMD-3
TANK, HEATER AND OVERFLOW PROTECTION
9
8
7
1
2
3
4
5
10
11
12
13
6
14
15
16
17
18
20
21
8
19
P1441.70
28365 051200

ITEM PART NO. QTY. DESCRIPTION
15
1 28281.0000 1 Lid, Tank
00908.0000 10 Nut, Hex #8-32
2 22978.0000 1 Gasket, Tank Lid
3 00943.0000 2 Gasket, Tank Heater
4 20201.4151 1 Tank Heater Kit, 1700W 120V (Includes item 3)
20201.0750 1 Tank Heater Kit, 3500W 240V (Includes item 3)
5 24547.0002 1 Tank
02308.0000 2 Screw, Pan Head - Serrated #8-32 x .375"
01311.0003 2 Screw, Truss Head - BLK Locking #8-32 x .250"
01311.0001 2 Screw, Truss Head - SST Locking #8-32 x .250"
6 05515.0000 1 Gasket, Overflow Tube
7 00942.0000 2 Nut, Hex .50"-20
8 02536.0000 2 Grommet, .375" I.D.
9 26665.1000 1 Probe Kit (Includes items 10, 11 & 12)
10 00908.0000 1 Nut, Hex #8-32
11 20203.0100 1 Lockwasher, Internal Tooth #8
12 01501.0000 1 Washer, Flat .16" I.D. x .375" O.D.
13 28292.0000 1 Tube Assy, Overflow
00908.0000 3 Nut, Hex #8-32
14 29329.1000 1 Thermostat, Limit
15 03803.0000 1 Switch Assy, Liquid Level (Includes items 16, 17 & 18)
00946.0000 1 Nut, Hex .125" FPT
16 03807.0000 1 Clip, Spring
17 - - - - - - - - 3 Washer, Adjusting (DO NOT USE IN THIS APPLICATION)
18 03633.0000 2 Gasket, Float Switch (Only 1 used in this application)
19 12552.0000 1 Overflow Cup
00908.0000 2 Nut, Hex #8 - 32
20 - - - - - - - - 1 Tube, Silicone .312" I.D. x 11.5" (Order item 23)
21 21801.0002 1 Tube, .375" O.D. x 1.50"
22 01570.0000 2 Wire Nut, 2 - 24 AWG
23 28526.1000 - Tube, Silicone .312" I.D. x .438" O.D. x 12"
28526.1001 - Tube, Silicone .312" I.D. x .438" O.D. x 36.00"
28526.1002 - Tube, Silicone .312" I.D. x .438" O.D. x 120.00"
28526.1003 - Tube, Silicone .312" I.D. x .438" O.D. x 60.00"
Not illustrated
TANK, HEATER AND OVERFLOW PROTECTION
28365 051200

16
BUNN
®FMD-2
FMD-3
STRAINER, SOLENOID, FILL VALVE AND LINES
P1442.45
15 4 3 1 2
5
6
7
8
9
10
11
12 13
14
29 3 24 22 23 29
22
21
20
19
11 16 17
5
6
7
8
9
18
10
25 26
27 28
MODELS W/COLD WATER VALVE
SOLENOID REPAIR
PARTS
28365 051200

ITEM PART NO. QTY. DESCRIPTION
17
1 28298.0000 1 Tube, Tank Fill
2 02536.0000 1 Grommet, .375" I.D.
3 12422.0001 1 Clamp, Hose .59"/.66" I.D (One additional used on Models w/cold water valve)
4 - - - - - - - - 1 Tube, Silicone .312" I.D. x .438" O.D. x 22.75" (Order item 30)
5 26135.0001 1 Valve Assy, Solenoid 120V (Serviced only as an assembly)(See Item 31)
02322.0002 2 Screw, Truss Head - BLK #8-32 x .375"
01315.0000 2 Screw, Truss Head - SST #8-32 x .375"
00938.0000 2 Fastener, U-Type #8-32
6 26661.0000 1 Tube Assy, Water Inlet (Models w/out cold water valve)
28330.1000 1 Tube Assy, Water Inlet (Includes item 18)(Models w/cold water valve)
7 00463.0000 1 Nut, Hex .438"-20
8 01532.0000 1 Lockwasher, Internal Tooth .438"
9 00459.0000 1 Fitting, Bulkhead
10 21814.0016 1 Tube Assy
11 23820.1000 1 Water Strainer Assy (Includes item 12 thru 14)
12 - - - - - - - - 1 Body (Not available order item 11)
13 23721.0000 1 Screen
14 22249.0000 1 End Cap
15 00620.0000 1 Clamp, Hose
16 28275.0000 1 Bracket, Solenoid Mounting
01311.0001 2 Screw, Truss Head - Locking #8-32 x .25"
17 00408.0001 1 Valve, Needle .25" Tube (Includes item 18)
18 00443.0001 1 Nut/Sleeve Assy, Compression
19 01085.0002 1 Solenoid Valve Assy, 120V
01326.0000 2 Screw, Truss Head #10-32 x .25”
20 00400.0001 1 Elbow, Male .25" Male Flare x .125" MPT
21 00425.0000 1 Fitting, .25" Barb x .25" Flare Nut
22 12422.0000 2 Clamp, Hose .47"/.54" I.D.
23 -------------- 1 Tube, Silicone .25" I.D. x 9.5” LG (Order item 32)
24 26442.0000 1 Tee, Barb .375" x .375" x .25"
25 28480.0000 1 Coil, Solenoid Valve 120V
26 28479.0000 1 Base Kit, Solenoid Valve (Includes O-Ring)
27 28481.0000 1 Guide Kit, (Includes Washer & O-Ring)
28 01111.0002 1 Solenoid Valve Repair Kit (Includes Spring, Plunger and O-Ring)
29 -------------- - Tube & Clamp (See DISPENSE VALVES AND LINES)
30 28526.1001 - Tube, Silicone .312" I.D. x .438" O.D. x 36"
28526.1002 - Tube, Silicone .312" I.D. x .438" O.D. x 120"
28526.1003 - Tube, Silicone .312" I.D. x .438" O.D. x 60"
31 26131.0000 - Kit, Nut/O-ring (Includes Nut, Spacer, Grab Ring, Washer & 2 O-Rings)
32 11707.1000 - Tube, Silicone .25" I.D. x .50" O.D. x 12"
11707.1001 - Tube, Silicone .25" I.D. x .50" O.D. x 36”
11707.1002 - Tube, Silicone .25" I.D. x .50" O.D. x 120”
STRAINER, SOLENOID, FILL VALVE AND LINES
Not
illustrated
28365 051200

18
BUNN
®FMD-2
FMD-3
DISPENSE VALVES AND LINES
P1443.70
FMD-2 MODELS ONLY
10 9 1
1
2
3
4
5
7
6
8
28365 051200

ITEM PART NO. QTY. DESCRIPTION
19
* FMD-2 Models
** FMD-3 Models
1 24733.0011 3 3 O-Ring
2 26116.0002 2 3 Valve, Liquid Dispense 120V (See item 12)
01326.0000 2 3 Screw, Truss Head #10-32 x .250"
3 - - - - - - - - 1 1 Tube, Silicone .312" I.D. x .438" O.D. x 18.5" (Order item 11)(Models w/out cold
water valve)
- - - - - - - - - 1 Tube, Silicone .312" I.D. x .438" O.D. x 17.90" (Order item 11)(Models w/cold water
valve)
4 - - - - - - - - - 1 Tube, Silicone .312" I.D. x .438" O.D. x 16.0" (Order item 11)
5 - - - - - - - - 1 1 Tube, Silicone .312" I.D. x .438" O.D. x 17.0" (Order item 11)
6 12422.0001 2 3 Clamp, Hose .59"/.66" I.D (One additional used on Models w/cold water valve).
7 21801.0002 2 3 Tube, .375" O.D. x 1.50" (One less used on Models w/cold water valve)
8 25803.0000 2 3 Water Inlet, Mixing Chamber
9 26369.0000 1 - Plug, Hole
10 26395.0000 1 - Retainer, Plug
02331.0000 1 - Screw, Truss Head - Serrated #10-32 x .375"
11 28526.1001 - - Tube, Silicone .312" I.D. x .438" O.D. x 36.0"
28526.1002 - - Tube, Silicone .312" I.D. x .438" O.D. x 120.0"
28526.1003 - - Tube, Silicone .312" I.D. x .438" O.D. x 60.0"
12 28187.0000 1 1 Kit, Dispense Valve Diaphragm
DISPENSE VALVES AND LINES
Not
illustrated
* **
28365 051200

20
BUNN
®FMD-2
FMD-3
ELECTRICAL CONTROLS
HEATER
26527.0002
THERMOSTATASSEMBLY
BUNN-O-MATICCORP
TEMPERATURE
ADJUSTMENT
+
-
160°
120VAC
®
190°
13
14
15
12
8
10
6 11 7 1
5
2
3
4
16
17 18 19
P1444.55
20
OPTIONAL ELECTRONIC
THERMOSTAT
21
12
28365 051200
