TDS-3S
TDS-5S
ICD-3S
USE & CARE INFORMATION
INTRODUCTION
These dispensers are designed to hold and serve either a three or five gallon batch of iced tea or iced coffee, depending
on the model. When proper precautions are followed, tea/coffee may be brewed directly into the dispenser and then
transported to a remote serving location. The dispenser must be placed on a sturdy counter or shelf.
NOTICE - In order to use this dispenser with a Bunn-O- atic brewer, the guide rails on the base of the brewer will need
to be removed, to allow for the width of the TDS-S/ICD-S dispenser. To retain the guide rails on the machine, order BUNN
Guide Rail Extension Kit number 32033.0000.
NOTE - The TDS-3S & ICD-3S dispensers weigh approximately 40 pounds when full. The TDS-5S weighs approximately
55 pounds when full. You must be careful when lifting these dispensers. WHEN THE DISPENSER IS HOLDING
LIQUID,LIFT THE DISPENSER USING THE H NDLES ONLY. DO NOT LIFT THE DISPENSER FROM THE BOTTOM.
33833.0000E 7/01 ©2001 Bunn-O- atic Corporation
BUNN
®

D ILY CLE NING
C UTION - CLEAN AND SANITIZE YOUR DISPENSER D ILY
1. Thoroughly clean the inner surfaces of the dispenser using a mild cleaner/sanitizer and water solution then thoroughly
rinse the dispenser with warm water.
NOTE - Bunn-O- atic recommends the use of KAY-5® for this purpose. (Kay-5 is a product of the Kay Chemical Company, Greensboro,
NC) Simply pour the cleaner/sanitizer into an empty dispenser. Run a complete brew cycle
of just water into the
dispenser and let it set for a minute. Empty the dispenser and thoroughly rinse with warm water.
2. Remove the faucet handle/stem assembly by unscrewing the faucet bonnet just beneath the faucet handle. Use the
enclosed cleaning brush to thoroughly clean the inside of the faucet and the faucet shank from inside the dispenser.
3. Disassemble the faucet/stem assembly. The faucet cleaning procedure requires a 3-compartment sink. Thoroughly
wash all faucet parts in a mild detergent and water solution in the first sink. Rinse the parts in hot water in the second
sink. Sanitize the parts for one minute in 75°F warm chlorine solution (at least 50 ppm) in the third sink. Do NOT use
full-strength bleach, but a solution with water, of no more than 50 ppm of chlorine. Reassemble the faucet and attach
it to the dispenser.
4. Wash the entire outside surface of the dispenser with a clean damp cloth.
C UTION - NEVER KEEP BREWED ICED BEVERAGES OVERNIGHT
1. 03043.0002 Decal, Fresh Brewed Tea
2. 00651.0000 Decal, Bunn
3. 33843.0000 Decal, Cleaning & Sanitizing
4. 00674.0000 Faucet Cleaning Brush
5. 33829.0000 Lid, olded
6. 03093.0002 Faucet Wing Nut
7. 01221.0000 C-Ring, Faucet Shank
8. 03260.0001 Faucet Assy (Includes items 9 thru 13)
9. 29163.0001 Faucet Handle, Black
10. 00601.0000 Faucet Spring
11. 00600.0000 Faucet Seat Cup
12. 29164.0000 Faucet Stem
13. 29165.0001 Faucet Bonnet, Black
14. 29166.0001 Faucet Repair Kit (Includes items 9
thru 12)
REPL CEMENT P RTS
TDS-5S DISPENSERS TDS-3S & ICD-3S DISPENSERS
1. 03043.0002 Decal, Fresh Brewed Tea
2. 21412.0001 Decal, Fresh Brewed Iced Coffee
3. 00651.0000 Decal, Bunn
4. 33843.0000 Decal, Cleaning & Sanitizing
5. 00674.0000 Faucet Cleaning Brush
6. 33829.0000 Lid, olded
7. 03093.0002 Faucet Wing Nut
8. 01221.0000 C-Ring, Faucet Shank
9. 03260.0001 Faucet Assy (Includes items 10
thru 14)
10. 29163.0001 Faucet Handle, Black
11. 00601.0000 Faucet Spring
12. 00600.0000 Faucet Seat Cup
13. 29164.0000 Faucet Stem
14. 29165.0001 Faucet Bonnet, Black
15. 29166.0001 Faucet Repair Kit (Includes items
10 thru 13)
33833 070501
Rail Extension Kit number 32033.0000
This kit allows for the widening of the guide rails on the brewer to accomodate the use of the TDS-S/ICD-S
dispenser.
Contents:
QTY PART NU BER DESCRIPTION
6 01533.0006 Spacer
6 01320.0000 Screw
Instructions:
1. Remove the guide rails attached to the base of the brewer.

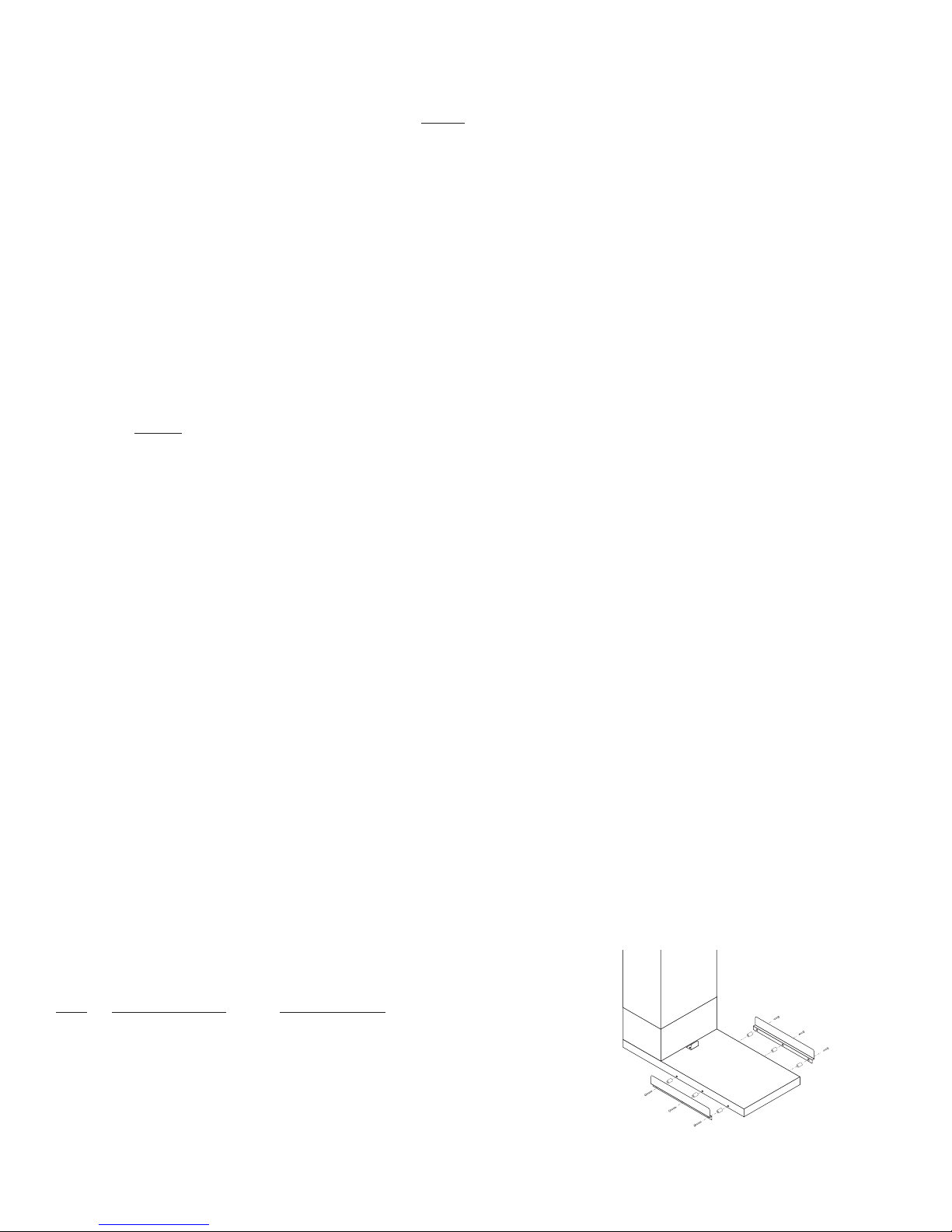

2. Attach the guide rails using the spacers and the longer screws as pictured. P2397

33833 050501
