Model Agency Listing
LCR-2C
Liquid Coffee Refrigerated
Dispenser with 2 heads
Model LCR-2C*
Dimensions: 38” H x 12.2” W x 24.9” D
(96.5 cm H x 31 cm W x 63.2 cm D)
Easy Clear® EQ-11-TL
Product No. : 30344.1001
Dimensions:
157⁄8" H x 35⁄8" W x 417⁄32" D
Use with 1.8 oz/sec. flow rate.
Easy Clear® EQ-21-TL,TL
Product No. : 30325.1000
Product No. : 30331.1001 (x2)
Use with 2.5 oz/sec. flow rate.
Scholle BIB connector
Product No. : 35057.0000
1⁄8" Replacement tube kits
Product No. : 34728.1000
3⁄16" Replacement tube kits
Product No. : 34727.1000
50 ml Graduated Cylinder Kit
Product No. : 34843.1000
For use in calibration of pumps.
LiquiBox QC/D II
BIB connector
Product No. : 35055.0000
Model LCR-2C, PC*
LCR is also available
with portion control
Liquid Coffee Refrigerated Dispenser
• Refrigerated product cabinet extends product flavor profile, maintains
38º-42ºF in product compartment.
• Attractive appearance and narrow (12") width.
• Dispense over 125 - 5 oz. cups per hour with a 120 volt, 20 amp electrical
connection or over 500 - 5 oz. cups per hour with a 240 volt electrical connection.
• Accommodates all 1⁄2 gallon and most 1 gallon bag-in-box (BIB) containers.
• Refill or rinse LED lights alert the operator for concentrate or cleaning.
• Global multi-volt design is easily converted to ratings from 100 to 240 volts (50-60
hertz) eliminating the need to inventory multiple electrical configurations.
• FlavorGard™ technology continuously monitors extract-to-water ratio and assures
flavor consistency.
• Easy-to-program one touch portion control model is available for self-serve
applications.
• Sanitation listed by ETL to NSF Standard 18 and safety listed by ETL to UL
Standard (UL 197) and CSA Standard (C22.2 No. 109 - model LCR-2C)
E9002.7001B

BUNN® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
All dimensions shown in inches. Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.

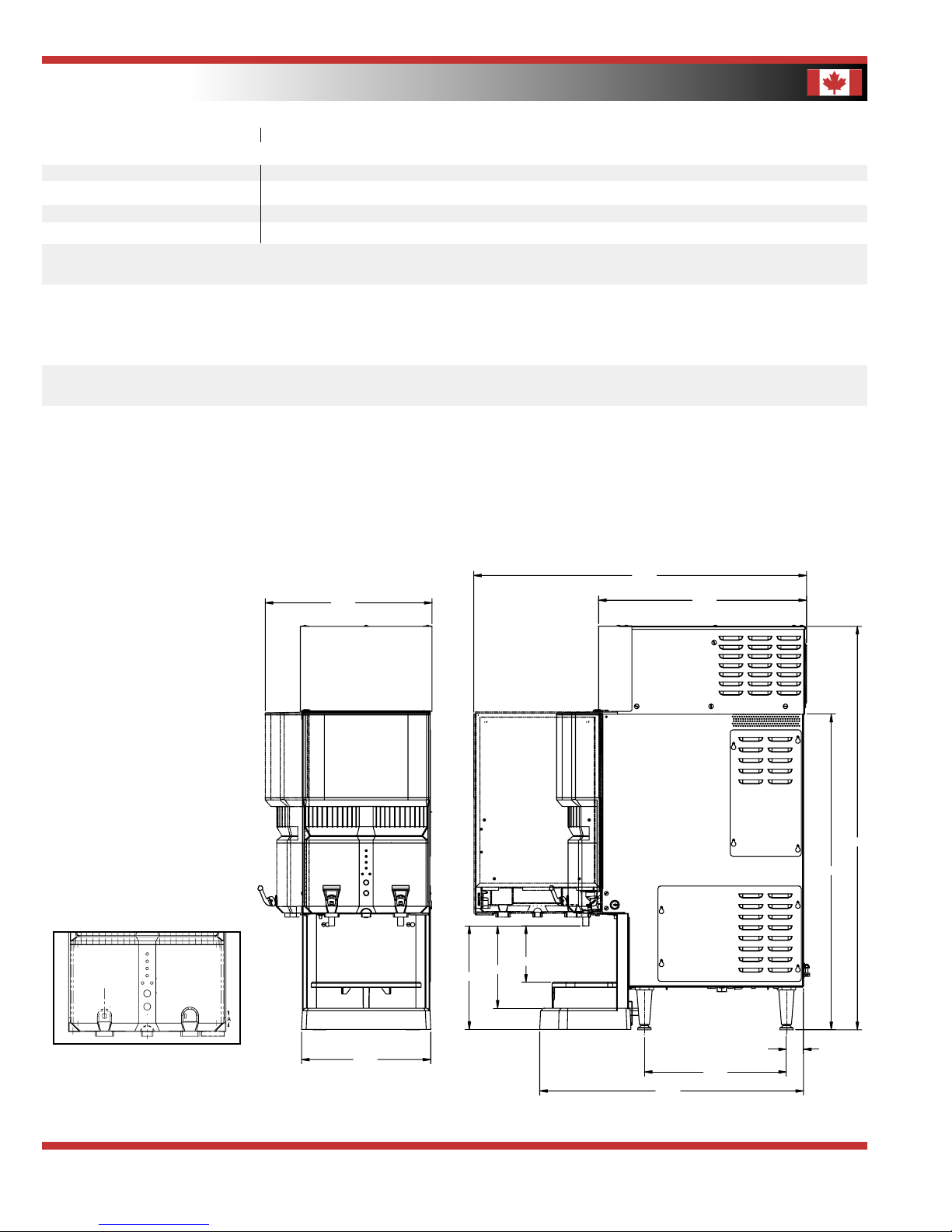

Dimensions & Specifications
Bunn-O-Matic Corporation of Canada - 280 Industrial Pkwy. S. Aurora, Ontario L4G 3T9 • 905-841-2866 • Fax [phone] • www.bunn.com
CANADA
†All models can be changed to these electrical configurations.
Model Product Dispense Rate/Sec. Connector Volts Amps Heater Capacity** Cubic Shipping Cord
Number 1.8 oz. 2.5 oz.* Type Watts Feet Weight Attached
Product Ratios
LCR-2C 34400.6044† 45:1-100:1 65:1-100:1 Scholle 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C 34400.6045† 25:1-45:1 25:1-65:1 Scholle 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C 34400.6046† 45:1-100:1 65:1-100:1 LiquiBox QC/D II 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C 34400.6047† 25:1-45:1 25:1-65:1 LiquiBox QC/D II 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
208 25.8 4500 385 cups/hr. 10.9 114 lbs. (51.7 kg) No
240 25.8 6000 512 cups/hr. 10.9 114 lbs. (51.7 kg) No
LCR-2C PC 36500.6044† 45:1-100:1 65:1-100:1 Scholle 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C PC 36500.6045† 25:1-45:1 25:1-65:1 Scholle 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C PC 36500.6046† 45:1-100:1 65:1-100:1 LiquiBox QC/D II 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
LCR-2C PC 36500.6047† 25:1-45:1 25:1-65:1 LiquiBox QC/D II 120 14.2 1500 125 cups/hr. 10.9 114 lbs. (51.7 kg) Yes***
208 25.8 4500 385 cups/hr. 10.9 114 lbs. (51.7 kg) No
240 25.8 6000 512 cups/hr. 10.9 114 lbs. (51.7 kg) No
*Unit shipped with dispense rate set at 1.8 oz./sec. Dispense rate increases to 2.5 oz./sec. if restrictor plug is removed.
**Capacity measured with a 5 oz. cup. ***Power cord (NEMA 5-20P) 20 Amp-120V machine only.
Electrical: 120V model requires 2-wires plus ground service rated 120V, single phase, 60 hz.
Plumbing: 20-90 psi (138-621 kPa) from a 3⁄8" (10 mm) or larger supply line. Unit requires a 2.2 gpm line flow capacity. A shut-off
valve should be installed in the line before the unit. Install a regulator in line when pressure is greater than 90 psi to re-
duce pressure to 50 psi. Supplied with 3⁄8" (10 mm) male flare fitting.
†All models can be changed to these electrical configurations.
13.37
24.83
9.74
12.16
7.75
5.29
1.6
29.69
38.00
15.70 19.57
31.32
LCR-2 with portion control.
