Burks BPV Series User manual

A Crane Co. Company
INSTALLATION AND OPERATION MANUAL
420 Third Street 83 West Drive, Bramton
Piqua, Ohio 45356 Ontario, Canada L6T 2J6
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
www.cranepumps.com Form No. 127906-Rev. C
BPV Pumps
Series: BPV, BPV85, BPLHS
IMPORTANT! Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program,
product changes may occur. As such Crane Pumps & Systems reserves the right to
change product without prior written notification.
DISCONTINUED
Parts may
NOT be available
BURKS BPV Vertical Multistage Pump Discontinued
Effective May 1, 2018 the BURKS® BPV Vertical
Multistage pump family will be discontinued and no
longer available for sale. If you should have a need in
the future for a vertical multistage pump similar to the
BURKS BPV pump, please contact:
North America -
Global Pump Marketing
624-140 Matthews – Mint Hill Rd. Matthews, NC 28105
Phone: [phone]
Contacts: Rick Andrews [email protected]
Will Whitney [email protected]
Outside of North America -
DP Pumps
Contact: Hans van der Plas
Phone: [phone]
Mobile [phone]
[email protected]
Manual Index

2
Other brand and product names are trademarks or registered trademarks of their respective holders.
®Burks is a registered trademark of Crane Pumps & Systems, Inc.
1998, 2001, 2003, 1/2006, 9/06 Alteration Rights Reserved
Please Read This Before Installing Or Operating Pump. This
information is provided for SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this information, observe the
following symbols:
IMPORTANT! Warning about hazards that can result
in personal injury orIndicates factors concerned with
assembly, installation, operation, or maintenance which
could result in damage to the machine or equipment if
ignored.
CAUTION! Warning about hazards that can or will cause minor
personal injury or property damage if ignored. Used with symbols
below.
WARNING! Warns about hazards that can or will cause serious
personal injury, death, or major property damage if ignored. Used
with symbols below.
Only qualified personnel should install, operate and repair
pump. Any wiring of pumps should be performed by a qualified
electrician.
WARNING ! To reduce risk of electrical shock, pumps and
control panels must be properly grounded in accordance
with the National Electric Code (NEC) or the Canadian
Electrical Code (CEC) and all applicable state, province,
local codes and ordinances. Improper grounding voids
warranty.
WARNING! To reduce risk of electrical shock, always
disconnect the pump from the power source before
handling or servicing. Lock out power and tag.
WARNING! Operation against a closed
discharge valve will cause premature bearing
and seal failure on any pump, and on end
suction and self priming pump the heat build
may cause the generation of steam with resulting dangerous
pressures. It is recommended that a high case temperature
switch or pressure relief valve be installed on the pump body.
CAUTION ! Never operate a pump with a plug-in type
power cord without a ground fault circuit interrupter.
CAUTION ! Pumps build up heat and pressure
during operation-allow time for pumps to cool
before handling or servicing.
WARNING ! Do not pump hazardous materials
(flammable, caustic, etc.) unless the pump is specifically
designed and designated to handle them.
CAUTION ! Do not block or restrict discharge hose, as
discharge hose may whip under pressure.
WARNING ! Do not wear loose clothing that may
become entangled in moving parts.
WARNING ! Keep clear of suction and discharge
openings. DO NOT insert fingers in pump with power
connected.
Always wear eye protection when working on pumps.
Make sure lifting handles are securely fastened each
time before lifting. DO NOT operate pump without safety
devices in place. Always replace safety devices that
have been removed during service or repair. Secure the
pump in its operating position so it can not tip over, fall
or slide.
DO NOT exceed manufacturers recommendation for
maximum performance, as this could cause the motor
to overheat.
DO NOT remove cord and strain relief. DO NOT connect
conduit to pump.
WARNING ! Cable should be protected at all times to
avoid punctures, cut, bruises and abrasions. Inspect
frequently. Never handle connected power cords with
wet hands.
WARNING ! To reduce risk of electrical shock, all wiring
and junction connections should be made per the NEC
or CEC and applicable state or province and local
codes. Requirements may vary depending on usage
and location.
WARNING! Pumps are not approved for use in
swimming pools, recreational water installations
decorative fountains or any installation where human
contact with the pumped fluid is common.
WARNING! Products returned must be cleaned,
sanitized, or decontaminated as necessary prior
to shipment, to insure that employees will not be
exposed to health hazards in handling said material. All
Applicable Laws And Regulations Shall Apply.
Bronze/brass and bronze/brass fitted pumps may
contain lead levels higher than considered safe for
potable water systems. Lead is known to cause cancer
and birth defects or other reproductive harm. Various
government agencies have determined that leaded
copper alloys should not be used in potable water
applications. For non-leaded copper alloy materials of
construction, please contact factory.
Crane Pumps & Systems is not responsible for losses,
injury, or death resulting from a failure to observe
these safety precautions, misuse or abuse of pumps or
equipment.
SAFETY FIRST!
Hazardous fluids can
cause fire or explo-
sions, burnes or death
could result.
Extremely hot - Severe burns
can occur on contact.
Biohazard can cause
serious personal injury.
Hazardous fluids under pres-
sure, eruptions or explosions
could cause personal injury
or property damage.
Rotating machinery
Amputation or severe
laceration can result. Hazardous voltage can
shock, burn or cause death.

3
SECTION: A - Manual Introduction
A-1) Preface:
This manual contains important information for reliable
proper and efficient operation. Compliance with the
operating instructions is of vital importance to ensure
reliability and a long service life of the product and to avoid
any risks.
The first chapters contain information about this manual
and safety in general. The following chapters provide
information about normal use, installation, maintenance
and repairs of the product. The annexes contain the
technical data, the parts drawings and the declaration(s) of
conformity.
• Make yourself familiar with the content.
• Accurately follow the directions and instructions.
• Never change the sequence of the operations to be
carried out.
• Keep this manual or a copy of it together with the
logbook in a fixed place near the product which can be
accessed by all personnel.
A-2) Icons and symbols:
In this manual and in all accompanying documentation the
following icons and symbols are used.
WARNING
Danger of electric Voltage. Safety sign
according to IEC 417 - 5036.
IMPORTANT
Operations or procedures, if carried out
without caution, may cause personal injury
or damage to the product. General hazard
sign according to ISO 7000-0434.
ATTENTION
Is used to introduce safety instructions
whose non-observance may lead to damage
to the product and its functions.
ENVIRONMENTAL INSTRUCTION
Remarks with respect to the environment

4
SECTION: B - Identification, service and technical
support
B-1) Preface:
The name plate indicates the type series / size, main
operating data and identification number. Please quote this
information (first two lines*) in all queries, repeat orders
and particularly when ordering spare parts. If you need any
additional information or instructions exceeding the scope
of this manual or in case of damage please contact BP-
Pumps’s nearest customer service center.
The following address data are available for service and
technical support:
Crane Pumps & Systems Tel: [phone]
service department Fax: [phone]
420 Third Street Internet: www.cranepumps.com
Piqua, Ohio 45356
B-2) Nominal current:
The maximum allowable current of the motor is mentioned
as I.max. on the motor plate. This maximum allowable
current shows the maximum working range of the motor
and can be used to protect the motor.
IMPORTANT
Be careful in using it this way, because, not
only the motor, but also the pump has to be
protected in its application.
On the pump plate (sleeve sticker) this “pump current at
400 Volts” will be mentioned as I nom, and can be used
to pre-set the motor protection switch to protect the pump/
motor combination.
This current value can also be used to determine the
proper electrical equipment such as variable frequency
drive, main switch, wiring diameter etc.
B-3) Supplementary documentation:
Apart from the manual, the documentation given below is
also available.
Indication Meaning
BPV 4-40 Pump type *
Seq. Nr Sequence number *
Ca / Sic / EPDM Ca Rotating part mechanical seal (Carbon) *
Sic Stationary part mechanical seal (Silicon-
carbide) *
EPDM Static sealing, O-Rings (EPDM) *
PN 10 Pressure class (flange) connection *
Q GPM Nominal capacity (see Q/H curve above)
H PSI Nominal head (see Q/H curve above)
n1/min Nominal rotation speed

5
SECTION: C - Safety and environment
C-1) General:
This BP Pumps product has been developed using state-
of-the-art technology. It is manufactured with utmost care
and subject to continuous quality control. BP Pumps does
not accept any liability for damage and injury caused
by not observing the directions and instructions in this
manual. This also applies in cases of carelessness during
the installation procedure, use and maintenance of the
product.
Non-compliance with safety instructions can jeopardize the
safety of personnel, the environment and the product itself.
Non-compliance with these safety instructions will also
lead to forfeiture of any and all rights to claim for damages.
For example, in particular non-compliance can result in:
• failure of important processes
• failure of prescribed performance
• injury
• hazard
• explosions.
Depending on specific activities, extra safety measures
may be required. Contact BP Pumps if a potential danger
arises during use.
ATTENTION
The owner of the product is responsible
for compliance with the local safety
regulations and internal company guidelines.
ATTENTION
Not only must the general safety instructions
laid down in this chapter on “Safety” be
compiled with, but also the safety
instructions outlined under specific
headings.
C-2) Users:
All personnel involved in the operation, maintenance,
inspection and installation of the product must be
fully qualified to carry out the work involved. Personal
responsibilities, competence and supervision must be
clearly defined by the operator. If the personnel in question
is not already in possession of the required know-how,
appropriate training and instruction must be provided. If
required, the operator may commission the manufacturer
/ supplier to take care of such training. In addition, the
operator is responsible for ensuring that the contents
of the operating instructions are fully understood by the
responsible personnel.
C-3) Safety Provisions:
The product has been designed with the greatest possible
care. Original parts and accessories meet the safety
regulations. Modifications in the construction or the use of
non-original parts may lead to a safety risk.
ATTENTION
Make sure that the product operates within
its working range. Only then the product
performance is guaranteed.
C-3.1) Labels on the product
The icons, warnings and instructions applied to the product
are part of the safety provisions. The labels may not be
removed or covered. Labels must remain legible during
the entire life of the product. Replace damaged labels
immediately.
C-4) Safety Precautions:
C-4.1) During normal use:
• Contact the local electricity company for questions
about the power supply.
• Shield parts, that can become hot in such a way, that
direct contact is impossible.
• When applicable, always place undeformed coupling
protection plates to protect the coupling, before putting
the pump into use. Make sure that the coupling
protection plates are never in contact with the
running coupling.
• Always close the terminal box on the pump.
C-4.2) During installation, maintenance and repair:
Only authorized personnel may install, maintain and
inspect the product and repair electrical components.
Observe the local safety regulations.
WARNING
Always disconnect the energy supply to the
product first, before installation, maintenance
and repairs. Secure this disconnection.
IMPORTANT
Surfaces of a pump can be hot, after
continuous operation.
IMPORTANT
Make sure that no one can be near rotating
components when starting a pump.
IMPORTANT
Handle a pump with dangerous liquids with
the utmost care. Avoid danger for persons or
the environment when repairing
leakages, draining liquids and venting. it is
strongly recommended to place a relief barge
under the pump.
IMPORTANT
Immediately following completion of the
work, all safety-relevant and protective
devices must be re-installed and/or
re-activated.

6
IMPORTANT
Please observe all instructions set out in the
chapter “Commissioning/Start-up” before
returning the product to servie.
C-5) Environmental aspects:
C-5.1) General:
The products of BP Pumps are designed to function in
an environmentally friendly way during their entire life.
Therefore, when applicable, always use biodegradable
lubricants for maintenance.
ENVIRONMENTAL INSTRUCTION
Always act according to the laws, by-laws
regulations and instructions with respect to
health, safety and the environment.
C-5.2) Dismantling:
Dismantle the product and dispose of it in an
environmentally friendly way. The owner is responsible for
this.
ENVIRONMENTAL INSTRUCTION
Ask at the local government about the re-
use or the environmentally friendly
processing of discarded materials.
SECTION: D - Intended Use
D-1) Intended use:
The pumps BPV(S), BPVCF and BPLHS are suitable to
transport and increase the pressure of cold and hot water
without wear to parts within the indicated working range.
The transport of liquids with a different viscosity or density
than water is possible as well. For this a motor with an
adjusted power is used. Ask BP Pumps or your distributor
for advice.
Any other or further use of the pump is not in conformity
with its intended use. BP Pumps does not accept any
liability for any damage or injury that results from this.
The pump is produced in accordance with the current
standards and guidelines. Use the pump only in a perfect
technical state, in conformance with the intended use
described below.
The intended use as laid down in EN 12100-1 is the use
for which the technical product is intended according to
the specifications of the manufacturer. The use of the
product has been described in the sales brochure and in
the user manual. When in doubt the product must be used
as becomes evident from its construction, version and
function.
Overload Protection: All motors must be installed with
magnetic starter which provides full overload protection
on all legs. Failure to use correct starter and overloads will
void motor warranty.

7
SECTION: E - Transport
E-1) Transport:
1. Transport the pump in the position as indicated on the
pallet or packaging.
2. Make sure the pump is stable.
3. If present, observe the instructions on the packaging.
IMPORTANT
Lift the pump, if necessary using a hoist and
suitable slings. Attach the slings to
the transport lugs on the packaging, where
present.
IMPORTANT
The pump must be lifted according to the
current hoist guidelines. Only qualified
personnel are allowed to lift the pump.
IMPORTANT
Do not lift the pump by using the frequency
converter (if placed), electrical parts or
the motor cover. Be sure that the pump is
always in balance.
IMPORTANT
All the pumps will turn approximately 2 to 15
degrees. Do not remove the lever or
protection from the pump before the pump is
placed and mounted correctly.
E-2) Storage:
Fill the pump with glycol in order to protect it against the
risk of frost.
Storage
tambient (ºC) -10/40
max. rel. humidity (%) 80% at 20ºC not condensing
E-2.1) Inspection during storage:
1. Turn the shaft every three months and just before
putting into operation.

8
SECTION: F - Installation
F-1) Setting up the pump:
ATTENTION
Make sure that the pump connections are
stress-less installed (e.g. no heavy load on
the inlet and outlet connections).
It is to be advised to use pipe-compensators,
see drawing above. Only on the
condition that the pump is provided
with a reinforced cast casing, model
BPVCF, the top/down force on the flanges
can be in accordance with the table below.
Allowable forces BPVCF
Type DN
inches
Force (kN)
Fx Fy Fz ΣF
BPVCF 2 0.98 36 6.8 10.4 38.1
BPVCF 4 1.26 38 7.2 11 40.2
BPVCF 10 1.58 45 18 20 52.4
BPVCF 18 1.97 70 25 23 77.8
BPVCF 32 2.56 54 25 44 74
BPVCF 45 3.15 48 17 31 59.6
BPVCF 65 3.94 60 21 33 71.6
Allowable moment BPVCF
Type DN
inches
Moment (Nm)
Mx My Mz ΣM
BPVCF 2 0.98 700 800 1200 1600
BPVCF 4 1.26 700 800 1200 1600
BPVCF 10 1.58 1100 1000 2600 3000
BPVCF 18 1.97 2200 1300 2600 3600
BPVCF 32 2.56 2300 1700 2000 3500
BPVCF 45 3.15 2700 2700 2300 4500
BPVCF 65 3.94 3300 3600 3000 5700
ATTENTION
The values mentioned in the tables above
are given for the point at which a maximal
tension of between 200 and 205 MPa occurs.
It is assumed that the 3 forces or
the 3 moments as given in the drawing below
occur simultaneously.

9
ATTENTION
Pumps that do not stand steady or stable on
their own, should be mounted on a rigid
and stable base.
ATTENTION
Place the pump there where there is the
lowest risk for noise nuisance.
1. Place and install the pump on a level, stable surface in
a dry and frost-proof room.
2. Make sure that sufficient air can reach the cooling fan
of the motor. For this purpose the free space above the
cooling fan should be at least ¼ of the diameter of the
fan cover air intake.
3. Install the pump with counter flanges. Pumps with non-
standardised connections; counter flanges are delivered
separately.
4. Install a valve on the supply and on the delivery
connection of the pump.
5. If there is a chance that when the pump is standing still
the medium can flow back, it is advised to install a non-
return valve.
6. Make sure that the inlet of the pump is never clogged.

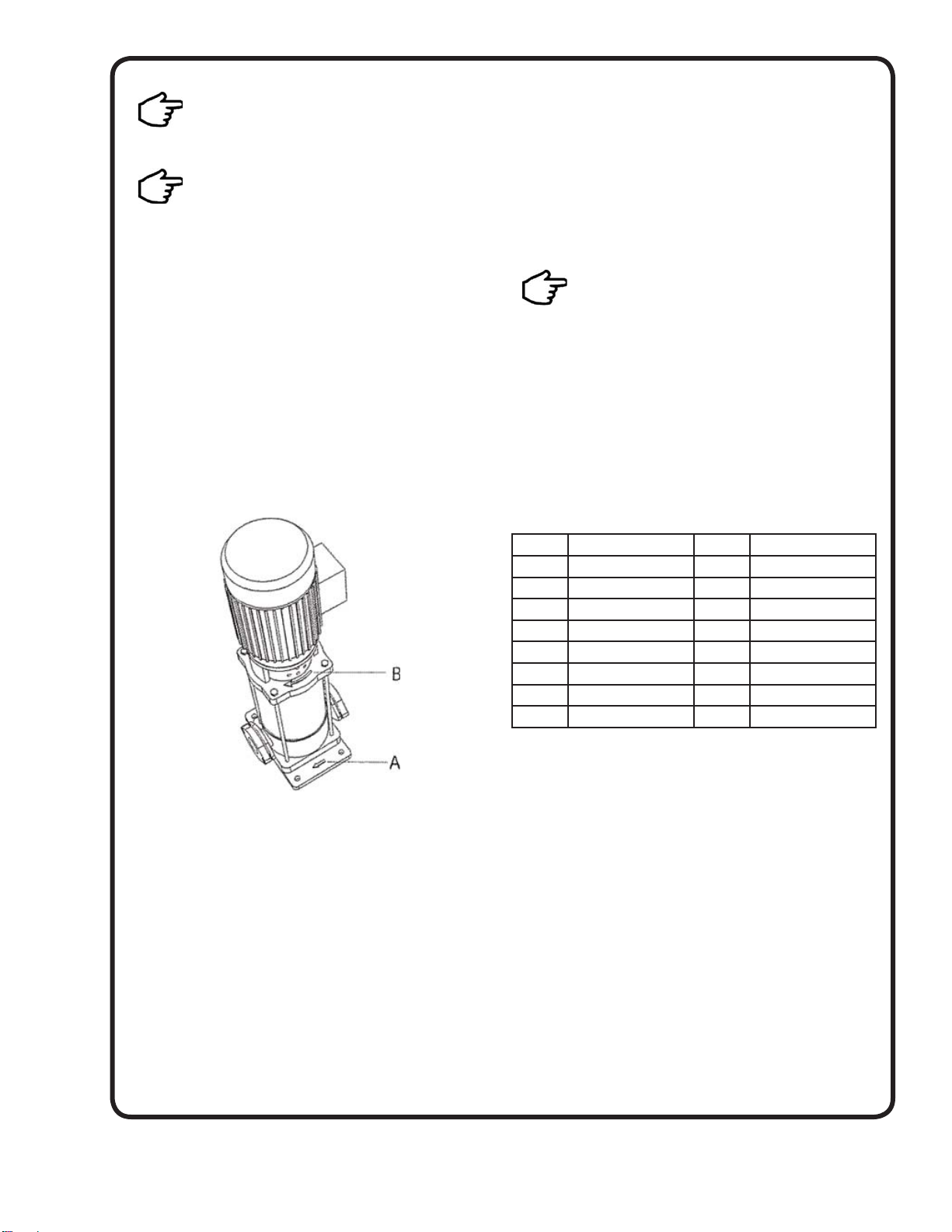

F-1.1) Indicators:
The arrow (A) on the pump foot indicates the flow direction
of the liquid. The arrow (B) on the top bracket indicates the
rotating direction of the motor.
F-1.2) Install bypass:
Install a bypass if the pump operates against a closed
valve. The required capacity of the bypass is at least
10% of the optimum volume flow. At high operating
temperatures a higher volume flow is required. Refer to the
table “Minimum volume flows” in the paragraph “Working
range”
F-2) Mounting a motor on the pump:
ATTENTION
It is to be advised to use a special designed
BP Pumps motor. Before installing an other
brand/standard IEC-norm motor, BP Pumps
has to be consulted to judge the applicability.
The motor has to conform to the following conditions:
• Increased power output (to limit the standard installed
motor power)
• Reinforced bearing at driven end (to withstand the axial
force)
• Fixed bearing at driven end (to minimize the axial play)
• Smooth shaft, no key lock (to improve the coupling grip
and to improve the motor balance)
The advised bearings per motor type are:
(HP) Axial Bearing (HP) Co-axial Bearing
0.50 6203-2RS 7.50 6308-2Z-C3
0.75 6203-2RS 10.00 6308-2Z-C3
1.00 6204-2RS 15.00 7309-BEP
1.50 6204-2RS 20.00 7309-BEP
2.00 6305-2Z-C3 25.00 7309-BEP
3.00 6305-2Z-C3 30.00 7311-BEP
5.00 6306-2Z-C3 40.00 7312-BEP
50.00 7312-BEP

10

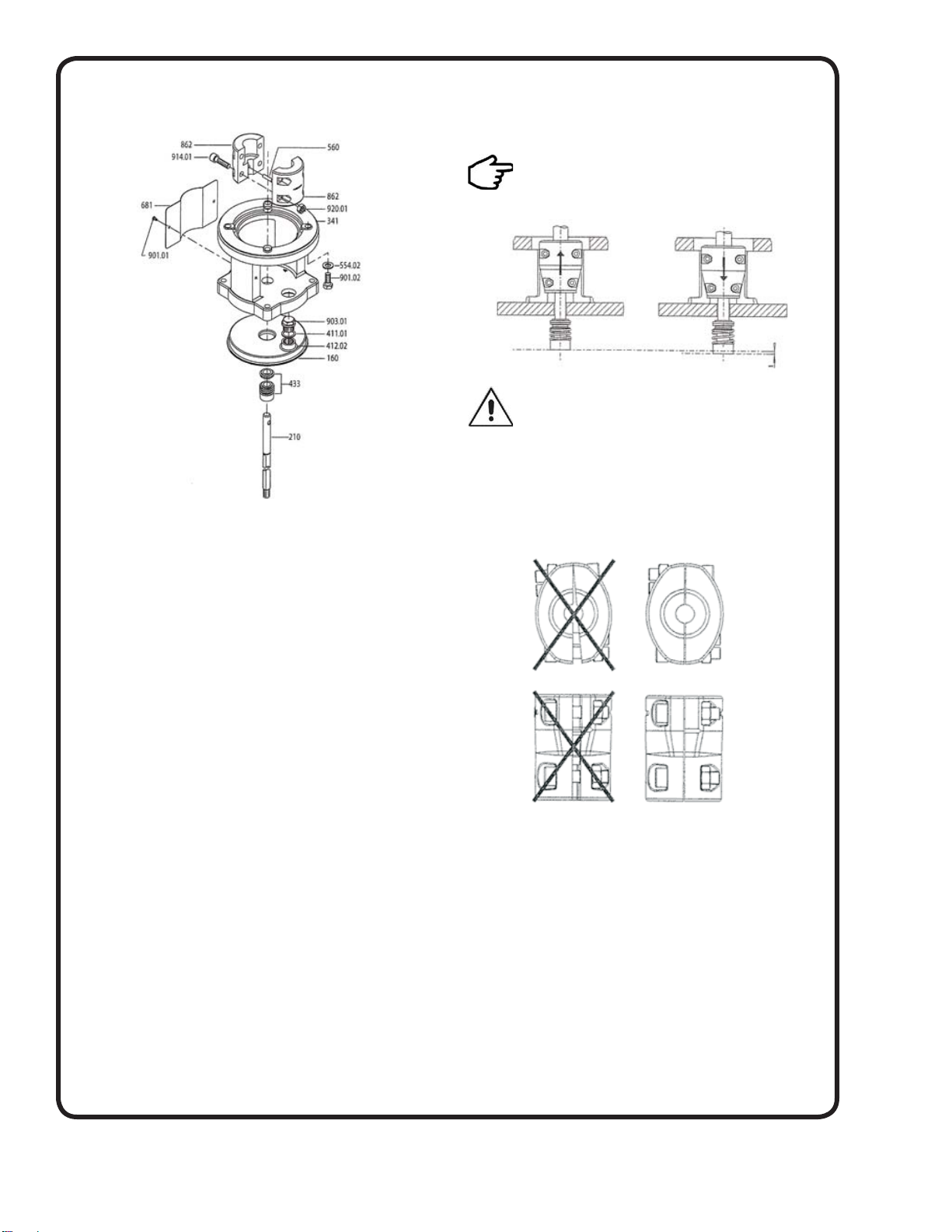

F-2.1) Install the motor on pumps, supplied without
motor, with a standard mechanical seal:
1. Remove the “transport fixation assembly” together
with the coupling guards (681) and the coupling shells
(862). For some models the coupling shells are
delivered separately.
2. Thoroughly clean the motor stool (341), the shaft (210),
the coupling shells (862) and the motor shaft.
3. Loosely fasten the coupling shells (862) with the
coupling pin (560) on the shaft (210). Use the hexagon
socket head cap screw (914.01) and the nut (920.01)
for this purpose. (When the pump is equipped with a
steel coupling, never use the same coupling twice but
order a new one).
4. Place the motor on the motor stool (341).
5. Tighten the lower bolts of the coupling shells (862)
so far that the coupling slightly clamps around the
motor shaft.
6. Lift the pump assembly to the maximum upwards
position put a tyre lever under the coupling.
ATTENTION
For motors of 15HP or higher, block the
rotor when adjustments are made to
the coupling. This ensures that the rotor will
not come out of its bearings.
IMPORTANT
Correct seal tension max, -1mm lower than
the maximum upwards position!
7. Position the pump assembly 1mm lower than the
maximum upwards position as mentioned earlier.
8. Fully tighten the couplings to the correct torque (See
“Torques” in the annexes). Make sure that the gaps
between the couplings are equally divided on both
sides (see drawing).
9. Attach the coupling guards (681) with the hexagon
head bolts (901.01) to the motor stool (341).
10. Connect the electricity supply to the motor.

11

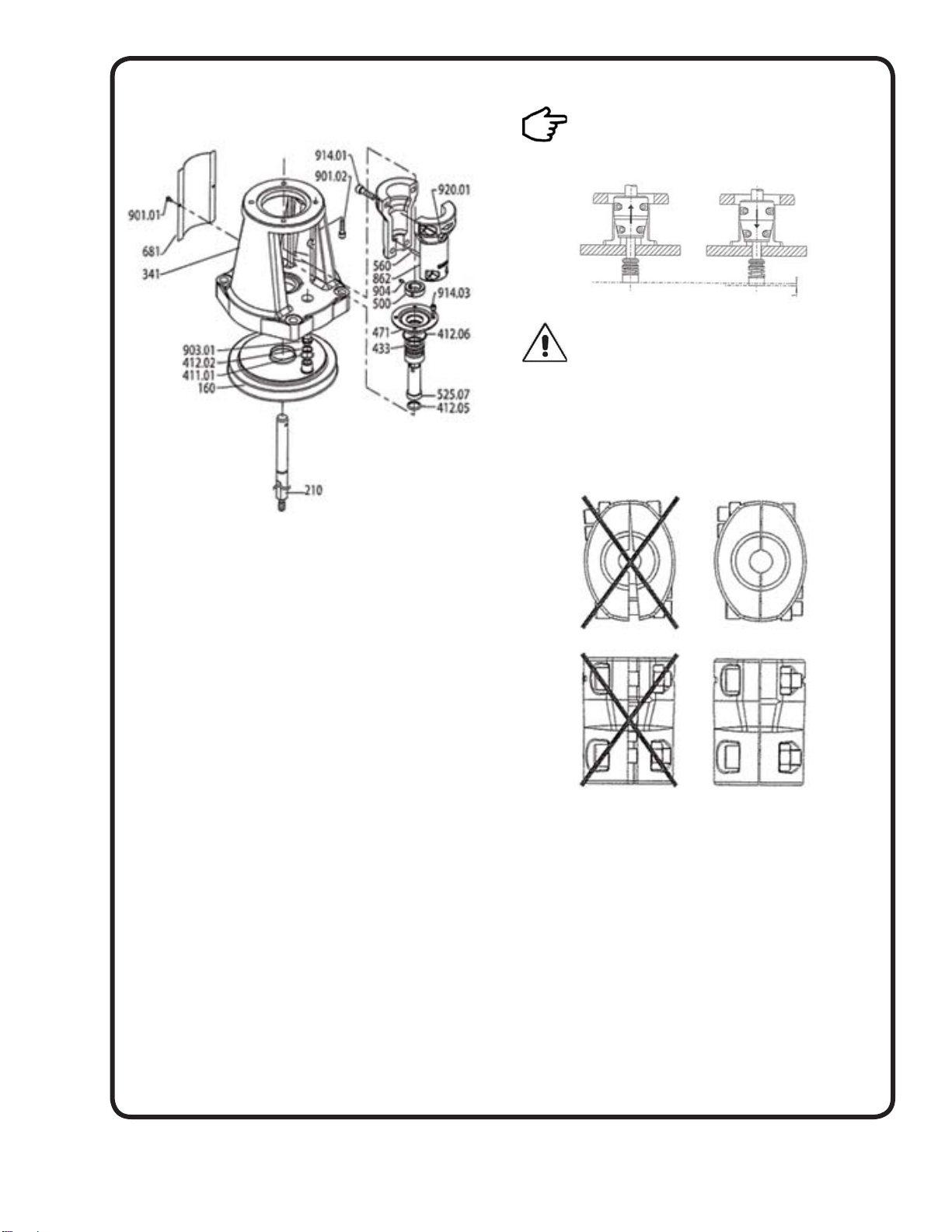

F-2.2) Installing the motor on pumps, supplied without
motor, with a cartridge seal:
1. Remove the “transport fixation assembly” together
with the coupling guards (681) and the coupling shells
(862). For some models the coupling shells are
delivered separately.
2. Thoroughly clean the motor stool (341), shaft (210),
coupling shells (862) and the motor shaft.
3. Loosely fasten the coupling shells (862) with the
coupling pin (560) on the shaft (210). Use the hexagon
socket head cap screw (914.01) and the nut (920.01)
for this purpose. (When the pump is equipped with a
steel coupling, never use the same coupling twice but
order a new one).
4. Place the motor on the motor stool (341).
5. Loosen the three cartridge grub screws (904) one turn.
6. Push the hydraulic pump assembly in the lowest
position.
7. Tighten the three cartridge bolts (904) firmly to the shaft.
8. Tighten the lower bolts of the coupling shells (862) so
that the coupling clamps slightly around the motor shaft.
9. Lift the pump assembly to the maximum upwards
position and mark the shaft. For this purpose put a tyre
lever under the coupling
ATTENTION
For motors of 15HP or higher, block the rotor
when adjustments are made to the coupling.
This ensures that the rotor will not come out
of its bearings.
IMPORTANT
Correct seal tension max. -1mm lower than
the maximum upwards position!
10. Position the pump assembly 1mm lower than the
maximum upwards position as mentioned earlier.
11. Fully tighten the couplings to the correct torque (see
“Torques” in the annexes). Make sure that the gaps
between the couplings are equally divided on both
sides (see drawing).
12. Install the coupling guards (681) with the hexagon
head bolts (901.01) to the motor stool (341).
13. Electrically connect the motor.

12
F-4) Commissioning:
IMPORTANT
The pump must not be switched on when it is
not completely filled up.
ATTENTION
Seen from the top of the motor the pump
should rotate clockwise (B) See G-1 Setting
up the pump 145. In case of a 3-phase motor
the rotating direction can be changed by
exchanging two of the three phase wires.

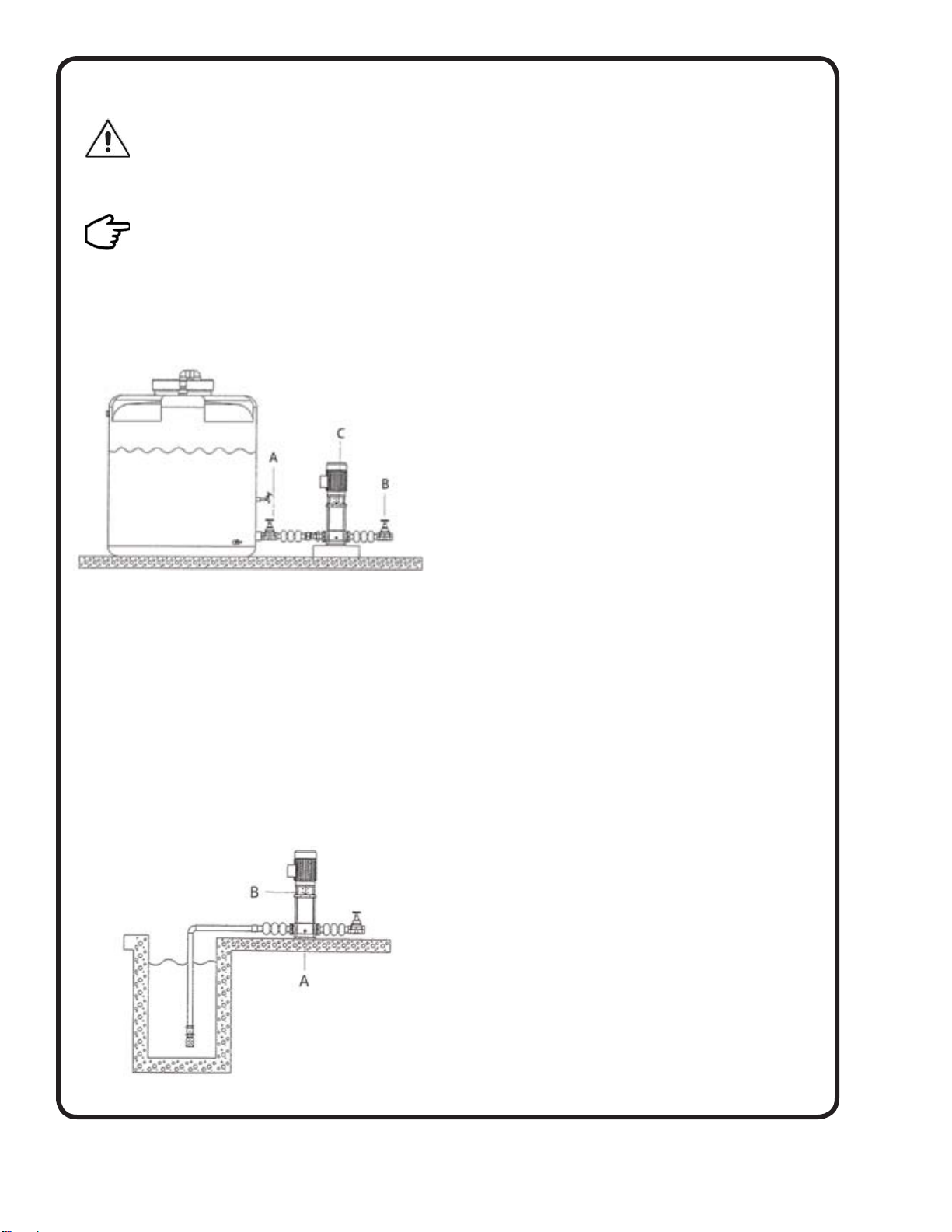

F-4.1) In an open or closed circuit with sufficient
supply pressure:
1. Close the suction shut-off valve (A) and the outlet shut-
off valve (B).
2. Open the fill plug (C).
3. Gradually open the suction shut-off valve until the liquid
flows from the fill plug (C).
4. Close the fill plug.
5. Fully open the suction shut-off valve.
6. Check the rotational direction of the pump.
7. Fully open the outlet shut-off valve.
F-4.2) In an open circuit with a liquid level lower than
the pump:
1. Partly loosen the drain lug (A). For BPVE, BPVCF, and
BPLHS the drain plug must be fully removed.
2. Remove the fill plug (B) from the top bracket.
3. Block the entry of the drain plug on the outside of the
pump foot.
4. Close the outlet shut-off valve.
5. Fill the pump housing to the maximum through the fill
plug with the liquid that is to be pumped.
6. Screw the drain plug into the pump foot.
7. Insert the fill plug in the top bracket.
8. Check the rotational direction of the pump.
9. Open the outlet shut-off valve.
F-4.3) After an extended period of non-operation or
storage:
During first start-up, be sure to check the mechanical seals
for leakage due to seizure or dehydration of he lubricating
film. if this is the case, please proceed as follows:
1. Turn shaft manually or;
2. Start up the pump, then open and close the outlet shut-
off valve quickly during operation.
3. Check if the mechanical seal is still leaking.
If the shaft is still leaking:
1. Disassemble the mechanical seal.
2. Thoroughly clean and degrees the running surfaces.
3. Assemble the mechanical seal again ad retry start-up.
If this doesn’t solve the shaft leakage, replacement of the
mechanical seal is necessary.
SECTION: G - Operation:
G-1) Operation:
The pump is controlled externally and therefore does not
need any operation guidance.

13
SECTION: H - Maintenance:
H-1) Introduction:
WARNING
Observe the general safety precautions for
installation, maintenance and repair.
Regular maintenance is necessary for the correct
operation a pump. For maintenance of the pump, please
contact your supplier.
H-2) Lubrication:
Standard motors, with a maximum power of 10HP, are
provided with maintenance free sealed bearings.
Motors with lubricating nipples must be lubricated after
2000 hours. If the pump works under extreme conditions,
such as vibrations and high temperatures, the motors
must be lubricated more often.
Use a lithium based -30ºC/160ºC bearing lubricant (about
15 gram).
When the pump is delivered without a motor and fitted
with an other brand or the standard motor is replaced
by an other brand than BP Pumps, please consult the
maintenance instructions of the motor supplier.
H-3) Maintaining the pump for an extended period of
non-operation:
Turn the shaft every three months. This protects the sales
from seizure.
Protect the pump against if there is a risk of frost. Proceed
as follows:
1. Close all pump valves.
2. Drain
3. Remove
4. Open
H-4) Replace BPVE non-return valve:
To replace the non-return valve of the pump types BPVE,
proceed as follows:
1. Use a pair of pliers to remove the non-return valve.
2. Remove the O-ring.
3. Install a new O-ring.
4. Install the new non-return valve.

14
SECTION: J - Failures:
J-1) Failure table:
WARNING
Observe the general safety precautions before install, maintenance and repair.
Problem Possible Cause Possible Solution Checkpoints
Leakage along the shaft Running surfaces of the
mechanical seal worn or damaged
Replace the mechanical seal Check the pump for dirt-abrasive
parts
New pump: seal stuck due to
assembly
Open and close the outlet shut-off
valve quickly during operation
Mechanical seal mounted
incorrectly
Install the mechanical seal
correctly. Use water and soap as
a lubricant
Elastomers affected by medium Use the right rubber compound for
the mechanical seal
Pressure too high Use the right type of mechanical
seal
Shaft worn Replace shaft and mechanical seal
Pump has been operating without
water
Replace the mechanical seal
Leakage along the
shroud at the top bracket
or at the pump foot
O-ring worn Replace the O-ring
O-ring not resistant to the medium
to be pumped
Replace O-ring by an O-ring with
better resistance
Too much tension on the pump
foot; it becomes oval
Decrease tension on piping
Mount the pump foot tensionless
Support the connections
Pump is vibrating or noisy Coupling mounted incorrectly Install the coupling in parallel
Faulty settling of the hydraulic
assembly
Adjust the assembly according to
the manual
There is no water in the pump Fill and vent the pump
No supply Make sure there is sufficient
supply. Check for blockages in the
supply line
Bearings of pump and/or motor
worn
Have the bearings replaced by a
certified company
Available NPSH too low
(cavitation)
Improve suction condition
Pump does not operate in its
working range
Select another pump or adjust the
system to work within its working
range
Pump is standing on an uneven
surface
Level the surface
Malfunction Internal blockage in the pump Have the pump inspected by a
certified company
Pump does not start No voltage on the terminal clamps Check the power supply • Circuit
• Main Switch
• Fuses
Check the motor safety relay • Earth leakage switch
• Protective relay
Thermal motor safety switch
triggered
Reset the thermal motor-safety.
Contact the supplier, if this
problem occurs more often.
The motor is running, but
the pump does not work
The motor shaft has been broken Contact the supplier
The pump shaft has been broken Contact the supplier
The coupling between pump and
motor shaft is loose
Tighten the connecting screws to
the recommended torque

15
Problem Possible Cause Possible Solution Checkpoints
Pump supplies
insufficient capacity and/
or pressure
Outlet and/or inlet shut-off valve
is closed
Open both shut-off valves
There is air in the pump Vent the pump
The suction pressure is insufficient Increase the suction pressure
Pump rotates in the wrong
direction
Change over L1 and L2 of the
three phase supply
The suction line has not been
vented
Vent the suction line
Air bubble in the suction line Install the suction line with pump
end higher than the other end
Pump sucks air because of
leakage in the suction line
Repair the leakage
Too little water consumption so air
bubbles clog up in the pump
Make sure the consumption
increases or use a smaller pump
The diameter of the suction line is
too small
Increase the diameter of the
suction line
Capacity of water meter in the
supply line is too small
Increase the capacity of the water
meter
Foot valve blocked Clean the foot valve
The impeller or the diffuser is
blocked
Clean the inside of the pump
O-ring between impeller and
diffuser is gone
Replace the O-rings
O-ring not resistant to the medium
to be pumped
Replace O-ring by an O-ring with
better resistance

16
SECTION: K - Spare Parts:
K-1) Recommended spare parts BPV(S)(C)(F)(V):
This recommendation includes all parts required to
rebuild a disassembled pump with replacement of all
stage casings/diffusers with bearing (108.02/171.02),
bearing sleeves (529) and all sealings. Major parts such
as impellers, diffusers, shafts, castings etc. are normally
not required for overhaul but are of course available on
request.
BPV(S)(C)(F) 2/4
The number of parts needed for a specific type of pump
can be found in either the Bill of Materials or the Spare
Parts List. The position number refers to the cut away
drawing.
* Mechanical Seal Kits include ALL gaskets necessary for
seal replacement.
Quantity Item No. Description Part No.
2 412.01 O-ring EPDM (Circular groove) 18030201
2 O-ring EPDM (Rectangular groove) 19120200
2 O-ring EPDM E425 (Rectangular groove) 19120205
2 O-ring Viton (Circular groove) 18030209
2 O-ring Viton (Rectangular groove) 19120208
B 108.02 Stage casing with ceramic bearing BPV, BPVC 2/4 18030260
B Stage casing with ceramic bearing BPVS 2/4 18030212
N 412.03 O-ring EPDM 18030211
N O-ring Viton 18030212
1 * 433 Mechanical bellow seal BPV 2/4, EPDM 127932
1 Mechanical bellow seal BPVS 2/4, Viton 127933
B 529 Bearing Sleeve d=12mm 18020377
1 525.04 Spacer sleeve end BPV(S)(E) 2/4 13030374
1 920.02 Lock-nut with non metallic insert A2 (BPV) 76052010
1 Lock-nut with non metallic insert A4 (BPVS) 76052011
1 930 Safety device A4 Nord-lock M10 76940110
BPV(S)(C)(F)10/18
Quantity Item No. Description Part No.
2 412.01 O-ring EPDM (Circular groove) 18110200
2 O-ring EPDM (Rectangular groove) 18110201
2 O-ring EPDM E425 (Rectangular groove) 18110202
2 O-ring Viton (Circular groove) 18110208
2 O-ring Viton (Rectangular groove) 18110209
B 108.02 Stage casing with ceramic bearing BPV 10 18112260
B Stage casing with ceramic bearing BPVS 10 13112260
B Stage casing with ceramic bearing BPV 18 18192260
B Stage casing with ceramic bearing BPVS 18 13192260
N 412.03 O-ring EPDM BPV 10 18110211
N O-ring Viton BPVS 10 18110212
N O-ring EPDM BPV 18 18190211
N O-ring Viton BPVS 18 18190212
1 * 433 Mechanical bellow seal BPV, BPVC 10/18, EPDM 127934
1 Mechanical bellow seal BPVS 10/18, Viton 127935
B 529 Bearing sleeve d=16mm 18100377
1 525.04 Spacer sleeve end BPV(S) 10/18 13110374
1 920.02 Lock-nut with non metallic insert A2 (BPV) 76052010
1 Lock-nut with non metallic insert A4 (BPVS) 76052011
1 930 Safety device Nord-lock M10 76940110

17
BPV(S)(C)(F) 32-10, 32-20, 45-10 with standard mechanical seal
Quantity Item No. Description Part No.
B 171.02 Diffuser with ceramic bearing BPVF 32/45 18330260
B Diffuser with ceramic bearing BPVSF 32/45 13330260
2 412.01 O-ring EPDM 18660200
2 O-ring EPDM E425 (Rectangular groove) 18660201
2 O-ring Viton 18660208
1 * 433 Mechanical bellow seal BPV 32/45, EPDM 127936
1 Mechanical bellow seal BPVS 32/45, Viton 127937
B 525.01 Spacer sleeve short BPVF 32/45 18330379
B Spacer sleeve short BPVSF 32/45 13330379
B 529 Bearing Sleeve d=12mm 18320377
B 525.03 Spacer sleeve long BPVF 32/45 18330375
B Spacer sleeve long BPVSF 32/45 13330375
1 525.04 Spacer sleeve end BPV(S) 32/45/65 13330374
1 920.02 Lock-nut with non metallic insert A2 (BPV) 76052012
1 Lock-nut with non metallic insert A4 (BPVS) 76052013
1 930 Safety device Nord-lock M12 76940112
BPV(S)(C)(F) 32-30, 32-40, 32-50, 32-60, 32-70, 32-80, 32-90, 45-20, 45-30, 45-40, 45-50, 45-60
with mechanical cartridge seal
Quantity Item No. Description Part No.
1 412.05 O-ring EPDM 18660171
1 O-ring EPDM E425 18660175
1 O-ring Viton 18660172
1 412.06 O-ring EPDM 18660170
1 O-ring EPDM E425 18660179
1 O-ring Viton 18660178
2 412.01 O-ring EPDM 18660200
2 O-ring EPDM E425 (Rectangular groove) 18660201
2 O-ring Viton 18660208
B 171.02 Diffuser with ceramic bearing BPVF 65 18660260
B Diffuser with ceramic bearing BPVSF 65 13660260
1 * 433 Mechanical bellow seal BPVF 32/45/65, EPDM 127938
1 Mechanical bellow seal BPVSF 32/45/65, Viton 127939
B 525.01 Spacer sleeve short BPVF 65 18660379
B Spacer sleeve short BPVSF 65 13660379
B 529 Bearing sleeve d=22mm 18320377
B 525.03 Spacer sleeve long BPVF 65 18660375
B Spacer sleeve long BPVSF 65 13660375
1 525.04 Spacer sleeve end BPV(S) 32/45/65 13330374
1 920.02 Lock-nut with non metallic insert A2 (BPV) 76052012
1 Lock-nut with non metallic insert A4 (BPVS) 76052013
1 930 Safety device A4 Nord-lock M12 76940112

18
BPLHS 6
Quantity Item No. Description Part No.
1 * 433 Mechanical seal 40 bar 19390182
2 412.01 O-ring, for sleeve 18060200
N 412.03 O-ring, for diffuser 18060207
B 108.02 Stage casing with ceramic bearing 13400260
B 529 Bearing sleeve 18100377
BPV(S)(C)(F) 65 with mechanical cartridge seal
Quantity Item No. Description Part No.
1 412.05 O-Ring EPDM 18660171
1 O-Ring EPDM E425 18660175
1 O-Ring Viton 18660172
1 412.06 O-Ring EPDM 18660170
1 O-Ring EPDM E425 18660179
1 O-Ring Viton 18660178
2 412.01 O-Ring EPDM 18660200
2 O-Ring EPDM E425 18660201
2 O-Ring Viton 18660208
B 171.02 Diffuser with ceramic bearing BPVF 65 18660260
B Diffuser with ceramic bearing BPVSF 65 13660260
1 * 433 Mechanical bellow seal BPVF 24/32/45/65, EPDM 127938
1 Mechanical bellow seal BPVF 24/32/45/65, Viton 127939
B 525.01 Spacer sleeve short BPVF 65 18660379
B Spacer sleeve short BPVSF 65 13660379
B 529 Bearing sleeve d-22mm 18320377
B 525.03 Spacer sleeve long BPVF 65 18660375
B Spacer sleeve long BPVSF 65 13660375
1 525.04 Spacer sleeve end BPV(S) 24/32/45/65 13330374
1 920.02 Lock-nut with non metallic insert A2 (BPV) 76052012
1 Lock-nut with non metallic insert A4 (BPVS) 76052013
1 930 Safety device A4 Nord-lock M12 76940112
BPV(S)(C)(F) 85 with mechanical cartridge seal
Quantity Item No. Description Part No.
1 * 433 Mechanical Seal BPVF 127940
1 Mechanical Seal BPVSF 127941
Consult factory for additional part numbers if needed

19
SECTION: L - Service Tools:
L-1) Service tool kits:
Pump de-aeration kit
Vacuum de-aeration kit: Quantity
Hand pump 1
Clamp 2
Hose pipe 25mm 1 (m)
Hose connection 1” x 25mm 1
Adapter piece 1” x 22mm 1
Pipe 22mm 20 (cm)
Knee coupling ¾” x 22mm 1
Reducing ring ¾” x ½mm 1
Reducing nipple ¼” x ½” 1
Pump (dis)assembling kit
Coupling Adjustment Quantity
Socket head wrench screwdriver 3mm 1
T-grip socket head wrench 5mm 1
T-grip socket head wrench 6mm 1
T-grip socket head wrench 8mm 1
Tyre lever 300 1
Socket wrench screw driver 1
De-aeration and draining Quantity
Wrench 17mm 1
Motor Mounting Quantity
Wrench 10mm 1
Wrench 13mm 1
Wrench 19mm 1
Wrench 22mm 1
Wrench 24mm 1
(Dis) assembling of hydraulic parts Quantity
Mounting plate 1
Davel pin 5 x 70mm 1
Torque wrench Quantity
Torque wrench 10-100 Nm 1
Socket 13mm 1
Socket 17mm 1
Socket 24mm 1
Mounting plate
Mounting plate dimensions

20
SECTION: M - Condensed Repair Instructions:
M-1) General:
These instructions concern the repairs which can be
handled by a local service engineer. Please note that
during all mentioned repairs all precautions are to be taken
and the pump always has to be disconnected from the
electrical supply. The numbers mentioned after the parts
refer to the position numbers of these parts in the cut
away drawing of the pump concerned.
IMPORTANT
Never allow the pump to run dry
M-2) Replacement of standard mechanical seal
BPV(S):
1. Check if pump is drained and if not, drain it.
2. Remove the hexagon head bolts and coupling guards
(901.01, 681), disassemble the coupling shell (862) and
the pin (560), unscrew hexagon head bolts and washer
(901.02, 554.02) and take the motor (800) off the motor
stool (341).
3. Loosen the 4 nuts (920.03) crosswise and equally lift
the motor stool (341) and the cover (160) from
the upper stage casing (108.05/108.06/171.03) and
the pump-shroud (10-6). If necessary use a screwdriver
(flat and narrow) to remove the motor stool (341) from
the pump-shroud (10-6). Push the screwdriver in the
groove of the pump-shroud (10-6) and rotate it around
the edge of the motor stool (341). Repeat this action
several times until the two parts are separated.
4. Pull the rotating part of the mechanical seal (433)
from the shaft (210). Clean the shaft (210) and check
for damages.
5. Wet the shaft-end (210) with water or a soap solution.
Push the rotating part of the new mechanical seal (433)
on the shaft (210).
6. Remove the old static part of the mechanical seal (433)
from the cover (160) assembly. Wet the new part of the
mechanical seal (433) with water or a soap solution and
put it in the motor stool (341). Slide this cover (160) into
the motor stool (341) and over the mechanical seal.
7. Finish the pump assembly as described in xx.xx.x
Finishing the pump assembly all BPV(S)(C)(F) with
standard mechanical seal 195.
8. Install the motor (800) on the motor stool (341) and
assemble pin (560) and coupling shell (862) on the
shaft (210) as described in xx.xx.x BPV(S)(F)
2/4/10/18/32/45/65 with standard mechanical
seal 196.
9. De-aerate pump and pipe work. Check for the correct
rotation (clockwise). See xx.x Setting up the pump 145.
10. Test run the pump and retighten the tie-rods crosswire
and equally on torque.
M-3) Replacement of standard mechanical cartridge
seal BPV(S)F 32/45/65:
1. Carefully relieve any pressure in the pump.
2. Remove hexagon head bolts (901.01) and coupling
guard (681), disassemble the coupling shell (862) and
the pin (560)
3. Unscrew the three grub screws (904) partly and the four
hexagon socket head cap screws (914.01) completely.
4. Place a screwdriver between the seal cover (471) and
the motor stool (341) and lift the cartridge seal from the
shaft (210)
5. Unscrew the grub screws (904) completely and remove
the ring (500), if present the flat ring and the seal cover
(471), from the spacer sleeve cartridge (525.07).
6. Remove the old static part of the mechanical seal (433)
from the seal cover (471) with water or a soap solution
and place the new static part.
7. Remove the old rotating part of the mechanical seal
(433) from the spacer sleeve cartridge (525.07).
Clean the spacer sleeve cartridge (525.07) and check
for damages.
8. Wet the spacer sleeve cartridge (525.07) with water or
a soap solution and place the new rotating part.
9. Remove the O-rings (412.05, 412.06) from the spacer
sleeve cartridge (525.07) and the seal cover (471) and
replace them by new ones.
10. Slide the seal cover (471) on the spacer sleeve
cartridge (525.07) and the ring (500) and screw grub
screws (904) partly in. Do not replace the flat ring.
11. Wet the shaft (210) with water or a soap solution and
place the new cartridge seal.
12. Assemble pin (560) and coupling shells (862) on the
shaft (210) as described in xx.xx.x BPV(S)F
32/45/65 with mechanical cartridge seal 197.
13. De-aerate pump and pipe work. Check for the correct
rotation (clockwise). See xx.x Setting up the pump 145.
14. Test run the pump.
