B80 Mothership Quick Start Guide
BMB1 ROM Rev D
HD I/O 16X16 FOR PRO TOOLS 8.1 AND LATER

page2•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120614 831.425.7501
Congratulations on your purchase of the B80 Mothership. There are a few
simple things you must do before you can ROCK!
*YOU MUST REGISTER YOUR B80 AT BURLAUDIO.COM/SUPPORT FOR YOUR WARRANTY
TO BE VALID. WE NEED TO KEEP YOU UP TO DATE WITH THE LATEST FIRMWARE*
*PLEASE NOTE THAT FACEPLATE COLOR MAY VARY
SLIGHTLY FROM RUN TO RUN*
STEP 1 INSTALL CARDS.
Unless you have more than 24in/32out, card slot 1 is for your rst
BAD4 card and slot 7 is for your rst BDA8 card.
*See gures 1-5, and pages 6 and 7 for card placement and channel
assignment to congure your system.
Make sure the top and botttom of each card are inserted into the card guides.
Figure 1 Front View Conguration for 24 in, 32 out.
10 9 8 7 6 5 4 3 2 1
Figure 2 Rear View Conguration for 24 in, 32 out.

page3•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120613 831.425.7501
STEP 2 ATTACH POWER CABLE AND RIBBON CABLE TO FACEPLATE.
-The red wire should be closest to the orange power
connector for all faceplates.
-There are two revisions of faceplates. We added
a shrouded header to the faceplates and cards to
eliminate confusion. (See gures 4a-4d next page)
-Always make sure the orange 2 pin connector is
attached properly. Verify orientation.
10 9 8 7 6 5 4 3 2 1
10 9 8 7 6 5 4 3 2 1
10 9 8 7 6 5 4 3 2 1

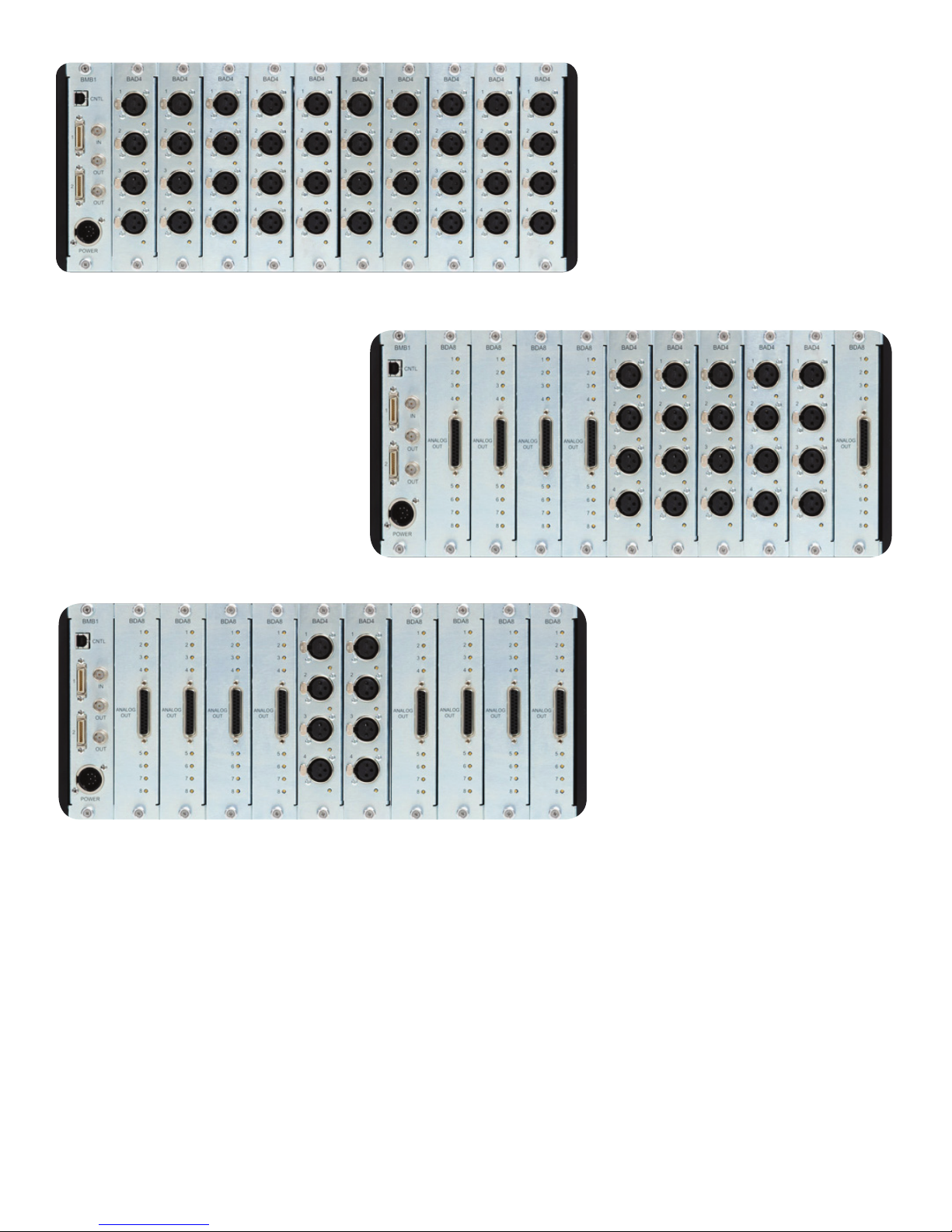

Fig. 3 Conguration for 40 in.
Fig. 4 Conguration for 20 in, 40 out.
Fig. 5 Conguration for 8 in 64 out.

page4•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120614 831.425.7501
Your Mothership will ship
to you with the wire
assemblies already
attached to the
daughter cards
(see Figure 6)
Please verify
orientation.
Figure 6
Rev A or Rev 1 Rev B
*Rev A faceplate: Make sure
ribbon cable is connected to
all pins.
*Rev B faceplates have a
shrouded header to ensure
proper connection.
Also note if your card has Rev A/ Rev 1 or Rev B
(See Figures 7a-7d below)
Figure 7b Figure 7c Figure 7dFigure 7a

page5•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120613 831.425.7501
When using B80 internal clock, set the CLOCK CONTROL to
DAW, which allows Pro Tools to change sample rate. If
using external clock, set to EXT.

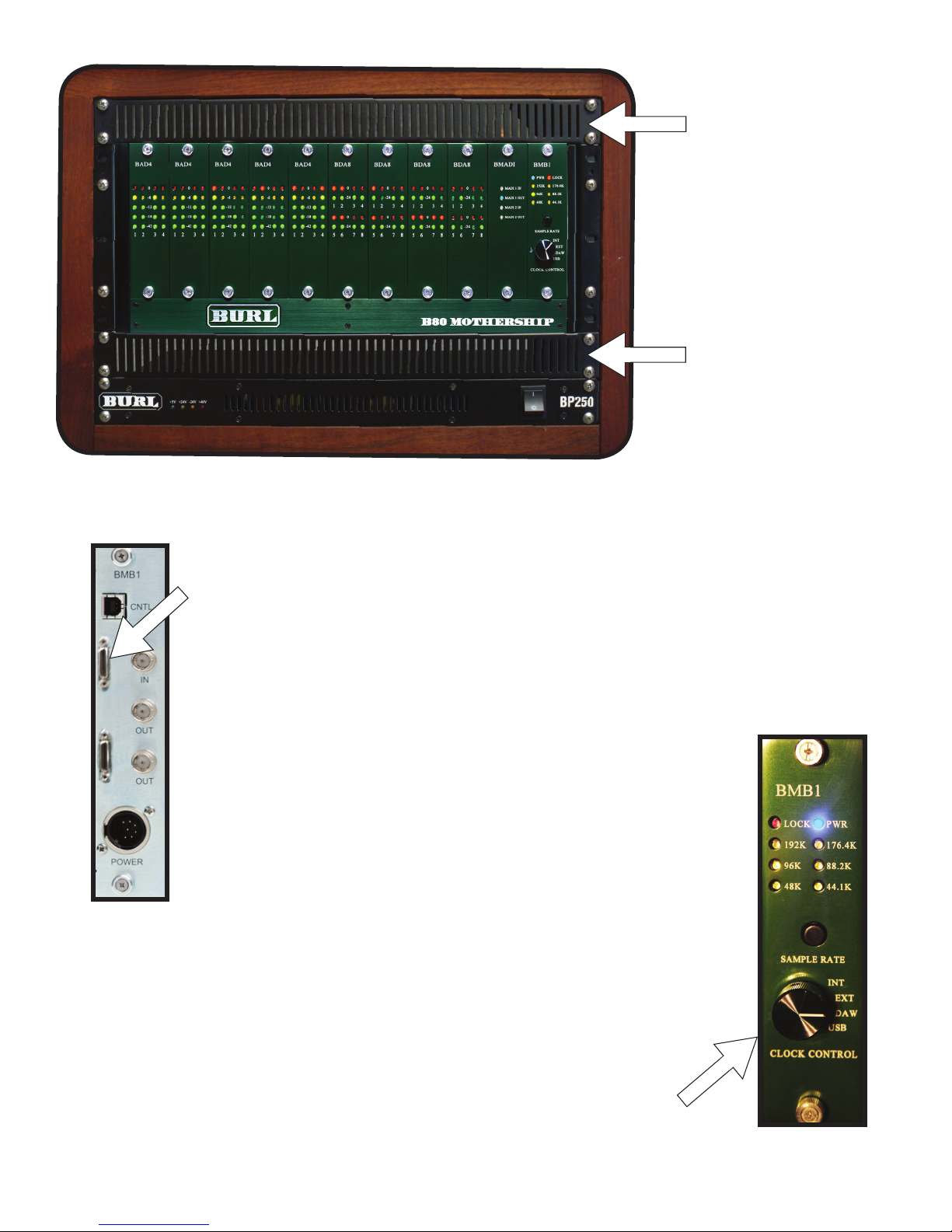

STEP 3
INSTALL 1U VENTS
ABOVE AND BELOW
MAIN UNIT.
The Mothership MUST
run with proper
ventilation
STEP 5 SET MOTHERBOARD TO DAW FOR USE WITH PRO TOOLS.
Figure 8
STEP 4 CONNECT DIGILINK PORT 1 TO CORE CARD. Each
Digilink Port on the BMB1 can run up to 32 ins/outs. If
you have 32 ins/outs or less, you only need to use port 1.
If you have more than 32 ins/outs, use ports 1 and 2.
Both ports on the BMB1 are primary ports.
Figure 9
Figure 10
1
2

page6•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120614 831.425.7501
B80 Slot 1 Channel 1 -> HD I/O #1 Analog In Channel 1
B80 Slot 1 Channel 2 -> HD I/O #1 Analog In Channel 2
B80 Slot 1 Channel 3 -> HD I/O #1 Analog In Channel 3
B80 Slot 1 Channel 4 -> HD I/O #1 Analog In Channel 4
B80 Slot 2 Channel 5 -> HD I/O #1 Analog In Channel 5
B80 Slot 2 Channel 6 -> HD I/O #1 Analog In Channel 6
B80 Slot 2 Channel 7 -> HD I/O #1 Analog In Channel 7
B80 Slot 2 Channel 8 -> HD I/O #1 Analog In Channel 8
B80 Slot 3 Channel 9 -> HD I/O #1 Analog In Channel 9
B80 Slot 3 Channel 10 -> HD I/O #1 Analog In Channel 10
B80 Slot 3 Channel 11 -> HD I/O #1 Analog In Channel 11
B80 Slot 3 Channel 12 -> HD I/O #1 Analog In Channel 12
B80 Slot 4 Channel 13 -> HD I/O #1 Analog In Channel 13
B80 Slot 4 Channel 14 -> HD I/O #1 Analog In Channel 14
B80 Slot 4 Channel 15 -> HD I/O #1 Analog In Channel 15
B80 Slot 4 Channel 16 -> HD I/O #1 Analog In Channel 16
B80 Slot 5 Channel 17 -> HD I/O #2 Analog In Channel 1
B80 Slot 5 Channel 18 -> HD I/O #2 Analog In Channel 2
B80 Slot 5 Channel 19 -> HD I/O #2 Analog In Channel 3
B80 Slot 5 Channel 20 -> HD I/O #2 Analog In Channel 4
B80 Slot 6 Channel 21 -> HD I/O #2 Analog In Channel 5
B80 Slot 6 Channel 22 -> HD I/O #2 Analog In Channel 6
B80 Slot 6 Channel 23 -> HD I/O #2 Analog In Channel 7
B80 Slot 6 Channel 24 -> HD I/O #2 Analog In Channel 8
B80 Slot 7 Channel 25 -> HD I/O #2 Analog In Channel 9
B80 Slot 7 Channel 26 -> HD I/O #2 Analog In Channel 10
B80 Slot 7 Channel 27 -> HD I/O #2 Analog In Channel 11
B80 Slot 7 Channel 28 -> HD I/O #2 Analog In Channel 12
B80 Slot 8 Channel 29 -> HD I/O #2 Analog In Channel 13
B80 Slot 8 Channel 30 -> HD I/O #2 Analog In Channel 14
B80 Slot 8 Channel 31 -> HD I/O #2 Analog In Channel 15
B80 Slot 8 Channel 32 -> HD I/O #2 Analog In Channel 16
B80 Slot 9 Channel 33 -> HD I/O #3 Analog In Channel 1
B80 Slot 9 Channel 34 -> HD I/O #3 Analog In Channel 2
B80 Slot 9 Channel 35 -> HD I/O #3 Analog In Channel 3
B80 Slot 9 Channel 36 -> HD I/O #3 Analog In Channel 4
B80 Slot 10 Channel 37 -> HD I/O #3 Analog In Channel 5
B80 Slot 10 Channel 38 -> HD I/O #3 Analog In Channel 6
B80 Slot 10 Channel 39 -> HD I/O #3 Analog In Channel 7
B80 Slot 10 Channel 40 -> HD I/O #3 Analog In Channel 8
View of 40 ins with 10 BAD4 cards max per chassis.
NOTE: DO NOT
LEAVE MORE
I/Os IN YOUR
I/O SETUP
THAN YOU HAVE
HARDWARE FOR!
*BMB REV D COMPATABLE WITH PRO TOOLS 8.1 AND LATER*
STEP 6:
INPUT
ASSIGNMENT
Figure 11

page7•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120613 831.425.7501
Figure 7

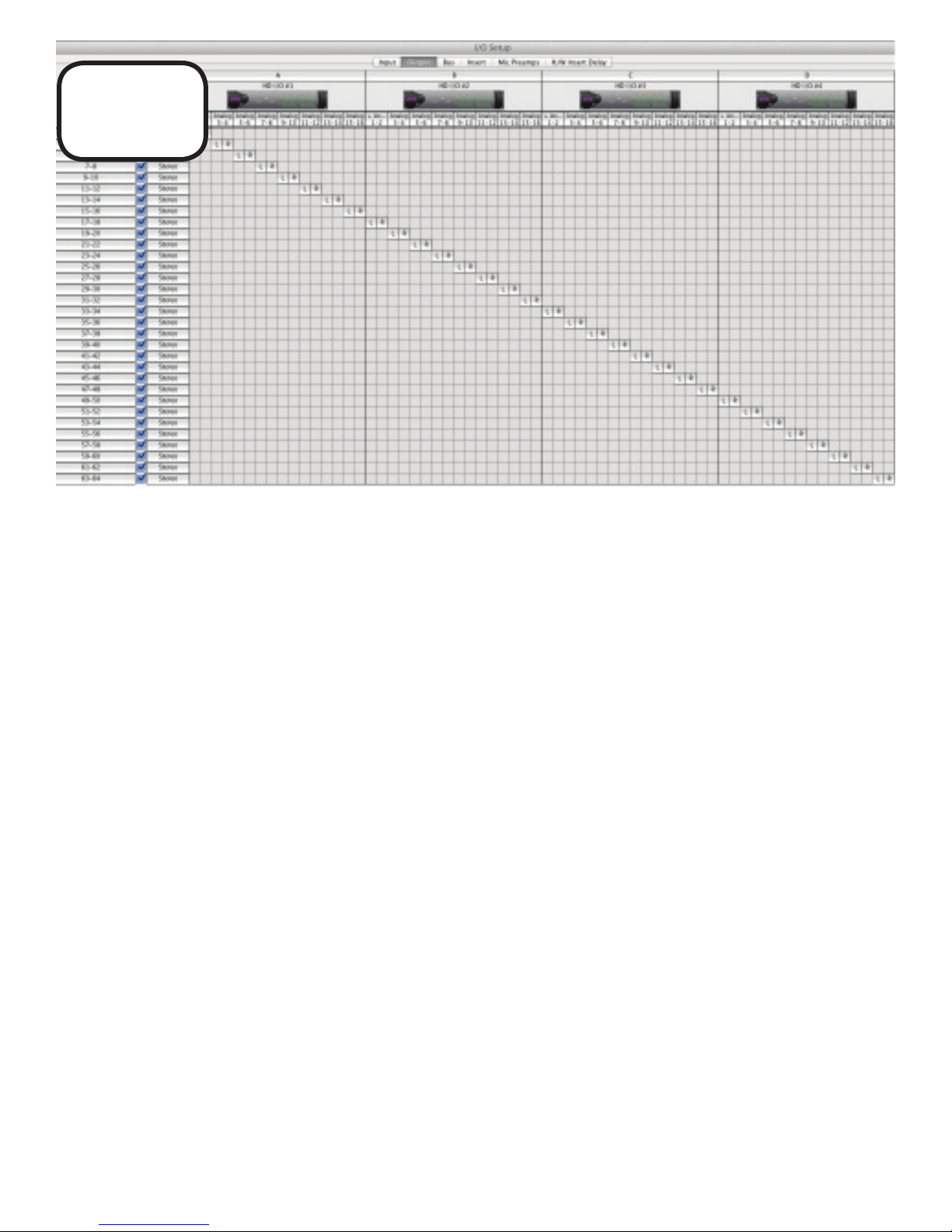

STEP 7:
OUTPUT
ASSIGNMENT
B80 Slot 7 Channel 1 -> HD I/O#1 Analog Out Channel 1
B80 Slot 7 Channel 2 -> HD I/O#1 Analog Out Channel 2
B80 Slot 7 Channel 3 -> HD I/O#1 Analog Out Channel 3
B80 Slot 7 Channel 4 -> HD I/O#1 Analog Out Channel 4
B80 Slot 7 Channel 5 -> HD I/O#1 Analog Out Channel 5
B80 Slot 7 Channel 6 -> HD I/O#1 Analog Out Channel 6
B80 Slot 7 Channel 7 -> HD I/O#1 Analog Out Channel 7
B80 Slot 7 Channel 8 -> HD I/O#1 Analog Out Channel 8
B80 Slot 8 Channel 9 -> HD I/O#1 Analog Out Channel 9
B80 Slot 8 Channel 10 -> HD I/O#1 Analog Out Channel 10
B80 Slot 8 Channel 11 -> HD I/O#1 Analog Out Channel 11
B80 Slot 8 Channel 12 -> HD I/O#1 Analog Out Channel 12
B80 Slot 8 Channel 13 -> HD I/O#1 Analog Out Channel 13
B80 Slot 8 Channel 14 -> HD I/O#1 Analog Out Channel 14
B80 Slot 8 Channel 15 -> HD I/O#1 Analog Out Channel 15
B80 Slot 8 Channel 16 -> HD I/O#1 Analog Out Channel 16
B80 Slot 9 Channel 17 -> HD I/O#2 Analog Out Channel 1
B80 Slot 9 Channel 18 -> HD I/O#2 Analog Out Channel 2
B80 Slot 9 Channel 19 -> HD I/O#2 Analog Out Channel 3
B80 Slot 9 Channel 20 -> HD I/O#2 Analog Out Channel 4
B80 Slot 9 Channel 21 -> HD I/O#2 Analog Out Channel 5
B80 Slot 9 Channel 22 -> HD I/O#2 Analog Out Channel 6
B80 Slot 9 Channel 23 -> HD I/O#2 Analog Out Channel 7
B80 Slot 9 Channel 24 -> HD I/O#2 Analog Out Channel 8
B80 Slot 10 Channel 25 -> HD I/O#2 Analog Out Channel 9
B80 Slot 10 Channel 26 -> HD I/O#2 Analog Out Channel 10
B80 Slot 10 Channel 27 -> HD I/O#2 Analog Out Channel 11
B80 Slot 10 Channel 28 -> HD I/O#2 Analog Out Channel 12
B80 Slot 10 Channel 29 -> HD I/O#2 Analog Out Channel 13
B80 Slot 10 Channel 30 -> HD I/O#2 Analog Out Channel 14
B80 Slot 10 Channel 31 -> HD I/O#2 Analog Out Channel 15
B80 Slot 10 Channel 32 -> HD I/O#2 Analog Out Channel 16
B80 Slot 1 Channel 33 -> HD I/O#1 Analog Out Channel 1
B80 Slot 1 Channel 34 -> HD I/O#1 Analog Out Channel 2
B80 Slot 1 Channel 35 -> HD I/O#1 Analog Out Channel 3
B80 Slot 1 Channel 36 -> HD I/O#1 Analog Out Channel 4
B80 Slot 1 Channel 37 -> HD I/O#1 Analog Out Channel 5
B80 Slot 1 Channel 38 -> HD I/O#1 Analog Out Channel 6
B80 Slot 1 Channel 39 -> HD I/O#1 Analog Out Channel 7
B80 Slot 1 Channel 40 -> HD I/O#1 Analog Out Channel 8
B80 Slot 2 Channel 41 -> HD I/O#1 Analog Out Channel 9
B80 Slot 2 Channel 42-> HD I/O#1 Analog Out Channel 10
B80 Slot 2 Channel 43 -> HD I/O#1 Analog Out Channel 11
B80 Slot 2 Channel 44 -> HD I/O#1 Analog Out Channel 12
B80 Slot 2 Channel 45 -> HD I/O#1 Analog Out Channel 13
B80 Slot 2 Channel 46 -> HD I/O#1 Analog Out Channel 14
B80 Slot 2 Channel 47 -> HD I/O#1 Analog Out Channel 15
B80 Slot 2 Channel 48 -> HD I/O#1 Analog Out Channel 16
B80 Slot 3 Channel 49 -> HD I/O#2 Analog Out Channel 1
B80 Slot 3 Channel 50 -> HD I/O#2 Analog Out Channel 2
B80 Slot 3 Channel 51 -> HD I/O#2 Analog Out Channel 3
B80 Slot 3 Channel 52 -> HD I/O#2 Analog Out Channel 4
B80 Slot 3 Channel 53 -> HD I/O#2 Analog Out Channel 5
B80 Slot 3 Channel 54 -> HD I/O#2 Analog Out Channel 6
B80 Slot 3 Channel 55 -> HD I/O#2 Analog Out Channel 7
B80 Slot 3 Channel 56 -> HD I/O#2 Analog Out Channel 8
B80 Slot 4 Channel 57 -> HD I/O#2 Analog Out Channel 9
B80 Slot 4 Channel 58 -> HD I/O#2 Analog Out Channel 10
B80 Slot 4 Channel 59 -> HD I/O#2 Analog Out Channel 11
B80 Slot 4 Channel 60 -> HD I/O#2 Analog Out Channel 12
B80 Slot 4 Channel 61 -> HD I/O#2 Analog Out Channel 13
B80 Slot 4 Channel 62 -> HD I/O#2 Analog Out Channel 14
B80 Slot 4 Channel 63 -> HD I/O#2 Analog Out Channel 15
B80 Slot 4 Channel 64 -> HD I/O#2 Analog Out Channel 16
View of 64 outs, with 8 BDA8 cards max per chassis. Figure 12

page8•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120614 831.425.7501
When using Hardware Inserts with Delay Compensation,
use these values for the corresponding sample rates for
ROM Rev D:
H/W Instert Delay:
44.1k 0.11ms
48k 0.10ms
88.2k 0.50ms
96k 0.46ms
176.4k 0.28ms
192k 0.26ms
Make sure you register your products at
www.burlaudio.com/support
This way we can keep you rocking. If you have
support questions, please write an email to
[email protected]
or call
831.425.7501
Rock!
STEP 8:
Set HW Inserts

page9•
©BURL AUDI0 2012 B80 Quick Start Guide BMB1 Rev D 120613 831.425.7501
OPTIONAL BP250 FAN CALIBRATION
You may adjust the thermostat for the fans of the BP250 if noise is an issue. To
adjust the thermostat, remove BP250 lid. Locate calibration pot and adjust as in
Figure 8.b, if desired. The BP250 is factory set to 1.2 VDC @ room temperature
across the black and red fan wires. Higher fan speeds will ensure longer lasting
electronics.
If you have any questions,
please call Will Kahn:
831-425-7501
or [email protected]
Burl Audio, LLC
Santa Cruz CA
www.burlaudio.com
Figure 13a
Figure 13b
