Burle VidQuad TC8276X User manual

TC8272 Series
TC8276 Series
VidQuad®Four Channel Video Processor
Installation and
Operating Instructions

2
IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions
should be read before the unit is operated.
2. Retain Instructions - The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the unit and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug the unit from the outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this unit near water - for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, near a swimming pool, in an unprotected
outdoor installation, or any area which is classified as a wet
location.
8. Accessories - Do not place this unit on an unstable stand, tripod,
bracket, or mount. The unit may fall, causing serious injury to a
person and serious damage to the unit. Use only with a stand,
tripod, bracket, or mount recommended by the manufacturer, or
sold with the product. Any mounting of the unit should follow the
manufacturer's instructions, and should use a mounting
accessory recommended by the manufacturer.
An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination
to overturn.
9. Ventilation - Openings in the enclosure, if any, are provided for
ventilation and to ensure reliable operation of the unit and to
protect it from overheating. These openings must not be blocked
or covered. This unit should not be placed in a built-in installation
unless proper ventilation is provided or the manufacturer's
instructions have been adhered to.
10. Power Sources - This unit should be operated only from the type
of power source indicated on the marking label. If you are not
sure of the type of power supply you plan to use, consult your
appliance dealer or local power company. For units intended to
operate from battery power, or other sources, refer to the
operating instructions.
11. Grounding or Polarization - This unit may be equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized plug.
Alternately, this unit may be equipped with a 3-wire grounding-
type plug, a plug having a third (grounding) pin. This plug will only
fit into a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
12. Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords
and plugs, convenience receptacles, and the point where they
exit from the appliance.
13. Power Lines - An outdoor system should not be located in the
vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits.
When installing an outdoor system, extreme care should be taken
to keep from touching such power lines or circuits as contact with
them might be fatal. U.S.A. models only - refer to the National
Electrical Code Article 820 regarding installation of CATV
systems.
14. Overloading - Do not overload outlets and extension cords as this
can result in a risk of fire or electric shock.
15. Object and Liquid Entry - Never push objects of any kind into this
unit through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the unit.
16. Servicing - Do not attempt to service this unit yourself as opening
or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
17. Damage Requiring Service - Unplug the unit from the outlet and
refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions, as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been
damaged.
f. When the unit exhibits a distinct change in performance--this
indicates a need for service.
18. Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
19. Safety Check - Upon completion of any service or repairs to this
unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
20. Coax Grounding - If an outside cable system is connected to the
unit, be sure the cable system is grounded. U.S.A. models only--
Section 810 of the National Electrical Code, ANSI/NFPA
No.70-1981, provides information with respect to proper
grounding of the mount and supporting structure, grounding of
the coax to a discharge unit, size of grounding conductors,
location of discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
21. Lightning - For added protection of this unit during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the unit due to lightning and
power-line surges.
FCC & ICES INFORMATION
(U.S.A. and Canadian Models Only)
WARNING - This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules and ICES-003 of Industry Canada. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Intentional or unintentional changes or modifications not expressly
approved by the party responsible for compliance shall not be made.
Any such changes or modifications could void the user's authority to
operate the equipment.
The user may find the following booklet prepared by the Federal
Communications Commission helpful: "How to Identify and Resolve
Radio-TV Interference Problems". This booklet is available from the
U.S. Government Printing Office, Washington, DC 20402, Stock
No.004-000-00345-4.

3
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
CAUTION: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT OPEN COVERS. NO USE
R
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This label may appear on the bottom of the unit due to space
limitations.
The lightning flash with an arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
Warning
To prevent fire or shock hazard, do not expose units not
specifically designed for outdoor use to rain or moisture.
Attention: Installation should be performed by qualified
service personnel only in accordance with the National
Electrical Code or applicable local codes.
Power Disconnect. Units with or without ON-OFF switches
have power supplied to the unit whenever the power cord is
inserted into the power source; however, the unit is
operational only when the ON-OFF switch is in the ON
position. The power cord is the main power disconnect for all
units.
SECURITE
RISQUE DE CHOC ELECTRIQUE.
NE PAS OUVRIR.
ATTENTION
Danger: Pour éviter tout risque d'électrocution, ne pas
ouvrir le boîtier. Il n'y a pas de pièces remplaçables à
l'intérieur. Pour toute révision, s'adresser à un technicien
spécialisé.
Cet étiquette peut apparaître en dessous de l'appareil dû aux
limitations d''espace.
L'éclair fléché dans un triangle équilatéral avertit l'utilisateur
de la présence d'une haute tension non isolée à l'intérieur de
l'appareil. Elle peut être d'une magnitude suffisante pour
constituer un risque d'électrocution.
Le point d'exclamation à l'intérieur d'un triangle équilatéral
avertit l'utilisateur de la présence d'instructions importantes
d'utilisation et de maintenance dans la documentation
accompagnant l'appareil.
Attention
Pour éviter un incendie ou une électrocution, ne pas exposer
les appareils qui ne sont pas conçus spécifiquement pour
usage extérieur à la pluie ou à l'humidité.
Attention: L'installation doit être effectuée uniquement par
du personnel de service qualifié conformément à la
réglementation du Code Electrique National ou à la
réglementation locale.
Disjonction de l'alimentation. Les appareils avec ou sans
commutateurs ON-OFF sont alimentés à chaque fois que le
cordon d'alimentation est branché à la source d'alimentation;
toutefois, les appareils disposant de commutateurs ON-OFF
ne fonctionnnent que lorsque le commutateur ON-OFF est
sur la position ON. Le cordon d'alimentation est la disjonction
d'alimentation principale pour tous les appareils.

4
SICHERHEITSVORKEHRUNGEN
RISIKO EINES ELEKTRISCHEN
SCHLAGES NICHT ÖFFNEN!
VORSICHT
V
ORSICHT: UM EINEN ELEKTRISCHEN SCHLAG ZU
V
ERMEIDEN, ABDECKUNG NICHT ENTFERNEN.
WARTUNGEN ALLER ART QUALIFIZIERTEM PERSONAL
ÜBERLASSEN.
Aus Platzgründen kann diese Warnung auf der Unterseite des Gerätes
angebracht sein.
Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer
auf nicht isolierte “Hochspannung” im Gehäuse aufmerksam
machen, die eventuell stark genug ist, um einen elektrischen
Schlag zu verursachen.
Das Ausrufezeichen im gleichseitigen Dreieck soll den Benutzer
auf wichtige Bedienungs- und Wartungsanleitungen in der dem
Gerät beigefügten Literatur aufmerksam machen.
Warnung
Um Feuer oder elektrische Schläge zu vermeiden, setzen Sie
das Gerät niemals Regen oder Feuchtigkeit aus.
Achtung! Die Installation sollte nur von qualifiziertem
Kundendienstpersonal gemäß jeweilig zutreffender
Elektrovorschriften ausgeführt werden.
Netzanschluß. Geräte mit oder ohne Netzschalter haben
Spannung am Gerät anliegen, sobald der Netzstecker in die
Steckdose gesteckt wird. Das Gerät ist jedoch nur
betriebsbereit, wenn der Netzschalter (EIN/AUS) auf EIN
steht. Wenn man das Netzkabel aus der Steckdose zieht,
dann ist die Spannungszuführung zum Gerät vollkommen
unterbrochen.
PRECAUCIONES DE
SEGURIDAD
PRECAUCION
RIESGO DE CHOQUE
ELECTRICO. ¡NO ABRIR!
Precaucion: Para Reducir El Riesgo De Choque Eléctrico,
Favor No Abrir La Cubierta. Este Equipo No Consta De
Piezas O Partes Que Requieren Servicio O Mantenimiento.
Para Reparaciones Favor Referirse A Un Técnico
Calificado.
Debido a limitaciones de espacio, esta etiqueta puede aparecer en la
parte inferior de la unidad.
El símbolo representado por un relámpago con punta de
flecha dentro de un triángulo equilátero, se muestra con el
objetivo de alertar al usuario que existen "voltages
peligrosos" sin aislamiento, dentro de la cubierta de la
unidad. Dichos voltages pueden ser de tal magnitud que
constituyen un riesgo de choque eléctrico a personas.
El símbolo de exclamación dentro de un triángulo equilátero,
se muestra con el objetivo de alertar al ususario de que
instrucciones de operación y mantenimiento importantes
acompañan al equipo.
Peligro
Para evitar el peligro de incendio ó choque eléctrico, no
exponga a la lluvia ó humedad, equipos que no han sido
diseñados para uso exterior.
Atención: La instalación de este equipo debe ser realizada
por personal capacitado, solo en acuerdo, y en cumplimiento
de normas del "National Electric Code" (Código Eléctrico
Nacional) ó las normas del Gobierno Nacional Local.
Para Desconectar la Alimentación: Unidades no equipadas
con interruptores ON/OFF, son alimentadas cuando el cable
de alimentación es conectado a la corriente eléctrica. Las
unidades equipadas con interruptores son alimentadas de
igual forma, pero adicionalmente requieren que el interruptor
esté posicionado en ON. El cable de alimentación es el
medio principal de desconexión del equipo.

5
CONTENTS
DESCRIPTION................................................................ 5
INSTALLATION............................................................... 6
OPERATION ................................................................... 8
ILLUSTRATIONS .......................................................... 10
UNPACKING
Unpack carefully. This is electronic equipment and
should be handled with care.
Check for the following items:
1. A TC8272, TC8272X, TC8276, or TC8276X unit.
2. KIT 8272 001 Bracket (for use with optional
TC8101MK Rack Kit).
3. TC8276 Series Only: one cable with a 15-pin
connector at one end. (Used for Alarm/Accessory
connections.)
If an item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper. If
any items are missing, notify your Philips Communication
& Security Systems Inc. Sales Representative or
Customer Service.
The shipping carton is the safest container in which the
unit may be transported. Save it for possible future use.
SERVICE
If the unit ever needs repair service, the customer should
contact the nearest Philips Communication & Security
Systems Inc. Service Center for return authorization and
shipping instructions.
Service Centers
U.S.A. & Canada: 800-366-2283
Mexico & Central America: 52-5-688-1466
Europe & Middle East: 44-1932-765666
South America: 54-1-956-0837
Australia: 61-2-888-9000
New Zealand: 64-4-237-7297
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
ATTENTION
WARNING: Electrostatic-sensitive device. Use
proper CMOS/MOSFET handling precautions to
avoid electrostatic discharge.
NOTE: Grounded wrist straps must be worn and
proper ESD safety precautions observed when
handling the electrostatic-sensitive printed circuit
boards.
DESCRIPTION
The TC8272 Series and TC8276 Series video
processors digitally capture the full video from four
sources. They reduce these images to quarter-screen
size and combine them to provide a quad display on a
single monitor. Both units will accept monochrome or
color inputs. The output will be a monochrome quad
display only. Any color inputs to the TC8276 Series will
display color in the full screen mode. The TC8272 Series
have four camera inputs and one monitor output. The
TC8276 Series have four camera inputs and two monitor
outputs.

6
INSTALLATION
Electrical
Model No. Rated Voltage Nominal Power1
TC8272 120 VAC, 50/60 Hz 8 W
TC8272X 220-240 VAC, 50/60 Hz 8 W
TC8276 120 VAC, 50/60 Hz 9 W
TC8276X 220-240 VAC, 50/60 Hz 9 W
1. At rated voltage.
Power Disconnect. Units with or without
ON/OFF switches have power supplied to the
unit whenever the power cord is inserted into
the power source; however, the unit is
operational only when the ON/OFF switch is
in the ON position. The power cord is the
main power disconnect for all units.
Disjonction de l'alimentation. Les appareils
avec ou sans commutateurs ON/OFF sont
alimentés à chaque fois que le cordon
d'alimentation est branché à la source
d'alimentation; toutefois, les appareils
disposant de commutateurs ON/OFF ne
fonctionnnent que lorsque le commutateur
ON/OFF est sur la position ON. Le cordon
d'alimentation est la disjonction
d'alimentation principale pour tous les
appareils.
Netzanschluß. Geräte mit oder ohne
Netzschalter haben Spannung am Gerät
anliegen, sobald der Netzstecker in die
Steckdose gesteckt wird. Das Gerät ist jedoch
nur betriebsbereit, wenn der Netzschalter
(EIN/AUS) auf EIN steht. Wenn man das
Netzkabel aus der Steckdose zieht, dann ist
die Spannungszuführung zum Gerät
vollkommen unterbrochen.
Para Desconectar la Alimentación. Unidades
no equipadas con interruptores ON/OFF, son
alimentadas cuando el cable de alimentación
es conectado a la corriente eléctrica. Las
unidades equipadas con interruptores son
alimentadas de igual forma, pero
adicionalmente requieren que el interruptor
esté posicionado en ON. El cable de
alimentación es el medio principal de
desconexión del equipo.
Mounting
TC8272 Series and TC8276 Series models are supplied
as desk top units. An optional rack-mount kit,
TC8101MK, is available for rack mounting.
A bracket is supplied for use in place of the one provided
with the optional TC8101MK Rack Mount Kit. See
ILLUSTRATIONS. If not rack mounting, the supplied
bracket may be discarded.
Cover Removal
WARNING: Removal of the cover should only
be performed by qualified service personnel--
not user serviceable. The unit should always
be unplugged, before removing the cover and
remain unplugged while the cover is
removed.
Démontage du Couvercle
Le démontage du couvercle et le réglage des
commandes internes doivent être effectués
par du personnel qualifié- pas de service par
l'utilisateur. L'appareil doit toujours être
débranché lorsque l'on retire le couvercle et
doit rester débranché pendant que le
couvercle est ôté.
Entfernung der Abdeckung
Die Entfernung der Abdeckung und Hantieren
im Innern des Gerätes sollten nur von
qualifiziertem Personal erfolgen. Der Stecker
des Gerätes sollte immer aus der Steckdose
gezogen werden, bevor man die Abdeckung
entfernt, und nicht wieder hineingesteckt
werden, solange die Abdeckung entfernt ist.
Desensamble de la Cubierta
Atención: La cubierta ha de ser removida solo
por personal de servicio autorizado - este
equipo no contiene partes que requieran
mantenimiento por usuarios. Antes de
remover la cubierta asegurarse de que el
equipamiento ha sido desconectado de la
alimentación. Esta debe permanecer
desconectada mientras la cubierta este fuera
de lugar.

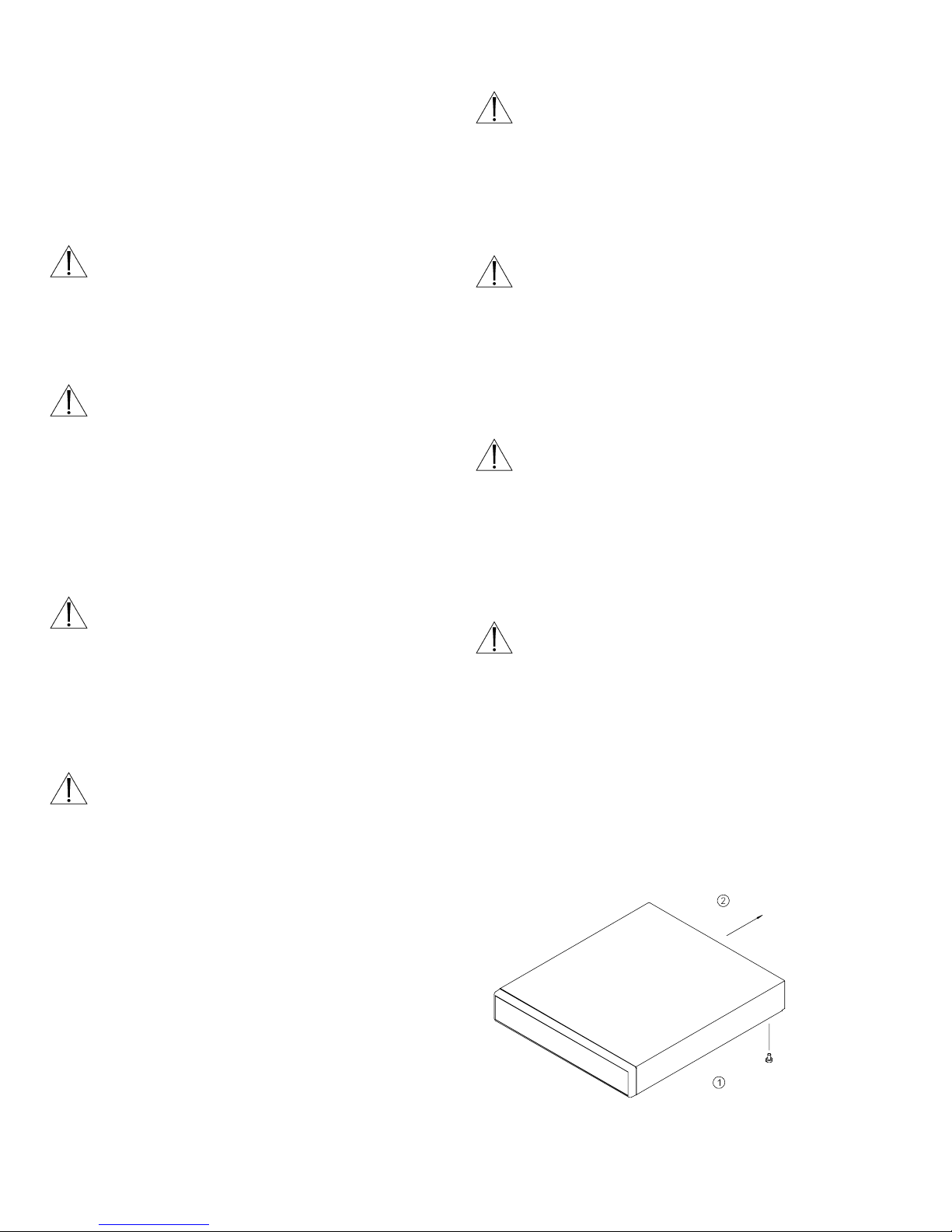

The top cover is fastened to the case by two screws
located on the bottom rear of the unit. Once the screws
have been removed, the cover slides back and off the
unit. See Top Cover Removal.
Slide Cover Back
Remove Screws From
Bottom Rear Corners
(2) Places
S936A01AE
Top Cover Removal

7
Video Inputs

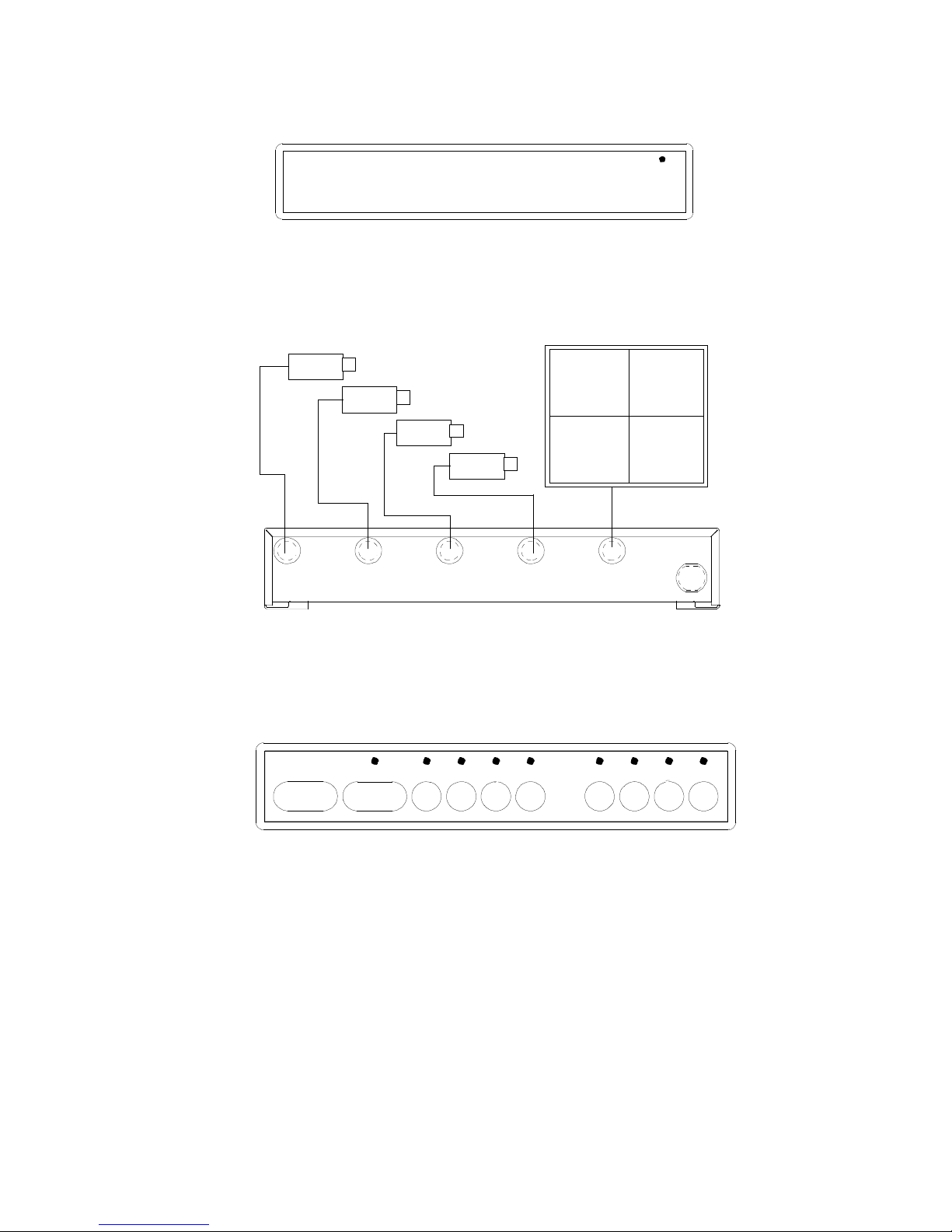

TC8272 Series only: Each of the four camera inputs
have a single BNC connector and are 75 ohm
terminated.
TC8276 Series only: For each of the four camera inputs
there are two BNC connectors on the rear panel. One of
these connectors is to be used as a camera input while
the other connector may be used as a looping output. It
does not matter which connector is used as the camera
input and which is used as the looping output. DIP switch
S601 controls the 75 ohm termination for each of the 4
video inputs. S601 is switched ON for 75 ohm
termination or OFF for nonterminated (looping
operation). The factory default is set for 75 ohm
terminated operation. These settings should only be
done by a qualified installer or service center. The cover
must be removed to make the DIP switch adjustments.
See Cover Removal and DIP Switch and Resistor
Location - TC8276 Series illustrations.
Monitor Outputs
The TC8272 Series provide a single video output which
will display a quad view of the video inputs.
The TC8276 Series provide two monitor outputs. The
VIDEO OUT is a full function output providing Sequence,
Quad, Full View, Freeze, Alarm, and Video Loss
operations. The QUAD VIDEO OUT provides a quad
view, quad view with freeze, and full view with zoom-
freeze operations.
The monitor outputs must be terminated into a 75 ohm
load. If the monitor output line is looped through monitors
or other equipment, be sure the monitor terminations are
set to Hi-Z. Only the last unit on the line should have its
termination set to 75 ohm.
Camera Phase/Update Rate
The TC8272 Series and TC8276 Series achieve a real-
time update rate (30 frames-per-second) when they are
used with line-locked cameras that have a phase error of
less than 5 degrees. This can be achieved by adjusting
the phase adjustment on the individual cameras. The
phase adjustment should be made before power is
applied to the VidQuadunit. If the phase adjustment is
made after power has been applied to the unit, the unit
should be momentarily disconnected from the power
source then reconnected to the power source to
synchronize the unit with the cameras. The unit-to-
camera synchronization will automatically be initiated
when a camera is connected to an unused video input. If
this procedure is not followed, or if the cameras are not
line-locked together with ±5 degrees phase, the update
rate of the unit will be one-half real-time, or 15 frames-
per-second.
Alarm Inputs and Output
(Accessory Output)
For TC8276 Series: One 150 mm (6 in) cable, with a 15
pin connector at one end (supplied with the VidQuad
unit), is for connecting external devices such as alarm
inputs and outputs, and accessories.
Alarm Inputs
TC8276 Series only: The alarm inputs are configured to
be normally open.
CAUTION: Do not apply external voltages to
the alarm inputs.
Use only isolated closures or open collector logic.
Precautions should be taken, particularly on long runs, to
prevent pickup of spurious signals from associated
wiring which may give false inputs or damage the unit.
Alarm Output
TC8276 Series only: The alarm output is a relay which
is configured to be normally open. The relay contacts can
handle up to 0.5 amperes at 20 volts AC/DC (up to 36
volts peak voltage from either pin of relay to ground), and
a maximum resistive load of 10 VA.
Video Loss Output
TC8276 Series only: The video loss output is a logic
level output that is active low on video loss. Refer to
PINOUTS - Alarm/Accessory illustration.
Remote Control Inputs
TC8276 Series only: Remote control contact closure
inputs are provided to mimic the operation of the
following front panel buttons: QUAD, FULL VIEW 1,
FULL VIEW 2, FULL VIEW 3, FULL VIEW 4, and
SEQUENCE. Refer to Pinouts - Alarm/Accessory
illustration.
Connections
The following connections should be made prior to
applying power to the unit:
1. Connect the appropriate video signals to inputs
labeled CAM 1 through 4.
2. TC8272 Series: Connect the main monitor to the
QUAD VIDEO OUT output. See Typical Application
- TC8272 Series illustration.
TC8276 Series: Connect the main monitor to the
VIDEO OUT output, and the second monitor to the
QUAD VIDEO OUT output. See Typical Application
- TC8276 Series illustration.
3. Plug the power cord into an AC power source.

8
OPERATION
TC8272 Series
When power is applied to the unit, the ON LED lights,
and the main monitor displays four quadrants on the
screen corresponding to the four video inputs.
See Front Panel - TC8272 Series and Typical
Application - TC8272 Series illustrations.
TC8276 Series
When power is applied to the unit, both the QUAD
VIDEO OUT and the VIDEO OUT monitors will be in the
quad display mode.
NOTE: Upon power-up and upon any system reset, the
system's software revision and the unit's model number
will be reported in two separate screens.
Other advisory messages may occur dependent upon
various conditions, such as VIDEOLOSS, ALARM, FRZ,
and OLD FRZ.
See Front Panel - TC8276 Series and Typical
Application - TC8276 Series illustrations.
Front Panel Controls
SEQUENCE: Enables the sequence operation.
QUAD: Displays the quad video screen (four separate
cameras in one screen).
FULL VIEW: Used to select one of the four video inputs
and display it in a live full screen mode.
FREEZE: Used to digitally freeze and unfreeze the
corresponding quadrant of the quad screen.
Operating Modes
Sequence Mode
When the SEQUENCE key is pressed, the VIDEO OUT
monitor shall start the sequence between the four video
inputs, and the QUAD screen with a 2 second dwell time.
See Quad-Sequence Enable. The on-screen text SEQ
will be displayed at the bottom center of the screen. The
FULL VIEW LED above the video that is currently being
displayed, or the QUAD LED if the quad screen is being
displayed, will light. There will be no change to the QUAD
VIDEO OUT monitor display during normal sequence
operation.
The following keys are functional for the sequence mode:
SEQUENCE will stop and start the sequence operation.
QUAD will stop the sequencing and switch the VIDEO
OUT monitor to the Quad Screen Mode.
FULL VIEW will stop the sequencing and switch the
VIDEO OUT monitor to the full screen display of the
corresponding video input.
FREEZE will freeze any of the four video images
corresponding to the button pressed.
Quad Screen Mode
When the QUAD button is pressed, the VIDEO OUT and
QUAD VIDEO OUT monitors shall display a quad image
that contains the quarter-sized images from the four
video inputs. Each of the four quadrants displayed on the
VIDEO OUT monitor has an on-screen camera
identification number corresponding to the video input
number (1-4).
The following keys are functional when in the Quad
mode:
QUAD will toggle the screen mode displayed on the
VIDEO OUT monitor between the quad screen and the
previous screen displayed.
SEQUENCE will switch the VIDEO OUT monitor to the
sequence mode.
FULL VIEW will switch the VIDEO OUT monitor to a full
screen display of the video that corresponds to the FULL
VIEW button pressed.
FREEZE will freeze one of the four video images
corresponding to the button pressed.
Full Screen Mode
When one of the FULL VIEW buttons is pressed, the
VIDEO OUT monitor will display a full screen of the video
that corresponds to the FULL VIEW button pressed. If
the selected video is frozen, the frozen video will be
zoomed to fill the entire screen, and the text ZOOM FRZ
will be displayed. The FULL VIEW LED that corresponds
to the video displayed on the VIDEO OUT monitor will
light.
The following keys are functional when in the Full Screen
Mode:
SEQUENCE will switch the VIDEO OUT monitor to the
Sequence Mode.
QUAD will switch the VIDEO OUT monitor to Quad
Screen Mode.
FREEZE will freeze one of the four video images
corresponding to the button pressed.

9
Freeze Mode
When any of the FREEZE buttons are pressed, the
VIDEO OUT, and QUAD VIDEO OUT monitors will
freeze the video image corresponding to the button(s)
pressed, and flash the LED above the FREEZE
button(s). When a quadrant is frozen, a flashing icon will
be displayed in that quadrant on both the VIDEO OUT,
and QUAD VIDEO OUT monitors. The VIDEO OUT
monitor will also display the flashing on-screen text FRZ
in each of the frozen quadrants.
The following keys are functional when in the FREEZE
Mode:
SEQUENCE will switch the VIDEO OUT monitor to the
Sequence Mode.
QUAD will switch the VIDEO OUT monitor to Quad
Screen Mode.
FULL VIEW will switch the VIDEO OUT monitor to a full
screen display of the video that corresponds to the FULL
VIEW button pressed. The FULL VIEW LED that
corresponds to the video displayed on the VIDEO OUT
monitor will light. If the selected video is frozen, the
frozen video will be zoomed to fill the entire screen on
both the VIDEO OUT, and QUAD VIDEO OUT monitors.
The text ZOOM FRZ will be displayed on the VIDEO
OUT monitor. A flashing icon will be displayed on the
QUAD VIDEO OUT monitor. Subsequent pressing of the
corresponding FULL VIEW button will toggle between
the frozen image and a live image on the VIDEO OUT
monitor and toggle between the full screen frozen
zoomed image and the quad view on the QUAD VIDEO
OUT monitor.
FREEZE will clear the frozen image corresponding to the
button pressed.
Alarm Mode
An alarm event is triggered when a contact closure is
applied to one of the four external alarm input lines; see
Pinouts - Alarm/Accessory illustration. When an alarm
event is triggered, the VIDEO OUT monitor will display
the full screen video of the camera in alarm. In the event
of multiple alarm inputs, the VIDEO OUT monitor will
sequence between each alarmed video at a dwell time of
two seconds. The flashing on-screen text ALARM is
added to the display of the video inputs for which there is
an alarm event. The QUAD OUT monitor will display a
quad view with a frozen image of the camera that is in
alarm. If the Quad Sequence is enabled (See Quad
Sequence Enable), the quad view, with the frozen
image, will be added to the alarm sequence on the
VIDEO OUT monitor. If the camera input was frozen
prior to the alarm, the display will flash on-screen text
OLD FRZ along with the ALARM text. In the alarm mode,
the FREEZE buttons are not functional. Any OLD FRZ
images can not be cleared until the alarm clears. The
alarm event will last for the duration of the contact
closure with a minimum duration of 10 seconds (alarm
capture time). An alarm relay output provides a contact
closure for the duration of the alarm event. See
Pinouts - Alarm/Accessory illustration.
The following keys are functional for the Alarm mode:
SEQUENCE will clear all alarm events and put the
system back to previous mode before the alarm(s)
occurred.
QUAD will clear all alarm events and put the system
back to previous mode before the alarm(s) occurred.
FULL VIEW will clear all alarm events and put the system
back to previous mode before the alarm(s) occurred.
Video Loss
This unit has the ability to detect the loss of sync caused
by a cut or disconnected video cable. If the sync is lost
for any camera for which the video loss function is
enabled, the video loss open collector transistor output
will be asserted low for 10 seconds, after which it will be
+5 volt logic-high. When there is a video loss, the unit will
display the quad video screen format on the VIDEO OUT
monitor; the following information will be displayed in
each quadrant that has a video loss:
The on-screen text VIDLOSS is displayed in the
quadrant.
The flashing icon is displayed on both the VIDEO
OUT and QUAD VIDEO OUT monitors.
The FREEZE LED corresponding to the video input
under video loss flashes.
NOTE: If the unit is powered up while there is loss of
sync, the flashing icon will not be visible since the
quadrant will become white and be the same color as the
flashing icon.
CAUTION: The following special setups
should only be done by an authorized service
center or installer.
Quad-Sequence Enable
The quad screen will be sequenced with the four full-
screen video inputs with resistor R259 installed. If R259
is removed, the quad screen will not be included in the
sequence. As factory default, the unit is shipped with
R259 installed. The cover must be removed to access
R259. Refer to Cover Removal and Dip Switch and
Resistor Locations - TC8276 Series illustrations.
Video Loss Defeat
Internal DIP switch S201 can be used to defeat the video
loss function of the video inputs. The cover must be
removed to access S201. See Cover Removal and Dip
Switch and Resistor Locations - TC8276 Series
illustrations. This is used if less than four cameras are to
be connected to the unit. The factory default is video loss
enabled for all four video inputs.

10
When all four cameras are used, all four positions of the
S201 should be open (OFF).
When three cameras are used, they should be
connected to video inputs 1-3, and S201 position 1
should be closed (ON) to defeat the video loss for 1
video input (4).
When two cameras are used, they should be connected
to video inputs 1-2, and S201 position 2 should be closed
(ON) to defeat the video loss for 2 video inputs (3, 4).
When only one camera is used, it should be connected
to video input 1, and S201 position 3 should be closed
(ON) to defeat the video loss for 3 video inputs (2, 3, 4).
When S201 position 4 is closed (ON), the video loss is
defeated for all four video inputs.
IMPORTANT: Only one position of S201 can be
closed (ON) at a time.
ILLUSTRATIONS
Additional Rack Mounting Instructions
When Using TC8101MK Rack Kit
Attach the supplied U-bracket (KIT 8272 001) to the
underside of the unit using the two 6-32 x 5/16 inch
screws provided. Hook the free end of the bracket over
the rear lip of the rack. Secure bracket to rear lip of rack
using the remaining two screws.
6-32 x 5/16 Screw
Hold-down
Bracket
S9608023AE
Rack
Shelf
Rear Shelf Lip
Rack Mounting
S9406001BE
NOTE: Most Components Removed For Clarity
DIP
Switch
DIP
Switch
Transformer
Resistor
Switch and Resistor Location - TC8276 Series

11
S9404002AE
ON
Front Panel - TC8272 Series
Camera 1
Camera 2
Camera 3
Camera 4
Video 1
Video 3 Video 4
Video 2
Main Monitor
S9404003AE
CAM 1 CAM 2 CAM 3 CAM 4 QUAD
VIDEO
OUT
Typical Application - TC8272 Series
S9404004AE
234
FREEZE
SEQUENCE QUAD
1
FULL VIEW
1234
Front Panel - TC8276 Series

Camera 1
Camera 2
Camera 3
Camera 4
Main Monitor Second Monitor
Remote
Operation
Video Loss
Output
4 Optional
Contact Closures
Inputs
Alarm Relay
Output
S9404005AE
Typical Application - TC8276 Series
S9405013AE
Pinouts - Alarm/Accessory
Pin No. Designation Input/Output
1 Alarm 1 Input
2 Alarm 2 Input
3 Alarm 3 Input
4 Alarm 4 Input
5 Relay Contact A Output
6 Relay Contact B Output
7 Remote QUAD Input
8 Remote FULL VIEW 1 Input
9 Remote FULL VIEW 2 Input
10 Remote FULL VIEW 3 Input
11 Remote FULL VIEW 4 Input
12 Ground N/A
13 Remote SEQUENCE Input
14 Video Loss Output
15 Ground N/A
