JVC XV-N650BEU User manual

SERVICE MANUAL
COPYRIGHT © 2007 Victor Company of Japan, Limited No.YD119
2007/4
DVD PLAYER
YD11920074SERVICE MANUAL
XV-N650BEU,XV-N650BEY,XV-N650BEK,
XV-N650BER,XV-N652SEU,XV-N652SEY,
XV-N652SEZ,XV-N652SEK,XV-N652SER
COPYRIGHT © 2007 Victor Company of Japan, Limited
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
XV-N650BEU,XV-N650BEY,XV-N650BEK,XV-N650BER,
XV-N652SEU,XV-N652SEY,XV-N652SEZ,XV-N652SEK,XV-N652SER [D7P3]
Area Suffix
EK ------------------------ U.K.
EU -------- Western Europe
EY -------- Northern Europe
EZ --------- Eastern Europe
ER ---- Russian Federation
Only ver. ER

1-2 (No.YD119)
SPECIFICATION
Note:
Design and specifications are subject to change without prior notice.
XV-N650BEU,XV-N650BEY,XV-N650BEK,XV-N650BER,XV-N652SEU,XV-N652SEY,XV-N652SEZ,XV-N652SEK,XV-N652SER
General
Power requirements AC 220-240 V, 50/60 Hz
Power consumption 8 W
Dimensions (Approx.) 430 ×35 ×201 mm (17 ×1.4 ×7.9 inches) (W ×H ×D) without foot
Net weight (Approx.) 1.6 kg (3.5 lbs)
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
Outputs
VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack ×1 / SCART (TO TV)
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω,negative sync, RCA jack ×1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack ×2
AUDIO OUT 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) ×1 / SCART (TO TV)
DIGITAL OUT (COAXIAL) 0.5 V (p-p), 75 Ω, RCA jack ×1
DIGITAL OUT (OPTICAL) 3 V (p-p), Optical jack ×1
System
Laser Power For DVD Wavelength : 653 to 663 nm
Output : 1.0 mW
For CD Wavelength : 770 to 810 nm
Output : 0.4 mW
Signal system PAL/NTSC
Frequency response DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 90 dB (ANALOG OUT connectors only)
Harmonic distortion Less than 0.02%
Dynamic range More than 95 dB (DVD/CD)
Accessories
Video cable (1), Audio cable (1), Remote control (1), Batteries (2)

(No.YD119)1-3
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing)
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).
• Alternate check method

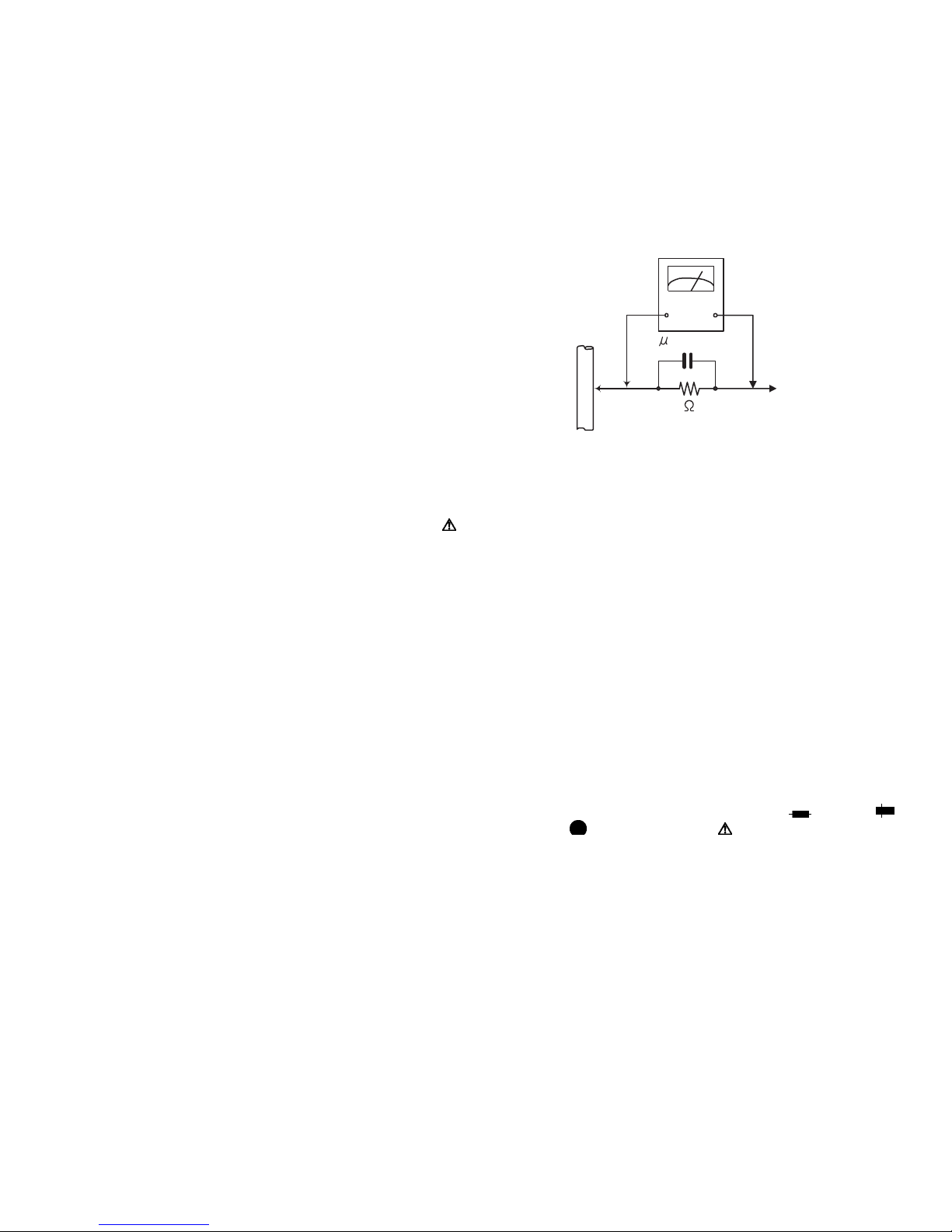

Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000 ohms per volt or more sensi-
tivity in the following manner. Connect a 1,500 ohm 10W
resistor paralleled by a 0.15 F AC-type capacitor be-
tween an exposed metal part and a known good earth
ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical for
safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer. (Except
the JC version)
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

1-4 (No.YD119)
1.5 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.5.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.

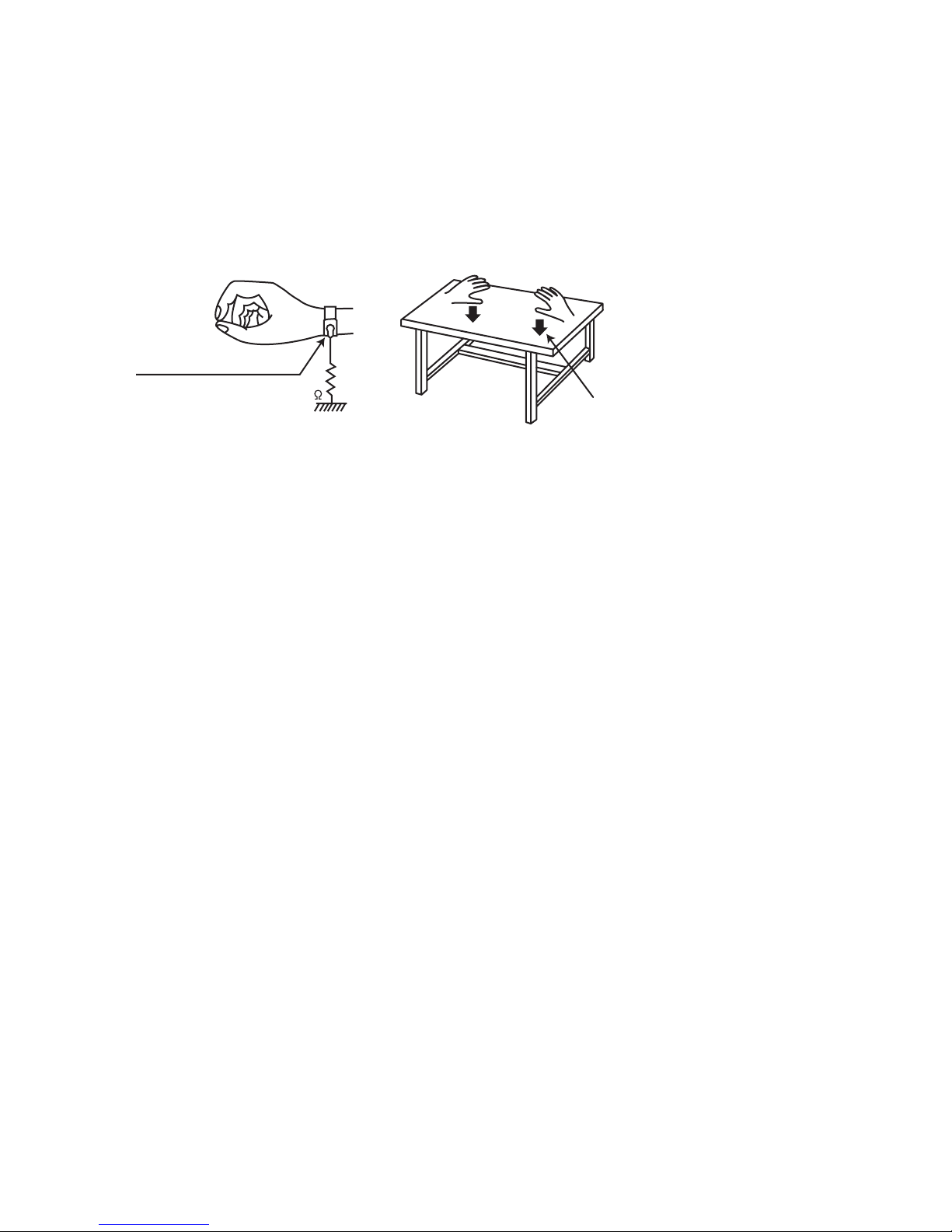

(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.6 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long
a time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.7 Precautions of the safe use of battery
• Store the battery in a place where children cannot reach.If a child accidentally swallows the battery, consult a doctorimmediately.
• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire.
Doing any of these things may cause the battery to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic materials.Doing this may cause the battery to give off heat, crack, or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or
start a fire.
• Do not poke the battery with tweezers or similar tools.Doing this may cause the battery to give off heat, crack, or start a fire.
• Dispose of batteries in the proper manner, according to federal, state, and local regulations.
1M
Conductive material
(conductive sheet) or iron palate
(caption)
Anti-static wrist strap

(No.YD119)1-5
1.8 Important for laser products
CAUTION : VISIBLE AND/OR INVISIBLE CLASS 1M
LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
1.CLASS 1 LASER PRODUCT
2.CAUTION : VISIBLE AND/OR INVISIBLE CLASS 1M
LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The laser products uses visible and / or
invisible laser radiation and is equipped with safety
switches which prevent emission of radiation when the
drawer is open and the safety interlocks have failed or are
defeated. It is dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.

1-6 (No.YD119)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 SERVICE INFORMATION FOR EEPROM
POWER ON
Press number 0~8, Press charater
A~F (1~6 for a while)
Press pause key once
Change will be applied when power
OFF-->ON.
Use arrow key (F D G E) to move
to approprite position and make
changes
DVD LOGO Status (NO Disk status)
Remotecontrol
Pause key-->1-->4-->7-->2 in order.
MODEL : XV-N650B/XV-N652S
NAME HEX
OPT 1 00
OPT 2 00
OPT 3 00
OPT 4 00
OPT 5 00
OPT 6 00
OPT 7 00
OPT 8 00
DETECT NEW EEPROM
(OPTION EDIT SCREEN)

(No.YD119)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section

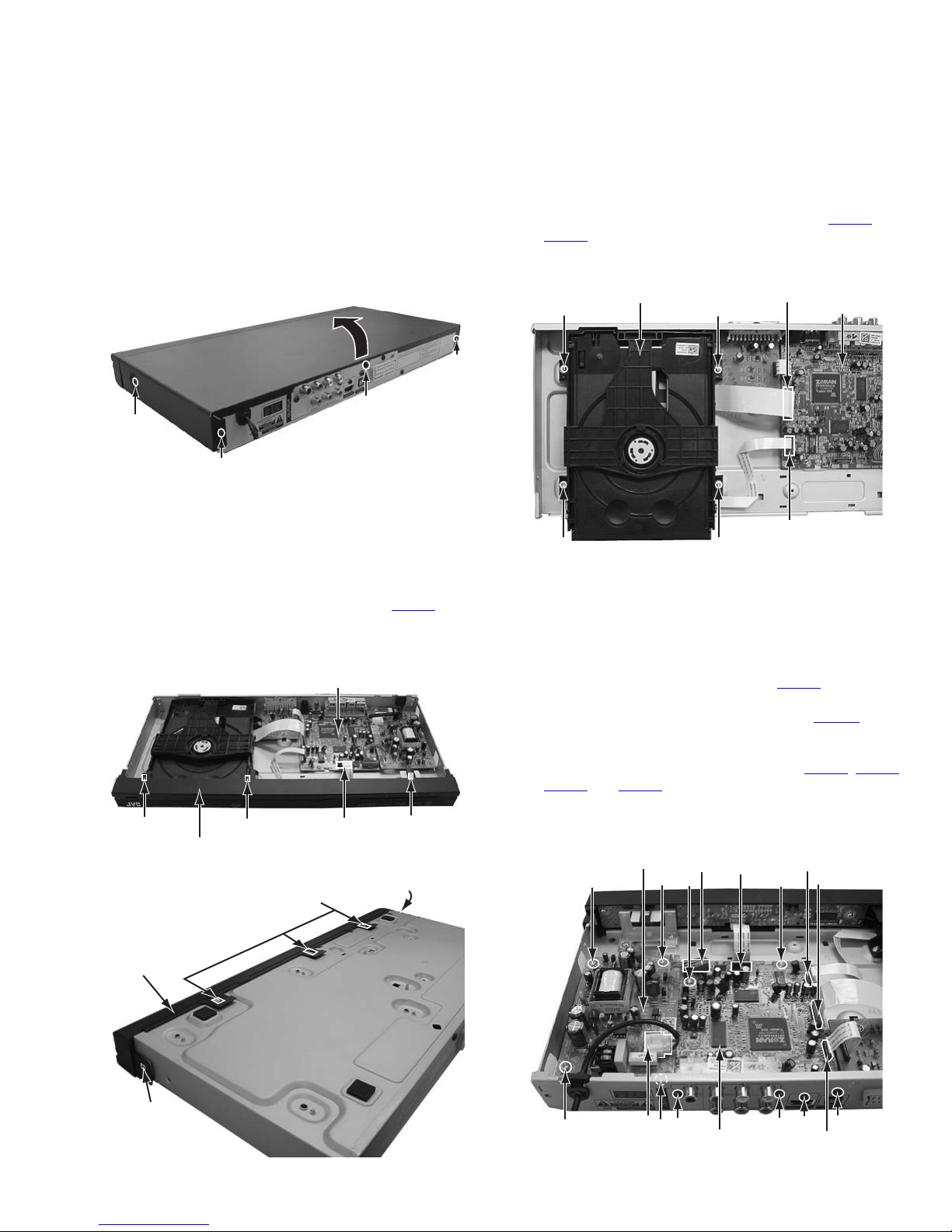

3.1.1 Removing the top cover (See figure 1)
(1) Remove the two screws Aattaching the top cover on both
sides of the main body.
(2) Remove the three screws Battaching the top cover on the
back of the main body.
(3) Raise the both sides and lower part of the rear of the top
cover, with opening them slightly in an outward direction.
And the top cover will be removed.
Fig.1
3.1.2 Removing the front panel assembly (See figure 2, fig-
ure 3)
• Prior to performing the following procedure, remove the top
cover.
(1) Disconnect the card wire from connector CN604 on the
main board.
(2) Remove the eight hooks a, and then remove the front panel
assembly.
Fig.2
Fig.3
3.1.3 Removing the mechanism assembly (See figure 4)
• Prior to performing the following procedure, remove the top
cover and front panel assembly.
(1) Disconnect the card wire from connectors CN201 and
CN202 on the main board.
(2) Remove the four screws Cattaching the mechanism as-
sembly.
Fig.4
3.1.4 Removing the regulator board and main board (See
figure 5)
• Prior to performing the following procedure, remove the top
cover.
(1) Disconnect the wire from connector CN603 on the main
board.
(2) Disconnect the power cord from connector PW101 on the
regulator board.
(3) Remove the four screws Dattaching the regulator board.
(4) Disconnect the card wire from connectors CN701, CN201,
CN202 and CN604 on the main board.
(5) Remove the two screws Eattaching the main board.
(6) Remove the three screws Fand one screw Gattaching the
main board with rear panel.
Fig.5
B
Ax 2
TOP COVER
TOP COVER
TOP COVER
B
B
Hook a
Hook a Hook a CN604
Main board
Front panel assembly
Hook a
Hook a
Front panel
assembly
Hook a
CN201
Mechanism assembly
C
CC
CMain board
CN202
D
DD
D
CN604
Main board
PW101 F G F
E
CN603
E
CN202
CN201
CN701
Regulator board
F

1-8 (No.YD119)
3.1.5 Removing the SCART terminal board (See figure 6)
• Prior to performing the following procedure, remove the top
cover, front panel assembly and mechanism assembly
(1) Disconnect the card wire from connector P3701 on the
SCART board.
(2) Remove the one screw Hand one screw Iattaching the
SCART terminal board.
Fig.6
H
SCART board
P3701 I

(No.YD119)1-9

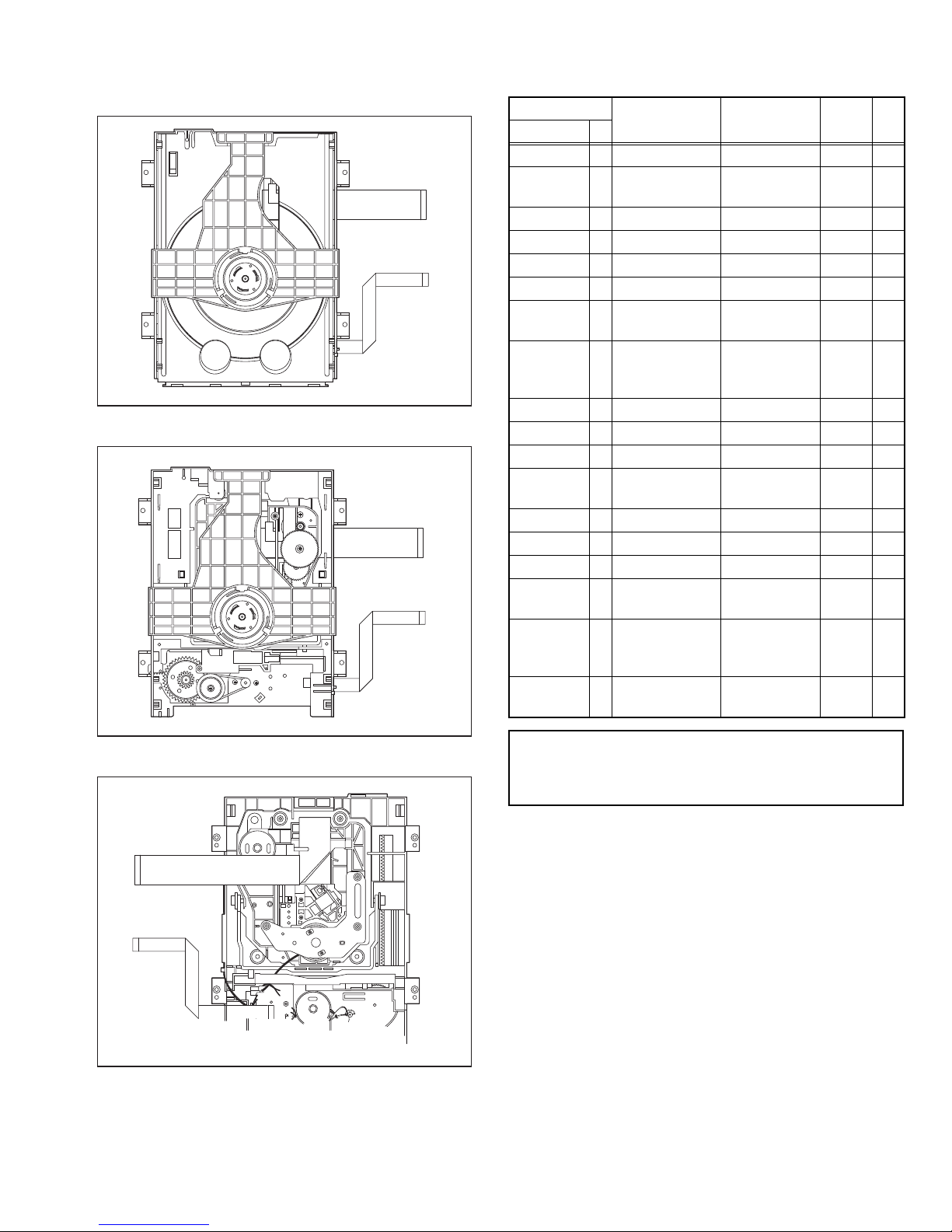

3.2 DVD MECHANISM PARTS LOCATION
•TOP VIEW (WITH TRAY)
•TOP VIEW (WITHOUT TRAY)
•BOTTOM VIEW
Procedure Parts Fixing Type Disass
embly
Fig-
ure
Starting No.
1 Main Base 4-1
12
Clamp Assem-
bly Disc 4-1
1, 2 3 Plate Clamp 4-1
1, 2, 3 4 Magnet Clamp 4-1
1, 2, 3, 4 5 Clamp Upper 4-1
1 6 Tray Disc 4-2
1, 6 7 Base Assembly
Sled 4-3
1, 2, 6 8 Gear Feed
4 Screws,
1 Connector
1 Locking Tabs
4-3
1, 2, 6, 8 9 Gear Middle
1, 2, 6, 8,9 10 Gear Rack 1 Screw 4-3
1, 2, 7 11 Rubber Rear 4-3
1, 2, 7 12 Frame Assem-
bly Up/Down 1 Screw Bottom 4-4
1, 2 13 Belt Loading 1 Locking Tab 4-4
1, 2 ,13 14 Gear Pulley 4-4
1, 2, 13, 14 15 Gear Loading 1 Locking Tab 4-4
1, 2, 7, 12,
13, 14 16 Guide Up/Down 4-4
1, 2, 13 17 PWB Assembly
Loading
1 Locking Tab
1 Hook
2 Screw
Bottom 4-4
1,2,7,12,13,
14,15,16,17 18 Base Main 2 Locking Tabs 4-4
Note
When reassembling, perform the procedure in reverse order.
The “Bottom” on Disassembly column of above Table indicates
the part should be disassembled at the Bottom side.

1-10 (No.YD119)
3.3 DVD MECHANISM DISASSEMBLY
Fig.4-1
3.3.1 MAIN BASE (FIG. 4-1)
3.3.1.1 Clamp Assembly Disc
(1) Place the Clamp Assembly Disc as Fig. (A)
(2) Lift up the Clamp Assembly Disc in direction of arrow(A).
(3) Separate the Clamp Assembly Disc from the Holder
Clamp.
3.3.1.1.1 Plate Clamp
(1) Turn the Plate Clamp to counterclockwise direction and
then lift up the Plate Clamp.
3.3.1.1.2 Magnet Clamp
3.3.1.1.3 Clamp Upper
Fig.4-2
3.3.2 TRAY DISC (FIG. 4-2)
(1) Insert and push a Driver in the emergency eject hole(A) at
the right side, or put the Driver on the Lever(B) of the Gear
Emergency and pull the Lever(B) in direction of arrow so
that the Tray Disc is ejected about 15~20mm.
(2) Pull the Tray Disc until it is separated from the Base Main
completely.

(No.YD119)1-11
Fig.4-3

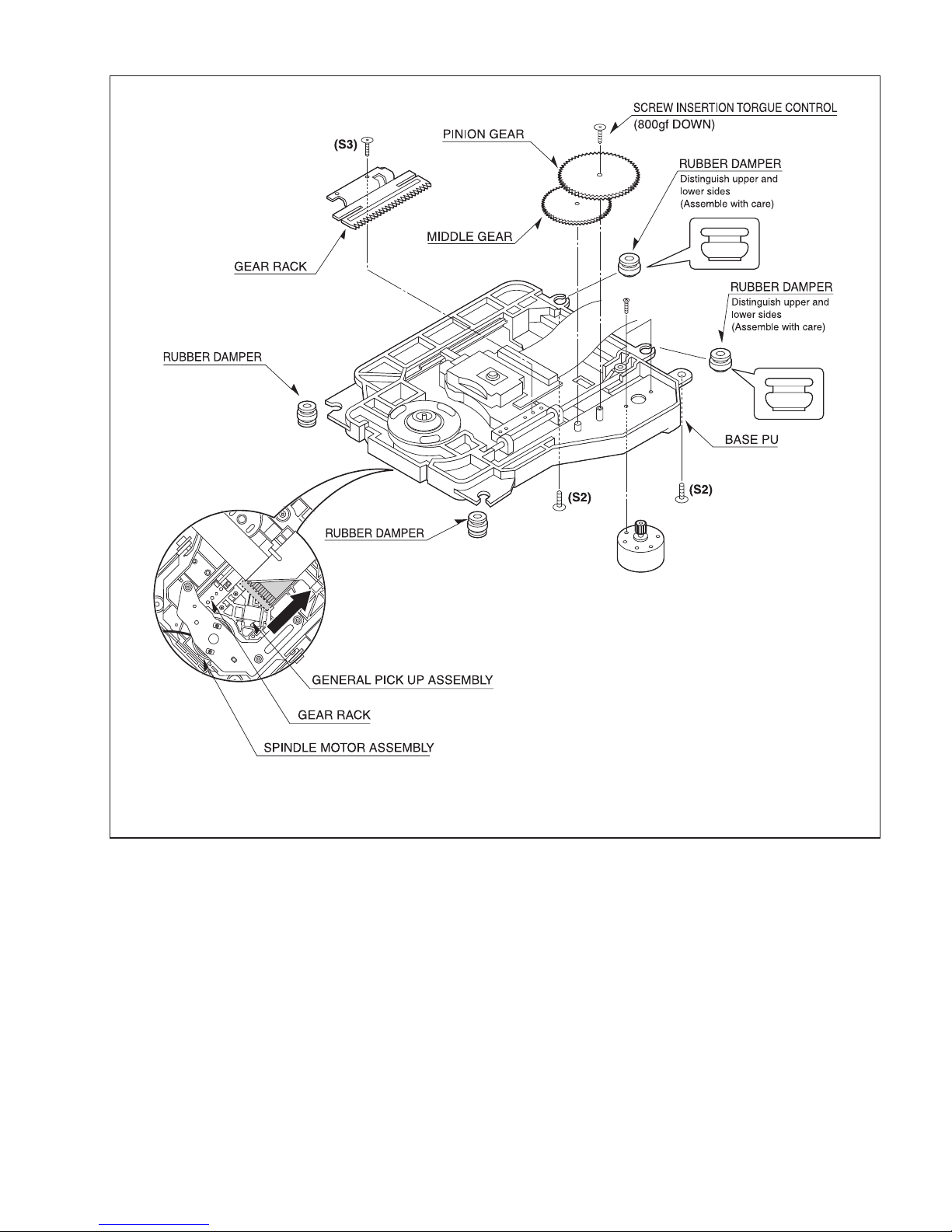

3.3.3 BASE ASSEMBLY SLED (FIG. 4-3)
(1) Release 4 Screw (S2).
(2) Disconnect the FFC Connector (C1)
3.3.3.1 Gear Feed
3.3.3.2 Gear Middle
3.3.3.3 Gear Rack
(1) Release the Scerw (S3)
3.3.4 RUBBER REAR (FIG. 4-3)

1-12 (No.YD119)
Fig.4-4
3.3.5 FRAME ASSEMBLY UP/DOWN (FIG. 4-4)
Note
Put the Base Main face down (Bottom Side)
(1) Release the screw (S4)
(2) Unlock the Locking Tab (L3) in direction of arrow and then
lift up the Frame Assembly Up/Down to separate it from the
Base Main.
Note
• When reassembling move the Guide Up/Down in direction of
arrow(C) until it is positioned as Fig.(C).
• When reassembling insert (A) portion of the Frame Assem-
bly Up/Down in the (B) portion of the Guide Up/Down as
Fig.(B)
3.3.6 BELT LOADING(FIG. 4-4)
Note
Put the Base Main on original position(Top Side)
3.3.7 GEAR PULLEY (FIG. 4-4)
(1) Unlock the Locking Tab(L4) in direction of arrow(B) and
then separate the Gear Pulley from the Base Main
3.3.8 GEAR LOADING (FIG. 4-4)
3.3.9 GUIDE UP/DOWN (FIG. 4-4)
(1) Move the Guide Up/Down in direction of arrow(A) as
Fig.(A)
(2) Push the Locking Tab(L5) down and then lift up the Guide
Up/Down to separate it from the Base Main.
Note
When reassembling place the Guide Up/Down as Fig.(C) and
move it in direction arrow(B) until it is locked by the Locking
Tab(L5). And confirm the Guide Up/Down as Fig.(A)
3.3.10 PWB ASSEMBLY LOADING (FIG. 4-4)
Note
Put the Base Main face down(Bottom Side)
(1) Release 1 Screws(S5)
(2) Unlock the Loading Motor (C2) from the Hook (H1) on the
Base Main.
(3) Unlock 2 Locking Tabs(L6) and separate the PWB Assem-
bly Loading from the Base Main.
3.3.11 BASE MAIN (FIG. 4-4)

(No.YD119)1-13
SECTION 4
ADJUSTMENT
4.1 The version of the firmware is confirmed
(1) The power supply is turned ON.
(2) Press the "SETUP" button of the remote control unit to select "16:9" in "Display Mode".
(3) Press the buttons of the remote control unit in the following order.
"1"→"3"→"9"→"7"→"1"→"3"→"9"→"ENTER"
(4) When the TV display changes as shown as below, check the firmware version.
(5) Press the "ENTER" button of the remote control unit to display the initial screen.
4.2 Updating the firmware
• Firmware update disc supports CD-R media.
• When firmware update is necessary, information is available from the web site of DIGITAL VIDEO STORAGE, CS group.
4.2.1 Creating an update disc
Please check the details of the update disc creation method with JS-NET.
(1) Down load the update file from JS-NET.
(2) Write the update file into CD-R. Pay attention in the following points when writing the update disc.
• Make sure to write in "Disc at Once".
• Set the file compatibility to "JOLIET format".
If the writing method is not correct, the update results in an error.
4.2.2 Update procedure
(1) Turn the power of the main unit ON, and insert the update disc.
(2) The TV screen shows the display as shown as below after a while, select "Start" and then press "ENTER" with the remote control
unit.
(3) When "Erase and Program Do Not Power Off" is displayed on the TV screen and the tray opens in a few seconds, remove the
update disc.
(4) Wait for about three minutes.
(5) When the firmware updating is completed, the tray closes automatically and the power is turned OFF.
(6) Turn the power ON, and then check the firmware version.
TV Aspect
Display Mode
TV Output Select
Prev. Move Enter
4:3
16:9
SYSTEM INFORMATION
MODEL : JVC_DV_JV070D202230BZIH
CHIP I.D : VADDIS_888
SERVO VER. : 40.52
MICOM VER. : V1.372
Check Sum : B6B3
PROM OPTION 55 53 00 d3 03 55 f4 00
Factory Reset..Done.
Firmware version
of main body
Firmware upgrade
Cancel Start

1-14 (No.YD119)
SECTION 5
TROUBLESHOOTING

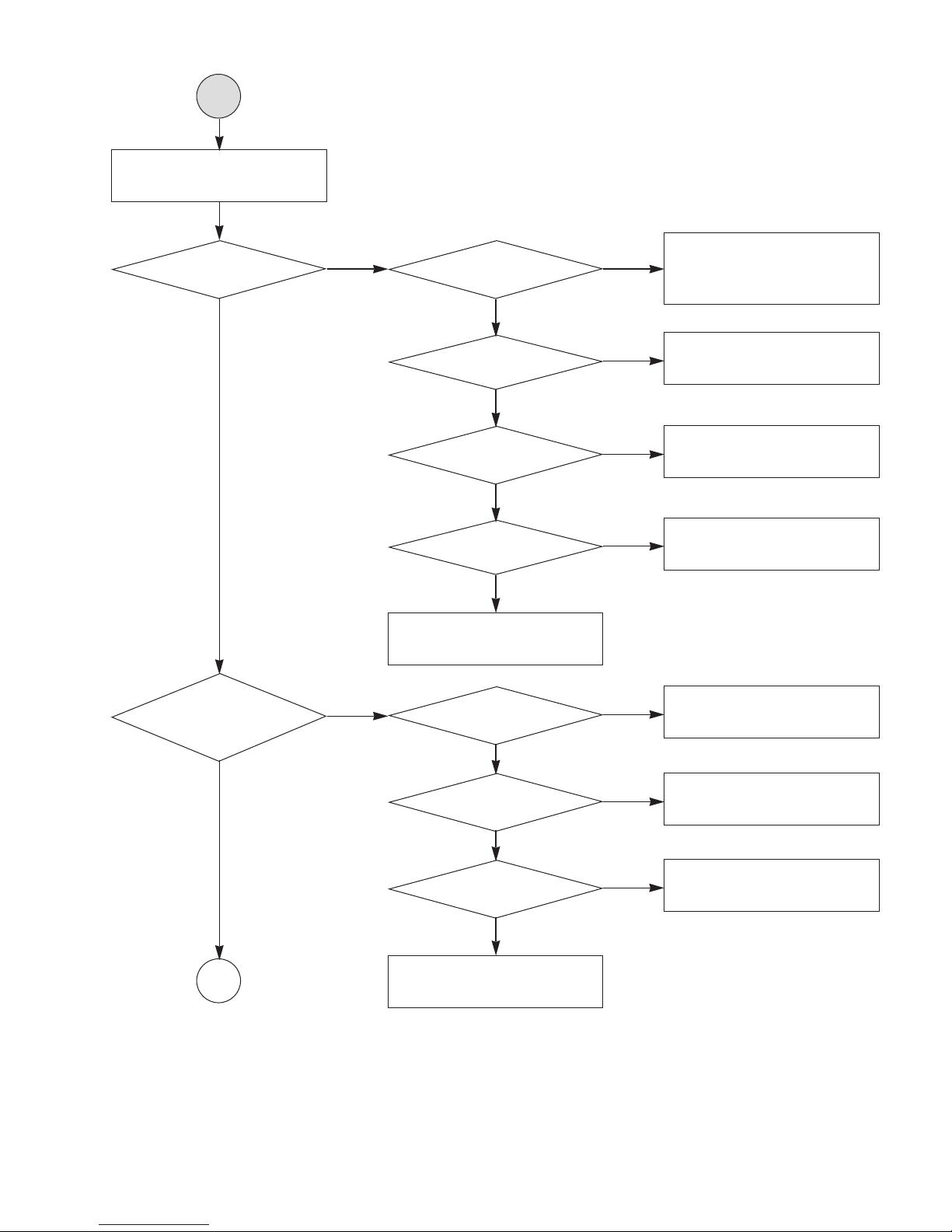

5.1 ELECTRICAL TROUBLESHOOTING GUIDE
5.1.1 POWER CHECK FLOW
Is 5.6V present at
collector of Q126? No 3.3VA
YES YES
YES YES
No 5V No 3.3VA
Replace Q126. Check FR101 Replace Q121.
YES
Is there a DC voltage at
cathode of D105 or D107?
YES
NO
NO
NO
NO
Replace IC101.
A. B.
Check D105/D106/D107/
D108 and replace.
Is 3.3VA
section working?
Is 3.3VA
section working?
Is 3.3V
present at emitter
of Q121?

(No.YD119)1-15

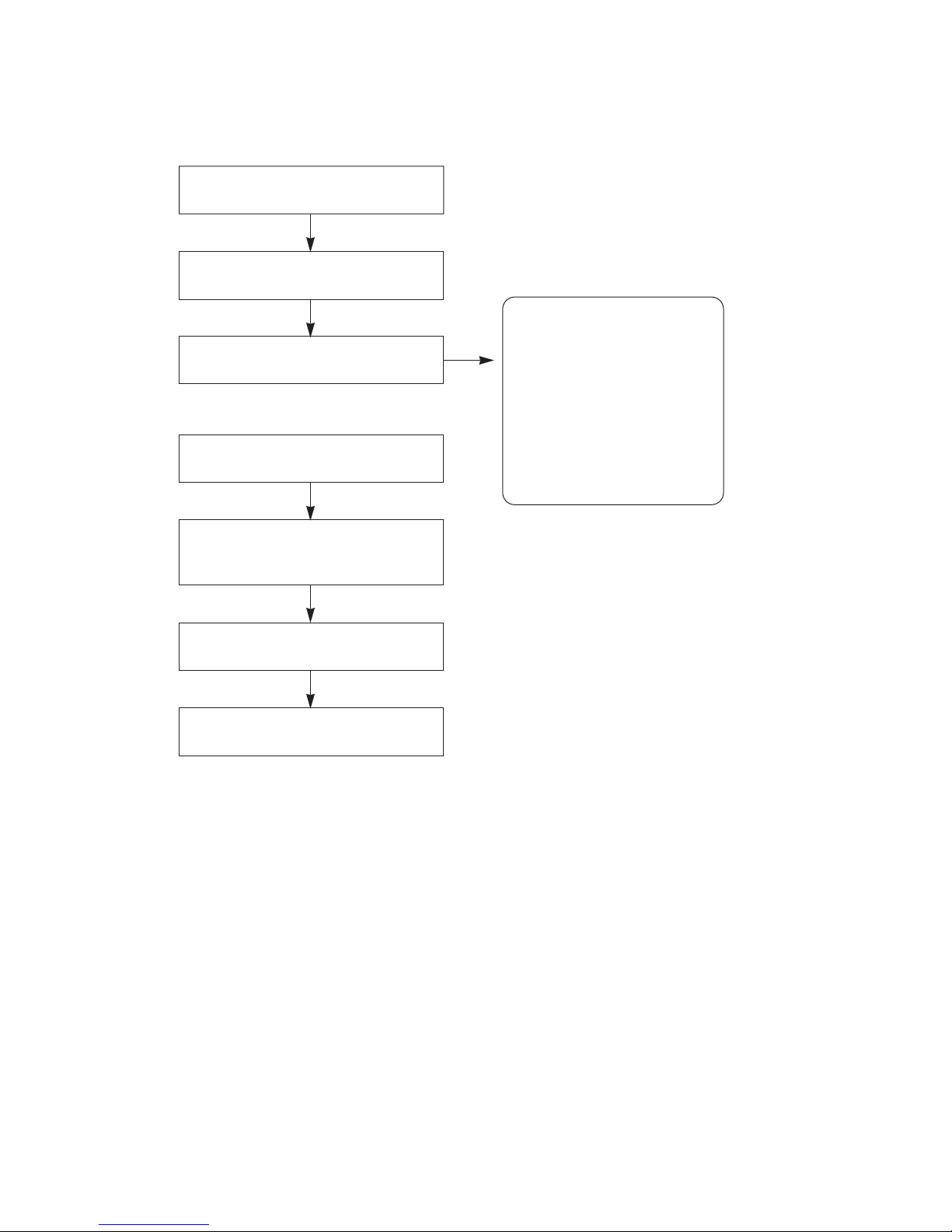

5.1.2 SYSTEM OPERATION FLOW
Power on
1. 186 CPU initializes SERVO, DSP &
RISC registers
2. Write RISC code to SDRAM
3. Reset RISC
Show LOGO
Tray close to closed position
SLED moves to inner position
1. Judge whether have disc and disc type
2. Jump to related disc reading procedure
1. Execute pressed key & IR key
2. System operation routine loop
1. Stop playback & open tray
2. Display tray open message & LOGO
NO
YES
YES
NO
YES
YES
NO
NO
Tray closed?
SLED at inner side?
Recieve
OPEN/CLOSE key?
Receive CLOSE key?

1-16 (No.YD119)

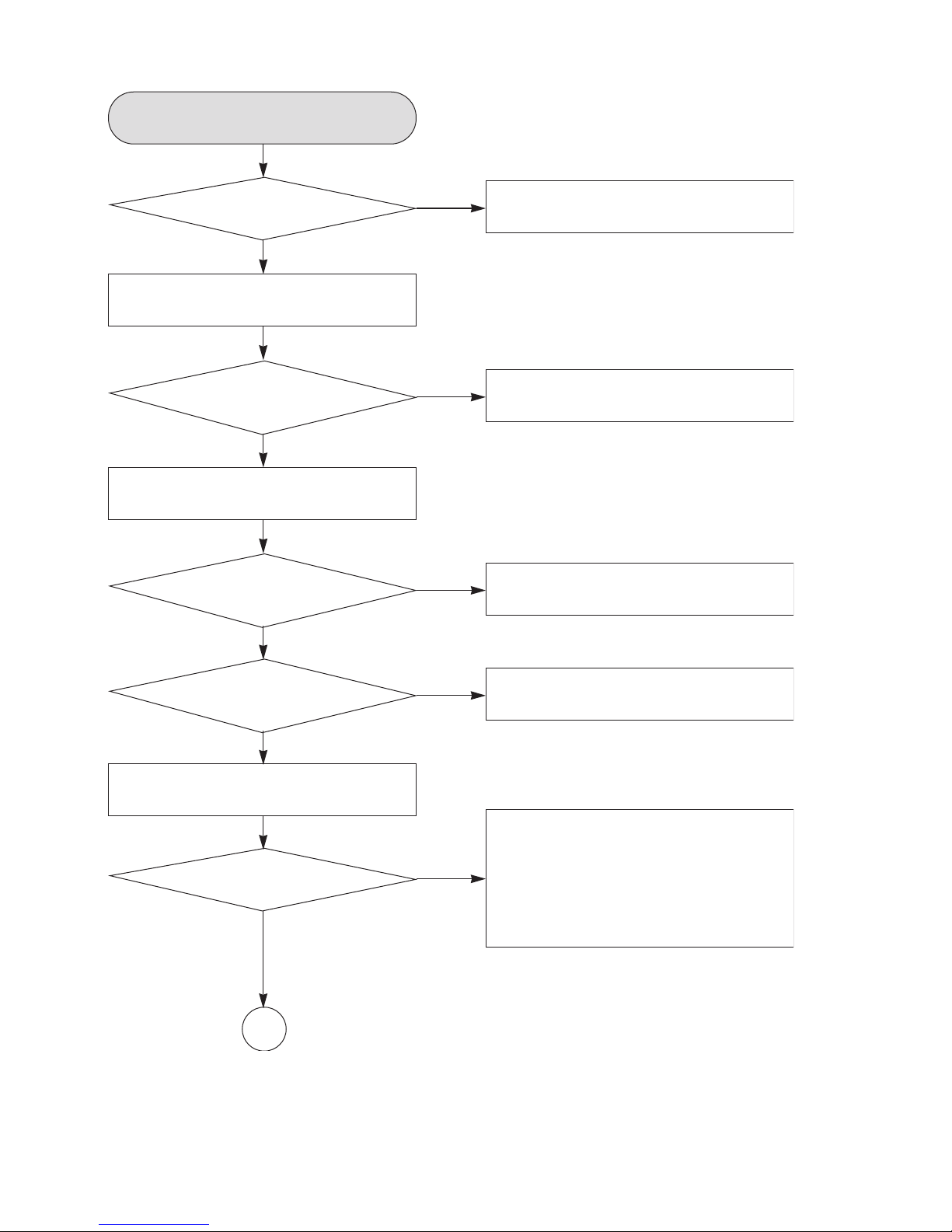

5.1.3 SYSTEM TEST FLOW
TEST
Replace power PCBA or AC transformer.
YES
NO
Switch on the power PCBA
Repair or replace power PCBA
YES
NO
Make sure the main PCBA don't
short on VCC and switch it on.
YES
Check the regulators or related diodes.
YES
NO
Connect to PC RS232 cable and
update the FLASH memory code.
1. Check 27MHz system clock.
2. Check system reset circuit.
3. Check FLASH R/W enable signal PRD,
RWR.
4. Check RS232 SIGNALS.
5. Check FLASH memory related circuit.
NO
A
YES
Check the AC
Voltage power PCBA (110V or
220V)
Update FLASH
successfully?
Is the DC
voltage outputs OK?
(5V, 3.3V, 12V, 5.6V
MOTOR)
Is 3.3V
outputs normal on main
PCBA?
1. Check Q203.
2. Check D201.
3. Check IC102.
YES
NO
Is 1.8V voltage
normal for ZORAN IC

(No.YD119)1-17
RESET or power on.
NO NO
YES
Check connection lines
between FLASH & ZR36888
and the FLASH access time
whether is suitable or not.
NO
YES
Check connection lines
between SDRAM & ZR36888
and the SDRAM is damaged.
NO
YES
Check the related circuit of
ZR36888
NO
YES
Check the filtering and amp
circuit of TV signal.
Check AV cable
connection to TV set.
NO NO
YES
Check the load OPEN &
CLOSE switch
NO
YES
Check the tray control IO
pins on ZR36888 & AM5869S
NO
YES
Check the tray control
amplifying circuit on motor
driver.
Check the cable
connection between main
PCBA and loader.
YES
YES
Show LOGO?
Flash
memory operates
properly?
ZR36888
VIDEO outputs
properly?
Normal
OUTSW & INSW
signals?
Normal
OPEN & CLOSE
signal?
Normal
LOAD+ & LOAD
signal?
Does tray
move inside when it is not
at closed position?
SDRAM
works properly?
Have TV
signal output?
A
B

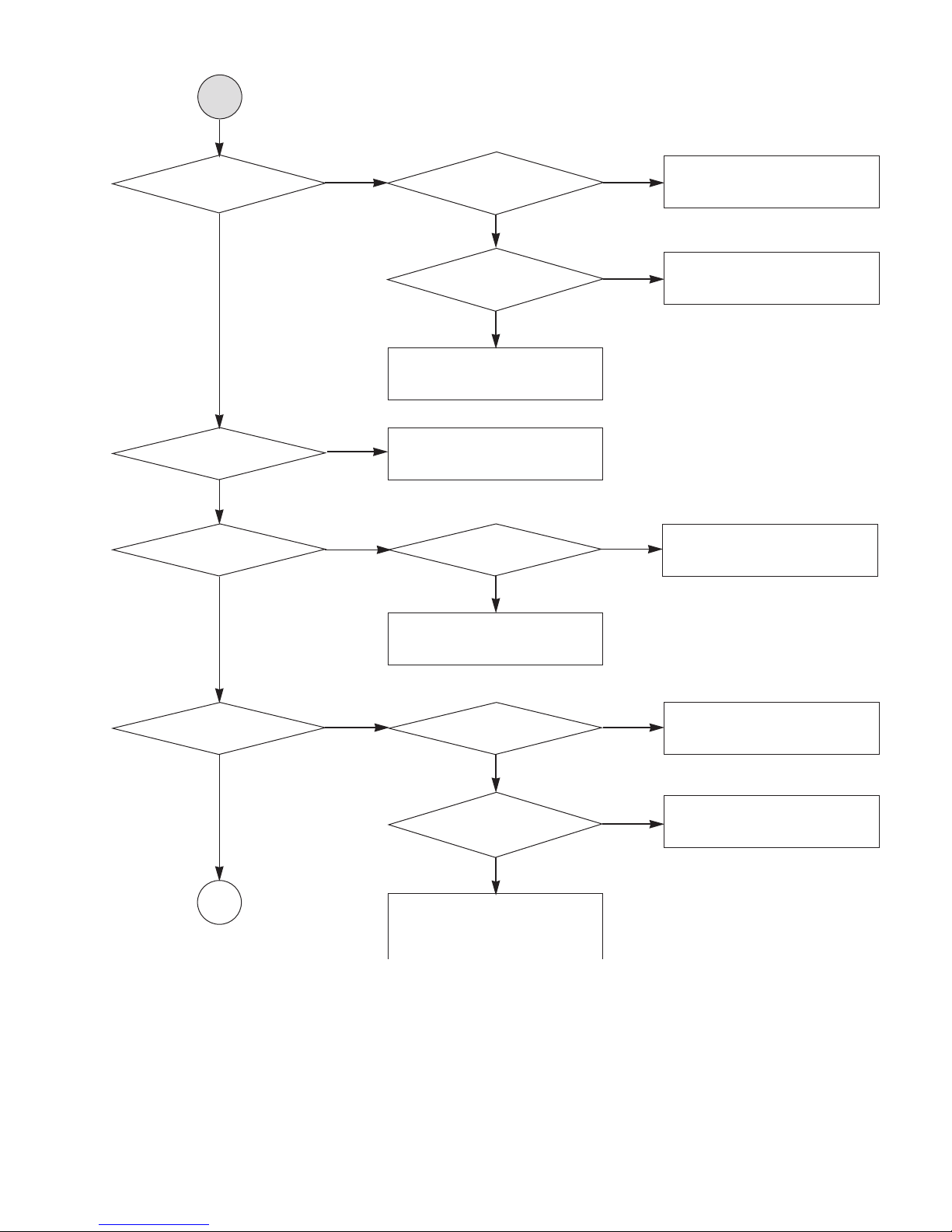

1-18 (No.YD119)
NONO
YES
Check the connection line of
MUTE signal.
NO
YES
Check the related circuit of
FMSO.
NO
YES
Check the amp circuit on
motor driver.
Check the cable connection
with MECHA.
Do not put in disc and
tray close.
YES
YES
Check cable connect on
with pick-up head.
YES
YES
Motor
driver MUTE pin
is high?
Is SLED_S
DC Level higher than
1.65V?
SLED+
and SLED- output
properly?
Does the
SLED move
to inner side when it is at
outer position?
NONO Check FOCUS_S connection
on ZR36888 and motor driver.
Proper
FOCUS_S outputs to
motor driver?
NO Check the amp circuit on
motor driver.
Proper
FACT+ & FAC
toutputs?
Optical Lens has
movements for searching
Focus?
B
C

(No.YD119)1-19
NO NO
YES
YES
Check the laser power circuit
on ZR36888 and connecting
to power transistor.
Check cable connection
between transistor output
and pick-up head.
NO Laser off
NO NO
YES
Check the related circuit
on ZR36888 RFL signal.
Check LD_DVD &
LD_CD signal
YES
YES
NO NO
YES
Check SPINDLE_S related
circuit on ZR36888.
NO
YES
Check the spindle control
amp circuit of motor driver.
Check the cable connection
between spindle and main
PCBA.
YES
YES
Laser
turns on when reading
disc?
LD_DVD or
LD_CD output
properly?
NO Check the related circuit on
laser power transistor
Collector
voltage of power transistor
is OK?
Put disc in?
Disc ID is correct?
Does
spindle rotate?
Proper
SPINDLE_S signal on
ZR36888
SP+ & SP- output
properly?
Proper RF signal
on ZR36888?
C
D

1-20 (No.YD119)
NO NO
YES
YES
Check connections between
ZR36888 and pick-up head.
Check FOCUS_S signal
on ZR36888
NO
YES
YES
YES
YES
YES
Check cable connection on
pick-up head.
Check RF signal waveform.
Focus on OK? Proper
signals on A, B, C, D of
ZR36888
NO Check the TRACK_S
connection on ZR36888
and motor driver.
Disc is play?
Properly
TRACK_S signal on
ZR36888?
YES
NO NO Check the related
circuit on ZR36888
Track on OK? Normal
TE signal on
ZR36888?
NO Check the tracking control
amp circuit on motor
driver.
TACT+ & TACT-
output properly?
NO Check the FOCUS_S
connection on ZR36888
and motor driver.
Check FE signal
on ZR36888
D
E
