FEATURES
●LOW BIAS CURRENT: ±4pA
●LOW QUIESCENT CURRENT: ±450µA
●LOW INPUT OFFSET VOLTAGE: ±200µV
●LOW INPUT OFFSET DRIFT: ±2µV/°C
●LOW INPUT NOISE:
20nV/√Hz at f = 1kHz (G =100)
●HIGH CMR: 106dB
●WIDE SUPPLY RANGE: ±2.25V to ±18V
●LOW NONLINEARITY ERROR: 0.001% max
●INPUT PROTECTION TO ±40V
●8-PIN DIP AND SO-8 SURFACE MOUNT
FET-Input, Low Power
INSTRUMENTATION AMPLIFIER
DESCRIPTION
The INA121 is a FET-input, low power instrumenta-
tion amplifier offering excellent accuracy. Its versatile
three-op amp design and very small size make it ideal
for a variety of general purpose applications. Low bias
current (±4pA) allows use with high impedance
sources.
Gain can be set from 1V to 10,000V/V with a single
external resistor. Internal input protection can with-
stand up to ±40V without damage.
The INA121 is laser-trimmed for very low offset
voltage (±200µV), low offset drift (±2µV/°C), and
high common-mode rejection (106dB at G = 100). It
operates on power supplies as low as ±2.25V (+4.5V),
allowing use in battery operated and single 5V sys-
tems. Quiescent current is only 450µA.
Package options include 8-pin plastic DIP and SO-8
surface mount. All are specified for the –40°C to
+85°C industrial temperature range.
APPLICATIONS
●LOW-LEVEL TRANSDUCER AMPLIFIERS
Bridge, RTD, Thermocouple
●PHYSIOLOGICAL AMPLIFIERS
ECG, EEG, EMG, Respiratory
●HIGH IMPEDANCE TRANSDUCERS
●CAPACITIVE SENSORS
●MULTI-CHANNEL DATA ACQUISITION
●PORTABLE, BATTERY OPERATED SYSTEMS
●GENERAL PURPOSE INSTRUMENTATION
A
1
A
2
A
3
6
40kΩ40kΩ
40kΩ40kΩ
7
4
3
8
1
2
V
IN
V
IN
R
G
V+
V–
INA121
Ref
V
O
G = 1 + 50kΩ
R
G
–
+5
Over-Voltage
Protection
25kΩ
25kΩ
Over-Voltage
Protection
SBOS078

2
®
INA121
SPECIFICATIONS: VS= ±15V
At TA = +25°C, VS = ±15V, RL= 10kΩ, and IA reference = 0V, unless otherwise noted.
✻Specification same as INA121P, U.
NOTE: (1) Temperature coefficient of the “Internal Resistor” in the gain equation. Does not include TCR of gain-setting resistor, RG.
INA121P, U INA121PA, UA
PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
INPUT
Offset Voltage, RTI ±200±200/G ±500±500/G ±300±200/G
±1000±1000/G µV
vs Temperature ±2±2/G ±5±20/G ✻±15±20/G µV/°C
vs Power Supply VS = ±2.25V to ±18V ±5±20/G ±50±150/G ✻✻µV/V
Long-Term Stability ±0.5 ✻µV/mo
Impedance, Differential 1012 || 1 ✻Ω|| pF
Common-Mode VO = 0V 1012 || 12 ✻Ω|| pF
Input Voltage Range See Text and Typical Curves ✻
Safe Input Voltage ±40 ✻V
Common-Mode Rejection VCM = –12.5V to 13.5V
G = 1 78 86 72 ✻dB
G = 10 91 100 85 ✻dB
G = 100 96 106 90 ✻dB
G = 1000 106 ✻dB
BIAS CURRENT VCM = 0V ±4±50 ✻✻pA
vs Temperature See Typical Curve ✻
Offset Current ±0.5 ✻pA
vs Temperature See Typical Curve ✻
NOISE, RTI RS = 0Ω
Voltage Noise: f = 10Hz G = 100 30 ✻nV/√Hz
f = 100Hz G = 100 21 ✻nV/√Hz
f = 1kHz G = 100 20 ✻nV/√Hz
f= 0.1Hz to 10Hz G = 100 1 ✻µVp-p
Current Noise: f = 1kHz 1 ✻fA/√Hz
GAIN
Gain Equation 1 + (50kΩ/RG)✻V/V
Range of Gain 1 10,000 ✻✻V/V
Gain Error VO= –14V to 13.5V
G = 1 ±0.01 ±0.05 ✻±0.1 %
G = 10 ±0.03 ±0.4 ✻±0.5 %
G = 100 ±0.05 ±0.5 ✻±0.7 %
G = 1000 ±0.5 ✻%
Gain vs Temperature(1) G = 1 ±1±10 ✻✻ppm/°C
G > 1 ±25 ±100 ✻✻ppm/°C
Nonlinearity VO= –14V to 13.5V
G = 1 ±0.0002 ±0.001 ✻±0.002 % of FSR
G = 10 ±0.0015 ±0.005 ✻±0.008 % of FSR
G = 100 ±0.0015 ±0.005 ✻±0.008 % of FSR
G = 1000 ±0.002 ✻% of FSR
OUTPUT
Voltage: Positive RL = 100kΩ(V+)–0.9 ✻V
Negative RL = 100kΩ(V–)+0.15 ✻V
Positive RL = 10kΩ(V+)–1.5 (V+)–0.9 ✻✻ V
Negative RL = 10kΩ(V–)+1 (V–)+0.25 ✻✻ V
Capacitance Load Drive 1000 ✻pF
Short-Circuit Current ±14 ✻mA
FREQUENCY RESPONSE
Bandwidth, –3dB G = 1 600 ✻kHz
G = 10 300 ✻kHz
G = 100 50 ✻kHz
G = 1000 5 ✻kHz
Slew Rate VO = ±10V, G ≤10 0.7 ✻V/µs
Settling Time, 0.01% G = 1 to 10 20 ✻µs
G = 100 35 ✻µs
G = 1000 260 ✻µs
Overload Recovery 50% Input Overload 5 ✻µs
POWER SUPPLY
Voltage Range ±2.25 ±15 ±18 ✻✻ ✻ V
Quiescent Current IO = 0V ±450 ±525 ✻✻µA
TEMPERATURE RANGE
Specification –40 85 ✻✻°C
Operating –55 125 ✻✻°C
Storage –55 125 ✻✻°C
Thermal Resistance,
θ
JA
8-Lead DIP 100 ✻°C/W
SO-8 Surface Mount 150 ✻°C/W

3
®
INA121

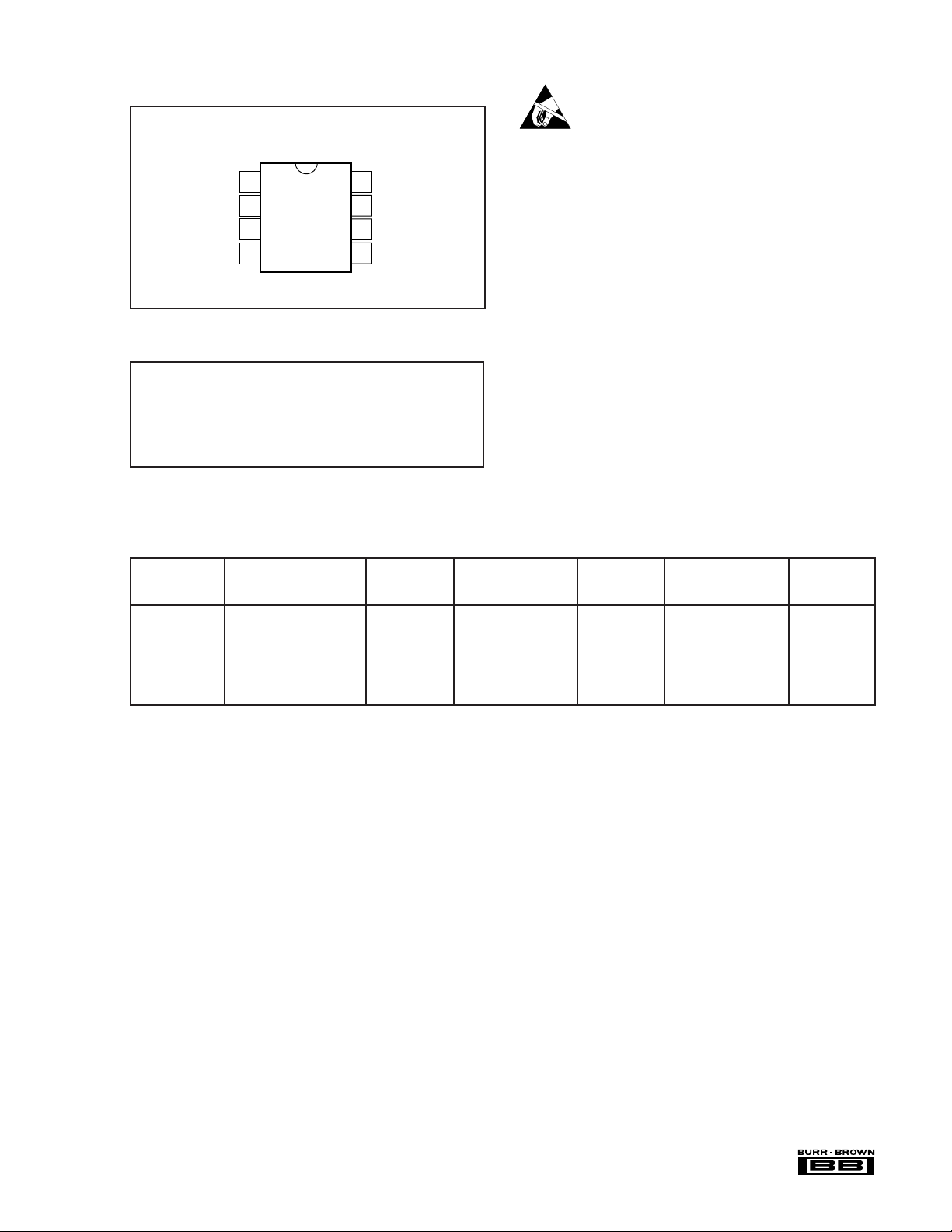

PIN CONFIGURATION ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
bemoresusceptibletodamagebecauseverysmallparametric
changes could cause the device not to meet its published
specifications.
Supply Voltage .................................................................................. ±18V
Analog Input Voltage Range ............................................................. ±40V
Output Short-Circuit (to ground).............................................. Continuous
Operating Temperature ................................................. –55°C to +125°C
Storage Temperature..................................................... –55°C to +125°C
Junction Temperature.................................................................... +150°C
Lead Temperature (soldering, 10s)............................................... +300°C
NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may degrade
device reliability.
ABSOLUTE MAXIMUM RATINGS(1)
Theinformationprovidedhereinisbelieved to bereliable;however,BURR-BROWNassumesnoresponsibility for inaccuraciesoromissions.BURR-BROWNassumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
withoutnotice. No patentrights or licensestoany ofthecircuits describedhereinare impliedorgranted toanythird party.BURR-BROWN does notauthorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
Top View 8-Pin DIP and SO-8
R
G
V
–IN
V
+IN
V–
R
G
V+
V
O
Ref
1
2
3
4
8
7
6
5
Top View
PACKAGE SPECIFIED
DRAWING TEMPERATURE PACKAGE ORDERING TRANSPORT
PRODUCT PACKAGE NUMBER(1) RANGE MARKING NUMBER(2) MEDIA
Single
INA121P 8-Pin DIP 006 –40°C to +85°C INA121P INA121P Rails
INA121PA 8-Pin DIP 006 –40°C to +85°C INA121PA INA121PA Rails
INA121U SO-8 Surface-Mount 182 –40°C to +85°C INA121U INA121U Rails
" " " " " INA121U/2K5 Tape and Reel
INA121UA SO-8 Surface-Mount 182 –40°C to +85°C INA121UA INA121UA Rails
" " " " " INA121UA/2K5 Tape and Reel
NOTES: (1) For detailed drawing and dimension table, please see end of data sheet, or Appendix C of Burr-Brown IC Data Book. (2) Models with a slash (/) are
available only in Tape and Reel in the quantities indicated (e.g., /2K5 indicates 2500 devices per reel). Ordering 2500 pieces of “INA121U/2K5” will get a single
2500-piece Tape and Reel. For detailed Tape and Reel mechanical information, refer to Appendix B of Burr-Brown IC Data Book.
PACKAGE/ORDERING INFORMATION

4
®
INA121
TYPICAL PERFORMANCE CURVES
At T
A
= +25°C, V
S
= ±15V, unless otherwise noted.
NEGATIVE POWER SUPPLY REJECTION
vs FREQUENCY
Frequency (Hz)
Power Supply Rejection (dB)
10 100 10k 100k 1M1k
120
100
80
60
40
20
0
G =1000V/V
G =1V/V
G =10V/V
G =100V/V
INPUT COMMON-MODE RANGE
vs OUTPUT VOLTAGE, V
S
= ±15V
Output Voltage (V)
Common-Mode Voltage (V)
–15 –10 0 5 15–5
15
10
5
0
–5
–10
–15 10
V
D/2
+
–
+
–
+V
CM
V
O
V
D/2
Ref
–15V
+15V
G =1
G ≥10
POSITIVE POWER SUPPLY REJECTION
vs FREQUENCY
Frequency (Hz)
Power Supply Rejection (dB)
10 100 10k 100k 1M1k
120
100
80
60
40
20
0
G =1000V/V
G =1V/V
G =10V/V
G =100V/V
COMMON-MODE REJECTION
vs FREQUENCY
Frequency (Hz)
Common-Mode Rejection (dB)
10 100 10k 100k 1M1k
120
100
80
60
40
20
0
G =1000V/V
G =1V/V
G =10V/V
G =100V/V
INPUT COMMON-MODE RANGE
vs OUTPUT VOLTAGE, V
S
= ±5V, ±2.5V
Output Voltage (V)
Common-Mode Voltage (V)
–5
5
4
3
2
1
0
–1
–2
–3
–4
–5 –4 –3 –2 –1 0 1 2 3 4 5
V
S
= ±5V
V
S
= ±2.5V
G = 1 G ≥10
G = 1
G ≥10
GAIN vs FREQUENCY
Frequency (Hz)
Gain (dB)
1k 10k 1M 10M100k
60
50
40
30
20
10
0
–10
–20
G =1000V/V
G =100V/V
G =10V/V
G =1V/V

5
®
INA121

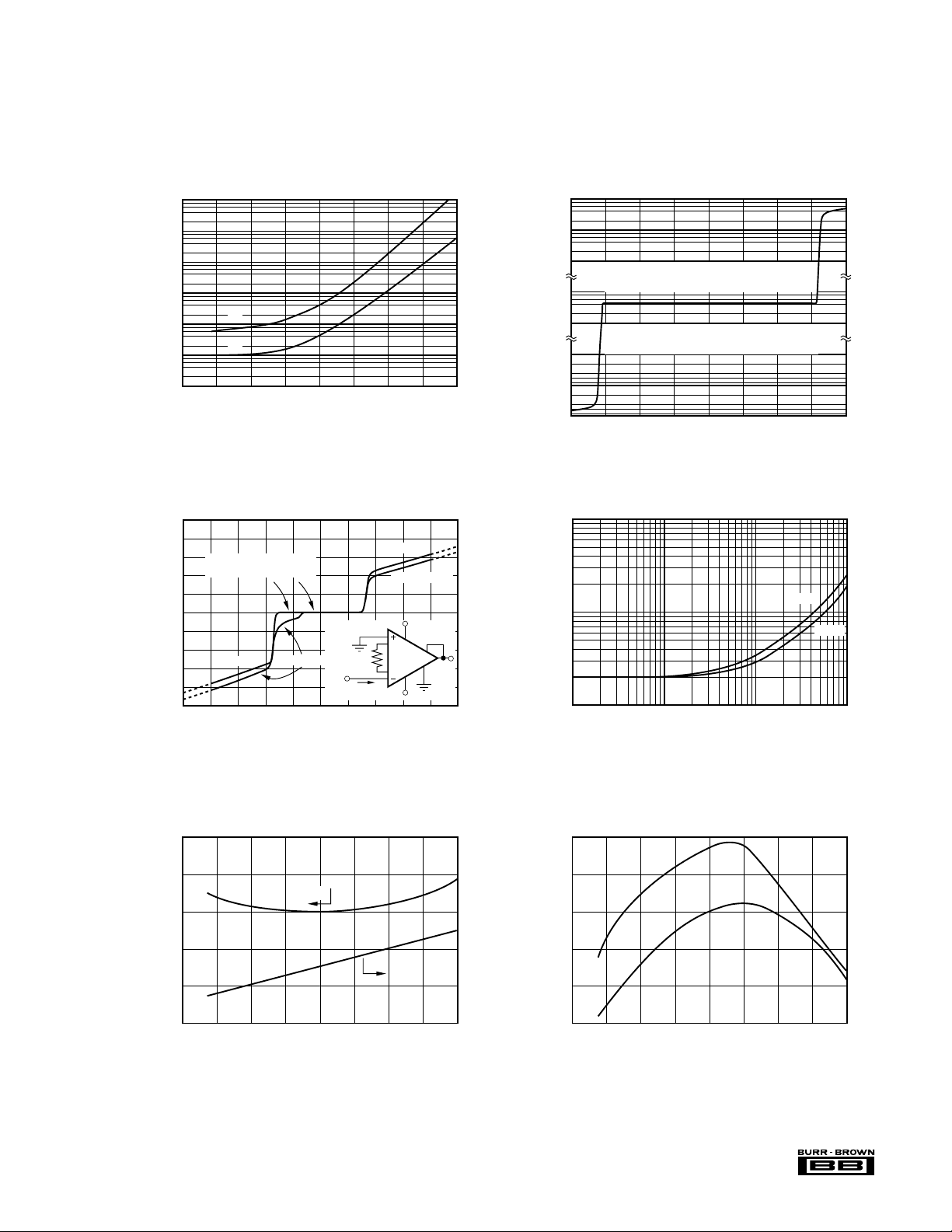

INPUT BIAS CURRENT vs TEMPERATURE
Temperature (°C)
Bias Current (pA)
10k
1k
100
10
1
0.1
0.01–75 –50 –25 0 25 50 75 100 125
I
B
I
OS
TYPICAL PERFORMANCE CURVES (CONT)
At T
A
= +25°C, V
S
= ±15V, unless otherwise noted.
INPUT OVER-VOLTAGE V/I CHARACTERISTICS
1
0.8
0.6
0.4
0.2
0
–0.2
–0.4
–0.6
–0.8
–1
Input Current (mA)
Input Voltage (V)
–50 –40 –30 –20 –10 10 20 30 40050
G = 1V/V
G = 1000V/V
G = 1V/V
Flat region represents
normal linear operation.
V
IN
I
IN
–15V
+15V
G = 1000V/V
QUIESCENT CURRENT AND SLEW RATE
vs TEMPERATURE
500
475
450
425
400
375–75 –50 –25 0 25 50 75 100 125
Temperature (°C)
Quiescent Current (µA)
1.4
1.2
1
0.8
0.6
0.4
Slew Rate (V/µs)
SR
I
Q
SHORT-CIRCUIT CURRENT
vs TEMPERATURE
±15
±14
±13
±12
±11
±10–75 –50 –25 0 25 50 75 100 125
Temperature (°C)
Short-Circuit Current (µA)
+I
SC
–I
SC
SETTLING TIME vs GAIN
1000
100
10 1 10 100 1000
Gain (V/V)
Settling Time (µs)
0.01%
0.1%
INPUT BIAS CURRENT
vs COMMON-MODE INPUT VOLTAGE
1m
100µ
10µ
10p
1p
–10µ
–100µ
–1m–20 –15 –10 –5 0 5 10 15 20
Common-Mode Voltage (V)
Input Bias Current (A)

6
®
INA121
TYPICAL PERFORMANCE CURVES (CONT)
At T
A
= +25°C, V
S
= ±15V, unless otherwise noted.
0.5µV
VOLTAGE NOISE 0.1 TO 10Hz
INPUT-REFERRED, G ≥100
1s/div
OUTPUT VOLTAGE SWING vs OUTPUT CURRENT
V+
(V+) –0.3
(V+) –0.6
(V+) –0.9
(V+) –1.2
(V+) –1.5
(V–) +1.5
(V–) +1.2
(V–) +0.9
(V–) +0.6
(V–) +0.3
(V–) 0 ±2 ±4 ±6 ±8 ±10
Output Current (mA)
Output Voltage Swing (V)
+125°C
+125°C
+85°C
+85°C
–40°C, –55°C
–40°C, –55°C
+25°C
+25°C
INPUT OFFSET VOLTAGE WARM-UP
10
8
6
4
2
0
–2
–4
–6
–8
–10 0100 200 300 400 500
Time (µs)
Offset Voltage Change (µV)
INPUT OFFSET VOLTAGE DRIFT
PRODUCTION DISTRIBUTION
Percent of Units (%)
Offset Voltage Drift (µV/°C)
18
16
14
12
10
8
6
4
2
0
Typical production
distribution of
packaged units.
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10
MAXIMUM OUTPUT VOLTAGE vs FREQUENCY
30
25
20
15
10
5
0100 1k 10k 100k 1M
Frequency (Hz)
Peak-to-Peak Output Voltage (Vp-p)
G = 1000
G = 10 to 100
G = 1
INPUT-REFERRED NOISE VOLTAGE
vs FREQUENCY
Frequency (Hz)
Voltage Noise (nV/√Hz)
1 10 1k 10k100
1000
100
10
1
G =1
G =10
G =1000
(BW Limit)
G =100

7
®
INA121
SMALL-SIGNAL STEP RESPONSE
(G = 1, 10)
TYPICAL PERFORMANCE CURVES (CONT)
At T
A
= +25°C, V
S
= ±15V, unless otherwise noted.
SMALL-SIGNAL STEP RESPONSE
(G = 100, 1000)
LARGE-SIGNAL STEP RESPONSE
(G = 1, 10) LARGE-SIGNAL STEP RESPONSE (G = 100, 1000)
10µs/div
G = 10
50mV/div
G = 1
100µs/div
G = 100
50mV/div
G = 1000
100µs/div
G = 10
5V/div
G = 1
G = 1000
5V/div
G = 100
100µs/div

8
®
INA121
APPLICATION INFORMATION
Figure 1 shows the basic connections required for operation
of the INA121. Applications with noisy or high impedance
power supplies may require decoupling capacitors close to
the device pins as shown.
The output is referred to the output reference (Ref) terminal
which is normally grounded. This must be a low-impedance
connection to assure good common-mode rejection. A resis-
tance of 8Ωin series with the Ref pin will cause a typical
device to degrade to approximately 80dB CMR (G = 1).
SETTING THE GAIN
Gain of the INA121 is set by connecting a single external
resistor, RG, connected between pins 1 and 8:
Commonly used gains and resistor values are shown in
Figure 1.
(1)
G=1+50kΩ
R
G
The 50kΩterm in Equation 1 comes from the sum of the two
internal feedback resistors of A1and A2. These on-chip
metal film resistors are laser trimmed to accurate absolute
values. The accuracy and temperature coefficient of these
resistors are included in the gain accuracy and drift specifi-
cations of the INA121.
The stability and temperature drift of the external gain
setting resistor, RG, also affects gain. RG’s contribution to
gain accuracy and drift can be directly inferred from the gain
equation (1). Low resistor values required for high gain can
make wiring resistance important. Sockets add to the wiring
resistance which will contribute additional gain error (possi-
bly an unstable gain error) in gains of approximately 100 or
greater.
DYNAMIC PERFORMANCE
The typical performance curve “Gain vs Frequency” shows
that, despite its low quiescent current, the INA121 achieves
wide bandwidth, even at high gain. This is due to the
current-feedback topology of the INA121. Settling time also
remains excellent at high gain.
A
1
A
2
A
3
6
40kΩ40kΩ
40kΩ40kΩ
7
4
3
8
1
2
V
IN
V
IN
R
G
V+
V–
INA121
G = 1 + 50kΩ
R
G
–
+5
Over-Voltage
Protection
25kΩ
25kΩ
Over-Voltage
Protection
Load
V
O
= G • (V
IN
– V
IN
)
+–
0.1µF
0.1µF
+
–
V
O
R
G
Also drawn in simplified form:
INA121
Ref
V
O
V
IN
–
V
IN
+
Ref
DESIRED RGNEAREST 1% RG
GAIN (Ω)(Ω)
1NC NC
2 50.00k 49.9k
5 12.50k 12.4k
10 5.556k 5.62k
20 2.632k 2.61k
50 1.02k 1.02k
100 505.1 511
200 251.3 249
500 100.2 100
1000 50.05 49.9
2000 25.01 24.9
5000 10.00 10
10000 5.001 4.99
NC: No Connection.
FIGURE 1. Basic Connections.

9
®
INA121
INA121
1MΩ1MΩ
INA121
10kΩ
Thermocouple
INA121
Center-tap provides
bias current return.
INA121
Bridge resistance provides
bias current return.
Crystal or
Ceramic
Transducer
BridgeV
REF
The INA121 provides excellent rejection of high frequency
common-mode signals. The typical performance curve,
“Common-Mode Rejection vs Frequency” shows this be-
havior. If the inputs are not properly balanced, however,
common-mode signals can be converted to differential sig-
nals. Run the VIN and VIN connections directly adjacent each
other, from the source signal all the way to the input pins. If
possible use a ground plane under both input traces. Avoid
running other potentially noisy lines near the inputs.
NOISE AND ACCURACY PERFORMANCE
The INA121’s FET input circuitry provides low input bias
current and high speed. It achieves lower noise and higher
accuracy with high impedance sources. With source imped-
ances of 2kΩto 50kΩthe INA114, INA128, or INA129 may
provide lower offset voltage and drift. For very low source
impedance (≤1kΩ), the INA103 may provide improved
accuracy and lower noise. At very high source impedances
(> 1MΩ) the INA116 is recommended.
OFFSET TRIMMING
The INA121 is laser trimmed for low offset voltage and
drift. Most applications require no external offset adjust-

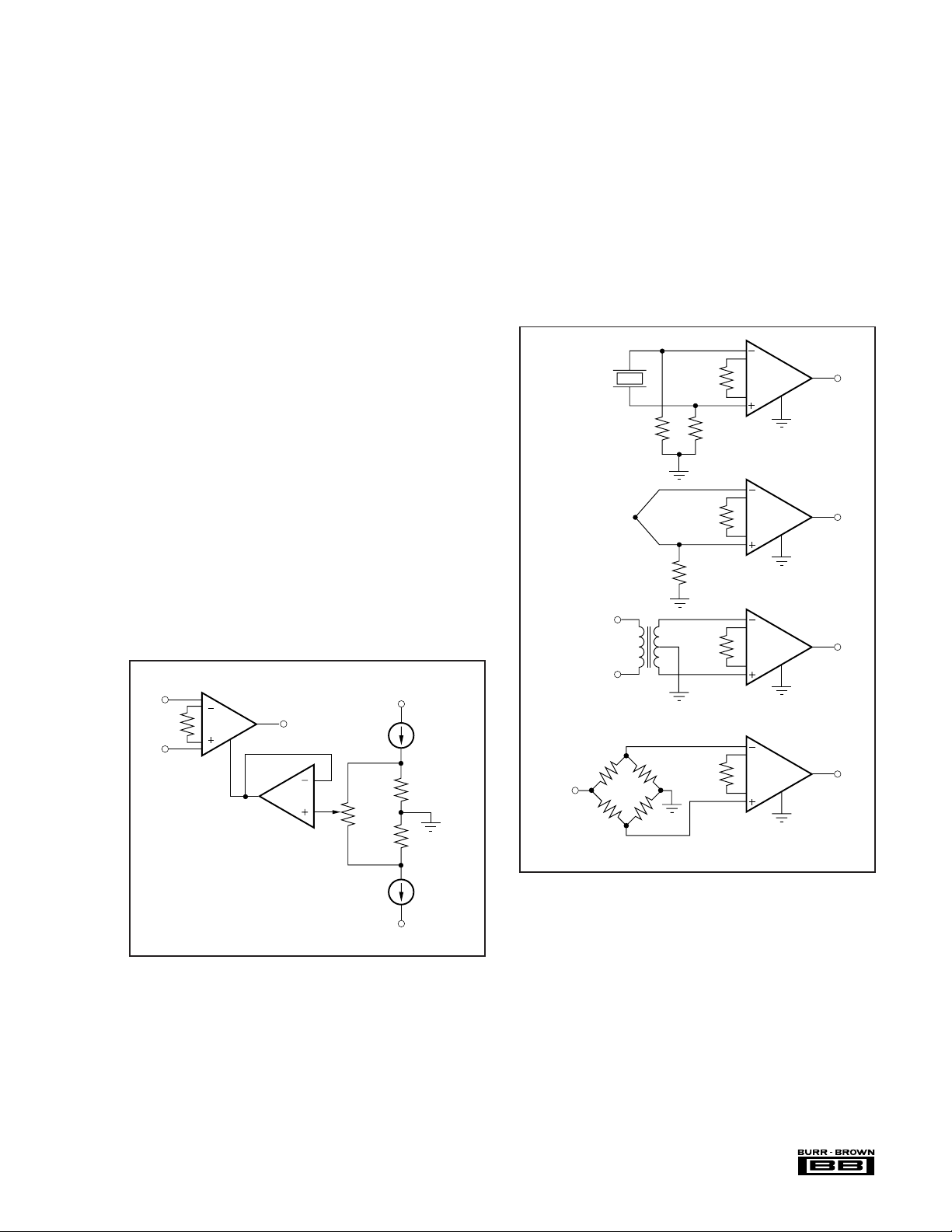

ment. Figure 2 shows an optional circuit for trimming the
output offset voltage. The voltage applied to Ref terminal is
summed at the output. The op amp buffer provides low
impedance at the Ref terminal to preserve good common-
mode rejection. Trim circuits with higher source impedance
should be buffered with an op amp follower circuit to assure
low impedance on the Ref pin.
Input circuitry must provide a path for this input bias current
if the INA121 is to operate properly. Figure 3 shows various
provisions for an input bias current path. Without a bias
current return path, the inputs will float to a potential which
exceeds the common-mode range of the INA121 and the
input amplifiers will saturate.
If the differential source resistance is low, the bias current
return path can be connected to one input (see the thermo-
couple example in Figure 3). With higher source impedance,
using two resistors provides a balanced input with possible
advantages of lower input offset voltage due to bias current
and better high-frequency common-mode rejection.
+–
INPUT BIAS CURRENT RETURN PATH
The input impedance of the INA121 is extremely high—
approximately 1012Ω. However, a path must be provided for
the input bias current of both inputs. This input bias current
is typically 4pA. High input impedance means that this input
bias current changes very little with varying input voltage.
INA121
V
IN
V
IN
R
G
–
+
10kΩ
(1)
V
O
OPA277
Ref
±10mV
Adjustment Range
100Ω
(1)
100Ω
(1)
100µA
1/2 REF200
100µA
1/2 REF200
V+
V–
NOTE: (1) For wider trim range required
in high gains, scale resistor values larger
INPUT COMMON-MODE RANGE
The linear input voltage range of the input circuitry of the
INA121 is from approximately 1.2V below the positive
supply voltage to 2.1V above the negative supply. A differ-
ential input voltage causes the output voltage to increase.
The linear input range, however, will be limited by the
output voltage swing of amplifiers A1and A2. So the linear
common-mode input range is related to the output voltage of
the complete amplifier. This behavior also depends on sup-
ply voltage—see typical performance curve “Input Com-
mon-Mode Range vs Output Voltage”.
FIGURE3.Providingan Input Common-ModeCurrent Path.
FIGURE 2. Optional Trimming of Output Offset Voltage.

10
®
INA121
INA121
R
G
100ΩV
O
+10V
Bridge G = 500
Ref
A
1
A
2
A
3
40kΩ40kΩ
40kΩ40kΩ
R
G
V+
V–
INA121
V
O
= G • V
D
G = 1 + 50kΩ
R
G
25kΩ
25kΩ
V
CM
– G • V
D
2
V
D
2
V
D
2
V
CM
V
CM
+ G • V
D
2
A combination of common-mode and differential input
voltage can cause the output of A1or A2to saturate. Figure
4 shows the output voltage swing of A1and A2expressed in
terms of a common-mode and differential input voltages.
For applications where input common-mode range must be
maximized, limit the output voltage swing by connecting the
INA121 in a lower gain (see performance curve “Input
Common-Mode Voltage Range vs Output Voltage”). If
necessary, add gain after the INA121 to increase the voltage
swing.
Input-overload can produce an output voltage that appears
normal. For example, if an input overload condition drives
both input amplifiers to their positive output swing limit, the
difference voltage measured by the output amplifier will be
near zero. The output of A3will be near 0V even though both
inputs are overloaded.
LOW VOLTAGE OPERATION
The INA121 can be operated on power supplies as low as
±2.25V. Performance remains excellent with power supplies
ranging from ±2.25V to ±18V. Most parameters vary only
slightly throughout this supply voltage range—see typical
performance curves. Operation at very low supply voltage
requires careful attention to assure that the input voltages
remain within their linear range. Voltage swing requirements
of internal nodes limit the input common-mode range with low
power supply voltage. Typical performance curves, “Input
Common-Mode Range vs Output Voltage” show the range of
linear operation for ±15V, ±5V, and ±2.5V supplies.
INPUT FILTERING
The INA121’s FET input allows use of an R/C input filter
without creating large offsets due to input bias current.
Figure 5 shows proper implementation of this input filter to
preserve the INA121’s excellent high frequency common-
mode rejection. Mismatch of the common-mode input time
constant (R1C1and R2C2), either from stray capacitance or
mismatched values, causes a high frequency common-mode
signal to be converted to a differential signal. This degrades
common-mode rejection. The differential input capacitor,
C3, reduces the bandwidth and mitigates the effects of
mismatch in C1and C2. Make C3much larger than C1and
C2. If properly matched, C1and C2also improve ac CMR.
FIGURE 4. Voltage Swing of A1and A2.
FIGURE 5. Input Low-Pass Filter. FIGURE 6. Bridge Transducer Amplifier.
f−3dB =1
4πR1C3+C1
2





INA121 VO
VIN
–
VIN
+
R1
R2C3
C1
C2R1= R2
C1= C2
C3≈10C1
FET input allows use
of large resistors and
small capacitors.
Ref

11
®
INA121
INA121
Transducer
C
1
C
2
Null
R
2
R
1
R
G
V
O
Ref
V
AC
INA121
OPA277
C
1
50nF
R
G
R
2
R
G
Make G ≤ 10 where G = 1 + 50k Load
V
IN
G
•
R
2
I
L
=
R
1
10kΩ
V
IN
Ref
INA121
R
G
V
O
C
1
0.1µF
OPA277
Ref R
1
1MΩ
f
–3dB
= 1
2πR
1
C
1
= 1.59Hz
V
IN
+
–
INA121 ISO124
±6V to ±18V
Isolated Power
±15V
Ref
V
IN
–
V
IN
+
V
O
Isolated
Common
V+ V–
FIGURE 8. Galvanically Isolated Instrumentation
Amplifier.
FIGURE 7. High-Pass Input Filter.
FIGURE 10. Voltage Controlled Current Source.FIGURE 9. AC-Coupled Instrumentation Amplifier.
INA121
C
1
C
2
R
1
R
2
V
O
2πR
1
C
1
1
f
c
=
NOTE: To preserve good low frequency CMR,
make R
1
= R
2
and C
1
= C
2
.
R
G
Ref
FIGURE 11. Capacitive Bridge Transducer Circuit.

12
®
INA121
INA121
R
G
/2
R
G
= 5.6kΩ
V
O
LA
RL
RA
10kΩ
Ref
NOTE: Due to the INA121’s current-feedback
topology, V
G
is approximately 0.7V less than
the common-mode input voltage. This DC offset
in this guard potential is satisfactory for many
guarding applications.
Low bias current
allows use with high
electrode impedances.
G = 10
2.8kΩ
V
G
V
G
2.8kΩ
1/2
OPA2131
390kΩ
390kΩ
1/2
OPA2131

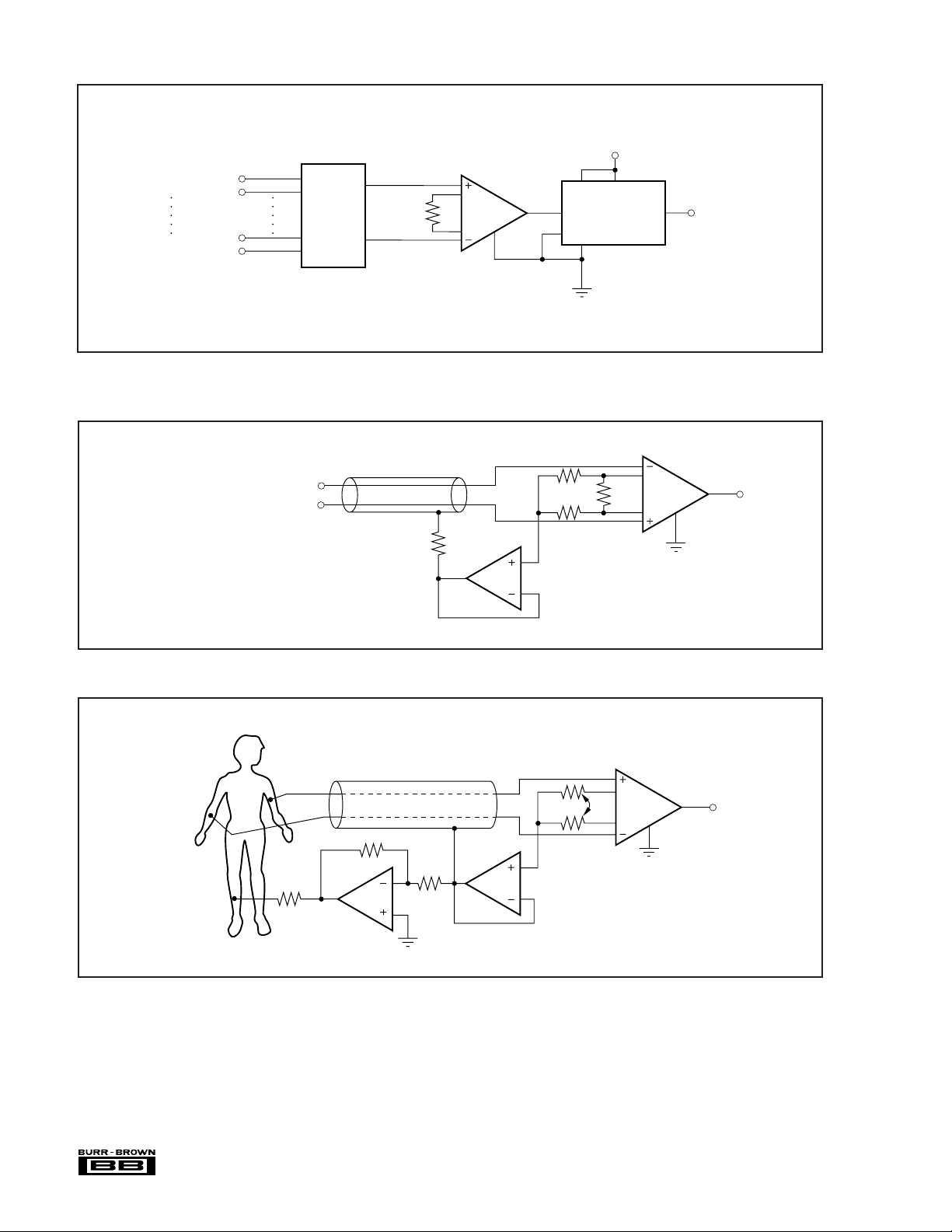

FIGURE 12. Multiplexed-Input Data Acquisition System.
FIGURE 13. Shield Driver Circuit.
INA121
V
IN
–
V
IN
+
OPA130
511Ω
22.1kΩ
22.1kΩ
Ref
V
O
For G = 100
R
G
= 511Ω// 2(22.1kΩ)
effective R
G
= 505Ω
100Ω
NOTE: Driving the shield minimizes CMR degradation
due to unequally distributed capacitance on the input
line. The shield is driven at approximately 1V below
the common-mode input voltage.
FIGURE 14. ECG Amplifier With Right-Leg Drive.
INA121
VIN +
–
VIN +
–
Channel 8
Channel 1
MPC800
MUX ADS7816
+5V
VREF
+In
–In
12 Bits Out
Serial
RG
Ref

PACKAGE OPTION ADDENDUM
www.ti.com 14-Oct-2022
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
INA121P ACTIVE PDIP P 8 50 RoHS & Green Call TI N / A for Pkg Type -40 to 85 INA121P
ASamples
INA121PA ACTIVE PDIP P 8 50 RoHS & Green Call TI N / A for Pkg Type INA121P
ASamples
INA121U ACTIVE SOIC D 8 75 RoHS & Green Call TI Level-3-260C-168 HR INA
121U Samples
INA121U/2K5 ACTIVE SOIC D 8 2500 RoHS & Green Call TI Level-3-260C-168 HR INA
121U Samples
INA121U/2K5G4 ACTIVE SOIC D 8 2500 RoHS & Green Call TI Level-3-260C-168 HR INA
121U Samples
INA121UA ACTIVE SOIC D 8 75 RoHS & Green Call TI Level-3-260C-168 HR INA
121U
A
Samples
INA121UA/2K5 ACTIVE SOIC D 8 2500 RoHS & Green Call TI Level-3-260C-168 HR INA
121U
A
Samples
INA121UAE4 ACTIVE SOIC D 8 75 RoHS & Green Call TI Level-3-260C-168 HR INA
121U
A
Samples
INA121UG4 ACTIVE SOIC D 8 75 RoHS & Green Call TI Level-3-260C-168 HR INA
121U Samples
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
Addendum-Page 1

PACKAGE OPTION ADDENDUM
www.ti.com 14-Oct-2022
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2

PACKAGE MATERIALS INFORMATION
www.ti.com 3-Jun-2022

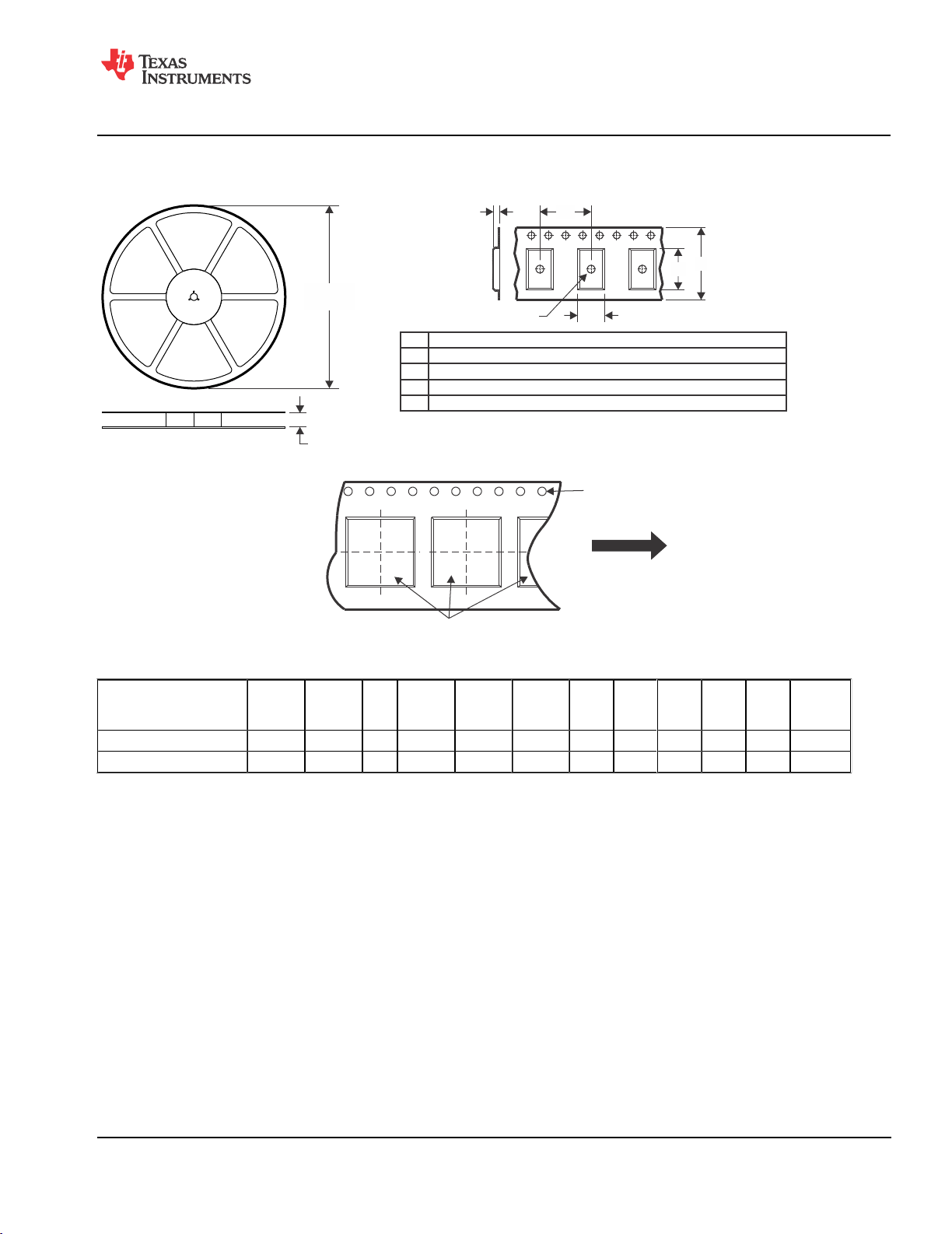

TAPE AND REEL INFORMATION
Reel Width (W1)
REEL DIMENSIONS
A0
B0
K0
W
Dimension designed to accommodate the component length
Dimension designed to accommodate the component thickness
Overall width of the carrier tape
Pitch between successive cavity centers
Dimension designed to accommodate the component width
TAPE DIMENSIONS
K0 P1
B0 W
A0
Cavity
QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE
Pocket Quadrants
Sprocket Holes
Q1 Q1Q2 Q2
Q3 Q3Q4 Q4 User Direction of Feed
P1
Reel
Diameter
*All dimensions are nominal
Device Package
Type Package Drawing Pins SPQ Reel Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0 (mm) K0 (mm) P1 (mm) W (mm) Pin1 Quadrant
INA121U/2K5 SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1
INA121UA/2K5 SOIC D 8 2500 330.0 12.4 6.4 5.2 2.1 8.0 12.0 Q1
Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION
www.ti.com 3-Jun-2022

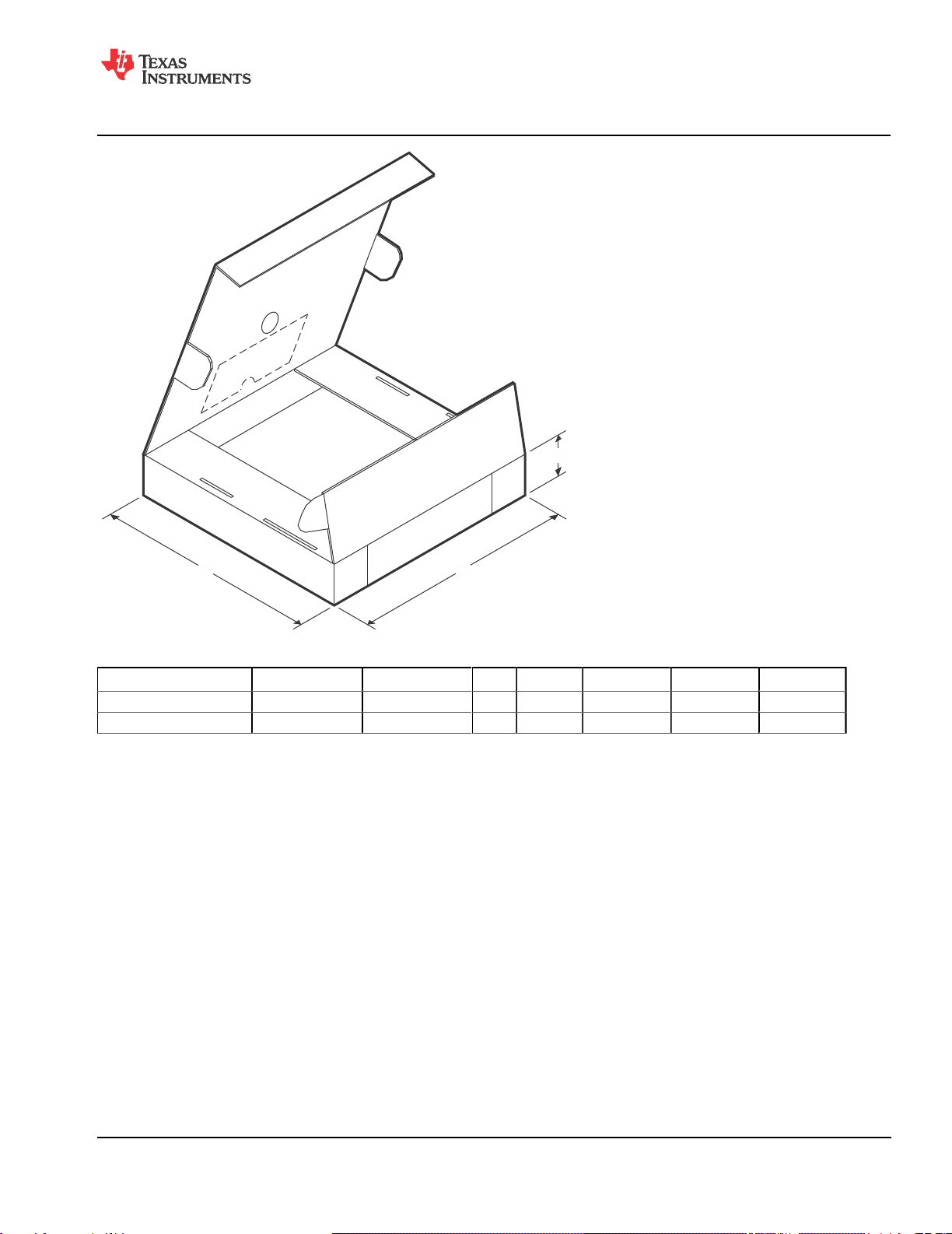

TAPE AND REEL BOX DIMENSIONS
Width (mm)
W
L
H
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
INA121U/2K5 SOIC D 8 2500 367.0 367.0 35.0
INA121UA/2K5 SOIC D 8 2500 356.0 356.0 35.0
Pack Materials-Page 2

PACKAGE MATERIALS INFORMATION
www.ti.com 3-Jun-2022

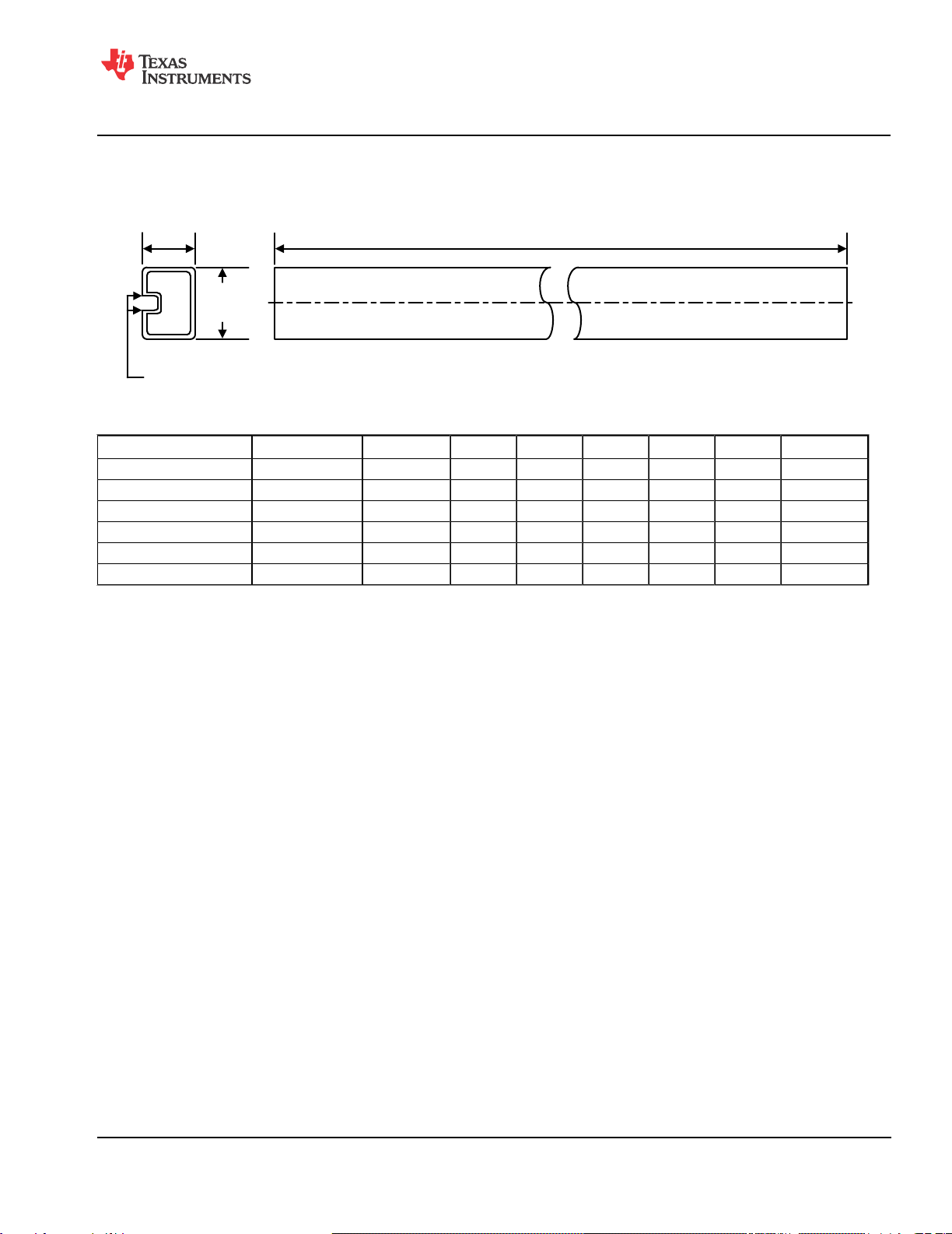

TUBE
L - Tube length
T - Tube
height
W - Tube
width
B - Alignment groove width
*All dimensions are nominal
Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm)
INA121P P PDIP 8 50 506 13.97 11230 4.32
INA121PA P PDIP 8 50 506 13.97 11230 4.32
INA121U D SOIC 8 75 506.6 8 3940 4.32
INA121UA D SOIC 8 75 506.6 8 3940 4.32
INA121UAE4 D SOIC 8 75 506.6 8 3940 4.32
INA121UG4 D SOIC 8 75 506.6 8 3940 4.32
Pack Materials-Page 3

www.ti.com

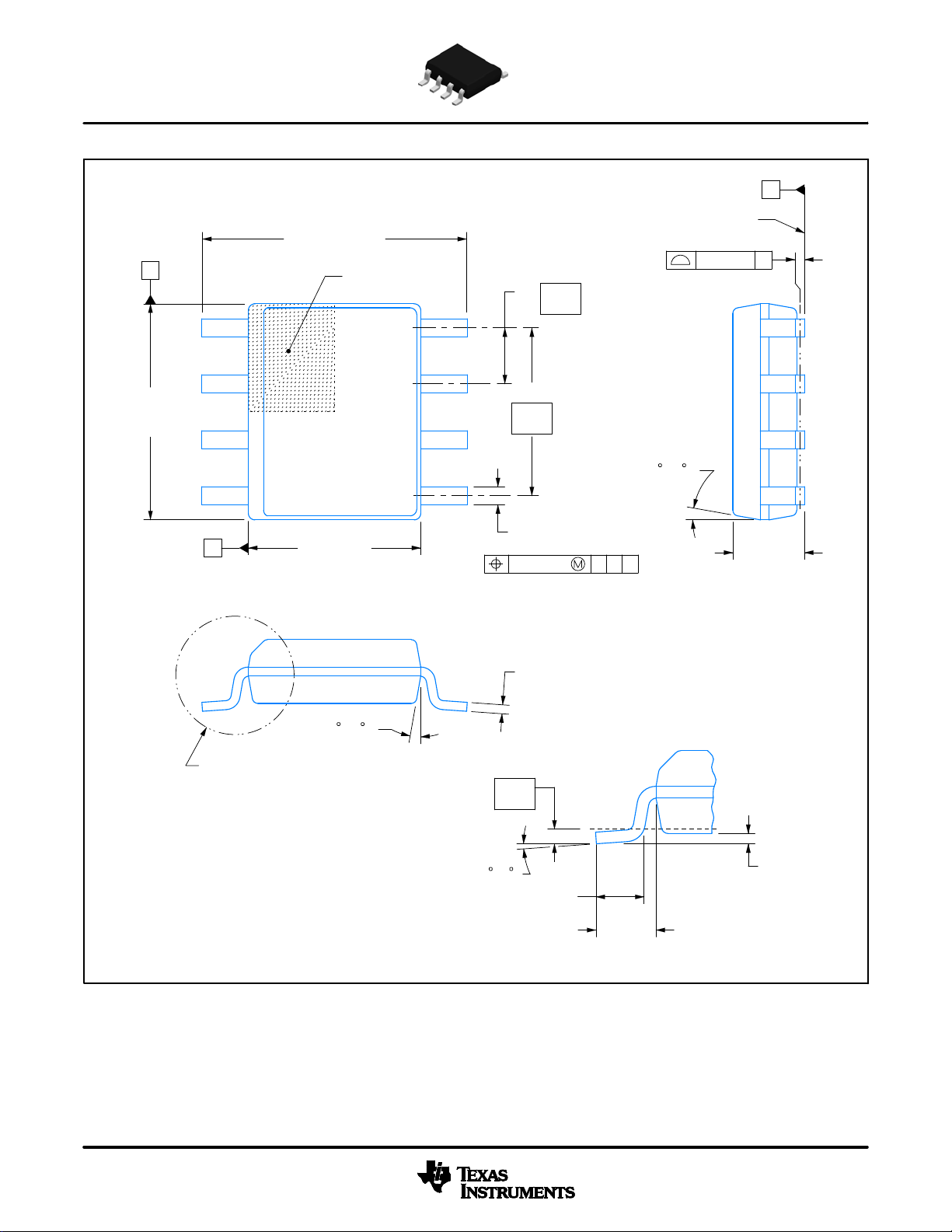

PACKAGE OUTLINE
C
.228-.244 TYP
[5.80-6.19]
.069 MAX
[1.75]
6X .050
[1.27]
8X .012-.020
[0.31-0.51]
2X
.150
[3.81]
.005-.010 TYP
[0.13-0.25]
0 - 8 .004-.010
[0.11-0.25]
.010
[0.25]
.016-.050
[0.41-1.27]
4X (0 -15 )
A
.189-.197
[4.81-5.00]
NOTE 3
B .150-.157
[3.81-3.98]
NOTE 4
4X (0 -15 )
(.041)
[1.04]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES:
1. Linear dimensions are in inches [millimeters]. Dimensions in parenthesis are for reference only. Controlling dimensions are in inches.
Dimensioning and tolerancing per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed .006 [0.15] per side.
4. This dimension does not include interlead flash.
5. Reference JEDEC registration MS-012, variation AA.
18
.010 [0.25] C A B
5
4
PIN 1 ID AREA
SEATING PLANE
.004 [0.1] C
SEE DETAIL A
DETAIL A
TYPICAL
SCALE 2.800

www.ti.com
EXAMPLE BOARD LAYOUT
.0028 MAX
[0.07]
ALL AROUND
.0028 MIN
[0.07]
ALL AROUND
(.213)
[5.4]
6X (.050 )
[1.27]
8X (.061 )
[1.55]
8X (.024)
[0.6]
(R.002 ) TYP
[0.05]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
METAL SOLDER MASK
OPENING
NON SOLDER MASK
DEFINED
SOLDER MASK DETAILS
EXPOSED
METAL
OPENING
SOLDER MASK METAL UNDER
SOLDER MASK
SOLDER MASK
DEFINED
EXPOSED
METAL
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE:8X
SYMM
1
45
8
SEE
DETAILS
SYMM

www.ti.com
EXAMPLE STENCIL DESIGN
8X (.061 )
[1.55]
8X (.024)
[0.6]
6X (.050 )
[1.27] (.213)
[5.4]
(R.002 ) TYP
[0.05]
SOIC - 1.75 mm max heightD0008A
SMALL OUTLINE INTEGRATED CIRCUIT
4214825/C 02/2019
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
SOLDER PASTE EXAMPLE
BASED ON .005 INCH [0.125 MM] THICK STENCIL
SCALE:8X
SYMM
SYMM
1
45
8
