Busch-Jaeger Busch-Infoline 1561 U User manual

1473
-1-8300 │ Rev. 01 │ 17.12.2012
Operating Instructions
Busch
-Infoline®
Pos: 2 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Titelbl ätter/Infoline/ Titelblatt - 1561 @ 25\mod_13 41325107268_15.doc x@ 22182 7 @ @ 1
1561 U
Signal generator insert
=== Ende der Liste für Textmarke Co ver ===

Operating Instructions
Busch-Infoline®
Operating Instructions | 1473-1-8300
— 2 —
Pos: 4 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Inhaltsver zeichnis (--> Für alle Dokume nte <--)/Inhaltsverzeic hnis @ 19\mod_1320649044386_ 15.docx @ 109653 @ @ 1
1Safety.......................................................................................................................................................................3
2Intended use............................................................................................................................................................3
3Environment.............................................................................................................................................................3
4Technical data..........................................................................................................................................................4
5Setup and function...................................................................................................................................................4
5.1 Features of function and equipment........................................................................................................4
5.2 Possible combinations ............................................................................................................................5
6Installation and electrical connection .......................................................................................................................6
6.1 Requirements for the electrician .............................................................................................................6
6.2 Electrical connection...............................................................................................................................7
6.3 Mounting the device insert......................................................................................................................8
6.4 Setting sound signal with jumper ............................................................................................................8
6.5 Adjusting the volume with the potentiometer...........................................................................................9
=== Ende der Liste für Textmarke TOC ===

Operating Instructions
Busch-Infoline®
Safety
Operating Instructions | 1473-1-8300
— 3 —
Pos: 6 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/S - T/Sic herheit @ 18\mod_130261279179 0_15.docx @ 103357 @ 1 @ 1
1 Safety
Pos: 7 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicherheit - 230 V @ 18\mod_13026068 16750_15.docx @ 103308 @ @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Work on the 230V supply system may only be performed by authorised electricians!
– Disconnect the mains power supply prior to installation and/or disassembly!
os: 8 /#Neustruktur#/ Online-Dokumentation (+K NX)/Sicherheitshin weise und Hinweise (--> Für alle Dokum ente <--)/Warnhinweise/Si cherheit - Schalldruc k 66 dB @ 26\mod_1341478411095_15. docx @ 222517 @ @ 1
Warning
High sound pressure level!
High sound pressure level of 66 dB at a distance of 1 m. Problems with concentration are possible
in this area.
- Safety distance must be adhered to!
Pos: 9 /#Neustruktur#/ Online-Dokumentatio n (+KNX)/Überschr iften (--> Für alle Doku mente <--)/1. Ebene/A - F/Besti mmungsgemäßer Gebrauch @ 18\mod_130276332 1316_15.docx @ 103483 @ 1 @ 1
2 Intended use
Pos: 10 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Bestimmungsg emäßer Gebrauch (--> Für alle Dokumen te <--)/Busch-Dimmer/Bes timmungsgemäßer Gebrauc h @ 23\mod_1335350449857_1 5.docx @ 208763 @ @ 1
The device is to be used exclusively with the components that are supplied and licensed as described in chapter
"Setup and function".
Pos: 11 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/U - Z/ Umwel t @ 18\mod_130261415 8967_15.docx @ 103383 @ 1 @ 1
3 Environment
Pos: 12 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/Hinweis e - Umwelt /Hin weis - Umwel t - Hinweis Elektrogeräte @ 18\mod _1302763973434_15.doc x @ 103500 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 13 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/Hinweis e - Umwelt /Hin weis - Umwe lt - Entsorgung Elektro geräte @ 20\mod_1325760695 972_15.docx @ 136583 @ @ 1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 14 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x @ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Technical data
Operating Instructions | 1473-1-8300
— 4 —
Pos: 15 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/S - T/Technische Date n @ 11\mod_1279185386320_15. docx @ 83019 @ 1 @ 1
4 Technical data
Pos: 16 /#Neustruktur #/Online-Dokumentation (+K NX)/Technische Daten/ Infoline/Technisc he Daten - 1561 @ 25\mod_1341325147877 _15.docx @ 221854 @ @ 1
General
Nominal voltage 15 - 29 V AC, 18 - 35 V DC
Rated frequency 50/60 Hz
Sound frequencies 200 / 750 Hz, adjustable
Nominal current 20 mA AC / 10 mA DC
Sound pressure 66 dB / 1 m
Protection class IP 20
Type of protection for device SELV
Operating temperature range 5 ... 40 °C
Pos: 17 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/A - F/Aufbau und Funktion @ 11\mod_1279185 435352_15.doc x@ 83027 @ 1 @ 1
5 Setup and function
Pos: 18 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Funktions- und Auss tattungsmerkmale @ 23\mod_1 336557630140_15.d ocx @ 209136 @ 21 @ 1
5.1 Features of function and equipment
Pos: 19 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Aufbau und Funk tion/Infoline/F unktionen - 1561 @ 33\mod_1360664 861189_15.docx @ 277212 @ 2 @ 1
The signal generator insert is a buzzer for acoustic alarm messages. It gives off a brief sound signal when
the operating voltage is applied.
A permanent signal sounds at alarm activation. The sound frequency can be selected via a jumper.
The volume of the sound signal can be adjusted with the potentiometer.
Pos: 20 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Setup and function
Operating Instructions | 1473-1-8300
— 5 —
Pos: 21 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/G - L/Kombina tionsmöglichkeiten @ 19\mod_1320312 769153_15.doc x @ 109520 @ 2 @ 1
5.2 Possible combinations
Pos: 22 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Kombinati onsmöglichkeiten/I nfoline/Kombina tionsmöglichkeiten - 1561 @ 25\mod_13413 25186345_15.doc x@ 221882 @ 2 @ 1
Signal generator insert
1561 U
1518 U
X
1511 U
X
1515 U-12
X
1531 U
X
1574 C-214
X
1576 CN-84
X
Pos: 23 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12 68898668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8300
— 6 —
Pos: 24 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 1. Ebene/M - O/Montage und e lektrischer Ansc hluss@ 23\m od_1336477157864_15.d ocx @ 209033 @ 1 @ 1
6 Installation and electrical connection
Pos: 25 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicher heit - Niederspannungs- und 230 V-Lei tungen@ 23\mod_1 336558868201_15.d ocx @ 209164 @ 1 @ 1
Warning
Electric voltage!
Risk of death due to electrical voltage of 230 V during short-circuit in the low-voltage line.
– Low-voltage and 230 V lines must not be installed together in a flush-mounted socket!
Pos: 26 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Sicher heitshinweise und Hinweise ( --> Für alle Dokumente <--)/W arnhinweise/Sicher heit - Fachkenntnisse @ 23\mod_1336 559183027_15.doc x@ 209179 @ 2 @ 1
6.1 Requirements for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering knowledge and experience.
• Incorrect installation endangers your life and that of the user of the electrical system.
• Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation are as follows:
• Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect from power;
2. Secure against being re-connected;
3. Ensure there is no voltage;
4. Connect to earth and short-circuit;
5. Cover or barricade adjacent live parts.
• Use suitable personal protective clothing.
• Use only suitable tools and measuring devices.
• Check the supply network type (TN system, IT system, TT system) to secure the following
power supply conditions (classic connection to ground, protective earthing, necessary
additional measures, etc.).
Pos: 27 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ 2 @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8300
— 7 —
Pos: 28 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/A - F/Elektrischer Anschlus s @ 21\mod_1328177051724_15. docx @ 138042 @ 2 @ 1
6.2 Electrical connection
Pos: 29 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Anschluss/ Infoline/Anschl uss - 1561 @ 33\mod_1360665562648_15. docx @ 277244 @ 2 @ 1
Connection diagram
Fig. 1: Signal diagram of signal generator insert
1NO contact for alarm activation
Terminal assignment
1561 U Signal generator insert
Terminal designation Assignment
nc Not occupied
3 15 V AC for alarm activation
4
Pos: 30 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12688 98668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8300
— 8 —
Pos: 31 /#Neustruktur #/Online-Dokumentation (+K NX)/Überschrif ten( --> Für alle Dokumente <--)/2. Ebene/M - O/Montage des Geräteei nsatzes @ 25\mod_134140138 1988_15.docx @ 222339 @ 2 @ 1
6.3 Mounting the device insert
Pos: 32 /#Neustruktur #/Online-Dokumentation (+ KNX)/Montage/Infoline/ Montage -Geräte Einsätze 156 1 @ 33\mod_1360665330273_ 15.docx @ 277228 @ 2 @ 1
1. Mount the device in a flush-mounted box according to DIN 049073-1.
2. Fix the device in the flush-mounted box with screws.
3. Mount the elements of the cover plate in the sequence shown in the illustration.

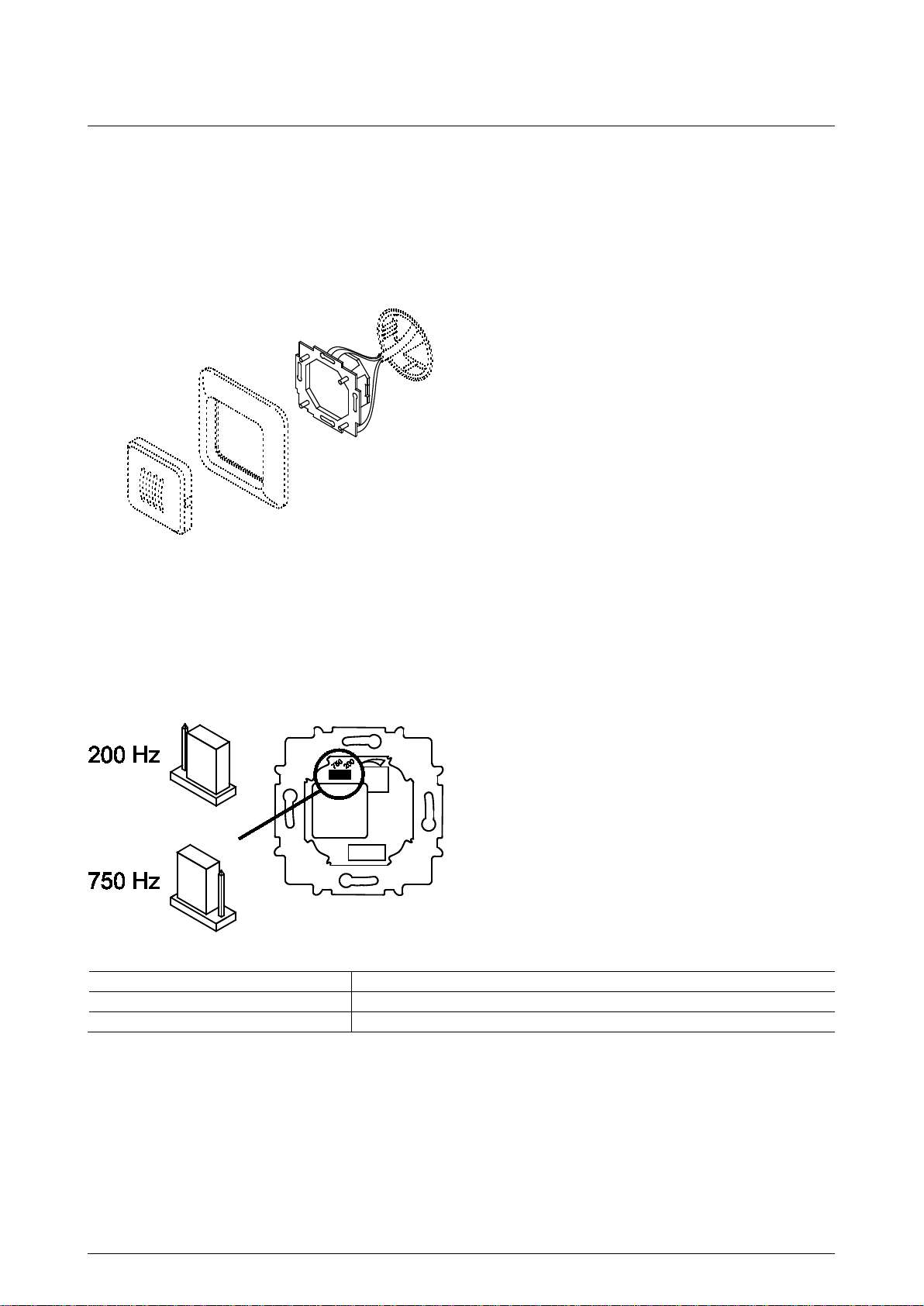

Fig. 2: Overview of installation
Pos: 33 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/S - T/Tonsignal mit Stec kbrücke einstellen @ 26\mod_1341 496169217_15.docx @ 222675 @ 2 @ 1
6.4 Setting sound signal with jumper
Pos: 34 /#Neustruktur #/Online-Dokumenta tion(+ KNX)/Montage/Infoline/ Tonsignal 1561 @ 25\mod_1 341325250220_15.doc x@ 221 924 @ 2 @ 1
The sound frequency can be selected using an internal jumper (200 Hz / 750 Hz).
The volume is preset.
Fig. 3: 1561 U signal generator insert
Position Sound signal
200 Hz Low sound frequency
750 Hz High sound frequency
Pos: 35 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Steuermodu le - Online -Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_12 68898668093_0.doc x@ 52149 @ @ 1

Operating Instructions
Busch-Infoline®
Installation and electrical
connection
Operating Instructions | 1473-1-8300
— 9 —
Pos: 36 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Überschr iften (--> Für alle Dokumente <--)/ 2. Ebene/G - L/Lauts tärke mit Potentiometer eins tellen @ 26\mod_1341479667 082_15.docx @ 222561 @ 2 @ 1
6.5 Adjusting the volume with the potentiometer
Pos: 37 /#Neustruktur #/Online-Dokumenta tion (+KNX)/Montage/I nfoline/Lautstär ke einstellen - 1561 @ 26\mod_13414 79697692_15.docx @ 222575 @ 2 @ 1

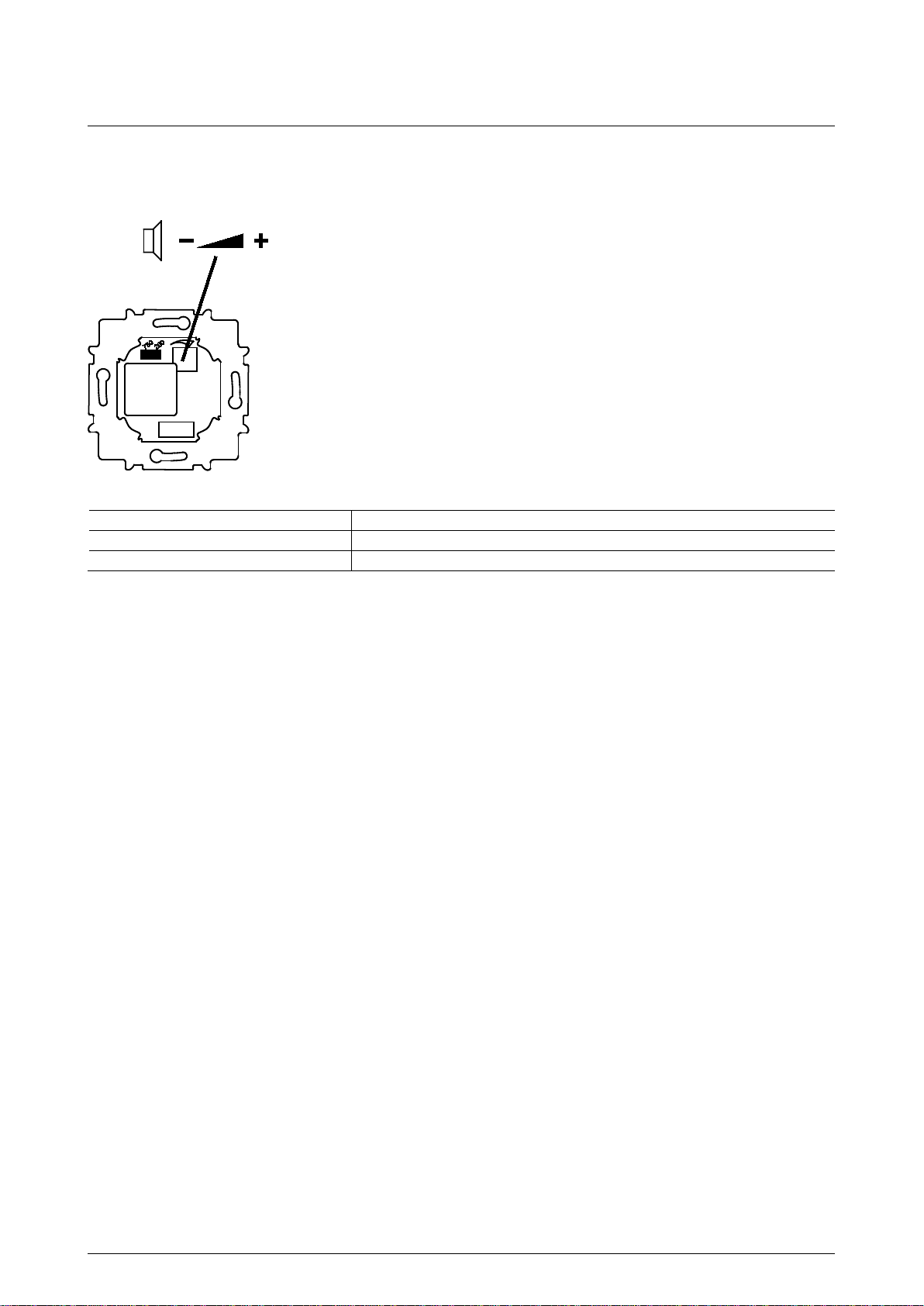

Fig. 4: 1561 U Signal generator insert
Position
Volume
Turning the potentiometer in direction "-" The volume of the sound signal is reduced
Turning the potentiometer in direction "+" The volume of the sound signal is increased
=== Ende der Liste für Textmarke Con tent ===
