Bush AB165 Assembly Instructions

AB165 Installation & User Instructions – Please keep for future reference
Important – Please read these instructions fully before installing or using
These instructions contain important information that will help you get the best from your
appliance, ensuring safe and correct installation, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline on 0845 600 4632
Issue 1 - 08/06/10
Built-Under Freezer

Contents
Presentation and Description of the Product 3
Safety Information 4
Parts 5
Installation 6-12
Dimensions for installation 6
Installing top bracket 6
Fitting the door gasket 7
Height adjustment 7
Position the freezer 8
Securing the freezer 8
Fitting the cabinet door 9
Installing the plinth 11
Reversing the door 12
User Instructions 13
Recommendations 13
Thermostat settings 13
Display panel 14
Food storage in the appliance 14
Cleaning and maintenance 15
General 15
Defrosting the freezer 15
Trouble Shooting 16
Technical Specifications 17
Tips for Saving Energy 18
Product code
AB165
2 Customer Helpline 0845 600 4632

Customer Helpline 0845 600 4632 3
Presentation and Description of Product
1. Thermostat dial
2. Freezer drawers
2
1

4 Customer Helpline 0845 600 4632
Safety Information
IMPORTANT - Please read this booklet before
installing and switching on this appliance. The
manufacturer assumes no responsibility for
incorrect installation and usage as described in
this booklet.
IMPORTANT - The plug must be accessible after
installation.
IMPORTANT - Do not place bottles (glass or tin)
containing liquids (especially sparkling liquids) into
the freezer as they could burst during freezing.
IMPORTANT - If the supply cord is damaged it
must be replaced by the manufacturer, service
agent or appointed person.
WARNING - keep ventilation openings (in
appliance enclosure or building) clear from
obstruction.
WARNING - Do not use mechanical devices or
other artificial means to accelerate the defrosting
process.
WARNING - Do not use electrical appliances in
the freezer compartment of the appliance.
WARNING - If this appliance is to replace an old
with a lock, break or remove the lock to protect
children from locking themselves inside.
WARNING - Old freezers contain insulation
gases and refrigerant, which must be disposed
of properly. Entrust the disposal of a scrap unit
to your local waste disposal service and contact
your local authority or dealer if you have any
questions. Please ensure that the refrigerator
pipe is not damaged prior to collection by an
appropriate waste disposal service.
WARNING - Do not allow children to play with the
appliance. Children must never sit in the drawers
or hang from the door.
WARNING - Do not use adapters or shunts,
which could cause overheating or burning.
WARNING - Do not connect old, warped power
supply cables.
WARNING - Do not twist and bend the cables,
and keep them away from hot surfaces.
WARNING - Do not connect the power supply
with wet hands.
WARNING - After installation, make sure that
the power cable is not trapped underneath the
appliance.
WARNING - Do not operate any electrical
appliances inside the freezer.
WARNING - Do not eat ice that has just been
removed from the freezer.
WARNING - The appliance is not intended for
use by people (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
CAUTION - If the model contains R600a (see
name plate - coolant is isobutane) then it is
environmentally friendly but also combustible.
When transporting and installing the unit,
care must be taken to ensure that none of
the refrigeration circuit components become
damaged. In the event of damage, avoid naked
flames or ignition sources and ventilate the room
in which the unit is placed for a few minutes.
CAUTION - Do not damage the freezing circuit.
CAUTION - Do not defrost the appliance with
other electrical devices (i.e. hair dryer) or other
artificial means, and do not use sharp metal
objects to remove the ice in the freezer, as this
could cause damage to the freezing system.
Important - Please read these instructions fully before installation

Customer Helpline 0845 600 4632 5
Parts
Please check you have all of the attaching parts listed below
Installation kit contents
A. Wood screw x17
C. Door Bottom Fixings x2
Spirit level
Setsquare
E. Screw
B. Door hang
D. Hang cover
Screwdriver
Wrench
F. Top bracket
Tools required

6 Customer Helpline 0845 600 4632
Installation

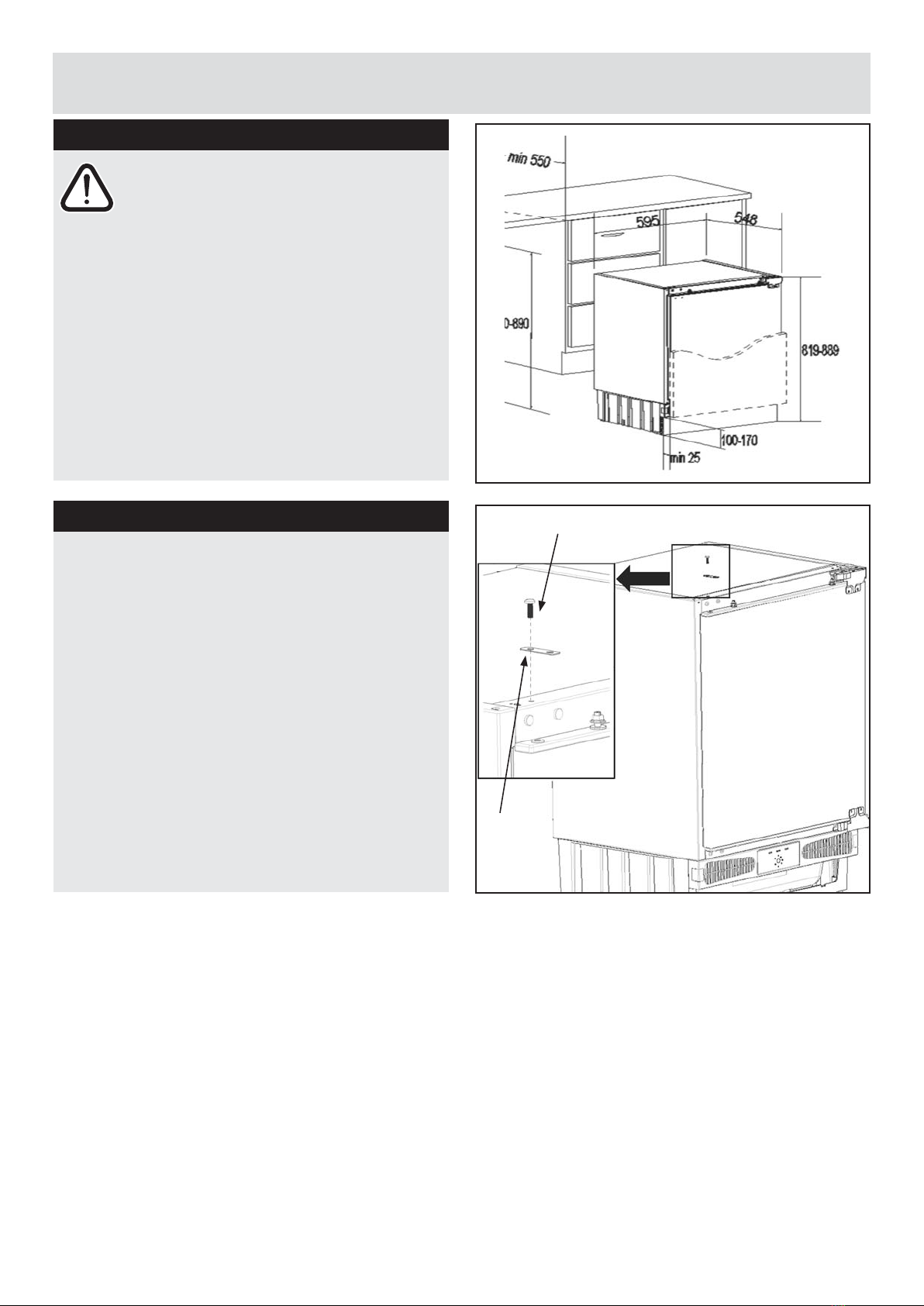

Dimensions for installation
Installing top bracket
Caution: 2 people are required to unpack
and handle the freezer. It is recommended
that gloves are worn.
a: Carefully remove all packaging materials and
dispose of correctly.
b: Make sure that the space available for the
freezer is large enough as per the dimensions (1).
a: Remove the screw (E) on top of the freezer,
place the top bracket (F) in position and fix with
the screw (E).
E
F
1
2

Customer Helpline 0845 600 4632 7
Installation
Height adjustment
Fitting the door gasket
a: If necessary, the height of the freezer can be
adjusted, by loosening the locking nuts on the
adjustable feet and screwing the feet in or out to
the desired height. A wrench may be required to
undo the locking nuts.
b: When the desired height is reached, re-tighten
the locking nuts using the wrench to lock the
adjustable feet in position.
a: Take out the gasket (G) located on the side
panel, and remove the protective tape.
b: Stick the gasket (G) on the freezer side panel,
on the opposite side to the door hinges, as
shown (3).
4
3
Spirit
level
G
G

8 Customer Helpline 0845 600 4632
Installation
Installation
Installation
Installation
Installation
Position the freezer
Securing the freezer
Caution: The freezer may require 2 people
to handle it when pushing it into position.
a: Check behind the freezer to make sure there
are no tools or obstructions that may cause
damage.
b: Carefully slide the freezer into position until the
hinge surface is aligned with the front surface of
the kitchen unit.
c: Check that the freezer is square using
the setsquare.
a: Secure the freezer to the kitchen units
using screws (A), through the top bracket (F) and
through both the upper and lower door hinges
as shown (6).
5
6
A
A
Setsquare

Customer Helpline 0845 600 4632 9
Installation

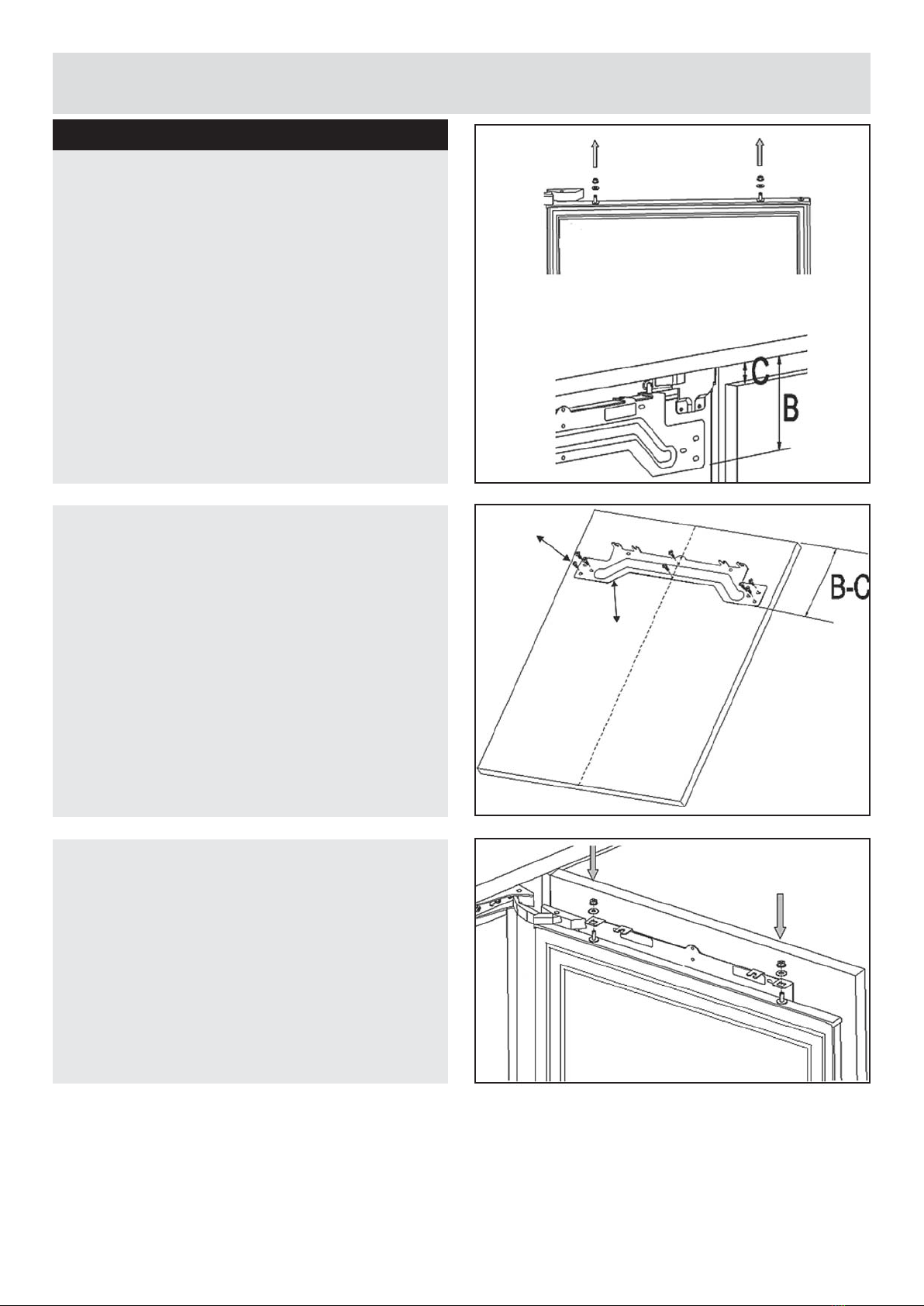

InstallationInstallationFitting the cabinet door
a: Unscrew and remove the nuts and washers
from the appliance door.
b: Place door hang on the appliance door by
inserting the holes to adjustment bolts.
c: Dimension B= Measure from the underside
surface of kitchen unit to the bottom of door
hang.Dimension C= Measure from the underside
surface of kitchen unit to the top of next unit
door.
d: Subtract C from B and place door hang (B)
using this dimension for vertical position and
place to the centre for horizontal position.
e: Screw the door hang (B) using screws (A).
f: Place the cabinet door onto the appliance door
by inserting adjustment bolts into the slots on the
door hang.
g: Place the washers and screw the nuts onto the
adjustment bolts.
Continued on next page
7
8
9
B
A

10 Customer Helpline 0845 600 4632
Installation
h: Close the door and check the alignment with
the other cabinet doors.
i: Make the adjustment of the unit door by
screwing or unscrewing the adjustment bolts for
vertical adjustment and by the help of the slots
on the door hang for other directions.
j: Tighten the nuts to fix the bracket.
k: Remove the screws at the bottom of the
appliance door.
l: Place the door bottom fixings (C) and screw
the fixings to the appliance door and the cabinet
door using screws (A).
Continued on next page
10
11
AC

Customer Helpline 0845 600 4632 11
Installation

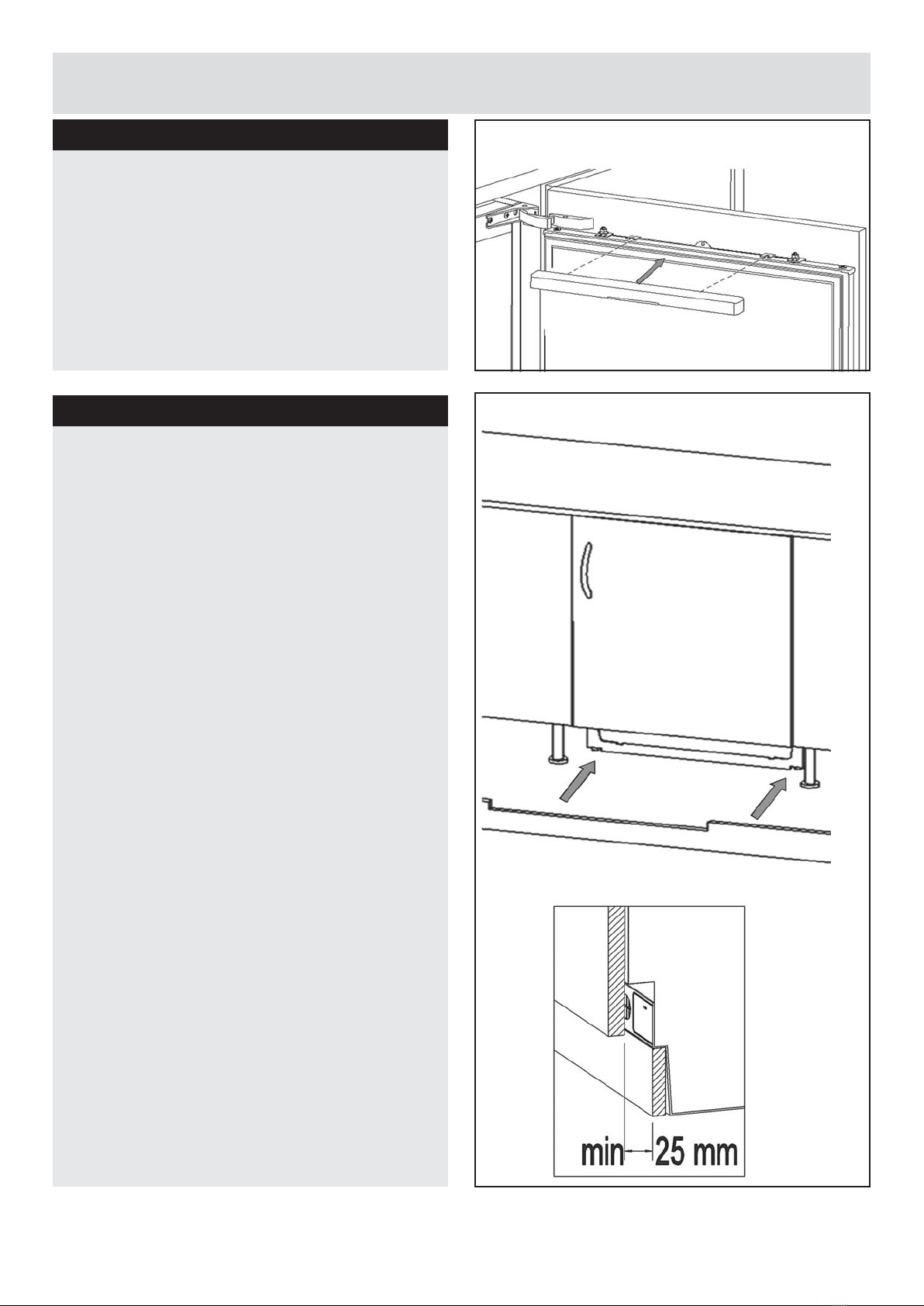

m: Slide the hang cover (D) onto the door hang
(B).
a: Position the plinth providing minimum 25 mm
gap between the cabinet door and fix it.
12
13
D
InstallationInstallation
Installing the plinth

12 Customer Helpline 0845 600 4632
Installation

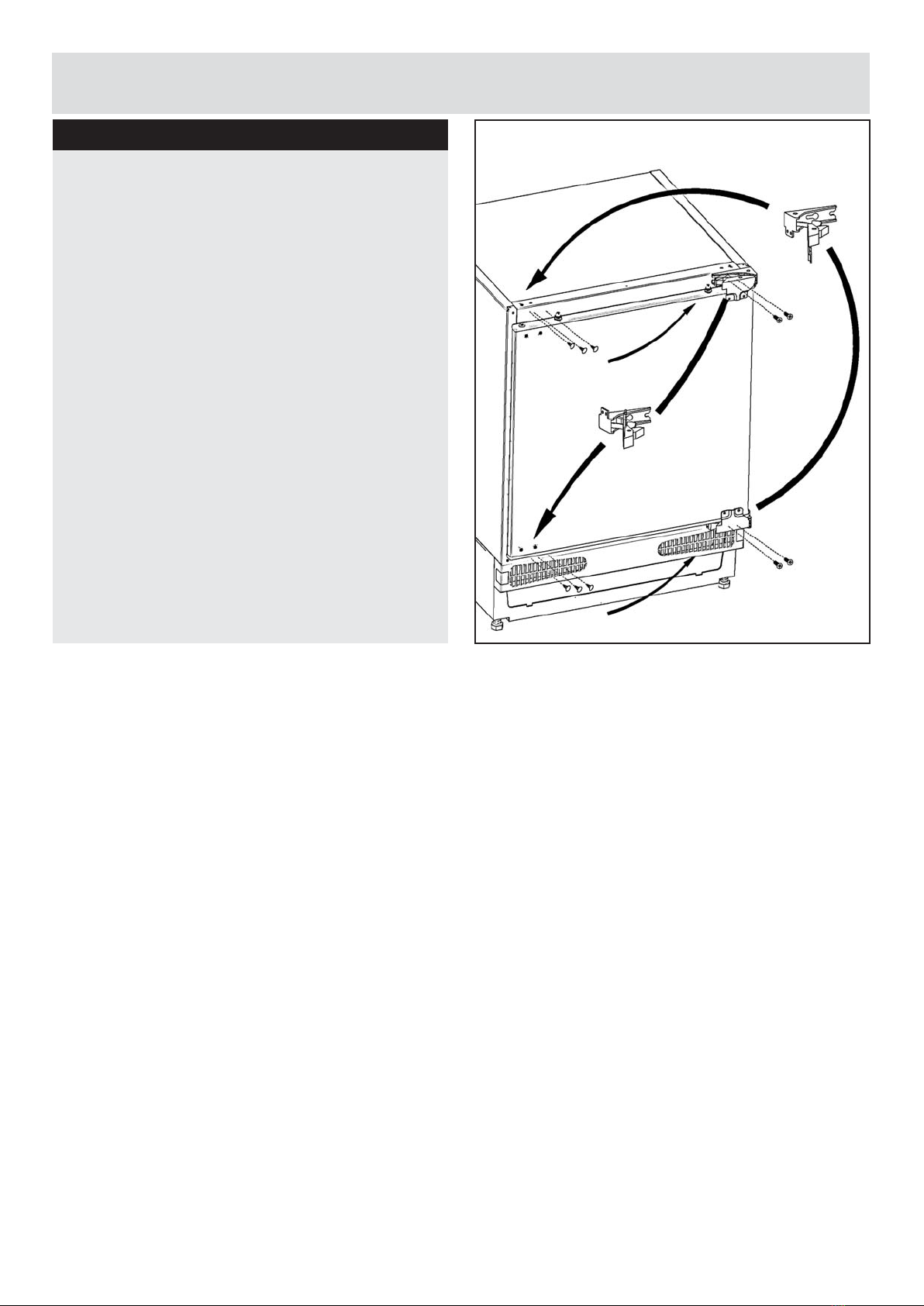

a: Unscrew the screws on the front surface of
the appliance door. Take the appliance door to
a safe place.
b: Move the hole plugs on the appliance door’s
front surface, to the holes on the reverse side.
c: Open the door upper hinge and door lower
hinge, disassemble them.
d: Move the hole plugs to opposite side.
e: Assemble the door upper hinge and door
lower hinge to the opposite corners of their
original position.
f: Assemble the appliance door.
14
Reversing the door

Customer Helpline 0845 600 4632 13
• Before switching on, place the appliance in
an upright position and wait at least three
hours without moving the appliance. This will
give the freezing circuit time to settle and
operate efficiently.
• Clean the appliance thoroughly, especially
the interior, before use (see Cleaning and
Maintenance).
Warning: Installation of the appliance and
electrical connections must be carried out
by a qualified technician in accordance
with the installation manual and local
regulations.
• The procedure for installation the appliance
into the kitchen unit is given in the installation
section of this information booklet. This product
is only intended to be used in proper kitchen
units.
• The appliance must be connected with a
properly installed fused socket. Power supply
(AC) and voltage at the operating point must
comply with the details on the name plate of
the appliance (the name plate is located on the
inside-left of the appliance).
• Insert the plug into a socket with an efficient
ground connection. If the socket has no
ground contact or the plug does not match, we
suggest you to call an authorised electrician for
assistance.
• The manufacturer is not responsible for
failure to complete the ground connection as
described in this booklet.
• There can be an odour when you first switch
Recommendations Thermostat setting
User Instructions
Alarm Light
Power Light
Compressor
Light
The freezer thermostat automatically regulates
the inside temperature of the compartments. By
rotating the knob from positions 1 to 5, colder
temperatures can be obtained. The “0” position
shows the thermostat is closed and no cooling
will be available.
Freezer Thermostat Setting;
0: The appliance is switched off.
1-2: For short-term storage of food in the freezer
compartment, set the knob between the
minimum and medium position.
3-4: For long-term storage of food in the
freezer compartment, set knob to the
medium position.
5: For freezing fresh food. The appliance will
run for colder temperatures.
SF: The compressor will start to run continuously
with maximum performance. The freezer
temperature will decrease and the appliance
will switch to the lowest temperature. Place
the food to be frozen quickly inside the
freezer, preferably in the middle drawers.
Once the food is frozen, you must set the
thermostat knob to the desired position.
Note 1: Observe that the orange lamp will light
when the compressor runs. Therefore, when SF
is active, the compressor will run continuously
and the lamp will light continuously.
Note 2: The ambient temperature (temperature
of the freshly stored food and how often the
door is opened) affects the temperature in
the refrigerator and freezer compartments. If
required, change the temperature setting.

14 Customer Helpline 0845 600 4632
User Instructions
Compressor Light: Lights orange when the
compressor is running. In SF mode, it will light
continuously.
Power Light: Automatically lights green when
the appliance is connected to the power supply.
Alarm Light: Lights red when the temperature
rises to a critical point inside the freezer.
If your freezer is not cold enough
Your freezer is designed to operate in the
ambient temperature intervals according to the
climate class stated on the information label.
In terms of cooling effectiveness, we do not
recommend operating your freezer outside of the
stated temperature values.
Climate Class Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)
Display panel
Food storage in the appliance
• The freezer is used for freezing fresh foods and
for storing frozen foods for the period of time
indicated on the packaging, and for making ice
cubes.
• For freezing fresh food; wrap and seal fresh
food properly - the packaging should be airtight
and should not leak. Special freezer bags,
aluminium foil (heavy grade; if in doubt double-
wrap), polythene bags, and plastic containers
are ideal.
• While freezing food, the maximum amount of
fresh food (in kg) that can be frozen in 24 hours
is indicated on the appliance label.
• For optimum appliance performance in
maximum freezing capacity, turn knob to the
fast freeze position when placing fresh food in
the freezer.
• After placing fresh food in the freezer, the 24
hours setting on the fast freeze function is
generally sufficient. After 24 hours, deactivate
the fast freeze function.
• Attention: in order to save energy, when
freezing small amounts of food the fast freeze
function can be deactivated.
• Do not allow fresh food to be frozen to come
into contact with already frozen food.
• Always mark the date and the content on the
pack and do not exceed the stated storage
time.
• In case of a power failure or malfunction, the
freezer compartment will maintain a sufficiently
low temperature for food storage. However,
avoid opening the freezer door in order to
slow down the temperature rise within the
freezer compartment.
• The maximum amount of fresh foods that
can be loaded in the freezer within 24 hours
is indicated on the name plate (see Freezing
Capacity).
• Never place warm food in the freezer
compartment.
• When purchasing and storing frozen food
products, ensure that the packaging is not
damaged.
• Storage time and recommended temperature
for storing frozen food is indicated on the
packaging. For storing and usage, follow the
manufacturer’s instructions. If no information is
provided, food should not be stored for more
than 3 months.
• Following purchase, place frozen food in the
freezer compartment as soon as possible.
• Once food is thawed it must not be refrozen;
you must cook it as quickly as possible for
consumption or freeze once again.
• When making ice cubes, fill the ice tray with
water and place in the freezer compartment.
After the water has completely turned into ice,
twist the tray to get the ice cubes out.
Storage: if you want to use the freezer’s
maximum net capacity, remove the drawers and

Customer Helpline 0845 600 4632 15
After a period of time, frost will build up in certain
areas in the freezer compartment. The frost,
accumulated in the freezer, should be removed
periodically using the ice scraper (if available).
To maintain the efficiency of the freezer, complete
defrosting will become necessary if the frost layer
exceeds 3-5mm.
• The day before you defrost, set the thermostat
dial to position “5” to freeze the foods
completely.
• During defrosting, frozen foods should be
wrapped in several layers of paper and kept in
a cool place. The inevitable rise in temperature
will shorten their storage life. Remember to use
these foods within a relatively short period of
time.
• Set the thermostat knob to position “0” and
switch off the appliance.
• Leave the door open to accelerate defrosting.
Remove the defrosted water from the
compartment.
• If there is defrosted water on the freezer floor,
you can clear it away by using a sponge.
• Clean the interior by hand with lukewarm water
and a little detergent.
Never use abrasive products or aggressive
cleaning agents.
• Dry the inside of the unit, plug it into the mains,
and set the thermostat knob to position “5”.
After 24 hours, reset the thermostat to the
desired position.
• Do not pour water over the appliance.
• Clean the accessories separately with soap
and water. Do not put them in the dishwasher.
• Do not use abrasive products, detergents or
soaps. After washing, rinse with clean water
and dry carefully. When the cleaning
operations have been completed, reconnect
the plug with dry hands.
Warning: never use sharp metal tools for
this operation unless recommended by
the manufacturer, as they can damage
the freezing circuit.
Cleaning and Maintenance
Defrosting the freezerGeneral
Ice scraper

16 Customer Helpline 0845 600 4632
Trouble Shooting
If your freezer is not working properly there
may be a minor problem, therefore check the
following.
If there is water in the lower part of the
refrigerator, check if;
The drain hole for the defrost water is clogged
up (use the defrost drain plug to clean the drain
hole).
IMPORTANT NOTES
• In case of a sudden power loss or
disconnecting reconnecting of the plug to the
electrical socket, the compressor’s protective
thermal element will be opened as the pressure
of the gas in the cooling system of your freezer
has not yet been balanced. 4 or 5 minutes
later, your freezer will start to operate; this is
normal.
• If you will not be using your freezer for a
Problem Possible Causes Possible Solutions
The appliance does not operate There is a power failure
The mains plug is not properly
plugged in,
or is loose
The thermostat setting is on
position “0”
The socket is defective. To check
this, plug in a fully operable
appliance into the same socket
The appliance performs poorly You have overloaded the
appliance
The doors are not closed perfectly
There are not enough ventilation
ducts on the kitchen unit as
mentioned in the Installation
section of this instruction manual
There is a noise The cooling gas which circulates
in the refrigerator circuit may make
a slight noise (bubbling sound)
even when the compressor is
not running. Do not worry, this is
quite normal. If these sounds are
different check if
• The appliance is installed firmly
as described in the section of
this instruction manual
• Objects on the appliance are
vibrating
long period (holiday etc.), disconnect the plug
from the socket. Clean your freezer as per
page 17 of this document and leave the door
open to prevent any humidification or odour
forming. If there is still a problem with your
freezer despite followed the instructions in this
manual, please consult your nearest authorised
service centre, or call the Customer Helpline
0845 600 4632.
The life-cycle of this product, as determined
and proclaimed by the Ministry of Industry (the
period for making spare parts available for the
product to be able to fulfil its function), is 10
years.
Conformity Information
• Normal Class is defined as environment
temperatures between 16°C and 32°C in

Customer Helpline 0845 600 4632 17
Model/Item AB165
Supplier’s name or trademark BUSH
Supplier’s model AB170
Type of appliance BGSN1700DOD
The energy efficiency class A
Voltage 220-240V/50HZ
Power 0,58A
Energy consumption 0,41kwh/24h
Net storage volume of fresh food 133 lt.
Net storage volume of frozen food -
Star rating of frozen food storage compartment -
Refrigeration system Static
Power cut safe Z h not applicable
Freezing capacity -
Climate class SN
Size 818 x 595 x 548
Net weight 31.5 Kg
Noise 43-44 db (A)
We apologise for any inconvenience caused by minor inconsistencies in these instructions that may occur as
a result of product improvements and development.
The symbol on the product or
on its packaging indicates that
this product may not be treated
as household waste. Instead,
it should be handed over to
applicable collection locations
for the recycling of electrical and
electronic equipment.
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by the
inappropriate waste handling of this product. For
more detailed information about the recycling of
this product, please contact your local city office,
your household waste disposal service or the shop
where you purchased the product.
Technical Specifications
Disposal information

18 Customer Helpline 0845 600 4632
Tips for Saving Energy
1. Install the appliance in a cool, well-ventilated
room, but not in direct sunlight and not near a
heat source (radiator, cooker etc.). Otherwise,
use an insulating plate.
2. Allow food and drink to cool down outside of
the appliance.
3. When placing food and drink inside the freezer
open the appliance door as briefly as possible.
4. Keep the different temperature compartment
covers closed.
5. The door gasket must be clean and pliable.
Replace gaskets if worn.
6. Occasionally clean the rear of the appliance
with a vacuum cleaner or paint brush to
prevent increased power consumption.

Guarantee
Product guarantee
This product is guaranteed against manufacturing defects for a period of
This product is guaranteed for twelve months from the date of original purchase. During
this period, any defect that arises due to faulty materials or workmanship will be replaced,
refunded or repaired free of charge where applicable by the dealer from whom the unit was
purchased.
The guarantee is subject to the following provisions:
• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or
consumable items.
• The product must be correctly installed and operated in accordance with the instructions
contained in this manual.
• It must be used solely for domestic purposes.
• The guarantee will be rendered invalided if the product is re-sold or has been damaged
by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for incidental or consequential damages.
• The guarantee is in addition to, and does not diminish, your statutory or legal rights.
• In the event of a problem with the product within the guarantee period, please contact:
Customer Helpline: 0845 600 4632.
Guarantor: Argos Ltd
489 - 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
Year
