Buyers SnowDogg series User manual

3020310 Rev C
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • snowdoggplows.com
PATENTS PENDING

23020310 Rev C
Table of Contents
1. Standard Limited Warranty ....................................... pg 2
2. Registration Information/Website ......................... pg. 3
3. Warnings/Safety Information ................................. pg. 4
4. Hitch Installation
Drop Pin...................................................................... pg. 5
Pin Ear ......................................................................... pg. 5
Quick Hitch ................................................................ pg. 6
5. Lift Arm Storage ......................................................... pg. 6
6. Adjusting for Level Lift ............................................. pg. 6
7. Operating Instructions............................................... pg. 7
8. Storage and Maintenance ........................................ pg. 7

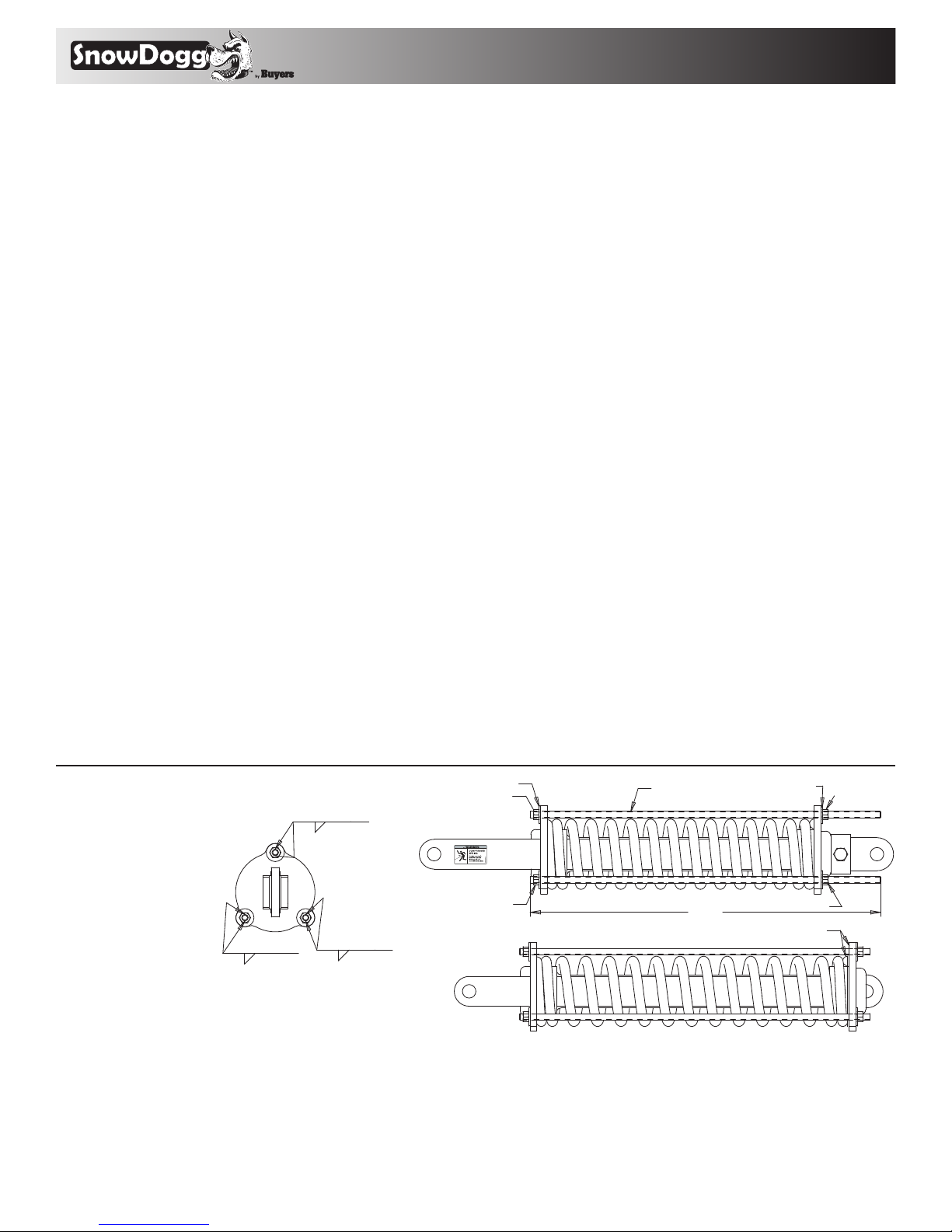

9. Compression Spring Disassembly ......................... pg. 7
10. Parts Diagrams
Bumper to Frame Mount....................................... pg. 5

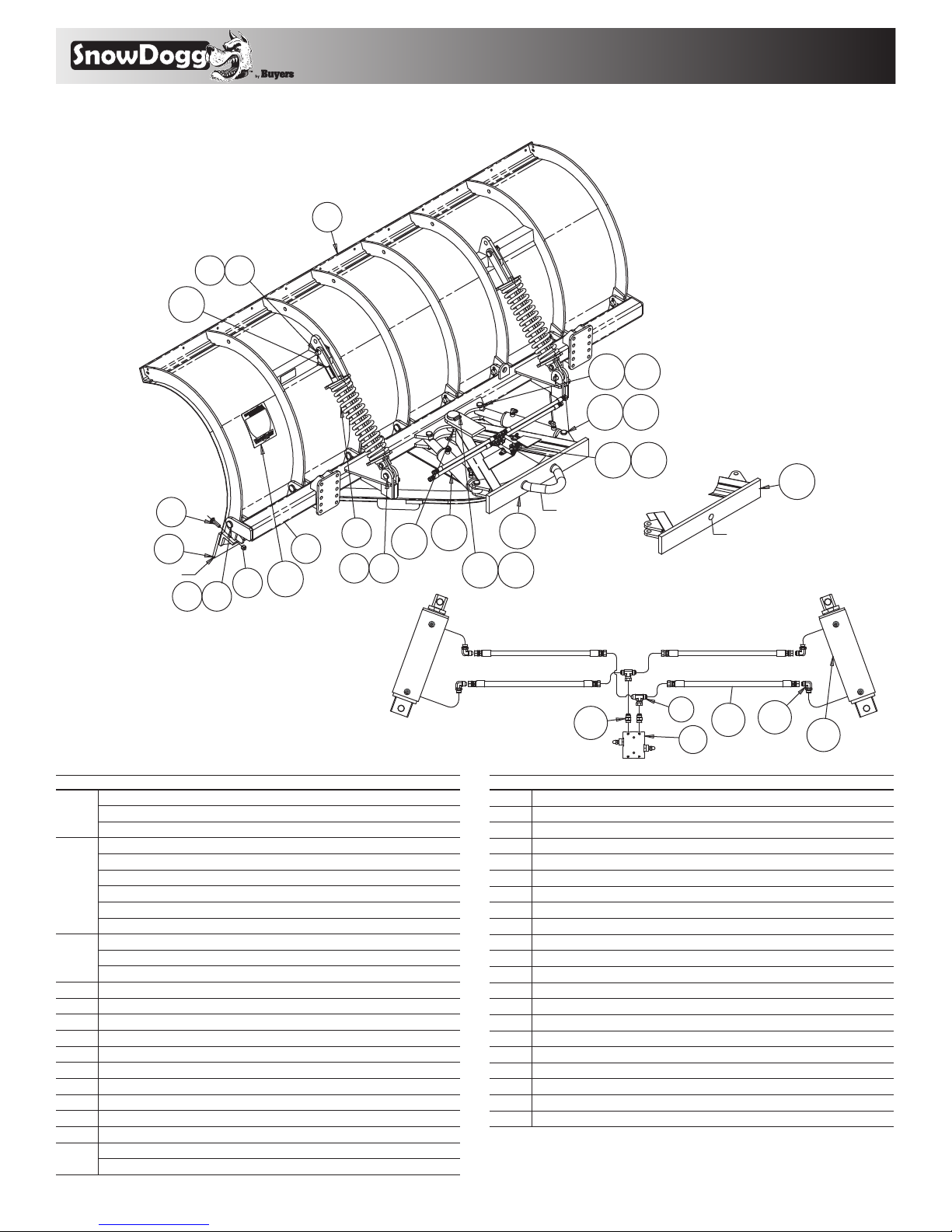

36" Full Trip Plow .................................................... pg. 8
42" Full Trip Plow .................................................... pg. 9
42" Trip Edge Plow ................................................ pg. 10

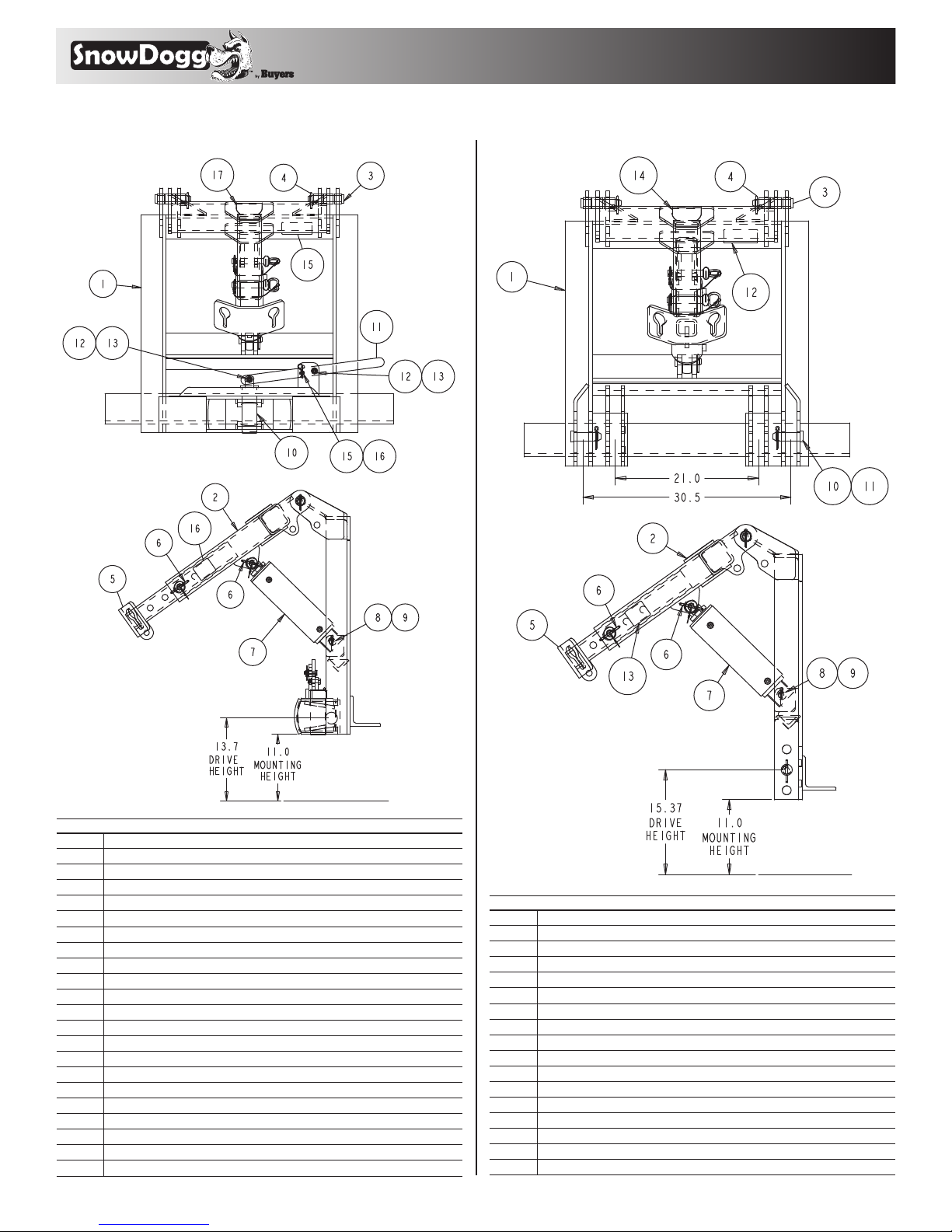

Drop Pin Hitch ........................................................ pg. 11
Pin Ear Hitch............................................................ pg. 11
Pin Ear Swivel Adapter ......................................... pg. 12

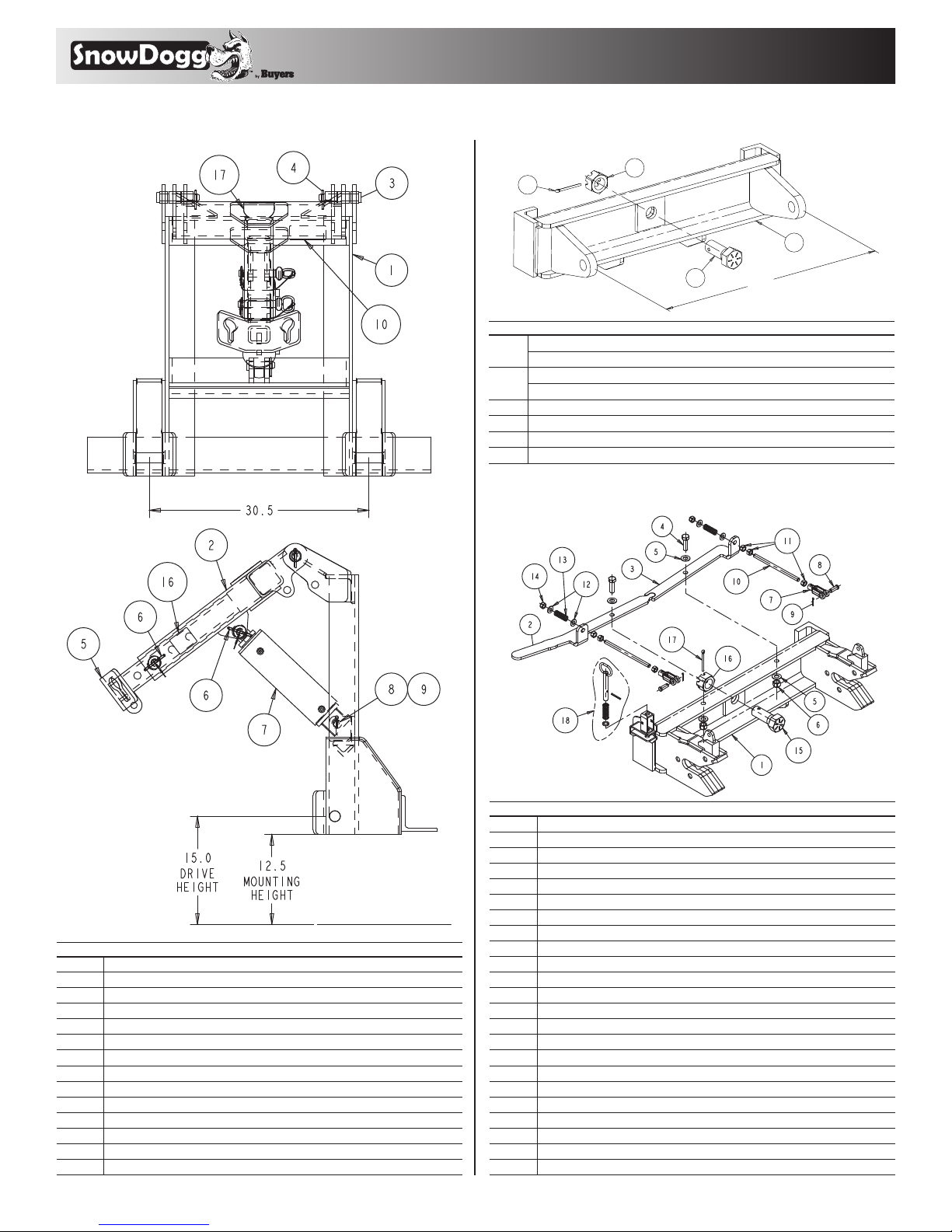

Quick Hitch .............................................................. pg. 12
Quick Hitch Swivel Adapter ................................ pg. 12
Hydraulic Cylinders................................................ pg. 13
Compression Spring Assembly .......................... pg. 14
11. Accessories
Rubber Snow Deflectors...................................... pg. 14
Carbide Cutting Edge Kits ................................... pg. 14
Curb Guards............................................................. pg. 15
Markers...................................................................... pg. 15
Chain Block Kit ....................................................... pg. 15
Moldboard Shoes................................................... pg. 16
Mushroom Shoe Running Gear......................... pg. 16
LIMITED WARRANTY COVERAGE
Buyers Products Company warrants to the original
purchaser of a Buyers Products SnowDogg® brand
municipal snowplow that they will be free from defects
in materials and workmanship for a period of one (1)
year after the date of original purchase. Buyers Products
warrants accessories, service parts, and components
purchased separately to be free of defects in materials
and workmanship for a period of one (1) year after date
of original purchase.
These warranties are exclusive and in lieu of all other
express and, except to the extent prohibited by applica-
ble law, all implied warranties, including but not limited
to the implied warranties or merchantability and fitness
for a particular purpose, are limited in duration to the
duration of this warranty.
Buyers Product’s liability is expressly limited to repair
or replacement of defective parts. Buyers Products shall
not be liable for consequential, incidental or contingent
damages whatsoever, even if damages are caused by the
negligence or fault of Buyers Products.
This warranty gives you specific legal rights. Additional
purchaser’s rights may vary from state to state.
WHAT IS NOT COVERED
The warranty does not apply to:
• Parts not furnished by Buyers Products or damage
resulting from same.
• Parts modified without authorization or damage
resulting from same.
• Expendable parts (cutting edges, fluids, etc.).
• Damage resulting from failure to install, maintain or
operate the product per the owner’s manual, instal-
lation instructions, or application guides.
• Damage to vehicle and/or frame of vehicle resulting
from plow attachment.
WARRANTY PROCEDURE
If any part is proven to be defective within that
warranty period, Buyers Products will, at its sole
discretion, repair or replace said part at its expense FOB
Cleveland, OH. Labor will be credited to authorized deal-
ers as determined by published rate charts.
Buyers Products obligation shall be limited to such repair
or replacement and shall be further contingent on Buyers
Products receiving written notice of the alleged defect
and proof of original purchase within ten (10) days of its
discovery as well as the return of the allegedly defective
part to Buyers Products.
To obtain service, the purchaser must return the
defective snowplow to an authorized SnowDogg
Municipal plow dealer with proof of purchase and
applicable maintenance records. All transportation costs
to and from the dealer will be the responsibility of the
purchaser.

33020310 Rev C
WELCOME!
Congratulations on your purchase of a SnowDogg plow! The SnowDogg plow by Buyers Products is a heavy-duty,
professional grade plow built for your toughest plowing applications. By using this manual for maintenance and safety
instructions, you can be sure to optimize the life of your plow.
Y
our dealer can provide expert assistance and service and is the first line of support. Components and acces-
sories for mounting plows can be custom built by the dealer and/or sourced from other manufacturers. They
have firsthand knowledge of your plow and the components used to build it to the finished specification.
Dealer Name: ____________________________________ Dealer Phone: _______________________________________
Be sure to register your plow after purchase at www.snowdoggplows.com. The required information is shown on the
Registration Data Sheet. Registration is required to activate your warranty.
REGISTRATION DATA SHEET
Owner’s Information
Name: ________________________________________________________________________
Company: _____________________________________________________________________
Address: ______________________________________________________________________
Phone: ________________________________________________________________________
Fax: __________________________________________________________________________
E-mail: ________________________________________________________________________
Purchased From:________________________________________________________________
Purchase Date: _________________________________________________________________
Plow Model: 166 SERIES
Plow Serial#: __________________________________________________________________
Truck Model: ___________________________________________________________________
Truck Year: ____________________________________________________________________
Register your plow at www.snowdoggplows.com to activate your warranty.

43020310 Rev C
Warnings and Safety Information:
WARNING
Read this manual carefully before operating this snowplow.
Make sure you fully understand how the plow operates before
taking the controls.
WARNING
Always follow the vehicle manufacturer’s recommendations
relating to snowplow installation.
CAUTION
Do not over load your vehicle:
• The vehicle with the snowplow installed must comply with
applicable Federal Motor Vehicle Safety Standards (FMVSS).
• The vehicle with the snowplow installed must comply with the
vehicle manufacturer's stated gross vehicle and axle weight
ratings (found on the driver-side door corner post of the
vehicle) and the front and rear weight distribution ratio. In
some cases, rear ballast may be required to comply with these
requirements.
• In some cases there may be additional limitations and require-
ments.
• Available capacity decreases as the vehicle is loaded with
cargo or other truck equipment, or snowplow accessories are
installed.
• If there is uncertainty as to whether available capacity exists,
the actual vehicle as configured must be weighed.
NOTE: Snowplow installers must certify that installation con-
forms to federal motor vehicle safety standards.
WARNING
Make sure plow is properly attached before moving vehicle.
Make sure all attachment pins are securely in place.
WARNING
Do not move plow while servicing or place body parts between
or under plow parts while moving plow.
WARNING
Always lower blade when vehicle is not in use.
CAUTION
Do not plow snow with the plow suspended off the ground.
Damage to the plow and/or truck may occur.
CAUTION
If running gear is used, do not back-up with the plow on the
ground. Damage to the running gear and/or plow will occur.

53020310 Rev C
Notes:
1. Do Not Weld Any Components To The Truck Frame.
2. Torque All Fasteners To Torque Chart Specifcations.
Weld Angles To Each Other
To Offset Around Springs Etc.
2 3
4
4
5
6
7
8 9 10
8 9 10
11 12 13
11 12 13
Cut To Length As Needed
1
40.38
11.0
Mounting Height
40.38
11.0
Mounting Height Notes:
1. Do Not Weld Any Components To The Truck Frame.
2. Torque All Fasteners To Torque Chart Specifcations.
Weld Angles To Each Other
To Offset Around Springs Etc.
2 3
4
4
5
6
7
8 9 10
8 9 10
11 12 13
11 12 13
1
Cut To Length As Needed
Drop Pin Hitch Installation
Pin Ear Hitch Installation
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1 – 1 Hitch Assembly, Drop Pin
2-13 16340100 1 Mount Kit, Muni Fab, Bumper To Frame
216340102 1Angle, Mount, Horizontal
316340104 2 Plate, Frame Mount, Side
416340106 4 Angle, Mount, Frame
516340108 4Plate, Brace Mount, Lower
616340110 2Bar, Brace
716340112 2 Bar, Brace Stiffener
8-13 16340114 1 Hardware Bag, Bumper To Frame Mount
8 – 4 Screw, Hex Cap, 1"-8 X 3-1/4, Gr 5, Zn
9 – 4 Washer, Lock, 1", Zn
10 – 4 Nut, Hex, 1"-8, Gr 5, Zn
11 –12 Screw, Hex Cap, 5/8-11 X 3, Gr 5, Zn
12 –12 Washer, Lock, 5/8", Zn
13 –12 Nut, Hex, 5/8-11, Gr5, Zn
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1 – 1 Hitch Assembly, Pin Ear
2-13 16340100 1 Mount Kit, Muni Fab, Bumper To Frame
216340102 1Angle, Mount, Horizontal
316340104 2 Plate, Frame Mount, Side
416340106 4 Angle, Mount, Frame
516340108 4Plate, Brace Mount, Lower
616340110 2Bar, Brace
716340112 2 Bar, Brace Stiffener
8-13 16340114 1 Hardware Bag, Bumper To Frame Mount
8 – 4 Screw, Hex Cap, 1"-8 X 3-1/4, Gr 5, Zn
9 – 4 Washer, Lock, 1", Zn
10 – 4 Nut, Hex, 1"-8, Gr 5, Zn
11 –12 Screw, Hex Cap, 5/8-11 X 3, Gr5, Zn
12 –12 Washer, Lock, 5/8", Zn
13 –12 Nut, Hex, 5/8-11, G5, Zn

63020310 Rev C
CAUTION Fold Down
Lift Arm And Secure
With Pin When Plow
Is Disconnected.
Lift Arm Storage
Level Lift Diagrams
9.0 Approx.
Ground Level
Lift Chains
Chain Banjo Eye Inner Lift Arm
Center Of
King Pin
Lift Arm Hitch Pin
Ground Level
Fully Lifted Position
1. Retract lift cylinder completely.
2. Adjust inner lift arm to its shortest position.
3. While supporting the lift arm and the lift cylinder, remove
the hitch pin that attaches the cylinder rod to the lift arm.
4. Rotate the cylinder towards the hitch frame into its
stowed position & then rotate the lift arm downward.
5. Secure the lift arm in the stowed position with the hitch
pin as shown.
Move Inner Lift Arm
To Shortest Position
Lift Cylinder
Hitch Pin
Retract Lift
Cylinder Completely
Remove Cylinder
Hitch Pin
Rotate Lift
Cylinder Upward
Rotate Lift Arm
Downward
Secure In Stored
Position With Hitch Pin
Adjusting The Plow And Hitch For Level Lift:
1. On level ground, attach plow’s a-frame to the hitch.
2. Adjust lift arm until it is all most 90° as shown.
3. Remove the lift arm hitch pin and adjust the inner lift arm
until the chain attachment points are in-line with the cen-
ter of the king pin. Secure with the hitch pin.
4.
Attach lift chains to the lift arm so that when the lift arm is
fully lifted the cutting edge approximately 9” off the ground.
Quick Hitch Installation
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1 — 1 HITCH ASSEMBLY, QUICK HITCH
2-13 16340100 1 MOUNT KIT, MUNI FAB, BUMPER TO FRAME
216340102 1ANGLE, MOUNT, HORIZONTAL
316340104 2 PLATE, FRAME MOUNT, SIDE
416340106 4ANGLE, MOUNT, FRAME
516340108 4 PLATE, BRACE MOUNT, LOWER
616340110 2 BAR, BRACE
716340112 2 BAR, BRACE STIFFENER
8-13 16340114 1 HARDWARE BAG, BUMPER TO FRAME MOUNT
8 — 4 SCREW, HEX CAP, 1"-8 X 3-1/4, GR 5, ZN
9 — 4 WASHER, LOCK, 1", ZN
10 — 4 NUT, HEX, 1"-8, GR 5, ZN
11 —12 SCREW, HEX CAP, 5/8-11 X 3, GR5, ZN
12 —12 WASHER, LOCK, 5/8", ZN
13 —12 NUT, HEX, 5/8-11, G5, ZN

73020310 Rev C
26.5
1/2" Threaded Rod
1/2" Washers 1/2" Washers
1/2" Nuts
Welded To Rod
1/2" Nut No Welds
Hold With Box Wrench
Use Ratchet Or
Impact Wrench
Loosen Rods Evenly Until All Spring Tension Is Released
Operating Instructions
• Before plowing make sure plow is properly attached before
moving vehicle and make sure all attachment pins are
securely in place.
• Before Plowing make sure all maintenance items in this
manual have been completed and any problems repaired.
• While plowing, the plow must be resting on the cutting edge
or running gear. Attempting to plow with all the weight
of the plow on the truck will cause serious damage to the
snowplow, and possibly overload the truck’s front axle.
• If running gear is used, raise the plow before reversing
the vehicle. Damage to the running gear and/or plow will
occur if the plow is left on the ground.
• Periodically inspect the cutting edge and running gear for
wear. Do not wear these items past their usable life. The
cutting edge should be replaced before the lower support
structure contacts the ground.
Storage and Maintenance
Maintenance: The SnowDogg line of plows has been simply
designed for reliable service. In order to ensure the reliability
of your plow, observe the following maintenance items and
inspections:
Inspect the following daily & every 3-4 hours of operation:
• Cutting edge wear. Do not allow cutting edge to wear down
past its usable life. Failure to do so will cause damage to the
lower support structure of the moldboard.
• Running gear wear. Replace mushroom shoe as the wear
surface approaches the heads of the fasteners.
Inspect the following daily & every 8 hours of operation:
• Check fasteners and retaining devices for proper instal-
lation and tightness. Replace and re-torque fasteners as
needed.
• Check hydraulic cylinders for damage, pitting or leakage.
Repair or replace as needed.
• Inspect Hydraulic hoses for wear, damage or leakage.
Repair or replace as needed.
• Grease king pin and running gear.
• Lubricate all pivot points and moving parts.
• Cycle cylinders daily to maintain a film of hydraulic oil on
the chrome rods. This film of hydraulic oil will minimize
the chances of corrosion forming on the chrome rods.
• Inspect safety decals. Replace if damaged or missing.
With proper maintenance and care your SnowDogg plow
will provide years of trouble-free service!
Storage:
1. Repair/touch up any chipped paint or rusted areas on plow
and hitch.
2. Apply a coating of grease to any exposed chrome on angle
and lift cylinders. This will displace water, protecting the
chrome from corrosion.
3. Grease king pin and lubricate all the other pivot points.
4. Use proper caps and plugs on the hydraulic fittings to
keep them clean preventing contamination from entering
hydraulic system.
5. If stored outdoors, periodically check that drain holes on
top of moldboard are clear of obstructions and water is not
pooling on top of the moldboard.
Removal from Storage:
1. Check all fasteners and hydraulic components for damage
and tightness.
2. Replace and properly tighten any damaged or loose com-
ponents before operating the plow.
3. Remove grease applied to cylinder rods for storage.
4. Grease king pin and lubricate all the other pivot points
and moving parts.
5. Connect plow to vehicle and adjust lift chains properly.
Compression Spring
Disassembly
Compression Spring Disassembly:
1. To service compression spring, remove the compression
spring assembly from the plow by removing the 1” pins on
either end.
2. Fabricate three 1/2” x 26-1/2” bolts from 1/2” threaded
rod and hex nuts as shown.
3. Assemble the three fabricated bolts to the compression
spring assembly as shown using six 1/2” flat washers and
three 1/2” hex nuts.
4. Tighten each long bolt evenly until the pressure is
released from the two stop bars.
5. Remove the 5/8” hardware and stop bars from the spring
assembly.
6. Loosen the long fabricated bolts slowly and evenly until all
the spring tension has been released.
7. Reassemble in reverse order.

83020310 Rev C
36" Full Trip Plow Parts Diagram
ITEM PART NO. QTY. DESCRIPTION
116326110 1 PUSH FRAME, 36" MUNI PLOW
216316110 1 MOLDBOARD,10' X 36",CS,FT, MUNI
16317110 1 MOLDBOARD,11' X 36",CS,FT, MUNI
316360453 1 CUTTING EDGE, 120" X 6" X 1/2", STD HWY
16360454 1 CUTTING EDGE, 132" X 6" X 1/2", STD HWY
4-5 16350431 1 BOLT KIT, CUTTING EDGE, 5/8 X 2-1/2, 14 SETS
4 – 14 CARRIAGE BOLT 5/8-11 X 2.5, FULL THD,GR.5 ZN
5 – 14 NUT, NYLOCK 5/8-11, ZN
6-7 16351010 4 TRIP PIN, W/ COTTER, 1-1/4 X 4, ZY
6 – 4 PIN,TRIP,1-1/4" X 4",ZINC YELLOW
7 – 4 PIN, COTTER, 5/16 X 2-1/2, ZINC
816350102 2 TRIP SPRING ASSEMBLY, 36" MUNI PLOWS
9-10 16351015 4 PIN KIT, SPRING BAR, W/ COTTER, 1 X 3, ZY
9 – 4 PIN,SPRING BAR,1" X 3",ZINC YELLOW
10 – 4 PIN, COTTER 1/4 X 2 ZN
11 16330220 1 A-FRAME, SWIVEL, 36" MUNI PLOW
16330120 1 A-FRAME, DROP PIN, 36" MUNI PLOW
12-13 16351007 1 KING PIN KIT, 1-1/2", W/ COTTER
12 – 1 PIN, KING, 1-1/2" X 6", ZY
13 – 1 PIN, COTTER, 5/16 X 2-1/2, ZINC
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
14 16101515 1 GREASE FITTING, 1/4 DRIVE SPECIAL
15 16352150 2 CYLINDER, 3" ROD X 10" STROKE
16-17 16351020 4 PIN KIT, CYLINDER, W/ COTTER, 1 X 3-1/2, ZY
16 – 4 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
17 – 4 PIN, COTTER 1/4 X 2 ZN
18 16101515 1 VALVE, CROSSOVER RELIEF, 1/2" SAE ORB
19-20 16335305 1HARDWARE BAG, CROSSOVER VALVE
19 – 2 SCREW, HHC 5/16-18 X 2-3/4 GR. 5 ZN
20 – 2 NUT, NYLOCK 5/16-18 ZN
21 16352315 2 FITTING,ADAPTOR,90 DEG, 1/2" JIC TO 1/2" ORB
22 16352325 2 FITTING, ADAPTOR, MALE 3/8 NPT X MALE 1/2" JIC
23 16352330 2 FITTING, ELBOW, SWIVEL NUT, 1/2" JIC
24 16352320 2HOSE, CYLINDER
25 16350125 2DECAL, WARNING, COMPRESSION SPRING
26 16350050 1 DECAL, MADE IN USA, SNOW DOGG MOLDBOARD

93020310 Rev C
42" Full Trip Plow Parts Diagram
ITEM PART NO. QTY. DESCRIPTION
1
16322110 1 PUSH FRAME, 10' X 42" FULL TRIP
16323110 1 PUSH FRAME, 11' X 42" FULL TRIP
16324110 1 PUSH FRAME, 12' X 42" FULL TRIP
2
16312110 1MOLDBOARD,10' X 42",CARBON,FULL TRIP
16313110 1MOLDBOARD,11' X 42",CARBON, FULL TRIP
16314110 1 MOLDBOARD,12' X 42",CARBON, FULL TRIP
16312120 1 MOLDBOARD,10' X 42",STAINLESS,FULL TRIP
16313120 1 MOLDBOARD,11' X 42",STAINLESS,FULL TRIP
16314120 1 MOLDBOARD,12' X 42",STAINLESS,FULL TRIP
3
16360420 1 CUTTING EDGE, 120" X 8" X 5/8", STD HWY
16360425 1 CUTTING EDGE, 132" X 8" X 5/8", STD HWY
16360430 1 CUTTING EDGE, 144" X 8" X 5/8", STD HWY
4-5 16350431 1 BOLT KIT, CUTTING EDGE, 5/8 X 2-1/2, 14 SETS
4 – 14 CARRIAGE BOLT 5/8-11 X 2.5,GR.5 ZN
5 – 14 NUT, NYLOCK, 5/8-11, ZN
6-7 16351010 8 TRIP PIN, W/ COTTER, 1-1/4 X 4, ZY
6 – 8 PIN,TRIP,1-1/4" X 4",ZINC YELLOW
7 – 8 PIN, COTTER, 5/16 X 2-1/2, ZINC
816350100 2 TRIP SPRING ASSEMBLY, 42" MUNI PLOWS
9-10 16351015 4 PIN KIT, SPRING BAR, W/ COTTER, 1 X 3, ZY
9 – 4 PIN,SPRING BAR,1" X 3",ZINC YELLOW
10 – 4 PIN, COTTER 1/4 X 2 ZN
11 16330200 1 A-FRAME, SWIVEL, 42" MUNI PLOWS
16330100 1 A-FRAME, DROP PIN, 42" MUNI PLOWS
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
12-13 16351005 1 KING PIN KIT, 2", W/ COTTER
12 – 1 PIN, KING, 2" X 6-3/4", ZY
13 – 1 PIN, COTTER, 5/16 X 3, ZINC
14 16101515 1 GREASE FITTING, 1/4 DRIVE SPECIAL
15 SEE CYL PAGE 2 CYLINDER
16-17 16351020 2 PIN KIT, CYLINDER, W/ COTTER, 1 X 3-1/2, ZY
16 – 2 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
17 – 2 PIN, COTTER 1/4 X 2 ZN
18-19 16351025 2 PIN KIT, CYLINDER, W/ COTTER, 1"X4-1/8", ZY
18 – 2 PIN,CYLINDER,1" X 4-1/8",ZINC YELLOW
19 – 2 PIN, COTTER 1/4 X 2 ZN
20 16352300 1 VALVE, CROSSOVER RELIEF, 1/2" SAE ORB
21-22 16335305 1HARDWARE BAG, CROSSOVER VALVE
21 – 2 SCREW, HHC 5/16-18 X 2-3/4 GR. 5 ZN
22 – 2 NUT, NYLOCK 5/16-18 ZN
23 16352305 2 FITTING,ADAPTOR,STR,1/2" JIC TO 1/2" SAE ORB
24 16352310 2 FITTING, TEE, SWIVEL NUT BRANCH, 1/2" JIC
25 16352315 4 FITTING,ADAPTOR,90 DEG, 1/2" JIC TO 1/2" ORB
26 16352320 4HOSE, CYLINDER
27 16350125 2DECAL, WARNING, COMPRESSION SPRING
28 16350050 1
DECAL, MADE IN USA, SNOWDOGG MOLDBOARD
1
2
3
4
5
6 7
8
9 10
9 10
11
Drop Pin
A-frame
OR
12 13
14 15
16 17
18 19
21 22
27
28
See Cutting Edge Page
11
Swivel A-frame
Cylinder Plumbing
20
23
24 25
26
15

10 3020310 Rev C
ITEM PART NO. QTY. DESCRIPTION
116322210 1 PUSH FRAME, 10' X 42" TRIP EDGE
16323210 1 PUSH FRAME, 11' X 42" TRIP EDGE
2
16312210 1MOLDBOARD,10' X 42",CARBON, TRIP EDGE
16313210 1MOLDBOARD,11' X 42",CARBON, TRIP EDGE
16312220 1 MOLDBOARD,10' X 42",STAINLESS,TRIP EDGE
16313220 1 MOLDBOARD,11' X 42",STAINLESS,TRIP EDGE
3
16312212 1 ANGLE WELDMENT, TRIP, 10' CARBON STEEL
16313212 1 ANGLE WELDMENT, TRIP, 11' CARBON STEEL
16312222 1 ANGLE WELDMENT, TRIP, 10' STAINLESS STEEL
16313222 1 ANGLE WELDMENT, TRIP, 11' STAINLESS STEEL
416350205 1 TUBE, 10' TRIP
16350210 1 TUBE, 11' TRIP
516350200 5SPRING, TORSION, TRIP EDGE
616350215 5DOG, RETENTION, TRIP SPRING
8-9 16350220 5 HARDWARE BAG, TRIP DOG
7 – 5 BOLT, TAP, 5/8-11 X 5-1/2", GR5, ZN
8 – 5 WASHER, 5/8", HARDENED, ZY
9 – 5 NUT, NYLOCK, 5/8-11, ZN
10-12 16350225 2 SHOE, TRIP EDGE W/ HDW
10 – 2 SHOE ONLY, TRIP EDGE
11 – 2 SCREW, HHC, 5/8-11 X 3, GR 8, ZN
12 – 2 NUT, NYLOCK, 5/8-11, ZN
13
16360420 1 CUTTING EDGE, 120" X 8" X 5/8", STD HWY
16360425 1 CUTTING EDGE, 132" X 8" X 5/8", STD HWY
16360430 1 CUTTING EDGE, 144" X 8" X 5/8", STD HWY
14-15 16350431 1 BOLT KIT, CUTTING EDGE, 5/8 X 2-1/2, 14 SETS
14 –14 CARRIAGE BOLT 5/8-11 X 2.5,GR.5 ZN
15 –14 NUT, NYLOCK, 5/8-11, ZN
16-17 16351010 8 TRIP PIN, W/ COTTER, 1-1/4 X 4, ZY
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
16 – 8 PIN,TRIP,1-1/4" X 4",ZINC YELLOW
17 – 8 PIN, COTTER, 5/16 X 2-1/2, ZINC
18 16350230 2BRACE, MOLDBOARD, TRIP EDGE
19-20 16351015 4 PIN KIT, SPRING BAR, W/ COTTER, 1 X 3, ZY
19 – 4 PIN,SPRING BAR,1" X 3",ZINC YELLOW
20 – 4 PIN, COTTER 1/4 X 2 ZN
21 16330200 1 A-FRAME, SWIVEL, 42" MUNI PLOWS
16330100 1 A-FRAME, DROP PIN, 42" MUNI PLOWS
22-23 16351005 1 KING PIN KIT, 2", W/ COTTER
22 – 1 PIN, KING, 2" X 6-3/4", ZY
23 – 1 PIN, COTTER, 5/16 X 3, ZINC
24 16101515 1 GREASE FITTING, 1/4 DRIVE SPECIAL
25 SEE CYL PAGE 2 CYLINDER
26-27 16351020 2 PIN KIT, CYLINDER, W/ COTTER, 1 X 3-1/2, ZY
26 – 2 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
27 – 2 PIN, COTTER 1/4 X 2 ZN
28-29 16351025 2 PIN KIT, CYLINDER, W/ COTTER, 1"X4-1/8", ZY
28 – 2 PIN,CYLINDER,1" X 4-1/8",ZINC YELLOW
29 – 2 PIN, COTTER 1/4 X 2 ZN
30 16352300 1 VALVE, CROSSOVER RELIEF, 1/2" SAE ORB
31-32 16335305 1HARDWARE BAG, CROSSOVER VALVE
31 – 2 SCREW, HHC 5/16-18 X 2-3/4 GR. 5 ZN
32 – 2 NUT, NYLOCK 5/16-18 ZN
33 16352305 2 FITTING,ADAPTOR,STR,1/2" JIC TO 1/2" SAE ORB
34 16352310 2 FITTING, TEE, SWIVEL NUT BRANCH, 1/2" JIC
35 16352315 4 FITTING,ADAPTOR,90 DEG, 1/2" JIC TO 1/2" ORB
36 16352320 4HOSE, CYLINDER
37 16350050 1 DECAL, MADE IN USA, SNOW DOGG MOLDBOARD
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
19 20 21
Drop Pin
A-frame
24
22 23
25
26 27
28 29
31 32
37
30
33 34 35
36
25
21
Swivel A-frame
Cylinder Plumbing
OR
42" Trip Edge Trip Edge Parts Diagram

11 3020310 Rev C
Drop Pin Hitch Assembly
ITEM PART NO. QTY. DESCRIPTION
116410100 1 FRAME WELDMENT, DROP PIN HITCH
216410005 1 LIFT ARM, OUTER, MUNI HITCH, 27-3/4"W
3-4 16351030 2 HITCH PIN, W/ COTTER, 1" X 5-1/2", ZY
3 – 2 PIN, LIFT ARM, 1" X 5-1/2", ZY
4 – 2 PIN, COTTER, 1/4 X 2, ZN
516410010 1 LIFT ARM, INNER, MUNI HITCH
616351035 2 HITCH PIN, W/ LYNCH PIN 1" X 4-1/2"
7 SEE CYL PAGE 1 CYLINDER
8-9 16351020 1 CYLINDER PIN, W/ COTTER, 1" X 3-1/2", ZN
8 – 1 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
9 – 1 PIN, COTTER, 1/4 X 2, ZN
10 16410105 1PIN, DROP
11 16410110 1 BAR, ACTUATOR, DROP PIN
12-13 16353015 2 HARDWARE BAG, DROP PIN RECIEVER
12 – 2 SCREW, HHC, 1/2-13 X 1-3/4, GR 5, ZN
13 – 2 NUT, 1/2-13 FLANGE, NYLOCK, ZN
13-14 16353020 1 CLEVIS PIN, W/ COTTER, 1/2" X 1-9/16", ZN
13 – 1 PIN, CLEVIS, 1/2 X 1-9/16, ZN
14 – 1 PIN, HAIR COTTER
15 N/A 1 PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES
16 16410015 1 DECAL, CAUTION, MUNI LIFT ARM
17 16410020 1 DECAL, SNOWDOGG HITCH
ITEM PART NO. QTY. DESCRIPTION
116410200 1 FRAME WELDMENT, PIN EAR
216410005 1 LIFT ARM, OUTER, MUNI HITCH, 27-3/4"W
3-4 16351030 2 HITCH PIN, W/ COTTER, 1" X 5-1/2", ZY
3 – 2 PIN, LIFT ARM, 1" X 5-1/2", ZY
4 – 2 PIN, COTTER, 1/4 X 2, ZN
516410010 1 LIFT ARM, INNER, MUNI HITCH
616351035 2 HITCH PIN, W/ LYNCH PIN 1" X 4-1/2"
7 SEE CYL PAGE 1 CYLINDER
8-9 16351020 1 CYLINDER PIN, W/ COTTER, 1" X 3-1/2", ZN
8 – 1 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
9 – 1 PIN, COTTER, 1/4 X 2, ZN
10 -11 16351010 2 TRIP PIN, W/ COTTER, 1-1/4 X 4, ZY
10 – 2 PIN,TRIP,1-1/4" X 4",ZINC YELLOW
11 – 2 PIN, COTTER, 5/16 X 2-1/2, ZINC
12 N/A 1 PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES
13 16410015 1 DECAL, CAUTION, MUNI LIFT ARM
14 16410020 1 DECAL, SNOWDOGG HITCH
Bill of Materials
Pin Ear Hitch Assembly
Bill of Materials

12 3020310 Rev C
Pin Ear Swivel Adapters
Quick Hitch Swivel Adapter
ITEM PART NO. QTY. DESCRIPTION
1-4 16500205 1 SWIVEL ADAPTOR, 21" PIN EAR HITCH W/ HDW
16500210 1 SWIVEL ADAPTOR, 30.5" PIN EAR HITCH W/ HDW
116410205 1 SWIVEL ADAPTOR, WELDMENT, 21" PIN EAR HITCH
16410210 1 SWIVEL ADAPTOR, WELDMENT, 30.5" PIN EAR HITCH
2-4 16351040 1 HARDWARE KIT, SWIVEL ADAPTORS
2 – 1 SCREW, HHC, 1.5"-6 X 4", GR8, ZY, W/HOLE
3 – 1 NUT, SLOTTED HEX, 1.5"-6, ZY
4 – 1 PIN, COTTER, 1/4" X 3", ZINC
Bill of Materials
Quick Hitch Assembly
ITEM PART NO. QTY. DESCRIPTION
116410300 1 FRAME WELDMENT, QUICK HITCH
216410007 1 LIFT ARM, OUTER, MUNI HITCH, 25"W
3-4 16351030 2 HITCH PIN, W/ COTTER, 1" X 5-1/2", ZY
3 – 2 PIN, LIFT ARM, 1" X 5-1/2", ZY
4 – 2 PIN, COTTER, 1/4 X 2, ZN
516410010 1 LIFT ARM, INNER, MUNI HITCH
616351035 2 HITCH PIN, W/ LYNCH PIN 1" X 4-1/2"
7 SEE CYL PAGE 1 CYLINDER
8-9 16351020 1 CYLINDER PIN, W/ COTTER, 1" X 3-1/2", ZN
8 – 1 PIN,CYLINDER,1" X 3-1/2",ZINC YELLOW
9 – 1 PIN, COTTER, 1/4 X 2, ZN
10 N/A 1 PLATE, SERIAL NUMBER, BUYERS MUNI HITCHES
11 16410015 1 DECAL, CAUTION, MUNI LIFT ARM
12 16410020 1 DECAL, SNOWDOGG HITCH
ITEM PART NO. QTY. DESCRIPTION
1-18 16500310 1 SWIVEL ADAPTOR, 30.5" QUICK HITCH W/ HDW
116410310 1 QUICK HITCH, MAIN WELDMENT, 30.5", NO HDW
216410315 1 ACTUATOR, DRIVER'S SIDE
316410320 1 ACTUATOR, PASSENGER'S SIDE
4-6 16353025 2 HARDWARE BAG, ACTUATOR MOUNT
4-- 2 SCREW, HEX CAP 5/8-11 X 2, GR8 ZY
5-- 4 WASHER, 5/8 SAE FLAT ZN
6-- 2 NUT, NYLOCK 5/8-11, ZN
7-10 16353030 2 CLEVIS KIT, INCLUDES CLEVIS PIN & COTTER
7-- 2 ADJ YOKE END,1/2-20 UNF,STD, ZN
8-- 2 CLEVIS PIN, 1/2" SAE, ZINC PLATED
9-- 2 COTTER PIN, 1/8 X 1, ZINC
10 16353035 2 ROD, THREADED, 1/2-20 X 9, ZN
11-14 16351045 2HARDWARE KIT, SPRING ROD
11 -- 6 NUT, HEX, 1/2-20, ZN
12 -- 4 WASHER, FLAT 1/2" SAE ZINC
13 -- 2 SPRING, COMPRESSION
14 -- 2 NUT, HEX, NYLOCK 1/2-20 ZINC
15-17 16351040 1 HARDWARE KIT, SWIVEL ADAPTORS
15 -- 1 SCREW, HHC, 1.5"-6 X 4", GR8, ZY, W/HOLE
16 -- 1 NUT, SLOTTED HEX, 1.5"-6, ZY
17 -- 1 PIN, COTTER, 1/4" X 3", ZINC
18 16351050 1 PIN KIT, SPRING LATCH, REPAIR
Bill of Materials
Bill of Materials
21.00
OR
30.50
1
2
3
4

13 3020310 Rev C
Hydraulic Cylinder Diagrams
Double Acting Cylinders - Style A
PART NO. DESCRIPTION BORE SEAL KIT
16352100 CYLINDER, 3"X10", DA,1-1/2" CHROME ROD 3" 16352105
16352200 CYLINDER, 4"X10", DA, 2" CHROME ROD 4" 16352205
NOTE: FOR USE ONLY ON 42" TALL PLOWS
Double Acting Cylinders - Style B
PART NO. DESCRIPTION BORE SEAL KIT
16352102 CYLINDER, 3"X10", DA,2" CHROME ROD 3" 16352107
16352202 CYLINDER, 4"X10", DA, 2" CHROME ROD 4" 16352207
NOTE: FOR USE ONLY ON 42" TALL PLOWS
Single Acting Cylinder
PART NO. DESCRIPTION BORE SEAL KIT
16352150 CYLINDER, 3"X10", SINGLE ACTING 3" 16352155
NOTE: FOR USE ONLY ON 36" TALL PLOWS

14 3020310 Rev C
Deflector and Carbide Edge
Trip Spring Assembly
ITEM PART NO. QTY. DESCRIPTION
1-7 16350100 1TRIP SPRING ASSEMBLY, 42" MUNI PLOW
16350102 1TRIP SPRING ASSEMBLY, 36" MUNI PLOW
116350105 1 SPRING BAR WELDMENT, UPPER, 42" PLOW
16350107 1 SPRING BAR WELDMENT, UPPER, 36" PLOW
216350110 1SPRING, COMPRESSION, MUNI
316350115 1 SPRING BAR WELDMENT, LOWER
416350120 2 BAR, STOP, SPRING BAR
5-7 16353010 1 HARDWARE BAG, TRIP SPRING, MUNI
5 – 1 SCREW, HEX CAP, 5/8-11 X 2.5, GR8, ZY
6 – 1 WASHER, LOCK, 5/8", ZN
7 – 1 NUT, HEX, 5/8-11, GR5, ZN
ITEM PART NO. 10' 11' 12' DESCRIPTION
1-5
16360200 1 - - DEFLECTOR KIT, 10FT, W/ CLAMP STRIP & HDW
16360205 - 1 - DEFLECTOR KIT, 11FT, W/ CLAMP STRIP & HDW
16360210 - - 1 DEFLECTOR KIT, 12FT, W/ CLAMP STRIP & HDW
1
16120264 1 - - STRIP, 10FT DEFLECTOR CLAMP
16360207 - 1 - STRIP, 11FT DEFLECTOR CLAMP
16360212 - - 1 STRIP, 12FT DEFLECTOR CLAMP
2-5
16360201 1 - - DEFLECTOR KIT, 10FT, W/ HARDWARE
16360206 - 1 - DEFLECTOR KIT, 11FT, W/ HARDWARE
16360211 - - 1 DEFLECTOR KIT, 12FT, W/ HARDWARE
2
– 1 - - SNOW DEFLECTOR, 10FT SNOW DOGG
– - 1 - SNOW DEFLECTOR, 11FT SNOW DOGG
– - - 1 SNOW DEFLECTOR, 12FT SNOW DOGG
3-5 16360215 1 1 1 HARDWARE BAG, MUNI SNOW DEFLECTORS
Bill of Materials
Bill of Materials
1
2
3
4
4
5
6
7
ITEM PART NO. 10' 11' 12' DESCRIPTION
3 – 12 12 12 SCREW, HEX CAP, 3/8-16 X 1-1/2, SST
4 – 12 12 12 WASHER, FLAT, 3/8, SST
5 – 12 12 12 NUT, NYLOCK, 3/8-16, ZN
6-10
16360450 1 - - CUTTING EDGE KIT, 10FT CARBIDE, W/ HDW
16360455 - 1 - CUTTING EDGE KIT, 11FT CARBIDE, W/ HDW
16360460 - - 1 CUTTING EDGE KIT, 12FT CARBIDE, W/ HDW
6 16360452 1 2 3 CUTTING EDGE, 48" CARBIDE
7 16360451 2 1 - CUTTING EDGE, 36" CARBIDE
8
16360453 1 - - CUTTING EDGE, 120 X 6 X 1/2, STD HWY
16360454 - 1 - CUTTING EDGE, 132 X 6 X 1/2, STD HWY
16360457 - - 1 CUTTING EDGE, 144 X 6 X 1/2, STD HWY
9-10 16360456 1 1 1 BOLT KIT, CUTTING EDGE, 5/8-11 X 3, 14 SETS
9 – 14 14 14 BOLT, CARRIAGE ,5/8-11 X 3-1/2", GR5, ZN
10 –14 14 14 NUT, NYLOCK, 5/8-11, ZN

15 3020310 Rev C
Curb Guards Markers
Chain Block Kit
Bill of Materials
Bill of Materials
6" Curb Guard
8" Curb Guard
Bill of Materials
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1-3 16360400 1 CURB GUARD, 8", SINGLE, W/ HARDWARE
1 – 1 GUARD, CURB, 8" UNIVERSAL
2 – 2 BOLT, CARRIAGE, 5/8-11 X 3, GR5, ZN
3 – 2 NUT, NYLOCK, 5/8-11, ZN ITEM PART NO. QTY. DESCRIPTION
1-4 16360380 1 CHAIN BLOCK KIT, W/ CHAIN & SHACKLES
1 16360381 1 BLOCK, CHAIN, FITS 7/16 & 1/2" CHAIN
2 16360383 1 CHAIN, 1/2", GRADE 43, 8FT LONG, ZY
316351037 1 HITCH PIN, W/ LYNCH PIN, 3/4" X 4-1/2"
4 16360384 3 SHACKLE, ANCHOR, 5/8", BOLT SYTLE, GALV
NOTE: RECOMMENDED FOR USE WITH NON-TELESCOPING HITCHES
ITEM PART NO. QTY. DESCRIPTION
1-4 16360100 1 MARKER KIT, MUNI PLOW, 36", ORANGE
16360110 1 MARKER KIT, MUNI PLOW, 28", ORANGE
1-- 2 MARKER, 36", ORANGE
-- 2 MARKER, 28", ORANGE
2 -- 4 SCREW,HEX CAP, 5/16-18 X 1.25, GR 5, ZN
3 -- 4 WASHER, FLAT, 5/16", ZN
4 -- 4 NUT, NYLOCK, 5/16-18, ZN
NOTE: 28" MARKERS RECOMMENDED FOR 36" TALL PLOWS
NOTE: 36" MARKERS RECOMMENDED FOR 42" TALL PLOWS
ITEM PART NO. QTY. DESCRIPTION
1-3 16360405 1 CURB GUARD, 6", SINGLE, W/ HARDWARE
1 – 1 GUARD, CURB, 6" UNIVERSAL
2 – 2 BOLT, CARRIAGE, 5/8-11 X 4, GR5, ZN
3 – 2 NUT, NYLOCK, 5/8-11, ZN
NOTE: RECOMMENDED FOR 6" TALL CARBIDE CUTTING EDGE KIT

16 3020310 Rev C
Running Gear Parts
Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1-14 16360300 1 RUNNING GEAR, 3", W/ MUSHROOM SHOE & HDW
16360310 1 RUNNING GEAR, 2-1/2", W/ MUSHROOM SHOE & HDW
1-3 16360311 1 HANDLE, CRANK, PLOW RUNNING GEAR,W/ HDW
1 -- 1 HANDLE WELDMENT, RUNNING GEAR
2 -- 1 SCREW, HEX CAP, 3/8-16 X 3.5, GR 5, ZN
3 -- 1 NUT, NYLOCK, 3/8-16, ZN
4-5 16360312 1 SCREW, PLOW JACK, 1.25", W/ NUT
16360322 1 SCREW, PLOW JACK, 1", W/ NUT
4-- 1 SCREW, ADJUSTMENT, 1.25"-5, ZY
-- 1 SCREW, ADJUSTMENT, 1"-5, ZY
5-- 1 NUT,1.25"-5, ACME THREAD, ZY
-- 1 NUT,1"-5, ACME THREAD, ZY
616360313 1 SHOE HOUSING, PLOW, 3" W/ GREASE FITTING
16360323 1 SHOE HOUSING, PLOW, 2-1/2" W/ GREASE FITTING
716360314 1 SHOE POST, PLOW, 2.5"
16360324 1 SHOE POST, PLOW, 2", W/ GUSSETS
8 16360315 1 SHOE, MUSHROOM, PLOW RUNNING GEAR
9-11 16360316 1 HARDWARE BAG, SHOE MOUNTING
9 -- 3 SCREW, SQ HEAD ,5/8-11 X 3
10 -- 3 WASHER, LOCK, 5/8", ZN
11 -- 3 NUT, HEX, 5/8-11, GR5, ZINC
12-14 16360317 1 HARDWARE BAG, RUNNING GEAR MOUNTING
12 -- 4 SCREW, HEX CAP, 3/4-10 X 2-1/4, GR 5, ZN
13 -- 8 WASHER, FLAT, 3/4", ZN
14 -- 4 NUT, NYLOCK, 3/4-10, ZY
NOTE: 3" RUNNING GEAR RECOMMENDED FOR 42" TALL PLOWS
NOTE: 2-1/2" RUNNING GEAR RECOMMENDED FOR 36" TALL PLOWS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Moldboard Shoes
Bill of Materials
Bill of Materials
6" Moldboard Shoe
8" Moldboard Shoe
ITEM PART NO. QTY. DESCRIPTION
1-3 16360350 1 SHOE KIT, 6" MOLDBOARD, CAST W/ HDW
1 – 1 SHOE, 6" MOLDBOARD, CAST
2 – 2 BOLT, CARRIAGE, 5/8-11 X 4, GR5, ZN
3 – 2 NUT, NYLOCK, 5/8-11, ZN
ITEM PART NO. QTY. DESCRIPTION
1-3 16360352 1 SHOE KIT, 8" MOLDBOARD, CAST W/ HDW
1 – 1 SHOE, 8" MOLDBOARD, CAST
2 – 2 BOLT, CARRIAGE, 5/8-11 X 3.5, GR5, ZN
3 – 2 NUT, NYLOCK, 5/8-11, ZN
