Important!! Test Before Installation.
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, READ THE FOLLOWING CAREFULLY BEFORE ATTEMPTING
TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT.
Strongly recommend to test the unit before installation for any defective
or damage during shipment.
1. Always disconnect, lock and tag power source before installing or
servicing product. Failure to disconnect power source can result in
re, shock or serious injury.
2. Installation work and electrical wiring must be done by qualied
person(s) in accordance with all applicable codes and standards,
including re-rated construction.
3. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
4. Verify and ensure the rated voltage and frequency (please refer to
the rating label) of the range hood is in compliance with the mains
supply.
PLEASE READ AND SAVE THESE INSTRUCTIONS
1. Please unpack the range hood and accessories carefully.
2. Remove the bafe lters, check any dent or damage inside and
outside.
3. If found any loosing parts, please remove them.
4. Place the range hood on a at stable surface, plug in 120V AC
power source. Press the power button and the speed buttons to
turn on.
5. Check if any unusual metal touching noise, check the speed
variation, and press the Light button to check the lights.
6. Verify all functions per Section RANGE HOOD OPERATIONS.
7. Refer to Section TROUBLESHOOTING if any malfunction was
found.
BV-RH801 USER MANUAL 2

Know Before Installation
BV-RH801 USER MANUAL
Research, plan and prepare the optional accessories and tools.

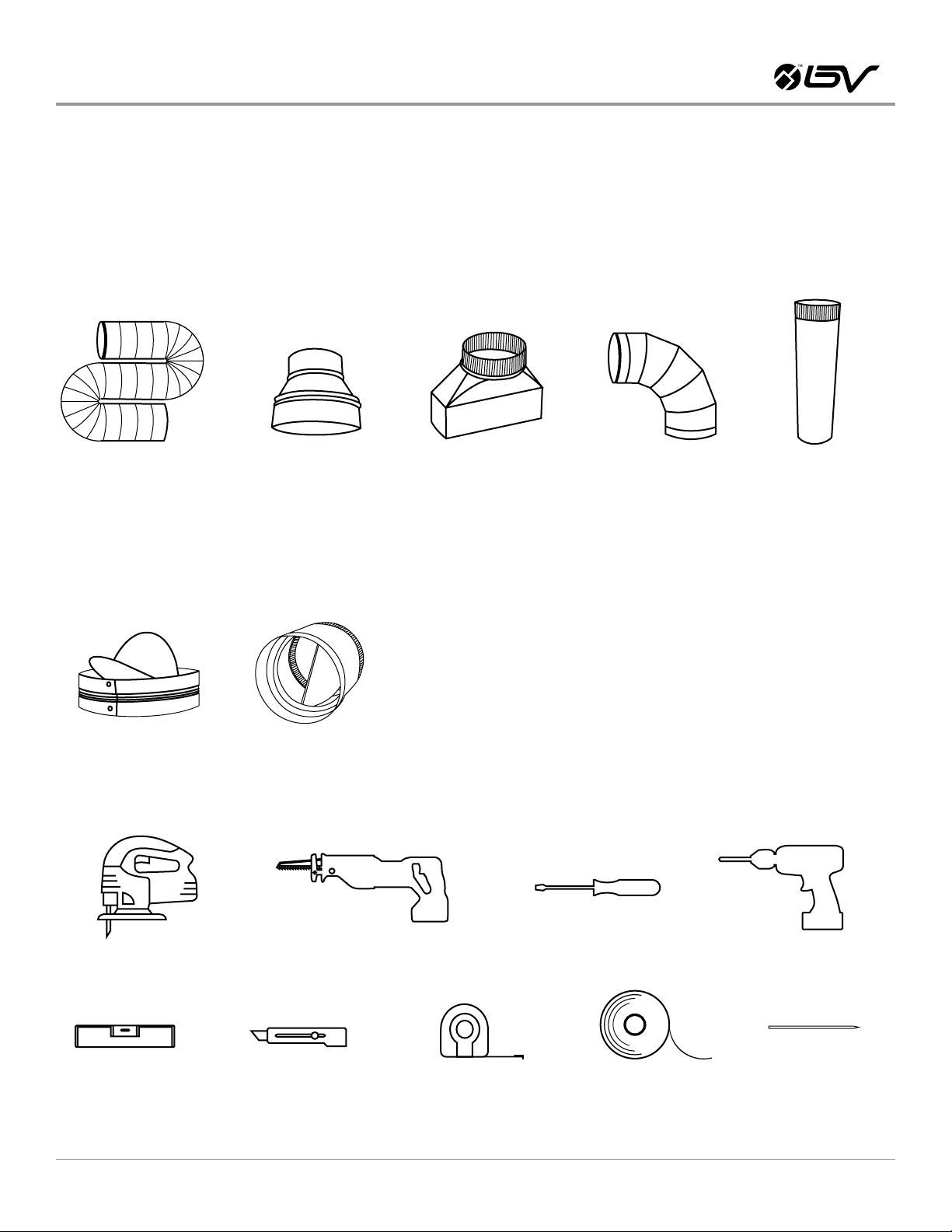

DUCT VENTING AND ACCESSORIES (NOT INCLUDED)
If for new installation or your old range hood doesn’t have exhaust duct, prepare to cut the openings through the bottom of the cabinet, wall,
or top cabinet to ceiling. And purchase the 6” metal duct (or 6” semi-rigid aluminum duct for easy connection). Refer to Section 5 VENTING
METHODS for detail.
Check the existing exhaust duct size. If not 6” round metal duct, try to get the converter / reducer / adapter / elbow as shown in the pictures.
DAMPER IS NOT INCLUDED.
Because the damper generates NOISE when the shutters are ipping, we DO NOT recommend installing the damper directly attached to the
top vent of the range hood. You can install the damper between ducts and close to the air outlet near roof or side wall. If the roof cap or side
wall cap already has a damper, don’t need to add the damper.
2 PEOPLE ARE REQUIRED FOR INSTALLATION
TOOLS NEEDED FOR INSTALLATION
Cutting tools (jig saw or reciprocating saw), screw drivers or power drill, level, utility knife, measuring tape, duct/foil tape, and pencil.
DAMPER
ELBOW
EXHAUST DUCT CONVERTERREDUCER ADAPTER
DAMPER
POWER DRILL
JIG SAW SCREW DRIVERSRECIPROCATING SAW
DUCT/FOIL TAPE
LEVEL MEASURING TAPEUTILITY KNIFE PENCIL
3

Important Safety Notice
BV-RH801 USER MANUAL
1. The installation in this manual is intended for qualied installers,
service technicians or persons with similar qualied background.
Installation and electrical wiring must be done by qualied profes-
sionals and in accordance with all applicable codes and standards,
including re-rated construction.
2. DO NOT attempt to install this appliance yourself. Injury could result
from installing the unit due to lack of appropriate electrical and
technical background.
3. Range hood may have very sharp edges; please wear protective
gloves if it is necessary to remove any parts for installing, cleaning
or servicing.
4. Before installation, turn on the range hood to test for any damage /
defect due to shipping.
5. Due to the size and weight of this range hood, two people installa-
tion is required.
INSTALLATION CAUTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1. For general ventilating use only. DO NOT use to exhaust hazardous
or explosive materials and vapors.
2. The combustion air ow needed for safe operation of fuel-burning
equipment may be affected by this unit’s operation. Follow the
heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association
(NFPA), and the American Society of Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
3. Before servicing or cleaning unit, unplug the power cord or switch
power OFF at service panel and lock service panel to pre-vent pow-
er from being switched ON accidentally.
4. Clean grease laden surfaces frequently. To reduce the risk of re
and to disperse air properly, make sure to vent air outdoors. DO
NOT vent exhaust into spaces between walls, crawl spaces, ceiling,
attics or garages.
5. Use only metal ductwork and this unit MUST be grounded.
6. Sufcient air is needed for proper combustion and exhausting of
gases through the duct to prevent back drafting.
7. When cutting or drilling into wall or ceiling, be careful not to dam-
age electrical wiring or other hidden utilities.
8. All electrical wiring must be properly installed, insulated and
grounded.
9. Old duct work should be cleaned or replaced if necessary to avoid
the possibility of a grease re.
10. Check all joints on duct work to insure proper connection and all
joints should be properly taped.
11. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the vendor
1. Keep all fan, bafe, spaces, lter, and grease-laden surfaces clean.
Grease should not be allowed to accumulate on fan, bafe, spaces,
and lter.
2. Always turn range hood ON when cooking at high heat or when
cooking aming foods.
3. Use high settings on cooking range only when necessary.
4. Never leave surface units (countertop/stove) unattended at high
settings. Boil overs cause smoking and greasy spillover that may
ignite. Heat oils slowly on low or medium settings.
5. Clean ventilating fan frequently.
6. Always use cookware appropriate for the size of the surface ele-
ment.
TO REDUCE THE RISK OF A STOVE TOP GREASE FIRE:
1. Extinguish any open ame.
2. DO NOT turn on the lights or any type of appliance.
3. Open all doors and windows to disperse the gas. If you still smell
gas, call the gas company and re department, or 911 immediately.
TO REDUCE THE INJURY IN THE EVENT OF A GAS LEAKS:
4

Important Safety Notice
BV-RH801 USER MANUAL
TO REDUCE THE RISK OF INJURY IN THE EVENT OF A STOVE TOP GREASE FIRE:
1. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal
tray, then turn OFF the burner. BECAREFUL TO PREVENT BURNS.
NEVER PICK UP A FLAMING PAN—you may be burned. KEEP FLAM-
MABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the
ames DO NOT go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT or 911.
2. DO NOT USE WATER, including wet dishcloths or towels — a violent
steam explosion will result.
3. Use an extinguisher ONLY if:
a. You know you have a Class A, B, C extinguisher, and you already
know how to operate it.
b. The re is small and contained in the area where it is started.
c. The re department is being called.
d. You can ght the re with your back to an exit.
Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others. All
safety messages will follow the safety alert symbol and the word “WARNING”.
WARNING
Included Parts and Accessories
Note: the supplied are subjected to change without notice due to product development.

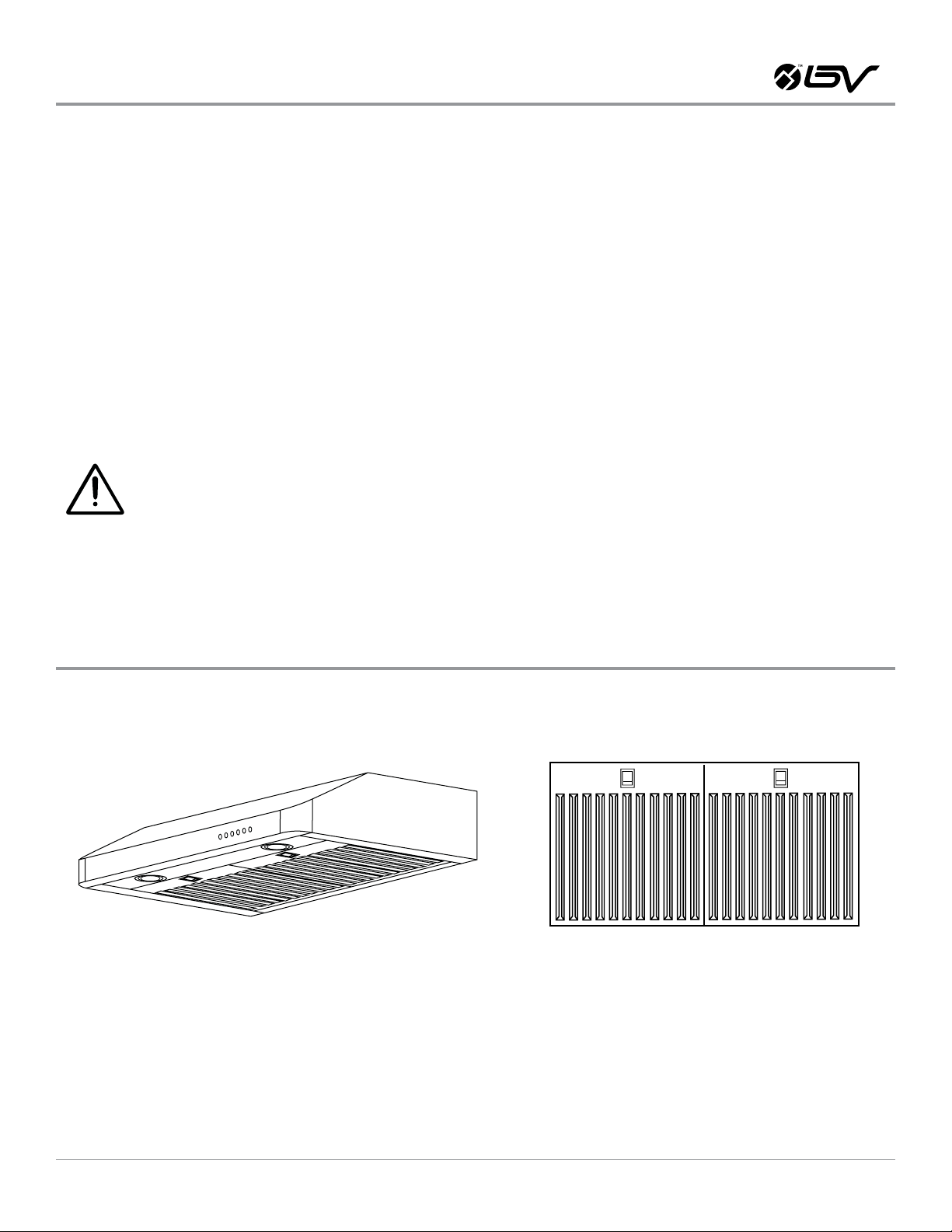

RANGE HOOD BAFFLE FILTERS
5

Venting Height Requirements
BV-RH801 USER MANUAL
Min 24” Max 32”
Recommended 27” to 30”
Cabinets
Range Hood
Stove Top
VENTING HEIGHT REQUIREMENTS
1. Vent system must terminate to the outside (roof or side wall).
2. DO NOT terminate the vent system in an attic or other enclosed
area.
3. DO NOT use 4” (10.2 cm) laundry-type wall caps.
4. Use metal/aluminum vent only. Rigid or exible metal / aluminum
vent duct is recommended.
5. DO NOT use plastic vent.
6. Always keep the duct clean to ensure proper airow.
7. Measure and estimate the following gures before installation:
a. Distance between the countertop/stove to the bottom of the range
hood. Recommend 27” to 30” for ideal performance, minimum 24”
(inches) for safety concern.
b. Height of hood and duct.
FOR THE MOST EFFICIENT & QUIET OPERATION:
1. A distance of 27” to 30” is recommended between stove top and
the bottom of range hood.
2. The vent duct isn’t included. It is recommended that the range hood
be vented vertically through the roof through 6” (15.24 cm) or big-
ger round metal/aluminum vent work, such as 6 in. x 8 ft. semi-rigid
aluminum exible duct.
3. The size of the vent should be uniform.
4. Use no more than three 90° elbows.
5. Make sure there is a minimum of 24” (61 cm) of straight vent be-
tween the elbows if more than one elbow is used.
6. DO NOT install two elbows together.
7. The length of vent system and number of elbows should be kept to
a minimum to pro-vide efcient performance.
8. The vent system should have a damper. The damper can be in-
stalled in the duct near to the roof or wall cap. Not recommend to
use damper on top of the range hood, because the damper has big
noise.
9. Use silver tape or duct tape to seal all joints in the vent system.
10. Use caulking silicone to seal exterior wall or roof opening around
the cap.
6

Venting Height Requirements
BV-RH801 USER MANUAL
IMPORTANT:
1. Please use Duct Run Calculation below to compute total available
duct run when using elbows, transitions and caps.
2. ALWAYS, when possible, reduce the number or transitions and
turns. If long duct run is required, increase duct size from 6” to
7”, 8” or 9”. If a reducer is used, install a long reducer instead
of a pancake reducer. Reducing duct size will restrict airow and
decrease airow, thus reduce duct size as far away from opening as
possible.
3. If turns or transitions are required: Install as far away from opening
and as far apart, between 2, as possible.
4. Minimum mount height between stove top to hood bottom should
be no less than 24-inch.
5. Maximum mount height between stove top to hood bottom should
be no higher than 32-inch.
6. It is important to install the hood at the proper mounting height.
Hoods mounted too low could result in heat damage and re
hazard; while hoods mounted too high will be hard to reach and will
reduce its performance and efciency.
7. If available, also refer to stove top manufacturer’s height clearance
requirements and recommended hood mounting height above
range.
CALCULATION VENT SYSTEM LENGTH
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system from the recommended maxi-
mum duct run.
RECOMMENDED MAxIMUM STRAIGHT DUCT RUN
6” or 3-1/4 x 10” duct
VENT PIECE DEDUCTION
Each 90° elbow used
Each 45° elbow used
Each 6” to 3/12 x 10” transition used
Side wall cap with damper
Each 90° elbow used
50 ft
9 ft
5 ft
7 ft
0 ft
0 ft
DUCT RUN CALCULATION
DUCT RUN CALCULATION ExAMPLE:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for the duct run.
MINIMUM DUCT SIZE:
1. Round - 6” minimum
2. Rectangular - 3-1/4 x 10” minimum (requires a 6” to 3-1/4x10” adaptor, not supplied)
7

Venting Methods
BV-RH801 USER MANUAL
VENTING METHODS
1. This range hood is 6” top venting through the roof or wall.
2. Vent work can terminate either through the roof or wall as shown
below.
3. A minimum of 6” round duct (purchase separately) or 3-1/4 x 10”
rectangular duct (purchase separately) must be used to maintain
maximum airow efciency.
4. Always use rigid or semi-rigid type metal/aluminum ducts if avail-
able to maximize airow.
5. Decide the location of the venting pipe from the hood to the out-
side.
6. A straight, short vent run will allow the hood to perform more
efciently. Try to avoid as many transitions, elbows, and long run as
possible. This may reduce the performance of the hood.
Roof Cap
Range Hood
Cabinet
Side Wall Cap
Stove Top
TOP VENTING ROOF ExHAUST TOP VENTING WALL ExHAUST
IMPORTANT:
1. NEVER exhaust air or terminate duct work into spaces between
walls, crawl spaces, ceiling, attics or garages. All exhaust must be
ducted to the outside.
2. Fasten all connections with sheet metal screws and tape all joints
with certied Silver Tape or Duct Tape.
3. Use caulking to seal exterior wall or roof opening around the cap.
8

Electrical Requirements and Specications
BV-RH801 USER MANUAL
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
1. It is the customer’s responsibility to contact a qualied electrical
installer.
2. A 120 Volt, 60 Hz, AC only, fused electrical supply is required on a
15-amp circuit.
3. DO NOT have a fuse in the neutral or ground circuit.
4. The 3-prong outlet should be grounded. If the power cord plug is not
used, the power cord’s green wire should be connected to ground.
Check with a qualied electrician if you are not sure that the range
hood is properly grounded.
5. DO NOT ground to a gas pipe.
6. The range hood must be connected with copper wire/plug only.
7. The range hood should be connected directly to the fused discon-
nect (or circuit breaker) box through exible armored or non-metal-
lic sheathed copper cable. ETL listed strain relief must be provided
at each end of the power supply cable.
WARNING
Hazard of electrical shock!
Body Design
Power Rating
General Input Power
Motor Input Power
Ampere
Levels Of Speed Control
Airow (Q/L/M/H)
Noise Level (Q/L/M/H)
Number Of Motors
Motor Type
Fan Type
Control Type
Filtration Type
Illumination
Venting Size
Interference Protection
Seamless Stainless Steel, Satin Finish
120V / 60Hz (USA & Canada standard)
156W (150W + 2x3W)
Max: 150W (75W + 75W), Min: 110W (55W + 55W)
2 A
4 Levels
385CFM / 490CFM / 615CFM / 900CFM
1.5Sone(46dB) / 3.5Sone(58dB) / 5.3Sone(64dB) / 7.5Sone(69dB)
2 Motors
Single Chamber Ultra Quiet
Centrifugal Blower
Soft Touch Electronic Control Panel with LED Light
Stainless Steel Bafe Filter
3W 12V Maximum
Top, 6 inches Round
Radio Frequency Interference Protected
SPECIFICATIONS
9
Do not perform service on electrically live system.
Disconnect the main electrical supply before
servicing this device. Touching electrical connectors
or other exposed electrical circuitry inside this range
hodd when they are energized could result in death,
serious bodily injury, or propety damage

Installation Preparation
BV-RH801 USER MANUAL
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
CAUTION: If moving the cooking range is necessary to install the hood, unplug the power on an electric range. SHUT OFF THE GAS VALVE
BEFORE MOVING A GAS RANGE.
1. Please unpack the range hood and accessories carefully.
2. Remove the bafe lters.
3. Check for any dent or damage inside and outside. If found any
loosing parts, please remove them.
4. Place the range hood on a at stable surface. Connect the range
hood to a designated standard outlet (120-Volt, 60Hz, AC only).
Press the power button and the speed buttons to turn on.
5. Check if any unusual metal touching noise, check the speed
variation, and press the Light button to check the lights. Verify all
functions by referring to Section RANGE HOOD OPERATIONS. Refer
to Section TROUBLESHOOTING if any malfunction was found.
6. Place all supplied parts and required hardware on a at stable sur-
face and verify the existence of all supplied parts listed on Section
INCLUDED PARTS AND ACCESSORIES.
7. Carefully remove the white plastic protective lm from the range
hood if any. The white protective lm might not cover all stainless
steel area; it was removed prior for welding or packing.
STEPS TO FOLLOW
10

Installation Instructions
BV-RH801 USER MANUAL
1. Installation planning
a. Measure the distance between stove top and the bottom of
range hood. A distance of 27” to 30” is recommended.
b. Minimum 24” is required for safety concern.
c. Decide the venting method and the location of the venting
pipe from the hood to the outside.
d. Purchase any necessary accessories from a hardware store,
such as duct, elbow, reducer, damper, duct tape, screws, etc.
e. Find and mark the stud locations using a stud nder to plan
the mounting locations rmly.
2. Measure the top vent and the power cord positions, cut the
openings (slightly larger for easy accessible) for hood exhaust and
power cord under the cabinet.
3. For installing under the cabinet with recessed bottom, attach
4-inch wide wood ller strips (not provided) on each side.
4. Puncture the power cord’s knockout hole and through the power
cord from inside of the range hood to outside.
5. Puncture the knockout screw holes on the top for screw mounting
under the cabinet.
6. Mount this range hood under the cabinet, 2 people are required
for this installation.
a. Draw power cord through cabinet access opening and center
the hood beneath the cabinet.
b. From inside of the hood, place screws into the exact center
of each knockout hole and secure to cabinet bottom. Finish
tightening all screws until secure.
c. CAUTION: Make sure the range hood is secure before
releasing!
d. For safety purpose, mount the screws through the pre-drilled
mounting holes or/and drill new holes from inside the back of
the hood to the studs or lumbers. For a more secure installa-
tion, use as many mounting holes as needed to secure from
the inside of hood.
7. Use 6” round metal duct (or semi-rigid aluminum duct, follow
building codes in your area) to connect the exhaust on the hood
to the duct-work above. Use foil tape or duct tape to make all
joints secure and air tight.
8. Connect the range hood to a designated grounded standard out-
let.
a Or cut off the plug and connect three wires (black, white and
green) to house wires and cap with wire connectors. Connect
according to colors (i.e. black to black, white to white, and
green to green). Store excess wires in the wiring box.
9. Install bafe lters and stainless spacer if any.
10. Turn power ON in control panel. Check all lights and fan opera-
tions.
4”WIDE 4”WIDE
WALL
BAFFLE FILTERS AND STAINLESS STEEL SPACERS
30” Range Hood
36” Range Hood
11

Range Hood Operations
BV-RH801 USER MANUAL
CONTROL PANEL LAYOUT AND BUTTONS CONFIGURATIONS:
LIGHT CONTROL:
a. Press Light Control button once to turn on the lights, and once
again to turn off the lights.
b. The Light Control button operates independently from the Power
Control (On/Off) button. Pressing the
c. Power Control button will not turn LED lights ON or OFF.
d. Please turn off the LED lights before activating the power-off delay
function. While Light Control button will NOT be affected by the
power-off delay function.
TURNING FAN ON:
a. Always turn fans ON couple minutes before cooking to establish
air ow and allow fans to run for a few minutes after cooking for
cleaner air in the kitchen.
The Power Control (On/Off) button must be pressed before a Speed
Control button can be activated.
BLOWER SPEED SELECTION:
a. With the range hood is OFF, press the Power Control (On/Off) but-
ton once. The LED on the Power Control button will be illuminated.
b. While the Power Control LED is illuminated, press one of the four
speed control button (Quiet, Low, Medium, and High) to activate
the desired speed (the LED on the speed control button will turn
on).
c. To change the fan speed, press another speed control button. The
LED on the speed control button will become illuminated accord-
ingly.
POWER-OFF DELAY FUNCTION:
a. When the fans are operating in any speed, press the Power
Control (On/Off) once to turn on the 3-minute power-off delay
function.
b. While the fans are in 3-minute power-off delay mode, press the
Power Control (On/Off) button once to turn OFF the fans immedi-
ately.
POWER CONTROL (ON/OFF):
a. When the fans are operating in any speed, press the Power Con-
trol (On/Off) button twice to turn OFF the fans immediately.
OPERATION CAUTIONS:
a. Read and understand all instructions and warnings in this manual
before operating the appliance.
b. Always leave safety grills and lters in place. Without these
components, operating blowers could catch on to hair, ngers and
loose clothing.
c. NEVER dispose cigarette ashes, ignitable substances, or any
foreign objects into blowers.
d. NEVER leave cooking unattended. When frying, oil in the pan
can easily overheat and catch re. The risk of self-combustion is
higher when the oil has been used several times.
e. NEVER cook on “open” ames under the range hood. Check
deep-fryers during use: Superheated oil may be ammable.
12

Troubleshooting
BV-RH801 USER MANUAL
If the range hood or LED light does
not operate after installation
1. Check if the range hood has been plugged in, make sure that all power has been
turned back ON, fused not blown and all electrical wiring are properly connected.
2. Swap out light assembly to working ones to deter-mine whether it is caused by
defective bulbs. See Replacing the Light Bulbs on Page 14.
The range hood vibrates when the
blower is on 1. The range hood might not have been secured properly on to the cabinet or wall.
The blower or fan seems weak
1. Check that the duct sized used is at least 6” or 3-1/4 x 10”. Range hood WILL
NOT function efciently with insufcient duct size. For example: 7” duct over 6”
top vent and loosely secured.
2. Check if duct is clogged or if damper unit (half-circular apper) is not installed
correctly or opening properly. A tight mesh on a side wall cap unit might also
cause restriction to the air ow.
The lights work but the blower is
not spinning at all, is stuck or is rattling.
1. The blower might be jammed or scraping the bottom due to shipping damage.
2. Disconnect the power cord, remove the fan grill and the fan blade, might see the
fan blade or/and motor is not in the proper position (offset from the center). Try
to x/adjust it or please contact us immediately.
1. Make sure the distance between the stove top and the bottom of the hood is
within recommended 27” and 30” in distance. *Due to different ceiling height
congurations, recommended height may not be applicable.
2. Reduce the number of elbows and length of duct work. Check if all joints are
properly connected, sealed, and taped.
3. Make sure the power is on high speed for heavy cooking.
The hood is not venting out properly.
13
WARNING
Hazard of electrical shock!
Do not perform service on electrically live system.
Disconnect the main electrical supply before
servicing this device. Touching electrical connectors
or other exposed electrical circuitry inside this range
hodd when they are energized could result in death,
serious bodily injury, or propety damage

Maintenance and Cleaning
BV-RH801 USER MANUAL
CLEANING:
1. The saturation of greasy residue in the blower and lters may
cause increased inammability. Keep unit clean and free of
grease and residue build-up at all times to prevent possible res.
2. For optimal operation, clean range hood and all bafe/spacer/
lter regularly. Regular care will help preserve the appearance of
the range hood.
3. Filters must be cleaned periodically and free from accumulation of
cooking residue. Old and worn lters must be replaced immedi-
ately.
4. DO NOT operate blowers when lters are removed. Never disas-
semble parts to clean without proper instructions.
5. Disassembly is recommended to be performed by qualied per-
sonnel only. Read and understand all instructions and warnings
in this manual before proceeding.
SAFETY WARNING: Never put your hand into area housing the fan
while the fan is operating!
CLEANING ExTERIOR STAINLESS STEEL SURFACES:
1. Clean periodically with hot soapy water and clean cotton cloth.
DO NOT use corrosive or abrasive detergent, or steel wool/scoring
pads, which will scratch and damage the stainless steel surface.
For heavier soil use liquid degrease cleaner.
2. If hood looks splotchy, use a stainless steel cleaner to clean the
surface of the hood. Avoid getting cleaning solution onto or into
the control panel. Follow directions of the stainless steel cleaner.
3. CAUTION: DO NOT leave on too long as this may cause damage
to hood nish. Use soft towel to wipe off thecleaning solution,
gently rub off any stubborn spots. Use dry soft towel to dry the
hood.
4. After cleaning, you may use nonabrasive stainless steel polish, to
polish and buff out the stainless luster and grain.
5. Always scrub lightly, with clean cotton cloth, and with the grain.
6. DO NOT allow deposits to accumulate or remain on the hood.
7. DO NOT use ordinary steel wool or steel brushes. Small bits of
steel may adhere to the surface and cause rusting.
8. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning
compounds to remain in contact with stainless steel for extended
periods. Many of these compounds contain chemicals, which may
be harmful. Rinse with water after exposure and wipe dry with a
clean cloth.
CLEANING STAINLESS STEEL BAFFLE FILTERS:
1. Remove all bafes, spacers, lters, discard oil and residue.
2. IMPORTANT: Drain oil from bafes, spacers, and lters before oil
and residue overow!
3. Wash with warm soapy water. NOTE: Stainless steel bafes and
spacers are top rack dishwasher safe.
4. Dry thoroughly before replacing and follow directions for installa-
tion in reverse.
5. Filters should be cleaned after every 30 hours of use.
REPLACING FILTERS:
1. Should lters wear out due to age and prolonged use, replace the
bafe lters immediately.

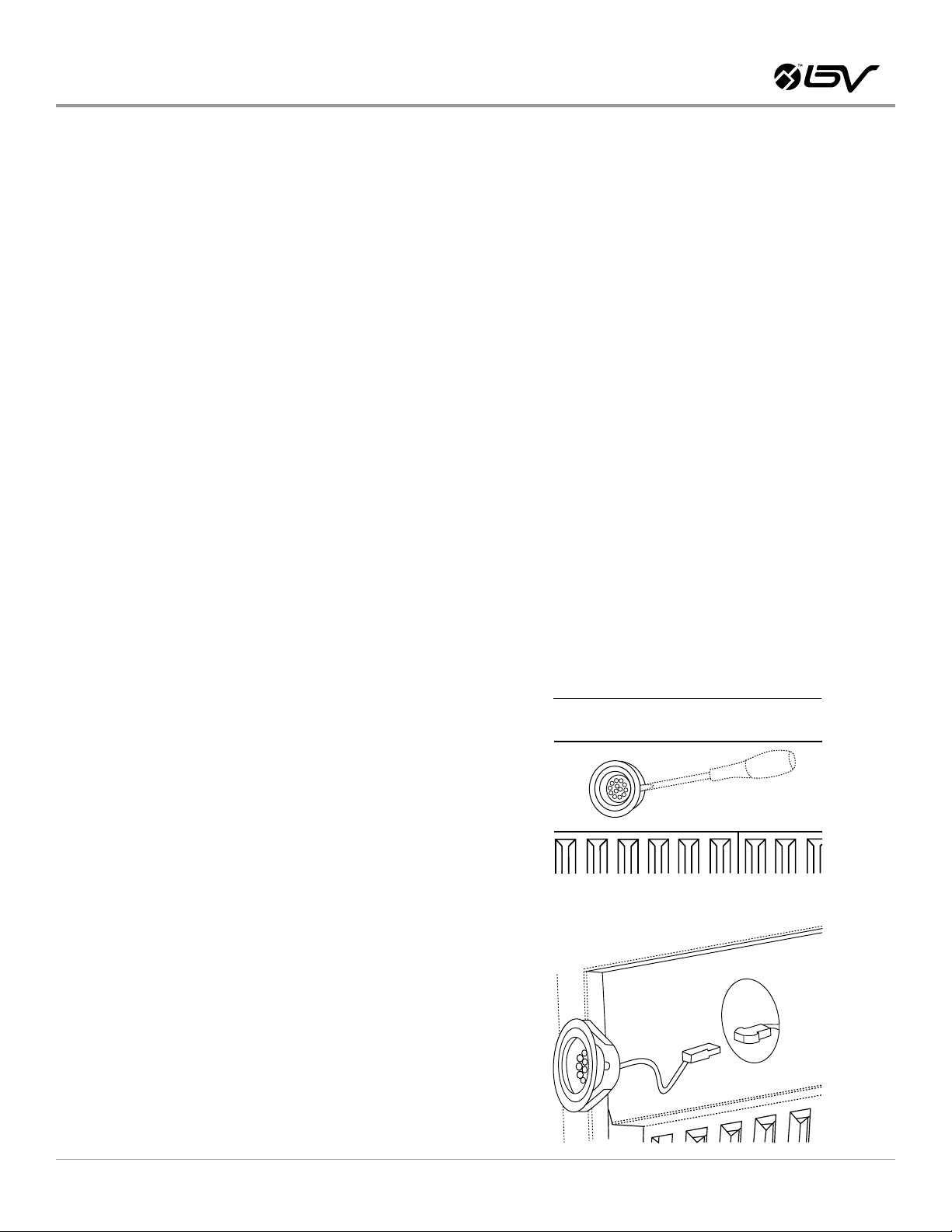

REPLACING THE LIGHT BULBS:
This range hood uses LED bulbs: 3W 12V.
Make sure the range hood is unplugged or turn OFF breaker.
1. Gently pull the defective bulb assembly straight out from the
edge, and then disconnect the wires.
2. Connect the new LED bulb’s wires and snap the new LED assem-
bly into the housing hole.
3. Turn ON breaker/power and to test the range hood for operation.
14

Warranty
BV-RH801 USER MANUAL
Please provide an original dated proof of purchase (sales receipt /
invoice) in order to obtain warranty.
ONE YEAR PARTS WARRANTY:
1. For one year from the date of original purchase, we will provide
free of charge, non-consumable replacement parts or compo-
nents that failed due to manufacturing defects. Subject to the
conditions and limitations set forth below, we will, at its option, ei-
ther repair or replace any part of its products that prove defective
by reason of improper workmanship or materials.
2. Repaired parts or replacement products will be provided by us
on an exchange basis, and will be either new or refurbished to be
functionally equivalent to new.
3. The consumer is responsible for all shipping costs.
4. Consumable parts not covered by this warranty include but not
limited to: light bulbs, stainless steel bafe lters.
WHO IS COVERED?
1. This warranty is extended to the original purchaser for products
purchased for ordinary home use in the continental USA.
THIS WARRANTY WILL BE VOIDED WHEN:
1. Product damaged through negligence, improper installation,
accident, abuse, misuse, natural disaster, insufcient or exces-
sive electrical supply, abnormal mechanical or environmental
conditions, or any unauthorized repair, disassembly, modication,
or failure to follow installation instructions.
2. When product is used commercially or other than its intended
purpose.
3. Damaged because of improper connection with equipment of
other manufacturers. Repaired or modied by anyone other than
our authorized agents.
4. This limited warranty also does not apply to any product on which
the original identication information has been altered, obliterat-
ed or removed, has not been handled or packaged correctly, has
been sold as second-hand.
WHAT IS NOT COVERED?
1. Consumable parts such as light bulbs, stainless steel bafe
lters. The natural wear of nish, and wear due to improper main-
tenance, use of corrosive and abrasive cleaning products, pads,
and oven cleaner products.
2. Chips, dents or cracks due to abuse, misuse, freight damage, or
improper installation.
3. Damage of product caused by accident, re, oods or act of God.
It is not liable for, and does not cover under warranty, any loss of
properties or any costs associated with removing, servicing, in-
stalling, or determining the source of problems with our products.
This warranty is valid in the United States. It is non-transferable and applies only to the original purchaser and does not extend to subsequent
owners of this product. Any applicable implied warranties, including the warranty of merchantability, are limited in duration to a period of
express warranty as provided herein beginning with the date of original purchase at retail and, no warranties, whether express or implied, shall
apply to this product thereafter.
To obtain warranty service, you may contact us, its dealer or distributor from which you purchased the product. Please conrm the terms of your
dealer’s or distributor’s policies prior to contacting. Typically, you must include product identication information, including model number and
lot number with a detailed description of the problem you are experiencing. You must also include proof of the date of original retail purchase
as evidence that the product is within the applicable warranty period.
15
